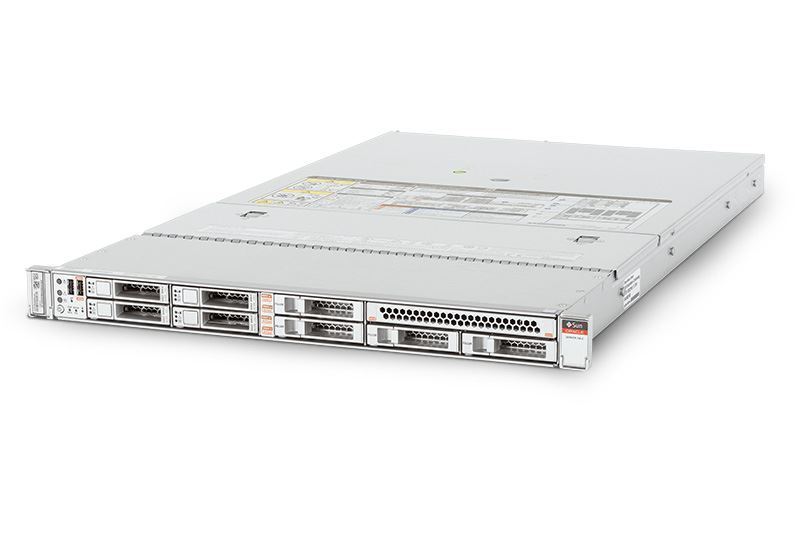

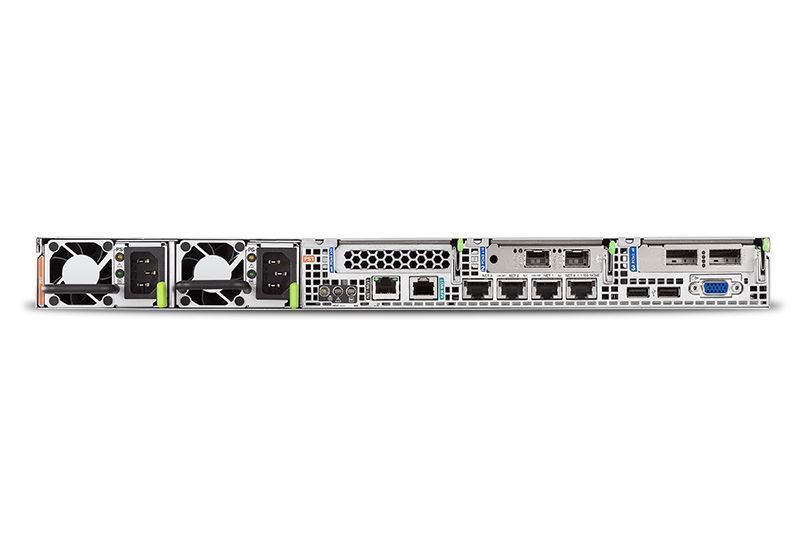

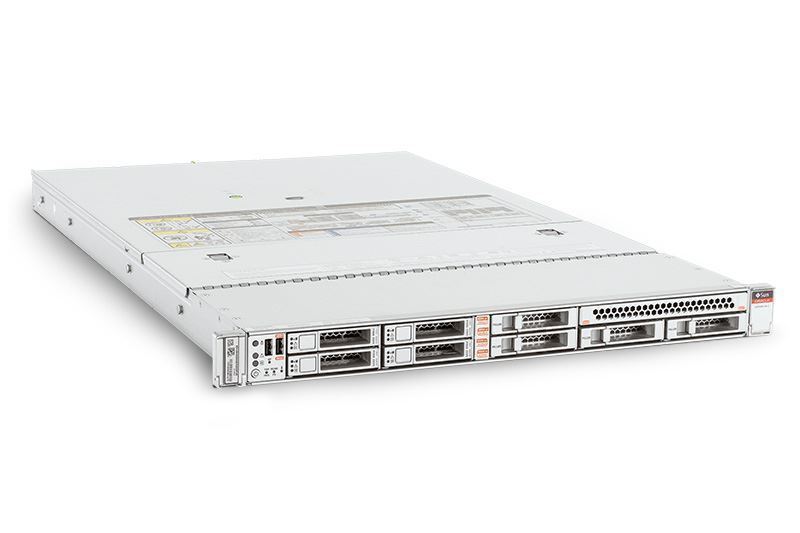

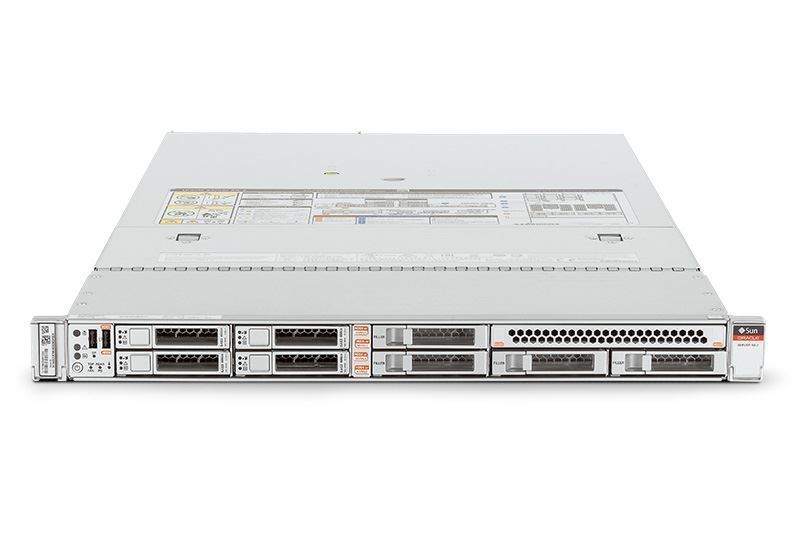

Oracle Server X6-2 E5-2690 v4

  • (1) Intel Xeon E5-2690 v4 14-core 2.6 GHz processor (for factory installation)
  • One 16 GB DDR4-2400 registered DIMM (for factory installation)
  • Hard Drive : None (2.5")
  • 12 Gbps RAID HBA supporting levels: 0, 1, 5, 6, 10, 50, 60
  • Four onboard auto-sensing 100/1000/10000M Base-T Ethernet ports
  • Eight 2.5-inch front hot-swappable disk bays and optional DVD-/+RW drive
  • DVD-RW drive (for factory installation)
  • Platinum Plus rated, 600W 100-240 VAC (1/2)
  • Rack (1U), Tool-less rack mounting slide rail kit
  • Warranty : Oracle Server X6-2 comes with a one-year warranty
Nhà sản xuất: Oracle’s
Gọi để biết giá


Oracle Server X6-2

Processor Model:

Intel® Xeon® Processor E5-2600 v4 Series

Max Processors:


Max Cores Per System:


Max Threads Per System:


Storage Controller:

Internal 12 Gb SAS RAID HBA

Built-In Security:

TPM, FIPS 140-2 Compliant mode, Encrypted Storage Redirection

Max System Memory:

12 or 24 DIMMs, up to 384 GB or 768 GB

Reliability, Availability & Serviceability (RAS):

Hot-swappable disk drives, redundant and hot-swappable power supplies and fans


Complete individual server management tools are included at no additional charge. Premier Support for Systems includes access to My Oracle Support and Oracle Enterprise Manager Ops Center multi server management.

Maximum Number of Disk Drives:


Largest Available Drive Size:

1.2 TB

Maximum Drive Spindle Speed:

10,000 rpm

Drive Protocol:


Physical Size:


Maximum Number of Solid State Drives:


Largest Available Solid State Drive Size:

400 GB

Maximum Number of NVM Express Drives:

4 (zero supported in single-CPU configs)

Largest Available NVM Express Drive Size:

3.2 TB



LAN on Mother Board:

Four onboard 10GBase-T ports (only two active for single-cpu configs)

USB Ports:


Serial Ports:


Video Ports:


Fibre Optic Ports:

None on Motherboard

PCIe Slots:

Up to three PCIe 3.0 (only two active for single-cpu configs) and one internal slot for SAS/RAID HBA

Total Slots:


Power/ Cooling:

Redundant and hot-swappable

Power Supply Type:

Platinum Plus rated, 600W 100-240 VAC

Form Factor:

Rack Server

Rack Units:


Operating System/Software:

Windows, Oracle Linux, Solaris, and Oracle VM


Thuộc tính sản phẩm
Hard Drive 2.5-inch
