Processor
One 2nd or 3rd Generation AMD EPYCTM Processor with up to 64 cores
Operating System
(Dell Technologies recommends Windows 11 Pro for business)
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Memoryi
DIMM Speed
Up to 3200MT/s
Memory Type
RDIMM
LDIMM
Memory Module Slots
16 DDR4 RDIMM/LRDIMM slots
Maximum RAM
RDIMM 1TB
LRDIMM 2TB
Storage
Front Bays
Up to 4 x 3.5" hot plug SAS/SATA (HDD)
Up to 10 x 2.5" hot plug SAS/SATA/NVMe
Up to 8 x 2.5" hot plug SAS/SATA
Storage Controllers
Internal Controllers
PERC HBA330, H330, H730P, H740P
External Controllers (RAID)
H840, 12Gbps SAS HBA
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SATA SSDs
Internal Dual SD Module
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 1.2/2.0, TCM 2.0 optional
AMD Secure Memory Encryption (SME)
AMD Secure Encrypted Virtualization (SEV)
Management
Embedded / At-the-Server
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Enterprise Power Manager
Mobility
OpenManage Mobile
Tools
Dell RACADM CLI
Dell Repository Manager
Dell System Update
Dell Server Update Utility
Dell Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter™
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies
550W Platinum
Ports
Network Options
2 x 1GbE
2 x 10GbE BT
2 x 10GbE SFP+
2 x 25GbE SFP28
Front Ports
1 x Dedicated iDRAC direct micro-USB
1 x USB 2.0
1 x Video

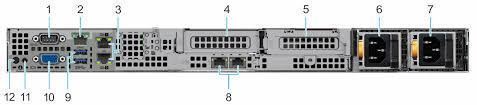

Rear Ports
2 x 1GbE
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video
Slots
PCIe
Up to 2:
1 x Gen3 slot (1 x16)
1 x Gen4 slot (1 x16)
Bezel
Optional LCD bezel or security bezel
Form Factor
1U Rack Server
Dimensions & Weight
Height
42.8mm (1.68")
Width
434.0mm (17.09")
Depth
657.25mm (25.88")
Weight
16.75 kg (36.93lb)
Rack Support
ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
