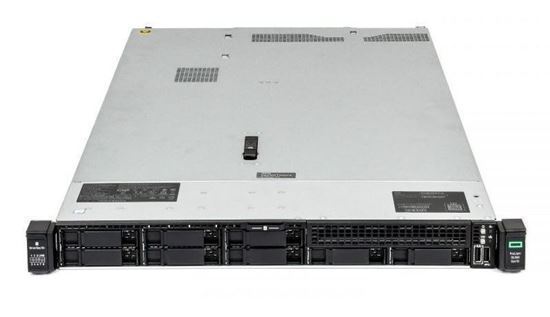

HPE ProLiant DL360 Gen10 Server

Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise.

The HPE ProLiant DL360 Gen10 Server supports the Intel® Xeon® Scalable Processor Family with up to 28 cores, plus 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB max. With the added performance that HPE Persistent Memory and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE OneView and HPE iLO 5.

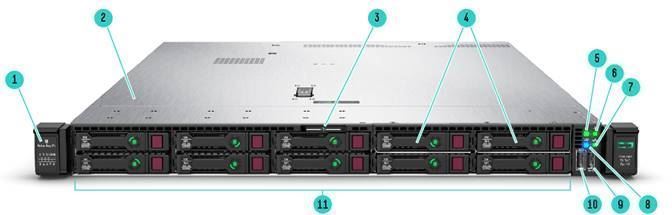

8 SFF Front View – 8 SFF + 2 SFF- Universal Media Bay option shown

1.

Drive support label

5.

Power On/Standby button and system power LED

2.

Quick removal access panel

6.

Health LED

3.

Serial no. label pull tab

7.

NIC status LED

4.

Universal Media Bay: +2 SFF SAS/SATA shown

Option: +2 SFF NVMe drives

Option: DVD-RW or DVD-ROM + Display port & USB 2.0 port Kit

Option: +2 Dual uFF (4x M.2 cartridges)

Option: Display port + USB 2.0 port Kit + Blank

8.

UID button/LED

9.

USB 3.0 port

10.

iLO Service Port

11.

Standard 8 SAS/SATA drive bays

NOTE: Rear drive option allows for an additional + 1 SFF or +1 Dual uFF (2x M.2 cartridges).

NOTE: System Insight Display (SID) module will include #5-9 above (will not include #10 - iLO Service Port).

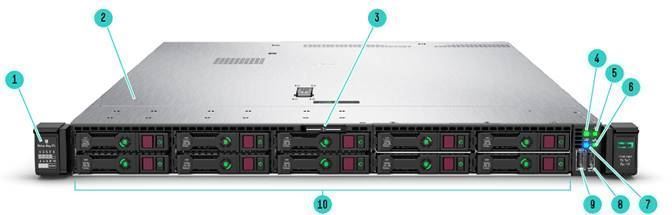

Premium 10SFF NVMe Front View

1.

Drive support label

6.

NIC status LED

2.

Quick removal access panel

7.

UID button/LED

3.

Serial no. label pull tab

8.

USB 3.0 port

4.

Power On/Standby button and system power LED

9.

iLO Service Port

5.

Health LED

10.

Max up to 10 NVMe drives (PCIe direct attached) or 8 SAS/SATA/NVMe + 2 NVMe

NOTE: Rear drive option allows for an additional + 1 SFF or +1 Dual uFF (2x M.2 cartridges).

NOTE: System Insight Display (SID) module will include #4-8 above (will not include #9 - iLO Service Port).

NOTE: Does not support the Xeon Gold-6250 processor.

4 LFF Front View – Standard 4 LFF shown

1.

Drive support label

8.

USB 3.0 Port

2.

Quick removal access panel

9.

UID button/LED

3.

Option: DVD-RW or DVD-ROM (blank shown)

10.

Power On/Standby button and system power LED

4.

Serial no. label pull tab

11.

Health LED

5.

Option: Display port & USB 2.0 port Kit (blank shown)

12.

NIC status LED

6.

Option: System insight Display (SID) - standard shown⁶

13.

SAS/SATA drive bays

7.

iLO Service Port

NOTE: ⁶ This option will lose #7 iLO Service Port.

NOTE: Rear drive option allows for additional + 1 SFF or +1 Dual uFF (2x M.2 cartridges), will lose one FH PCIe slot.

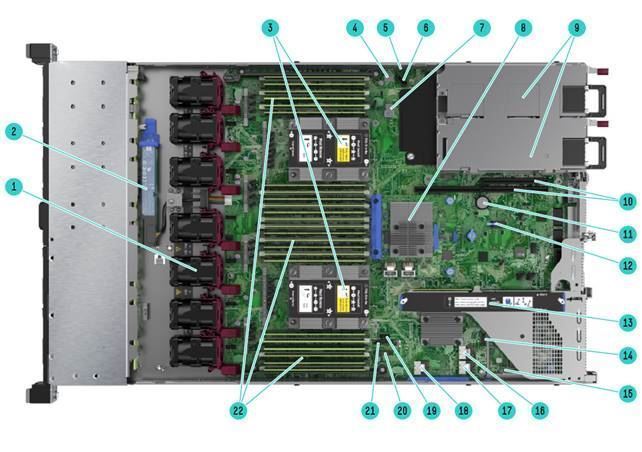

Internal View - Standard for all DL360 Gen10

1.

For 8 SFF or 4 LFF - Standard single rotor hot plug fans¹

1 CPU – 5 standard fans

2 CPUs – 7 standard fans

Option: High Performance fans

13.

Primary (CPU1) PCIe 3.0 riser (Standard: GPU power connector + 1x 16 and 1x 8)

Option: 2 SATA M.2 + 2x 16

Option: (8 SFF only): 2x 4 NVMe + 1x 16 and 1x 8

2.

Option: HPE Smart Hybrid Capacitor or HPE Smart Storage Battery

14.

Option: Front Display port / USB 2.0

3.

Up to 2 processors (shown with standard heat sinks)

15.

FlexibleLOM (supports various NICs up to 25GbE)

4.

MicroSD card slot

16.

x4 SATA port 1

5.

Option: Chassis Intrusion Detection

17.

x4 SATA port 2

6.

Hard Drive backplane power connector

18.

x2 SATA port 3

7.

Dual internal USB 3.0 connector

19.

x1 SATA port 4

8.

Smart Array Controller (Type -a shown)

20.

Front Power USB 3.0 connector

9.

Up to 2 Power Supplies for redundant power

21.

Optical/SATA port 5

10.

Secondary (CPU2) PCIe 3.0 riser

Option: Full Height x16 (Lose slot 2 on Primary riser)¹⁰

22.

DDR4 DIMM slots (Fully populated 24 DIMMs shown)

11.

System Battery

12.

Optional: TPM 2.0

NOTE: ¹ For 10 NVMe chassis - 7 High Performance fans

NOTE: ¹⁰ For 10 NVMe chassis – Secondary Riser is not available due to 10 x4 NVMe riser for PCIe direct attached

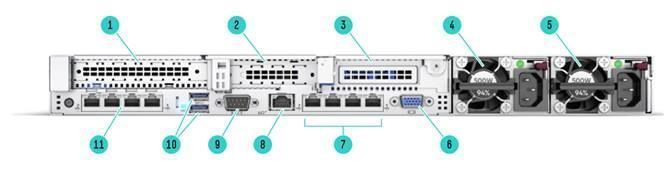

Rear View – Standard for all DL360 Gen10

1.

Slot 1 PCIe 3.0

Option: Rear Drive +1 SFF or 1 uFF SSD (2x M.2 cartridges)¹

7.

Embedded 4x 1GbE Adapter (if equipped)⁷

8.

iLO Management Port

2.

Slot 2 PCIe 3.0

9.

Option: Serial Port

3.

Option: Slot 3 PCIe 3.0 (Requires 2^nd processor)

10.

USB 3.0 Ports

4.

Power Supply 2

11.

Option: FlexibleLOM (Shown: 4x 1GbE)¹¹

5.

Power Supply 1

6.

VGA port

NOTE: ¹ Will lose one FH x16 PCIe slot1 with this option.

NOTE: ⁷  Network Choice (NC) models do not include embedded LOM. Customer choice of FlexibleLOM for networking capability.

NOTE: ¹¹ Supports Various NICs up to 25GbE.

What’s New

· Additional 2nd Generation Intel® Xeon® Scalable Processors with improved price/performance

· New pre-configured models powered by latest 2^nd Gen Intel® Xeon® Scalable Processors

· HPE NVIDIA Quadro RTX4000 GPU Module

· HPE DL360 Gen10 GPU CPU1 v2 Cable Kit

· HPE DL360 Gen10 2P FH GPU v2 Enablement Kit

· HPE 16TB SATA/SAS 7.2K LFF HDDs

· HPE Ethernet 10Gb 2 port 537SFP+ Adapater

· HPE Ethernet 10Gb 2 port 537FLR-SFP+ Adapater

· European Union (EU) Lot 9 regulation, for more information please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html

Platform Information

Form Factor

· 1U rack

Chassis Types

· 8 SFF with options supporting: +2 SFF or 2 NVMe or 2 Dual uFF (4x M.2 cartridges)

· 10 SFF NVMe Premium

· 4 LFF

NOTE: Rear drive option available on all DL360 Gen10 chassis types for additional boot/storage: +1SFF or 1 Dual uFF (2x M.2 cartridges).

System Fans

Single rotor hot plug fans will be included

For 4 LFF and 8 SFF chassis:

· 1 CPU – Includes 5 standard fans

· 2 CPUs – Includes 7 standard fans

NOTE: Optional High Performance Fan Kit available (includes 7 fans).

NOTE: The DL360 Gen10 will support up to 7 fans with fan redundancy built in. One fan rotor failure will place server in degraded mode but fully functional. Two fan rotor failures could provide warning and imminent server shutdown.

For 10 NVMe Premium chassis:

· 2 CPUs – Includes 7 high performance fans as standard

Standard Features

Processors – Up to 2 of the following depending on model.

NOTE: The 2nd digit of the processor model number "x1xx" and "x2xx" is used to denote the processor generation (i.e. 1=1st generation and 2=2nd generation)

NOTE: Field upgrades from 1^st generation processors (x1xx) to 2^nd generation processors (x2xx) not supported.

NOTE: "U" processors (i.e. 6212U) only supported in single socket configurations

NOTE: This table covers the public Intel offering only.

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

NOTE: More than 1.5 TB memory per socket requires HPE Persistent Memory

NOTES:

· 6-Channel DDR4 @ 2933 MT/s.

· 6TB max RAM (larger than 2TB memory per socket on select SKUs)

· Support for: HPE Persistent Memory, Vector Neural Network Instructions (VNNI) for inference acceleration.

· 2 and 4 socket capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 10.4 GT/s.

· Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).

· 48 lanes PCIe 3.0, advanced RAS

NOTES:

· 6-Channel 1DPC DDR4 @ 2666 MT/s.

· 768 GB max memory capacity (1.5 TB on select skus)

· 2 and 4 socket capable, 2S - 2UPI, 4S - 3UPI, 8S - 3UPI @ 10.4 GT/s.

· Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).

· 48 lanes PCIe 3.0, advanced RAS.

NOTES:

· 5218B has consistent features with the 5218 processor but from a different die. Mixing both 5218B & 5218 in a system is not supported

· 6-Channel DDR4 @ 2933 MT/s (Gold 6200 & 5222 skus only), 2666 MT/s on all Gold 5200 skus (except 5222 @ 2933 MT/s).

· 6TB max RAM (larger than 2TB memory per socket on select SKUs)

· Support for: HPE Persistent Memory, Vector Neural Network Instructions (VNNI) for inference acceleration.

· 2 and 4 socket capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 10.4 GT/s.

· Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).

· 48 lanes PCIe 3.0, advanced RAS

NOTES:

· 6-Channel 1DPC DDR4 @ 2400 MT/s (SKU 5122 - supports 2666 MT/s).

· 768 GB max memory capacity (1.5 TB on select skus).

· 2 and 4 socket capable, 2S - 2UPI, 4S - 3UPI @ 10.4 GT/s.

· Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA) (SKU 5122 - supports 2x 512 bit FMA).

· 48 lanes PCIe 3.0, advanced RAS.

NOTES:

· 6-Channel DDR4 @ 2400 MT/s.

· 2TB max RAM

· Support for: HPE Persistent Memory (Silver 4215 and 4215R only), Intel® Vector Neural Network Instructions (VNNI) for inference acceleration.

· 2 and 4 socket capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 9.6 GT/s.

· Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).

· 48 lanes PCIe 3.0, standard RAS

NOTES:

· 6-Channel DDR4 @ 2400 MT/s, 768 GB max memory capacity.

· 2 socket capable, 2S - 2UPI @ 9.6 GT/s.

· Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA).

· 48 lanes PCIe 3.0, standard RAS.

NOTES:

· 6-Channel DDR4 @ 2133 MT/s.

· 2TB max RAM

· Support for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration..

· 2 and 4 socket capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 9.6 GT/s.

· Intel AVX-512 (2x 512-bit FMA).

· 48 lanes PCIe 3.0, standard RAS

NOTES:

· 6-Channel DDR4 @ 2133 MT/s, 768 GB max memory capacity.

· 2 socket capable, 2S - 2UPI @ 9.6 GT/s.

· Intel AVX-512 (1x 512-bit FMA).

· 48 lanes PCIe 3.0, standard RAS.

Chipset

Intel C621 Chipset

NOTE: For more information regarding Intel® chipsets, please see the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

System Management Chipset

HPE iLO 5 ASIC

NOTE: Read and learn more in the iLO QuickSpecs.

Memory

NOTE: NVDIMMs are only supported on 1st generation Intel Xeon Scalable Processors and can only be mixed with RDIMMs.

NOTE: HPE Persistent Memory only supported on 2^nd generation Intel Xeon Scalable Processor series (Platinum 8200, Gold 6200, Gold 5200, Silver 4215 and 4215R)

NOTE: Maximum memory per socket is dependent on processor selection. 2^nd generation processors supporting 2 TB or 4.5 TB per CPU are indicated by the "M" and "L" in the processor model names (i.e. 8276M and 8276L). 1^st generation processors supporting 1.5 TB per CPU are indicated by the "M" in the processor model names (ie 8160M)

NOTE: Mixing of RDIMM and LRDIMM memory is not supported.

NOTE: For General Server Memory and Persistent Memory Population Rules and Guidelines for Gen10 see details here:

http://www.hpe.com/docs/memory-population-rules

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online Spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

NOTE: For more information see our Memory RAS feature technical whitepaper.

Expansion Slots

NOTE: If secondary full height kit is installed, then primary PCIe Slot #2 cannot be used. Only 2 full height slots are supported.

Internal Storage Devices

Optical Drive

Available on 8 SFF and 4 LFF CTO Servers as an option (DVD-ROM or DVD-RW)

Hard Drives

None ship standard

Storage Controllers

Software RAID

HPE Smart Array S100i SR Gen10 SW RAID

NOTE: All models come with the S100i Smart Array Controller with embedded software RAID support for up to 12 bays. The S100i uses 14 embedded SATA ports, but only 12 are available for bays as 2 are leveraged to support the M.2 connectors on the optional SATA M.2 capable primary riser (867978-B21).

NOTE: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

NOTE: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.

NOTE: The S100i supports windows only.

NOTE: For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/

Essential RAID Controllers

· HPE Smart Array E208i-a SR Gen10 Controller

· HPE Smart Array E208i-a SR G10 LH Controller

· HPE Smart Array E208i-p SR Gen10 Controller

· HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controllers

· HPE Smart Array P408i-a SR Gen10 Controller

· HPE Smart Array P408i-a SR G10 LH Controller

· HPE Smart Array P408i-p SR Gen10 Controller

· HPE Smart Array P408e-p SR Gen10 Controller

· HPE Smart Array P816i-a SR Gen10 Controller

· HPE Smart Array P816i-a SR G10 LH Controller

NOTE: If GPGPU is needed then the LH controller (low profile heatsink) should be ordered to allow GPU to fit in the chassis.

NOTE: For additional details, please see HPE Smart Array Gen10 Controllers Data Sheet.

Graphics

· Integrated video standard

· Video modes up to 1920 x 1200 @ 60 Hz (32 bpp)

· 16 MB Video Memory

· HPE iLO 5 on system management memory

· 32 MB Flash

· 4 Gbit DDR3 with ECC protection

Power Supply

· HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

· HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% and 96% efficiency.

NOTE: Also available in -48VDC and 227VAC/380VDC power inputs.

· HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

NOTE: 1600W Power supplies only support high line voltage (200 VAC to 240 VAC).

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Operating Systems and Virtualization Software

2^nd Generation Intel® Xeon® Scalable Processor Family

· Windows Server 2019: Essentials, Standard, Datacenter

· Windows Server 2016: Essentials, Standard, Datacenter

· Windows Server 2012 R2: Essentials, Standard, Datacenter

· Microsoft Hyper-V Server: 2012 R2, 2016 & 2019

· VMware vSphere: 6.0 U3, 6.5 U2 & 6.7 U1

NOTE: 6.5 U3, 6.7 U3 & 7.0  minimums for Xeon "R", Gold-6250 & Gold-6256 processors.

· ClearVM: 7.6 & 8.0

· Red Hat Enterprise Linux (RHEL): 7.6 w/ Kbase **, 7.7, 8.0, and 8.1

· SUSE Linux Enterprise Server (SLES): 12 SP3 & SP4, 15 and 15 SP1 (includes Xen) **

1^st Generation Intel® Xeon® Scalable Processor Family

· Windows Server 2019: Essentials, Standard & Datacenter

· Windows Server 2016 : Essentials, Standard & Datacenter

· Windows Server 2012 R2: Essentials, Standard & Datacenter

· Microsoft Hyper-V Server: 2012 R2, 2016 & 2019

· VMware vSphere: 6.0 U3, 6.5 & 6.7

· ClearVM: 2.0

· Red Hat Enterprise Linux (RHEL): 6.9 & 7.3**

· SUSE Linux Enterprise Server (SLES): 11 SP4, 12 SP2 & 15 (includes Xen) **

NOTE: **64-bit only;includes KVM

· ClearOS

NOTE: ClearOS allows you to build a fully functional server that is just right for you at no upfront cost. For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.

· CentOS

NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server.

http://www.hpe.com/info/ossupport

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

NOTE: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

Interfaces

Industry Standard Compliance

· ACPI 6.1 Compliant

· PCIe 3.0 Compliant

· WOL Support

· Microsoft® Logo certifications

· PXE Support

· USB 3.0 Compliant

· USB 2.0 Compliant (only on optional Universal Media Bay)

· SMBIOS 3.1

· UEFI 2.6 (Unified Extensible Firmware Interface Forum)

· Redfish API

· IPMI 2.0

· Secure Digital 4.0

· TPM 1.2 and 2.0 support

· Advanced Encryption Standard (AES)

· Triple Data Encryption Standard (3DES)

· SNMP v3

· TLS 1.2

· DMTF Systems Management Architecture for Server Hardware Command Line (SMASH CLP)

· Active Directory v1.0

· ASHRAE A3/A4

· Energy Star

· European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot 9 requirements. For more information regarding HPE Lot 9 conformance, please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html

NOTE: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

HPE Server UEFI/Legacy ROM

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

· Secure Boot and Secure Start enable for enhanced security

· Operating system specific functionality

· Support for > 2.2 TB (using GPT) boot drives

· USB 3.0 Stack

· Embedded UEFI Shell

· Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

· PXE boot support for IPv6 networks

· Workload Profiles for simple performance optimization

UEFI Boot Mode only:

· TPM 2.0 Support

· NVMe Boot Support

· Platform Trust Technology (PTT) can be enabled.

· iSCSI Software Initiator Support.

· HTTP/HTTPs Boot support as a PXE alternative.

· Boot support for option cards that only support a UEFI option ROM

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Server.

Intelligent Provisioning

Hassle free server and OS provisioning for one or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at https://www.hpe.com/us/en/servers/smart-update.html.

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell.

Learn more at http://www.hpe.com/servers/stk and http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/info/hpesim.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

Security

· UEFI Secure Boot and Secure Start support

· Immutable Silicon Root of Trust

· FIPS 140-2 validation

· Common Criteria certification

· Configurable for PCI DSS compliance

· Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

· Support for Commercial National Security Algorithms (CNSA)

· iLO Security Modes

· Granular control over iLO interfaces

· Smart card (PIV/CAC) and Kerberos based 2-factor Authentication

· Tamper-free updates – components digitally signed and verified

· Secure Recovery – recover critical firmware to known good state on detection of compromised FW

· Ability to rollback firmware

· Secure erase of NAND

· TPM (Trusted Platform Module) 1.2 option

· TPM (Trusted Platform Module) 2.0 option

· Bezel Locking Kit

· Chassis Intrusion detection option

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. Learn more about HPE iLO Advanced at http://www.hpe.com/servers/iloadvanced.

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers. To learn more visit http://www.hpe.com/info/oneview.

HPE InfoSight for Servers

HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The end result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities.

Learn more at https://www.hpe.com/servers/infosight

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu.

Accelerator and GPGPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE Proliant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you’re critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance.

https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

HPE Pointnext - Service and Support

Protect your business beyond warranty with HPE Pointnext Operational Service

HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Datacenter Care, to keep your business at peak performance. HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple.

Connect your devices:

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%¹ reduction in down time, near 100%² diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

NOTE:¹IDC

NOTE:²HPE CSC reports 2014 – 2015

Learn more about getting connected at http://www.hpe.com/services/getconnected.

Recommended Services

HPE Proactive Care* with 6 hour call-to-repair commitment, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This Service combines three years’ proactive reporting and advice with our highest level of hardware support - HPE’s 24x7, six hour hardware call-to-repair. HPE is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

HPE Proactive Care* with 24x7 coverage, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice This Service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

HPE Proactive Care* - Next Business Day service, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years of Hardware Support where an HPE authorized representative will arrive at the Customer's site during the onsite coverage window to begin hardware maintenance service the next coverage day after the service request has been logged. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

NOTE: *HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of these services and receive all the deliverables.

Other related Services

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

https://h20195.www2.hpe.com/v2/Getdocument.aspx?docname=5981-9356enw

HPE Installation and Startup Service

Provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux).

HPE Datacenter Care service

HPE Datacenter Care helps improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a structured framework of repeatable, tested, and globally available services "building blocks." You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with HPE via a single point of accountability for HPE and others’ products.

For more information, visit http://www.hpe.com/services/datacentercare

HPE GreenLake Flex Capacity

With HPE GreenLake Flex Capacity, you get the speed, scalability, and economics of the public cloud in the privacy of your data center. Gain the advantages of the public cloud—consumption-based payment, rapid scalability without worrying about capacity constraints. Reduce the "heavy lifting" needed to operate a data center. And retain the advantages that IT provides the business (i.e., control, security). Deliver the right user experience, choose the right technology for the business, manage privacy and compliance, and manage the cost of IT. And, you have the option to use the public cloud when needed.

DC for Hyperscale

Datacenter Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture can take advantage of this environment support tailored to their operating model.

HPE Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.

HPE Service Credits

HPE Service Credits offers flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers.Learn more http://www.hpe.com/support/hpesc.

The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.

NOTE:*HPE Support Center Mobile App is subject to local availability.

For more information: http://www.hpe.com/services.

NOTE: HPE ProLiant DL360 Gen10 Server is covered under the HPE Service Contract applied to the HPE ProLiant Server. No separate HPE support services need to be purchased.

Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS batteries over 12KVA. See the specific high value options that require additional support here.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

1. Pre- Configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.

2. Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.

3. If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.

European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot 9 requirements. For more information regarding HPE Lot 9 conformance, please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html

Network Choice (NC) Models

Network Choice models do not include embedded LOM. FlexibleLOM is included in the configuration with customer choice of additional NIC (stand-up card)

Powered by 2^nd Generation Intel Xeon Processors

Network Choice Models

China Specific NC

SKU Number

P23578-xx1

P23579-xx1

P23575-AA1

Model Name

HPE ProLiant DL360 Gen10 4210R 2.4GHz 10-core 1P 16GB-R P408i-a NC 8SFF 500W PS Server

HPE ProLiant DL360 Gen10 4214R 2.4GHz 12-core 1P 32GB-R P408i-a NC 8SFF 500W PS Server

HPE ProLiant DL360 Gen10 3206R 1.9GHz 8-core 1P 16GB-R P408i-a NC 8SFF 500W PS Server

Chassis

8SFF

8SFF

8SFF

Processor

4210R (10-Core, 2.4 GHz, 100W)

4214R (12-Core, 2.4 GHz, 100W)

3206R (8 core, 1.9 GHz, 85W)

Number of Processors

One processor with standard heatsink

One processor with standard heatsink

One processor with standard heatsink

Memory

16 GB RDIMM 2R 2933 MT/s (1x 16 GB)

NOTE: Runs at 2400 MT/s due to processor limitation.

32 GB RDIMM 2R 2933 MT/s

(1x 32 GB)

NOTE: Runs at 2400 MT/s due to processor limitation.

16 GB RDIMM 2R 2933 MT/s (1x 16 GB)

NOTE: Runs at 2133 MT/s due to processor limitation.

Network Controller

HPE Ethernet 1Gb 4-port 366FLR Adapter

NOTE: No embedded networking

HPE Ethernet 1Gb 4-port 366FLR Adapter

NOTE: No embedded networking

HPE Ethernet 1Gb 4-port 366FLR Adapter

NOTE: No embedded networking

Storage Controller

P408i-a/2GB with Smart Storage Battery

P408i-a/2GB with Smart Storage Battery

P408i-a/2GB with Smart Storage Battery

Hard Drive

None included

None included

None included

Optical Drive

Not included (Optical Drive options available)

Not included (Optical Drive options available)

Not included (Optical Drive options available)

PCIe Slots

2 PCIe: 1 x16 FH, 1 x8 LP

2 PCIe: 1 x16 FH, 1 x8 LP

2 PCIe: 1 x16 FH, 1 x8 LP

Power Supply

1x 500W

1x 500W

1x 500W

Fans

5 - Standard

5 - Standard

5 - Standard

Management

HPE iLO 5

HPE iLO 5

HPE iLO 5

Rail Kit

SFF Easy Install w/o CMA

Energy Star

Energy Star 3.0

Form Factor

1U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Localizations Available

-B21, -291, -AA1

-B21, -291, -AA1

-AA1

NOTE: UEFI is the standard default for all Pre-configured models.

Country Code Key

· xx1 = B21 Worldwide

· xx1 = 291 Japan

· xx1 = AA1 PRC

NOTE: The -B21 WW SKU is to be ordered in all countries other than Japan or PRC.

Powered by 2^nd Generation Intel Xeon Processors

Network Choice Models

SKU Number

P23577-xx1

P24740-xx1

P24741-xx1

Model Name

HPE ProLiant DL360 Gen10 4215R 3.2GHz 8-core 1P 32GB-R S100i NC 8SFF 800W PS Server

HPE ProLiant DL360 Gen10 5218R 2.1GHz 20-core 1P 32GB-R S100i NC 8SFF 800W PS Server

HPE ProLiant DL360 Gen10 5220R 2.2GHz 24-core 1P 32GB-R S100i NC 8SFF 800W PS Server

Chassis

8SFF

8SFF

8SFF

Processor

4215R (8-Core, 3.2 GHz, 130W)

5218R (20-Core, 2.1 GHz, 125W)

5220R (24 core, 2.2 GHz, 150W)

Number of Processors

One processor with High Performance heatsink

One processor with standard heatsink

One processor with High Performance heatsink

Memory

32 GB RDIMM 2R 2933 MT/s

(1x 32 GB)

NOTE: Runs at 2400 MT/s due to processor limitation.

32 GB RDIMM 2R 2933 MT/s

(1x 32 GB)

NOTE: Runs at 2666 MT/s due to processor limitation.

32 GB RDIMM 2R 2933 MT/s

(1x 32 GB)

NOTE: Runs at 2666 MT/s due to processor limitation.

Network Controller

HPE Ethernet 10 GbE 2P 562FLR-T

NOTE: No embedded networking

HPE Ethernet 10 GbE 2P 562FLR-T

NOTE: No embedded networking

HPE Ethernet 10 GbE 2P 562FLR-T

NOTE: No embedded networking

Storage Controller

Embedded 14-port S100i

NOTE: SATA only.

Embedded 14-port S100i

NOTE: SATA only.

Embedded 14-port S100i

NOTE: SATA only.

Hard Drive

None included

None included

None included

Optical Drive

Not included (Optical Drive options available)

Not included (Optical Drive options available)

Not included (Optical Drive options available)

PCIe Slots

2 PCIe: 1 x16 FH, 1 x8 LP

2 PCIe: 1 x16 FH, 1 x8 LP

2 PCIe: 1 x16 FH, 1 x8 LP

Power Supply

1x 800W

1x 800W

1x 800W

Fans

5 - Standard

5 - Standard

5 - Standard

Management

HPE iLO 5

HPE iLO 5

HPE iLO 5

Rail Kit

SFF Easy Install w/o CMA

Energy Star

Energy Star 3.0

Form Factor

1U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Localizations Available

-B21, -291, -AA1

-B21, -291

-B21, -291

NOTE: UEFI is the standard default for all Pre-configured models.

Country Code Key

· xx1 = B21 Worldwide

· xx1 = 291 Japan

· xx1 = AA1 PRC

NOTE: The -B21 WW SKU is to be ordered in all countries other than Japan or PRC.

Powered by 2^nd Generation Intel Xeon Processors

Network Choice Models

SKU Number

P24742-xx1

P24743-xx1

Model Name

HPE ProLiant DL360 Gen10 6226R 2.9GHz 16-core 1P 32GB-R S100i NC 8SFF 800W PS Server

HPE ProLiant DL360 Gen10 6248R 3.0GHz 24-core 1P 32GB-R S100i NC 8SFF 800W PS Server

Chassis

8SFF

8SFF

Processor

6226R (16-Core, 2.9 GHz, 150W)

6248R (24-Core, 3.0 GHz, 205W)

Number of Processors

One processor with High Performance heatsink

One processor with High Performance heatsink

Memory

32 GB RDIMM 2R 2933 MT/s

(1x 32 GB)

32 GB RDIMM 2R 2933 MT/s

(1x 32 GB)

Network Controller

HPE Ethernet 10 GbE 2P 562FLR-T

NOTE: No embedded networking

HPE Ethernet 10 GbE 2P 562FLR-T

NOTE: No embedded networking

Storage Controller

Embedded 14-port S100i

NOTE: SATA only.

Embedded 14-port S100i

NOTE: SATA only.

Hard Drive

None included

None included

Optical Drive

Not included (Optical Drive options available)

Not included (Optical Drive options available)

PCIe Slots

2 PCIe: 1 x16 FH, 1 x8 LP

2 PCIe: 1 x16 FH, 1 x8 LP

Power Supply

1x 800W

1x 800W

Fans

5 - Standard

5 - Standard

Management

HPE iLO 5

HPE iLO 5

Rail Kit

SFF Easy Install w/o CMA

Energy Star

Energy Star 3.0

Form Factor

1U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Localizations Available

-B21, -291

-B21, -291

NOTE: UEFI is the standard default for all Pre-configured models.

Country  Code Key

· xx1 = B21 Worldwide

· xx1 = 291 Japan

· xx1 = AA1 PRC

NOTE: The -B21 WW SKU is to be ordered in all countries other than Japan.

Powered by 2^nd Generation Intel Xeon Processors

Network Choice Models

SKU Number

P19771-xx1

P19772-xx1

P19780-xx1

Model Name

HPE ProLiant DL360 Gen10 5220 2.2GHz 18-core 2P 64GB-R P408i-a NC 8SFF 800W RPS Server

HPE ProLiant DL360 Gen10 6248 2.5GHz 20-core 2P 64GB-R P408i-a NC 8SFF 800W RPS Server

HPE ProLiant DL360 Gen10 3204 1.9GHz 6-core 1P 16GB-R S100i NC 4LFF 500W PS Server

Chassis

8SFF

8SFF

4LFF

Processor

5220 (18-Core, 2.2 GHz, 125W)

6248 (20-Core, 2.5 GHz, 150W)

3204 (6 core, 1.9 GHz, 85W)

Number of Processors

Two processors

with standard heatsink

Two processors

with High Performance heatsink

One processor with standard heatsink

Memory

64 GB RDIMM 2R 2933 MT/s

(2x 32 GB)

NOTE: Runs at 2666 MT/s due to processor limitation.

64 GB RDIMM 2R 2933 MT/s

(2x 32 GB)

16 GB RDIMM 2R 2933 MT/s (1x 16 GB)

NOTE: Runs at 2133 MT/s due to processor limitation.

Network Controller

HPE Ethernet 10/25 GbE 2P 640FLR-SFP28

NOTE: No embedded networking

HPE Ethernet 10/25 GbE 2P 640FLR-SFP28
