HPE ProLiant ML350 G10 SFF Silver 4110

  • (1) Intel Xeon-Silver 4110 (2.1GHz/8-core/85W)
  • HPE 16GB 1Rx4 PC4-2666V-R Smart Kit
  • Hard Drive : None (2.5")
  • HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller
  • Embedded 4-Port 1GbE HPE Ethernet 1Gb 4-port 369i Adapter
  • Dedicated iLO Management Port (RJ45)
  • Interfaces: VGA Port & Display Port
  • PCI-Express Slots: 4-slots (x16, x8, x16, x8) as standard
  • 8 x SFF SAS/SATA/SSD hot plug (8/24)
  • HPE 800W FS Plat Ht Plg LH Pwr Sply Kit (1/2)
  • Form Factor: 4U Tower
  • Warranty: 3-year parts, 3-year labor, 3-year onsite support with next business day response.
Nhà sản xuất: HPE
54.500.000 ₫

HPE ProLiant ML350 Gen10 Server



Driving a wide range of workloads with a flexible, shorter and rackable chassis design that can fit in different physical environments, the secure 2P HPE ProLiant ML350 Gen10 Server delivers the ideal set of performance and expandability for changing business needs making it the choice for growing SMBs, remote/branch offices of large enterprises and data centers. Choose this 2P tower that grows with you in the digital economy.

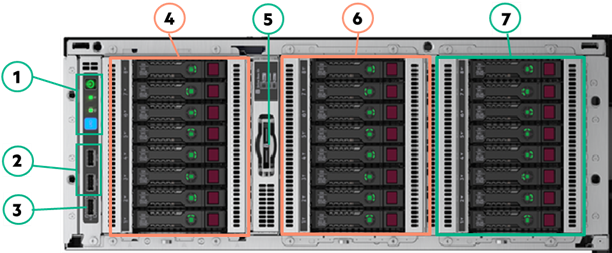

Front View – SFF chassis with optional Gen10 8SFF HDD Cage Kits shown (Rack mode)



1.

Front button/LED (top-to-down in Rack mode shown): Power On/Stand-by button and System Power LED, System Health LED, NIC Status LED, UID Button/LED

2.

USB 3.0 port x 2

3.

iLO Service Port

4.

Box1: optional HDD Drive Cage Bay for additional 8 SFF drives support, or upgradeable to 2 HH media devices + 1 slim-line DVD.

5.

Serial number/iLO information pull tab

6.

Box2: optional HDD Drive Cage Bay for additional 8 SFF drives support, or upgradeable to 8 SFF NVMe Express Bay

7.

Box3: default with one 8 SFF HDD Drive Cage







NOTE: Image shown without the security front bezel which is standard in every ML350 Gen10 unit.

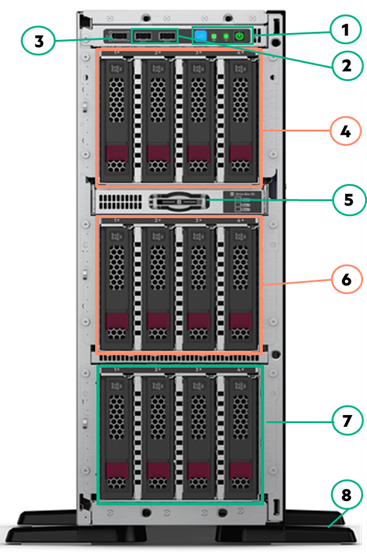

Front View – LFF chassis with optional Gen10 4LFF HDD Cage Kits shown (Tower mode)



1.

Front button/LED (right-to-left in Tower mode shown): Power On/Stand-by button and System Power LED, System Health LED, NIC Status LED, UID Button/LED

2.

USB 3.0 port x 2

3.

iLO Service Port

4.

Box1: optional HDD Drive Cage Bay for additional 4 LFF drives support, or upgradeable to 2 HH media devices + 1 slim-line DVD

5.

Serial number/iLO information pull tab

6.

Box2: optional HDD Drive Cage Bay for additional 4 LFF drives support

7.

Box3: default with one 4LFF HDD Drive Cage

8.

Tower feet (foldable at servicing)



NOTE: For NHP LFF chassis, please find detail in the ML350 Gen10 User Guide.

NOTE: Image shown without the security front bezel which is standard in every ML350 Gen10 unit.



















Internal View – with optional 2nd CPU, Smart Array Modular Controller and Redundant Fan Kit shown

1.

CPU Socket 1 with one processor and heatsink, and 12 DDR4 DIMM slots for RDIMM or LRDIMM

2.

PCIe Slots (Slot 1-4, coming from CPU1): Slot 1 and 3 can support Optional GPU

3.

CPU Socket 2 with the 2nd processor and heatsink, (depending on server model, the 2nd processor can be Optional) and 12 DDR4 DIMM slots for RDIMM or LRDIMM

4.

PCIe Slots (Slot 5-8, coming from CPU2) (requires Optional 2nd processor): Slot 5 and 7 can support Optional GPU

5.

System fans: (2) fans along with the air baffle (not shown) are standard for basic cooling

6.

Optional (4) system fans are shown, supporting 2P and/or advanced cooling requirements.

7.

Optional HPE Smart Array Modular controller (AROC)

8.

Optional HPE Smart Storage Battery

9.

MicroSD Slot x1

10.

Internal USB port x2 (USB3.0 x1 and USB2.0 x1)

11

TPM Connector

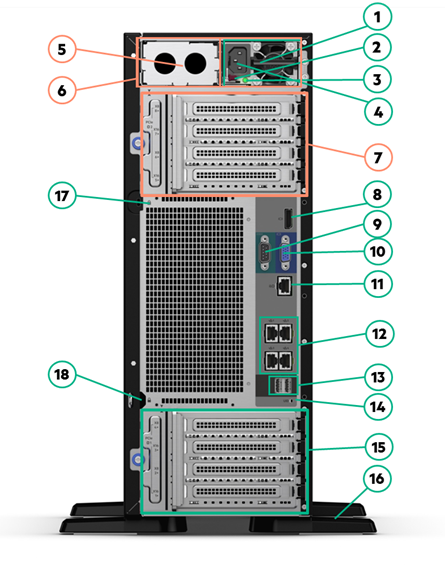

Rear View – With HPE Flex Slot RPS shown.

1.

HPE Flexible Slot 1 Power Supply

2.

Power supply handle (with red touch-point)

3.

Power supply Power LED

4.

Power supply Power connection

5.

HPE Flexible Slot 2 (Optional – empty with power supply blank shown)

6.

Or, support for HPE 500W Standard Non-Hot-Plug/non-RPS Power Supply, depending on model SKU

7.

PCI Slots (Slots 5-8) (requires Optional second processor) – Slot 5 and 7 can support Optional GPU

8.

Display Port

9.

Serial Port

10.

VGA Port

11.

Dedicated iLO Management Port (RJ45)

12.

Embedded 4 x 1GbE Network ports

13.

USB 3.0 port x 2

14.

Unit ID LED

15.

PCI Slots (Slots 1-4) – Slot 1 and 3 can support Optional GPU

16.

Tower feet (foldable at servicing)

17.

Kensington security slot

18.

Padlock eye







What’s New:

  • New HPE Smart Array P824i-p (supporting 24 SAS/SATA drives) added to Gen10 controller offering
  • New SMB Solution SKU offering
  • New nVidia Quadro P4000 GPU option support added
  • New 12 TB SAS / SATA LFF HDD
  • HPE Intelligent System Tuning (IST) features including Workload Matching and Jitter Smoothing added thru HPE firmware support
  • 2600 MT/s HPE DDR4 SmartMemory RDIMM/LRDIMM, offering 8, 16, 32, 64 or 128 GB. Max. memory capacity up to

3 TB





Platform Information

Form Factor

4U tower with rack conversion capability



NOTE: When deployed as a Rack model, this system will take up 5U-height space in a standard data center rack facility.





Chassis Types

8 SFF chassis with optional SFF HDD cage kit (s), NVMe Express Bay, half-height (5.25”) media bay up to 2,  and 1 slim-line DVD bay kit options
4 LFF chassis with optional LFF HDD cage kit (s), half-height (5.25”) media bay up to 2, and 1 slim-line DVD bay kit options
4 LFF NHP chassis with optional LFF NHP HDD cage kit (s), half-height (5.25”) media bay up to 2, and 1 slim-line DVD bay kit options

NOTE: The 8 SFF chassis can be upgraded with SFF HDD cage kit (s) to 16 or 24 SFF.  Note a field upgrade to 24 SFF will require redundant fan kit (874572-B21).

NOTE: The 8 SFF NVMe Express Bay option (874569-B21) can only be leveraged in the SFF chassis and installed in Box 2. Maximum of 8 SFF NVMe PCIe drives are supported when two ML350 Gen10 NVMe Riser boards (shipped in 874569-B21) are populated. When only one Riser board is populated, then 4 NVMe drives are supported.  Note a field upgrade to NVMe Express Bay will require redundant fan kit (874572-B21).

NOTE: The 4 LFF HP or NHP chassis can be upgraded with LFF HDD cage kit (s) or LFF NHP HDD cage kit (s) to 8 or 12 LFF.  Note a field upgrade to 12 LFF either in LFF hot-plug or LFF non-hot-plug chassis will require redundant fan kit (874572-B21).

NOTE: The 8 SFF or 4 LFF or 4 LFF NHP chassis can be upgraded to add half-height media bay up to 2, and/or 1 slim-line DVD in Box1.  Note a field upgrade to fully populate front storage bays (Box1, 2 and 3 fully loaded) will require redundant fan kit (874572-B21).





System Fans

Standard – fan types included

NOTE: 1P models typically ship with 2 standard fans located at system rear. These two fans are default inside every ML350 Gen10 unit and do NOT support hot-plug operations.

NOTE: 2P models typically ship with 6 standard fans which provides N+1 redundant fan feature in most of the situations. For support detail or restriction, refer to ML350 Gen10 User Guide.

NOTE: Optional redundant fan kit (874572-B21) provides advanced cooling and redundancy functionality in heavier configurations. Configurations that require this kit are provided in later sections. Refer to the User Guide for special configuration scenarios where this kit is required but does not provide redundancy feature.



Standard Features

Standard Features

Processors – Up to 2 of the following depending on model.

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per socket

Platinum Processors















Platinum 8180M Processor

2.5 GHz

28

38.50 MB

205W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Platinum 8180 Processor

2.5 GHz

28

38.50 MB

205W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8176M Processor

2.1 GHz

28

38.50 MB

165W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Platinum 8176 Processor

2.1 GHz

28

38.50 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8170M Processor

2.1 GHz

26

35.75 MB

165W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Platinum 8170 Processor

2.1 GHz

26

35.75 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8168 Processor

2.7 GHz

24

33.00 MB

205W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8164 Processor

2.0 GHz

26

35.75 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8160M Processor

2.1 GHz

24

33.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Platinum 8160 Processor

2.1 GHz

24

33.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8158 Processor

3.0 GHz

12

24.75 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8156 Processor

3.6 GHz

4

16.50 MB

105W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8153 Processor

2.0 GHz

16

22.00 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold Processors















Gold 6154 Processor

3.0 GHz

18

24.75 MB

200W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6152 Processor

2.1 GHz

22

30.25 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6150 Processor

2.7 GHz

18

24.75 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6148 Processor

2.4 GHz

20

27.50 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6146 Processor

3.2 GHz

12

24.75 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6144 Processor

3.5 GHz

8

24.75 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6142M Processor

2.6 GHz

16

22.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Gold 6142 Processor

2.6 GHz

16

22.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6140M Processor

2.3 GHz

18

24.75 MB

140W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Gold 6140 Processor

2.3 GHz

18

24.75 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6138 Processor

2.0 GHz

20

27.50 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6136 Processor

3.0 GHz

12

24.75 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6134M Processor

3.2 GHz

8

24.75 MB

130W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Gold 6134 Processor

3.2 GHz

8

24.75 MB

130W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6132 Processor

2.6 GHz

14

19.25 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6130 Processor

2.1 GHz

16

22.00 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6128 Processor

3.4 GHz

6

19.25 MB

115W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6126 Processor

2.6 GHz

12

19.25 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 5122 Processor

3.6 GHz

4

16.50 MB

105W

2 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 5120 Processor

2.2 GHz

14

19.25 MB

105W

2 @ 10.4 GT/s

2400 MT/s

768 GB

Gold 5118 Processor

2.3 GHz

12

16.50 MB

105W

2 @ 10.4 GT/s

2400 MT/s

768 GB

Gold 5115 Processor

2.4 GHz

10

13.75 MB

85W

2 @ 10.4 GT/s

2400 MT/s

768 GB

Silver Processors















Silver 4116 Processor

2.1 GHz

12

16.50 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Silver 4114 Processor

2.2 GHz

10

13.75 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Silver 4112 Processor

2.6 GHz

4

8.25 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Silver 4110 Processor

2.1 GHz

8

11.00 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Silver 4108 Processor

1.8 GHz

8

11.00 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Bronze Processors















Bronze 3106 Processor

1.7 GHz

8

11.00 MB

85W

2 @ 9.6 GT/s

2133 MT/s

768 GB

Bronze 3104 Processor

1.7 GHz

6

11.00 MB

85W

2 @ 9.6 GT/s

2133 MT/s

768 GB

NOTE: Platinum – 8100 Series –2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2666 MT/s providing up to 768 GB memory capacity (1.5 TB on select processor skus). Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported.  Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.

NOTE: Gold – 5100, 6100 Series - 2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2400 MHz (SKU 5122=supports 2666) providing up to 768GB memory capacity (1.5 TB on select skus).  Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)  (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS supported.

NOTE: Silver – 4100 Series - 2 Socket supports 2UPI  @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MHz providing up to 768 GB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

NOTE: Bronze – 3100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, supports 6-Channel DDR4 @ 2133 MHz providing up to 768GB memory capacity. Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.



Chipset

Intel C622 Chipset

NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/



On System Management Chipset

HPE iLO 5 ASIC

NOTE: Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on model

Type:



HPE DDR4 SmartMemory,
Registered (RDIMM), Load Reduced (LRDIMM)

DIMM Slots Available

24

12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel

Maximum capacity (LRDIMM)

3 TB

24 x 128 GB LRDIMM @ 2600 MT/s

Maximum capacity (RDIMM)

768 GB

24 x 32 GB RDIMM @ 2600 MT/s

NOTE: The maximum memory by socket is limited by the processor selection.

NOTE: Mixing of RDIMM and LRDIMM memory is not supported.



Memory Protection

For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature.







Expansion Slots

Slots #

Technology

Bus
Width

Connector Width



Slot Form Factor

Notes

1

PCIe 3.0

X16

X16



Full-height,

full-length slot

Proc 1

2

PCIe 3.0

X4

X8



Full-height,

full-length slot

Proc 1

3

PCIe 3.0

X16

X16



Full-height,

full-length slot

Proc 1

4

PCIe 3.0

X4

X8



Full-height,

full-length slot

Proc 1

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

NOTE: Slot 4 is routed from the PCH.



Slots #

Technology

Bus
Width

Connector Width



Slot Form Factor

Notes

5

PCIe 3.0

X16

X16



Full-height,

full-length slot

Proc 2

6

PCIe 3.0

X8

X8



Full-height,

full-length slot

Proc 2

7

PCIe 3.0

X16

X16



Full-height,

full-length slot

Proc 2

8

PCIe 3.0

X8

X8



Full-height,

full-length slot

Proc 2

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

NOTE: Max. 8 PCIe slots are available on the ML350 Gen10.



Storage Controllers

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

One of the following depending on model

Software RAID

HPE Smart Array S100i SR Gen10 SW RAID

NOTE: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

NOTE: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.

NOTE: The S100i uses 14 embedded SATA ports.

NOTE: The S100i only supports Windows. For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit:

https://downloads.linux.hpe.com/SDR/project/lsrrb/

Essential RAID Controller

HPE Smart Array E208i-a SR Gen10 Controller

HPE Smart Array E208i-p SR Gen10 Controller

HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller

HPE Smart Array P408i-a SR Gen10 Controller

HPE Smart Array P408i-p SR Gen10 Controller

HPE Smart Array P408e-p SR Gen10 Controller

HPE Smart Array P816i-a SR Gen10 Controller

HPE Smart Array P824i-p MR Gen10 Controller

NOTE: Performance RAID Controllers require the HPE Smart Storage Battery (P01367-B21) which is sold separately.

NOTE: Separate cable kit will be required depending on configuration requirement. Refer to the later section for more information.



Internal Storage Devices

One of the following depending on model

Optical Drive

Optional slim-line DVD-ROM/DVD-RW up to 1

Optional half-height (5.25”) RDX or tape/LTO devices up to 2

Hard Drives

None ship standard



Maximum Internal Storage



CAPACITY

CONFIGURATION

Hot Plug SFF SAS

48.0 TB

24 x 2 TB

Hot Plug SFF SATA

48.0 TB

24 x 2 TB

Hot Plug LFF SAS

144.0 TB

12 x 12 TB

Hot Plug LFF SATA

144.0 TB

12 x 12 TB

Hot Plug SFF SAS SSD

184.32 TB

24 x 7.68 TB

Hot Plug SFF SATA SSD

92.16 TB

24 x 3.84 TB

Hot Plug LFF SAS SSD

46.08 TB

12 x 3.84 TB

Hot Plug LFF SATA SSD

46.08 TB

12 x 3.84 TB

Non Hot Plug LFF SATA

48.0 TB

12 x 4 TB

Hot Plug SFF NVMe PCIe SSD

32 TB NVMe

8 x 4 TB NVMe

NOTE: NHP LFF SKU supports SATA hard disk drives only.



Power Supply

HPE 500W Standard Non-Hot-Plug Power Supply Kit

NOTE: Non Redunant Power Supply

NOTE: Available in 92% efficiency and supported in pre-configured models only. This power supply is available in a few pre-built system SKUs. Customers can still choose to upgrade to HPE Flex Slot RPS later by installing the ML350 Gen10 RPS enablement kit (874571-B21).

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% and 96% efficiency.

NOTE: Also available in -48VDC and 227VAC/380VDC power inputs.

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple output power options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.



All pre-configured servers ship with a country-specific AC power cord in Tower models; while in the Rack model, a standard 6-foot IEC C-13/C-14 jumper cord (416151-B21) is included. If a different power cord is required, please check the ProLiant Power Cables web page.



To review the power requirements for your selected system, please use the HPE Power Advisor Tool.



For information on power specifications and technical content visit HPE Server power supplies.



Interfaces

Serial

1 standard (at system rear)

VGA Port

1 standard (at system rear)

Display Port

1 standard (at system rear)

Embedded Network Ports

4 x 1 Gb ports shipping standard, with optional stand up card

HPE iLO Remote Management Network Port

1 Gb Dedicated

Front iLO Service Port

1 standard

Micro SD Slot

1 Micro SD (internal)

NOTE: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.

USB 3.0/2.0

6 total, standard: 2 front (USB 3.0), 2 rear (USB 3.0), 2 internal (1 x USB 3.0 & 1 x USB 2.0)



Operating Systems and Virtualization Software Support for ProLiant Servers

Windows Server 2012 R2 (Most Recent Version)

Windows Server 2016 (Most Recent Version)

VMware ESXi 6.0 U3

VMware ESXi 6.5 and U1 upon release

Red Hat Enterprise Linux (RHEL) 6.9 and 7.3

SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP2

ClearOS

HPE and ClearCenter will help you lower the cost of building on-premise solutions without sacrificing security and ease of use. HPE ProLiant servers with ClearOS give you a simple, secure, and affordable operating system with an intuitive web based graphical user interface that provides a cloud-like experience on- premise, and an Application Marketplace with over 100 apps and growing. Whether you’re starting out or scaling, you decide what applications you need and pay as you grow.

NOTE: ClearOS allows you to build a fully functional server that is just right for you at no upfront cost.

For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.

CentOS

NOTE: CentOS is not directly supported / Community Supported (Based on RHEL so RHEL testing and enablement applicable to CentOS) CentOS 6.9 / CentOS 7.3.

NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server.

http://www.hpe.com/info/ossupport



Industry Standard Compliance

ACPI 6.1 Compliant

PCIe 3.0 Compliant

WOL Support

Microsoft® Logo certifications

PXE Support

VGA Display Port

USB 3.0 Compliant

USB 2.0 Compliant

Energy Star

SMBIOS 3.1

UEFI 2.6

Redfish API

IPMI 2.0

Secure Digital 2.0

Advanced Encryption Standard (AES)

Triple Data Encrytion Standard (3DES)

SNMP v3

TLS 1.2

DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

Active Directory v1.0

ASHRAE A3/A4

NOTE: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae.

UEFI (Unified Extensible Firmware Interface Forum)

NOTE: UEFI is the default setting for the ML350 Gen10. Legacy mode can be selected in the field or as a CTO option (758959-B22).



Graphics

Integrated Video Standard

· Video modes up to 1920 x 1200@60Hz (32 bpp)

· 16MB Video Memory

HPE iLO 5 on system management memory

· 32 MB Flash

· 4 Gbit DDR 3 with ECC protection



HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.



NOTE: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.



UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

· Secure Boot and Secure Start enable for enhanced security

· Operating system specific functionality

· Support for > 2.2 TB (using GPT) boot drives

· USB 3.0 Stack

· Embedded UEFI Shell

· Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

· PXE boot support for IPv6 networks

· Workload Profiles for simple performance optimization

UEFI Boot Mode only:

· TPM 2.0 Support

· NVMe Boot Support

· Platform Trust Technology (PTT) can be enabled.

· iSCSI Software Initiator Support.

· HTTP/HTTPs Boot support as a PXE alternative.

· Boot support for option cards that only support a UEFI option ROM



NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Server.



Embedded Management

HPE Integrated Lights-Out
(HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at http://www.hpe.com/info/ilo.



UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hpe.com/servers/uefi.



Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning.



iLO RESTful API

iLO RESTful API is Redfish API conformance and offers  simplified server management automation such as configuration and maintenance tasks based on modern industry standards.Learn more at http://www.hpe.com/info/restfulapi.



Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at http://www.hpe.com/servers/ahs.



Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.



Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).  Learn more at http://www.hpe.com/info/smartupdate.



iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale.  Use with an iLO Advanced License to unlock full capabilities. Learn more at http://www.hpe.com/servers/iLOamplifierpack.



HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit:http://www.hpe.com/info/ilo/mobileapp.



RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.



Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/stk or http://www.hpe.com/servers/powershell.









HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.



HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates.  Learn more at http://www.hpe.com/info/hpesim.



Security

UEFI Secure Boot and Secure Start support

Immutable Silicon Root of Trust

FIPS 140-2 validation (iLO 5 certification in progress)

Common Criteria certification (iLO 5 certification in progress)

Configurable for PCI DSS compliance

Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

Support for Commercial National Security Algorithms (CNSA)

Tamper-free updates – components digitally signed and verified

Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

Ability to rollback firmware

Secure erase of NAND/User data

TPM (Trusted Platform Module) 1.2 option

TPM (Trusted Platform Module) 2.0 option

Front bezel key-lock feature – standard, available in both Tower and Rack models

Padlock slot, standard

Kensington Lock slot, standard



Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) Non CSR parts must be serviced by a trained authorized service engineer.  Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.



Optional Features

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. Learn more about HPE iLO Advanced at http://www.hpe.com/servers/iloadvanced.



HPE iLO Advanced Premium Security Edition

HPE iLO Advanced Premium Security Edition for iLO 5 includes iLO Advanced License plus high-end security modes, unique security capabilities, like Automatic FW recovery; Runtime FW verification, and Secure erase. Learn more about HPE iLO Advanced Premium Security Edition at: http://www.hpe.com/servers/ilopremium.



HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers. To learn more visit http://www.hpe.com/info/oneview.



HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu.



Accelerator and GPGPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE Proliant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.



Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.



HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.



HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you’re critical dense data center is covered in power outages.



HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.



Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.



One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#



Service and Support

HPE Pointnext - Service and Support



Protect your business beyond warranty with HPE Pointnext Operational Service

HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution.  Finally, operational services provides innovative new approaches like Flexible Capacity and Datacenter Care, to keep your business at peak performance. HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple.



Connect your devices:

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.



1- IDC 2 – HP CSC reports 2014 – 2015

Learn more about getting connected at http://www.hpe.com/services/getconnected.



Recommended Services

HPE Proactive Care* with 6 hour call-to-repair commitment, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This Service combines three years’ proactive reporting and advice with our highest level of hardware support - HPE’s 24x7, six hour hardware call-to-repair. HPE is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.



https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf



HPE Proactive Care* with 24x7 coverage, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice This Service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.



https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf



HPE Proactive Care* - Next Business Day service, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years of Hardware Support where an HPE authorized representative will arrive at the Customer's site during the onsite coverage window to begin hardware maintenance service the next coverage day after the service request has been logged. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.



https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf



*HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of these services and receive all the deliverables.



Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.



Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.



The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.



Other related Services

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf



HPE Installation and Startup Service

Provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux).



HPE Datacenter Care service

HPE Datacenter Care helps improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a structured framework of repeatable, tested, and globally available services “building blocks.” You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with HPE via a single point of accountability for HPE and others’ products. For more information, visithttp://www.hpe.com/services/datacentercare



HPE GreenLake Flex Capacity

With HPE GreenLake Flex Capacity, you get the speed, scalability, and economics of the public cloud in the privacy of your data center. Gain the advantages of the public cloud—consumption-based payment, rapid scalability without worrying about capacity constraints. Reduce the “heavy lifting” needed to operate a data center. And retain the advantages that IT provides the business (i.e., control, security). Deliver the right user experience, choose the right technology for the business, manage privacy and compliance, and manage the cost of IT. And, you have the option to use the public cloud when needed.



DC for Hyperscale

Datacenter Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture can take advantage of this environment support tailored to their operating model.



HPE Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.



HPE Service Credits

HPE Service Credits offers flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.



HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment.

http://www.hpe.com/ww/learn



HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers.



Learn more http://www.hpe.com/support/hpesc.



HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.



*HPE Support Center Mobile App is subject to local availability.



For more information: http://www.hpe.com/services.



NOTE: HPE ProLiant ML350 Gen10 Server is covered under the HPE Service Contract applied to the HPE ProLiant Server. No separate HPE support services need to be purchased.

Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS batteries over 12KVA. See the specific high value options that require additional support HERE.





Pre-configured Models

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.

1. Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.

2. Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.

3. If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.





Sub-Entry Model

Entry Model

Base Model

[SKU Number]

877619-001

877620-001

877621-001



Model Name

HPE ML350 Gen10 3104 1P 8G 4LFF NHP S100i 500W PS Sub-Entry Tower Server

HPE ML350 Gen10 3106 1P 16G 4LFF S100i 500W FS RPS Entry Tower Server

HPE ML350 Gen10 4110 1P 16G 8SFF P408i-a 800W FS RPS Base Tower Server

Processor

3104 (6-Core, 1.7 GHz, 85W)

3106 (8-Core, 1.7 GHz, 85W)

4110 (8-Core, 2.1 GHz, 85W)



Number of Processors

One processor

Memory

GB RDIMM SR 2600 MT/s

(1x 8 GB)

NOTE: running at 2133 MT/s due to Processor limitation.

16 GB RDIMM SR 2600 MT/s

(1x 16 GB)

NOTE: running at 2133 MT/s due to Processor limitation.

16 GB RDIMM SR 2600 MT/s

(1x 16 GB)

NOTE: running at 2400 MT/s due to Processor limitation.

Network Controller

Embedded 4-Port 1GbE HPE Ethernet 1Gb 4-port 369i Adapter

NOTE: embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter does not support speeds of 100MB/s and 10MB/s.

Storage Controller

Embedded 14-Port S100i

NOTE: SATA only.

Embedded 14-Port S100i

NOTE: SATA only.

NOTE: Field upgradeable to SAS by selecting HPE modular Smart Array controller.

P408i-a

NOTE: 8-Port modular Smart Array.

NOTE: Smart Storage battery included.

Hard Drive

None ship as standard

Internal Storage

4 LFF NHP chassis with optional HDD Cage Kit (874567-B21) to be selected.

Upgradeable to 12 LFF max.

4 LFF HP Chassis with optional HDD Cage Kit (874566-B21) to be selected. Upgradeable to 12 LFF max.

8 SFF chassis with optional SFF HDD Cage Kit (874568-B21) to be selected. Upgradeable to 24 SFF max.

Opt. 8 SFF NVMe Express Bay Kit (874569-B21)

Optical Drive Bay

Optional Slimline ODD Bay Kit (874577-B21) for SATA DVD-ROM/DVD-RW optical drive

Optional Media Drive Support Kit (874570-B21) for RDX or tape/LTO devices, up to 2

Optical Drive

None ship as standard

PCI-Express Slots

4-slots (x16, x8, x16, x8) as standard

NOTE: PCIe slots 5 – 8 require the second optional processor.

Power Supply

1x 500W HPE Standard Non-Hot-Plug/non-RPS Power Supply

1x 500W HPE FlexSlot Power Supply

NOTE: Add a second 500W FlexSlot power supply to get 1+1 power redundancy feature.

1x 800W HPE FlexSlot Power Supply

NOTE: Add a second 800W FlexSlot power supply to get 1+1 power redundancy feature.

Fans

2 standard fans;

Optional redundant fan cage kit (874572-B21, additional 4 fans)

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced
(require licenses)

Energy Star

2.1 certified

Form Factor

4U Tower

NOTE: Optional Tower-to-Rack conversion kit (874578-B21) to convert the unit to a 5U Rack-mount server.

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.













Performance Model – Rack

Performance Model

[SKU Number]

877622-001

877623-001

Model Name

HPE ML350 Gen10 4114 2P 32G 8SFF P408i-a 2x800W FS RPS Performance Rack Server

HPE ML350 Gen10 5118 2P 32G 8SFF P408i-a 2x800W FS RPS Performance Tower Server

Processor

4114 (10-Core, 2.2 GHz, 85W)

5118 (12-Core, 2.3 GHz, 105W)

Number of Processors

Two processors

Memory

32 GB RDIMM SR 2600 MT/s

(2x 16 GB)

NOTE: running at 2400 MT/s due to Processor limitation.

Network Controller

Embedded 4-Port 1GbE HPE Ethernet 1Gb 4-port 369i Adapter

NOTE: embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter does not support speeds of 100MB/s and 10MB/s.

Storage Controller

P408i-a

NOTE: 8-Port modular Smart Array.

NOTE: Smart Storage battery included.

Hard Drive

None ship as standard

Internal Storage



8 SFF chassis with optional SFF HDD Cage Kit (874568-B21),

upgradeable to 24 SFF.

Opt. 8 SFF NVMe Express Bay Kit (874569-B21)

Optical Drive Bay

Optional Slimline ODD Bay Kit (874577-B21) for SATA DVD-ROM/DVD-RW optical drive

Optional Media Drive Support Kit (874570-B21) for RDX or tape/LTO devices, up to 2

Optical Drive

None ship as standard

PCI-Express Slots

8-slots (x16, x8, x16, x8, x16, x8, x16, x8) as standard

Power Supply

2x 800W HPE FlexSlot power supply (1+1)

Fans

6 standard fans

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses)

Energy Star

2.1 certified

Form Factor

5U Rack

4U Tower

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response









Solution Model

[SKU Number]

P04674-S01

Model Name

HPE ML350 Gen10 4110 1P 16G 8SFF E208i-a 800W FS RPS Solution Tower Server

Processor

4110 (8-Core, 2.1 GHz, 85W)

Number of Processors

One processor

Memory

16 GB RDIMM SR 2600 MT/s

(1x 16 GB)

NOTE: running at 2400 MT/s due to Processor limitation.

Network Controller

Embedded 4-Port 1GbE HPE Ethernet 1Gb 4-port 369i Adapter

NOTE: embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter does not support speeds of 100MB/s and 10MB/s.

Storage Controller

E208i-a

NOTE: 8-Port modular Smart Array with essential RAID/no Cache.

NOTE: Smart Storage battery NOT included.

Hard Drive

None ship as standard

Internal Storage

8 SFF chassis with optional SFF HDD Cage Kit (874568-B21) to be selected. Upgradeable to 24 SFF max.

Opt. 8 SFF NVMe Express Bay Kit (874569-B21)

Optical Drive Bay

Optional Slimline ODD Bay Kit (874577-B21) for SATA DVD-ROM/DVD-RW optical drive

Optional Media Drive Support Kit (874570-B21) for RDX or tape/LTO devices, up to 2

Optical Drive

None ship as standard

PCI-Express Slots

4-slots (x16, x8, x16, x8) as standard

NOTE: PCIe slots 5 – 8 require the second optional processor.

Power Supply

1x 800W HPE FlexSlot Power Supply

NOTE: Add a second 800W FlexSlot power supply to get 1+1 power redundancy feature.

Fans

2 standard fans;

Optional redundant fan cage kit (874572-B21, additional 4 fans)

Software

ClearOS/ClearVM

 NOTE: ClearOS/VM installer on a 8GB USB flash key pre-built inside the system.

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced
(require licenses)

Energy Star

2.1 certified

Form Factor

4U Tower

NOTE: Optional Tower-to-Rack conversion kit (874578-B21) to convert the unit to a 5U Rack-mount server.

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.





Configuration Information - Factory Integrated Models

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
1. Factory Integrated Models must start with a CTO Server.

2. FIO indicates that this option is only available as a factory installable option.

3. All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

4. Some options may not be integrated at the factory. Contact your local sales representative for additional information.



Step 1: Base Configuration (choose one of the following configurable models)



CTO Server

HPE ML350 Gen10 4 LFF CTO Server

HPE ML350 Gen10 8 SFF CTO Server

HPE ML350 Gen10 8 SFF Rack CTO Server

SKU Number

877625-B21

877626-B21

877627-B21

Processor Sockets

Two as standard

Two as standard

Two as standard

Processor

Not included as standard

Not included as standard

Not included as standard

DIMM Slots

24-DIMM slots

24-DIMM slots

24-DIMM slots

Storage Controller

Embedded SW RAID S100i with 14 SATA ports, choice of HPE modular Smart Array (AROC) and/or PCIe Standup controller card (s)

PCIe

8 PCIe Gen3 slots (x16, x8, x16, x8, x16, x8, x16, x8) as standard

Drive Cage - included

4 LFF

8 SFF

8 SFF

Network Controller

Embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter with optional 1/10/25Gb Standup card

NOTE: embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter does not support speeds of 100MB/s and 10MB/s.

Fans

2-Standard

2-Standard

6-Standard

Power Supply Cage included

HPE Flex Slot RPS cage and PDB included

HPE Flex Slot RPS cage and PDB included

HPE Flex Slot RPS cage and PDB included

Management

HPE iLO with Intelligent Provisioning (standard), iLO Advances and OneView (optional)

USB

6x 3.0/2.0 standard plus front iLO Service Port

6x 3.0/2.0 standard plus front iLO Service Port

6x 3.0/2.0 standard plus front iLO Service Port

Tower-to-Rack conversion kit

Optional

Optional

Easy Install rack-rail tray (1U) with CMA included as mandatory (must-select) accessories

NOTE: Refer to HPE Power Advisor Tool to review the power requirement for your selected configuration and determine what power supply module(s) to select.

Additional drive cages

Optional 4xLFF HDD Cage kit, up to 2 (total of 3)

Optional 8xSFF HDD Cage kit, up to 2 (total of 3)

Optional 8xSFF HDD Cage kit, up to 2 (total of 3)

Half-Height Media Bay

2 Optional

2 Optional

2 Optional

ODD

1 Optional

1 Optional

1 Optional

Redundant Fan Cage Kit

Optional

Optional

Included as standard – total 6 fans included

8 SFF NVMe Express Bay

Not available

Optional, up to 1

Optional, up to 1

NOTE: This aplies to CTO configurations, field upgrades may differ depending on field configuration.

NOTE: The HH Media Bay (2) and slim ODD Bay together takes up the space of one 4 LFF or 8 SFF drive cage, which means when media bay, ODD or both is selected, the max. drive cage installation will be 2.

NOTE: To get advanced cooling in richer configurations and/or under certain ambient environmental conditions, the Redundant Fan Cage Kit (874572-B21) which consists of one fan cage with 4 additional fans, is REQUIRED. This kit is automatically selected when the Rack CTO SKU is selected. Refer to the Redundaunt Fan Kit section or ML350 Gen10 User Guide for detail.

NOTE: When the 8SFF Rack CTO Server (877627-B21) is selected, the Redundant Fan Cage Kit (874572-B21) and ML350 Gen10 T/R Conversion Kit (874578-B21) will be automatically selected.



Step 2a: Choose Required Options - Processors

(only one of the following unless otherwise noted)



Please select one –L21 processor required below.

For second processor, please select the same processor model with –B21 from Core Options – HPE Processors section.

For example: first processor, select 878665-L21 then for second processor, select 878665-B21.

NOTE: 1P models typically ship with 2 standard fans. 2P models will require selection of the Redundant Fan Cage kit (874572-B21) which contains one fan cage along with 4 additional fans – total number of fans required in the system will
be 6.

NOTE: Maximum memory capacity per processor is dependent on processor models. All processors support up to 768 GB max memory per processor except “M” model processors will support up to 1.5 TB max memory per processor.

NOTE: Mixing of 2 different processor models are NOT allowed.

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

NOTE: Processors higher than 85W will ship with the Performance heat sink. All other processors will ship with the Standard heat sink.

Processor Option Kits - Recommended

Required Processor

HPE ML350 Gen10 Intel® Xeon-Platinum 8168 (2.7GHz/24-core/205W) FIO Processor Kit (Recommended)

878665-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Platinumn 8164 (2.0GHz/26-core/145W) FIO Processor Kit (Recommended)

878658-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Platinum 8160 (2.1GHz/24-core/150W) FIO Processor Kit (Recommended)

878657-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Gold 6152 (2.1GHz/22-core/140W) FIO Processor Kit (Recommended)

878652-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Gold 6148 (2.4GHz/20-core/150W) FIO Processor Kit (Recommended)

878650-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Gold 6144 (3.5GHz/8-core/150W) FIO Processor Kit (Recommended)

878648-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6140 (2.3GHz/18-core/140W) FIO Processor Kit (Recommended)

866554-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6138 (2.0GHz/20-core/125W) FIO Processor Kit (Recommended)

866552-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6136 (3.0GHz/12-core/150W) FIO Processor Kit (Recommended)

866550-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Gold 6134 (3.2GHz/8-core/130W) FIO Processor Kit (Recommended)

880214-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6132 (2.6GHz/14-core/140W) FIO Processor Kit (Recommended)

866548-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6130 (2.1GHz/16-core/125W) FIO Processor Kit (Recommended)

866546-L21

HPE ML350 Gen10 Intel Xeon-Gold 6128 (3.4GHz/6-core/115W) FIO Processor Kit (Recommended)

866544-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6126 (2.6GHz/12-core/125W) FIO Processor Kit (Recommended)

866542-L21

HPE ML350 Gen10 Intel Xeon-Gold 5122 (3.6GHz/4-core/105W) FIO Processor Kit (Recommended)

866540-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 5120 (2.2GHz/14-core/105W) FIO Processor Kit (Recommended)

866538-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 5118 (2.3GHz/12-core/105W) FIO Processor Kit (Recommended)

866536-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 5115 (2.4GHz/10-core/85W) FIO Processor Kit (Recommended)

866534-L21

HPE ML350 Gen10 Intel Xeon-Silver 4116 (2.1GHz/12-core/85W) FIO Processor Kit (Recommended)

866532-L21

HPE ML350 Gen10 Intel Xeon-Silver 4114 (2.2GHz/10-core/85W) FIO Processor Kit (Recommended)

866530-L21

HPE ML350 Gen10 Intel Xeon-Silver 4112 (2.6GHz/4-core/85W) FIO Processor Kit (Recommended)

866528-L21

HPE ML350 Gen10 Intel Xeon-Silver 4110 (2.1GHz/8-core/85W) FIO Processor Kit (Recommended)

866526-L21

HPE ML350 Gen10 Intel Xeon-Silver 4108 (1.8GHz/8-core/85W) FIO Processor Kit (Recommended)

866524-L21

HPE ML350 Gen10 Intel Xeon-Bronze 3106 (1.7GHz/8-core/85W) FIO Processor Kit (Recommended)

866522-L21

HPE ML350 Gen10 Intel Xeon-Bronze 3104 (1.7GHz/6-core/85W) FIO Processor Kit (Recommended)

866520-L21

NOTE: Processors above 85W use a Performance Heatsink.

HPE ML350 Gen10 Intel Xeon-Gold 6142 (2.6GHz/16-core/150W) FIO Processor Kit (Recommended)

866558-L21

NOTE: Ships with Performance Heatsink.



Processor Option Kits - Extended

Required Processor

HPE ML350 Gen10 Intel® Xeon-Platinum 8180M (2.5GHz/28-core/205W) FIO Processor Kit (Extended)

878663-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Platinum 8180 (2.5GHz/28-core/205W) FIO Processor Kit (Extended)

878662-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Platinum 8176M (2.1GHz/28-core/165W) FIO Processor Kit (Extended)

878666-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Platinum 8176 (2.1GHz/28-core/165W) FIO Processor Kit (Extended)

878661-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Platinum 8170M (2.1GHz/26-core/165W) FIO Processor Kit (Extended)

878660-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Platinum 8170 (2.1GHz/26-core/165W) FIO Processor Kit (Extended)

878659-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Platinum 8160M (2.1GHz/24-core/145W) FIO Processor Kit (Extended)

878664-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Platinum 8158 (3.0GHz/12-core/150W) FIO Processor Kit (Extended)

878656-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Platinum 8156 (3.6GHz/4-core/105W) FIO Processor Kit (Extended)

878655-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Platinum 8153 (2.0GHz/16-core/125W) FIO Processor Kit (Extended)

878654-L21

HPE ML350 Gen10 Intel® Xeon-Gold 6154 (3.0GHz/18-core/200W) FIO Processor Kit (Extended)

878653-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Gold 6150 (2.7GHz/18-core/165W) FIO Processor Kit (Extended)

878651-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Gold 6134M (3.2GHz/8-core/130W) FIO Processor Kit (Extended)

880215-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Gold 6146 (3.2GHz/12-core/165W) FIO Processor Kit (Extended)

878649-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel® Xeon-Gold 6142M (2.6GHz/16-core/150W) FIO Processor Kit (Extended)

878647-L21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6140M (2.3GHz/18-core/140W) FIO Processor Kit (Extended)

866556-L21

NOTE: Ships with Performance Heatsink.



Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen10 memory population rule whitepaper and optimal memory performance guidelines, please go to: https://www.hpe.com/docs/memory-population-rules

For Gen10 memory speed table, please go to: https://www.hpe.com/docs/memory-speed-table

For memory Reliability, Accessibility, Serviceability (RAS) features whitepaper like Gen10 Fast Fault Tolerance and legacy mirrored memory feature etc. please go to: http://www.hpe.com/docs/memory-ras-feature

NOTE: Memory DIMM availability with a server platform is dependent upon completion of certification testing.

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model.

Memory - Recommended



HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit (Recommended)

815098-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit (Recommended)

835955-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit (Recommended)

815100-B21

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Smart Memory Kit (Recommended)

815101-B21

Memory - Extended



HPE 8GB (1x8GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit (Extended)

815097-B21

HPE 128GB (1x128GB) Octal Rank x4 DDR4-2666 CAS-22-19-19 3DS Load Reduced Memory Kit (Extended)

815102-B21

Step 2c: Choose Power Supplies

NOTE: Mixing of 2 different power supplies is NOT allowed.

NOTE: Selection of two HPE Flex Slot power supplies provides 1+1 power redundancy.

NOTE: To review the power requirements for your selected configuration, please use the HPE Power Advisor Tool.

Power Supplies - Recommended



HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (Recommended)

865408-B21

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (Recommended)

865438-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (Recommended)

865414-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit (Recommended)

865434-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (Recommended)

830272-B21

Power Supplies - Extended



HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit (Extended)

865428-B21

Step 3: Choose Additional Factory Integratable Options



One of the following from each list may be selected if desired at time of factory integration.



HPE Unique Options



NOTE: Mechanical converter with supporting cable.



HPE Legacy FIO Mode Setting

758959-B22

NOTE: UEFI is the default, this FIO part can be used for CTO to enable Legacy mode.



HPE Converged Infrastructure Management Software



HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

E5Y43A

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

Step 4: Choose additional options for Factory Integration from Core and Additional Options sections below









Core Options

Recommended Options

Offering the best combination of performance, value and availability, Recommended Options have been selected by HPE experts to provide the right technology for a range of workloads and market segments.  Fully integrated into the HPE management and security experience, Recommended Options provide the best fit with timely availability.



Extended Options

Extended Options provide an extended catalog of products tailored for customers in specific markets or with specific workloads, requiring the utmost in performance or value. Fully integrated into the HPE management and security experience, Extended Options represent great value and performance but typically have a longer lead-time.

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information. Note the User Guide (UG)  can help to explain the cable routing for each option.

HPE Unique Options



HPE ML350 Gen10 8SFF Hot Plug Drive Backplane Cage Kit

874568-B21

NOTE: Add additional 8 SFF Hot-Plug Hard Drive Cage, allowing for up to 24 SFF Drive support (8+8+8).



HPE ML350 Gen10 4LFF Hot Plug Drive Backplane Cage Kit

874566-B21

NOTE: Add additional 4 LFF Hot-Plug Hard Drive Cage, allowing for up to 12 LFF Drive support (4+4+4).



HPE ML350 Gen10 4LFF Non Hot Plug Drive Cage Kit

874567-B21

NOTE: Field upgrade only. NHP drive cage is for NHP server only. Add additional 4 LFF Non-Hot-Plug Hard Drive Cage, allowing for up to 12 LFF NHP Drive support (4+4+4).



HPE ML350 Gen10 8SFF NVMe SSD Express Bay Enablement Kit with 2x4NVMe Risers and Support Cables

874569-B21

NOTE: This kit contains two x4 Direct Attach PCIe NVMe Riser Boards with each supporting up to 4 drives. When both Risers are installed, it supports 8 SFF NVMe drives.

NOTE: SFF NVMe SSDs to be ordered separately.

NOTE: NVMe drives require the addition of HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21).



HPE ML350 Gen10 RDX/LTO Media Drive Support Cable Kit with Fan Blank for Long LTO (Extended)

874570-B21

NOTE: Supporting cables to add additional RDX/tape devices for data backup or archiving.

NOTE: RDX/tape devices to be ordered separately.

NOTE: In the case when LTO Internal Tape or Internal Disk Based Back up (RDX) is selected along with the Fan Redundant Kit, Fan#1 will need to be removed and the Fan Blank provided in this option kit will need to be installed in Fan#1 location. This configuration will run without fan redundancy. Refer to ML350 Gen10 User Guide for more detail.



HPE ML350 Gen10 Slimline ODD Bay and Support Cable Kit (Extended)

874577-B21

NOTE: Mechanical converter with supporting cable.



HPE ML350 Gen10 Embedded SATA Cable Kit for LFF Configuration

877578-B21

HPE ML350 Gen10 Embedded SATA Cable Kit for SFF Configuration

877579-B21

HPE ML350 Gen10 AROC Mini-SAS Cable Kit for LFF Configuration

874573-B21

HPE ML350 Gen10 AROC Mini-SAS Cable Kit for SFF Configuration

877575-B21

HPE ML350 Gen10 Smart Array/HBA Mini-SAS Cable Kit for LFF Configuration

874574-B21

HPE ML350 Gen10 Smart Array/HBA Mini-SAS Cable Kit for SFF Configuration

874575-B21

HPE ML350 Gen10 12Gb SAS Expander Card Kit with Cables

874576-B21

HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules

874572-B21

NOTE: Add additional 4 hot-plug fans installed in the fan cage to get N+1 fan redundancy and/or for advanced cooling. Refer to later section for detail.



HPE ML350 Gen10 Flex Slot Redundant Power Supply Cage Kit with Power Distribution Board

874571-B21

NOTE: Field upgrade only. Allowing field upgrade from the 500W standard PSU/non-hot-plug/non-RPS to support HPE Flex Slot RPS.



HPE ML350 Gen10 GPU External Power Cable Kit

877628-B21

NOTE: Consists of two external power cables to feed power to GPU modules with TDP larger than 75W.  The longer GPU power cable is intended to support GPU installation in PCIe slot 1 or 3 (slots coming from CPU 1); while the other shorter cable to support slot 5 or 7 (slots coming from CPU 2).



HPE ML Gen10 Tower to Rack Conversion Kit with Sliding Rail Rack Shelf and Cable Management Arm

874578-B21

NOTE: This kit is supported in both ML350 and ML110 Gen10.





HPE Processors



Processor Option Kits - Recommended



HPE ML350 Gen10 Intel Xeon-Platinum 8168 (2.7GHz/24-core/205W) Processor Kit (Recommended)

878665-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Platinum 8164 (2.0GHz/26-core/150W) Processor Kit (Recommended)

878658-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Platinum 8160 (2.1GHz/24-core/150W) Processor Kit (Recommended)

878657-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6152 (2.1GHz/22-core/140W) Processor Kit (Recommended)

878652-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6148 (2.4GHz/20-core/150W) Processor Kit (Recommended)

878650-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6144 (3.5GHz/8-core/150W) Processor Kit (Recommended)

878648-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6142 (2.6GHz/16-core/150W) Processor Kit (Recommended)

866558-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6140 (2.3GHz/18-core/140W) Processor Kit (Recommended)

866554-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6138 (2.0GHz/20-core/125W) Processor Kit (Recommended)

866552-B21

HPE ML350 Gen10 Intel Xeon-Gold 6136 (3.0GHz/12-core/150W) Processor Kit (Recommended)

866550-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6134 (3.2GHz/8-core/130W) Processor Kit (Recommended)

880214-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6132 (2.6GHz/14-core/140W) Processor Kit (Recommended)

866548-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6130 (2.1GHz/16-core/125W) Processor Kit (Recommended)

866546-B21

HPE ML350 Gen10 Intel Xeon-Gold 6128 (3.4GHz/6-core/115W) Processor Kit (Recommended)

866544-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6126 (2.6GHz/12-core/125W) Processor Kit (Recommended)

866542-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 5122 (3.6GHz/4-core/105W) Processor Kit (Recommended)

866540-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 5120 (2.2GHz/14-core/105W) Processor Kit (Recommended)

866538-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 5118 (2.3GHz/12-core/105W) Processor Kit (Recommended)

866536-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 5115 (2.4GHz/10-core/85W) Processor Kit (Recommended)

866534-B21

HPE ML350 Gen10 Intel Xeon-Silver 4116 (2.1GHz/12-core/85W) Processor Kit (Recommended)

866532-B21

HPE ML350 Gen10 Intel Xeon-Silver 4114 (2.2GHz/10-core/85W) Processor Kit (Recommended)

866530-B21

HPE ML350 Gen10 Intel Xeon-Silver 4112 (2.6GHz/4-core/85W) Processor Kit (Recommended)

866528-B21

HPE ML350 Gen10 Intel Xeon-Silver 4110 (2.1GHz/8-core/85W) Processor Kit (Recommended)

866526-B21

HPE ML350 Gen10 Intel Xeon-Silver 4108 (1.8GHz/8-core/85W) Processor Kit (Recommended)

866524-B21

HPE ML350 Gen10 Intel Xeon-Bronze 3106 (1.7GHz/8-core/85W) Processor Kit (Recommended)

866522-B21

HPE ML350 Gen10 Intel Xeon-Bronze 3104 (1.7GHz/6-core/85W) Processor Kit (Recommended)

866520-B21

Processor Option Kits - Extended



HPE ML350 Gen10 Intel Xeon-Platinum 8180M (2.5GHz/28-core/205W) Processor Kit (Extended)

878663-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Platinum 8180 (2.5GHz/28-core/205W) Processor Kit (Extended)

878662-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Platinum 8176M (2.1GHz/28-core/165W) Processor Kit (Extended)

878666-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Platinum 8176 (2.1GHz/28-core/165W) Processor Kit (Extended)

878661-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Platinum 8170M (2.1GHz/26-core/165W) Processor Kit (Extended)

878660-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Platinum 8170 (2.1GHz/26-core/165W) Processor Kit (Extended)

878659-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Platinum 8160M (2.1GHz/24-core/150W) Processor Kit (Extended)

878664-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Platinumn 8158 (3.0GHz/12-core/150W) Processor Kit (Extended)

878656-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Platinum 8156 (3.6GHz/4-core/105W) Processor Kit (Extended)

878655-B21

HPE ML350 Gen10 Intel Xeon-Platinum 8153 (2.0GHz/16-core/125W) Processor Kit (Extended)

878654-B21

HPE ML350 Gen10 Intel Xeon-Gold 6154 (3.0GHz/18-core/200W) Processor Kit (Extended)

878653-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6150 (2.7GHz/18-core/165W) Processor Kit (Extended)

878651-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6146 (3.2GHz/12-core/165W) Processor Kit (Extended)

878649-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6142M (2.6GHz/16-core/150W) Processor Kit (Extended)

878647-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6140M (2.3GHz/18-core/140W) Processor Kit (Extended)

866556-B21

NOTE: Ships with Performance Heatsink.



HPE ML350 Gen10 Intel Xeon-Gold 6134M (3.2GHz/8-core/130W) Processor Kit (Extended)

880215-B21

NOTE: Ships with Performance Heatsink.



NOTE: Up to two processors supported. Performance Models include two processors.

NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.

NOTE: Turbo2: Intel® Turbo Boost Technology 2.0 provides more computing power when you need it with performance that adapts to spikes in your workload and delivers more performance upside than then previous generation turbo technology.

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

NOTE: The xxxxxx-B21 is the 2nd processor and ships with the CPU heat sink for factory of field installation.

NOTE: Maximum memory per socket depends on the processor selected.

NOTE: Processors above 85W use a Performance Heatsink.

NOTE: 2P models require the Redundant Fan Cage kit (874572-B21) which consists of one fan cage along with 4 additional fans.



Memory Selection

To streamline the configuration process for HPE ProLiant Gen10 servers and to provide the best product availability, HPE recommends memory from the list located here: http://www.hpe.com/products/recommend.

HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit (Recommended)

815098-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit (Recommended)

815100-B21

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Smart Memory Kit (Recommended)

815101-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit (Recommended)

835955-B21

HPE Memory - Extended



HPE 8GB (1x8GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit (Extended)

815097-B21

HPE 128GB (1x128GB) Octal Rank x4 DDR4-2666 CAS-22-19-19 3DS Load Reduced Memory Kit (Extended)

815102-B21

NOTE: Memory DIMM availability with a server platform is dependent upon completion of certification testing.

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model.





HPE Optical Drives - Recommended



HPE 9.5mm SATA DVD-ROM Optical Drive (Recommended)

726536-B21

NOTE: The HPE ML350 Gen10 Slimline ODD Bay Kit (Extended) (874577-B21) is required for this option.



HPE 9.5mm SATA DVD-RW Optical Drive (Recommended)

726537-B21

NOTE: The HPE ML350 Gen10 Slimline ODD Bay Kit (Extended) (874577-B21) is required for this option.



HPE Mobile USB DVD-RW Optical Drive (Recommended)

701498-B21

NOTE: This is only supported on USB 3.0 ports.

NOTE: When front drive cages are fully populated (Box 1 – 3) and there is still the requirement for DVD-RW support, this external USB DVD-RW option will meet that need.





HPE Drives



Enterprise - 12G SAS - SFF Drives - Recommended



HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD (Recommended)

870753-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD (Recommended)

872475-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD (Recommended)

870757-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD (Recommended)

872477-B21

HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD (Recommended)

870759-B21

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD (Recommended)

872479-B21

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD (Recommended)

872481-B21

HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD (Recommended)

881457-B21

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required for 10K, 15K or higher RPM SAS drives.



Enterprise - 12G SAS - SFF Drives - Extended



HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD (Extended)

870765-B21

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required for 10K, 15K or higher RPM SAS drives.



Enterprise - 12G SAS - LFF Drives - Extended



HPE 300GB SAS 12G Enterprise 15K LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware HDD (Extended)

870755-B21

HPE 900GB SAS 12G Enterprise 15K LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware HDD (Extended)

870761-B21

Midline - 12G SAS - SFF Drives - Recommended



HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD (Recommended)

832514-B21

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD (Recommended)

765466-B21

Midline - 12G SAS - SFF Drives - Extended



HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD (Extended)

765464-B21

Midline - 12G SAS - LFF Drives - Recommended



HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD (Recommended)

833926-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD (Recommended)

833928-B21

HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e Digitally Signed Firmware HDD (Recommended)

834031-B21

HPE 10TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD (Recommended)

857646-B21

HPE 12TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD (Recommended)

881781-B21

Midline - 12G SAS - LFF Drives - Extended



HPE 1TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD (Extended)

846526-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e HDD (Extended)

861748-B21

HPE 6TB  SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e HDD (Extended)

861746-B21

Midline - 6G SATA - SFF Drives - Recommended



HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD (Recommended)

655710-B21

HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD (Recommended)

765455-B21

Midline - 6G SATA - LFF Drives - Recommended



HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD (Recommended)

861686-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD (Recommended)

861683-B21

HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e HDD (Recommended)

861742-B21

HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e Digitally Signed Firmware HDD (Recommended)

834028-B21

HPE 10TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD (Recommended)

857650-B21

HPE 12TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD (Recommended)

881787-B21

Midline - 6G SATA - LFF Drives - Extended



HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD (Extended)

861681-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e HDD (Extended)

861744-B21

6G SATA - LFF NHP/Raw Drives - Recommended



HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD (Recommended)

801882-B21

6G SATA - LFF NHP/Raw Drives - Extended



HPE 1TB SATA 6G Entry 7.2K LFF (3.5in) RW 1yr Wty HDD (Extended)

843266-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD (Extended)

801888-B21

SSD Selection

To streamline the configuration process for HPE ProLiant Gen10 servers and to provide the best product availability, HPE recommends SSDs from the list located here: http://www.hpe.com/products/recommend. To further assist with configuration, HPE also offers an SSD Selector Tool located here: http://ssd.hpe.com.

Write Intensive – 12G SAS - SFF - Solid State Drives - Recommended



HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

873351-B21

HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

873355-B21

HPE 1.6TB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

873357-B21

Read Intensive - 12G SAS - SFF - Solid State Drives - Recommended



HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

872390-B21

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

872392-B21

HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

872394-B21

Read Intensive - 12G SAS - SFF - Solid State Drives - Extended



HPE 7.68TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Extended)

870144-B21

Read Intensive - 6G SATA - SFF - Solid State Drives - Recommended



HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

877740-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

875503-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

875509-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

877746-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

877752-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

875511-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

877758-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

875513-B21

HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

877764-B21

Read Intensive - 6G SATA - SFF - Solid State Drives - Extended



HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Extended)

P04556-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Extended)

P04560-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Extended)

P04564-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Extended)

P04566-B21

HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Extended)

P04570-B21

Read Intensive - 6G SATA - LFF - Solid State Drives - Extended



HPE 960GB SATA 6G Read Intensive LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware SSD (Extended)

877756-B21

HPE 1.92TB SATA 6G Read Intensive LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware SSD (Extended)

877762-B21

HPE 1.92TB SATA 6G Mixed Use LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware SSD (Extended)

P03689-B21

HPE 1.92TB SATA 6G Mixed Use LPC (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD (Extended)

P03610-B21

Read Intensive - 6G SATA - M.2 - Solid State Drives



HPE 480GB SATA 6G Read Intensive M.2 2280 3yr Wty Digitally Signed Firmware SSD (Recommended)

875498-B21

HPE 960GB SATA 6G Read Intensive M.2 2280 3yr Wty Digitally Signed Firmware SSD (Extended)

875500-B21

NOTE: Requires the M.2 universal enablement card kit (Recommended) (878783-B21) and use S100i SATA controller only.

NOTE: M.2 supports Software RAID only.

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required for M.2 drives.



Mixed Use - 12G SAS - SFF - Solid State Drives - Recommended



HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

872374-B21

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

873359-B21

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

872376-B21

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

873363-B21

HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

872382-B21

HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

873365-B21

HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

873367-B21

Mixed Use - 12G SAS - SFF - Solid State Drives - Extended



HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Extended)

872386-B21

Mixed Use - 6G SATA - SFF - Solid State Drives - Recommended



HPE 240GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

880295-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

877776-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

875470-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

877782-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

875474-B21

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

877788-B21

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Recommended)

875478-B21

Mixed Use - 6G SATA - SFF - Solid State Drives - Extended



HPE 3.84TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Extended)

P00896-B21

Mixed Use - 12G SAS - LFF - Solid State Drives - Recommended



HPE 800GB SAS 12G Mixed Use LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware SSD (Recommended)

872380-B21

HPE 1.6TB SAS 12G Mixed Use LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware SSD (Recommended)

872384-B21

Mixed Use - 6G SATA - M.2 - Solid State Drives - Recommended



HPE 240GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD (Recommended)

875488-B21





Mixed Use - 6G SATA - M.2 - Solid State Drives - Extended



HPE 480GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD (Extended)

875490-B21

HPE 960GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD (Extended)

875492-B21

NOTE: Requires the M.2 universal enablement card kit (Recommended) (878783-B21) and use S100i SATA controller only.

NOTE: M.2 supports Software RAID only.

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required for M.2 drives.



NOTE: HPE ML350 Gen10 NVMe 8SFF Exp Bay Kit (874569-B21) is required to support these drives.

NOTE: Max. support is one Gen10 ML350 NVMe 8SFF Exp Bay Kit (874569-B21) which can support up to 8 NVMe solid state drives.

NOTE: NVMe support is limited in SFF systems.

NOTE:  NVMe drives require the addition of HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21).

NOTE: When used to run high-performance workloads, NVMe SSDs can cause the fans to operate at high speeds to maintain optimum system cooling. This high-speed fan operation leads to a sound pressure level of between 50 dB(A) to 55 dB(A). Hewlett Packard Enterprise recommends taking this possible acoustic condition into consideration when selecting a site for a server that has NVMe SSDs installed.

NOTE:  Not supported by HPE Smart Array controllers.

NOTE:  HPE has qualified the NVMe drive portfolio using the Operating System inbox drivers, full detail on the HPE Solid State Drive QuickSpecs.



Read Intensive - NVMe - SFF - Solid State Drives - Extended



HPE 480GB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD (Extended)

875587-B21

HPE 960GB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD (Extended)

875589-B21

HPE 1.92TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD (Extended)

875591-B21

HPE 4TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD (Extended)

877988-B21

Mixed Use - NVMe - SFF - Solid State Drives - Recommended



HPE 400GB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD (Recommended)

875593-B21

HPE 800GB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD (Recommended)

875595-B21

Mixed Use - NVMe - SFF - Solid State Drives - Extended



HPE 1.6TB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD (Extended)

875597-B21

HPE 375GB NVMe x4 Lanes Write Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD (Extended)

878014-B21

Hard Drive Blank Kits



HPE Small Form Factor Hard Drive Blank Kit

666987-B21

HPE Gen9 LFF HDD Spade Blank Kit

807878-B21

Hard Drive Kits



HPE ML350 Gen10 8SFF Hot Plug Drive Backplane Cage Kit

874568-B21

NOTE: Add additional 8 SFF Hot-Plug Hard Drive Cage, allowing for up to 24 SFF Drive support (8+8+8).



HPE ML350 Gen10 4LFF Hot Plug Drive Backplane Cage Kit

874566-B21

NOTE: Add additional 4 LFF Hot-Plug Hard Drive Cage, allowing for up to 12 LFF Drive support (4+4+4).



HPE ML350 Gen10 4LFF Non Hot Plug Drive Cage Kit

874567-B21

NOTE: Field upgrade only. Add additional 4 LFF Non-Hot-Plug Hard Drive Cage, allowing for up to 12 LFF Drive support (4+4+4). NHP drive cage is for NHP server only.



HPE Universal SATA HHHL 3yr Wty M.2 Kit (Recommended)

878783-B21

NOTE: HPE M.2 universal enablement card kit (Recommended) (878783-B21), which is required for SATA M.2 support.

NOTE: Installation of this M.2 enablment card kit is limited to PCIe slot 1, 2, 3 or 4. Max. in ML350 Gen10 is one M.2 enablment card kit.

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required when this card kit is selected/installed for M.2 SSD support.



HPE ML350 Gen10 8SFF NVMe SSD Express Bay Enablement Kit with 2x4NVMe Risers and Support Cables

874569-B21

NOTE: This kit contains two x4 Direct Attach PCIe NVMe Riser Boards with each supporting up to 4 NVMe drives. When both Risers are installed, it supports 8 SFF NVMe drives.

NOTE: Max. support is one Gen10 ML350 NVMe 8SFF Exp Bay Kit (874569-B21) with installation limited to Box 2 based on cable routing requirement.

NOTE: SFF NVMe SSDs to be ordered separately.

NOTE: NVMe support is limited in SFF systems.

NOTE: NVMe drives require the addition of HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21).



Media/ODD Bay Kits



HPE ML350 Gen10 RDX/LTO Media Drive Support Cable Kit with Fan Blank for Long LTO (Extended)

874570-B21

NOTE: Supporting cables to add additional RDX/tape devices for data backup or archiving.

NOTE: RDX/tape devices to be ordered separately.

NOTE: In the case when LTO Internal Tape or Internal Disk Based Back up (RDX) is selected along with the Fan Redundant Kit, Fan#1 will need to be removed and the Fan Blank provided in this option kit will need to be installed in Fan#1 location. This configuration will run without fan redundancy. Refer to ML350 Gen10 User Guide for more detail.



HPE ML350 Gen10 Slimline ODD Bay and Support Cable Kit (Extended)

874577-B21

NOTE: Mechanical converter with supporting cable.





HPE Networking



1 Gigabit Ethernet adapters - Recommended



HPE Ethernet 1Gb 4-port 331T Adapter (Recommended)

647594-B21

HPE Ethernet 1Gb 4-port 366T Adapter (Recommended)

811546-B21

1 Gigabit Ethernet adapters - Extended



HPE Ethernet 1Gb 2-port 332T Adapter (Extended)

615732-B21

HPE Ethernet 1Gb 2-port 361T Adapter (Extended)

652497-B21

10 Gigabit Ethernet adapters - Recommended



HPE Ethernet 10Gb 2-port 530T Adapter (Recommended)

656596-B21

HPE Ethernet 10Gb 2-port 535T Adapter (Recommended)

813661-B21

HPE Ethernet 10Gb 2-port 530SFP Adapter (Recommended)

652503-B21

10 Gigabit Ethernet adapters - Recommended



HPE Ethernet 10Gb 2-port 521T Adapter (Extended)

867707-B21

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules (874572-B21) is required to support this card.



HPE Ethernet 10Gb 2-port 562T Adapter (Extended)

817738-B21

HPE Ethernet 10Gb 2-port 562SFP+ Adapter (Extended)

727055-B21

25 Gigabit Ethernet adapters - Recommended



HPE Ethernet 10/25Gb 2-port 631SFP28 Adapter (Recommended)

817718-B21

HPE Ethernet 10/25Gb 2-port 640SFP28 Adapter (Recommended)

817753-B21

25 Gigabit Ethernet adapters - Extended



HPE Ethernet 10/25Gb 2-port 621SFP28 Adapter (Extended)

867328-B21

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules (874572-B21) is required to support this card.





HPE InfiniBand



HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+QSFP Adapter

764284-B21

HPE InfiniBand EDR/Ethernet 100Gb 1-port 840QSFP28 Adapter

825110-B21

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules (874572-B21) is required to support this card.



HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter

825111-B21

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules (874572-B21) is required to support this card.



HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter

829335-B21

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules (874572-B21) is required to support this card.





HPE Power Supplies - Recommended



HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (Recommended)

865408-B21

NOTE: Flex Slot Platinum power supplies support power efficiency of up to 94% and include a standard
C-14 power inlet connector.



HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (Recommended)

865438-B21

NOTE: Flex Slot Titanium power supplies support power efficiency of up to 96% and include a standard
C-14 power inlet connector.



HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (Recommended)

865414-B21

NOTE: Flex Slot Platinum power supplies support power efficiency of up to 94% and include a standard
C-14 power inlet connector.



HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit (Recommended)

865434-B21

NOTE: Flex Slot -48VDC power supplies support power efficiency of up to 94%.



HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (Recommended)

830272-B21

NOTE: Available in 94% efficiency.



HPE 500W Low Halogen FIO Power Supply Kit (Recommended)

837074-B21

NOTE: Support power efficiency of up to 92%.



HPE Power Supplies - Extended



HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit (Extended)

865428-B21

NOTE: Flex Slot universal power supplies support power efficiency of up to 94% and support both 277VAC/380VDC power inputs.



HPE Power Supply Options



HPE ML350 Gen10 Flex Slot Redundant Power Supply Cage Kit with Power Distribution Board

874571-B21

NOTE: Field upgrade only. Allowing field upgrade from the 500W standard PSU/non-RPS, non-hot-plug to support HPE Flex Slot RPS.







GPGPU Information

Part Number

Card

TDP

Qty. Support

PCIe Speed

ML350 Gen10 Configuration

8SFF

16SFF

16SFF+8NVMe

24SFF

4LFF

8LFF

12LFF

Q0V78A

HPE NVIDIA Quadro P4000 GPU Module

105W

4

Gen3

35C

35C

35C

35C

35C

35C

35C

Q0V76A

HPE NVIDIA Quadro P6000 GPU Module

250W

4

Gen3

35C

35C

35C

35C

35C

35C

35C

Q0J62A

HPE NVIDIA Tesla M10 Quad GPU Module

225W

2

Gen3

35C

30C

30C

30C

35C

30C

30C

Q0V80A

HPE NVIDIA Tesla P40 24 GB Module

250W

4

Gen3

25C

20C

20C

20C

25C

20C

20C

NOTE: The 1600W RPS is recommended when the system is configured with high power GPU. The 800W RPS will work too (per GPU) – depending on configuration. Please do check the total power requirement of your selected configuration with the GPU(s) supported in this platform with the HPE Power Advisor Tool located at http://www.hpe.com/info/hppoweradvisor.

NOTE: The ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required for all GPU installations. (Note, the redundant fan kit ships as standard with the two 2P Performance models and the Rack CTO).

NOTE: Mixing of GPUs is not supported.

NOTE: These GPUs are not recommended for use in office environment especially under stress mode when system fans are running at full speed.

NOTE: HPE ML350 Gen10 GPU Ext Power Cable Kit (877628-B21) is required for GPU TDP larger than 75W.





HPE Computation and Graphics Accelerators

HPE NVIDIA Quadro P4000 Graphics Accelerator

Q0V78A

NOTE: HPE ML350 Gen10 GPU External Power Cable Kit (877628-B21) is required.

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required.



HPE NVIDIA Quadro P6000 Graphics Accelerator

Q0V76A

NOTE: HPE ML350 Gen10 GPU External Power Cable Kit (877628-B21) is required.

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required.



NVIDIA Tesla M10 Quad GPU Module

Q0J62A

NOTE: HPE ML350 Gen10 GPU External Power Cable Kit (877628-B21) is required.

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required.



HPE NVIDIA Tesla P40 24GB Computational Accelerator

Q0V80A

NOTE: HPE ML350 Gen10 GPU External Power Cable Kit (877628-B21) is required.

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required.





Graphics Cable Kits



HPE ML350 Gen10 GPU External Power Cable Kit

877628-B21

NOTE: This kit consists of two external power cables to feed power to GPU modules with TDP larger than 75W. The longer GPU power cable is intended to support GPU installation in PCIe slot 1 or 3 (slots coming from CPU 1); while the other shorter cable to support slot 5 or 7 (slots coming from CPU 2).





PCIe Accelerators - Extended



HPE 1.6TB PCIe x8 Lanes Mixed Use HHHL 3yr Wty Digitally Signed Firmware Card (Extended)

877825-B21

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules (874572-B21) is required.



HPE 3.2TB PCIe x8 Lanes Mixed Use HHHL 3yr Wty Digitally Signed Firmware Card (Extended)

877827-B21

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules (874572-B21) is required.



HPE 6.4TB PCIe x8 Lanes Mixed Use HHHL 3yr Wty Digitally Signed Firmware Card (Extended)

877829-B21

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules (874572-B21) is required.





HPE Cooling Options



HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules

874572-B21

NOTE: This kit is required for elevated Ambient temperature environments.

NOTE: Add additional 4x hot-plug fans which are installed in the fan cage to get N+1 fan redundancy and advanced cooling.

NOTE: The performance 2P BTO models and the Rack CTO model will already include this kit to include 6 fans total.

NOTE: The ML350 Gen10 Redundant Fan Kit (874572-B21) is required for one of the following configurations or situations:

2P configuration.

When the unit is configured to use in Rack mode.

When front storage is fully populated with (3) 4LFF or (3) 8SFF drive cages or (2) LFF or SFF drive cages along with (2) media bays and (1) DVD.

When ML350 Gen10 is used in ASHRAE 3 or 4 environment.

When the unit is configured with higher RPM SAS HDDs (10K, 15K or higher).

When the unit is configured with NVMe Express Bay for NVMe SSD support.

When M.2 is selected.

The ML350 Gen10 Redundant Fan Cage Kit is also needed to support certain higher end PCIe expansion cards for example, GPU (Graphic Processing Unit), advanced PCIe accelerators, InfiniBand cards, higher-end network adapters and storage controllers P816i-a and P824i-pcontroller.

NOTE: Please refer to the User Guide for special configuration scenarios where the redundant fan option is required but does not provide redundancy function.





Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

Embedded Management



HPE iLO Advanced



HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced Flexible Quantity License with 1yr Support on iLO Licensed Features

512486-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced Flexible Quantity License with 3yr Support on iLO Licensed Features

BD506A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A



HPE Converged Infrastructure Management Software



HPE OneView Physical Media Kit LTU

E5Y37A

HPE OneView including 3yr 24x7 Support Physical 1-server LTU

E5Y34A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

NOTE: Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded.





HPE Security



HPE Trusted Platform Module 2.0 Kit

872108-B21

NOTE: HPE Trusted Platform Module 2.0 option works with Gen10 servers with UEFI Mode not Legacy Mode. It is not compatible with HPE ProLiant Gen8 servers or earlier generation variants.

NOTE: HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module.

NOTE: There is a FIO setting to allow this TPM module to operate in a TPM 1.2 mode (872108-B21).





HPE Smart Array Controllers



The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.





Performance RAID Controllers - Recommended



NOTE: All performance RAID controllers are supported by the HPE Smart Storage Battery (Recommended) (P01367-B21), which supports multiple devices and is sold separately.



HPE Smart Array P816i-a SR Gen10 (16 Internal Lanes/4GB Cache/SmartCache) 12G SAS Modular Controller (Recommended)

804338-B21

NOTE: Does not occupy a PCIe expansion slot and includes SmartCache license.

NOTE: HPE ML350 Gen10 SFF AROC Cable Kit (877575-B21) for SFF chassis configuration or HPE ML350 Gen10 LFF AROC Cable Kit (874573-B21) for LFF chassis configuration is required.

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required for P816i-a.

NOTE: For information on the HPE Smart Array P816i-a SR Gen10 Controller please refer to their QuickSpecs.



HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller (Recommended)

804331-B21

NOTE: Does not occupy a PCIe expansion slot.

NOTE: HPE ML350 Gen10 SFF AROC Cable Kit (877575-B21) for SFF chassis configuration or HPE ML350 Gen10 LFF AROC Cable Kit (874573-B21) for LFF chassis configuration is required.

NOTE: For information on the HPE Smart Array P408i-a SR Gen10 Controller please refer to their QuickSpecs.



HPE Smart Array P408i-p SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS PCIe Plug-in Controller (Recommended)

830824-B21

NOTE: HPE ML350 Gen10 Smart Array/HBA Mini-SAS Cable Kit for SFF Configuration (874575-B21) for SFF chassis configuration or HPE ML350 Gen10 LFF SA/HBA Cable Kit (874574-B21) for LFF chassis configuration is required.

NOTE: For information on the HPE Smart Array P408i-p SR Gen10 Controller please refer to their QuickSpecs.



Performance RAID Controllers - Extended



HPE Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller (Extended)

804405-B21

NOTE: For information on the HPE Smart Array P408e-p SR Gen10 Controller please refer to theirQuickSpecs.



HPE Smart Array P824i-p MR Gen10 (24 Internal Lanes/4GB Cache/CacheCade) 12G SAS PCIe Controller (Extended)

870658-B21

NOTE: HPE D38X/580/560/ML350 24P Cable Kit (Extended) (P00614-B21) is required when this controller is selected.

NOTE: HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21) is required for P824i-p.

NOTE: This controller is supported in ML350 Gen10 SFF configurations only supporting up to 24 SAS/SATA drives.

NOTE: For information on the HPE Smart Array P824i-p MR Gen10 Controller, please refer to their QuickSpecs.



Essential RAID Controllers - Recommended



HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular Controller (Recommended)

804326-B21

NOTE: Does not occupy a PCIe expansion slot.

NOTE: HPE ML350 Gen10 SFF AROC Cable Kit (877575-B21) for SFF chassis configuration or HPE ML350 Gen10 LFF AROC Cable Kit (874573-B21) for LFF chassis configuration is required.

NOTE: For information on the HPE Smart Array E208i-a SR Gen10 Controller please refer to their QuickSpecs.



HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller (Recommended)

804398-B21

NOTE: For information on the HPE Smart Array E208e-p SR Gen10 Controller please refer to theirQuickSpecs.



Essential RAID Controllers - Extended



HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller (Extended)

804394-B21

NOTE: HPE ML350 Gen10 Smart Array/HBA Mini-SAS Cable Kit for SFF Configuration (874575-B21) for SFF chassis configuration or HPE ML350 Gen10 LFF SA/HBA Cable Kit (874574-B21) for LFF chassis configuration is required.

NOTE: For information on the HPE Smart Array E208i-p SR Gen10 Controller please refer to their QuickSpecs.



HPE Cable Options and SAS Expander Kit



HPE ML350 Gen10 Embedded SATA Cable Kit for LFF Configuration

877578-B21

HPE ML350 Gen10 Embedded SATA Cable Kit for SFF Configuration

877579-B21

HPE ML350 Gen10 AROC Mini-SAS Cable Kit for LFF Configuration

874573-B21

HPE ML350 Gen10 AROC Mini-SAS Cable Kit for SFF Configuration

877575-B21

HPE ML350 Gen10 Smart Array/HBA Mini-SAS Cable Kit for LFF Configuration

874574-B21

HPE ML350 Gen10 Smart Array/HBA Mini-SAS Cable Kit for SFF Configuration

874575-B21

HPE DL38X/560/580/ML350 Gen10 P824i-p Cable Kit (Extended)

P00614-B21

NOTE: This cable kit must be selected when P824i-p card is ordered. One P824i-p requires one cable kit.



NOTE: For details on cabling options and cable routing instructions, refer to HPE ML350 Gen10 User Guide.



HPE ML350 Gen10 12Gb SAS Expander Card Kit with Cables

874576-B21

NOTE: Add this SAS Expander option kit to upgrade your ML350 Gen10 SFF system pre-configured with either P408i-a or E208i-a (or any P or E-series card), to support 24 SFF drives.





Optional Software



HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU

Q2F26AAE

HPE Smart Array SR SmartCache (Single Key/Single Server) LTU

D7S26A

HPE Smart Array SR SmartCache (Single Key/Multiple Servers) LTU

D7S27A

HPE Smart Array SR SmartCache (Single Key/Multiple Servers) E-LTU

D7S27AAE

NOTE: SmartCache is offered on HPE Smart Array performance RAID controllers and comes standard (no licensing is required) if the HPE Smart Array P816i-a SR Gen10 Controller is installed in the server.



Optional Upgrades



HPE 96W Smart Storage Battery (up to 20 Devices) with 260mm Cable Kit (Recommended)

P01367-B21

NOTE: Provides backup power for multiple HPE Smart Array controllers or other devices. Is required with performance RAID controllers. This product replaces 875242-B21.





HPE Tape Backup



NOTE: Internal half-height (5.25”) tape devices are supported in ML350 Gen10 and require the HPE ML350 Gen10 Media Drive Support Kit (874570-B21).

NOTE: In the case when LTO Internal Tape or Internal Disk Based Back up (RDX) is selected along with the Fan Redundant Kit, Fan#1 will need to be removed and the Fan Blank provided in this option kit will need to be installed in Fan#1 location. This configuration will run without fan redundancy. Refer to ML350 Gen10 User Guide for more detail.

NOTE: Installation of the internal LTO tape drive is limited in media bay 1.

NOTE: For the complete range of tape drives, autoloaders, libraries and media see: https://www.hpe.com/us/en/storage/storeever-tape-storage.html. For hardware and software compatibility of Hewlett Packard Enterprise tape backup products http://www.hpe.com/storage/BURAcompatibility.



HPE Tape Drives - Recommended



HPE LTO-7 Ultrium 15000 Internal Tape Drive (Recommended)

BB873A

HPE StoreEver LTO-7 Ultrium 15000 External Tape Drive (Recommended)

BB874A

HPE LTO-6 Ultrium 6250 Internal Tape Drive (Recommended)

EH969A

HPE StoreEver LTO-6 Ultrium 6250 External Tape Drive (Recommended)

EH970A

HPE StoreEver LTO-5 Ultrium 3000 SAS Internal Tape Drive (Recommended)

EH957B

HPE StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive (Recommended)

EH958B

HPE Tape Drives - Extended



HPE StoreEver LTO-8 Ultrium 30750 Internal Tape Drive (Extended)

BC022A

HPE StoreEver LTO-8 Ultrium 30750 External Tape Drive (Extended)

BC023A

HPE Tape Backup Products



HPE StoreEver 1/8 G2 LTO-8 Ultrium 30750 FC Tape Autoloader

Q6Q65A

HPE StoreEver 1/8 G2 LTO-8 Ultrium 30750 SAS Tape Autoloader

Q6Q66A

HPE StoreEver MSL LTO-8 Ultrium 30750 FC Drive Upgrade Kit

Q6Q67A

HPE StoreEver MSL LTO-8 Ultrium 30750 SAS Drive Upgrade Kit

Q6Q68A

HPE StoreEver MSL3040 Scalable Library Base Module

Q6Q62A

HPE StoreEver MSL3040 Scalable Library Expansion Module

Q6Q63A

HPE StoreEver MSL LTO-7 Ultrium 15000 FC Drive Upgrade Kit

N7P36A

HPE StoreEver MSL LTO-7 Ultrium 15000 SAS Drive Upgrade Kit

N7P37A

HPE StoreEver MSL LTO-6 Ultrium 6250 SAS Drive Upgrade Kit

C0H27A

HPE StoreEver MSL LTO-6 Ultrium 6250 Fibre Channel Drive Upgrade Kit

C0H28A

HPE StoreEver MSL LTO-5 Ultrium 3000 SAS Drive Upgrade Kit

BL540B

HPE StoreEver MSL2024 0-drive Tape Library

AK379A

HPE StoreEver MSL4048 0-drive Tape Library

AK381A

HPE StoreEver MSL6480 Scalable Base Module

QU625A

HPE StoreEver 1/8 G2 LTO-7 Ultrium 15000 FC Tape Autoloader

N7P34A

HPE StoreEver 1/8 G2 LTO-7 Ultrium 15000 SAS Tape Autoloader

N7P35A

HPE StoreEver 1/8 G2 LTO-6 Ultrium 6250 SAS Tape Autoloader

C0H18A

HPE StoreEver 1/8 G2 LTO-6 Ultrium 6250 Fibre Channel Tape Autoloader

C0H19A

HPE StoreEver 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader

BL536B

HPE StoreEver Mini-SAS High Density to 4-lane Mini-SAS External Fanout 2m Cable

K2R09A

HPE StoreEver Mini-SAS High Density to 4-lane Mini-SAS External Fanout 4m Cable

K2R10A



HPE Storage Options



Emulex Fibre Channel HBAs - Recommended



HPE StoreFabric SN1200E 16Gb Single Port Fibre Channel Host Bus Adapter (Recommended)

Q0L13A

HPE StoreFabric SN1200E 16Gb Dual Port Fibre Channel Host Bus Adapter (Recommended)

Q0L14A

HPE StoreFabric SN1600E 32Gb Single Port Fibre Channel Host Bus Adapter (Recommended)

Q0L11A

HPE StoreFabric SN1600E 32Gb Dual Port Fibre Channel Host Bus Adapter (Recommended)

Q0L12A

QLogic Fibre Channel HBAs - Recommended



HPE StoreFabric SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter (Recommended)

P9D93A

HPE StoreFabric SN1100Q 16Gb Dual Port Fibre Channel Host Bus Adapter (Recommended)

P9D94A

HPE StoreFabric SN1600Q 32Gb Single Port Fibre Channel Host Bus Adapter (Recommended)

P9M75A

HPE StoreFabric SN1600Q 32Gb Dual Port Fibre Channel Host Bus Adapter (Recommended)

P9M76A

Converged Network Adapters - Recommended



HPE StoreFabric CN1100R Dual Port Converged Network Adapter (Recommended)

QW990A

HPE StoreFabric CN1100R 10GBASE-T Dual Port Converged Network Adapter (Recommended)

N3U52A

HPE StoreFabric CN1200E 10GBASE-T Dual Port Converged Network Adapter (Recommended)

N3U51A

HPE StoreFabric CN1200E 10Gb Converged Network Adapter (Recommended)

E7Y06A

NOTE: For the complete listing of Fibre Channel Host Bus Adapters for Windows 2000, Windows Server 2003 and Linux, please see: https://www.hpe.com/us/en/product-catalog/storage/storage-adapters.hits-12.html.



HPE Racks



NOTE: Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications.



NOTE: Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications.



NOTE: Please see the HPE Standard Series Racks QuickSpecs for information on additional racks options and rack specifications.





HPE Power Distribution Units (PDUs)



NOTE: Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.



NOTE: Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.



NOTE: Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on these products and their specifications.



NOTE: Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.





HPE Uninterruptible Power Systems (UPS)



NOTE: To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.



NOTE: Please see the HPE DirectFlow Three Phase Uninterruptible Power System QuickSpecs for information on these products and their specifications.



NOTE: Please see the HPE Line Interactive Single Phase UPS QuickSpecs for information on these products and their specifications.





HPE Rack Options



NOTE: Please see the HPE KVM Switches web page for information on these products and their specifications.



Rail Kits



NOTE: Ball bearing and Easy Install rail kits contain telescoping rails which allow for in-rack serviceability.

NOTE: To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (695539-001).

CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.



HPE ML Gen10 Tower to Rack Conversion Kit with Sliding Rail Rack Shelf and Cable Management Arm

874578-B21

NOTE: Easy install rack rail tray which takes up 1U height in a standard rack facility. This kit is supported in both ML350 and ML110 Gen10 for tower to rack conversion. This kit includes CMA and is shipped as standard in the 2P Performance Rack SKU and SFF Rack CTO.





HPE USB and SD Options



HPE Enterprise Mainstream Flash Media Kits for Memory Cards - Recommended



HPE 32GB microSD Flash Memory Card (Recommended)

700139-B21

HPE 8GB microSD Flash Memory Card (Recommended)

726116-B21

HPE 8GB microSD Flash USB Drive (Recommended)

737953-B21

HPE 8GB Dual microSD Flash USB Drive (Recommended)

741279-B21



HPE Support Services



HPE 3 Year Proactive Care 24x7 ML350 Gen10 Service

H9GF8E

HPE 3 Year Proactive Care 24x7 with DMR ML350 Gen10 Service

H9GF9E

HPE 3 Year Proactive Care 24x7 with CDMR ML350 Gen10 Service

H9GG0E

HPE 3 Year Proactive Care Call-To-Repair ML350 Gen10 Service

H9GG7E

HPE 3 Year Proactive Care Call-To-Repair 24x7 with DMR ML350 Gen10 Service

H9GG8E

HPE 3 Year Proactive Care Call-To-Repair with CDMR ML350 Gen10 Service

H9GG9E

HPE Install ProLiant ML350(p) Service

U4522E

HPE Installation and Startup ML350(p) Service

U4523E

NOTE: For a full listing of support services available for this server, please visit https://ssc.hpe.com/







Memory

Memory Population guidelines













General Memory Population Rules and Guidelines:

.

Install DIMMs only if the corresponding processor is installed.

.

If only one processor is installed in a two-processor system, only half of the DIMM slots are available.

.

To maximize performance, it is recommended to balance the total memory capacity between all installed processors.

.

When two processors are installed, balance the DIMMs across the two processors.

.

White DIMM slots denote the first slot to be populated in a channel.

.

Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.

.

The maximum memory speed is a function of the memory type, memory configuration, and processor model.

.

The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform,  the number and model of installed processors qualified on the platform.

.

For details on the HPE Server Memory Options Population Rules, visit:

http://www.hpe.com/docs/memory-population-rules.

.

To realize the performance memory capabilities listed in this document, HPE DDR4 SmartMemory is required. For additional information, please see the HPE DDR4 SmartMemory QuickSpecs.






DIMM Type

Register DIMM (RDIMM)

HPE SKU P/N

815097-B21

815098-B21

835955-B21

815100-B21

SKU Description

HPE 8GB (1x8GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit (Extended)

HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit (Recommended)

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit (Recommended)

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit (Recommended)

DIMM Rank ->

Single Rank (1R)

Single Rank (1R)

Dual Rank (2R)

Dual Rank (2R)

DIMM Capacity ->

8GB

16GB

16GB

32GB

Voltage

1.2V

1.2V

1.2V

1.2V

DRAM depth [bit]

1G

2G

1G

2G

DRAM Width [bit]

x8

x4

x8

x4

DRAM Density

8Gb

8Gb

8Gb

8Gb

CAS Latency

19-19-19

19-19-19

19-19-19

19-19-19

DIMM Native Speed (MT/s)

2666 MT/s

2666 MT/s

2666 MT/s

2666 MT/s

Intel Xeon®Platinum 81xx/61xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2666 MT/s

2666 MT/s

2666 MT/s

2666 MT/s

2 DIMM Per Channel

2666 MT/s

2666 MT/s

2666 MT/s

2666 MT/s

Intel Xeon®Platinum 41xx/51xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2400 MT/s

2400 MT/s

2400 MT/s

2400 MT/s

2 DIMM Per Channel

2400 MT/s

2400 MT/s

2400 MT/s

2400 MT/s

Intel Xeon®Platinum 31xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2133 MT/s

2133 MT/s

2133 MT/s

2133 MT/s

2 DIMM Per Channel

2133 MT/s

2133 MT/s

2133 MT/s

2133 MT/s

HPE Server Memory Speed (MT/s): Intel Xeon®Platinum 81xx/61xx Processors *

1 DIMM Per Channel

2666 MT/s

2666 MT/s

2666 MT/s

2666 MT/s

2 DIMM Per Channel

2666 MT/s

2666 MT/s

2666 MT/s

2666 MT/s

HPE Server Memory Speed (MT/s): Intel Xeon®Platinum 41xx/51xx Processors *

1 DIMM Per Channel

2400 MT/s

2400 MT/s

2400 MT/s

2400 MT/s

2 DIMM Per Channel

2400 MT/s

2400 MT/s

2400 MT/s

2400 MT/s

HPE Server Memory Speed (MT/s): Intel Xeon®Platinum 31xx Processors *

1 DIMM Per Channel

2133 MT/s

2133 MT/s

2133 MT/s

2133 MT/s

2 DIMM Per Channel

2133 MT/s

2133 MT/s

2133 MT/s

2133 MT/s

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model.

For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table.



DIMM Type

Load Reduced (LRDIMM)

HPE SKU P/N

815101-B21

815102-B21

SKU Description

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Smart Memory Kit (Recommended)

HPE 128GB (1x128GB) Octal Rank x4 DDR4-2666 CAS-22-19-19 3DS Load Reduced Memory Kit (Extended)

DIMM Rank ->

Quad Rank (4R)

Octal Rank (8R)

DIMM Capacity ->

64GB

128GB

Voltage

1.2V

1.2V

DRAM depth [bit]

2G

2G

DRAM Width [bit]

x4

x4

DRAM Density

8Gb

8Gb

CAS Latency

19-19-19

22-19-19

DIMM Native Speed (MT/s)

2666

2666

Intel Xeon® Platinum 81xx/61xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2666 MT/s

2666 MT/s

2 DIMM Per Channel

2666 MT/s

2666 MT/s

Intel Xeon® Gold/Silver 41xx/51xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2400 MT/s

2400 MT/s

2 DIMM Per Channel

2400 MT/s

2400 MT/s

Intel Xeon® Bronze 31xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2133 MT/s

2133 MT/s

2 DIMM Per Channel

2133 MT/s

2133 MT/s

HPE Server Memory Speed (MT/s): Intel Xeon® Platinum 81xx/61xx Processors *

1 DIMM Per Channel

2666 MT/s

2666 MT/s

2 DIMM Per Channel

2666 MT/s

2666 MT/s

HPE Server Memory Speed (MT/s): Intel Xeon® Gold/Silver41xx/51xx Processors *

1 DIMM Per Channel

2400 MT/s

2400 MT/s

2 DIMM Per Channel

2400 MT/s

2400 MT/s

HPE Server Memory Speed (MT/s): Intel Xeon® Bronze 31xx Processors *

1 DIMM Per Channel

2133 MT/s

2133 MT/s

2 DIMM Per Channel

2133 MT/s

2133 MT/s

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model.

For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table.





Standard and Maximum Memory Capacity (Pre-configured Models)



Pre Configured

Models

Standard Memory

Maximum Memory Plus Optional Memory

Standard Memory Replaced with Optional Memory

3104

8GB (1x8 GB RDIMM SR)

192 GB (24x 8 GB)

3072 GB (24x 128 GB)

3106

16 GB (1x16 GB RDIMM SR)

384 GB (24x 16 GB)

3072 GB (24x 128 GB)

4110

16 GB (1x16 GB RDIMM SR)

384 GB (24x 16 GB)

3072 GB (24x 128 GB)

4114

32 GB (2x16 GB RDIMM SR)

384 GB (24x 16 GB)

3072 GB (24x 128 GB)

5118

32 GB (2x16 GB RDIMM SR)

384 GB (24x 16 GB)

3072 GB (24x 128 GB)





DDR4 memory options part number decoder

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

· 8GB = 8,192 MB

· 16GB = 16,384 MB

· 32GB = 32,768 MB

· 64GB = 65,536 MB

· 128 GB = 131,072 MB

For more information on memory, please see the Memory Quickspecs: HPE DDR4 SmartMemory.

Storage

4 LFF non-hot-plug drive model:

Tower – shown with the tower feet.

1 x 4 LFF SAS/SATA non-hot-pluggble HDD/SSD Cage Kit in Box 3.

HDD Cage Blank in Box 2.

Media Bay Blanks (2) and DVD blank (1) in Box 1.

8 LFF non-hot-plug drive + media bay (2) and DVD (1) model:

Tower – shown with the tower feet.

1 – 2   4 LFF SAS/SATA non-hot-pluggble HDD/SSD Cage Kit

HH Media Bay up to 2 and/or 1 DVD in Box 1

12 LFF non-hot-plug drive model:

Tower – shown with the tower feet.

1 – 3  4 LFF SAS/SATA non-hot-pluggble HDD/SSD Cage Kit (s)









4 LFF hot-plug drive model:

Tower – shown without the tower feet.

1 x 4 LFF SAS/SATA hot-pluggble HDD/SSD Cage Kit in Box 3.

HDD Cage Blank in Box 2.

Media Bay Blanks (2) and DVD blank (1) in Box 1.

8 LFF hot-plug drives + media bay (2) and DVD (1) model:

Tower – shown with the tower feet.

1 – 2   4 LFF SAS/SATA hot-pluggble HDD/SSD Cage Kit (2)

HH Media Bay up to 2 and/or 1 DVD in Box 1.



12 LFF hot-plug drive model:

Tower – shown with the tower feet.

1 – 3  4 LFF SAS/SATA hot-pluggble HDD/SSD Cage Kit (s)







8 SFF hot-plug drive model:

Tower – shown without the tower feet.

1 x 8 SFF SAS/SATA hot-pluggble HDD/SSD Cage Kit in Box 3.

HDD Cage Blank in Box 2.

Media Bay Blanks (2) and DVD blank (1) in Box 1.

16 SFF hot-plug drives + media bay (2) and DVD (1) model:

Tower – shown without the tower feet.

1 – 2   8 SFF SAS/SATA hot-pluggble HDD/SSD Cage Kit (2)

HH Media Bay up to 2 and/or 1 DVD in Box 1.











24 SFF hot-plug drive model:

Tower – shown without the tower feet.

1 – 3 8 SFF SAS/SATA hot-pluggble HDD/SSD Cage Kit (s).

16 SFF hot-plug drive + 8 NVMe SSD model:

Tower – shown without the tower feet.

1 – 2 8 SFF SAS/SATA hot-pluggble HDD/SSD Cage Kit (s)

1x  8 SFF NVMe Express Bay Kit in Box 2 for  optional NVMe PCIe SSD, up to 8.

8 SFF hot-plug drive + 8 NVMe SSD + media bay (2) and DVD (1) model:

Tower – shown without the tower feet.

1x  8 SFF SAS/SATA hot-pluggble HDD/SSD Cage Kit

1x  8 SFF NVMe Express Bay Kit in Box 2 for  optional NVMe PCIe SSD, up to 8

HH Media Bay up to 2 and/or 1 DVD in Box 1.





Technical Specifications

System Unit

Dimensions

46.25 (H) x 64.8 (D) x 17.4 (W) cm

18.2 (H) x 25.51 (D) x 6.85 (W) in

Tower

17.4 (H/4U) x 64.8 (D) x 44.5 (W) cm 6.85 (H) x 25.51 (D) x 17.52 (W) in

Rack – System only



4.445 (H/1U) x 69.2 (D/without CMA. Depth with CMA: 83.5) x 45.2 (W) cm

1.75 (H/1U) x 27.23 (D/without CMA. Depth with CMA: 32.89) x 17.795 (W) in

Tower-to-Rack Conversion Kit (1U)

Weight (approximate)

21 kg

46.30 lb

Minimum: 8 SFF or 4LFF chassis with 1x SFF or LFF HDD and HDD blanks, 1x HDD Drive Cage blank, 2x Media Bay blanks, 1x DVD bay blank, 1x processor including standard heatsink, 2 DIMMs, 1x power supply (plus blank), 1x Flexible Smart Array (AROC),  Cables for the above.

42 kg

92.59 lb

Maximum – fully loaded system: 24 SFF or 12 LFF hard drives, 4 DW GPUs (or 8 standard PCIe expansion cards), 2x processors including 2 performance heatsinks, 24 DIMMs, 2x power supplies, 1x Flexible Smart Array (AROC), Cables for the above.

Input Requirements
(per power supply)

Rated Line Voltage

100 to 120 VAC

200 to 240 VAC

BTU Rating

Maximum

For 800W Power Supply: 3067 BTU/hr (at 100 VAC), 2958 BTU/hr (at 200 VAC), 2949 BTU/hr (at 240 VAC)

For 500W Power Supply: 1902 BTU/hr (at 100 VAC), 1840 BTU/hr (at 200 VAC), 1832 BTU/hr (at 240 VAC)

For 1600W Power Supply: 5918 BTU/hr (at 200 VAC), 5884 BTU/hr (at 240 VAC)

Power Supply Output
(per power supply)

Rated Steady-State Power

For 1600W Power Supply: 1600W (at 240 VAC), 1600W (at 240 VAC)

For 800W Power Supply: 800W (at 100 VAC), 800W (at 240 VAC), 800W (at 240 VAC)

For 500W Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VAC)

Maximum Peak Power

For 1600W Power Supply: 1600W (at 200 to 240 VAC), 1600W (at 240 VAC)

For 800W Power Supply: 800W (at 100 to 127 VAC), 800W (at 200 to 240 1VAC), 800W (at 240 VAC)

For 500W Power Supply: 500W (at 100 to 127 VAC), 500W (at 200 to 240 VAC), 500W (at 240 VAC)

System Inlet Temperature

Standard Operating Temperature

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight.  Maximum rate of change is 20°C/hr (36°F/hr).  The upper limit and rate of change may be limited by the type and number of options installed.



System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

Extended Ambient Operating Temperature

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:

http://www.hpe.com/servers/ashrae



For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:

http://www.hpe.com/servers/ashrae



System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity

Operating

8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

(non-condensing)

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing..

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations.  Additional options may result in increased sound levels, for example, higher-end graphic processing units (GPU), NVMe SSD or NVMe M.2. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Idle



LWAd

4.0 B Entry

3.9 B Base

4.4 B Perf

LpAm

28 dBA Entry

27 dBA Base



31 dBA Perf

Operating



LWAd

4.2 B Entry

4.3 B Base

4.4 B Perf

LpAm

29 dBA Entry



30 dBA Base



32 dBA Perf

NOTE: Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only.

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

NOTE: The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels, for example, higher-end graphic processing units (GPU), NVMe SSD or NVMe M.2.

Emissions Classification (EMC) – Regulatory Information

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts





Environment-friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.



The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Thuộc tính sản phẩm
Hard Drive SFF
Processor Silver
Nhận xét của bạn
  • Only registered users can write reviews
*
*
  • Tệ
  • Xuất sắc
