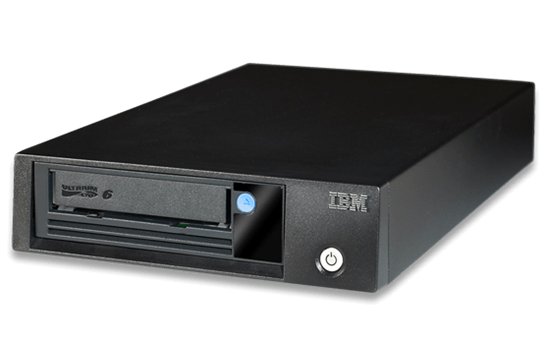

IBM TS2260 Tape Drive Model H6S (6160S6E)

  • One TS2260 (half-high LTO Ultrium 6) SAS Tape Drive
  • One universal cleaning cartridge
  • Warranty information
  • Documentation CD that includes Setup, Operator, and Service Guide
Manufacturer: IBM
Call for pricing

Abstract

The family of IBM LTO Ultrium Tape Drives for Lenovo is external, stand-alone or rack-mountable tape drives that contain an LTO Ultrium 7, Ultrium 6, or Ultrium 5 Tape Drive that is designed for the heavy demands of backup tape storage. The drives deliver IBM tape reliability and performance at a cost-effective price.

This product guide describes the TS2270, TS2260, and TS2250 Tape Drives that are available from Lenovo. It also provides essential pre-sales information to understand the structure of the offerings, their key features and specifications, components and options, and configuration guidelines.

This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about TS2270, TS2260, and TS2250 Tape Drives and consider their use in backup solutions.

Change History

Changes in the June 22 update:

  • Updated Tape media: Added note about cartridge labels
  • Updated Interoperability: Added Microsoft Windows Server 2016

Introduction

The family of IBM LTO Ultrium Tape Drives for Lenovo (Machine Type 6160) is external, stand-alone or rack-mountable tape drives that contain an LTO Ultrium 7, Ultrium 6, or Ultrium 5 Tape Drive that is designed for the heavy demands of backup tape storage. The drives deliver IBM tape reliability and performance at a cost-effective price.

TS2270 Model H7S incorporates the LTO Ultrium 7 Half-High SAS Tape Drive. TS2260 Model H6S incorporates the LTO Ultrium 6 Half-High SAS Tape Drive. TS2250 Model H5S incorporates the LTO Ultrium 5 Half-High SAS Tape Drive. These tape drives use a dual-port 6 Gbps SAS interface for connection to a wide range of servers.

The LTO Ultrium Tape Drives from Lenovo are excellent choices if you use tape drives that require larger-capacity or higher-performance tape backup. The TS2270, TS2260, and TS2250 Tape Drives are an excellent choice for tape backup solutions for Lenovo System x® and ThinkServer® servers.

Figure 1. TS2270 Tape Drive for Lenovo

Did you know?

Featuring the latest LTO Ultrium 7 technology, the TS2270 Tape Drive provides up to 15 TB of 2.5:1 compressed backup storage capacity.

With LTO Ultrium 6, the TS2260 Tape Drive provides up to 6.25 TB of 2.5:1 compressed backup storage capacity. With LTO Ultrium 5, the TS2250 Tape Drive provides up to 3 TB of 2:1 compressed backup storage capacity.

With IBM LTO Tape offerings that are available from Lenovo, Lenovo can be your trusted partner that offers "one stop shop" and single point of contact for delivery of leading edge technologies and innovations from Lenovo and other leading IT vendors. These offerings can satisfy the wide range of your end-to-end IT infrastructure needs, including handheld devices, notebooks, personal computers, servers, storage, networking, services, management software, and financing.


Key features

The IBM LTO Ultrium Tape Drives deliver the following features:

  • Entry-level tape drives for high capacity, high performance, and high reliability.
  • Adherence to LTO specifications.
  • Support for one half-high LTO Ultrium 7 (TS2270), Ultrium 6 (TS2260), or Ultrium 5 (TS2250) SAS Tape Drive.
  • Native cartridge capacity of up to 6 TB (Ultrium 7), up to 2.5 TB (Ultrium 6), or up to 1.5 TB (Ultrium 5).
  • Native data transfer rate of up to 300 MB/s (Ultrium 7), up to 160 MB/s (Ultrium 6), or up to 140 MB/s (Ultrium 5).
  • Mixed media support, including IBM LTO Ultrium 7, 6, and 5 Write Once Ready Many (WORM) media.
  • Remote monitoring of status of the tape drive.
  • Encryption support in the tape drive to work with Application Managed Encryption.
  • Optional rack mount with the shelf to accommodate up to two tape drives side-by-side in a 2U rack space.
  • A dual-port 6 Gbps SAS attachment for connection to select System x and ThinkServer servers that run Microsoft Windows and Linux server operating systems.
  • Support from an extensive ecosystem of backup software vendors.

The following figure shows the TS2260 Tape Drive.

TS2260 Tape Drive for Lenovo
Figure 2. TS2260 Tape Drive for Lenovo

The following figure shows the TS2250 Tape Drive.

TS2250 Tape Drive for Lenovo
Figure 3. TS2250 Tape Drive for Lenovo

The IBM LTO Ultrium Tape Drives include the following IBM LTO Ultrium features:

  • Dual-stage head actuator

    The 16-channel actuator (LTO Ultrium 5 and 6) and 32-channel actuator (LTO Ultrium 7) provide precision head alignment to help support higher track density and improved data integrity.

  • Independent tape loader and threader motors and positive pin retention

    These technologies help improve the reliability of loading and unloading a cartridge and retain the pin, even if tension is dropped. An independent loader motor that is coupled with the positive pin retention causes the tape to thread with a higher level of reliability.

  • Graceful dynamic braking

    If there is a power failure, reel motors maintain tension and gradually decelerate instead of stopping abruptly, which helps reduce tape breakage, stretching, or loose tape wraps during a sudden power outage.

  • Servo and track layout technology

    There are 3584 data tracks in Ultrium 7, 2176 data tracks in Ultrium 6, and 1280 data tracks in Ultrium 5. The high-bandwidth servo system features a low mass servo to help more effectively track servo bands and improve data throughput with damaged media in less-than-optimal shock and vibration environments.

  • Surface Control Guiding Mechanism

    IBM patented Surface Control Guiding Mechanism guides the tape along the tape path in the Ultrium 7, 6, and 5 Tape Drives. This method uses the surface of the tape (rather than the edges) to control tape motion. This configuration helps reduce tape damage (especially to the edges of the tape) and tape debris, which comes from the damaged edges and can accumulate in the head area.

  • Giant Magneto Resistive (GMR) head design

    IBM LTO Ultrium Tape Drives use GMR head technology with beveled contouring for reducing striction and friction. This head design was demonstrated in enterprise tape products to help minimize contact, edge damage, debris accumulation, and wear on the tape as it moves over the read/write heads.

  • Digital speed matching

    The LTO Ultrium Tape Drives perform dynamic speed matching to adjust the drive's native data rate as closely as possible to the net host data rate (after data compressibility is factored out). This matching helps reduce the number of backhitch repositions and improve throughput performance.

  • Robust drive components optimized for automation environments

    To help enhance reliability and prolong the life of the drives, some of the most robust components available are used, such as an all metal clutch, steel ball bearings in the loader, robust leader block design, and a single circuit card.

  • Power management

    The power management function of the Ultrium 7 and Ultrium 6 Tape Drives controls the drive electronics to be completely turned off or in a low-power mode when the circuit functions are not needed for drive operation.

  • Adaptive read equalization

    This equalization automatically compensates for dynamic changes in readback signal response.

  • Dynamic amplitude asymmetry compensation

    This compensation dynamically optimizes readback signals for linear readback response from MR read head transducers.

  • LTO Data Compression (LTO-DC)

    The Ultrium LTO uses LTO-DC, which is an implementation of a Lempel-Ziv class 1 (LZ-1) data compression algorithm. LTO-DC is an extension of Adaptive Lossless Data Compression (ALDC) and an improvement over previous IBM lossless compression algorithms. IBM patented "Scheme-Swapping" compression looks ahead at incoming data and determines the most efficient storage method (ALDC or pass-through mode) to help optimize data compression and increase data throughput.

  • LTO Cartridge Memory (LTO-CM)

    Contained within the LTO Ultrium data cartridge is the LTO-CM, which is a passive, contactless silicon storage device that is physically a part of the cartridge. The LTO-CM holds information about that specific cartridge, the media in the cartridge, and the data on the media. The storage capacity of the Generation 6 and 7 LTO-CM is 16320 bytes, which is double capacity of Generation 5 LTO-CM 8160 bytes. Communication between the drive and the LTO-CM is via a low-level RF field transmitted by the drive to the cartridge.

  • Statistical Analysis and Reporting System (SARS)

    The Ultrium Tape Drive uses SARS to help isolate failures between media and hardware. SARS uses the cartridge performance history that is saved in the CM module and the drive performance history that is kept in the flash EEPROM to help determine the likely cause of failure. SARS causes the drive to request a cleaner tape, mark the media as degraded, and indicate that the hardware is degraded.

  • Highly integrated electronics that use IBM engineered copper technology

    This technology reduces the number of components in the drive, helping lower chip temperatures, and reduces power requirements to deliver a more reliable drive. The sixth-generation drive electronics provide error correction of soft errors in the memory arrays in data and control paths.

Components and connectors

The following figure shows the front of the TS2260. The front view of the TS2270 and TS2250 is similar to the front view of the TS2260.

Front view of the TS2250
Figure 4. Front view of the TS2260

The following figure shows the rear of the TS2270, TS2260, and TS2250.

Rear view of the TS2250 and TS2260
Figure 5. Rear view of the TS2270, TS2260, and TS2250

System specifications

The following table lists the TS2270, TS2260, and TS2250 Tape Drives system specifications.

Table 1. System specifications
Components Specification
Form factor Standalone or 2U rack mount (on a fixed shelf)
Drive technology
  • TS2270: LTO Ultrium 7 half-high drive
  • TS2260: LTO Ultrium 6 half-high drive
  • TS2250: LTO Ultrium 5 half-high drive
Drive interface 2x 6 Gb SAS x1 ports (Mini-SAS SFF-8088)
Number of drives 1
Number of cartridge slots 1
Cartridge capacity
  • LTO7: 6 TB native; up to 15 TB compressed (with 2.5:1 compression ratio)
  • LTO6: 2.5 TB native; up to 6.25 TB compressed (with 2.5:1 compression ratio)
  • LTO5: 1.5 TB native; up to 3.0 TB compressed (with 2:1 compression ratio)
Data transfer rate
  • LTO7: Up to 300 MB/s native; up to 750 MB/s compressed (with 2.5:1 compression)
  • LTO6: Up to 160 MB/s native; up to 400 MB/s compressed (with 2.5:1 compression)
  • LTO5: Up to 140 MB/s native; up to 280 MB/s compressed (with 2:1 compression)
Security features Application Managed Encryption (AME) with optional third-party software (such as IBM Spectrum Protect)
Management interfaces 1x Ethernet port (UTP, RJ-45) for drive status and servicing only
Cooling Fixed internal fan
Power supply One 73 W AC fixed power supply with IEC 320-C14 power connector
Hot-swap parts None
Dimensions Width: 213 mm (8.4 in.)
Depth: 332 mm (13.1 in.)
Height: 58 mm (2.3 in.)
Weight 4.3 kg (9.4 lb.)
Warranty Three-year customer-replaceable unit and onsite warranty with 9x5 next business day terms.
Service and support Optional warranty service upgrades are available through Lenovo Services: 24x7 coverage, 4-hour response time, up to 5 years of warranty extension, up to 5 years of Remote Technical Support (RTS).
Host operating systems Microsoft Windows Server 2008, 2008 R2, 2012, 2012 R2, and 2016; Red Hat Enterprise Linux (RHEL) 5, 6, and 7; SUSE Linux Enterprise Server (SLES) 10, 11, and 12.
ISV backup software compatibility Arcserve Backup, ASG Time Navigator, Barracuda Yosemite Backup, CommVault Simpana, Dell NetVault Backup, EMC NetWorker, HP OpenView Storage Data Protector, IBM Spectrum Protect, Microsoft System Center Data Protection Manager, Symantec Backup Exec, Symantec NetBackup.

Standard models

The following table lists the ordering information for the LTO Ultrium Tape Drive models.

Table 2. Part numbers and feature codes for ordering LTO Ultrium Tape Drive models
Description Part
number
Feature code
(6160-H7S)*
Feature code
(6160-H6S)*
Feature code
(6160-H5S)*
IBM TS2270 Tape Drive Model H7S 6160S7E ATP3 None None
IBM TS2260 Tape Drive Model H6S 6160S6E None AS5P None
IBM TS2250 Tape Drive Model H5S 6160S5E None None AS5R

* Machine Type (first four digits); Model (last three digits and letters)

The part numbers for the tape drives models include the following items:

  • One TS2270 (half-high LTO Ultrium 7), TS2260 (half-high LTO Ultrium 6), or TS2250 (half-high LTO Ultrium 5) SAS Tape Drive
  • One universal cleaning cartridge
  • Warranty information
  • Documentation CD that includes Setup, Operator, and Service Guide

Notes:

  • The Rack mount kit is not included; it must be ordered with the tape drive, if needed (for ordering information, see Table 3). The rack mount kit includes a fixed shelf on which the drive is placed.
  • A power cable is not included with the tape drive. A 10A/100-250V, C13 to IEC 320-C14 rack power cable, or a country-specific line cord must be ordered with the tape drive (for ordering information, see Table 6).
  • The Rack mount kit includes one 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable, and a country-specific line cord also can be ordered, if needed (for ordering information, see Table 6).
Table 3. Rack mount kit
Description Part number Feature code Maximum quantity
6160 Rack Mount Shelf Kit w/PDU Line Cord 00NV426 AS1C 1

A SAS cable is required to attach an LTO Ultrium SAS Tape Drive to a SAS host adapter. The following table lists the supported cable options.

Table 4. SAS cable options
Description Part number Feature code Maximum quantity
SAS connectivity cables: Mini-SAS (SFF-8088 host) to Mini-SAS (SFF-8088 tape)
2 m Mini-SAS/Mini-SAS 1x Cable (host SFF-8088 to target SFF-8088) 00NA009 AS0Z 1
SAS connectivity cables: Mini-SAS HD (SFF-8644 host) to Mini-SAS (SFF-8088 tape)
HD-SAS Cable to Mini-SAS (4 m) 00NV419 AS10 1
Y SAS HD to Mini-SAS Cable (3 m) 00NV420 AS12 1*

* The Y SAS HD cable is used to connect up to two SAS tape drives to a single Mini-SAS HD x4 port on a supported SAS HBA.

Tape media

LTO Ultrium Tape Drives support the following backward compatibility for the previous generations of tape media:

  • LTO Ultrium 7 Tape Drives can read and write LTO Ultrium 7 and Ultrium 6 data cartridges, and can read Ultrium 5 data cartridges.
  • LTO Ultrium 6 Tape Drives can read and write LTO Ultrium 6 and Ultrium 5 data cartridges, and can read Ultrium 4 data cartridges.
  • LTO Ultrium 5 Tape Drives can read and write LTO Ultrium 5 and Ultrium 4 data cartridges, and can read Ultrium 3 data cartridges.

The following table lists tape media options that can be ordered for the TS2270, TS2260, and TS2250.

Table 5. Tape media
Description Part
number
Feature
code
Supported
tape models
Cleaning cartridge
Ultrium Cleaning Cartridge (universal) 00NA017 AS1E TS2270, TS2260, TS2250
Data cartridges
Ultrium 7 Data Cartridges 5-Pack 00WF771 ATNZ TS2270
Ultrium 6 Data Cartridges 5-Pack 00NA025 AS24 TS2270, TS2260
Ultrium 5 Data Cartridges 5-Pack 00NA023 AS23 TS2270 (read-only), TS2260, TS2250

Note: A 5-Pack of the Ultrium 5, 6, or 7 Data Cartridges includes five unattached loose labels.

Power cables

If the TS2270, TS2260, or TS2250 is ordered with the rack mount kit, it includes one 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable. A country-specific line cord also can be ordered, if needed.

If the TS2270, TS2260, or TS2250 is ordered without a rack-mount kit, it does not include a power cable. A country-specific line cord, or a rack power cable must be ordered with the TS2270, TS2260, or TS2250. The part numbers and feature codes to order the power cables (one power cable per tape drive) are listed in the following table.

Table 6. Part numbers and feature codes for ordering power cables
DescriptionPart numberFeature code
Country-specific power cords
2.8m, 10A/120V, C13 to NEMA 5-15P (US) Line Cord 00NA027 AS29
2.8m, 10A/230V, C13 to CEE7-VII (Europe) Line Cord 00NA029 AS2A
2.8m, 10A/230V, C13 to DK2-5a (Denmark) Line Cord 00NA031 AS2B
2.8m, 10A/230V, C13 to BS 1363/A (UK) Line Cord 00NA033 AS2C
2.8m, 10A/230V, C13 to SI 32 (Israel) Line Cord 00NA035 AS2D
2.8m, 10A/230V, C13 to SEV 1011-S24507 (Sws) Line Cord 00NA037 AS2E
2.8m, 10A/230V, C13 to SABS 164 (South Africa) Line Cord 00NA039 AS2F
2.8m, 10A/230V, C13 to CEI 23-16 (Italy) Line Cord 00NA041 AS2G
2.8m, 10A/230V, C13 to AS/NZS 3112 (Aus/NZ) Line Cord 00NA043 AS2H
2.8m, 10A/208V, C13 to NEMA 6-15P (US) Line Cord 00NA045 AS2J
2.8m, 10A/220V, C13 to IRAM 2073 (Argentina) Line Cord 00NA047 AS2K
2.8m, 10A/220V, C13 to CNS 10917-3 (Taiwan) Line Cord 00NA049 AS2L
2.8m, 10A/220V, C13 to GB 2099.1 (China) Line Cord 00NA051 AS2M
2.8m, 10A/110V, C13 to CNS 10917-3 (Taiwan) Line Cord 00NA053 AS2N
2.8m, 12A/100V, C13 to JIS C-8303 (Japan) Line Cord 00NA055 AS2P
2.8m, 12A/220V, C13 to KSC 8305 (S. Korea) Line Cord 00NA057 AS2Q
2.8m, 10A/240V, C13 to IS 6538 (India) Line Cor 00NA059 AS2R
2.8m, 10A/220V, C13 to NBR 6147 (Brazil) Line Cord 00NA061 AS2T
Rack power cord
2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 00NA063 AS2U

Physical specifications

The LTO Ultrium Tape Drives have the following dimensions and weight (approximate):

  • Height: 58 mm (2.3 in.)
  • Width: 213 mm (8.4 in.)
  • Depth: 332 mm (13.1 in.)
  • Weight: 4.3 kg (9.4 lb.)

Operating environment

The LTO Ultrium Tape Drives are supported in the following environment:

  • Air temperature:
    • Operating: 10 °C - 38 °C (50 °F - 100 °F)
    • Non-operating: -40 °C - 60 °C (-40 °F - 140 °F)
    • Maximum altitude: 3,048 m (10,000 ft)
  • Humidity:
    • Operating: 20% - 80%
    • Non-operating: 10% - 90%
  • Electrical power:
    • 100 V AC - 240 V AC; 0.48 A - 0.2 A
    • Frequency: 50 Hz - 60 Hz
    • Power consumption: 48 watts

Warranty

The TS2270, TS2260, and TS2250 Tape Drives have a three-year CRU and onsite warranty with 9x5/next business day (NBD) terms. Lenovo offers the service upgrades through warranty maintenance upgrades and post-warranty maintenance agreements with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions.

Lenovo warranty service upgrade offerings are country-specific. Not all warranty service upgrades are available in every country. For more information about Lenovo warranty service upgrade offerings that are available in your country, refer to the Lenovo Enterprise Solutions Configurator (LESC):
http://lesc.lenovo.com

The warranty service definitions for the LTO Ultrium Tape Drives are listed in the following table.

Table 7. Warranty service definitions

Term Description
On-site service A service technician arrives at the client’s location for equipment service.
24x7x4 hour A service technician is scheduled to arrive at the client’s location within four hours after remote problem determination is completed. Lenovo provides service around the clock, every day, including Lenovo holidays.
9x5 next business day A service technician is scheduled to arrive at the client’s location on the business day after remote problem determination is completed. Lenovo provides service 8:00 am - 5:00 pm in the client's local time zone, Monday - Friday, excluding Lenovo holidays. Calls received after 4:00 pm local time require an extra business day for service dispatch. Next business day service is not guaranteed.

In general, the following types of Lenovo warranty service upgrades for the LTO Ultrium Tape Drives are available:

  • Warranty and maintenance service upgrades:
    • Up to five years of 9x5 or 24x7 service coverage
    • Onsite response from next business day to 4 hours
    • Up to five years of warranty extension for all service levels in one year increments
  • Remote Technical Support Services (RTS); up to five years

    RTS provides comprehensive technical call center support. RTS can reduce problem resolution time, which decreases the cost to address technical problems and increasing uptime.

Regulatory compliance

The LTO Ultrium Tape Drives conform to the following regulations:

  • FCC: Verified to comply with Part 15 of the FCC Rules, Class A
  • Canada ICES-003, Class A
  • European Union Council Directive 2004/108/EC
  • EN 55022, Class A
  • Australia and New Zealand Class A Statement
  • Japan VCCI Class A statement
  • People's Republic of China Class A Electronic Emission statement
  • Taiwan Class A compliance statement
  • Korea KCC Class A statement
  • Russia Electromagnetic Interference (EMI) Class A Statement

Interoperability

Lenovo provides end-to-end storage compatibility testing to deliver interoperability throughout the network. The TS2270, TS2260, and TS2250 Tape Drives support attachment to Lenovo System x and ThinkServer hosts by using SAS storage connectivity interface.

Note: Tables that are provided in this section are for ordering reference purposes only. End-to-end storage configuration support must be verified through the System Storage Interoperation Center (SSIC):
http://ibm.com/systems/support/storage/ssic

SAS connectivity

The following table lists currently available System x and ThinkServer SAS adapters that are compatible with the LTO Ultrium Tape Drives.

Table 8. SAS adapters
Description Part number
System x SAS HBAs
6Gb SAS HBA (1x Mini-SAS x4 SFF-8088 external port) 46M0907
N2125 SAS/SATA HBA (6 Gb SAS, 2x Mini-SAS x4 SFF-8088 external ports) 46C9010
N2225 SAS/SATA HBA (12 Gb SAS, 2x Mini-SAS HD x4 SFF-8644 external ports) 00AE912
N2226 SAS/SATA HBA (12 Gb SAS, 4x Mini-SAS HD x4 SFF-8644 external ports) 00AE916
ThinkServer SAS HBAs
Lenovo ThinkServer 9300-8e PCIe 12Gb 8 Port External SAS Adapter by LSI (2x Mini-SAS HD x4 SFF-8644 external ports) 4XB0F28703

Operating systems

The LTO Ultrium Tape Drives support host attachments to the System x and ThinkServer servers with the following operating systems:

  • Microsoft:
    • Microsoft Windows Server 2016
    • Microsoft Windows Server 2012 R2
    • Microsoft Windows Server 2012
    • Microsoft Windows Server 2008 R2
    • Microsoft Windows Server 2008
  • Red Hat:
    • Red Hat Enterprise Linux 7
    • Red Hat Enterprise Linux 6
    • Red Hat Enterprise Linux 5
  • SUSE:
    • SUSE Linux Enterprise Server 12
    • SUSE Linux Enterprise Server 11
    • SUSE Linux Enterprise Server 10

Note: The LTO tape drives are supported when attached and run from the host operating system, however, in virtualization environments (for example, Hyper-V, KVM, Xen), the tape drives are not supported in the guest operating systems.

ISV backup software compatibility

The Independent Software Vendors (ISVs) indicate support for the LTO Ultrium Tape Drives for the following ISV backup software:

  • Arcserve Backup
  • ASG Time Navigator
  • Barracuda Yosemite Backup
  • CommVault Simpana
  • Dell NetVault Backup
  • EMC NetWorker
  • HP OpenView Storage Data Protector
  • IBM Spectrum Protect
  • Microsoft System Center Data Protection Manager
  • Symantec Backup Exec
  • Symantec NetBackup

For more information, see the Independent Software Vendor matrix for IBM LTO, which is available at:
http://www.ibm.com/systems/resources/lto_isv_matrix.pdf

Rack cabinets

The following table lists the rack cabinets that are offered by Lenovo that can be used in LTO Ultrium Tape Drives solutions.

Table 9. Rack cabinets
Description Part number
11U Rack Office Enablement Kit 201886X
25U S2 Standard Rack 93072RX
25U Static S2 Standard Rack 93072PX
42U S2 Standard Rack 93074RX
42U 1100mm Enterprise V2 Dynamic Rack 93634PX
42U 1100mm Enterprise V2 Dynamic Expansion Rack 93634EX
42U 1200mm Deep Dynamic Rack 93604PX
42U 1200mm Deep Static Rack 93614PX
42U Enterprise Rack 93084PX
42U Enterprise Expansion Rack 93084EX

For more information, see the list of Product Guides in the Rack cabinets category:
http://lenovopress.com/servers/options/racks

Power distribution units

The following table lists the the power distribution units (PDUs) that are offered by Lenovo that can be used in LTO Ultrium Tape Drives solutions.

Table 10. Power distribution units
DescriptionPart number
0U Basic PDUs
0U 36 C13/6 C19 24A/200-240V 1 Phase PDU with NEMA L6-30P line cord 00YJ776
0U 36 C13/6 C19 32A/200-240V 1 Phase PDU with IEC60309 332P6 line cord 00YJ777
0U 21 C13/12 C19 32A/200-240V/346-415V 3 Phase PDU with IEC60309 532P6 line cord 00YJ778
0U 21 C13/12 C19 48A/200-240V 3 Phase PDU with IEC60309 460P9 line cord 00YJ779
Switched and Monitored PDUs
0U 20 C13/4 C19 Switched and Monitored 24A/200-240V/1Ph PDU w/ NEMA L6-30P line cord 00YJ781
0U 20 C13/4 C19 Switched and Monitored 32A/200-240V/1Ph PDU w/ IEC60309 332P6 line cord 00YJ780
0U 18 C13/6 C19 Switched / Monitored 32A/200-240V/346-415V/3Ph PDU w/ IEC60309 532P6 cord 00YJ782
0U 12 C13/12 C19 Switched and Monitored 48A/200-240V/3Ph PDU w/ IEC60309 460P9 line cord 00YJ783
1U 9 C19/3 C13 Switched and Monitored DPI PDU (without line cord) 46M4002
1U 9 C19/3 C13 Switched and Monitored 60A 3Ph PDU with IEC 309 3P+Gnd cord 46M4003
1U 12 C13 Switched and Monitored DPI PDU (without line cord) 46M4004
1U 12 C13 Switched and Monitored 60A 3 Phase PDU with IEC 309 3P+Gnd line cord 46M4005
Ultra Density Enterprise PDUs (9x IEC 320 C13 + 3x IEC 320 C19 outlets)
Ultra Density Enterprise C19/C13 PDU Module (without line cord) 71762NX
Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph with IEC 309 3P+Gnd line cord 71763NU
C13 Enterprise PDUs (12x IEC 320 C13 outlets)
DPI C13 Enterprise PDU+ (without line cord) 39M2816
DPI Single Phase C13 Enterprise PDU (without line cord) 39Y8941
C19 Enterprise PDUs (6x IEC 320 C19 outlets)
DPI Single Phase C19 Enterprise PDU (without line cord) 39Y8948
DPI 60A 3 Phase C19 Enterprise PDU with IEC 309 3P+G (208 V) fixed line cord 39Y8923
Front-end PDUs (3x IEC 320 C19 outlets)
DPI 30amp/125V Front-end PDU with NEMA L5-30P line cord 39Y8938
DPI 30amp/250V Front-end PDU with NEMA L6-30P line cord 39Y8939
DPI 32amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8934
DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8940
DPI 63amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8935
Universal PDUs (7x IEC 320 C13 outlets)
DPI Universal 7 C13 PDU (with 2 m IEC 320-C19 to C20 rack power cord) 00YE443
NEMA PDUs (6x NEMA 5-15R outlets)
DPI 100-127V PDU with fixed NEMA L5-15P line cord 39Y8905
Line cords for PDUs that ship without a line cord
DPI 30a Line Cord (NEMA L6-30P) 40K9614
DPI 32a Line Cord (IEC 309 P+N+G) 40K9612
DPI 32a Line Cord (IEC 309 3P+N+G) 40K9611
DPI 60a Cord (IEC 309 2P+G) 40K9615
DPI 63a Cord (IEC 309 P+N+G) 40K9613
DPI Australian/NZ 3112 Line Cord 40K9617

For more information, see the list of Product Guides in the Power infrastructure category:
https://lenovopress.com/servers/options/pdu

Uninterruptible power supply units

The following table list the uninterruptible power supply (UPS) units that are offered by Lenovo that can be used in LTO Ultrium Tape Drives solutions.

Table 11. Uninterruptible power supply units
Description Part number
RT1.5kVA 2U Rack or Tower UPS (100-125VAC) 55941AX
RT1.5kVA 2U Rack or Tower UPS (200-240VAC) 55941KX
RT2.2kVA 2U Rack or Tower UPS (100-125VAC) 55942AX
RT2.2kVA 2U Rack or Tower UPS (200-240VAC) 55942KX
RT3kVA 2U Rack or Tower UPS (100-125VAC) 55943AX
RT3kVA 2U Rack or Tower UPS (200-240VAC) 55943KX
RT5kVA 3U Rack or Tower UPS (200-240VAC) 55945KX
RT6kVA 3U Rack or Tower UPS (200-240VAC) 55946KX
RT8kVA 6U Rack or Tower UPS (200-240VAC) 55948KX
RT11kVA 6U Rack or Tower UPS (200-240VAC) 55949KX
RT8kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) 55948PX
RT11kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) 55949PX

For more information, see the list of Product Guides in the Uninterruptible Power Supply Units category:
http://lenovopress.com/servers/options/ups

Lenovo Financial Services

Lenovo Financial Services reinforces Lenovo’s commitment to deliver pioneering products and services that are recognized for their quality, excellence, and trustworthiness. Lenovo Financial Services offers financing solutions and services that complement your technology solution anywhere in the world.

We are dedicated to delivering a positive finance experience for customers like you who want to maximize your purchase power by obtaining the technology you need today, protect against technology obsolescence, and preserve your capital for other uses.

We work with businesses, non-profit organizations, governments and educational institutions to finance their entire technology solution. We focus on making it easy to do business with us. Our highly experienced team of finance professionals operates in a work culture that emphasizes the importance of providing outstanding customer service. Our systems, processes and flexible policies support our goal of providing customers with a positive experience.

We finance your entire solution. Unlike others, we allow you to bundle everything you need from hardware and software to service contracts, installation costs, training fees, and sales tax. If you decide weeks or months later to add to your solution, we can consolidate everything into a single invoice.

Our Premier Client services provide large accounts with special handling services to ensure these complex transactions are serviced properly. As a premier client, you have a dedicated finance specialist who manages your account through its life, from first invoice through asset return or purchase. This specialist develops an in-depth understanding of your invoice and payment requirements. For you, this dedication provides a high-quality, easy, and positive financing experience.

For your region specific offers please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website:
http://www.lenovofs.com

Related product families

Product families related to this document are the following:

Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent
