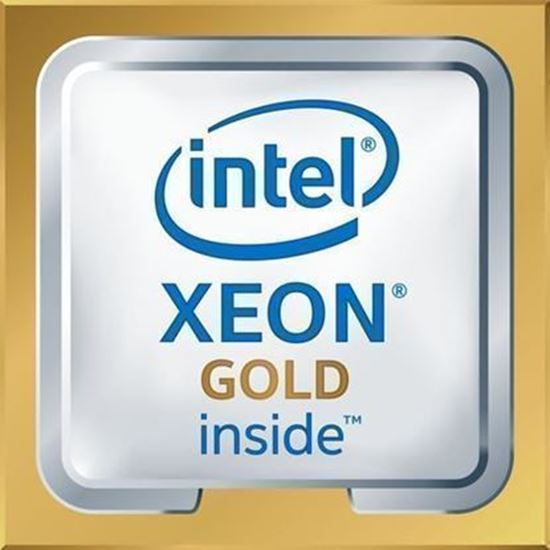

Picture of Intel Xeon Gold 5220 2.2GHz, 18C/36T, 10.4GT/s, 24.75M Cache, Turbo, HT (125W) DDR4-2666

Intel Xeon Gold 5220 2.2GHz, 18C/36T, 10.4GT/s, 24.75M Cache, Turbo, HT (125W) DDR4-2666

Intel Xeon Gold 5220 2.2GHz, 18C/36T, 10.4GT/s, 24.75M Cache, Turbo, HT (125W) DDR4-2666

Manufacturer: Intel

Call for pricing

Qty:

Mô tả
Thuộc tính sản phẩm
Đánh giá

Essentials

Product Collection2nd Generation Intel® Xeon® Scalable Processors
Code NameProducts formerly Cascade Lake
Vertical SegmentServer
Processor Number5220
StatusLaunched
Launch DateQ2'19
Lithography14 nm
Recommended Customer Price$1555.00 - $1561.00

CPU Specifications

# of Cores18
# of Threads36
Processor Base Frequency2.20 GHz
Max Turbo Frequency3.90 GHz
Cache24.75 MB
# of UPI Links2
TDP125 W

Supplemental Information

Embedded Options AvailableNo
Product BriefView now

Memory Specifications

Max Memory Size (dependent on memory type)1 TB
Memory TypesDDR4-2667
Maximum Memory Speed2667 MHz
Max # of Memory Channels6
ECC Memory Supported ^‡Yes
Intel® Optane™ DC Persistent Memory SupportedYes

Expansion Options

Scalability4S
PCI Express Revision3.0
Max # of PCI Express Lanes48

Package Specifications

Sockets SupportedFCLGA3647
T_CASE87°C
Package Size76.0mm x 56.5mm

Advanced Technologies

Intel® Deep Learning Boost (Intel® DL Boost)Yes
Intel® Speed Select Technology - Performance ProfileNo
Intel® Speed Select Technology - Base FrequencyNo
Intel® Resource Director Technology (Intel® RDT)Yes
Intel® Speed Shift TechnologyYes
Intel® Turbo Boost Max Technology 3.0 ^‡No
Intel® Turbo Boost Technology ^‡2.0
Intel vPro® Platform Eligibility ^‡Yes
Intel® Hyper-Threading Technology ^‡Yes
Intel® Virtualization Technology (VT-x) ^‡Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ^‡Yes
Intel® VT-x with Extended Page Tables (EPT) ^‡Yes
Intel® Transactional Synchronization ExtensionsYes
Intel® 64 ^‡Yes
Instruction Set ExtensionsIntel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512
# of AVX-512 FMA Units1
Enhanced Intel SpeedStep® TechnologyYes
Intel® Volume Management Device (VMD)Yes

Security & Reliability

Intel® AES New InstructionsYes
Intel® Trusted Execution Technology ^‡Yes
Execute Disable Bit ^‡Yes
Intel® Run Sure TechnologyYes
Mode-based Execute Control (MBE)Yes
