Lenovo ThinkSystem SR530 SFF Bronze 3106

  • (1) Intel Xeon Bronze 3106 8C 85W 1.7GHz Processor
  • ThinkSystem 16GB TruDDR4 2666 MHz (1Rx4 1.2V) RDIMM
  • Hard Drive : None (2.5")
  • ThinkSystem RAID 530-8i PCIe 12Gb Adapter (RAID 0, 1, 10, 5, and 50)
  • Optical drive: Support for an external USB DVD RW Optical Disk Drive
  • 2x Integrated 1 GbE RJ-45 ports, 1x RJ-45 10/100/1000 Mb Ethernet systems management
  • XClarity Controller (XCC) Standard
  • 8 x SFF SAS/SATA hot-swap drive bays
  • Redundant hot-swap 550 W Power Supply (1/2)
  • 1U rack-mount, Toolless Slide Rail
  • Warranty: 3 Year Onsite Repair 24x7 4 Hour Response
Nhà sản xuất: Lenovo
39.500.000 ₫

Abstract

Lenovo ThinkSystem SR530 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.

This product guide provides essential technical and pre-sales information on the SR530 server, its key features and specifications, components and options, and configuration guidelines.

This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR530 server and consider its use in IT solutions.

Note: This product guide describes ThinkSystem SR530 server models with the first generation of the Intel Xeon Processor Scalable Family (Xeon SP Gen 1). For ThinkSystem SR530 server models with the second generation of the Intel Xeon Processor Scalable Family (Xeon SP Gen 2), refer to the following Lenovo Press product guide:

Change History

Changes in the September 10 update:

  • Added ThinkSystem 2.5" 5210 1.92TB, 3.84TB, and 7.68TB Entry SATA 6Gb Hot Swap QLC SSDs
  • Updated Operating systems
  • Updated External storage systems
  • Updated Ethernet LAN switches

Walkthrough Video with David Watts and Russ Resnick

Introduction



Lenovo ThinkSystem SR530 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.

Featuring the Intel Xeon Processor Scalable Family, the SR530 server offers a balance of performance, capacity and value. The SR530 server supports up to two processors, up to 768 GB of 2666 MHz TruDDR4 memory, 8x 2.5-inch or 4x 3.5-inch drive bays with an extensive choice of SAS/SATA SSDs and SAS/SATA HDDs, and flexible I/O expansion options with the LOM slot and up to 3x PCIe slots.

The SR530 server offers basic software RAID or advanced hardware RAID protection and a wide range of networking options, including embedded LOM, selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo XClarity Controller, which is built into the SR530 server, provides advanced service processor control, monitoring, and alerting functions.

The following figure shows the Lenovo ThinkSystem SR530.

Lenovo ThinkSystem SR530

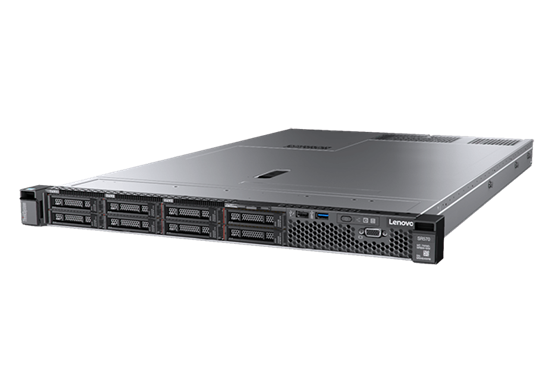

Figure 1. Lenovo ThinkSystem SR530

Did you know?

The SR530 server delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies that can deliver 96% (Titanium) or 94% (Platinum) efficiency at 50% load when connected to a 200 - 240 V AC power source.

The SR530 server is designed to meet ASHRAE A4 standards (up to 45 °C [113 °F]) in select configurations, which enable customers to lower energy costs, while still maintaining world-class reliability.

Key features

The SR530 server offers a balance of processing power, expandability, and cost for small and medium businesses up to the large enterprise. Ease of use and comprehensive systems management tools help make deployment easier and efficient design improves your business environment and helps save operational costs.

Scalability and performance

The SR530 server offers numerous features to boost performance, improve scalability, and reduce costs:

  • Improves productivity by offering superior system performance with the Intel Xeon Processor Scalable Family with up to 20-core processors, up to 27.5 MB of last level cache (LLC), up to 2666 MHz memory speeds, and up to 10.4 GT/s Ultra Path Interconnect (UPI) links.
    • Support for up to two processors, 40 cores, and 80 threads allows to maximize the concurrent execution of multithreaded applications.
    • Intelligent and adaptive system performance with energy efficient Intel Turbo Boost 2.0 Technology allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
    • Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core.
    • Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better utilize the hardware for virtualization workloads.
    • Intel Advanced Vector Extensions 512 (AVX-512) enable acceleration of enterprise-class and high performance computing (HPC) workloads.
  • Helps maximize system performance for data intensive applications with up to 2666 MHz memory speeds and up to 768 GB of memory capacity.
  • Offers flexible and scalable internal storage in a 1U rack form factor with up to 8x 2.5-inch drives for performance-optimized configurations or up to 4x 3.5-inch drives for capacity-optimized configurations, providing a wide selection of SAS/SATA HDDs/SSDs.
  • Provides I/O scalability with the LOM slot and up to three PCI Express (PCIe) 3.0 I/O expansion slots in a 1U rack form factor.
  • Reduces I/O latency and increases overall system performance with Intel Integrated I/O Technology that embeds the PCI Express 3.0 controller into the Intel Xeon Processor Scalable Family.

Availability and serviceability

The SR530 server provides many features to simplify serviceability and increase system uptime:

  • Offers protection in the event of a non-correctable memory failure with Single Device Data Correction (SDDC, also known as Chipkill, requires x4-based DIMMs), Adaptive Double Device Data Correction (ADDDC, also known as Redundant Bit Steering [RBS], requires x4-based DIMMs and Intel Xeon Gold or Platinum processors), memory mirroring, and memory rank sparing.
  • Provides easy access to upgrades and serviceable parts (such as processors, memory DIMMs, and adapter cards) with tool-less cover removal.
  • Offers affordable data protection with software RAID and Simple Swap drives and advanced hardware RAID data redundancy with hot-swap drives.
  • Provides availability for applications with redundant hot-swap power supplies and redundant non-hot-swap fans.
  • Allows preventive actions in advance of possible failure, thereby increasing server uptime and application availability with Proactive Platform Alerts (including PFA and SMART alerts) for processors, voltage regulators, memory, internal storage (SAS/SATA HDDs and SSDs, M.2 storage), fans, power supplies, RAID controllers, and server ambient and sub-component temperatures.
  • Continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failure to minimize downtime with Built-in XClarity Controller (XCC).
  • Provides quick access to system status, firmware, network, health, and alerts information via Virtual Operator Panel from the XClarity Mobile App running on the Android or iOS mobile device that is connected to the front USB port with XClarity Controller access.
  • Speeds up troubleshooting tasks to reduce service time with diagnostics built into the XClarity Provisioning Manager.

Manageability and security

Powerful systems management features simplify local and remote management of the SR530 server and deliver enterprise-class data protection:

  • Provides advanced service processor control, monitoring, and alerting functions with XClarity Controller, a next generation service processor.
  • Improves Unified Extensible Firmware Interface (UEFI) system setup, configuration, updates, simplified error handling, and operating system deployment with the embedded XClarity Provisioning Manager.
  • Offers XClarity Essentials software tools that can help you set up, use, and maintain the server.
  • Increases uptime, reduces costs, and improves productivity through advanced server management capabilities with Lenovo XClarity Administrator that provides comprehensive hardware management.
  • Provides on-the-go monitoring and management of devices in XClarity Administrator from anywhere with the Lenovo XClarity mobile app, which can help improve efficiency and reduce downtime risks.
  • Centralizes infrastructure resource management with Lenovo XClarity Integrators for VMware vCenter and Microsoft System Center, extending XClarity Administrator features to virtualization management software tools and enabling users to deploy and manage infrastructure end-to-end.
  • Offers advanced cryptographic functionality (such as digital signatures and remote attestation) with an integrated Trusted Platform Module (TPM) or optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC).
  • Keeps user data safe with Lenovo Business Vantage, a security software tool suite designed to work with the Trusted Cryptographic Module (available only in PRC).
  • Offers enterprise-class data protection with advanced RAID and optional self-encrypting drives.
  • Provides faster, stronger encryption with industry-standard AES NI support.
  • Helps prevent certain classes of malicious buffer overflow attacks with Intel Execute Disable Bit functionality, when combined with a supporting operating system.
  • Enhances security through hardware-based resistance to malicious software attacks with Intel Trusted Execution Technology, allowing an application to run in its own isolated space, protected from all other software running on a system.

Energy efficiency

The SR530 server offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to the green environment:

  • Delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies.
  • Enables customers to lower energy costs with design to meet ASHRAE A4 standards in select configurations.
  • Reduces power drawn with Intel Intelligent Power Capability that powers individual processor elements on and off as needed.
  • Helps reduce power consumption with variable speed fans.
  • Helps achieve lower heat output and reduced cooling needs with Lenovo XClarity Energy Manager that provides advanced data center power notification, analysis, and policy-based management.

Components and connectors

The following figure shows the front of the SR530 server with four 3.5-inch drive bays.

Front view of the SR530: 4x 3.5-inch drive bays
Figure 2. Front view of the SR530: 4x 3.5-inch drive bays

The following figure shows the front of the SR530 server with eight 2.5-inch drive bays.

Front view of the SR530: 8x 2.5-inch drive bays
Figure 3. Front view of the SR530: 8x 2.5-inch drive bays

The following figure shows the rear of the SR530 server with three PCIe low profile slots.

Rear view of the SR530
Figure 4. Rear view of the SR530

The following figure shows the locations of key components inside the SR530 server.

Internal view of the SR530

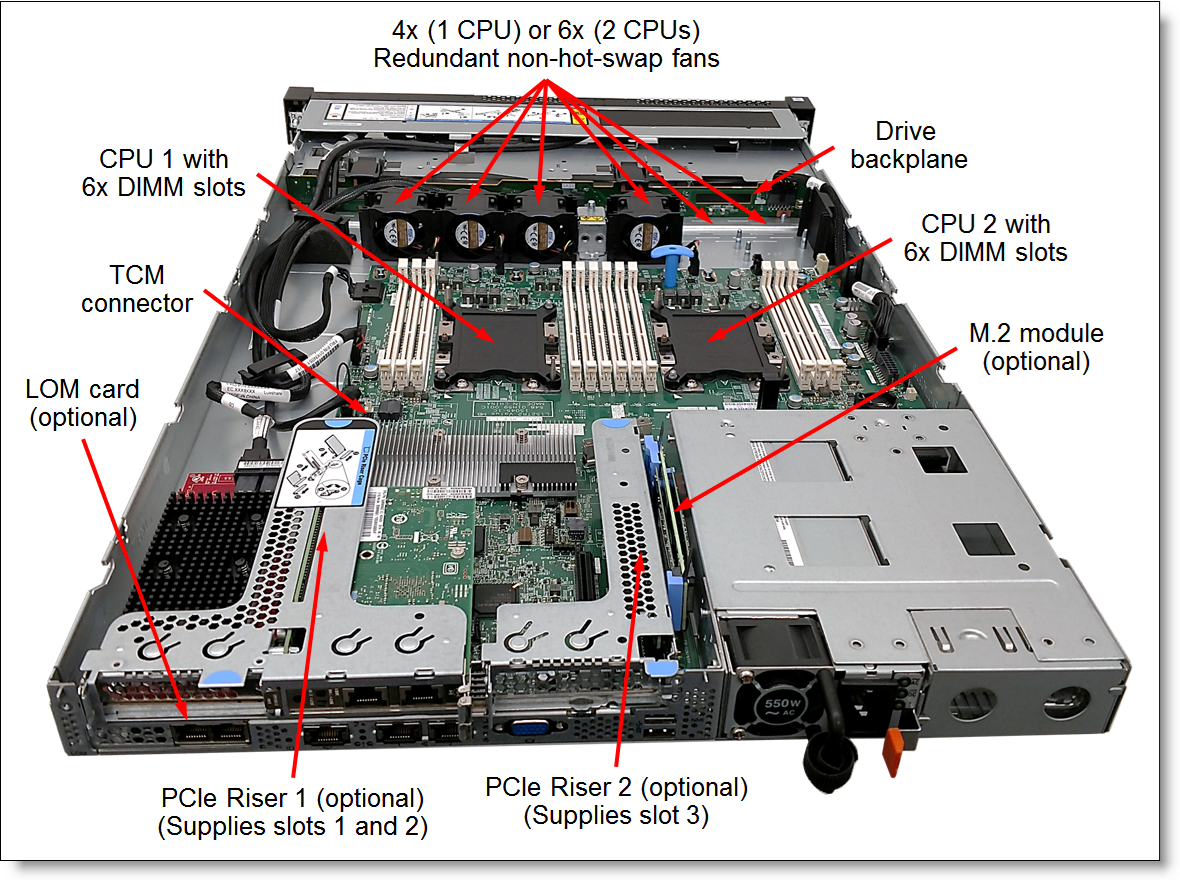

Figure 5. Internal view of the SR530

System specifications

The following table lists the system specifications for the SR530 server.

Table 1. SR530 system specifications
Attribute Specification
Form factor 1U rack-mount.
Processor Up to two Intel Xeon Bronze, Silver, Gold, or Platinum processors:
  • Up to 20 cores (2.0 GHz core speeds)
  • Up to 3.6 GHz core speeds (4 cores)
  • Two UPI links up to 10.4 GT/s each
  • Up to 27.5 MB cache
  • Up to 2666 MHz memory speed
Chipset Intel C622.
Memory Up to 12 DIMM sockets (6 DIMMs per processor; six memory channels per processor with one DIMM per channel). Support for RDIMMs and LRDIMMs. Memory types cannot be intermixed. Memory speed up to 2666 MHz.
Memory capacity
  • With RDIMMs: Up to 384 GB with 12x 32 GB RDIMMs and two processors.
  • With LRDIMMs: Up to 768 GB with 12x 64 GB LRDIMMs and two processors.
Memory protection Error correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing.
Drive bays
  • 4 LFF SATA Simple Swap drive bays
  • 4 LFF SAS/SATA hot-swap drive bays
  • 8 SFF SAS/SATA hot-swap drive bays
Drive types 3.5-inch non-hot-swap drives:
  • 6 Gbps NL SATA HDDs up to 10 TB
  • 6 Gbps SATA SSDs up to 480 GB (2.5" SSD in a 3.5" tray)
3.5-inch hot-swap drives:
  • 12 Gbps SAS HDDs up to 900 GB (2.5" HDD in a 3.5" tray)
  • 12 Gbps NL SAS HDDs up to 14 TB
  • 12 Gbps NL SAS HDD SEDs up to 4 TB
  • 12 Gbps SAS SSDs up to 7.68 TB
  • 6 Gbps NL SATA HDDs up to 14 TB
  • 6 Gbps SATA SSDs up to 7.68 TB (2.5" SSD in a 3.5" tray)
2.5-inch hot-swap drives:
  • 12 Gbps SAS HDDs up to 2.4 TB
  • 12 Gbps Nearline (NL) SAS HDDs up to 2 TB
  • 12 Gbps SAS HDD SEDs up to 600 GB
  • 12 Gbps SAS SSDs up to 7.68 TB
  • 6 Gbps NL SATA HDDs up to 2 TB
  • 6 Gbps SATA SSDs up to 7.68 TB
Internal M.2 SSDs:
  • 6 Gbps SATA up to 480 GB
Intermix of SAS/SATA HDDs/SSDs is supported within a system, but not within a RAID array.
Internal storage capacity
  • 3.5-inch models: Up to 56 TB with 4x 14 TB 3.5" SAS/SATA HDDs
  • 2.5-inch models: Up to 61.4 TB with 8x 7.68 TB 2.5" SAS/SATA SSDs
Storage controller 6 Gbps SATA
  • Non-RAID: Onboard SATA AHCI
  • RAID 0/1/10/5: Onboard SATA RAID (Intel RSTe)
12 Gbps SAS/6 Gbps SATA RAID
  • RAID 0/1/10/5/50:
    • RAID 530-8i
    • RAID 730-8i 1GB Cache
  • RAID 0/1/10/5/50/6/60:
    • RAID 730-8i 2GB Flash
    • RAID 930-8i 2GB Flash
    • RAID 930-16i 4GB or 8GB Flash
12 Gbps SAS/6 Gbps SATA non-RAID: 430-8i HBA
Optical drive bays None. Support for an external USB DVD RW Optical Disk Drive (See Optical drives).
Network interfaces
  • 2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support)
  • Onboard LOM slot for up to two additional 1/10 Gb Ethernet ports:
    • 2x 1 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x 10 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x 10 GbE SFP+ ports (no 10/100 Mb support)
  • Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors.
  • 1x RJ-45 10/100/1000 Mb Ethernet systems management port.
I/O expansion slots Up to three slots depending on the riser cards installed. The slots are as follows:
  • Slot 1: PCIe 3.0 x8; low profile
  • Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length
  • Slot 3: PCIe 3.0 x8 or x16; low profile
PCIe x16 slot 3 requires the second processor to be installed.
Ports
  • Front:
    • 1x USB 2.0 port with XClarity Controller access.
    • 1x USB 3.0 port.
    • 1x VGA port (optional).
  • Rear: 2x USB 3.0 ports and 1x VGA port. Optional 1x DB-9 serial port.
Cooling Four (one processor) or six (two processors) non-hot-swap system fans with N+1 redundancy.
Power supply Up to two redundant hot-swap 550 W or 750 W (100 - 240 V) High Efficiency Platinum or 750 W (200 - 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only).
Video Matrox G200 with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920x1200 at 60 Hz with 32 bits per pixel.
Hot-swap parts Drives (select models) and power supplies.
Systems management XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner.
Security features Power-on password, administrator's password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC). Optional Lenovo Business Vantage security software (available only in PRC).
Operating systems Microsoft Windows Server 2012 R2, 2016, and 2019; Red Hat Enterprise Linux 6 (x64), 7, and 8; SUSE Linux Enterprise Server 11 (x64), 12, and 15; VMware vSphere (ESXi) 6.0, 6.5, and 6.7.
Warranty One-year (7X07) or three-year (7X08) customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered.
Service and support Optional service upgrades are available through Lenovo Services: 2-hour or 4-hour response time, 6-hour or 24-hour committed service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive Your Data, Enterprise Software Support, and Basic Hardware Installation Services.
Dimensions Height: 43 mm (1.7 in), width: 434 mm (17.1 in), depth: 715 mm (28.1 in)
Weight Minimum configuration: 10.2 kg (22.5 lb), maximum: 16 kg (35.3 lb)

Models

ThinkSystem SR530 server models can be configured by using the Lenovo Data Center Solution Configurator (DCSC):
http://dcsc.lenovo.com

ThinkSystem SR530 server models are region-specific; that is, each region may define their own server models, and not all server models are available in every region. For a complete list of the SR530 models, contact a Lenovo or Lenovo Business Partner representative in your region. Information on the SR530 models is also available on the PSREF website:
http://psref.lenovo.com/Product/ThinkSystem/ThinkSystem_SR530

Configure-to-order (CTO) models can also be created for factory-integrated server customization. The following table lists the base CTO models of the ThinkSystem SR530 server.

Table 2. Base CTO models
Description Machine Type/Model
ThinkSystem SR530 - 3yr Warranty 7X08CTO1WW
ThinkSystem SR530 - 1yr Warranty 7X07CTO1WW

The following table lists the base chassis for CTO models of the SR530 server.

Table 3. Base chassis for CTO models
Description Feature code
ThinkSystem SR530 3.5" Chassis with 4 Bays AV0T
ThinkSystem SR530 2.5" Chassis with 8 Bays AV0S

All models of the SR530 server are shipped with the following items:

  • Rack Installation Guide
  • Electronic Publications Flyer

Models table conventions: The model tables shown in this section use the following conventions:

  • XClarity Controller: "S" = Standard, "A" = Advanced, "E" = Enterprise.
  • Front VGA port: "Y" = Included; "N" = Not included, optional.
  • Tool-less Rail Kit: "Y" = Included; "N" = Not included, optional.
  • Cable Management Arm (CMA): "Y" = Included; "N" = Not included, optional.
  • Power cord:
    • "L2" = 2.8 m line cord.
    • "R1" = 1.5 m C13-C14 rack power cable.
    • "R2" = 2.8 m C13-C14 rack power cable.
    • "R4" = 4.3 m C13-C14 rack power cable.
    • "N" = Not included; see Power supplies and cables for the ordering information.

The following tables list the models of the SR530 server for the following regions:

Table 4. SR530 server models: North America
Model
number
Intel Xeon
processor*
(2 max)
Memory
DIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(3 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - North America
7X08A056NA 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E N Y N R2
7X08A05WNA 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E N Y N R2
7X08A05TNA 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E N Y N R2
7X08A05XNA 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E N Y N R2
7X08A057NA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E N Y N R2
7X08A055NA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E N Y N R2
7X08A05MNA 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E N Y N R2
7X08A05KNA 1x 4116 12C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E N Y N R2
7X08A05ENA 1x 5115 10C
85W 2.4GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E N Y N R2
7X08A05SNA 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E Y Y N R2
7X08A058NA 1x 5118 12C
105W 2.3GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E Y Y N R2
7X08A05RNA 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E Y Y N R2
7X08A05PNA 1x 6126 12C
125W 2.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E Y Y N R2
7X08A052NA 1x 6138 20C
125W 2.0GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E Y Y N R2
TopSeller models - North America
7X08A04FNA 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E Y Y N R2
7X08A03SNA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E Y Y N R2
7X08A045NA 1x 4116 12C
85W 2.1GHz
1x 32GB
(2Rx4)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 5. SR530 server models: Brazil
Model
number
Intel Xeon
processor*
(2 max)
Memory
DIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(3 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Brazil
7X08A043BR 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A04LBR 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
1x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A04JBR 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A042BR 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
1x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A04QBR 1x 5118 12C
105W 2.3GHz
1x 32GB
(2Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A044BR 1x 5118 12C
105W 2.3GHz
1x 32GB
(2Rx4)
1x RAID
530-8i
8 / 8
HS SFF
1x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A040BR 1x 5118 12C
105W 2.3GHz
1x 64GB
(4Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A04HBR 1x 5118 12C
105W 2.3GHz
1x 64GB
(4Rx4)
1x RAID
530-8i
8 / 8
HS SFF
1x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A048BR 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A04RBR 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
1x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A03WBR 1x 5120 14C
105W 2.2GHz
1x 32GB
(2Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A03YBR 1x 5120 14C
105W 2.2GHz
1x 32GB
(2Rx4)
1x RAID
530-8i
8 / 8
HS SFF
1x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A049BR 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A04PBR 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
1x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A04ABR 1x 5120 14C
105W 2.2GHz
1x 64GB
(4Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A047BR 1x 5120 14C
105W 2.2GHz
1x 64GB
(4Rx4)
1x RAID
530-8i
8 / 8
HS SFF
1x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A046BR 1x 6130 16C
125W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A04DBR 1x 6130 16C
125W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
1x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A03XBR 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A04NBR 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
1x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A04BBR 1x 6130 16C
125W 2.1GHz
1x 32GB
(2Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A04CBR 1x 6130 16C
125W 2.1GHz
1x 32GB
(2Rx4)
1x RAID
530-8i
8 / 8
HS SFF
1x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A04KBR 1x 6130 16C
125W 2.1GHz
1x 64GB
(4Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A04EBR 1x 6130 16C
125W 2.1GHz
1x 64GB
(4Rx4)
1x RAID
530-8i
8 / 8
HS SFF
1x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
TopSeller models - Brazil
7X08100HBR 1x 3106 8C
85W 1.7GHz
1x 16GB
(2Rx8)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 550W E Y Y N L2
7X08100PBR 1x 3106 8C
85W 1.7GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
E Y Y N L2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 6. SR530 server models: Latin America (except Brazil)
Model
number
Intel Xeon
processor*
(2 max)
Memory
DIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(3 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models (NAS workload-optimized with Windows Storage Server 2016 Std preloaded) - Latin America (except Brazil)
7X08A06BLA 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x M.2 RAID
1x RAID
930-8i
4 / 4
HS LFF
2x 128GB
M.2 SSD
4x 2TB
SAS HDD
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
E Y Y N R2
7X08A06ALA 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x M.2 RAID
1x RAID
930-8i
4 / 4
HS LFF
2x 128GB
M.2 SSD
4x 4TB
SAS HDD
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
E Y Y N R2
Relationship models (NAS workload-optimized with Windows Storage Server 2016 Std not preloaded) - Latin America (exc. Brazil)
7X08A06CLA 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
4x 2TB
SAS HDD
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
E Y Y N R2
7X08A069LA 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
4x 4TB
SAS HDD
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
E Y Y N R2
Relationship models (NAS workload-optimized without software stack) - Latin America (except Brazil)
7X08100CLA 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
4x 2TB
HDD
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
E Y Y N R1
7X08100DLA 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
4x 4TB
HDD
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
E Y Y N R1
Relationship models - Latin America (except Brazil)
7X08A09PLA 1x 4116 12C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i 2GB
M.2 (no RAID)
8 / 8
HS SFF
1x M.2
Open
bay
2x 1Gb
RJ-45
2x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
E Y Y N R2†
7X08A05DLA 1x 5115 10C
85W 2.4GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R4
7X08A05NLA 1x 5115 10C
85W 2.4GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R4
7X08A017LA 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A00MLA 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A019LA 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A00KLA 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A01CLA 1x 6130 16C
125W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
7X08A00HLA 1x 6130 16C
125W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R4
TopSeller models - Latin America (Chile only)
7X081000LA 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
2x PCIe x8
1x PCIe x16 LP
2x 550W E Y Y N R2
7X081001LA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
2x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
E Y Y N R2
7X081002LA 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
2x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
E Y Y N R2
TopSeller models - Latin America (except Brazil and Chile)
7X081009LA 1x 3106 8C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
2x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R2
7X08100ALA 1x 3106 8C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
2x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R2
7X08100BLA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
2x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
S Y Y N R2
TopSeller models - Latin America (Colombia only)
7X08A066LA 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W E Y Y N R2
TopSeller models - Latin America (except Brazil)
7X08A051LA 1x 3104 6C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R4
7X08A054LA 1x 3104 6C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R4
7X08A05YLA 1x 3106 8C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R4
7X08A05FLA 1x 3106 8C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R4
7X08A05GLA 1x 4108 8C
85W 1.8GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R4
7X08A05HLA 1x 4108 8C
85W 1.8GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R4
7X08A053LA 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
4 / 4
HS LFF
2x 600GB
15K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
A Y Y N R1
7X08A05ALA 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
4 / 4
HS LFF
2x 2TB
SAS HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
A Y Y N R4
7X08A059LA 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
4 / 4
HS LFF
2x 2TB
SAS HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
A Y Y N R1
7X08A05VLA 1x 4110 8C
85W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R4
7X08A05CLA 1x 4110 8C
85W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R4
7X08A05QLA 1x 4110 8C
85W 2.1GHz
2x 16GB
(1Rx4)
1x RAID
530-8i
4 / 4
HS LFF
2x 2TB
SAS HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
A Y Y N R1
7X08A05JLA 1x 4114 10C
85W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R4
7X08A05ULA 1x 4114 10C
85W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R4
7X08A05LLA 1x 4114 10C
85W 2.2GHz
2x 16GB
(1Rx4)
1x RAID
530-8i
4 / 4
HS LFF
3x 600GB
15K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
A Y Y N R1

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.
† The model ships with the 2.0 m power cords.

Table 7. SR530 server models: EMEA
Model
number
Intel Xeon
processor*
(2 max)
Memory
DIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(3 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - EMEA
7X08A01TEA 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N R2
7X08A01WEA 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N R2
7X08A02AEA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N R2
7X08A00JEA 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N R2
TopSeller models - EMEA
7X08A022EA 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x SATA
RAID
4 / 4
SS LFF
Open
bay
Open
slot
None 1x 550W S Y Y N R2
7X08A028EA 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R2
7X08A025EA 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
A Y Y N R2
7X08A01VEA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
A Y Y N R2
7X08A029EA 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
A Y Y N R2
7X08A04GEA 1x 4110 8C
85W 2.1GHz
4x 32GB
(2Rx4)
1x RAID
930-8i
8 / 8
HS SFF
3x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
E Y Y N R2
7X08A024EA 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
A Y Y N R2
7X08A01XEA 1x 4116 12C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
A Y Y N R2
7X08A009EA 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 8. SR530 server models: India
Model
number
Intel Xeon
processor*
(2 max)
Memory
DIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(3 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - India
7X08A007SG 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x SATA
RAID
4 / 4
SS LFF
Open
bay
2x 1Gb
RJ-45
None 1x 550W S Y Y N L2
7X08A004SG 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x ML2 x8
1x 550W S Y Y N L2
7X08A00ASG 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x ML2 x8
1x 550W S Y Y N L2
7X08A008SG 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x ML2 x8
1x 550W S Y Y N L2
7X08A00CSG 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x ML2 x8
1x 550W S Y Y N L2
7X08A00FSG 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x ML2 x8
1x 550W S Y Y N L2
7X08A00BSG 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x ML2 x8
1x 550W S Y Y N L2
7X08A00GSG 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x ML2 x8
1x 550W S Y Y N L2
7X08A013SG 1x 6126 12C
125W 2.6GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x ML2 x8
1x 750W
Platinum
S Y Y N L2
7X08A011SG 1x 6126 12C
125W 2.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x ML2 x8
1x 750W
Platinum
S Y Y N L2
7X08A015SG 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x ML2 x8
1x 750W
Platinum
S Y Y N L2
7X08A01BSG 1x 6138 20C
125W 2.0GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x ML2 x8
1x 750W
Platinum
S Y Y N L2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 9. SR530 server models: Hong Kong, Taiwan, Korea
Model
number
Intel Xeon
processor*
(2 max)
Memory
DIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(3 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Hong Kong, Taiwan, Korea
7X08A02ZCN 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A03BCN 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A031CN 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A02TCN 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A03KCN 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A039CN 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A03GCN 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ- 45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A03PCN 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A03CCN 1x 4112 4C
85W 2.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A03DCN 1x 4112 4C
85W 2.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A036CN 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A02UCN 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A02WCN 1x 4116 12C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A02YCN 1x 4116 12C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A02VCN 1x 5115 10C
85W 2.4GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A03ECN 1x 5115 10C
85W 2.4GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A00ZCN 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A01LCN 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A00WCN 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A01GCN 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A00UCN 1x 5122 4C
105W 3.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A014CN 1x 5122 4C
105W 3.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A00TCN 1x 6126 12C
125W 2.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A016CN 1x 6126 12C
125W 2.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A00SCN 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N
7X08A01DCN 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 10. SR530 server models: Japan
Model
number
Intel Xeon
processor*
(2 max)
Memory
DIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(3 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Japan
7X08A064JP 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W A N Y N N
7X08A063JP 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W A N Y N N
7X08A04XJP 1x 5122 4C
105W 3.6GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W A N Y N N
7X08A065JP 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
A N Y N N
7X08A04WJP 1x 6138 20C
125W 2.0GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W A N Y N N
TopSeller models - Japan
7X08A04ZJP 1x 3104 6C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W A N Y N N
7X08A04VJP 1x 3104 6C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W A N Y N N
7X08A050JP 1x 3106 8C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W A N Y N N
7X08A04UJP 1x 4110 8C
85W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W A N Y N N
7X08A04YJP 1x 4112 4C
85W 2.6GHz
1x 8GB
(1Rx8)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W A N Y N N
7X08A061JP 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W A N Y N N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 11. SR530 server models: ASEAN
Model
number
Intel Xeon
processor*
(2 max)
Memory
DIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(3 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - ASEAN
7X08A02LSG 1x 3104 6C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S N Y N R2
7X08A02MSG 1x 3106 8C
85W 1.7GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S N Y N R2
7X08A02JSG 1x 4110 8C
85W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S N Y N R2
7X08A02QSG 1x 4112 4C
85W 2.6GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S N Y N R2
7X08A02KSG 1x 4112 4C
85W 2.6GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S N Y N R2
7X08A02NSG 1x 4114 10C
85W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S N Y N R2
7X08A02PSG 1x 4116 12C
85W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S N Y N R2
7X08A02CSG 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R2
7X08A02DSG 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R2
7X08A02HSG 1x 5122 4C
105W 3.6GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R2
7X08A02ESG 1x 5122 4C
105W 3.6GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R2
7X08A02FSG 1x 6130 16C
125W 2.1GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R2
7X08A02GSG 1x 6138 20C
125W 2.0GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
2x 1Gb
RJ-45
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 12. SR530 server models: Australia and New Zealand
Model
number
Intel Xeon
processor*
(2 max)
Memory
DIMM
(12 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(3 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Australia and New Zealand
7X081006AU 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x SATA
RAID
4 / 4
SS LFF
Open
bay
Open
slot
None 1x 750W
Platinum
E Y Y Y R2
7X08A03NAU 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N R2
7X081003AU 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E Y Y Y R2
7X081007AU 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x SATA
RAID
4 / 4
SS LFF
Open
bay
Open
slot
None 1x 750W
Platinum
E Y Y Y R2
7X08A037AU 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N R2
7X081004AU 1x 3106 8C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E Y Y Y R2
7X08A03HAU 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N R2
7X08A03FAU 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N R2
7X081008AU 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x SATA
AHCI
4 / 4
SS LFF
Open
bay
Open
slot
None 1x 750W
Platinum
E Y Y Y R2
7X08A02SAU 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N R2
7X081005AU 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E Y Y Y R2
7X08A02XAU 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N R2
7X08A033AU 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N R2
7X08A03LAU 1x 4116 12C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S N Y N R2
7X08A01NAU 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x SATA
RAID
4 / 4
SS LFF
Open
bay
Open
slot
None 1x 550W S Y Y N R2
7X08A01JAU 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x ML2 x8
1x 550W S Y Y N R2
7X08A01PAU 1x 5118 12C
105W 2.3GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x ML2 x8
1x 550W S Y Y N R2
7X08A01KAU 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x ML2 x8
1x 550W S Y Y N R2
7X08A01EAU 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x ML2 x8
1x 550W S Y Y N R2
7X08A04MAU 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R2
7X08A03VAU 1x 5118 12C
105W 2.3GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R2
7X08A00DAU 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x ML2 x8
1x 550W S Y Y N R2
7X08A006AU 1x 5120 14C
105W 2.2GHz
1x 8GB
(1Rx8)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x ML2 x8
1x 550W S Y Y N R2
7X08A00YAU 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R2
7X08A041AU 1x 5120 14C
105W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R2
7X08A01RAU 1x 6126 12C
125W 2.6GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x ML2 x8
1x 750W
Platinum
S Y Y N R2
7X08A010AU 1x 6126 12C
125W 2.6GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R2
7X08A01SAU 1x 6130 16C
125W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R2
7X08A01QAU 1x 6138 20C
125W 2.0GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R2
7X08A03UAU 1x 6138 20C
125W 2.0GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R2
TopSeller models - Australia and New Zealand
7X08A030AU 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x SATA
RAID
4 / 4
SS LFF
Open
bay
Open
slot
None 1x 550W S Y Y N R2
7X08A03MAU 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 550W S Y Y N R2
7X08A03QAU 1x 3104 6C
85W 1.7GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
A Y Y N R2
7X08A03AAU 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
530-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
A Y Y N R2
7X08A038AU 1x 4108 8C
85W 1.8GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
A Y Y N R2
7X08A032AU 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
4 / 4
HS LFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
A Y Y N R2
7X08A02RAU 1x 4110 8C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
A Y Y N R2
7X08A034AU 1x 4110 8C
85W 2.1GHz
2x 32GB
(2Rx4)
1x RAID
930-8i
8 / 8
HS SFF
2x 600GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
A Y Y N R2
7X08A03RAU 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
A Y Y N R2
7X08A035AU 1x 4114 10C
85W 2.2GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
2x 300GB
10K HDD
Open
slot
1x PCIe x8
1x PCIe x16 LP
2x 750W
Platinum
A Y Y N R2
7X08A03JAU 1x 4116 12C
85W 2.1GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
A Y Y N R2
7X08A03TAU 1x 5118 12C
105W 2.3GHz
1x 16GB
(1Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
E Y Y N R2
7X08A03ZAU 1x 6130 16C
125W 2.1GHz
1x 32GB
(2Rx4)
1x RAID
930-8i
8 / 8
HS SFF
Open
bay
Open
slot
1x PCIe x8
1x PCIe x16 LP
1x 750W
Platinum
S Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Processors

The SR530 server supports one or two Intel Xeon Bronze, Silver, Gold, or Platinum processors of up to 125 W TDP.

The following table lists the specifications of the processors for the SR530 server.

Table 13. Processor specifications (HT = Hyper-Threading, TB = Turbo Boost, VT = Virtualization Technology)
CPU
model
Core frequency
(Base / TB Max)
Number
of cores /
threads
Cache Max DDR4
frequency
Max
memory
per socket
UPI
speed
TDP HT TB VT-x VT-d
Intel Xeon Bronze processors
3104 1.7 / 1.7 GHz 6 / 6 8.25 MB 2133 MHz 768 GB 9.6 GT/s 85 W No No Yes Yes
3106 1.7 / 1.7 GHz 8 / 8 11 MB 2133 MHz 768 GB 9.6 GT/s 85 W No No Yes Yes
Intel Xeon Silver processors
4108 1.8 / 3.0 GHz 8 / 16 11 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4109T 2.0 / 3.0 GHz 8 / 16 11 MB 2400 MHz 768 GB 9.6 GT/s 70 W Yes Yes Yes Yes
4110 2.1 / 3.0 GHz 8 / 16 11 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4112 2.6 / 3.0 GHz 4 / 8 8.25 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4114 2.2 / 3.0 GHz 10 / 20 13.75 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4114T 2.2 / 3.0 GHz 10 / 20 13.75 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4116 2.1 / 3.0 GHz 12 / 24 16.5 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4116T 2.1 / 3.0 GHz 12 / 24 16.5 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
Intel Xeon Gold processors
5115 2.4 / 3.2 GHz 10 / 20 13.75 MB 2400 MHz 768 GB 10.4 GT/s 85 W Yes Yes Yes Yes
5117 2.0 / 2.8 GHz 14 / 28 19.25 MB 2400 MHz 768 GB 10.4 GT/s 105W Yes Yes Yes Yes
5118 2.3 / 3.2 GHz 12 / 24 16.5 MB 2400 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes
5119T 1.9 / 3.2 GHz 14 / 28 19.25 MB 2400 MHz 768 GB 10.4 GT/s 85 W Yes Yes Yes Yes
5120 2.2 / 3.2 GHz 14 / 28 19.25 MB 2400 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes
5120T 2.2 / 3.2 GHz 14 / 28 19.25 MB 2400 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes
5122 3.6 / 3.7 GHz 4 / 8 16.5 MB 2666 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes
6126 2.6 / 3.7 GHz 12 / 24 19.25 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6126T 2.6 / 3.7 GHz 12 / 24 19.25 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6128 3.4 / 3.7 GHz 6 / 12 19.25 MB 2666 MHz 768 GB 10.4 GT/s 115 W Yes Yes Yes Yes
6130 2.1 / 3.7 GHz 16 / 32 22 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6130T 2.1 / 3.7 GHz 16 / 32 22 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6138 2.0 / 3.7 GHz 20 / 40 27.5 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6138T 2.0 / 3.7 GHz 20 / 40 27.5 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
Intel Xeon Platinum processors
8153 2.0 / 2.8 GHz 16 / 32 22 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
8156 3.6 / 3.7 GHz 4 / 8 16.5 MB 2666 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes

For the SR530 server models that come with one processor, the second processor can be ordered, if required (see the following table for ordering information). The second processor must be of the same model as the first processor. The second processor option includes a processor, a heatsink, and two additional system fans.

Table 14. Processor options
Description Part number Feature code*
Intel Xeon Bronze processors
ThinkSystem SR530 Intel Xeon Bronze 3104 6C 85W 1.7GHz Processor Option Kit 4XG7A07207 AWEJ
ThinkSystem SR530 Intel Xeon Bronze 3106 8C 85W 1.7GHz Processor Option Kit 4XG7A07206 AWEH
Intel Xeon Silver processors
ThinkSystem SR530 Intel Xeon Silver 4108 8C 85W 1.8GHz Processor Option Kit 4XG7A07205 AWEG
ThinkSystem SR530 Intel Xeon Silver 4109T 8C 70W 2.0GHz Processor Option Kit 4XG7A07204 AWET
ThinkSystem SR530 Intel Xeon Silver 4110 8C 85W 2.1GHz Processor Option Kit 4XG7A07203 AWEE
ThinkSystem SR530 Intel Xeon Silver 4112 4C 85W 2.6GHz Processor Option Kit 4XG7A07202 AWEF
ThinkSystem SR530 Intel Xeon Silver 4114 10C 85W 2.2GHz Processor Option Kit 4XG7A07201 AWEC
ThinkSystem SR530 Intel Xeon Silver 4114T 10C 85W 2.2GHz Processor Option Kit 4XG7A09059 AWES
ThinkSystem SR530 Intel Xeon Silver 4116 12C 85W 2.1GHz Processor Option Kit 4XG7A07200 AWER
ThinkSystem SR530 Intel Xeon Silver 4116T 12C 85W 2.1GHz Processor Option Kit 4XG7A09058 AWEA
Intel Xeon Gold processors
ThinkSystem SR530 Intel Xeon Gold 5115 10C 85W 2.4GHz Processor Option Kit 4XG7A07189 AWDU
ThinkSystem SR530 Intel Xeon Gold 5117 14C 105W 2.0GHz Processor Option Kit 4XG7A09085 B137
ThinkSystem SR530 Intel Xeon Gold 5118 12C 105W 2.3GHz Processor Option Kit 4XG7A07188 AWEP
ThinkSystem SR530 Intel Xeon Gold 5119T 14C 85W 1.9GHz Processor Option Kit 4XG7A09057 AWEQ
ThinkSystem SR530 Intel Xeon Gold 5120 14C 105W 2.2GHz Processor Option Kit 4XG7A07187 AWE6
ThinkSystem SR530 Intel Xeon Gold 5120T 14C 105W 2.2GHz Processor Option Kit 4XG7A07186 AWE8
ThinkSystem SR530 Intel Xeon Gold 5122 4C 105W 3.6GHz Processor Option Kit 4XG7A07179 AWED
ThinkSystem SR530 Intel Xeon Gold 6126 12C 125W 2.6GHz Processor Option Kit 4XG7A07180 AWEL
ThinkSystem SR530 Intel Xeon Gold 6126T 12C 125W 2.6GHz Processor Option Kit 4XG7A07185 AWE5
ThinkSystem SR530 Intel Xeon Gold 6128 6C 115W 3.4GHz Processor Option Kit 4XG7A09055 AWEB
ThinkSystem SR530 Intel Xeon Gold 6130 16C 125W 2.1GHz Processor Option Kit 4XG7A07184 AWEN
ThinkSystem SR530 Intel Xeon Gold 6130T 16C 125W 2.1GHz Processor Option Kit 4XG7A07183 AWE4
ThinkSystem SR530 Intel Xeon Gold 6138 20C 125W 2.0GHz Processor Option Kit 4XG7A07182 AWDZ
ThinkSystem SR530 Intel Xeon Gold 6138T 20C 125W 2.0GHz Processor Option Kit 4XG7A09056 AWEM
Intel Xeon Platinum processors
ThinkSystem SR530 Intel Xeon Platinum 8153 16C 125W 2.0GHz Processor Option Kit 4XG7A07181 AWDR
ThinkSystem SR530 Intel Xeon Platinum 8156 4C 105W 3.6GHz Processor Option Kit 4XG7A07178 AWDL

* For CTO configurations, the feature code represents a processor, and fans and heatsinks are derived by the configurator.

Memory

The SR530 server supports up to 6 TruDDR4 memory DIMMs with one processor and up to 12 DIMMs when two processors are installed. Each processor has six memory channels, and there is a one DIMM per channel.

Lenovo TruDDR4 memory uses the highest-quality components sourced from Tier 1 DRAM suppliers and only memory that meets strict requirements is selected. It is compatibility tested and tuned on every ThinkSystem server to maximize performance and reliability.

TruDDR4 memory has a unique signature programmed into the DIMM, which enables Lenovo servers to verify whether the memory installed is qualified and supported. Lenovo qualified and supported TruDDR4 memory is covered by Lenovo warranty, and service and support provided worldwide.

The following rules apply when selecting the memory configuration:

  • The server supports RDIMMs and LRDIMMs.
  • Mixing different types of memory (RDIMMs and LRDIMMs) is not supported.
  • Mixing x4 and x8 RDIMMs and RDIMMs of different capacity is supported.
  • All DIMMs in the server operate at the same speed up to 2666 MHz, which is determined by the maximum memory speed supported by the specific processor.
    Note: Maximum memory speed can be achieved when Max performance mode is enabled in UEFI.
  • The following maximum memory capacities supported by the server:
    • RDIMMs: 384 GB (192 GB per processor).
    • LRDIMMs: 768 GB (384 GB per processor).

The following memory protection technologies are supported:

  • ECC
  • SDDC (for x4-based memory DIMMs)
  • ADDDC (for x4-based memory DIMMs; Gold and Platinum processors only)
  • Memory mirroring
  • Memory rank sparing
  • Patrol scrubbing
  • Demand scrubbing

Single Device Data Correction (SDDC) works only in the independent channel mode (the default operational mode) and supports only x4-based memory DIMMs.

Adaptive Double Device Data Correction (ADDDC) works with x4-based memory DIMMs and requires two DIMM ranks per channel, Intel Xeon Gold or Platinum processors, and the Closed Page memory access mode.

If memory mirroring is used, then DIMMs must be installed in pairs (a minimum of one pair per each processor), and both DIMMs in a pair must be identical in type and size.

If memory rank sparing is used, then a minimum of one quad-rank DIMM or two single-rank or dual-rank DIMMs must be installed per populated channel (the DIMMs do not need being identical). In rank sparing mode, one rank of a DIMM in each populated channel is reserved as spare memory. The size of a rank varies depending on the DIMMs installed.

SDDC, memory mirroring, and memory rank sparing modes are mutually exclusive. Only one operational memory mode can be enabled on the server, and it is a system-wide setting.

The following table lists memory options available for the SR530 server.

Table 15. Memory options
Description Part number Feature code Maximum quantity*
RDIMMs - 2666 MHz
ThinkSystem 8GB TruDDR4 2666 MHz (1Rx8 1.2V) RDIMM 7X77A01301 AUU1 6 / 12
ThinkSystem 16GB TruDDR4 2666 MHz (1Rx4 1.2V) RDIMM 7X77A01302 AUNB 6 / 12
ThinkSystem 16GB TruDDR4 2666 MHz (2Rx8 1.2V) RDIMM 7X77A01303 AUNC 6 / 12
ThinkSystem 32GB TruDDR4 2666 MHz (2Rx4 1.2V) RDIMM 7X77A01304 AUND 6 / 12
LRDIMMs - 2666 MHz
ThinkSystem 64GB TruDDR4 2666 MHz (4Rx4 1.2V) LRDIMM 7X77A01305 AUNE 6 / 12

* The maximum quantity shown is with one processor / two processors

Internal storage

The SR530 server supports the following internal drive bay configurations:

  1. 4 LFF SATA Simple Swap drive bays
  2. 4 LFF SAS/SATA hot-swap drive bays
  3. 8 SFF SAS/SATA hot-swap drive bays

In addition, the SR530 server models can be configured with one or two internal M.2 SATA SSDs. The server also supports configurations without drive bays.

The following figure shows the internal drive bay configurations.

Internal drive configurations
Figure 6. Internal drive bay configurations

The following table lists the internal storage options for the SR530 server.

Table 16. Internal storage options
Description Part number Feature code Maximum quantity
Factory-installed backplane kits
ThinkSystem SR530/SR630 4x3.5" SATA/SAS Backplane None* AUW8 1
ThinkSystem SR530/SR630 8x2.5" SATA/SAS Backplane None* AUWB 1
Backplane kit field upgrade options
ThinkSystem SR530/SR630 2.5" SATA/SAS 8-Bay Backplane Kit 7XH7A05896 None** 1
M.2 enablement kits
ThinkSystem M.2 Enablement Kit 7Y37A01092 AUMU 1
ThinkSystem M.2 with Mirroring Enablement Kit 7Y37A01093 AUMV 1

* These backplane kits can be factory-installed in standard or custom (CTO or Special Bid) models, and they might not have an option part number assigned.
** Field upgrade only; used for upgrading models without any drive bays to 8x 2.5" SAS/SATA hot-swap drive bays.

M.2 Enablement Kit configuration notes:

  • The M.2 Enablement Kit (7Y37A01092) supports one M.2 SATA SSD which is connected to the SATA port on the Intel Platform Controller Hub (PCH).
  • The M.2 with Mirroring Enablement Kit (7Y37A01093) is connected to the Intel PCH via the PCIe link, and the kit supports two M.2 SATA SSDs that can be configured in a RAID-1 or RAID-0 drive group, or they can operate as two separate drives.

The following tables list supported internal storage configurations with the SAS/SATA backplanes.

Table 17. Internal storage configurations
Drive bay configuration Backplane kit type and quantity Storage controller type and quantity*
4x 3.5" SATA/SAS
8x 2.5" SATA/SAS
4x 3.5" chassis (Feature code AV0T)
4x 3.5-in. SATA Simple Swap 0 0 Onboard AHCI (non-RAID) / Intel RSTe (RAID) (4)
4x 3.5-in. SAS/SATA hot-swap 1 0 1x RAID 530-8i/730-8i 1GB (4)
1x RAID 730-8i 2GB/930-8i (4)
1x 430-8i HBA (4)
8x 2.5" chassis (Feature code AV0S)
8x 2.5-in. SAS/SATA hot-swap 0 1 1x RAID 530-8i/730-8i 1GB (8)
1x RAID 730-8i 2GB/930-8i/930-16i (8)
1x 430-8i HBA (8)

* The number in brackets (x) specifies the quantity of drive bays connected to each of the controllers.

Configuration note: Models without any drive bays are based on the 8x 2.5" chassis (feature code AV0S), and they support adding drive bays by using the 2.5" 8-drive backplane kit (7XH7A05896).

Controllers for internal storage

The following table lists the storage controllers and options for internal storage of the SR530 server.

Table 18. RAID controllers and HBAs for internal storage
Description Part number Feature code Maximum quantity I/O slots supported
6 Gbps SATA controllers
Onboard AHCI (non-RAID) / Intel RSTe (RAID) Onboard* Onboard* 1 -
12 Gb SAS/SATA RAID controllers
ThinkSystem RAID 530-8i PCIe 12Gb Adapter 7Y37A01082 AUNG 1 1
ThinkSystem RAID 730-8i 1GB Cache PCIe 12Gb Adapter 7Y37A01083 AUNH 1 1
ThinkSystem RAID 730-8i 2GB Flash PCIe 12Gb Adapter 4Y37A09722 B4RQ 1 1
ThinkSystem RAID 930-8i 2GB Flash PCIe 12Gb Adapter 7Y37A01084 AUNJ 1 1
ThinkSystem RAID 930-16i 4GB Flash PCIe 12Gb Adapter 7Y37A01085 AUNK 1 1
ThinkSystem RAID 930-16i 8GB Flash PCIe 12Gb Adapter 4Y37A09721 B31E 1 1
12 Gb SAS/SATA non-RAID HBAs
ThinkSystem 430-8i SAS/SATA 12Gb HBA 7Y37A01088 AUNL 1 1

* The onboard SATA controller integrated into the Intel C622 Platform Controller Hub (PCH) supports non-RAID (JBOD) AHCI mode or a hardware-assist, software RAID feature (Intel Rapid Storage Technology Enterprise [RSTe]).

Configuration note: Low profile SAS RAID controllers and HBAs for internal storage are supported in the PCIe x8 slot 1 supplied by the riser card 1.

The following table summarizes features of supported SAS/SATA storage controllers.

Table 19. Storage controller features and specifications (LP = Low profile, FHHL = Full-height half-length)
Feature Intel
RSTe
RAID
530-8i
RAID
730-8i 1GB
RAID
730-8i 2GB
RAID
930-8i
RAID
930-16i
430-8i
HBA
Form factor Onboard PCIe LP PCIe LP PCIe LP PCIe LP PCIe LP PCIe LP
SAS controller None SAS3408 SAS3108 SAS3108 SAS3508 SAS3516 SAS3408
Host interface PCH PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8
Port interface 6 Gb SATA 12 Gb SAS 12 Gb SAS 12 Gb SAS 12 Gb SAS 12 Gb SAS 12 Gb SAS
Number of ports 8 8 8 8 8 16 8
Connector type SATA x4 SFF-8643 x4 SFF-8643 x4 SFF-8643 x4 SFF-8643 x4 SFF-8643 x4 SFF-8643 x4
Number of connectors 2 2 2 2 2 4 2
Drive interface SATA SAS, SATA SAS, SATA SAS, SATA SAS, SATA SAS, SATA SAS, SATA
Drive type HDD HDD, SSD, SED HDD, SSD HDD, SSD, SED HDD, SSD, SED HDD, SSD, SED HDD, SSD, SED*
Hot-swap
drive support
No Yes Yes Yes Yes Yes Yes
Number of drives 8 8 8 8 8 16^ 8
RAID levels 0/1/10/5 0/1/10/5/50 0/1/10/5/50 0/1/10/5/
50/6/60
0/1/10/5/
50/6/60
0/1/10/5/
50/6/60
None
JBOD mode Yes Yes Yes Yes Yes Yes Yes
Cache None None 1 GB 2 GB 2 GB 4 GB; 8 GB None
Cache protection None None None Flash backup
(Included)
Flash backup
(Included)
Flash backup
(Included)
None
SED key management
(SafeStore)
No Yes No Yes Yes Yes No
SSD I/O acceleration
(FastPath)
No Yes No Yes Yes Yes No
SSD Caching
(CacheCade Pro 2.0)
No No No No No** No** No
Consistency check Yes Yes Yes Yes Yes Yes No
Patrol read Yes Yes Yes Yes Yes Yes No
Online capacity expansion Yes Yes Yes Yes Yes Yes No
Online RAID
level migration
Yes Yes Yes Yes Yes Yes No
Global Hot Spare Yes Yes Yes Yes Yes Yes No
Auto-rebuild Yes Yes Yes Yes Yes Yes No

* HBAs do not support key management for SEDs; third-party host software is responsible for managing the keys.
^ Up to 8 drives is supported by the RAID 930-16i in the SR530 server.
** The SSD caching feature has been phased out in the new generation of advanced RAID controllers.

Important: The onboard Intel RSTe is not supported by virtualization hypervisors, including VMware vSphere (ESXi), Linux KVM, Xen, and Microsoft Hyper-V.

For more information, see the list of Product Guides in the following categories:

Drives for internal storage

The following tables list drive options for the SR530 server.

Table 20. Drive options for internal storage: 3.5-inch non-hot-swap drives
Description Part number Feature code Maximum quantity
3.5-inch non-hot-swap HDDs - 6 Gbps SATA
ThinkSystem 1TB 7.2K 6Gbps SATA 3.5" Simple Swap 512n HDD 7XB7A00055 AUZS 4
ThinkSystem 2TB 7.2K 6Gbps SATA 3.5" Simple Swap 512n HDD 7XB7A00056 AUZT 4
ThinkSystem 4TB 7.2K 6Gbps SATA 3.5" Simple Swap 512n HDD 7XB7A00057 AUZU 4
ThinkSystem 6TB 7.2K 6Gbps SATA 3.5" Simple Swap 512e HDD 7XB7A00058 AXC7 4
ThinkSystem 8TB 7.2K 6Gbps SATA 3.5" Simple Swap 512e HDD 7XB7A00059 AXC6 4
ThinkSystem 10TB 7.2K 6Gbps SATA 3.5" Simple Swap 512e HDD 7XB7A00060 AXC8 4
3.5-inch non-hot-swap SSDs - S4500 Entry 6 Gbps SATA
ThinkSystem 3.5" Intel S4500 240GB Entry SATA 6Gb Simple Swap SSD 4XB7A08491 B2XM 4
Table 21. Drive options for internal storage: 3.5-inch hot-swap drives
Description Part number Feature code Maximum quantity
3.5-inch hot-swap HDDs - 12 Gbps SAS
ThinkSystem 3.5" 300GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00063 B1JJ 4
ThinkSystem 3.5" 300GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00038 AUU2 4
ThinkSystem 3.5" 600GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00039 AUU3 4
ThinkSystem 3.5" 900GB 15K SAS 12Gb Hot Swap 512e HDD 7XB7A00040 AUUC 4
3.5-inch hot-swap HDDs - 12 Gbps NL SAS
ThinkSystem 3.5" 1TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00041 AUU4 4
ThinkSystem 3.5" 2TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00042 AUU5 4
ThinkSystem 3.5" 4TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00043 AUU6 4
ThinkSystem 3.5" 6TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00044 AUU7 4
ThinkSystem 3.5" 8TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00045 B0YR 4
ThinkSystem 3.5" 10TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00046 AUUG 4
ThinkSystem 3.5" 12TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00067 B117 4
ThinkSystem 3.5" 14TB 7.2K SAS 12Gb Hot Swap 512e HDD 4XB7A13906 B496 4
3.5-inch hot-swap HDDs - 6 Gbps NL SATA
ThinkSystem 3.5" 1TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00049 AUUF 4
ThinkSystem 3.5" 2TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00050 AUUD 4
ThinkSystem 3.5" 4TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00051 AUU8 4
ThinkSystem 3.5" 6TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00052 AUUA 4
ThinkSystem 3.5" 8TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00053 AUU9 4
ThinkSystem 3.5" 10TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00054 AUUB 4
ThinkSystem 3.5" 12TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00068 B118 4
ThinkSystem 3.5" 14TB 7.2K SATA 6Gb Hot Swap 512e HDD 4XB7A13907 B497 4
3.5-inch hot-swap HDD SEDs - 12 Gbps NL SAS
ThinkSystem 3.5" 4TB 7.2K SAS 12Gb Hot Swap 512n HDD FIPS 7XB7A00047 AUUH 4
3.5-inch hot-swap SSDs - PM1635a Mainstream 12 Gbps SAS
ThinkSystem 3.5" PM1635a 1.6TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A10187 B2XE 4
3.5-inch hot-swap SSDs - PM1645 Mainstream 12 Gbps SAS
ThinkSystem 3.5" PM1645 800GB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13657 B4A3 4
ThinkSystem 3.5" PM1645 1.6TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13658 B4A4 4
3.5-inch hot-swap SSDs - 5100 Mainstream 6 Gbps SATA
ThinkSystem 3.5" 5100 480GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05759 B112 4
ThinkSystem 3.5" 5100 3.84TB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05756 B115 4
3.5-inch hot-swap SSDs - 5200 Mainstream 6 Gbps SATA
ThinkSystem 3.5" 5200 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10242 B48D 4
ThinkSystem 3.5" 5200 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10243 B48E 4
ThinkSystem 3.5" 5200 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10244 B48F 4
ThinkSystem 3.5" 5200 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10245 B48G 4
ThinkSystem 3.5" 5200 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10246 B48H 4
3.5-inch hot-swap SSDs - S4610 Mainstream 6 Gbps SATA
ThinkSystem 3.5" Intel S4610 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13639 B49R 4
ThinkSystem 3.5" Intel S4610 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13640 B49S 4
ThinkSystem 3.5" Intel S4610 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13641 B49T 4
ThinkSystem 3.5" Intel S4610 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13642 B49U 4
ThinkSystem 3.5" Intel S4610 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13643 B49V 4
3.5-inch hot-swap SSDs - PM1643 Capacity 12 Gbps SAS
ThinkSystem 3.5" PM1643 3.84TB Capacity SAS 12Gb Hot Swap SSD 4XB7A13649 B4A8 4
3.5-inch hot-swap SSDs - 5100 Entry 6 Gbps SATA
ThinkSystem 3.5" 5100 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A08509 B10V 4
3.5-inch hot-swap SSDs - 5200 Entry 6 Gbps SATA
ThinkSystem 3.5" 5200 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A10158 B2X7 4
ThinkSystem 3.5" 5200 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A10159 B2X8 4
ThinkSystem 3.5" 5200 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A10160 B2X9 4
ThinkSystem 3.5" 5200 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A10161 B2XA 4
ThinkSystem 3.5" 5200 7.68TB Entry SATA 6Gb Hot Swap SSD 4XB7A10162 B2XB 4
3.5-inch hot-swap SSDs - PM863a Entry 6 Gbps SATA
ThinkSystem 3.5" PM863a 240GB Entry SATA 6Gb Hot Swap SSD 7N47A00115 AUUS 4
3.5-inch hot-swap SSDs - PM883 Entry 6 Gbps SATA
ThinkSystem 3.5" PM883 240GB Entry SATA 6Gb Hot Swap SSD 4XB7A17176 B6TM 4
ThinkSystem 3.5" PM883 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A17177 B6TN 4
ThinkSystem 3.5" PM883 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A17178 B6TP 4
ThinkSystem 3.5" PM883 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A17179 B6JY 4
ThinkSystem 3.5" PM883 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A17180 B6JZ 4
3.5-inch hot-swap SSDs - S4500 Entry 6 Gbps SATA
ThinkSystem 3.5" Intel S4500 240GB Entry SATA 6Gb Hot Swap SSD 7SD7A05737 B0Z3 4
ThinkSystem 3.5" Intel S4500 960GB Entry SATA 6Gb Hot Swap SSD 7SD7A05735 B0Z5 4
ThinkSystem 3.5" Intel S4500 1.92TB Entry SATA 6Gb Hot Swap SSD 7SD7A05734 B0Z6 4
3.5-inch hot-swap SSDs - S4510 Entry 6 Gbps SATA
ThinkSystem 3.5" Intel S4510 240GB Entry SATA 6Gb Hot Swap SSD 4XB7A13625 B49D 4
ThinkSystem 3.5" Intel S4510 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A13626 B49E 4
ThinkSystem 3.5" Intel S4510 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A13627 B49F 4
ThinkSystem 3.5" Intel S4510 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A13628 B49G 4
ThinkSystem 3.5" Intel S4510 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A13629 B49H 4
Table 22. Drive options for internal storage: 2.5-inch hot-swap drives
Description Part number Feature code Maximum quantity
2.5-inch hot-swap HDDs - 12 Gbps SAS
ThinkSystem 2.5" 300GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00024 AULY 8
ThinkSystem 2.5" 300GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00021 AULV 8
ThinkSystem 2.5" 600GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00025 AULZ 8
ThinkSystem 2.5" 600GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00022 AULW 8
ThinkSystem 2.5" 900GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00026 AUM0 8
ThinkSystem 2.5" 900GB 15K SAS 12Gb Hot Swap 512e HDD 7XB7A00023 AULX 8
ThinkSystem 2.5" 1.2TB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00027 AUM1 8
ThinkSystem 2.5" 1.8TB 10K SAS 12Gb Hot Swap 512e HDD 7XB7A00028 AUM2 8
ThinkSystem 2.5" 2.4TB 10K SAS 12Gb Hot Swap 512e HDD 7XB7A00069 B0YS 8
2.5-inch hot-swap HDDs - 12 Gbps NL SAS
ThinkSystem 2.5" 1TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00034 AUM6 8
ThinkSystem 2.5" 2TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00035 AUM7 8
2.5-inch hot-swap HDDs - 6 Gbps NL SATA
ThinkSystem 2.5" 1TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00036 AUUE 8
ThinkSystem 2.5" 2TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00037 AUUJ 8
2.5-inch hot-swap HDD SEDs - 12 Gbps SAS
ThinkSystem 2.5" 300GB 10K SAS 12Gb Hot Swap 512n HDD SED 7XB7A00030 AUM4 8
ThinkSystem 2.5" 600GB 10K SAS 12Gb Hot Swap 512n HDD SED 7XB7A00031 AUM5 8
2.5-inch hot-swap SSDs - PM1635a Mainstream 12 Gbps SAS
ThinkSystem 2.5" PM1635a 1.6TB Mainstream SAS 12Gb Hot Swap SSD 7N47A00119 AVRG 8
2.5-inch hot-swap SSDs - PM1645 Mainstream 12 Gbps SAS
ThinkSystem 2.5" PM1645 800GB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13653 B4A0 8
ThinkSystem 2.5" PM1645 1.6TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13654 B4A1 8
ThinkSystem 2.5" PM1645 3.2TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13655 B4A2 8
2.5-inch hot-swap SSDs - 5100 Mainstream 6 Gbps SATA
ThinkSystem 2.5" 5100 480GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05764 B10X 8
ThinkSystem 2.5" 5100 3.84TB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05761 B110 8
2.5-inch hot-swap SSDs - 5200 Mainstream 6 Gbps SATA
ThinkSystem 2.5" 5200 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10237 B488 8
ThinkSystem 2.5" 5200 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10238 B489 8
ThinkSystem 2.5" 5200 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10239 B48A 8
ThinkSystem 2.5" 5200 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10240 B48B 8
ThinkSystem 2.5" 5200 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10241 B48C 8
2.5-inch hot-swap SSDs - S4610 Mainstream 6 Gbps SATA
ThinkSystem 2.5" Intel S4610 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13633 B49L 8
ThinkSystem 2.5" Intel S4610 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13634 B49M 8
ThinkSystem 2.5" Intel S4610 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13635 B49N 8
ThinkSystem 2.5" Intel S4610 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13636 B49P 8
ThinkSystem 2.5" Intel S4610 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13637 B49Q 8
2.5-inch hot-swap SSDs - PM1643 Capacity 12 Gbps SAS
ThinkSystem 2.5" PM1643 3.84TB Capacity SAS 12Gb Hot Swap SSD 4XB7A13645 B4A7 8
ThinkSystem 2.5" PM1643 7.68TB Capacity SAS 12Gb Hot Swap SSD 4XB7A13646 B4A6 8
2.5-inch hot-swap SSDs - 5100 Entry 6 Gbps SATA
ThinkSystem 2.5" 5100 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A08505 B10R 8
2.5-inch hot-swap SSDs - 5200 Entry 6 Gbps SATA
ThinkSystem 2.5" 5200 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A10153 B2X2 8
ThinkSystem 2.5" 5200 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A10154 B2X3 8
ThinkSystem 2.5" 5200 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A10155 B2X4 8
ThinkSystem 2.5" 5200 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A10156 B2X5 8
ThinkSystem 2.5" 5200 7.68TB Entry SATA 6Gb Hot Swap SSD 4XB7A10157 B2X6 8
2.5-inch hot-swap SSDs - 5210 Entry 6 Gbps SATA
ThinkSystem 2.5" 5210 1.92TB Entry SATA 6Gb Hot Swap QLC SSD 4XB7A38144 B7EW 8
ThinkSystem 2.5" 5210 3.84TB Entry SATA 6Gb Hot Swap QLC SSD 4XB7A38145 B7EX 8
ThinkSystem 2.5" 5210 7.68TB Entry SATA 6Gb Hot Swap QLC SSD 4XB7A38146 B7EY 8
2.5-inch hot-swap SSDs - PM863a Entry 6 Gbps SATA
ThinkSystem 2.5" PM863a 240GB Entry SATA 6Gb Hot Swap SSD 7N47A00111 AUUQ
