Hình ảnh Lenovo ThinkSystem SR650 LFF Gold 6240
Hình ảnh Lenovo ThinkSystem SR650 LFF Gold 6240 Hình ảnh Lenovo ThinkSystem SR650 LFF Gold 6240 Hình ảnh Lenovo ThinkSystem SR650 LFF Gold 6240 Hình ảnh Lenovo ThinkSystem SR650 LFF Gold 6240

Lenovo ThinkSystem SR650 LFF Gold 6240

  • 2 x Intel Xeon Gold 6240 18C 150W 2.6GHz Processor
  • ThinkSystem 128GB (4 x 32GB) TruDDR4 2933MHz (2Rx4 1.2V) RDIMM
  • Hard Drive : None (3.5")
  • ThinkSystem RAID 930-8i 2GB Flash PCIe 12Gb Adapter
  • ThinkSystem 1Gb 4-port RJ45 LOM
  • 1x RJ-45 10/100/1000 Mb Ethernet systems management port
  • I/O slots: Up to 7 slots. Slots 4 and 7 are the fixed slots on the system planar
  • Management: XClarity Controller (XCC) Standard, Advanced
  • 8x 8.5" SAS/SATA hot-swap drive (8/8)
  • ThinkSystem 750W Platinum Hot-Swap Power Supply (2/2)
  • Form factor: 2U rack-mount, Toolless Slide Rail
  • Warranty: 3 Year Onsite Repair 24x7 4 Hour Response
Nhà sản xuất: Lenovo
Gọi để biết giá

Abstract

Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.

This product guide provides essential technical and pre-sales information on the SR650 server, its key features and specifications, components and options, and configuration guidelines.

This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 server and consider its use in IT solutions.

Note: This product guide describes SR650 server models with the second generation of the Intel Xeon Processor Scalable Family (Xeon SP Gen 2). For SR650 server models with the first generation of the Intel Xeon Processor Scalable Family (Xeon SP Gen 1), refer to the following Lenovo Press product guide:

Change History

Changes in the March 10 update:

  • Updated Drives for internal storage:
    • Added ThinkSystem 2.5" PM1643a 15.36TB Entry SAS 12Gb Hot Swap SSD
    • Added ThinkSystem U.2 CM5-R 3.84TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD SED
    • Marked withdrawn drives
  • Updated Rack cabinets: Added 12U and 18U 1200mm Deep Micro Datacenter Racks

Introduction



Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.

Featuring the second generation of Intel Xeon Processor Scalable Family (Xeon SP Gen 2), the SR650 server offers scalable performance, storage capacity, and I/O expansion. The SR650 server supports up to two processors, up to 2933 MHz memory speed, up to 3 TB of memory capacity with TruDDR4 DIMMs or up to 7.5 TB of memory capacity with a combination of TruDDR4 DIMMs and Intel DC persistent memory modules (DCPMMs), up to 24x 2.5-inch or 14x 3.5-inch drive bays with an extensive choice of NVMe PCIe SSDs, SAS/SATA SSDs, and SAS/SATA HDDs, and flexible I/O expansion options with a LOM slot, a dedicated storage controller slot, and up to 6x PCIe expansion slots.

The SR650 server offers basic or advanced hardware RAID protection and a wide range of networking options, including selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo XClarity Controller, which is built into the SR650 server, provides advanced service processor control, monitoring, and alerting functions.

The following figure shows the ThinkSystem SR650.

Lenovo ThinkSystem SR650
Figure 1. Lenovo ThinkSystem SR650

Did you know?

The SR650 server features an AnyBay design that allows a choice of drive interface types in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives.

The SR650 server offers onboard NVMe PCIe ports that allow direct connections to the U.2 NVMe PCIe SSDs, which frees up I/O slots and helps lower NVMe solution acquisition costs.

The SR650 server delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies that can deliver 96% (Titanium) or 94% (Platinum) efficiency at 50% load when connected to a 200 - 240 V AC power source.

The SR650 server is designed to meet ASHRAE A4 standards (up to 45 °C [113 °F]) in select configurations, which enable customers to lower energy costs, while still maintaining world-class reliability.

The SR650 server delivers outstanding memory performance with Performance+ 2933 MHz DIMMs, which is achieved by supporting two-DIMMs-per-channel configurations at speeds up to 10% faster than the Intel specification defines, while still maintaining world-class reliability.

Key features

Combining performance and flexibility, the SR650 server is a great choice for small and medium businesses up to the large enterprise. It can provide outstanding uptime to keep business-critical applications and cloud deployments running safely. Ease of use and comprehensive systems management tools help make deployment easier. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design improve your business environment and help save operational costs.

Scalability and performance

The SR650 server offers numerous features to boost performance, improve scalability, and reduce costs:

  • Improves productivity by offering superior system performance with the second generation of the Intel Xeon Processor Scalable Family with up to 28-core processors, up to 38.5 MB of last level cache (LLC), up to 2933 MHz memory speeds, and up to 10.4 GT/s Ultra Path Interconnect (UPI) links.
    • Support for up to two processors, 56 cores, and 112 threads allows to maximize the concurrent execution of multithreaded applications.
    • Intelligent and adaptive system performance with energy efficient Intel Turbo Boost 2.0 Technology allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
    • Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core.
    • Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better utilize the hardware for virtualization workloads.
    • Intel Speed Select Technology provides improvements in server utilization and guaranteed per-core performance service levels with more granular control over processor performance.
    • Intel Deep Learning Boost (Vector Neural Network Instruction set [VNNI]) is designed to deliver significant, more efficient Deep Learning (Inference) acceleration for high-performance Artificial Intelligence (AI) workloads.
    • Intel Advanced Vector Extensions 512 (AVX-512) enable acceleration of enterprise-class and high performance computing (HPC) workloads.
  • Helps maximize system performance for data intensive applications with up to 2933 MHz memory speeds and up to 3 TB of memory capacity with 3DS RDIMMs.
  • Boosts the performance of data-intensive applications and delivers consistent service levels at scale for virtualized and cloud environments by using the innovative persistent memory technology that provides a unique combination of affordable large memory capacity and non-volatility for up to 7.5 TB of total server memory capacity, including 3DS RDIMMs and DCPMMs (DC persistent memory modules).
  • Offers flexible and scalable internal storage in a 2U rack form factor with up to 24x 2.5-inch and 2x 3.5-inch drives for performance-optimized configurations or up to 14x 3.5-inch drives for capacity-optimized configurations, providing a wide selection of SAS/SATA HDD/SSD and PCIe NVMe SSD types and capacities.
  • Provides flexibility to use SAS, SATA, or NVMe PCIe drives in the same drive bays with an AnyBay design.
  • Provides I/O scalability with a LOM slot, PCIe 3.0 slot for an internal storage controller, and up to six PCI Express (PCIe) 3.0 I/O expansion slots in a 2U rack form factor.
  • Reduces I/O latency and increases overall system performance with Intel Integrated I/O Technology that embeds the PCI Express 3.0 controller into the Intel Xeon Processor Scalable Family.

Availability and serviceability

The SR650 server provides many features to simplify serviceability and increase system uptime:

  • Offers protection in the event of a non-correctable memory failure with Single Device Data Correction (SDDC, also known as Chipkill, requires x4-based DIMMs), Adaptive Double Device Data Correction (ADDDC, also known as Redundant Bit Steering [RBS], requires x4-based DIMMs and Intel Xeon Gold or Platinum processors), memory mirroring, and memory rank sparing.
  • Provides easy access to upgrades and serviceable parts (such as processors, memory DIMMs, and adapter cards) with tool-less cover removal.
  • Offers data protection and greater system uptime with hot-swap drives supporting basic or advanced RAID redundancy.
  • Provides availability for business-critical applications with redundant hot-swap power supplies and redundant hot-swap system fans.
  • Simplifies servicing, speeds up problem resolution, and helps improve system availability with light path diagnostics.
  • Allows preventive actions in advance of possible failure, thereby increasing server uptime and application availability with Proactive Platform Alerts (including PFA and SMART alerts) for processors, voltage regulators, memory, internal storage (SAS/SATA HDDs and SSDs, NVMe SSDs, M.2 storage, flash storage adapters), fans, power supplies, RAID controllers, and server ambient and sub-component temperatures.
  • Continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failure to minimize downtime with Built-in XClarity Controller (XCC).
  • Provides quick access to system status, firmware, network, health, and alerts information via Virtual Operator Panel from the XClarity Mobile App running on the Android or iOS mobile device that is connected to the front USB port with XClarity Controller access.
  • Speeds up troubleshooting tasks to reduce service time with diagnostics built into the XClarity Provisioning Manager.

Manageability and security

Powerful systems management features simplify local and remote management of the SR650 server and deliver enterprise-class data protection:

  • Provides advanced service processor control, monitoring, and alerting functions with XClarity Controller, a next generation service processor.
  • Improves Unified Extensible Firmware Interface (UEFI) system setup, configuration, updates, simplified error handling, and operating system deployment with the embedded XClarity Provisioning Manager.
  • Offers XClarity Essentials software tools that can help you set up, use, and maintain the server.
  • Increases uptime, reduces costs, and improves productivity through advanced server management capabilities with Lenovo XClarity Administrator that provides comprehensive hardware management.
  • Provides on-the-go monitoring and management of devices in XClarity Administrator from anywhere with the Lenovo XClarity mobile app, which can help improve efficiency and reduce downtime risks.
  • Centralizes infrastructure resource management with Lenovo XClarity Integrators for VMware vCenter and Microsoft System Center, extending XClarity Administrator features to virtualization management software tools and enabling users to deploy and manage infrastructure end-to-end.
  • Offers advanced cryptographic functionality (such as digital signatures and remote attestation) with an integrated Trusted Platform Module (TPM) or optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC).
  • Keeps user data safe with Lenovo Business Vantage, a security software tool suite designed to work with the Trusted Cryptographic Module or Nationz TPM (available only in PRC).
  • Offers enterprise-class data protection with advanced RAID and optional self-encrypting drives.
  • Provides faster, stronger encryption with industry-standard AES NI support.
  • Helps prevent certain classes of malicious buffer overflow attacks with Intel Execute Disable Bit functionality, when combined with a supporting operating system.
  • Enhances security through hardware-based resistance to malicious software attacks with Intel Trusted Execution Technology, allowing an application to run in its own isolated space, protected from all other software running on a system.

Energy efficiency

The SR650 server offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to the green environment:

  • Delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies.
  • Enables customers to lower energy costs with design to meet ASHRAE A4 standards in select configurations.
  • Reduces power drawn with Intel Intelligent Power Capability that powers individual processor elements on and off as needed.
  • Helps reduce power consumption with variable speed fans.
  • Helps achieve lower heat output and reduced cooling needs with Lenovo XClarity Energy Manager that provides advanced data center power notification, analysis, and policy-based management.

Components and connectors

The following figure shows the front of the SR650 server with up to 16x 2.5-inch drive bays.

Front view of the SR650: Up to 16x 2.5-inch drive bays
Figure 2. Front view of the SR650: Up to 16x 2.5-inch drive bays

The following figure shows the front of the SR650 server with up to 24x 2.5-inch drive bays.

Front view of the SR650: Up to 24x 2.5-inch drive bays
Figure 3. Front view of the SR650: Up to 24x 2.5-inch drive bays

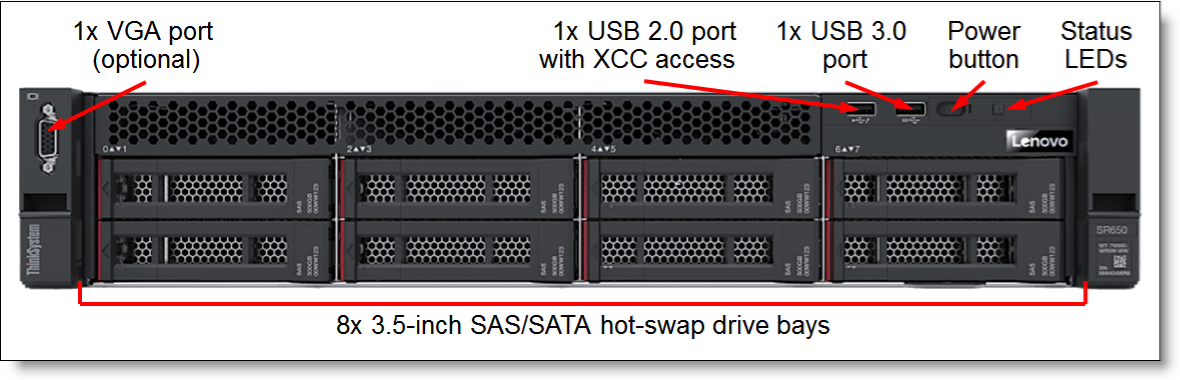

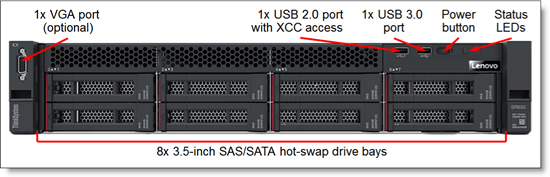

The following figure shows the front of the SR650 server with 8x 3.5-inch drive bays.

Front view of the SR650: 8x 3.5-inch drive bays
Figure 4. Front view of the SR650: 8x 3.5-inch drive bays

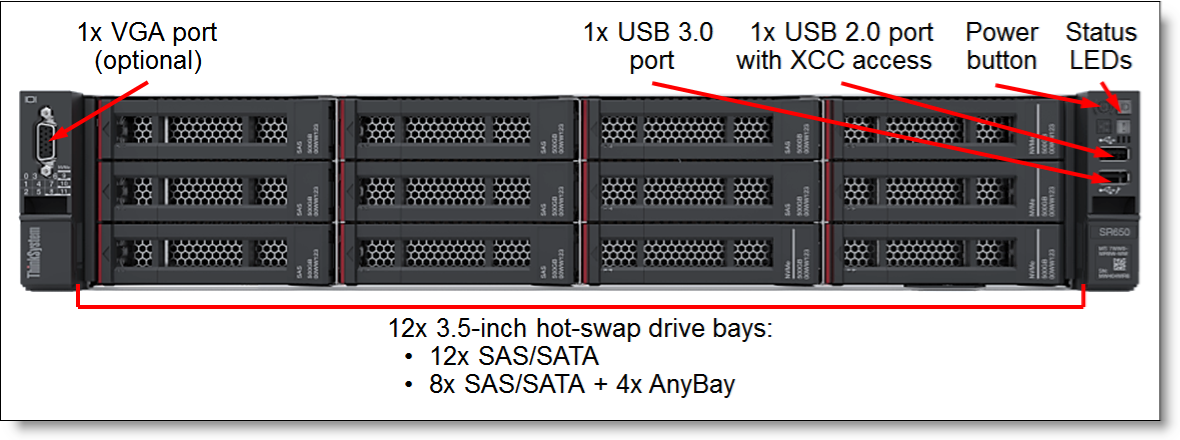

The following figure shows the front of the SR650 server with 12x 3.5-inch drive bays.

Front view of the SR650: 12x 3.5-inch drive bays
Figure 5. Front view of the SR650: 12x 3.5-inch drive bays

The front of the SR650 server includes the following components:

  • Up to 16x 2.5-inch, or 24x 2.5-inch, or 8x 3.5-inch, or 12x 3.5-inch hot-swap drive bays.
  • One VGA port (optional).
  • One USB 3.0 port.
  • One USB 2.0 port with XClarity Controller access.
  • Power button.
  • Status LEDs.

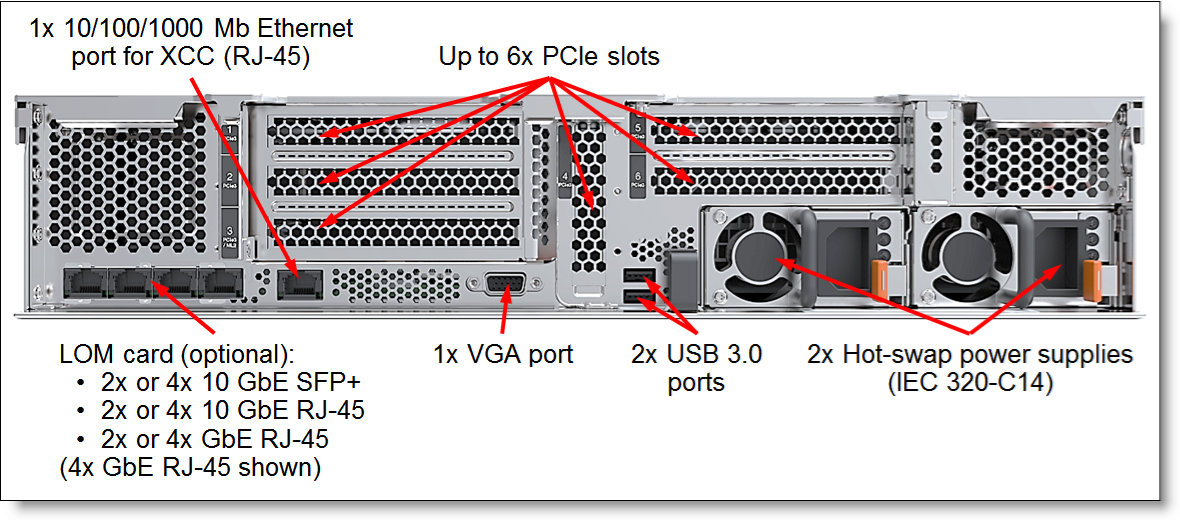

The following figure shows the rear of the SR650 server.

Rear view of the SR650
Figure 6. Rear view of the SR650

The rear of the SR650 server includes the following components:

  • Up to six PCIe expansion slots (depending on the riser cards selected).
  • One LOM card slot.
  • One 1 GbE port for XClarity Controller.
  • One VGA port.
  • Two USB 3.0 ports.
  • Up to two hot-swap power supplies.

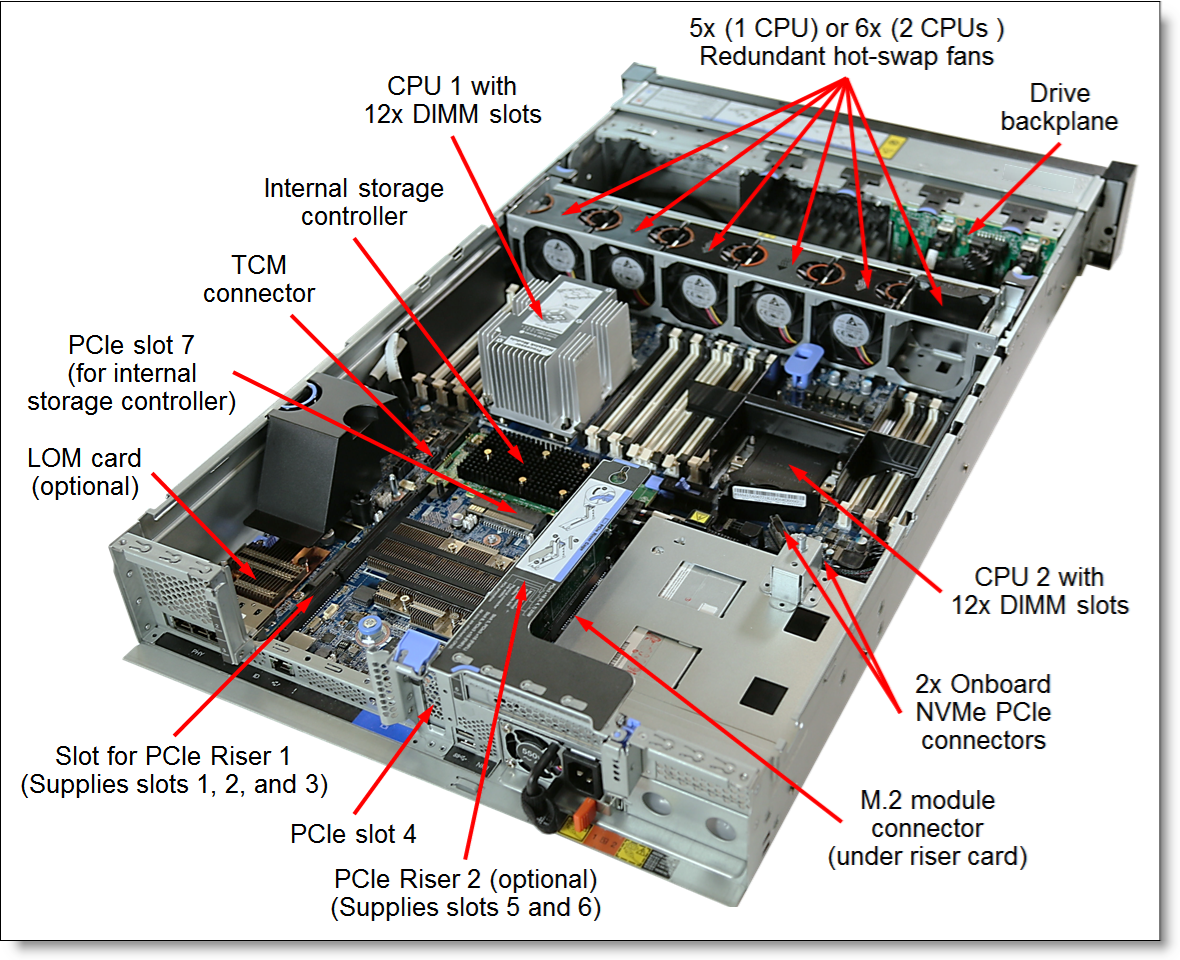

The following figure shows the locations of key components inside the SR650 server.

Internal view of the SR650
Figure 7. Internal view of the SR650

The following key components are located inside the SR650 server:

  • Up to two processors.
  • 24 DIMM slots (12 DIMM slots per processor).
  • Drive backplanes.
  • Two onboard NVMe PCIe connectors.
  • One M.2 module connector.
  • One LOM card connector.
  • Two onboard PCIe slots 4 and 7.
  • Two slots for PCIe riser cards.
  • One TCM connector.
  • Five (one processor) or six (two processors) hot-swap system fans.

System specifications

The following table lists the system specifications for the SR650 server.

Table 1. SR650 system specifications
Attribute Specification
Form factor 2U rack-mount.
Processor Up to two Intel Xeon Gen 2 Bronze, Silver, Gold, or Platinum processors:
  • Up to 28 cores (2.7 GHz core speeds).
  • Up to 3.9 GHz core speeds (8 cores).
  • UPI links up to 10.4 GT/s (2 UPI links used).
  • Up to 38.5 MB cache.
  • Up to 2933 MHz memory speed.
Chipset Intel C624.
Memory 24 DIMM slots (12 DIMMs per processor; six memory channels per processor with two DIMMs per channel) with support for the following DIMM types and capacities:
  • TruDDR4 RDIMMs:
    • 16 GB, 32 GB, and 64 GB Performance+ 2933 MHz.
    • 8 GB, 16 GB, 32 GB, and 64 GB 2933 MHz.
    • 16 GB and 32 GB 2666 MHz.
  • TruDDR4 3DS RDIMMs:
    • 128 GB Performance+ 2933 MHz.
    • 128 GB 2933 MHz.
    • 64 GB 2666 MHz.
Note: DIMM types (RDIMMs and 3DS RDIMMs) cannot be intermixed.
Persistent memory Up to 12x 128 GB, 256 GB, or 512 GB TruDDR4 2666 MHz DCPMMs in the DIMM slots.
Memory protection
  • Processor's integrated memory controllers: Error correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing.
  • DCPMM's onboard memory controllers: ECC, SDDC, DDDC, patrol scrubbing, and demand scrubbing.
Note: In the configurations with DCPMMs, memory mirroring is supported only in the App Direct mode (other DCPMM modes do not support memory mirroring) and applies only to the RDIMMs or 3DS RDIMMs (DCPMMs are not mirrored). Memory sparing is not supported in the configurations with DCPMMs.
Memory capacity
  • Memory DIMMs only: Up to 3 TB with up to 24x 128 GB 3DS RDIMMs (Up to 1.5 TB per processor).
  • Memory DIMMs and persistent memory modules:
    • App Direct Mode: Up to 7.5 TB with up to 12x 128 GB 3DS RDIMMs and up to 12x 512 GB DCPMMs (Up to 3.75 TB per processor).
    • Memory Mode: Up to 6 TB with up to 12x 512 GB DCPMMs (Up to 3 TB per processor).
Note: Server configurations with more than 1 TB of memory capacity per socket (including DCPMMs and RDIMMs or 3DS RDIMMs) require processors that support up to 2 TB (M-suffix) or 4.5 TB (L-suffix) per socket. Server configurations with more than 2 TB of memory capacity per socket (including DCPMMs and RDIMMs or 3DS RDIMMs) require processors that support up to 4.5 TB per socket (L-suffix).
Drive bays
  • Up to 16 SFF (front) and 2 LFF (rear) hot-swap drive bays:
    • 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    • 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    • 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 2x 3.5" SAS/SATA
  • Up to 24 SFF (front) and 2 LFF (rear) hot-swap drive bays:
    • 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    • 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    • 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    • 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 4x 2.5" SAS/SATA & 4x 2.5" AnyBay
    • 16x 2.5" U.2 NVMe PCIe + 8x 2.5" SAS/SATA (factory-installed only)
    • 20x 2.5" U.2 NVMe PCIe
    • 24x 2.5" U.2 NVMe PCIe
  • Up to 10 LFF SAS/SATA hot-swap drive bays: 8x 3.5" (front) + 2x 3.5" (rear)
  • Up to 14 LFF hot-swap drive bays:
    • 12x 3.5" SAS/SATA (front) + 2x 3.5" SAS/SATA (rear)
    • 8x 3.5" SAS/SATA & 4x 3.5" AnyBay (front) + 2x 3.5" SAS/SATA (rear)
Drive types 2.5-inch hot-swap drives:
  • 12 Gbps SAS HDDs up to 2.4 TB
  • 12 Gbps Nearline (NL) SAS HDDs up to 2 TB
  • 12 Gbps SAS HDD SEDs up to 2.4 TB
  • 12 Gbps NL SAS HDD SEDs up to 2 TB
  • 12 Gbps SAS SSDs up to 15.36 TB
  • 12 Gbps SAS SSD SEDs up to 1.6 TB
  • 6 Gbps NL SATA HDDs up to 2 TB
  • 6 Gbps SATA SSDs up to 7.68 TB
  • 6 Gbps SATA SSD SEDs up to 7.68 TB
  • U.2 NVMe PCIe 3.0 x4 SSDs up to 8 TB
  • U.2 NVMe PCIe 3.0 x4 SSD SEDs up to 3.84 TB
3.5-inch hot-swap drives:
  • 12 Gbps SAS HDDs up to 900 GB (2.5" HDD in a 3.5" tray)
  • 12 Gbps NL SAS HDDs up to 16 TB
  • 12 Gbps NL SAS HDD SEDs up to 8 TB
  • 12 Gbps SAS SSDs up to 7.68 TB (2.5" SSD in a 3.5" tray)
  • 12 Gbps SAS SSD SEDs up to 1.6 TB (2.5" SSD in a 3.5" tray)
  • 6 Gbps NL SATA HDDs up to 16 TB
  • 6 Gbps SATA SSDs up to 7.68 TB (2.5" SSD in a 3.5" tray)
  • NVMe PCIe 3.0 x4 SSDs up to 7.68 TB
Internal M.2 SSDs:
  • 6 Gbps SATA up to 480 GB
Notes:
  • Intermix of SAS, SATA, and NVMe PCIe drives is supported within a system, but not within a RAID array.
  • NVMe PCIe SSDs do not support hardware RAID controllers.
  • NVMe PCIe SSDs are supported in the AnyBay drive bays.
Internal storage capacity
  • 2.5-inch models: Up to 400 TB with 24x 15.36 TB 2.5" SSDs and 2x 16 TB 3.5" HDDs.
  • 3.5-inch models: Up to 224 TB with 14x 16 TB 3.5" HDDs.
Storage controller 12 Gbps SAS/6 Gbps SATA RAID
  • RAID 0/1/10: RAID 530-16i
  • RAID 0/1/10/5/50:
    • RAID 530-8i
    • RAID 730-8i 1GB Cache
  • RAID 0/1/10/5/50/6/60:
    • RAID 730-8i 2GB Flash
    • RAID 930-8i 2GB Flash
    • RAID 930-16i 4GB or 8GB Flash
    • RAID 930-24i 4 GB Flash

12 Gbps SAS/6 Gbps SATA non-RAID: 430-8i or 16i HBA

NVMe PCIe non-RAID
  • Onboard NVMe
  • 810-4P NVMe Switch Adapter
  • 1610-4P NVMe Switch Adapter
  • 1610-8P NVMe Switch Adapter
Optical drive bays None. Support for an external USB DVD RW Optical Disk Drive (See Optical drives).
Network interfaces
  • Onboard LOM slot for up to 4x 1/10 Gb Ethernet ports:
    • 2x or 4x 1 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x or 4x 10 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x or 4x 10 GbE SFP+ ports (no 10/100 Mb support)
  • Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors or single- or dual-port 25 GbE cards with SFP28 connectors.
  • 1x RJ-45 10/100/1000 Mb Ethernet systems management port.
I/O expansion slots Up to seven slots. Slots 4 and 7 are the fixed slots on the system planar, and the remaining slots depend on the riser cards installed. The slots are as follows:
  • Slot 1: PCIe 3.0 x16 or PCIe 3.0 x8; full-height, half-length (PCIe x16 slot can be single- or double-wide)
  • Slot 2: PCIe 3.0 x8; full-height, half-length (not present if Slot 1 is PCIe x16 double-wide or Slot 3 is ML2 x16)
  • Slot 3: PCIe 3.0 x8, or PCIe 3.0 x16, or ML2 x8, or ML2 x16; full-height, half-length
  • Slot 4: PCIe 3.0 x8; low profile (vertical slot on system planar)
  • Slot 5: PCIe 3.0 x16; full-height, half-length
  • Slot 6: PCIe 3.0 x16; full-height, half-length
  • Slot 7: PCIe 3.0 x8 (for an internal storage controller)
Slots 5 and 6 require the second processor to be installed. Single-wide PCIe x16 Slot 1 requires the second processor to be installed.
Ports
  • Front: 1x USB 2.0 port with XClarity Controller access and 1x USB 3.0 port; optional 1x VGA port.
  • Rear: 2x USB 3.0 ports and 1x VGA port; optional 1x DB-9 serial port.
Cooling Five (one processor) or six (two processors) hot-swap system fans with N+1 redundancy.
Power supply Up to two redundant hot-swap 550 W, 750 W, or 1100 W (100 - 240 V), or 1600 W (200 - 240 V) High Efficiency Platinum AC power supplies, or 750 W (200 - 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only).
Video Matrox G200e with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920x1200 at 60 Hz with 32 bits per pixel.
Hot-swap parts Drives, power supplies, and fans.
Systems management XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, light path diagnostics, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner.
Security features Power-on password, administrator's password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC). Optional Lenovo Business Vantage security software (available only in PRC).
Operating systems Microsoft Windows Server 2016 and 2019; Red Hat Enterprise Linux (RHEL) 7 and 8; SUSE Linux Enterprise Server (SLES) 12 and 15; VMware vSphere (ESXi) 6.5 and 6.7.
Warranty One-year (Machine Type 7X05) or three-year (Machine Type 7X06) customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered.
Service and support Optional Lenovo Services upgrades: 2-hour or 4-hour response time, 6-hour or 24-hour committed service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive YourData, Enterprise Software Support, and Basic Hardware Installation Services.
Dimensions Height: 87 mm (3.4 in), width: 445 mm (17.5 in), depth: 720 mm (28.3 in)
Weight Minimum configuration: 19 kg (41.9 lb), maximum: 32 kg (70.5 lb)

Models

ThinkSystem SR650 server models can be configured by using the Lenovo Data Center Solution Configurator (DCSC):
http://dcsc.lenovo.com

ThinkSystem SR650 server models are region-specific; that is, each region may define their own server models, and not all server models are available in every region. For a complete list of the SR650 models, contact a Lenovo or Lenovo Business Partner representative in your region. Information on the SR650 models is also available on the PSREF website:
http://psref.lenovo.com/Product/ThinkSystem/ThinkSystem_SR650

Configure-to-order (CTO) models can also be created for factory-integrated server customization. The following table lists the base CTO models of the ThinkSystem SR650 server.

Table 2. Base CTO models
Description Machine Type/Model
ThinkSystem SR650 - 3yr Warranty 7X06CTO1WW
ThinkSystem SR650 - 1yr Warranty 7X05CTO1WW

The following table lists the base chassis for CTO models of the SR650 server.

Table 3. Base chassis for CTO models
Description Feature code
ThinkSystem SR650 2.5" Chassis with 8, 16 or 24 bays AUVV
ThinkSystem SR650 3.5" Chassis with 8 or 12 bays AUVW
ThinkSystem SR650 2.5" Chassis with 8 or 16 bays AUVX

All models of the SR650 server are shipped with the following items:

  • Rack Installation Guide
  • Electronic Publications Flyer

Models table conventions: The model tables shown in this section use the following conventions:

  • Drive bays:
    • If the number is shown as "x", it represents the quantity of the SAS/SATA drive bays.
    • If the number is shown as "x+y", it represents the quantity of the SAS/SATA + AnyBay drive bays.
    • SFF and LFF drive bays are hot-swap.
    • M.2 drive bays are non-hot-swap.
  • XClarity Controller: "S" = Standard, "A" = Advanced, "E" = Enterprise.
  • Front VGA port: "Y" = Included; "N" = Not included, optional.
  • Tool-less Rail Kit: "Y" = Included; "N" = Not included, optional.
  • Cable Management Arm (CMA): "Y" = Included; "N" = Not included, optional.
  • Power cord:
    • "L2" = 2.8 m line cord.
    • "R2" = 2.8 m C13-C14 rack power cable.
    • "N" = Not included; see Power supplies and cables for the ordering information.

The following tables list the models of the SR650 server for the following regions:

Table 4. SR650 server models: North America
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
RDIMM
​(24 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(7 max)^		 Power
supply
(2 max)
GPU
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - North America
7X06A0FJNA 1x 5217 8C
115W 3.0GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E Y Y N R2
7X06A0FDNA 1x 5218 16C
125W 2.3GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E Y Y N R2
7X06A0FFNA 1x 5220 18C
125W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E Y Y N R2
7X06A0FBNA 1x 6242 16C
150W 2.8GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E Y Y N R2
7X06A0FANA 1x 6248 20C
150W 2.5GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E Y Y N R2
7X06A0F9NA 1x 6252 24C
150W 2.1GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E Y Y N R2
7X06A0FCNA 1x 8260 24C
165W 2.4GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E Y Y N R2
7X06A0FGNA 1x 8268 24C
205W 2.9GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 16
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E Y Y N R2
TopSeller models - North America
7X06A0FHNA 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E Y Y N R2
7X06A0FENA 1x 4214 12C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E Y Y N R2
7X06A0FKNA 1x 4216 16C
100W 2.1GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E Y Y N R2
7X06A0FLNA 1x 5218 16C
125W 2.3GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.
† Includes NVIDIA GRID vPC Subscription Licenses 3Yr, 1 CCU for 64 concurrent users.

Table 5. SR650 server models: Brazil
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
RDIMM
​(24 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(7 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
SAP Business One workload-optimized models with SLES Standard Subscription w/Lenovo Support 1Yr - Brazil
7X06A0J4BR 2x 8276M 28C
165W 2.2GHz		 24x 128GB
(x4) 2933MHz		 1x RAID
930-24i 4GB		 20 + 4 /
24 SFF		 16x 960GB
S4610		 4x 1Gb
RJ-45		 2x PCIe x8
2x PCIe x16		 2x 1100W Y N Y Y R2
TopSeller models - Brazil
7X06100RBR 1x 3204 6C
85W 1.9GHz		 1x 16GB (x8)
2666MHz		 1x RAID
530-8i		 8 / 8
LFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 550W S N Y N R2
7X06A0HKBR 1x 4210 10C
85W 2.2GHz		 1x 32GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 16
SFF		 Open
bay		 4x 1Gb
RJ-45		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S Y Y N R2
7X06A0HJBR 1x 4214 12C
85W 2.2GHz		 1x 32GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 16
SFF		 Open
bay		 4x 1Gb
RJ-45		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S Y Y N R2
7X06A0HUBR 1x 5218 16C
125W 2.3GHz		 1x 32GB (x4)
2933MHz		 1x RAID
730-8i 2GB		 8 / 16
SFF		 Open
bay		 4x 1Gb
RJ-45		 2x PCIe x8 1x 750W
Platinum		 S Y Y N L2
7X06A0HVBR 2x 5218 16C
125W 2.3GHz		 2x 32GB (x4)
2933MHz		 1x RAID
730-8i 2GB		 8 / 16
SFF		 Open
bay		 4x 1Gb
RJ-45		 2x PCIe x8 2x 750W
Platinum		 S Y Y N L2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.

Table 6. SR650 server models: Latin America (except Brazil)
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
RDIMM
​(24 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(7 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
SAP Business One workload-optimized models with SLES Standard Subscription w/Lenovo Support 1Yr - Latin America (except Brazil)
7X06A0J3LA 2x 8276M 28C
165W 2.2GHz		 24x 128GB
(x4) 2933MHz		 1x RAID
930-24i 4GB		 20 + 4 /
24 SFF		 16x 960GB
S4610		 4x 1Gb
RJ-45		 2x PCIe x8
2x PCIe x16		 2x 1100W Y N Y Y R2
Relationship models - Latin America (except Brazil)
7X06A0H8LA 1x 4210 10C
85W 2.2GHz		 1x 32GB (x4)
2933MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 S Y Y N R2
7X06A0HBLA 1x 5220 18C
125W 2.2GHz		 1x 32GB (x4)
2933MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 1100W
Platinum		 S Y Y N R2
TopSeller models - Latin America (except Brazil)
7X06A0H9LA 1x 4214 12C
85W 2.2GHz		 1x 32GB (x4)
2933MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 S Y Y N R2
7X06A0HALA 1x 4216 16C
100W 2.1GHz		 1x 32GB (x4)
2933MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 S Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.

Table 7. SR650 server models: EMEA
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
RDIMM
​(24 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(7 max)^		 Power
supply
(2 max)
GPU
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - EMEA
7X06A0AWEA 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2666MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0ATEA 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2666MHz		 1x RAID
930-16i 4GB		 12 / 14
LFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0HSEA 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0H5EA 1x 4208 8C
85W 2.1GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 2x480GB
PM883		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0B3EA 1x 4210 10C
85W 2.2GHz		 1x 16GB (x8)
2666MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0B7EA 1x 4210 10C
85W 2.2GHz		 1x 16GB (x8)
2666MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0B4EA 1x 4210 10C
85W 2.2GHz		 1x 16GB (x8)
2666MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0HTEA 1x 4210 10C
85W 2.2GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0B0EA 1x 4210 10C
85W 2.2GHz		 1x 32GB (x4)
2666MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 2x 750W
Platinum		 N E N Y N R2
7X06A0H7EA 1x 4210 10C
85W 2.2GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 2x480GB
PM883		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0JXEA 1x 4210R 10C
100W 2.4GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0JSEA 1x 4210R 10C
100W 2.4GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0JZEA 1x 4210R 10C
100W 2.4GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0JYEA 1x 4210R 10C
100W 2.4GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 2x 750W
Platinum		 N E N Y N R2
7X06A0B9EA 1x 4214 12C
85W 2.2GHz		 1x 16GB (x8)
2666MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0AZEA 1x 4214 12C
85W 2.2GHz		 1x 32GB (x4)
2666MHz		 1x RAID
930-16i 4GB		 12 / 14
LFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0AVEA 1x 4214 12C
85W 2.2GHz		 1x 32GB (x4)
2666MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 2x 750W
Platinum		 N E N Y N R2
7X06A0B2EA 1x 4214 12C
85W 2.2GHz		 1x 32GB (x4)
2666MHz		 1x RAID
930-16i 4GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0K1EA 1x 4214R 12C
100W 2.4GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0JREA 1x 4214R 12C
100W 2.4GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 2x 750W
Platinum		 N E N Y N R2
7X06A0AREA 1x 4215 8C
85W 2.5GHz		 1x 16GB (x8)
2666MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0K4EA 1x 4215R 8C
130W 3.2GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0JNEA 1x 4215R 8C
130W 3.2GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0JLEA 1x 4215R 8C
130W 3.2GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0AXEA 1x 4216 16C
100W 2.1GHz		 1x 16GB (x8)
2666MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0B5EA 1x 5217 8C
115W 3.0GHz		 1x 16GB (x8)
2666MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0H6EA 1x 5217 8C
115W 3.0GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0BCEA 1x 5218 16C
125W 2.3GHz		 1x 16GB (x8)
2666MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0ASEA 1x 5218 16C
125W 2.3GHz		 1x 32GB (x4)
2666MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0K5EA 1x 5218R 20C
125W 2.1GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0JHEA 1x 5218R 20C
125W 2.1GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0K6EA 1x 5220R 24C
150W 2.2GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0J9EA 1x 6226 12C
125W 2.7GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0K7EA 1x 6226R 16C
150W 2.9GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0JJEA 1x 6226R 16C
150W 2.9GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0BBEA 1x 6230 20C
125W 2.1GHz		 1x 16GB (x8)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0BAEA 1x 6230 20C
125W 2.1GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0K2EA 1x 6230R 26C
150W 2.1GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0JKEA 1x 6230R 26C
150W 2.1GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0JCEA 1x 6234 8C
130W 3.3GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0JUEA 1x 6238R 28C
165W 2.2GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0AQEA 1x 6240 18C
150W 2.6GHz		 1x 16GB (x8)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0JMEA 1x 6240R 24C
165W 2.4GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 750W
Platinum		 N E N Y N R2
7X06A0B1EA 1x 6242 16C
150W 2.8GHz		 1x 16GB (x8)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0JQEA 1x 6242R 20C
205W 3.1GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0B6EA 1x 6244 8C
150W 3.6GHz		 1x 16GB (x8)
2933MHz		 None No bays /
16 SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0J7EA 1x 6246 12C
165W 3.3GHz		 1x 32GB (x4)
2933MHz		 None No bays /
8 SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0JTEA 1x 6246R 16C
205W 3.4GHz		 1x 32GB (x4)
2933MHz		 None No bays /
8 SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0AUEA 1x 6248 20C
150W 2.5GHz		 1x 16GB (x8)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0J6EA 2x 6248 20C
150W 2.5GHz		 12x 32GB (x4)
2933MHz		 1x M.2
RAID		 No bays /
16 SFF
2x M.2		 1x128GB
M.2 SSD		 4x10Gb
RJ-45		 3x PCIe x8
3x PCIe x16		 2x 1600W
Platinum
2x M10†
 E N Y N R2
7X06A0J5EA 2x 6248 20C
150W 2.5GHz		 12x 32GB (x4)
2933MHz		 1x M.2
RAID		 No bays /
16 SFF
2x M.2		 1x128GB
M.2 SSD		 4x10Gb
RJ-45		 3x PCIe x8
3x PCIe x16		 2x 1600W
Platinum
2x M10††
 E N Y N R2
7X06A0GVEA 2x 6248 20C
150W 2.5GHz		 12x 32GB (x4)
2933MHz		 1x M.2
RAID		 No bays /
16 SFF
2x M.2		 2x128GB
M.2 SSD		 4x10Gb
RJ-45		 3x PCIe x8
3x PCIe x16		 2x 1600W
Platinum
2x M10†
 E N Y N R2
7X06A0GYEA 2x 6248 20C
150W 2.5GHz		 12x 32GB (x4)
2933MHz		 1x M.2
RAID		 No bays /
16 SFF
2x M.2		 2x128GB
M.2 SSD		 4x10Gb
RJ-45		 3x PCIe x8
3x PCIe x16		 2x 1600W
Platinum
2x M10
 E N Y N R2
7X06A0JBEA 2x 6248 20C
150W 2.5GHz		 12x 32GB (x4)
2933MHz		 1x M.2
RAID		 No bays /
16 SFF
2x M.2		 1x128GB
M.2 SSD		 4x10Gb
RJ-45		 5x PCIe x8
2x PCIe x16		 2x 1600W
Platinum
4x T4†
 E N Y N R2
7X06A0JEEA 2x 6248 20C
150W 2.5GHz		 12x 32GB (x4)
2933MHz		 1x M.2
RAID		 No bays /
16 SFF
2x M.2		 1x128GB
M.2 SSD		 4x10Gb
RJ-45		 5x PCIe x8
2x PCIe x16		 2x 1600W
Platinum
4x T4††
 E N Y N R2
7X06A0GWEA 2x 6248 20C
150W 2.5GHz		 12x 32GB (x4)
2933MHz		 1x M.2
RAID		 No bays /
16 SFF
2x M.2		 2x128GB
M.2 SSD		 4x10Gb
RJ-45		 5x PCIe x8
2x PCIe x16		 2x 1600W
Platinum
4x T4†
 E N Y N R2
7X06A0GUEA 2x 6248 20C
150W 2.5GHz		 12x 32GB (x4)
2933MHz		 1x M.2
RAID		 No bays /
16 SFF
2x M.2		 2x128GB
M.2 SSD		 4x10Gb
RJ-45		 5x PCIe x8
2x PCIe x16		 2x 1600W
Platinum
4x T4
 E N Y N R2
7X06A0JVEA 1x 6248R 24C
205W 3.0GHz		 1x 32GB (x4)
2933MHz		 None No bays /
8 SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0JWEA 1x 6250 8C
185W 3.9GHz		 1x 32GB (x4)
2933MHz		 None No bays /
24‡ SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0AYEA 1x 6254 18C
200W 3.1GHz		 1x 32GB (x4)
2933MHz		 None No bays /
16 SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0K0EA 1x 6256 12C
205W 3.6GHz		 1x 32GB (x4)
2933MHz		 None No bays /
16 SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2
7X06A0K3EA 1x 6258R 28C
205W 2.7GHz		 1x 32GB (x4)
2933MHz		 None No bays /
8 SFF		 Open
bay		 Open
slot		 2x PCIe x8 1x 1100W
Platinum		 N E N Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.
† Includes NVIDIA GRID vPC Subscription Licenses for 3 Years, 64 CCU.
†† Includes NVIDIA GRID vPC Subscription Licenses for 5 Years, 64 CCU.

Table 8. SR650 server models: India
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
RDIMM
​(24 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(7 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
TopSeller models - India
7X06A0CXSG 1x 3204 6C
85W 1.9GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0D4SG 1x 3204 6C
85W 1.9GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0BWSG 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0CYSG 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0BLSG 1x 4210 10C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0C6SG 1x 4210 10C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0C9SG 1x 4214 12C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0C5SG 1x 4214 12C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0BESG 1x 4215 8C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0CCSG 1x 4215 8C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0D8SG 1x 4216 16C
100W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0CJSG 1x 4216 16C
100W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0DKSG 1x 5215 10C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0DHSG 1x 5215 10C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0CQSG 1x 5217 8C
115W 3.0GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0BUSG 1x 5217 8C
115W 3.0GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0CZSG 1x 5218 16C
125W 2.3GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0DGSG 1x 5218 16C
125W 2.3GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0DLSG 1x 5220 18C
125W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0DBSG 1x 5220 18C
125W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0C3SG 1x 6230 20C
125W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0DDSG 1x 6230 20C
125W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0D1SG 1x 6240 18C
150W 2.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0CPSG 1x 6240 18C
150W 2.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0DQSG 1x 6242 16C
150W 2.8GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0CHSG 1x 6242 16C
150W 2.8GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0D2SG 1x 6244 8C
150W 3.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 16
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0D0SG 1x 6248 20C
150W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0CNSG 1x 6248 20C
150W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0CBSG 1x 6252 24C
150W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0CKSG 1x 6252 24C
150W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2
7X06A0CLSG 1x 6254 18C
200W 3.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 16
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.

Table 9. SR650 server models: Hong Kong, Taiwan, Korea
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
RDIMM
​(24 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(7 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
TopSeller models - Hong Kong, Taiwan, Korea
7X06A0BSCN 1x 3204 6C
85W 1.9GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0D3CN 1x 3204 6C
85W 1.9GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0CECN 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0CDCN 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DCCN 1x 4210 10C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0CTCN 1x 4210 10C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0D5CN 1x 4214 12C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BRCN 1x 4214 12C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DJCN 1x 4215 8C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BVCN 1x 4215 8C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BNCN 1x 4216 16C
100W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0CRCN 1x 4216 16C
100W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0D7CN 1x 5215 10C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0C7CN 1x 5215 10C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0CUCN 1x 5217 8C
115W 3.0GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0D6CN 1x 5217 8C
115W 3.0GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0C8CN 1x 5218 16C
125W 2.3GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DFCN 1x 5218 16C
125W 2.3GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0C0CN 1x 5220 18C
125W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BYCN 1x 5220 18C
125W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DECN 1x 6230 20C
125W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DACN 1x 6230 20C
125W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BXCN 1x 6240 18C
150W 2.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DNCN 1x 6240 18C
150W 2.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0D9CN 1x 6242 16C
150W 2.8GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BHCN 1x 6242 16C
150W 2.8GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0C4CN 1x 6244 8C
150W 3.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 16
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0CMCN 1x 6248 20C
150W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BDCN 1x 6248 20C
150W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DMCN 1x 6252 24C
150W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BTCN 1x 6252 24C
150W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BMCN 1x 6254 18C
200W 3.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 16
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.

Table 10. SR650 server models: Japan
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
RDIMM
​(24 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(7 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Japan
7X06A0CGJP 1x 6230 20C
125W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N
7X06A0DVJP 1x 6240 18C
150W 2.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 1100W
Platinum		 A N Y N N
7X06A0DRJP 1x 6242 16C
150W 2.8GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 1100W
Platinum		 A N Y N N
7X06A0DWJP 1x 6244 8C
150W 3.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 16
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 1100W
Platinum		 A N Y N N
7X06A0DPJP 1x 6244 8C
150W 3.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 16
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 1600W
Platinum		 A N Y N N
7X06A0DTJP 1x 6248 20C
150W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 1100W
Platinum		 A N Y N N
7X06A0DUJP 1x 6252 24C
150W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 1100W
Platinum		 A N Y N N
7X06A0DSJP 1x 6254 18C
200W 3.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 16
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 1100W
Platinum		 A N Y N N
7X06A0DXJP 1x 8280M 28C
205W 2.7GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 16
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 1100W
Platinum		 A N Y N N
TopSeller models - Japan
7X06A0BKJP 1x 3204 6C
85W 1.9GHz		 1x 16GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 8
LFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 550W
Platinum		 A N Y N N
7X06A0BQJP 1x 3204 6C
85W 1.9GHz		 1x 16GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N
7X06A0BPJP 1x 4208 8C
85W 2.1GHz		 1x 16GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N
7X06A0BGJP 1x 4210 10C
85W 2.2GHz		 1x 16GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N
7X06A0CAJP 1x 4210 10C
85W 2.2GHz		 1x 16GB (x4)
2666MHz		 1x RAID
930-16i 4GB		 12 / 14
LFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N
7X06A0BFJP 1x 4214 12C
85W 2.2GHz		 1x 16GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N
7X06A0BJJP 1x 4215 8C
85W 2.5GHz		 1x 16GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N
7X06A0BZJP 1x 4216 16C
100W 2.1GHz		 1x 16GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N
7X06A0C2JP 1x 4216 16C
100W 2.1GHz		 1x 16GB (x4)
2666MHz		 1x RAID
930-16i 4GB		 12 / 14
LFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N
7X06A0C1JP 1x 5215 10C
85W 2.5GHz		 1x 16GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N
7X06A0CVJP 1x 5217 8C
115W 3.0GHz		 1x 16GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N
7X06A0CWJP 1x 5218 16C
125W 2.3GHz		 1x 16GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N
7X06A0CSJP 1x 5220 18C
125W 2.2GHz		 1x 16GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N
7X06A0CFJP 1x 5222 4C
105W 3.8GHz		 1x 16GB (x4)
2666MHz		 1x RAID
730-8i 2GB		 8 / 24‡
SFF		 Open
bay		 4x 1Gb
RJ-45		 5x PCIe x8 1x 750W
Platinum		 A N Y N N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.

Table 11. SR650 server models: ASEAN
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
RDIMM
​(24 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(7 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
TopSeller models - ASEAN
7X06A0BSSG 1x 3204 6C
85W 1.9GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0D3SG 1x 3204 6C
85W 1.9GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0CESG 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0CDSG 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DCSG 1x 4210 10C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0CTSG 1x 4210 10C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0D5SG 1x 4214 12C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BRSG 1x 4214 12C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DJSG 1x 4215 8C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BVSG 1x 4215 8C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BNSG 1x 4216 16C
100W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0CRSG 1x 4216 16C
100W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0D7SG 1x 5215 10C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0C7SG 1x 5215 10C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0CUSG 1x 5217 8C
115W 3.0GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0D6SG 1x 5217 8C
115W 3.0GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0C8SG 1x 5218 16C
125W 2.3GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DFSG 1x 5218 16C
125W 2.3GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0C0SG 1x 5220 18C
125W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BYSG 1x 5220 18C
125W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DESG 1x 6230 20C
125W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DASG 1x 6230 20C
125W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BXSG 1x 6240 18C
150W 2.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DNSG 1x 6240 18C
150W 2.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0D9SG 1x 6242 16C
150W 2.8GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BHSG 1x 6242 16C
150W 2.8GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0C4SG 1x 6244 8C
150W 3.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 16
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0CMSG 1x 6248 20C
150W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BDSG 1x 6248 20C
150W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DMSG 1x 6252 24C
150W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BTSG 1x 6252 24C
150W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0BMSG 1x 6254 18C
200W 3.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 16
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.

Table 12. SR650 server models: Australia and New Zealand
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
RDIMM
​(24 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(7 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Australia and New Zealand
7X06A0EHAU 1x 3204 6C
85W 1.9GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0EKAU 1x 3204 6C
85W 1.9GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0EJAU 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0ELAU 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0EUAU 1x 4210 10C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0EPAU 1x 4210 10C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0ECAU 1x 4214 12C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0ESAU 1x 4214 12C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0EFAU 1x 4215 8C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0ERAU 1x 4215 8C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DYAU 1x 4216 16C
100W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0F3AU 1x 4216 16C
100W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0EDAU 1x 5215 10C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0EGAU 1x 5215 10C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0F2AU 1x 5217 8C
115W 3.0GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0F8AU 1x 5217 8C
115W 3.0GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0EMAU 1x 5218 16C
125W 2.3GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0F7AU 1x 5218 16C
125W 2.3GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0EEAU 1x 5220 18C
125W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0DZAU 1x 5220 18C
125W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0F6AU 1x 6230 20C
125W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0F5AU 1x 6230 20C
125W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0F1AU 1x 6240 18C
150W 2.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0E1AU 1x 6240 18C
150W 2.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0EVAU 1x 6242 16C
150W 2.8GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0E7AU 1x 6242 16C
150W 2.8GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0EQAU 1x 6244 8C
150W 3.6GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 16
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0EAAU 1x 6248 20C
150W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0E9AU 1x 6248 20C
150W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0ENAU 1x 6252 24C
150W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 8
HS LFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0E8AU 1x 6252 24C
150W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
7X06A0EBAU 1x 6254 18C
200W 3.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 16
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 S N N N N
TopSeller models - Australia and New Zealand
7X06A0EWAU 1x 3204 6C
85W 1.9GHz		 1x 16GB (x8)
2933MHz		 1x RAID
530-8i		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 E N Y Y N
7X06A0ETAU 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
530-8i		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 E N Y Y N
7X06A0EZAU 1x 4208 8C
85W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 E N Y Y N
7X06A0EXAU 1x 4210 10C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
530-8i		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 E N Y Y N
7X06A0E0AU 1x 4210 10C
85W 2.2GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 E N Y Y N
7X06A0E2AU 1x 4210 10C
85W 2.2GHz		 1x 32GB (x4)
2933MHz		 1x RAID
530-8i		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 E N Y Y N
7X06A0E3AU 1x 4210 10C
85W 2.2GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 E N Y Y N
7X06A0E4AU 1x 4215 8C
85W 2.5GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 E N Y Y N
7X06A0E5AU 1x 4215 8C
85W 2.5GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 E N Y Y N
7X06A0E6AU 1x 4216 16C
100W 2.1GHz		 1x 16GB (x8)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 E N Y Y N
7X06A0F0AU 1x 4216 16C
100W 2.1GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 E N Y Y N
7X06A0EYAU 1x 5217 8C
115W 3.0GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 E N Y Y N
7X06A0F4AU 1x 5218 16C
125W 2.3GHz		 1x 32GB (x4)
2933MHz		 1x RAID
930-8i 2GB		 8 / 24‡
SFF		 Open
bay		 Open
slot		 3x PCIe x8
1x PCIe x16		 1x 750W
Platinum		 E N Y Y N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.

Processors

The SR650 server supports one or two Intel Xeon Bronze, Silver, Gold, or Platinum processors. The following table lists the specifications of the processors for the SR650 server.

Processor specifications table abbreviations:

  • UPI: Ultra Path Interconnect
  • TDP: Thermal Design Power
  • HT: Hyper-Threading
  • TB: Turbo Boost 2.0
  • VT-x: Virtualization Technology
  • VT-d: Virtualization Technology for Directed I/O
  • SST-PP: Speed Select Technology - Performance Profile
  • FMA: Fused-Multiply Add (AVX-512)
  • DCPMM: DC Persistent Memory Module
  • RAS: Reliability, Availability, and Serviceability
    • Std: Standard RAS
    • Adv: Advanced RAS
Table 13. Processor specifications
CPU
model		 Cores /
threads		 Core speed
(Base / TB Max)		 Cache Max DDR4
speed		 Max memory
capacity
per socket		 UPI
speed		 TDP
HT
TB
VT-x
VT-d
SST-PP
FMA units
DCPMM
 RAS
Intel Xeon Bronze processors
3204 6 / 6 1.9 / 1.9 GHz 8.25 MB 2133 MHz 1 TB 9.6 GT/s 85 W N N Y Y N 1 N Std
3206R 8 / 8 1.9 / 1.9 GHz 11 MB 2133 MHz 1 TB 9.6 GT/s 85 W N N Y Y N 1 N Std
Intel Xeon Silver processors
4208 8 / 16 2.1 / 3.2 GHz 11 MB 2400 MHz 1 TB 9.6 GT/s 85 W Y Y Y Y N 1 N Std
4209T 8 / 16 2.2 / 3.2 GHz 11 MB 2400 MHz 1 TB 9.6 GT/s 70 W Y Y Y Y N 1 N Std
4210 10 / 20 2.2 / 3.2 GHz 13.75 MB 2400 MHz 1 TB 9.6 GT/s 85 W Y Y Y Y N 1 N Std
4210R 10 / 20 2.4 / 3.2 GHz 13.75 MB 2400 MHz 1 TB 9.6 GT/s 100 W Y Y Y Y N 1 N Std
4210T 10 / 20 2.3 / 3.2 GHz 13.75 MB 2400 MHz 1 TB 9.6 GT/s 95 W Y Y Y Y N 1 N Std
4214 12 / 24 2.2 / 3.2 GHz 16.5 MB 2400 MHz 1 TB 9.6 GT/s 85 W Y Y Y Y N 1 N Std
4214R 12 / 24 2.4 / 3.5 GHz 16.5 MB 2400 MHz 1 TB 9.6 GT/s 100 W Y Y Y Y N 1 N Std
4214Y 12 / 24 2.2 / 3.2 GHz 16.5 MB 2400 MHz 1 TB 9.6 GT/s 85 W Y Y Y Y Y 1 N Std
10 / 20 2.3 / 3.2 GHz
8 / 16 2.4 / 3.2 GHz
4215 8 / 16 2.5 / 3.5 GHz 11 MB 2400 MHz 1 TB 9.6 GT/s 85 W Y Y Y Y N 1 Y Std
4215R 8 / 16 3.2 / 4.0 GHz 11 MB 2400 MHz 1 TB 9.6 GT/s 130 W Y Y Y Y N 1 Y Std
4216 16 / 32 2.1 / 3.2 GHz 22 MB 2400 MHz 1 TB 9.6 GT/s 100 W Y Y Y Y N 1 N Std
Intel Xeon Gold processors
5215 10 / 20 2.5 / 3.4 GHz 13.75 MB 2666 MHz 1 TB 10.4 GT/s 85 W Y Y Y Y N 1 Y Adv
5215M 10 / 20 2.5 / 3.4 GHz 13.75 MB 2666 MHz 2 TB 10.4 GT/s 85 W Y Y Y Y N 1 Y Adv
5215L 10 / 20 2.5 / 3.4 GHz 13.75 MB 2666 MHz 4.5 TB 10.4 GT/s 85 W Y Y Y Y N 1 Y Adv
5217 8 / 16 3.0 / 3.7 GHz 11 MB 2666 MHz 1 TB 10.4 GT/s 115 W Y Y Y Y N 1 Y Adv
5218 16 / 32 2.3 / 3.9 GHz 22 MB 2666 MHz 1 TB 10.4 GT/s 125 W Y Y Y Y N 1 Y Adv
5218B 16 / 32 2.3 / 3.9 GHz 22 MB 2666 MHz 1 TB 10.4 GT/s 125 W Y Y Y Y N 1 Y Adv
5218R 20 / 40 2.1 / 4.0 GHz 27.5 MB 2666 MHz 1 TB 10.4 GT/s 125 W Y Y Y Y N 1 Y Adv
5218T 16 / 32 2.1 / 3.8 GHz 22 MB 2666 MHz 1 TB 10.4 GT/s 105 W Y Y Y Y N 1 Y Adv
5220 18 / 36 2.2 / 3.9 GHz 24.75 MB 2666 MHz 1 TB 10.4 GT/s 125 W Y Y Y Y N 1 Y Adv
5220R 24 / 48 2.2 / 4.0 GHz 35.75 MB 2666 MHz 1 TB 10.4 GT/s 150 W Y Y Y Y N 1 Y Adv
5220S 18 / 36 2.7 / 3.9 GHz 24.75 MB 2666 MHz 1 TB 10.4 GT/s 125 W Y Y Y Y N 1 Y Adv
5220T 18 / 36 1.9 / 3.9 GHz 24.75 MB 2666 MHz 1 TB 10.4 GT/s 105 W Y Y Y Y N 1 Y Adv
5222 4 / 8 3.8 / 3.9 GHz 16.5 MB 2933 MHz 1 TB 10.4 GT/s 105 W Y Y Y Y N 2 Y Adv
6208U 16 / 32 2.9 / 3.9 GHz 22 MB 2933 MHz 1 TB N/A 150 W Y Y Y Y N 2 Y Adv
6222V 20 / 40 1.8 / 3.6 GHz 27.5 MB 2400 MHz 1 TB 10.4 GT/s 115 W Y Y Y Y N 2 Y Adv
6226 12 / 24 2.7 / 3.7 GHz 19.25 MB 2933 MHz 1 TB 10.4 GT/s 125 W Y Y Y Y N 2 Y Adv
6226R 16 / 32 2.9 / 3.9 GHz 22 MB 2933 MHz 1 TB 10.4 GT/s 150 W Y Y Y Y N 2 Y Adv
6230 20 / 40 2.1 / 3.9 GHz 27.5 MB 2933 MHz 1 TB 10.4 GT/s 125 W Y Y Y Y N 2 Y Adv
6230N 20 / 40 2.3 / 3.9 GHz 27.5 MB 2933 MHz 1 TB 10.4 GT/s 125 W Y Y Y Y N 2 Y Adv
6230R 26 / 52 2.1 / 4.0 GHz 35.75 MB 2933 MHz 1 TB 10.4 GT/s 150 W Y Y Y Y N 2 Y Adv
6230T 20 / 40 2.1 / 3.9 GHz 27.5 MB 2933 MHz 1 TB 10.4 GT/s 125 W Y Y Y Y N 2 Y Adv
6234 8 / 16 3.3 / 4.0 GHz 24.75 MB 2933 MHz 1 TB 10.4 GT/s 130 W Y Y Y Y N 2 Y Adv
6238 22 / 44 2.1 / 3.7 GHz 30.25 MB 2933 MHz 1 TB 10.4 GT/s 140 W Y Y Y Y N 2 Y Adv
6238M 22 / 44 2.1 / 3.7 GHz 30.25 MB 2933 MHz 2 TB 10.4 GT/s 140 W Y Y Y Y N 2 Y Adv
6238L 22 / 44 2.1 / 3.7 GHz 30.25 MB 2933 MHz 4.5 TB 10.4 GT/s 140 W Y Y Y Y N 2 Y Adv
6238R 28 / 56 2.2 / 4.0 GHz 38.5 MB 2933 MHz 1 TB 10.4 GT/s 165 W Y Y Y Y N 2 Y Adv
6238T 22 / 44 1.9 / 3.7 GHz 30.25 MB 2933 MHz 1 TB 10.4 GT/s 125 W Y Y Y Y N 2 Y Adv
6240 18 / 36 2.6 / 3.9 GHz 24.75 MB 2933 MHz 1 TB 10.4 GT/s 150 W Y Y Y Y N 2 Y Adv
6240M 18 / 36 2.6 / 3.9 GHz 24.75 MB 2933 MHz 2 TB 10.4 GT/s 150 W Y Y Y Y N 2 Y Adv
6240L 18 / 36 2.6 / 3.9 GHz 24.75 MB 2933 MHz 4.5 TB 10.4 GT/s 150 W Y Y Y Y N 2 Y Adv
6240R 24 / 48 2.4 / 4.0 GHz 35.75 MB 2933 MHz 1 TB 10.4 GT/s 165 W Y Y Y Y N 2 Y Adv
6240Y 18 / 36 2.6 / 3.9 GHz 24.75 MB 2933 MHz 1 TB 10.4 GT/s 150 W Y Y Y Y Y 2 Y Adv
14 / 28 2.8 / 3.9 GHz
8 / 16 3.1 / 3.9 GHz
6242 16 / 32 2.8 / 3.9 GHz 22 MB 2933 MHz 1 TB 10.4 GT/s 150 W Y Y Y Y N 2 Y Adv
6242R 20 / 40 3.1 / 4.1 GHz 35.75 MB 2933 MHz 1 TB 10.4 GT/s 205 W Y Y Y Y N 2 Y Adv
6244 8 / 16 3.6 / 4.4 GHz 24.75 MB 2933 MHz 1 TB 10.4 GT/s 150 W Y Y Y Y N 2 Y Adv
6246 12 / 24 3.3 / 4.2 GHz 24.75 MB 2933 MHz 1 TB 10.4 GT/s 165 W Y Y Y Y N 2 Y Adv
6246R 16 / 32 3.4 / 4.1 GHz 35.75 MB 2933 MHz 1 TB 10.4 GT/s 205 W Y Y Y Y N 2 Y Adv
6248 20 / 40 2.5 / 3.9 GHz 27.5 MB 2933 MHz 1 TB 10.4 GT/s 150 W Y Y Y Y N 2 Y Adv
6248R 24 / 48 3.0 / 4.0 GHz 35.75 MB 2933 MHz 1 TB 10.4 GT/s 205 W Y Y Y Y N 2 Y Adv
6250 8 / 16 3.9 / 4.5 GHz 35.75 MB 2933 MHz 1 TB 10.4 GT/s 185 W Y Y Y Y N 2 Y Adv
6252 24 / 48 2.1 / 3.7 GHz 35.75 MB 2933 MHz 1 TB 10.4 GT/s 150 W Y Y Y Y N 2 Y Adv
6252N 24 / 48 2.3 / 3.6 GHz 35.75 MB 2933 MHz 1 TB 10.4 GT/s 150 W Y Y Y Y N 2 Y Adv
6254 18 / 36 3.1 / 4.0 GHz 24.75 MB 2933 MHz 1 TB 10.4 GT/s 200 W Y Y Y Y N 2 Y Adv
6256 12 / 24 3.6 / 4.5 GHz 33 MB 2933 MHz 1 TB 10.4 GT/s 205 W Y Y Y Y N 2 Y Adv
6258R 28 / 56 2.7 / 4.0 GHz 38.5 MB 2933 MHz 1 TB 10.4 GT/s 205 W Y Y Y Y N 2 Y Adv
6262V 24 / 48 1.9 / 3.6 GHz 33 MB 2400 MHz 1 TB 10.4 GT/s 135 W Y Y Y Y N 2 Y Adv
Intel Xeon Platinum processors
8253 16 / 32 2.2 / 3.0 GHz 22 MB 2933 MHz 1 TB 10.4 GT/s 125 W Y Y Y Y N 2 Y Adv
8256 4 / 8 3.8 / 3.9 GHz 16.5 MB 2933 MHz 1 TB 10.4 GT/s 105 W Y Y Y Y N 2 Y Adv
8260 24 / 48 2.4 / 3.9 GHz 35.75 MB 2933 MHz 1 TB 10.4 GT/s 165 W Y Y Y Y N 2 Y Adv
8260M 24 / 48 2.4 / 3.9 GHz 35.75 MB 2933 MHz 2 TB 10.4 GT/s 165 W Y Y Y Y N 2 Y Adv
8260L 24 / 48 2.4 / 3.9 GHz 35.75 MB 2933 MHz 4.5 TB 10.4 GT/s 165 W Y Y Y Y N 2 Y Adv
8260Y 24 / 48 2.4 / 3.9 GHz 35.75 MB 2933 MHz 1 TB 10.4 GT/s 165 W Y Y Y Y Y 2 Y Adv
20 / 40 2.5 / 3.9 GHz
16 / 32 2.7 / 3.9 GHz
8268 24 / 48 2.9 / 3.9 GHz 35.75 MB 2933 MHz 1 TB 10.4 GT/s 205 W Y Y Y Y N 2 Y Adv
8270 26 / 52 2.7 / 4.0 GHz 35.75 MB 2933 MHz 1 TB 10.4 GT/s 205 W Y Y Y Y N 2 Y Adv
8276 28 / 56 2.2 / 4.0 GHz 38.5 MB 2933 MHz 1 TB 10.4 GT/s 165 W Y Y Y Y N 2 Y Adv
8276M 28 / 56 2.2 / 4.0 GHz 38.5 MB 2933 MHz 2 TB 10.4 GT/s 165 W Y Y Y Y N 2 Y Adv
8276L 28 / 56 2.2 / 4.0 GHz 38.5 MB 2933 MHz 4.5 TB 10.4 GT/s 165 W Y Y Y Y N 2 Y Adv
8280 28 / 56 2.7 / 4.0 GHz 38.5 MB 2933 MHz 1 TB 10.4 GT/s 205 W Y Y Y Y N 2 Y Adv
8280M 28 / 56 2.7 / 4.0 GHz 38.5 MB 2933 MHz 2 TB 10.4 GT/s 205 W Y Y Y Y N 2 Y Adv
8280L 28 / 56 2.7 / 4.0 GHz 38.5 MB 2933 MHz 4.5 TB 10.4 GT/s 205 W Y Y Y Y N 2 Y Adv

Configuration notes:

  • The Intel Xeon Gold 5218 and 5218B processors have similar specifications; however, they use different silicon designs and cannot be mixed in the same system.
  • The processors that support SST-PP offer three distinct operating points that are defined by a core count with a base speed associated with that core count. The operating point is static, it is selected during the boot process and cannot be changed at runtime.

For the SR650 server models that come standard with one processor, the second processor can be ordered, if required (see the following table for ordering information). The second processor must be of the same model as the first processor. The second processor option includes a processor and a heatsink; an additional system fan is not included and needs to be purchased with the second processor (see Cooling for details).

Table 14. Processor options
Description Part number Feature code*
Intel Xeon Bronze processors
SR550/SR590/SR650 Intel Xeon Bronze 3204 6C 85W 1.9GHz Processor w/o FAN 4XG7A37938 B4HU
SR550/SR590/SR650 Intel Xeon Bronze 3206R 8C 85W 1.9GHz Processor w/o FAN 4XG7A37983 B7N3
Intel Xeon Silver processors
SR550/SR590/SR650 Intel Xeon Silver 4208 8C 85W 2.1GHz Processor w/o FAN 4XG7A37935 B4HT
SR550/SR590/SR650 Intel Xeon Silver 4209T 8C 70W 2.2GHz Processor w/o FAN 4XG7A37944 B4P4
SR550/SR590/SR650 Intel Xeon Silver 4210 10C 85W 2.2GHz Processor w/o FAN 4XG7A37932 B4HS
SR550/SR590/SR650 Intel Xeon Silver 4210R 10C 100W 2.4GHz Processor w/o FAN 4XG7A37981 B7N5
SR650 Intel Xeon Silver 4210T 10C 95W 2.3GHz Processor w/o FAN 4XG7A63276 BAZT
SR550/SR590/SR650 Intel Xeon Silver 4214 12C 85W 2.2GHz Processor w/o FAN 4XG7A37929 B4HR
SR550/SR590/SR650 Intel Xeon Silver 4214R 12C 100W 2.4GHz Processor w/o FAN 4XG7A37980 B7N6
SR550/SR590/SR650 Intel Xeon Silver 4214Y 12/10/8C 85W 2.2GHz Processor w/o FAN 4XG7A37941 B4NW
SR550/SR590/SR650 Intel Xeon Silver 4215 8C 85W 2.5GHz Processor w/o FAN 4XG7A37926 B4HQ
SR590/SR650 Intel Xeon Silver 4215R 8C 130W 3.2GHz Processor w/o FAN 4XG7A63274 BAZU
SR550/SR590/SR650 Intel Xeon Silver 4216 16C 100W 2.1GHz Processor w/o FAN 4XG7A37923 B4HP
Intel Xeon Gold processors
SR550/SR590/SR650 Intel Xeon Gold 5215 10C 85W 2.5GHz Processor w/o FAN 4XG7A37916 B4HN
SR550/SR590/SR650 Intel Xeon Gold 5215M 10C 85W 2.5GHz Processor w/o FAN 4XG7A37913 B4P1
SR550/SR590/SR650 Intel Xeon Gold 5215L 10C 85W 2.5GHz Processor w/o FAN 4XG7A37910 B4P9
SR550/SR590/SR650 Intel Xeon Gold 5217 8C 115W 3.0GHz Processor w/o FAN 4XG7A37919 B4HM
SR550/SR590/SR650 Intel Xeon Gold 5218 16C 125W 2.3GHz Processor w/o FAN 4XG7A37895 B4HL
SR550/SR590/SR650 Intel Xeon Gold 5218B 16C 125W 2.3GHz Processor w/o FAN 4XG7A37958 B6BS
SR550/SR590/SR650 Intel Xeon Gold 5218R 20C 125W 2.1GHz Processor w/o FAN 4XG7A63272 BAZS
SR550/SR590/SR650 Intel Xeon Gold 5218T 16C 105W 2.1GHz Processor w/o FAN 4XG7A38016 B4P3
SR550/SR590/SR650 Intel Xeon Gold 5220 18C 125W 2.2GHz Processor w/o FAN 4XG7A37892 B4HK
SR590/SR650 Intel Xeon Gold 5220R 24C 150W 2.2GHz Processor w/o FAN 4XG7A37974 B7N9
SR550/SR590/SR650 Intel Xeon Gold 5220S 18C 125W 2.7GHz Processor w/o FAN 4XG7A38019 B6CW
SR550/SR590/SR650 Intel Xeon Gold 5220T 18C 105W 1.9GHz Processor w/o FAN 4XG7A38005 B6CQ
SR550/SR590/SR650 Intel Xeon Gold 5222 4C 105W 3.8GHz Processor w/o FAN 4XG7A37951 B5S1
Intel Xeon Gold 6208U 16C 150W 2.9GHz Processor None** BAZV
SR550/SR590/SR650 Intel Xeon Gold 6222V 20C 115W 1.8GHz Processor w/o FAN 4XG7A38023 B6CV
SR550/SR590/SR650 Intel Xeon Gold 6226 12C 125W 2.7GHz Processor w/o FAN 4XG7A38021 B6CL
SR590/SR650 Intel Xeon Gold 6226R 16C 150W 2.9GHz Processor w/o FAN 4XG7A38082 BAZW
SR550/SR590/SR650 Intel Xeon Gold 6230 20C 125W 2.1GHz Processor w/o FAN 4XG7A37889 B4HJ
SR550/SR590/SR650 Intel Xeon Gold 6230N 20C 125W 2.3GHz Processor w/o FAN 4XG7A38028 B5RY
SR590/SR650 Intel Xeon Gold 6230R 26C 150W 2.1GHz Processor w/o FAN 4XG7A38081 BAZX
SR550/SR590/SR650 Intel Xeon Gold 6230T 20C 125W 2.1GHz Processor w/o FAN 4XG7A38006 B6CP
SR590/SR650 Intel Xeon Gold 6234 8C 130W 3.3GHz Processor w/o FAN 4XG7A38001 B6CK
SR590/SR650 Intel Xeon Gold 6238 22C 140W 2.1GHz Processor w/o FAN 4XG7A38008 B6CJ
SR590/SR650 Intel Xeon Gold 6238M 22C 140W 2.1GHz Processor w/o FAN 4XG7A37999 B6CM
SR590/SR650 Intel Xeon Gold 6238L 22C 140W 2.1GHz Processor w/o FAN 4XG7A38003 B6CR
SR650 Intel Xeon Gold 6238R 28C 165W 2.2GHz Processor w/o FAN 4XG7A38080 BAZL
SR550/SR590/SR650 Intel Xeon Gold 6238T 22C 125W 1.9GHz Processor w/o FAN 4XG7A37906 B4P2
SR650 Intel Xeon Gold 6240 18C 150W 2.6GHz Processor w/o FAN 4XG7A15895 B4HH
SR590/SR650 Intel Xeon Gold 6240M 18C 150W 2.6GHz Processor w/o FAN 4XG7A38013 B6CN
SR590/SR650 Intel Xeon Gold 6240L 18C 150W 2.6GHz Processor w/o FAN 4XG7A38015 B6CS
SR650 Intel Xeon Gold 6240R 24C 165W 2.4GHz Processor w/o FAN 4XG7A38079 BAZM
SR590/SR650 Intel Xeon Gold 6240Y 18/14/8C 150W 2.6GHz Processor w/o FAN 4XG7A37903 B4NV
SR590/SR650 Intel Xeon Gold 6242 16C 150W 2.8GHz Processor w/o FAN 4XG7A37886 B4HG
SR650 Intel Xeon Gold 6242R 20C 205W 3.1GHz Processor w/o FAN 4XG7A38078 BAZN
SR590/SR650 Intel Xeon Gold 6244 8C 150W 3.6GHz Processor w/o FAN 4XG7A15874 B4HF
SR650 Intel Xeon Gold 6246 12C 165W 3.3GHz Processor Option Kit w/o FAN 4XG7A37963 B6PD
SR650 Intel Xeon Gold 6246R 16C 205W 3.4GHz Processor w/o FAN 4XG7A38077 BAZP
SR650 Intel Xeon Gold 6248 20C 150W 2.5GHz Processor w/o FAN 4XG7A15892 B4HE
SR650 Intel Xeon Gold 6248R 24C 205W 3.0GHz Processor w/o FAN 4XG7A38076 BAZQ
SR650 Intel Xeon Gold 6250 8C 185W 3.9GHz Processor w/o FAN 4XG7A38075 B96C
SR650 Intel Xeon Gold 6252 24C 150W 2.1GHz Processor w/o FAN 4XG7A15889 B4HC
SR590/SR650 Intel Xeon Gold 6252N 24C 150W 2.3GHz Processor w/o FAN 4XG7A38011 B6CT
SR650 Intel Xeon Gold 6254 18C 200W 3.1GHz Processor w/o FAN 4XG7A15872 B4HD
SR650 Intel Xeon Gold 6256 12C 205W 3.6GHz Processor w/o FAN 4XG7A38074 B96D
SR650 Intel Xeon Gold 6258R 28C 205W 2.7GHz Processor w/o FAN 4XG7A38073 BAZR
SR590/SR650 Intel Xeon Gold 6262V 24C 135W 1.9GHz Processor w/o FAN 4XG7A38010 B6CU
Intel Xeon Platinum processors
SR550/SR590/SR650 Intel Xeon Platinum 8253 16C 125W 2.2GHz Processor w/o FAN 4XG7A37898 B5RZ
SR550/SR590/SR650 Intel Xeon Platinum 8256 4C 105W 3.8GHz Processor w/o FAN 4XG7A37947 B5S2
SR650 Intel Xeon Platinum 8260 24C 165W 2.4GHz Processor w/o FAN 4XG7A15887 B4HB
SR650 Intel Xeon Platinum 8260M 24C 165W 2.4GHz Processor w/o FAN 4XG7A15885 B4NZ
SR650 Intel Xeon Platinum 8260L 24C 165W 2.4GHz Processor w/o FAN 4XG7A15883 B4P7
SR650 Intel Xeon Platinum 8260Y 24/20/16C 165W 2.4GHz Processor w/o FAN 4XG7A37901 B4NU
SR650 Intel Xeon Platinum 8268 24C 205W 2.9GHz Processor w/o FAN 4XG7A15870 B4HA
SR650 Intel Xeon Platinum 8270 26C 205W 2.7GHz Processor w/o FAN 4XG7A15868 B4H9
SR650 Intel Xeon Platinum 8276 28C 165W 2.2GHz Processor w/o FAN 4XG7A15881 B4H8
SR650 Intel Xeon Platinum 8276M 28C 165W 2.2GHz Processor w/o FAN 4XG7A15879 B4NY
SR650 Intel Xeon Platinum 8276L 28C 165W 2.2GHz Processor w/o FAN 4XG7A15877 B4P6
SR650 Intel Xeon Platinum 8280 28C 205W 2.7GHz Processor w/o FAN 4XG7A15866 B4H7
SR650 Intel Xeon Platinum 8280M 28C 205W 2.7GHz Processor w/o FAN 4XG7A15864 B4NX
SR650 Intel Xeon Platinum 8280L 28C 205W 2.7GHz Processor w/o FAN 4XG7A15862 B4P5

* For CTO configurations, the feature code represents a processor, and fans and heatsinks are derived by the configuration tool.
** Factory-installed only; no field upgrade. Supported in the uniprocessor configurations only.

Configuration notes:

  • Processors with 200 W or 205 W TDP, or Gold 6230N, 6240Y, 6244, or 6250 processors are supported in the following hardware configurations and ambient temperature requirements:
    • 24x 2.5” chassis.
    • Ambient temperature and drive bay configurations:
      • Up to 35 °C (95 °F): 8x 2.5” SAS/SATA drive bays (drive backplane in the middle).
      • Up to 30 °C (86 °F):
        • 4x 2.5" SAS/SATA and 4x 2.5" AnyBay (up to 4 NVMe SSDs).
        • 8x 2.5" SAS/SATA and 8x 2.5" AnyBay (up to 8 NVMe SSDs).
      Note: Gold 6242R, 6246R, 6248R, 6250, 6256, and 6258R processors are supported only at the ambient temperature of up to 30 °C (86 °F) and only with 8x 2.5” SAS/SATA drive bays (drive backplane in the middle).
    • No rear HDD kit installed.
    • No PCIe flash adapters installed.
    • No GPU adapters installed, or up to four T4 GPU adapters installed.
    • The server performance might be impacted in case of a system fan failure.
  • Gold 6230T, 6246, or 6252N processors are supported in the following hardware configurations:
    • 8x 3.5" SAS/SATA drive bays.
    • 8x 2.5" SAS/SATA drive bays.
    • 4x 2.5" SAS/SATA and 4x 2.5" AnyBay drive bays.

Memory

The SR650 server supports up to 12 TruDDR4 memory RDIMMs or 3DS RDIMMs when one processor is installed and up to 24 DIMMs when two processors are installed. Each processor has six memory channels (two integrated memory controllers with three memory channels per memory controller), and there are two DIMMs per channel.

Lenovo TruDDR4 memory uses the highest-quality components sourced from Tier 1 DRAM suppliers and only memory that meets strict requirements is selected. It is compatibility tested and tuned on every ThinkSystem server to maximize performance and reliability.

TruDDR4 memory has a unique signature programmed into the DIMM, which enables Lenovo servers to verify whether the memory installed is qualified and supported. Lenovo qualified and supported TruDDR4 memory is covered by Lenovo warranty, and service and support provided worldwide.

The following maximum memory capacities are supported by the SR650 server:

  • RDIMMs: 1.5 TB (768 GB per processor).
  • 3DS RDIMMs: 3 TB (1.5 TB per processor) (requires processors that support more than 1 TB of memory capacity per socket).

The following memory protection technologies are supported by the processor's integrated memory controllers:

  • ECC
  • SDDC (for x4-based memory DIMMs)
  • ADDDC (for x4-based memory DIMMs; Gold and Platinum processors only)
  • Memory mirroring
  • Memory rank sparing
  • Patrol scrubbing
  • Demand scrubbing

The following table lists memory options available for the SR650 server.

Table 15. Memory options
Description Part number Feature code Maximum quantity*
RDIMMs - 2933 MHz Performance+
ThinkSystem 16GB TruDDR4 Performance+ 2933MHz (2Rx8 1.2V) RDIMM None** B5N6 12 / 24
ThinkSystem 32GB TruDDR4 Performance+ 2933MHz (2Rx4 1.2V) RDIMM None** B5N7 12 / 24
ThinkSystem 64GB TruDDR4 Performance+ 2933MHz (2Rx4 1.2V) RDIMM None** B5N8 12 / 24
RDIMMs - 2933 MHz
ThinkSystem 8GB TruDDR4 2933MHz (1Rx8 1.2V) RDIMM 4ZC7A08706 B4H1 12 / 24
ThinkSystem 16GB TruDDR4 2933MHz (1Rx4 1.2V) RDIMM 4ZC7A08707 B4LY 12 / 24
ThinkSystem 16GB TruDDR4 2933MHz (2Rx8 1.2V) RDIMM 4ZC7A08708 B4H2 12 / 24
ThinkSystem 32GB TruDDR4 2933MHz (2Rx4 1.2V) RDIMM 4ZC7A08709 B4H3 12 / 24
ThinkSystem 64GB TruDDR4 2933MHz (2Rx4 1.2V) RDIMM 4ZC7A08710 B4H4 12 / 24
RDIMMs - 2666 MHz
ThinkSystem 16GB TruDDR4 2666 MHz (1Rx4 1.2V) RDIMM 7X77A01302 AUNB 12 / 24
ThinkSystem 16GB TruDDR4 2666 MHz (2Rx8 1.2V) RDIMM 7X77A01303 AUNC 12 / 24
ThinkSystem 32GB TruDDR4 2666 MHz (2Rx4 1.2V) RDIMM 7X77A01304 AUND 12 / 24
3DS RDIMMs - 2933 MHz Performance+
ThinkSystem 128GB TruDDR4 Performance+ 2933MHz (4Rx4 1.2V) 3DS RDIMM None** B5N9 12 / 24
3DS RDIMMs - 2933 MHz
ThinkSystem 128GB TruDDR4 2933MHz (4Rx4 1.2V) 3DS RDIMM 4ZC7A15113 B587 12 / 24
3DS RDIMMs - 2666 MHz
ThinkSystem 64GB TruDDR4 2666MHz (4Rx4, 1.2V) 3DS RDIMM 4ZC7A08716 AUW5 12 / 24

* The maximum quantity shown is with one processor / two processors.
** Factory-installed only; no field upgrade.

Configuration notes:

  • All DIMMs in the server operate at the same speed, which is determined as the lowest value of:
    • DIMM rated speed (2666 MHz or 2933 MHz).
    • Memory speed supported by the specific processor (2133 MHz, 2400 MHz, 2666 MHz, or 2933 MHz).
    • Memory speed for the selected quantity of DIMMs per channel:
      • One DIMM per channel (1 DPC): 2933 MHz.
      • Two DIMMs per channel (2 DPC)
        • Performance+ DIMMs: 2933 MHz.
        • Other supported DIMMs: 2666 MHz.
    Note: Maximum memory speed can be achieved when Max performance mode is enabled in UEFI.
  • Mixing different types of memory (RDIMMs and 3DS RDIMMs) is not supported.
  • All Performance+ DIMMs in the server must be of the same type, rank, and capacity (the same part number or feature code) to operate at 2933 MHz in the configurations with two DIMMs per channel. Performance+ DIMMs cannot be mixed with other DIMMs.
  • Mixing RDIMMs of different ranks (single- or dual-rank), DRAM chip types (x4 or x8), speeds (2666 MHz or 2933 MHz), and capacities (8 GB, 16 GB, 32 GB, or 64 GB) is supported in the independent channel mode (the default operational mode) (excluding Performance+ RDIMMs).
  • Mixing 3DS RDIMMs of different speeds (2666 MHz or 2933 MHz) and capacities (64 GB or 128 GB) is supported in the independent channel mode (excluding Performance+ 3DS RDIMMs).
  • The 128 GB Performance+ 2933 MHz 3DS RDIMMs (feature code B5N9) running at 2933 MHz with two DIMMs per channel are supported at the ambient temperature of up to 30 °C (86 °F).
  • The maximum quantity of DIMMs supported is reduced by the quantity of DC Persistent Memory Modules used in the configuration.
  • Server configurations with more than 1 TB of memory capacity per socket (including DCPMMs and RDIMMs or 3DS RDIMMs) require processors that support up to 2 TB (M-suffix) or 4.5 TB (L-suffix) per socket. Server configurations with more than 2 TB of memory capacity per socket (including DCPMMs and RDIMMs or 3DS RDIMMs) require processors that support up to 4.5 TB per socket (L-suffix).
  • For server configurations with memory protection, the following rules apply:
    • Single Device Data Correction (SDDC) works only in the independent channel mode and supports only x4-based memory DIMMs.
    • Adaptive Double Device Data Correction (ADDDC) works with x4-based memory DIMMs and requires two DIMM ranks per channel, Intel Xeon Gold or Platinum processors, and the Closed Page memory access mode.
    • If memory mirroring is used, then DIMMs must be installed in quantities of 2, 4, or 8 per processor for mirroring across two memory channels, or in quantities of 3, 6, 9, or 12 per processor for mirroring across three memory channels. Mixing two- and three-channel mirroring in the server is allowed (one processor uses two-channel mirroring, and another processor uses three-channel mirroring). All DIMMs in the server must be identical in type and size.
    • If memory rank sparing is used, then a minimum of two ranks must be installed per populated channel (a least one dual-rank or quad-rank DIMM, or two single-rank DIMMs). In rank sparing mode, one rank in each populated channel is reserved as spare memory for other ranks on the same channel. All DIMMs in the server must be identical in type and size.
    • SDDC, memory mirroring, and memory rank sparing modes are mutually exclusive. Only one operational memory mode can be enabled on the server.
    • In the configurations with DCPMMs, memory mirroring is supported only in the App Direct mode (other DCPMM modes do not support memory mirroring) and applies only to the RDIMMs or 3DS RDIMMs (DCPMMs are not mirrored). Memory sparing is not supported in the configurations with DCPMMs.

Persistent memory

Intel Optane DC persistent memory is an innovative technology that delivers a unique combination of affordable large memory capacity and persistence (non-volatility). The persistent memory technology can help boost the performance of data-intensive applications, such as in-memory analytics, databases, content delivery networks, and high performance computing (HPC), as well as deliver consistent service levels at scale with higher virtual machine and container density.

The SR650 server supports up to six TruDDR4 DC Persistent Memory Modules (DCPMMs) when one processor is installed and up to 12 DCPMMs when two processors are installed (up to one DCPMM per processor's memory channel) for a total of up to 6 TB of persistent memory capacity. The DCPMMs are installed in the same memory DIMM slots on the system board that are used for installing RDIMMs or 3DS RDIMMs.

The DCPMMs support the following modes of operation:

  • Memory Mode

    Memory Mode seamlessly brings large memory capacity at affordable cost points to legacy applications. In this mode, DCPMMs provide volatile memory that behaves much like traditional RDIMMs or 3DS RDIMMs (the data will not be saved in case of a power loss) and is transparent to the operating system and applications. DCPMMs provide memory capacity and RDIMMs or 3DS RDIMMs provide cache memory that is managed by the processor's memory controller. The total memory capacity that is seen by the operating system is the capacity of the DCPMMs; the capacity of the RDIMMs or 3DS RDIMMs is hidden and does not appear as a memory resource in the operating system. This mode is considered particularly suited for virtualized database deployments and big-data analytics applications.

  • App Direct Mode

    App Direct Mode brings persistency to the data and structures (the data will be saved in case of a power loss). This mode requires operating system and application awareness of two types of system memory: Persistent (DCPMMs) and DRAM (RDIMMs or 3DS RDIMMs). The total memory capacity that is seen by the operating system includes the capacity of the DCPMMs and RDIMMs or 3DS RDIMMs. This mode is considered particularly suited for in-memory databases, in-memory analytics frameworks, and ultrafast storage applications.

  • Mixed Memory Mode

    Mixed Memory Mode is a combination of Memory Mode and App Direct Mode, where a portion of the capacity of the DCPMMs is used for the Memory Mode operations, and the remaining capacity of the DCPMMs is used for the App Direct Mode operations.

The following memory protection technologies are supported by the DCPMM's onboard memory controllers:

  • ECC
  • SDDC
  • DDDC
  • Patrol scrubbing
  • Demand scrubbing

The following table lists DCPMM options available for the SR650 server.

Table 16. DCPMM options
Description Part number Feature code Maximum quantity*
ThinkSystem 128GB TruDDR4 2666MHz (1.2V) Intel Optane DC Persistent Memory 4ZC7A15110 B4LV 6 / 12
ThinkSystem 256GB TruDDR4 2666MHz (1.2V) Intel Optane DC Persistent Memory 4ZC7A15111 B4LW 6 / 12
ThinkSystem 512GB TruDDR4 2666MHz (1.2V) Intel Optane DC Persistent Memory 4ZC7A15112 B4LX 6 / 12

* The maximum quantity shown is with one processor / two processors.

The following table lists supported combinations of the DCPMMs and memory DIMMs available for the SR650 server.

Table 17. Supported DCPMM and memory DIMM combinations
DCPMM mode DCPMM
quantity*		 Supported DCPMM sizes Memory DIMM quantity* Supported memory DIMM sizes
App Direct Mode - / 1 128 GB, 256 GB, 512 GB - / 12 16 GB, 32 GB, 64 GB, 128 GB
1 / 2 128 GB, 256 GB, 512 GB 6 / 12 16 GB, 32 GB, 64 GB, 128 GB
2 / 4 128 GB, 256 GB, 512 GB 4 / 8 16 GB, 32 GB, 64 GB, 128 GB
2 / 4 128 GB, 256 GB, 512 GB 6 / 12 16 GB, 32 GB, 64 GB, 128 GB
2 / 4 128 GB, 256 GB, 512 GB 8 / 16 16 GB, 32 GB, 64 GB, 128 GB
4 / 8 128 GB, 256 GB, 512 GB 6 / 12 16 GB, 32 GB, 64 GB, 128 GB
6 / 12 128 GB, 256 GB, 512 GB 6 / 12 16 GB, 32 GB, 64 GB, 128 GB
Memory Mode 2 / 4 128 GB 4 / 8 16 GB
2 / 4 256 GB 4 / 8 32 GB
2 / 4 512 GB 4 / 8 32 GB, 64 GB
2 / 4 256 GB 6 / 12 16 GB
2 / 4 512 GB 6 / 12 16 GB, 32 GB
4 / 8 128 GB 6 / 12 16 GB
4 / 8 256 GB 6 / 12 32 GB
4 / 8 512 GB 6 / 12 32 GB, 64 GB
6 / 12 128 GB 6 / 12 16 GB, 32 GB
6 / 12 256 GB 6 / 12 32 GB, 64 GB
6 / 12 512 GB 6 / 12 32 GB, 64 GB, 128 GB
Mixed Memory Mode 2 / 4 256 GB 6 / 12 16 GB
2 / 4 512 GB 6 / 12 16 GB, 32 GB
2 / 4 256 GB 4 / 8 16 GB
2 / 4 512 GB 4 / 8 16 GB, 32 GB
4 / 8 128 GB 6 / 12 16 GB
4 / 8 256 GB 6 / 12 16 GB, 32 GB
4 / 8 512 GB 6 / 12 16 GB, 32 GB, 64 GB
6 / 12 128 GB 6 / 12 16 GB
6 / 12 256 GB 6 / 12 16 GB, 32 GB
6 / 12 512 GB 6 / 12 16 GB, 32 GB, 64 GB

* The supported exact quantity shown is with one processor / two processors.

Configuration notes:

  • DCPMMs are supported only in the configurations with 8x 2.5-inch, 16x 2.5-inch, or 8x 3.5-inch drive bays.
  • All DCPMMs in the server must be of the same capacity (the same part number or feature code).
  • The RDIMMs or 3DS RDIMMs are required in the configurations with DCPMMs, and all RDIMMs or 3DS RDIMMs must be of the same type, rank, and capacity (the same part number or feature code).
  • The DCPMMs cannot be mixed with the 8GB TruDDR4 2933 MHz RDIMM (4ZC7A08706).
  • For Mixed Memory Mode, the volatile (Memory) portion of the total capacity of DCPMMs is configured in increments of 32 GB multiplied by the number of DCPMMs in the server, and the remaining capacity is allocated to the persistent (App Direct) portion. The ratio of the total capacity of RDIMMs or 3DS RDIMMs to the total capacity of the volatile portion of DCPMMs should be between 1 to 4 and 1 to 16.
  • Server configurations with more than 1 TB of memory capacity per socket (including DCPMMs and RDIMMs or 3DS RDIMMs) require processors that support up to 2 TB (M-suffix) or 4.5 TB (L-suffix) per socket. Server configurations with more than 2 TB of memory capacity per socket (including DCPMMs and RDIMMs or 3DS RDIMMs) require processors that support up to 4.5 TB per socket (L-suffix).
  • In the configurations with the processors of 200 W or 205 W TDP, or with Gold 6230N, 6240Y, 6244, or 6250 processors, the DCPMMs require two power supplies.
  • The DCPMMs are not supported in the configurations with the GPU adapters.

For more information, refer to the Intel Optane DC Persistent Memory (DCPMM) Product Guide:
http://lenovopress.com/LP1066

Internal storage

The SR650 server supports the following internal drive bay configurations:

  1. Up to 16 SFF (front) and 2 LFF (rear) hot-swap drive bays:
    1. 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    2. 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    3. 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 2x 3.5" SAS/SATA
  2. Up to 24 SFF (front) and 2 LFF (rear) hot-swap drive bays:
    1. 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    2. 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    3. 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    4. 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 4x 2.5" SAS/SATA & 4x 2.5" AnyBay
    5. 16x 2.5" U.2 NVMe PCIe + 8x 2.5" SAS/SATA (factory-installed only)
    6. 20x 2.5" U.2 NVMe PCIe
    7. 24x 2.5" U.2 NVMe PCIe
  3. Up to 10 LFF SAS/SATA hot-swap drive bays: 8x 3.5" SAS/SATA (front) + 2x 3.5" SAS/SATA (rear)
  4. Up to 14 LFF hot-swap drive bays:
    1. 12x 3.5" SAS/SATA (front) + 2x 3.5" SAS/SATA (rear)
    2. 8x 3.5" SAS/SATA & 4x 3.5" AnyBay (front) + 2x 3.5" SAS/SATA (rear)

In addition, the SR650 server models can be configured with one or two internal M.2 SATA SSDs. The server also supports configurations without drive bays.

The following figures show the internal drive bay configurations.

Drive bay configurations: 16x 2.5-inch chassis
Figure 8. Drive bay configurations: 16x 2.5-inch chassis

Drive bay configurations: 24x 2.5-inch chassis
Figure 9. Drive bay configurations: 24x 2.5-inch chassis

Drive bay configurations: 12x 3.5-inch chassis
Figure 10. Drive bay configurations: 12x 3.5-inch chassis

The following table lists the internal storage options for the SR650 server.

Table 18. Internal storage options
Description Part number Feature code Maximum quantity
Factory-installed backplane kits
ThinkSystem 2U/Twr 2.5" SATA/SAS 8-Bay Backplane None* AURA 3
ThinkSystem 2U/Twr 2.5" AnyBay 8-Bay Backplane None* AUR5 3
ThinkSystem 2U 3.5" SATA/SAS 8-Bay Backplane None* AUR6 1
ThinkSystem 2U 3.5" SATA/SAS 12-Bay Backplane None* AUR9 1
ThinkSystem 2U 3.5" AnyBay 12-Bay Backplane None* AUR8 1
ThinkSystem 2U 2.5" NVMe 8-Bay Backplane None* B4PC 3
ThinkSystem SR590/SR650 3.5" Rear HDD/SSD Kit 7XH7A06253 AURZ 1
Backplane kit field upgrade options
SR550/SR650 2.5" SATA/SAS 8-Bay Backplane Upgrade Kit 7XH7A06254 None** 3
SR650 2.5" AnyBay 8-Bay Backplane Upgrade Kit 7XH7A06251 None** 3
SR550/SR590/SR650 3.5" SATA/SAS 8-Bay Backplane Upgrade Kit 4XH7A08770 None** 1
SR550/SR590/SR650 3.5" SATA/SAS 12-Bay Backplane Upgrade Kit 4XH7A08771 None** 1
SR590/SR650 3.5" AnyBay 12-Bay Backplane Upgrade Kit 4XH7A08785 None** 1
ThinkSystem SR650 U.2 NVMe 20-Bay Backplane Upgrade Kit 4XH7A09819 None** 1
ThinkSystem SR650 U.2 NVMe 24-Bay Backplane Upgrade Kit 4XH7A08810 None** 1
ThinkSystem SR590/SR650 3.5" Rear HDD/SSD Kit 7XH7A06253 AURZ 1
M.2 enablement kits
ThinkSystem M.2 Enablement Kit 7Y37A01092 AUMU 1
ThinkSystem M.2 with Mirroring Enablement Kit 7Y37A01093 AUMV 1

* These backplane kits can be factory-installed in standard or custom (CTO or Special Bid) models, and they might not have an option part number assigned.
** Field upgrade only.

Configuration notes:

  • 24x 2.5-inch front drives are supported only on storage dense models that use the 24x 2.5" chassis (feature code AUVV).
  • The 2.5" SATA/SAS 8-Bay Backplane Kit (7XH7A06254) adds 8x 2.5" SAS/SATA hot-swap drive bays to the previously configured models that are based on the 16x 2.5" chassis (feature code AUVX) or 24x 2.5" chassis (feature code AUVV) and support drive bay expansion capabilities (including models without drive bays).
  • The 2.5" AnyBay 8-Bay Backplane Kit (7XH7A06251) adds 4x 2.5" SAS/SATA & 4x 2.5" AnyBay hot-swap drive bays to the previously configured models that are based on the 16x 2.5" chassis (feature code AUVX) or 24x 2.5" chassis (feature code AUVV) and support drive bay expansion capabilities (including models without drive bays).
  • Up to 3x 2.5" AnyBay 8-Bay Backplane Kits are supported in the server with the processors of up to 165 W TDP. Up to 2x 2.5" AnyBay 8-Bay Backplane Kits are supported in the server with the processors of more than 165 W TDP. If 3x 2.5" AnyBay 8-Bay Backplane Kits are installed in the server, the Rear HDD kit cannot be installed.
  • Models without any drive bays that are based on the 12x 3.5" chassis (feature code AUVW) include the Right EIA Latch with FIO (USB ports, status LEDs, and a power button). These models support adding drive bays by using the 3.5" 8-bay backplane kit (4XH7A08770), 3.5" 12-bay backplane kit (4XH7A08771), or 3.5" AnyBay 12-bay backplane kit (4XH7A08785).
  • The SAS/SATA and AnyBay backplane upgrade kits include drive backplanes and required SAS cables, NVMe cables, power cables, and drive bay fillers; storage controllers are not included.
  • Previously configured models that are based on the 24x 2.5" chassis (feature code AUVV) can be upgraded to 20 or 24 U.2 NVMe PCIe drive bays by using the U.2 NVMe 20-Bay Backplane Upgrade Kit (4XH7A09819) or U.2 NVMe 24-Bay Backplane Upgrade Kit (4XH7A08810), respectively. Both kits include drive backplanes and required NVMe cables, power cables, drive bay fillers, and NVMe switch adapters. The U.2 NVMe 24-Bay Backplane Upgrade Kit also includes the x16/x8/x16 Riser Card 1 (4XH7A09902).
  • For models with 16/20/24x 2.5" U.2 NVMe PCIe drive bays (either factory-installed or upgraded in the field), the following conditions must be met:
    • Two processors with up to 165 W TDP installed.
    • No DCPMMs installed.
    • No GPU adapters installed.
    • No PCIe flash adapters installed.
    • No PCIe adapters with more than 25 W TDP installed.
    • 1100 W or 1600 W power supplies installed.
    • Ambient temperature of up to 30 °C (86 °F).
    • The server performance might be impacted in case of a system fan failure.
    Note: For additional configuration details, refer to the Controllers for internal storage and I/O expansion sections.
  • The 3.5" Rear HDD/SSD Kit is connected to a separate port on the internal storage controller.
  • The 3.5" Rear HDD/SSD Kit is installed in place of the PCIe Riser Card 1; PCIe slots 1, 2, and 3 are not present.
  • Lenovo AnyBay allows a choice of drive interface types in the same drive bay: SAS drives, SATA drives, or NVMe PCIe drives.
  • U.2 NVMe PCIe SSDs in the 8/16/24-drive bay configurations that contain four AnyBay drive bays require either the second processor (enables the onboard NVMe controller) or the 1610-4P NVMe Switch Adapter to be installed.
    Note:  In the 8/16/24-drive bay configurations that contain four AnyBay drive bays, the 1610-4P NVMe Switch Adapter is supported only in the configurations with one processor.
  • Models with 12x 3.5-inch drive bays (8x SAS/SATA + 4x AnyBay) and an 8-port SAS RAID controller or HBA support only NVMe drives in the AnyBay drive bays.
  • The M.2 Enablement Kit (7Y37A01092) supports up to one M.2 SATA SSD which is connected to the SATA port on the Intel Platform Controller Hub (PCH).
  • The M.2 with Mirroring Enablement Kit (7Y37A01093) is connected to the Intel PCH via the PCIe link, and the kit supports up to two M.2 SATA SSDs that can be configured in a RAID-1 or RAID-0 drive group, or they can operate as separate drives.

The following tables list supported internal storage configurations with the SAS/SATA and AnyBay backplanes.

Internal storage configurations tables convention: The numbers in brackets (x or x+y or x+y+z) in the Storage controller column specify the quantity of drive bays connected to each of the controllers.

Table 19. Internal storage configurations: Up to 16 SFF front drive bays without rear drive bays
Hot-swap drive bay
configuration		 Backplane kit type and quantity Storage controller type and quantity
8x2.5"
SATA/
SAS		 8x2.5"
Any
Bay		 2x3.5"
Rear
HDD
16x 2.5" chassis (Feature code AUVX) or 24x 2.5" chassis (Feature code AUVV)
8x 2.5" SAS/SATA (front) 1 0 0 1x RAID 530-8i/16i (8)
1x RAID 730-8i 1GB or 2GB (8)
1x RAID 930-8i/16i/24i (8)
1x 430-8i/16i HBA (8)
4x 2.5" SAS/SATA (front) +
4x 2.5" AnyBay (front)		 0 1 0 1x RAID 730-8i 2GB/RAID 930-8i/16i/24i (8) + 1x Onboard/1610-4P NVMe (4)
1x 430-8i/16i HBA (8) + 1x Onboard/1610-4P NVMe (4)
16x 2.5" SAS/SATA (front) 2 0 0 1x RAID 530-16i (16)
1x RAID 930-16i/24i (16)
1x RAID 530-8i/730-8i 1GB (8) + 1x 430-8i HBA (8)
2x RAID 530-8i/730-8i 1GB or 2GB/930-8i (8+8)
2x 430-8i HBA (8+8)
12x 2.5" SAS/SATA (front) +
4x 2.5" AnyBay (front)		 1 1 0 1x RAID 930-16i/24i (16) + 1x Onboard/1610-4P NVMe (4)
1x RAID 530-16i (16) +
1x Onboard/1610-4P NVMe (4)
1x 430-16i HBA (16) + 1x Onboard/1610-4P NVMe (4)
8x 2.5" SAS/SATA (front) +
8x 2.5" AnyBay (front)		 0 2 0 1x RAID 530-16i (16) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4)
1x RAID 930-16i/24i (16) + 1x Onboard NVMe (4) +
1x 1610-4P NVMe (4)
1x 430-16i HBA (16) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4)
2x RAID 730-8i 2GB/930-8i (8+8) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4)
2x 430-8i HBA (8+8) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4)
Table 20. Internal storage configurations: Up to 16 SFF front and 2 LFF rear drive bays
Hot-swap drive bay
configuration		 Backplane kit type and quantity Storage controller type and quantity
8x2.5"
SATA/
SAS		 8x2.5"
Any
Bay		 2x3.5"
Rear
HDD
16x 2.5" chassis (Feature code AUVX) or 24x 2.5" chassis (Feature code AUVV)
8x 2.5" SAS/SATA (front) +
2x 3.5" SAS/SATA (rear)		 1 0 1 1x RAID 530-16i (10)
1x RAID 930-16i/24i (10)
1x RAID 530-8i/730-8i 1GB or 2GB/930-8i (8) + 1x 430-8i HBA (2)
1x RAID 730-8i 2GB/930-8i (8) + 1x RAID 530-8i (2)
1x 430-8i HBA (8) + 1x RAID 530-8i (2)
1x 430-16i HBA (10)
2x RAID 530-8i (8+2)
2x 430-8i HBA (8+2)
4x 2.5" SAS/SATA (front) +
4x 2.5" AnyBay (front) +
2x 3.5" SAS/SATA (rear)		 0 1 1 1x RAID 730-8i 2GB/930-8i (8) + 1x Onboard/1610-4P NVMe (4) + 1x RAID 530-8i/430-8i HBA (2)
1x RAID 530-16i (10) + 1x Onboard/1610-4P NVMe (4)
1x RAID 930-16i/24i (10) + 1x Onboard/1610-4P NVMe (4)
1x 430-8i HBA (8) + 1x Onboard/1610-4P NVMe (4) + 1x RAID 530-8i/430-8i HBA (2)
1x 430-16i HBA (10) + 1x Onboard/1610-4P NVMe (4)
16x 2.5" SAS/SATA (front) +
2x 3.5" SAS/SATA (rear)		 2 0 1 1x RAID 530/930-16i (16) + 1x RAID 530-8i/430-8i HBA (2)
1x RAID 930-24i (18)
1x 430-16i HBA (16) + 1x RAID 530-8i/430-8i HBA (2)
2x RAID 530-8i/730-8i 1GB or 2GB/930-8i (8+8) + 1x 430-8i HBA (2)
2x RAID 730-8i 2GB/930-8i (8+8) + 1x RAID 530-8i (2)
2x 430-8i HBA (8+8) + 1x RAID 530-8i (2)
3x RAID 530-8i (8+8+2)
3x 430-8i HBA (8+8+2)
12x 2.5" SAS/SATA (front) +
4x 2.5" AnyBay (front) +
2x 3.5" SAS/SATA (rear)		 1 1 1 1x RAID 530/930-16i (16) + 1x Onboard/1610-4P NVMe (4) + 1x RAID 530-8i/430-8i HBA (2)
1x 430-16i HBA (16) + 1x Onboard/1610-4P NVMe (4) + 1x RAID 530-8i/430-8i HBA (2)
1x RAID 930-24i (18) + 1x Onboard/1610-4P NVMe (4)
8x 2.5" SAS/SATA (front) +
8x 2.5" AnyBay (front) +
2x 3.5" SAS/SATA (rear)		 0 2 1 1x RAID 530/930-16i (16) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4) + 1x RAID 530-8i/430-8i HBA (2)
1x 430-16i HBA (16) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4) + 1x RAID 530-8i/430-8i HBA (2)
1x RAID 930-24i (18) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4)
2x RAID 730-8i 2GB/930-8i (8+8) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4) + 1x RAID 530-8i/430-8i HBA (2)
2x 430-8i HBA (8+8) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4) + 1x RAID 530-8i/430-8i HBA (2)
Table 21. Internal storage configurations: Up to 24 SFF front drive bays without rear drive bays
Hot-swap drive bay
configuration		 Backplane kit type and quantity Storage controller type and quantity
8x2.5"
SATA/
SAS		 8x2.5"
Any
Bay		 8x2.5"
NVMe		 2x3.5"
Rear
HDD
24x 2.5" chassis (Feature code AUVV)
24x 2.5" SAS/SATA (front) 3 0 0 0 1x RAID 930-24i (24)
1x RAID 730-8i 2GB/930-8i (8) + 1x RAID 530/930-16i (16)
3x RAID 730-8i 2GB/930-8i (8+8+8)
1x 430-8i HBA (8) + 1x 430-16i HBA (16)
3x 430-8i HBA (8+8+8)
20x 2.5" SAS/SATA (front) +
4x 2.5" AnyBay (front)		 2 1 0 0 1x RAID 930-24i (24) + 1x Onboard/1610-4P NVMe (4)
1x RAID 730-8i 2GB/930-8i (8) + 1x RAID 530/930-16i (16) + 1x Onboard/1610-4P NVMe (4)
3x RAID 730-8i 2GB/930-8i (8+8+8) + 1x Onboard/1610-4P NVMe (4)
3x 430-8i HBA (8+8+8) + 1x Onboard/1610-4P NVMe (4)
16x 2.5" SAS/SATA (front) +
8x 2.5" AnyBay (front)		 1 2 0 0 1x RAID 930-24i (24) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4)
3x RAID 730-8i 2GB/930-8i (8+8+8) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4)
1x 430-8i HBA (8) + 1x 430-16i HBA (16) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4)
12x 2.5" SAS/SATA (front) +
12x 2.5" AnyBay (front)		 0 3 0 0 1x RAID 930-24i (24) + 1x Onboard NVMe (4) + 2x 1610-4P NVMe (4+4)
3x RAID 730-8i 2GB/930-8i (8+8+8) + 1x Onboard NVMe (4) + 2x 1610-4P NVMe (4+4)
1x 430-8i HBA (8) + 1x 430-16i HBA (8+8) + 1x Onboard NVMe (4) + 2x 1610-4P NVMe (4+4)
3x 430-8i HBA (8+8+8) + 1x Onboard NVMe (4) + 2x 1610-4P NVMe (4+4)
16x 2.5" U.2 NVMe (front) 0 0 2 0 2x 810-4P NVMe (4+4) + 2x 1610-4P NVMe (4+4)
16x 2.5" U.2 NVMe (front) +
8x 2.5" SAS/SATA (front)		 1 0 2 0 2x 810-4P NVMe (4+4) + 2x 1610-4P NVMe (4+4) + 1x RAID 530-8i/730-8i 1GB
2x 810-4P NVMe (4+4) + 2x 1610-4P NVMe (4+4) + 1x RAID 730-8i 2GB/930-8i
2x 810-4P NVMe (4+4) + 2x 1610-4P NVMe (4+4) + 1x 430-8i HBA
20x 2.5" U.2 NVMe (front) 0 0 3 0 1x Onboard NVMe (4) + 2x 810-4P NVMe (4+4) + 3x 1610-4P NVMe (4+4+4)
24x 2.5" U.2 NVMe (front) 0 0 3 0 4x 810-4P NVMe (4+4+4+4) + 1x 1610-8P NVMe (8)
Table 22. Internal storage configurations: Up to 24 SFF front and 2 LFF rear drive bays
Hot-swap drive bay
configuration		 Backplane kit type and quantity Storage controller type and quantity
8x2.5"
SATA/
SAS		 8x2.5"
Any
Bay		 2x3.5"
Rear
HDD
24x 2.5" chassis (Feature code AUVV)
24x 2.5" SAS/SATA (front) +
2x 3.5" SAS/SATA (rear)		 3 0 1 1x RAID 930-24i (24) + 1x RAID 530-8i/430-8i HBA (2)
1x RAID 730-8i 2GB/930-8i (8) + 1x RAID 530/930-16i (16) + 1x RAID 530-8i (2)
1x RAID 730-8i 2GB/930-8i (8) + 1x RAID 930-16i (16) + 1x 430-8i HBA (2)
1x 430-8i HBA (8) + 1x 430-16i HBA (16) + 1x RAID 530-8i (2)
2x RAID 530/930-16i (16+10)
2x 430-16i HBA (16+10)
2x 430-8i HBA (8+2) + 1x 430-16i HBA (16)
3x RAID 730-8i 2GB/930-8i (8+8+8) + 1x RAID 530-8i (2)
3x RAID 730-8i 2GB/930-8i (8+8+8) + 1x 430-8i HBA (2)
3x 430-8i HBA (8+8+8) + 1x RAID 530-8i (2)
4x 430-8i HBA (8+8+8+2)
20x 2.5" SAS/SATA (front) +
4x 2.5" AnyBay (front) +
2x 3.5" SAS/SATA (rear)		 2 1 1 1x RAID 930-24i (24) + 1x Onboard/1610-4P NVMe (4) + 1x RAID 530-8i (2)
1x RAID 930-24i (24) + 1x Onboard/1610-4P NVMe (4) + 1x 430-8i HBA (2)
1x RAID 730-8i 2GB/930-8i (8) + 1x RAID 530/930-16i (16) + 1x Onboard/1610-4P NVMe (4) + 1x RAID 530-8i (2)
1x RAID 730-8i 2GB/930-8i (8) + 1x RAID 530/930-16i (16) + 1x Onboard/1610-4P NVMe (4) + 1x 430-8i HBA (2)
2x RAID 530/930-16i (16+10) + 1x Onboard/1610-4P NVMe (4)
2x 430-16i HBA (16+10) + 1x Onboard/1610-4P NVMe (4)
3x RAID 730-8i 2GB/930-8i (8+8+8) + 1x Onboard/1610-4P NVMe (4) + 1x RAID 530-8i/430-8i HBA (2)
3x 430-8i HBA (8+8+8) + 1x Onboard/1610-4P NVMe (4) + 1x RAID 530-8i/430-8i HBA (2)
16x 2.5" SAS/SATA (front) +
8x 2.5" AnyBay (front) +
2x 3.5" SAS/SATA (rear)		 1 2 1 1x RAID 930-24i (24) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4) + 1x RAID 530-8i (2)
1x 430-8i HBA (8) + 1x 430-16i HBA (16) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4) + 1x RAID 530-8i (2)
2x RAID 530/930-16i (16+10) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4)
2x 430-8i HBA (8+2) + 1x 430-16i HBA (16) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4)
2x 430-16i HBA (16+10) + 1x Onboard NVMe (4) + 1x 1610-4P NVMe (4)
Table 23. Internal storage configurations: Up to 12 LFF front and 2 LFF rear drive bays
Hot-swap drive bay
configuration		 Backplane kit type and quantity Storage controller type and quantity
8x3.5"
SATA/
SAS		 12x3.5"
SATA/
SAS		 12x3.5"
Any
Bay		 2x3.5"
Rear
HDD
12x 3.5" chassis (Feature code AUVW)
8x 3.5" SAS/SATA (front) 1 0 0 0 1x RAID 530-8i/730-8i 1GB or 2GB/930-8i (8)
1x 430-8i HBA (8)
8x 3.5" SAS/SATA (front) +
2x 3.5" SAS/SATA (rear)		 1 0 0 1 1x RAID 530/930-16i (10)
1x 430-16i HBA (10)
1x RAID 530-8i/730-8i 1GB or 2GB/930-8i (8) +
1x 430-8i HBA (2)
1x RAID 730-8i 2GB/930-8i (8) + 1x RAID 530-8i (2)
1x RAID 530/930-16i (8) + 1x RAID 530-8i (2)
1x 430-8i HBA (8) + 1x RAID 530-8i (2)
2x RAID 530-8i (8+2)
2x 430-8i HBA (8+2)
12x 3.5" SAS/SATA (front) 0 1 0 0 1x RAID 530/930-16i (12)
1x 430-16i HBA (12)
8x 3.5" SAS/SATA (front) +
4x 3.5" AnyBay (front)		 0 0 1 0 1x RAID 530/930-16i (12) + 1x Onboard/1610-4P NVMe (4)
1x 430-16i HBA (12) + 1x Onboard/1610-4P NVMe (4)
8x 3.5" SAS/SATA (front) +
4x 3.5" AnyBay (NVMe only) (front)*		 0 0 1 0 1x RAID 530-8i/730-8i 1GB or 2GB/930-8i (8) + 1x Onboard/1610-4P NVMe (4)
1x 430-8i HBA (8) + 1x Onboard/1610-4P NVMe (4)
12x 3.5" SAS/SATA (front) +
2x 3.5". SAS/SATA (rear)		 0 1 0 1 1x RAID 530/930-16i (14)
1x 430-16i HBA (14)
1x RAID 530/930-16i (12) + 1x RAID 530-8i (2)
1x 430-16i HBA (12) + 1x RAID 530-8i (2)
8x 3.5" SAS/SATA (front) +
4x 3.5" AnyBay (front) +
2x 3.5" SAS/SATA (rear)		 0 0 1 1 1x RAID 530/930-16i (14) + 1x Onboard/1610-4P NVMe (4)
1x 430-16i HBA (14) + 1x Onboard/1610-4P NVMe (4)

* Four NVMe SSDs are required in the 3.5" AnyBay configuration with an 8-port storage controller.

Controllers for internal storage

The following table lists the storage controllers and options for internal storage of the SR650 server.

Table 24. RAID controllers and HBAs for internal storage
Description Part number Feature code Maximum quantity I/O slots supported
12 Gb SAS/SATA RAID controllers
ThinkSystem RAID 530-8i PCIe 12Gb Adapter 7Y37A01082 AUNG 2 7, 4, 2, 3, 1, 5, 6
ThinkSystem RAID 530-16i PCIe 12Gb Adapter 4Y37A09727 B6CE 2 7, 4, 2, 3, 1, 5, 6
ThinkSystem RAID 730-8i 1GB Cache PCIe 12Gb Adapter 7Y37A01083 AUNH 3 7, 4, 2, 3, 1, 5, 6
ThinkSystem RAID 730-8i 2GB Flash PCIe 12Gb Adapter 4Y37A09722 B4RQ 3 7, 4, 2, 3, 1, 5, 6
ThinkSystem RAID 930-8i 2GB Flash PCIe 12Gb Adapter 7Y37A01084 AUNJ 3 7, 4, 2, 3, 1, 5, 6
ThinkSystem RAID 930-16i 4GB Flash PCIe 12Gb Adapter 7Y37A01085 AUNK 2 7, 4, 2, 3, 1, 5, 6
ThinkSystem RAID 930-16i 8GB Flash PCIe 12Gb Adapter 4Y37A09721 B31E 2 7, 4, 2, 3, 1, 5, 6
ThinkSystem RAID 930-24i 4GB Flash PCIe 12Gb Adapter 7Y37A01086 AUV1 1 1, 2, 3, 5, 6
12 Gb SAS/SATA non-RAID HBAs
ThinkSystem 430-8i SAS/SATA 12Gb HBA 7Y37A01088 AUNL 3 7, 4, 2, 3, 1, 5, 6
ThinkSystem 430-16i SAS/SATA 12Gb HBA 7Y37A01089 AUNM 2 7, 4, 2, 3, 1, 5, 6
NVMe PCIe interfaces (non-RAID)
Onboard NVMe interface (4-port) None None 1 -
ThinkSystem 810-4P NVMe Switch Adapter None* B22D 4 2, 4, 7, 6
ThinkSystem 1610-4P NVMe Switch Adapter 7Y37A01081 AUV2 3 1, 5, 6
ThinkSystem 1610-8P NVMe Switch Adapter None^ B4PA 1 1

* The 810-4P NVMe adapter can be factory-installed, or it is included in the 20-drive and 24-drive U.2 NVMe upgrade kits for field upgrades.
^ The 1610-8P NVMe adapter can be factory-installed, or it is included in the 24-drive NVMe upgrade kit for field upgrades.

Configuration notes:

  • Low profile SAS RAID controllers and HBAs for internal storage are supported in the PCIe x8 slots on the system board and full-high PCIe x8 and x16 slots supplied by the riser card 1. Full-height SAS RAID controllers for internal storage (RAID 930-24i) are supported in the full-height PCIe x8 and x16 slots supplied by the riser card 1.
  • If the RAID 930-24i controller is used in the configurations with 24 front drives and 2 rear drives, the RAID 930-24i controller that connects the front drive bays must be installed in the PCIe slot 5, and the RAID 530-8i controller or 430-8i HBA that connects the rear drive bays must be installed in the onboard PCIe slot 7.
  • Either RAID 530-8i or RAID 730-8i 1GB controllers can be used in the server, but not both types.
  • The RAID 730-8i 2GB controller cannot be used in the server configurations with the RAID 930-8i or RAID 730-8i 1GB controllers.
  • The RAID 730-8i 1GB controller does not support the 3.5" Rear HDD Kit.
  • In the configurations with 2.5-inch AnyBay drive bays, the 1610-4P NVMe Switch Adapter is supported in the full-height PCIe x16 slots supplied by the riser cards 1 and 2.
    • In the configurations with one processor, the 1610-4P NVMe Switch Adapter provides 4x PCIe 3.0 x4 ports for JBOD (non-RAID) connectivity to U.2 NVMe PCIe SSDs in four AnyBay drive bays, and it is supported in the PCIe x16 slot 1 supplied by the x16/x8 Riser Card 1 (the 1610-4P NVMe Switch Adapter has a PCIe 3.0 x16 host interface).
    • In the configurations with two processors, the onboard NVMe interface and up to two 1610-4P NVMe Switch Adapters provide 4x PCIe 3.0 x4 ports each for JBOD (non-RAID) connectivity to U.2 NVMe PCIe SSDs in the AnyBay drive bays. Two 1610-4P NVMe Switch Adapters are supported in the PCIe x16 slots 1 and 5 or 1 and 6 only.
  • Configurations with 16x 2.5-inch U.2 NVMe PCIe drive bays use the following interfaces and adapters for balanced JBOD (non-RAID) connectivity to up to 16x U.2 NVMe PCIe SSDs (up to eight SSDs per processor) without oversubscription:
    • The onboard NVMe interface (Processor 2) that provides four PCIe 3.0 x4 ports for connections to four SSDs without oversubscription.
    • Two 810-4P NVMe Switch adapters installed in the PCIe x8 Slots 4 and 7 (Processor 1) that provide two PCIe 3.0 x4 ports each for connections to four SSDs (two SSDs per 810-4P) without oversubscription.
    • Two 1610-4P NVMe Switch adapters installed in the PCIe x16 Slot 1 (Processor 1) and PCIe x16 Slot 6 (Processor 2) that provide four PCIe 3.0 x4 ports each for connections to eight SSDs (four SSDs per 1610-4P) without oversubscription.
    • If the additional 8-bay SAS/SATA backplane is installed, it is connected to a supported internal storage controller installed in the PCIe x8 slot 3.
  • Configurations with 20x 2.5-inch U.2 NVMe PCIe drive bays use the following interfaces and adapters for JBOD (non-RAID) connectivity to up to 20x U.2 NVMe PCIe SSDs (up to eight SSDs per Processor 1, and up to 12 SSDs per Processor 2) without oversubscription:
    • The onboard NVMe interface (Processor 2) that provides four PCIe 3.0 x4 ports for connections to four SSDs without oversubscription.
    • Two 810-4P NVMe Switch adapters installed in the PCIe x8 Slots 4 and 7 (Processor 1) that provide two PCIe 3.0 x4 ports each for connections to four SSDs (two SSDs per 810-4P) without oversubscription.
    • Three 1610-4P NVMe Switch adapters installed in the PCIe x16 Slot 1 (Processor 1) and PCIe x16 Slots 5 and 6 (Processor 2) that provide four PCIe 3.0 x4 ports each for connections to twelve SSDs (four SSDs per 1610-4P) without oversubscription.
  • Configurations with 24x 2.5-inch U.2 NVMe PCIe drive bays use the following interfaces and adapters for balanced JBOD (non-RAID) connectivity to up to 24x U.2 NVMe PCIe SSDs (up to 12 SSDs per processor) with 2:1 oversubscription:
    • One 1610-8P NVMe Switch Adapter installed in the PCIe x16 Slot 1 (Processor 2) that provides eight PCIe 3.0 x4 ports for connections to eight SSDs with 2:1 oversubscription.
    • Four 810-4P NVMe Switch adapters installed in the PCIe x8 Slots 2, 4, and 7 (Processor 1) and PCIe x16 Slot 6 (Processor 2) that provide four PCIe 3.0 x4 ports each for connections to 16 SSDs (four SSDs per 810-4P) with 2:1 oversubscription.
  • In the configurations without GPU installed, the total quantity of the RAID 730-8i 2GB, RAID 930-8i, RAID 930-16i, RAID 930-24i, and RAID 930-8e controllers in the server must not exceed 4 (up to 4 supercapacitors can be mounted in the server).
  • In the configurations with GPU installed, the total quantity of the RAID 730-8i 2GB, RAID 930-8i, RAID 930-16i, RAID 930-24i, and RAID 930-8e controllers in the server must not exceed 3 (up to 3 supercapacitors can be mounted in the server).

For more information about the server configurations with 16/20/24x 2.5-inch U.2 NVMe PCIe drive bays, refer to the NVMe-Rich Configurations of the ThinkSystem SR650 article:
http://lenovopress.com/LP0904

The following table summarizes features of supported SAS/SATA storage controllers.

Table 25. Storage controller features and specifications (LP = Low profile, FHHL = Full-height half-length)
Feature RAID
530-8i		 RAID
530-16i		 RAID
730-8i 1GB		 RAID
730-8i 2GB		 RAID
930-8i		 RAID
930-16i		 RAID
930-24i		 430-8i
HBA		 430-16i
HBA
Form factor PCIe LP PCIe LP PCIe LP PCIe LP PCIe LP PCIe FHHL PCIe LP
SAS controller SAS3408 SAS3416 SAS3108 SAS3108 SAS3508 SAS3516 SAS3508 SAS3408 SAS3416
SAS expander None None None None None SAS35X36R None
Host interface PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8
Port interface 12 Gb SAS 12 Gb SAS 12 Gb SAS 12 Gb SAS
Number of ports 8 16 8 8 8 16 24 8 16
Connector type SFF-8643 x4 SFF-8643 x4 SFF-8643 x4 SFF-8643 x4
Number of connectors 2 4 2 2 2 4 6 2 4
Drive interface SAS, SATA SAS, SATA SAS, SATA SAS, SATA
Drive type HDD, SSD, SED HDD, SSD HDD, SSD, SED HDD, SSD, SED*
Hot-swap drive support Yes Yes Yes Yes
Number of drives 8 16 8 8 8 16 24 8 16
RAID levels 0/1/10/5/50 0/1/10 0/1/10/5/50 0/1/10/5/50/6/60 None
JBOD mode Yes Yes Yes Yes
Cache None 1 GB 2 GB 2 GB 4 GB; 8 GB 4 GB None
Cache protection None None Flash backup (Included) None
SED key management
(SafeStore)		 Yes No Yes No
SSD I/O acceleration
(FastPath)		 Yes No Yes No
SSD Caching
(CacheCade Pro 2.0)		 No No No No
Consistency check Yes Yes Yes No
Patrol read Yes Yes Yes No
Online capacity expansion Yes Yes Yes No
Online RAID level migration Yes Yes Yes No
Global Hot Spare Yes Yes Yes No
Auto-rebuild Yes Yes Yes No

* HBAs do not support key management for SEDs; third-party host software is responsible for managing the keys.
** The SSD caching feature has been phased out in the new generation of advanced RAID controllers.

For more information, see the list of Product Guides in the following categories:

Drives for internal storage

The following tables list drive options for the SR650 server.

Table 26. Drive options for internal storage: 2.5-inch hot-swap drives
Description Part number Feature code Maximum quantity
2.5-inch hot-swap HDDs - 12 Gbps SAS
ThinkSystem 2.5" 300GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00024 AULY 24
ThinkSystem 2.5" 300GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00021 AULV 24
ThinkSystem 2.5" 600GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00025 AULZ 24
ThinkSystem 2.5" 600GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00022 AULW 24
ThinkSystem 2.5" 900GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00026 AUM0 24
ThinkSystem 2.5" 900GB 15K SAS 12Gb Hot Swap 512e HDD 7XB7A00023 AULX 24
ThinkSystem 2.5" 1.2TB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00027 AUM1 24
ThinkSystem 2.5" 1.8TB 10K SAS 12Gb Hot Swap 512e HDD 7XB7A00028 AUM2 24
ThinkSystem 2.5" 2.4TB 10K SAS 12Gb Hot Swap 512e HDD 7XB7A00069 B0YS 24
2.5-inch hot-swap HDDs - 12 Gbps NL SAS
ThinkSystem 2.5" 1TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00034 AUM6 24
ThinkSystem 2.5" 2TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00035 AUM7 24
2.5-inch hot-swap HDDs - 6 Gbps NL SATA
ThinkSystem 2.5" 1TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00036 AUUE 24
ThinkSystem 2.5" 2TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00037 AUUJ 24
2.5-inch hot-swap HDD SEDs - 12 Gbps SAS
ThinkSystem 2.5" 300GB 10K SAS 12Gb Hot Swap 512n HDD SED 7XB7A00030 AUM4 24
ThinkSystem 2.5" 600GB 10K SAS 12Gb Hot Swap 512n HDD SED 7XB7A00031 AUM5 24
ThinkSystem 2.5" 1.2TB 10K SAS 12Gb Hot Swap 512n HDD SED 7XB7A00033 B0YX 24
ThinkSystem 2.5" 2.4TB 10K SAS 12Gb Hot Swap 512e HDD FIPS 7XB7A00070 B0YV 24
2.5-inch hot-swap HDD SEDs - 12 Gbps NL SAS
ThinkSystem 2.5" 2TB 7.2K SAS 12Gb Hot Swap 512e HDD FIPS 7XB7A00064 B0YM 24
2.5-inch hot-swap SSDs - SS530 Performance 12 Gbps SAS
ThinkSystem 2.5" SS530 400GB Performance SAS 12Gb Hot Swap SSD 4XB7A10219 B4Y4 24
ThinkSystem 2.5" SS530 800GB Performance SAS 12Gb Hot Swap SSD 4XB7A10230 B4Y5 24
ThinkSystem 2.5" SS530 1.6TB Performance SAS 12Gb Hot Swap SSD 4XB7A10231 B4Y6 24
ThinkSystem 2.5" SS530 3.2TB Performance SAS 12Gb Hot Swap SSD 4XB7A10232 B4Y7 24
2.5-inch hot-swap SSDs - PM1645 Mainstream 12 Gbps SAS
ThinkSystem 2.5" PM1645 800GB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13653 B4A0 24
ThinkSystem 2.5" PM1645 1.6TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13654 B4A1 24
ThinkSystem 2.5" PM1645 3.2TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13655 B4A2 24
2.5-inch hot-swap SSDs - PM1645a Mainstream 12 Gbps SAS
ThinkSystem 2.5" PM1645a 800GB Mainstream SAS 12Gb Hot Swap SSD 4XB7A17062 B8HU 24
ThinkSystem 2.5" PM1645a 1.6TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A17063 B8J4 24
ThinkSystem 2.5" PM1645a 3.2TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A17064 B8JD 24
2.5-inch hot-swap SSDs - 5100 Mainstream 6 Gbps SATA
ThinkSystem 2.5" 5100 3.84TB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05761 B110 24
2.5-inch hot-swap SSDs - 5200 Mainstream 6 Gbps SATA
ThinkSystem 2.5" 5200 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10237 B488 24
ThinkSystem 2.5" 5200 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10238 B489 24
ThinkSystem 2.5" 5200 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10239 B48A 24
ThinkSystem 2.5" 5200 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10240 B48B 24
ThinkSystem 2.5" 5200 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10241 B48C 24
2.5-inch hot-swap SSDs - 5300 Mainstream 6 Gbps SATA
ThinkSystem 2.5" 5300 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A17087 B8J1 24
ThinkSystem 2.5" 5300 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A17088 B8HY 24
ThinkSystem 2.5" 5300 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A17089 B8J6 24
ThinkSystem 2.5" 5300 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A17090 B8JE 24
ThinkSystem 2.5" 5300 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A17091 B8J7 24
2.5-inch hot-swap SSDs - S4610 Mainstream 6 Gbps SATA
ThinkSystem 2.5" Intel S4610 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13633 B49L 24
ThinkSystem 2.5" Intel S4610 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13634 B49M 24
ThinkSystem 2.5" Intel S4610 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13635 B49N 24
ThinkSystem 2.5" Intel S4610 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13636 B49P 24
ThinkSystem 2.5" Intel S4610 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13637 B49Q 24
2.5-inch hot-swap SSDs - PM1643 Capacity 12 Gbps SAS
ThinkSystem 2.5" PM1643 960GB Capacity SAS 12Gb Hot Swap SSD 4XB7A17168 B6TL 24
ThinkSystem 2.5" PM1643 3.84TB Capacity SAS 12Gb Hot Swap SSD 4XB7A13645 B4A7 24
ThinkSystem 2.5" PM1643 7.68TB Capacity SAS 12Gb Hot Swap SSD 4XB7A13646 B4A6 24
2.5-inch hot-swap SSDs - PM1643a Entry 12 Gbps SAS
ThinkSystem 2.5" PM1643a 960GB Entry SAS 12Gb Hot Swap SSD 4XB7A38175 B91A 24
ThinkSystem 2.5" PM1643a 1.92TB Entry SAS 12Gb Hot Swap SSD 4XB7A38176 B91B 24
ThinkSystem 2.5" PM1643a 3.84TB Entry SAS 12Gb Hot Swap SSD 4XB7A17054 B91C 24
ThinkSystem 2.5" PM1643a 7.68TB Entry SAS 12Gb Hot Swap SSD 4XB7A17055 B91D 24
ThinkSystem 2.5" PM1643a 15.36TB Entry SAS 12Gb Hot Swap SSD 4XB7A17056 BC4R 24
2.5-inch hot-swap SSDs - 5200 Entry 6 Gbps SATA
ThinkSystem 2.5" 5200 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A10153 B2X2 24
ThinkSystem 2.5" 5200 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A10154 B2X3 24
ThinkSystem 2.5" 5200 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A10155 B2X4 24
ThinkSystem 2.5" 5200 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A10156 B2X5 24
ThinkSystem 2.5" 5200 7.68TB Entry SATA 6Gb Hot Swap SSD 4XB7A10157 B2X6 24
2.5-inch hot-swap SSDs - 5210 Entry 6 Gbps SATA
ThinkSystem 2.5" 5210 960GB Entry SATA 6Gb Hot Swap QLC SSD 4XB7A38185 B9AC 24
ThinkSystem 2.5" 5210 1.92TB Entry SATA 6Gb Hot Swap QLC SSD 4XB7A38144 B7EW 24
ThinkSystem 2.5" 5210 3.84TB Entry SATA 6Gb Hot Swap QLC SSD 4XB7A38145 B7EX 24
ThinkSystem 2.5" 5210 7.68TB Entry SATA 6Gb Hot Swap QLC SSD 4XB7A38146 B7EY 24
2.5-inch hot-swap SSDs - 5300 Entry 6 Gbps SATA
ThinkSystem 2.5" 5300 240GB Entry SATA 6Gb Hot Swap SSD 4XB7A17075 B8HV 24
ThinkSystem 2.5" 5300 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A17076 B8JM 24
ThinkSystem 2.5" 5300 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A17077 B8HP 24
ThinkSystem 2.5" 5300 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A17078 B8J5 24
ThinkSystem 2.5" 5300 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A17079 B8JP 24
ThinkSystem 2.5" 5300 7.68TB Entry SATA 6Gb Hot Swap SSD 4XB7A17080 B8J2 24
2.5-inch hot-swap SSDs - PM883 Entry 6 Gbps SATA
ThinkSystem 2.5" PM883 240GB Entry SATA 6Gb Hot Swap SSD 4XB7A10195 B34H 24
ThinkSystem 2.5" PM883 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A10196 B34J 24
ThinkSystem 2.5" PM883 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A10197 B34K 24
ThinkSystem 2.5" PM883 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A10198 B34L 24
ThinkSystem 2.5" PM883 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A10199 B34M 24
ThinkSystem 2.5" PM883 7.68TB Entry SATA 6Gb Hot Swap SSD 4XB7A10200 B4D2 24
2.5-inch hot-swap SSDs - S4500 Entry 6 Gbps SATA
ThinkSystem 2.5" Intel S4500 960GB Entry SATA 6Gb Hot Swap SSD 7SD7A05740 B0Z0 24
2.5-inch hot-swap SSDs - S4510 Entry 6 Gbps SATA
ThinkSystem 2.5" Intel S4510 240GB Entry SATA 6Gb Hot Swap SSD 4XB7A10247 B498 24
ThinkSystem 2.5" Intel S4510 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A10248 B499 24
ThinkSystem 2.5" Intel S4510 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A10249 B49A 24
ThinkSystem 2.5" Intel S4510 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A13622 B49B 24
ThinkSystem 2.5" Intel S4510 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A13623 B49C 24
2.5-inch hot-swap SSDs - Optane P4800X Performance U.2 NVMe PCIe*
ThinkSystem U.2 Intel P4800X 375GB Performance NVMe PCIe 3.0 x4 HS SSD 7N47A00081 AUMJ 24
ThinkSystem U.2 Intel P4800X 750GB Performance NVMe PCIe 3.0 x4 HS SSD 7N47A00083 B2ZJ 24
2.5-inch hot-swap SSDs - CM5-V Mainstream U.2 NVMe PCIe*
ThinkSystem U.2 CM5-V 800GB Mainstream NVMe PCIe 3.0 x4 HS SSD 4XB7A08516 B21W 24
ThinkSystem U.2 CM5-V 1.6TB Mainstream NVMe PCIe 3.0 x4 HS SSD 4XB7A08517 B21X 24
ThinkSystem U.2 CM5-V 3.2TB Mainstream NVMe PCIe 3.0 x4 HS SSD 4XB7A08518 B21Y 24
ThinkSystem U.2 CM5-V 6.4TB Mainstream NVMe PCIe 3.0 x4 HS SSD 4XB7A08519 B2XJ 24
2.5-inch hot-swap SSDs - P4600 Mainstream U.2 NVMe PCIe*
ThinkSystem U.2 Intel P4600 1.6TB Mainstream NVMe PCIe 3.0 x4 HS SSD 7SD7A05772 B11J 24
2.5-inch hot-swap SSDs - P4610 Mainstream U.2 NVMe PCIe*
ThinkSystem U.2 Intel P4610 1.6TB Mainstream NVMe PCIe 3.0 x4 HS SSD 4XB7A13936 B589 24
ThinkSystem U.2 Intel P4610 3.2TB Mainstream NVMe PCIe 3.0 x4 HS SSD 4XB7A13937 B58A 24
ThinkSystem U.2 Intel P4610 6.4TB Mainstream NVMe PCIe 3.0 x4 HS SSD 4XB7A13938 B58B 24
2.5-inch hot-swap SSDs - P4500 Entry U.2 NVMe PCIe*
ThinkSystem U.2 Intel P4500 4.0TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD 7SD7A05777 B11E 24
2.5-inch hot-swap SSDs - P4510 Entry U.2 NVMe PCIe*
ThinkSystem U.2 Intel P4510 1.0TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A10202 B58F 24
ThinkSystem U.2 Intel P4510 2.0TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A10204 B58G 24
ThinkSystem U.2 Intel P4510 4.0TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A10205 B58H 24
ThinkSystem U.2 Intel P4510 8.0TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A08513 B58J 24
2.5-inch hot-swap SSDs - PM963 Entry U.2 NVMe PCIe*
ThinkSystem U.2 PM963 3.84TB Entry 2.5" NVMe PCIe 3.0 x4 Hot Swap SSD 7N47A00985 AUUU 12**
2.5-inch hot-swap SSDs - PM983 Entry U.2 NVMe PCIe*
ThinkSystem U.2 PM983 1.92TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A10175 B34N 24
ThinkSystem U.2 PM983 3.84TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A10176 B34P 24
ThinkSystem U.2 PM983 7.68TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A10177 B4D3 24
2.5-inch hot-swap SSD SEDs - 5200 Mainstream 6 Gbps SATA
ThinkSystem 2.5" 5200 960GB Mainstream SATA 6Gb Hot Swap SSD SED 4XB7A14062 B6K1 24
ThinkSystem 2.5" 5200 1.92TB Mainstream SATA 6Gb Hot Swap SSD SED 4XB7A14063 B6K0 24
ThinkSystem 2.5" 5200 3.84TB Mainstream SATA 6Gb Hot Swap SSD SED 4XB7A13982 B81X 24
2.5-inch hot-swap SSD SEDs - 5200 MAX Mainstream 6 Gbps SATA
ThinkSystem 2.5" 5200 MAX 1.92TB Mainstream SATA 6Gb Hot Swap SSD SED 4XB7A13981 B93J 24
2.5-inch hot-swap SSD SEDs - 5300 Mainstream 6 Gbps SATA
ThinkSystem 2.5" 5300 1.92TB Mainstream SATA 6Gb Hot Swap SSD SED 4XB7A38193 B93K 24
2.5-inch hot-swap SSD SEDs - 5200 Entry 6 Gbps SATA
ThinkSystem 2.5" 5200 480GB Entry SATA 6Gb Hot Swap SSD SED 4XB7A13966 B4G8 24
2.5-inch hot-swap SSD SEDs - 5300 Entry 6 Gbps SATA
ThinkSystem 2.5" 5300 3.84TB Entry SATA 6Gb Hot Swap SSD SED 4XB7A38191 B93L 24
ThinkSystem 2.5" 5300 7.68TB Entry SATA 6Gb Hot Swap SSD SED 4XB7A38192 B93M 24
2.5-inch hot-swap SSD SEDs - CM5-R Entry U.2 NVMe PCIe*
ThinkSystem U.2 CM5-R 3.84TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD SED 4XB7A14060 B6K4 24

* NVMe PCIe SSDs support informed hot removal and hot insertion, provided the operating system supports PCIe SSD hot-swap.
** Not supported in the configurations with 16/20/24x 2.5" U.2 NVMe PCIe drive bays.



Table 27. Drive options for internal storage: 3.5-inch hot-swap drives
Description Part number Feature code Maximum quantity
3.5-inch hot-swap HDDs - 12 Gbps SAS
ThinkSystem 3.5" 300GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00063 B1JJ 14
ThinkSystem 3.5" 300GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00038 AUU2 14
ThinkSystem 3.5" 600GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00039 AUU3 14
ThinkSystem 3.5" 900GB 15K SAS 12Gb Hot Swap 512e HDD 7XB7A00040 AUUC 14
3.5-inch hot-swap HDDs - 12 Gbps NL SAS
ThinkSystem 3.5" 1TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00041 AUU4 14
ThinkSystem 3.5" 2TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00042 AUU5 14
ThinkSystem 3.5" 4TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00043 AUU6 14
ThinkSystem 3.5" 6TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00044 AUU7 14
ThinkSystem 3.5" 8TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00045 B0YR 14
ThinkSystem 3.5" 10TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00046 AUUG 14
ThinkSystem 3.5" 12TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00067 B117 14
ThinkSystem 3.5" 14TB 7.2K SAS 12Gb Hot Swap 512e HDD 4XB7A13906 B496 14
ThinkSystem 3.5" 16TB 7.2K SAS 12Gb Hot Swap 512e HDD 4XB7A13911 B7EZ 14
3.5-inch hot-swap HDDs - 6 Gbps NL SATA
ThinkSystem 3.5" 1TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00049 AUUF 14
ThinkSystem 3.5" 2TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00050 AUUD 14
ThinkSystem 3.5" 4TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00051 AUU8 14
ThinkSystem 3.5" 6TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00052 AUUA 14
ThinkSystem 3.5" 8TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00053 AUU9 14
ThinkSystem 3.5" 10TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00054 AUUB 14
ThinkSystem 3.5" 12TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00068 B118 14
ThinkSystem 3.5" 14TB 7.2K SATA 6Gb Hot Swap 512e HDD 4XB7A13907 B497 14
ThinkSystem 3.5" 16TB 7.2K SATA 6Gb Hot Swap 512e HDD 4XB7A13914 B7F0 14
3.5-inch hot-swap HDD SEDs - 12 Gbps NL SAS
ThinkSystem 3.5" 2TB 7.2K SAS 12Gb Hot Swap 512e HDD FIPS 7XB7A00065 B0YN 14
ThinkSystem 3.5" 4TB 7.2K SAS 12Gb Hot Swap 512n HDD FIPS 7XB7A00047 AUUH 14
ThinkSystem 3.5" 6TB 7.2K SAS 12Gb Hot Swap 512e HDD FIPS 7XB7A00048 B0YP 14
ThinkSystem 3.5" 8TB 7.2K SAS 12Gb Hot Swap 512e HDD FIPS 7XB7A00066 B0YQ 14
3.5-inch hot-swap SSDs - SS530 Performance 12 Gbps SAS
ThinkSystem 3.5" SS530 800GB Performance SAS 12Gb Hot Swap SSD 4XB7A10234 B4Y8 14
ThinkSystem 3.5" SS530 1.6TB Performance SAS 12Gb Hot Swap SSD 4XB7A10235 B4Y9 14
ThinkSystem 3.5" SS530 3.2TB Performance SAS 12Gb Hot Swap SSD 4XB7A10236 B4YA 14
3.5-inch hot-swap SSDs - PM1645 Mainstream 12 Gbps SAS
ThinkSystem 3.5" PM1645 800GB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13657 B4A3 14
ThinkSystem 3.5" PM1645 1.6TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13658 B4A4 14
ThinkSystem 3.5" PM1645 3.2TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13659 B4A5 14
3.5-inch hot-swap SSDs - PM1645a Mainstream 12 Gbps SAS
ThinkSystem 3.5" PM1645a 800GB Mainstream SAS 12Gb Hot Swap SSD 4XB7A17066 B8HT 14
ThinkSystem 3.5" PM1645a 1.6TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A17043 B8JN 14
ThinkSystem 3.5" PM1645a 3.2TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A17067 B8JK 14
3.5-inch hot-swap SSDs - 5100 Mainstream 6 Gbps SATA
ThinkSystem 3.5" 5100 3.84TB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05756 B115 14
3.5-inch hot-swap SSDs - 5200 Mainstream 6 Gbps SATA
ThinkSystem 3.5" 5200 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10242 B48D 14
ThinkSystem 3.5" 5200 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10243 B48E 14
ThinkSystem 3.5" 5200 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10244 B48F 14
ThinkSystem 3.5" 5200 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10245 B48G 14
ThinkSystem 3.5" 5200 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10246 B48H 14
3.5-inch hot-swap SSDs - 5300 Mainstream 6 Gbps SATA
ThinkSystem 3.5" 5300 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A17096 B8JL 14
ThinkSystem 3.5" 5300 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A17097 B8JF 14
ThinkSystem 3.5" 5300 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A17098 B8J0 14
ThinkSystem 3.5" 5300 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A17099 B8HR 14
ThinkSystem 3.5" 5300 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A17100 B8HX 14
3.5-inch hot-swap SSDs - S4610 Mainstream 6 Gbps SATA
ThinkSystem 3.5" Intel S4610 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13639 B49R 14
ThinkSystem 3.5" Intel S4610 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13640 B49S 14
ThinkSystem 3.5" Intel S4610 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13641 B49T 14
ThinkSystem 3.5" Intel S4610 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13642 B49U 14
ThinkSystem 3.5" Intel S4610 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13643 B49V 14
3.5-inch hot-swap SSDs - PM1643 Capacity 12 Gbps SAS
ThinkSystem 3.5" PM1643 3.84TB Capacity SAS 12Gb Hot Swap SSD 4XB7A13649 B4A8 14
3.5-inch hot-swap SSDs - PM1643a Entry 12 Gbps SAS
ThinkSystem 3.5" PM1643a 3.84TB Entry SAS 12Gb Hot Swap SSD 4XB7A17058 B91E 14
3.5-inch hot-swap SSDs - 5200 Entry 6 Gbps SATA
ThinkSystem 3.5" 5200 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A10158 B2X7 14
ThinkSystem 3.5" 5200 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A10159 B2X8 14
ThinkSystem 3.5" 5200 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A10160 B2X9 14
ThinkSystem 3.5" 5200 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A10161 B2XA 14
ThinkSystem 3.5" 5200 7.68TB Entry SATA 6Gb Hot Swap SSD 4XB7A10162 B2XB 14
3.5-inch hot-swap SSDs - 5300 Entry 6 Gbps SATA
ThinkSystem 3.5" 5300 240GB Entry SATA 6Gb Hot Swap SSD 4XB7A17081 B8JB 14
ThinkSystem 3.5" 5300 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A17082 B8J9 14
ThinkSystem 3.5" 5300 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A17083 B8JC 14
ThinkSystem 3.5" 5300 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A17084 B8HZ 14
ThinkSystem 3.5" 5300 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A17085 B8HQ 14
ThinkSystem 3.5" 5300 7.68TB Entry SATA 6Gb Hot Swap SSD 4XB7A17086 B8J3 14
3.5-inch hot-swap SSDs - PM883 Entry 6 Gbps SATA
ThinkSystem 3.5" PM883 240GB Entry SATA 6Gb Hot Swap SSD 4XB7A17176 B6TM 14
ThinkSystem 3.5" PM883 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A17177 B6TN 14
ThinkSystem 3.5" PM883 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A17178 B6TP 14
ThinkSystem 3.5" PM883 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A17179 B6JY 14
ThinkSystem 3.5" PM883 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A17180 B6JZ 14
3.5-inch hot-swap SSDs - S4500 Entry 6 Gbps SATA
ThinkSystem 3.5" Intel S4500 960GB Entry SATA 6Gb Hot Swap SSD 7SD7A05735 B0Z5 14
3.5-inch hot-swap SSDs - S4510 Entry 6 Gbps SATA
ThinkSystem 3.5" Intel S4510 240GB Entry SATA 6Gb Hot Swap SSD 4XB7A13625 B49D 14
ThinkSystem 3.5" Intel S4510 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A13626 B49E 14
ThinkSystem 3.5" Intel S4510 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A13627 B49F 14
ThinkSystem 3.5" Intel S4510 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A13628 B49G 14
ThinkSystem 3.5" Intel S4510 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A13629 B49H 14
3.5-inch hot-swap SSDs - CM5-V Mainstream NVMe PCIe*
ThinkSystem 3.5" CM5-V 800GB Mainstream NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A08532 B21Z 4
ThinkSystem 3.5" CM5-V 1.6TB Mainstream NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A08533 B220 4
ThinkSystem 3.5" CM5-V 3.2TB Mainstream NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A08534 B221 4
ThinkSystem 3.5" CM5-V 6.4TB Mainstream NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A08535 B2XK 4
3.5-inch hot-swap SSDs - P4600 Mainstream NVMe PCIe*
ThinkSystem 3.5" Intel P4600 1.6TB Mainstream NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A08528 B2XF 4
3.5-inch hot-swap SSDs - P4610 Mainstream NVMe PCIe*
ThinkSystem 3.5" Intel P4610 1.6TB Mainstream NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A13944 B58C 4
ThinkSystem 3.5" Intel P4610 3.2TB Mainstream NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A13945 B58D 4
ThinkSystem 3.5" Intel P4610 6.4TB Mainstream NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A13946 B58E 4
3.5-inch hot-swap SSDs - PM963 Entry NVMe PCIe*
ThinkSystem 3.5" PM963 3.84TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD 7N47A00988 AUVZ 4
3.5-inch hot-swap SSDs - PM983 Entry NVMe PCIe*
ThinkSystem 3.5" PM983 1.92TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A10178 B34Q 4
ThinkSystem 3.5" PM983 3.84TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A10179 B34R 4
ThinkSystem 3.5" PM983 7.68TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD 4XB7A10180 B4D4 4

* NVMe PCIe SSDs support informed hot removal and hot insertion, provided the operating system supports PCIe SSD hot-swap.

Table 28. Drive options for internal storage: M.2 non-hot-swap drives
Description Part number Feature code Maximum quantity
ThinkSystem M.2 32GB SATA 6Gbps Non-Hot-Swap SSD 7N47A00129 AUUL 2
ThinkSystem M.2 128GB SATA 6Gbps Non-Hot-Swap SSD 7N47A00130 AUUV 2
ThinkSystem M.2 5100 240GB SATA 6Gbps Non-Hot Swap SSD 4XB7A14049 B5S4 2
ThinkSystem M.2 5300 240GB SATA 6Gbps Non-Hot Swap SSD 4XB7A17071 B8HS 2
ThinkSystem M.2 5100 480GB SATA 6Gbps Non-Hot-Swap SSD 7SD7A05703 B11V 2
ThinkSystem M.2 5300 480GB SATA 6Gbps Non-Hot Swap SSD 4XB7A17073 B919 2

Configuration note: The M.2 5100 and 5300 SATA 6Gbps Non-Hot Swap SSDs may require the SSD Thermal Kit (4XH7A08791) (see Cooling for details).

For general portable storage needs, the SR650 server also supports the USB memory key option that is listed in the following table.

Table 29. USB memory key
Description Part number Feature code Maximum quantity
32GB Enterprise Value USB Memory Key 00ML200 None* 1

* Field upgrade only.

Optical drives

The SR650 server supports the external USB optical drive option listed in the following table.

Table 30. Optical drive
Description Part number Feature code Maximum quantity
ThinkSystem External USB DVD RW Optical Disk Drive 7XA7A05926 AVV8 1

The External USB DVD RW Optical Disk Drive supports the following types of media: CD-ROM, CD-R, CD-RW, DVD-R, DVD+R, DVD-ROM, DVD-RW, and DVD+RW.

I/O expansion

The SR650 server supports one LOM card slot and up to seven PCIe slots: one slot on the system planar that is dedicated to an internal storage controller, one regular PCIe slot on the system planar, and up to five PCIe slots with different riser cards installed into two riser sockets on the system planar (one riser socket supports installation of one riser card).

The slot form factors are as follows:

  • LOM card slot
  • Slot 1: PCIe 3.0 x16 or PCIe 3.0 x8; full-height, half-length (PCIe x16 slot can be single- or double-wide)
  • Slot 2: PCIe 3.0 x8; full-height, half-length (not present if Slot 1 is PCIe x16 double-wide or Slot 3 is ML2 x16)
  • Slot 3: PCIe 3.0 x8, or PCIe 3.0 x16, or ML2 x8, or ML2 x16; full-height, half-length
  • Slot 4: PCIe 3.0 x8; low profile (vertical slot on system planar)
  • Slot 5: PCIe 3.0 x16; full-height, half-length
  • Slot 6: PCIe 3.0 x16; full-height, half-length
  • Slot 7: PCIe 3.0 x8 (for an internal storage controller)

Configuration notes:

  • Slots 5 and 6 require the second processor to be installed.
  • Single-wide PCIe 3.0 x16 Slot 1 requires the second processor to be installed.
  • The following configurations require the single-wide PCIe 3.0 x16 Slot 1:
    • 24 NVMe PCIe drive bays.
    • Two double-wide GPUs and one PCIe x16 adapter.
  • Slots 1 - 3 are not present if the Rear HDD Kit is installed.
  • Slots 1, 5, and 6 can be enabled for full-length PCIe adapters (such as GPU adapters):
    • Factory-installed GPUs: When a GPU adapter is selected, all required parts are derived.
    • Factory-enabled full-length support (no adapters included): Select the feature code B3RY, and all required parts will be derived based on the number of processors and PCIe riser cards selected.
    • Field upgrades: Refer to Cooling for upgrade kit requirements.

The locations of the PCIe slots are shown in the following figure.

Slot locations
Figure 11. Slot locations

Riser 1 supplies slots 1, 2, and 3, and Riser 2 supplies slots 5 and 6. The slots that are available for use depend on the number of riser cards that are installed and whether the second processor is installed, as shown in the following table.

Table 31. Slots available for use
Riser Card 1 Riser Card 2 Slots available for use
Processor 1 Processor 2
None None LOM, 4, 7 -
None PCIe x16/x16 LOM, 4, 7 5, 6
PCIe x8/x8/x8 or PCIe x8/x8/x8ML2 None LOM, 1, 2, 3, 4, 7 -
PCIe x16/x8 or PCIe x8/x16ML2 None LOM, 1, 3, 4, 7 -
PCIe x8/x8/x8 or PCIe x8/x8/x8ML2 PCIe x16/x16 LOM, 1, 2, 3, 4, 7 5, 6
PCIe x16/x8 or PCIe x8/x16ML2 PCIe x16/x16 LOM, 1, 3, 4, 7 5, 6
PCIe x16/x8/x16 PCIe x16/x16 LOM, 2, 3, 4, 7 1, 5, 6


The following table lists available PCIe riser card options.

Table 32. PCIe riser cards and miscellaneous options
Description Part number Feature code Maximum quantity
x8 Riser Card 1 options (Riser card 1 supplies slots 1, 2, and 3)
ThinkSystem 2U x8/x8/x8 PCIe FH Riser 1 7XH7A02677 AUR4 1
ThinkSystem 2U x8/x8/x8ML2 PCIe FH Riser 1 7XH7A02680 AUR7 1
ThinkSystem SR650 x16/x8/x16 PCIe FH Riser 1 4XH7A09902 B4PB 1
x16 Riser Card 1 options (Riser card 1 supplies slots 1 and 3)
ThinkSystem 2U x16/x8 PCIe FH Riser 1 7XH7A02678 AUR3 1
ThinkSystem SR650 x8/x16ML2 PCIe FH Riser 1 Kit 7XH7A02681 AURB 1
Riser Card 2 option (Riser card 2 supplies slots 5 and 6)
ThinkSystem SR550/SR650 (x16/x8)/(x16/x16) PCIe FH Riser 2 Kit 7XH7A02679 AURC 1
Serial port upgrade kit
ThinkSystem COM Port Upgrade Kit 7Z17A02577 AUSL 1

Configuration notes:

  • If the PCIe x16/x8/x16 Riser Card (4XH7A09902) is installed, the onboard NVMe interface cannot be used for connections to U.2 NVMe or AnyBay drive bays.
  • In the configurations with 16x 2.5-inch U.2 NVMe PCIe drive bays, the PCIe 3.0 x8 Slot 3 and PCIe 3.0 x16 Slot 5 are available, and the remaining slots are occupied by the NVMe switch adapters.
    Note: If the additional 8-bay SAS/SATA backplane is installed, only the PCIe 3.0 x16 Slot 5 is available (the PCIe 3.0 x8 Slot 3 is occupied by an internal storage controller).
  • In the configurations with 20x 2.5-inch U.2 NVMe PCIe drive bays, the PCIe 3.0 x8 Slot 3 is available, and the remaining slots are occupied by the NVMe switch adapters.
  • In the configurations with 24x 2.5-inch U.2 NVMe PCIe drive bays, the PCIe 3.0 x16 Slots 3 and 5 are available, and the remaining slots are occupied by the NVMe switch adapters.
  • The COM Port Upgrade Kit, part number 7Z17A02577, is used for mounting the external serial port on the rear of the SR650 server, and it includes the bracket and the cable. The COM Port option is mounted in place of one of the PCIe slots 1 - 6, and that PCIe slot cannot be used.

Network adapters

The SR650 server supports up to four onboard network ports with optional LOM cards that use the Intel Ethernet Connection X722 1/10 GbE technology integrated into the Intel C624 Platform Controller Hub (PCH). The server also supports ML2 adapters that are installed in the custom ML2 slot provided by an ML2 riser card. The LOM cards and ML2 network adapters support direct connectivity to the XClarity Controller via the Network Controller Sideband Interface (NSCI) for out-of-band systems management.

The integrated Intel Ethernet Connection X722 has the following features:

  • Four 1/10 Gb Ethernet capable ports (no 10/100 Mb Ethernet support)
  • NIC Teaming (load balancing and failover)
  • Data Center Bridging
  • iWARP (RDMA over IP)
  • VMDq and SR-IOV virtualization (10 Gb speeds only, 4 PFs, 128 VFs per device)
  • IEEE 802.1q Virtual Local Area Networks (VLANs)
  • NVGRE, VXLAN, IPinGRE, and MACinUDP network virtualization
  • IEEE 802.1Qbg Edge Virtual Bridging
  • TCP, IP, and UDP checksum offload
  • Large Send Offload (LSO) and Generic Send Offload (GSO)
  • Receive Side Scaling (RSS) for TCP and UDP traffic
  • Jumbo frames up to 9.5 Kbytes

The following table lists the network adapters that are supported with the SR650 server.

Table 33. Network adapters
Description Part number Feature code Max
qty#		 I/O slots supported
LOM cards - 1 Gb Ethernet
ThinkSystem 1Gb 2-port RJ45 LOM 7ZT7A00544 AUKG 1 LOM slot
ThinkSystem 1Gb 4-port RJ45 LOM 7ZT7A00545 AUKH 1 LOM slot
LOM cards - 10 Gb Ethernet
ThinkSystem 10Gb 2-port Base-T LOM 7ZT7A00548 AUKL 1 LOM slot
ThinkSystem 10Gb 2-port SFP+ LOM 7ZT7A00546 AUKJ 1* LOM slot
ThinkSystem 10Gb 4-port Base-T LOM 7ZT7A00549 AUKM 1 LOM slot
ThinkSystem 10Gb 4-port SFP+ LOM 7ZT7A00547 AUKK 1* LOM slot
ML2 adapters - 10 Gb Ethernet
Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter 7ZT7A00497 AUKQ 1 3 (ML2)
Emulex VFA5.2 ML2 Dual Port 10GbE SFP+ Adapter 00AG560 AT7U 1* 3 (ML2)
Emulex VFA5.2 ML2 2x10 GbE SFP+ Adapter and FCoE/iSCSI SW 01CV770 AU7Z 1* 3 (ML2)
Intel X710-DA2 ML2 2x10GbE SFP+ Adapter 00JY940 ATRH 1* 3 (ML2)
ML2 adapters - 25 Gb Ethernet
Mellanox ConnectX-4 Lx 10/25GbE SFP28 1-port ML2 Ethernet Adapter 00MN990 ATZR 1* 3 (ML2)
Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port ML2 Ethernet Adapter 7ZT7A00507 AUKU 1* 3 (ML2)
ML2 adapters - FDR InfiniBand
Mellanox ConnectX-3 Pro ML2 FDR 2-Port QSFP VPI Adapter 7ZT7A00501 AUKR 1* 3 (ML2)
PCIe Low Profile adapters - 1 Gb Ethernet
Broadcom 5720 1GbE RJ45 2-Port PCIe Ethernet Adapter 7ZT7A00482 AUZX 4 / 6 4, 2, 6, 3, 5, 1
Broadcom 5719 1GbE RJ45 4-Port PCIe Ethernet Adapter 7ZT7A00484 AUZV 4 / 6 4, 2, 6, 3, 5, 1
ThinkSystem I350-F1 PCIe 1Gb 1-Port SFP Ethernet Adapter 7ZT7A00533 AUZZ 4 / 6 4, 2, 6, 3, 5, 1
ThinkSystem I350-T2 PCIe 1Gb 2-Port RJ45 Ethernet Adapter 7ZT7A00534 AUZY 4 / 6 4, 2, 6, 3, 5, 1
ThinkSystem I350-T4 PCIe 1Gb 4-Port RJ45 Ethernet Adapter 7ZT7A00535 AUZW 4 / 6 4, 2, 6, 3, 5, 1
PCIe Low Profile adapters - 10 Gb Ethernet
Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter 7ZT7A00496 AUKP 4 / 6 4, 2, 6, 3, 5, 1
Emulex VFA5.2 2x10 GbE SFP+ PCIe Adapter 00AG570 AT7S 4 / 6* 4, 2, 6, 3, 5, 1
Emulex VFA5.2 2x10 GbE SFP+ Adapter and FCoE/iSCSI SW 00AG580 AT7T 4 / 6* 4, 2, 6, 3, 5, 1
Intel X550-T2 Dual Port 10GBase-T Adapter 00MM860 ATPX 4 / 6 4, 2, 6, 3, 5, 1
Intel X710-DA2 PCIe 10Gb 2-Port SFP+ Ethernet Adapter 7ZT7A00537 AUKX 4 / 6* 4, 2, 6, 3, 5, 1
QLogic QL41134 PCIe 10Gb 4-Port Base-T Ethernet Adapter 4XC7A08225 B31G 4 / 6 4, 2, 6, 3, 5, 1
PCIe Full Height adapters - 10 Gb Ethernet
Emulex OCe14104B-NX PCIe 10Gb 4-Port SFP+ Ethernet Adapter 7ZT7A00493 AUKN 3 / 5* 2, 6, 3, 5, 1
PCIe Low Profile adapters - 25 Gb Ethernet
Broadcom 57412 10/25GbE SFP28 1-Port PCIe Ethernet Adapter 7ZT7A00505 AUKS 4 / 6* 4, 2, 6, 3, 5, 1
Broadcom 57414 10/25GbE SFP28 2-port PCIe Ethernet Adapter 4XC7A08238 B5T0 4 / 6* 4, 2, 6, 3, 5, 1
Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter 7XC7A05523 B0WY 4 / 6* 4, 2, 6, 3, 5, 1
Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-Port PCIe Ethernet Adapter 01GR250 AUAJ 4 / 6* 4, 2, 6, 3, 5, 1
Mellanox Innova-2 ConnectX-5 FPGA 25GbE 2-port Adapter 4XC7A16683 B5XZ 1 / 3* 1, 5, 6†
QLogic QL41262 10/25GbE SFP28 2-Port PCIe Ethernet Adapter 4XC7A08228 B21R 4 / 6* 4, 2, 6, 3, 5, 1
PCIe Low Profile adapters - 40 Gb Ethernet
Mellanox ConnectX-4 Lx 1x40GbE QSFP+ Adapter 00MM950 ATRN 4 / 6* 4, 2, 6, 3, 5, 1
Mellanox ConnectX-5 Ex 25/40GbE 2-port Low-Latency Adapter 4XC7A08229 B31C 1 / 3*^ 1, 5, 6†
PCIe Low Profile adapters - FDR InfiniBand
Mellanox ConnectX-4 PCIe FDR 1-Port QSFP VPI Adapter 7XC7A05524 B0WX 4 / 6* 4, 2, 6, 3, 5, 1
Mellanox ConnectX-4 PCIe FDR 2-Port QSFP VPI Adapter 7ZT7A00500 AUVG 4 / 6* 4, 2, 6, 3, 5, 1
PCIe x16 Low Profile adapters - 100 Gb Ethernet / EDR InfiniBand
Mellanox ConnectX-4 1x100GbE/EDR IB QSFP28 VPI Adapter 00KH924 ASWQ 1 / 3* 1, 5, 6†
Mellanox ConnectX-4 2x100GbE/EDR IB QSFP28 VPI Adapter 00MM960 ATRP 1 / 3* 1, 5, 6†
PCIe x16 Low Profile adapters - HDR InfiniBand
Mellanox ConnectX-6 HDR QSFP56 1-port PCIe 4 InfiniBand Adapter 4C57A15326 B4RC 1 / 1* 1†‡
Mellanox HDR/200GbE 2x PCIe Aux Kit 4C57A14179 B4RB 1 / 1* 5, 6†‡
Mellanox ConnectX-6 HDR100 QSFP56 1-port PCIe InfiniBand Adapter 4C57A14177 B4R9 1 / 3* 1, 5, 6†
Mellanox ConnectX-6 HDR100 QSFP56 2-port PCIe InfiniBand Adapter 4C57A14178 B4RA 1 / 3* 1, 5, 6†
PCIe Low Profile adapters - Omni-Path
Intel OPA 100 Series Single-port PCIe 3.0 x8 HFA 00WE023 AU0A 4 / 6* 4, 2, 6, 3, 5, 1
Intel OPA 100 Series Single-port PCIe 3.0 x16 HFA 00WE027 AU0B 1 / 3* 1, 5, 6†

# The maximum quantity shown is with one processor / two processors (this does not apply to LOM cards and ML2 adapters).
* The adapter comes without transceivers or cables; for ordering transceivers or cables, see the configuration notes below the table.
† The adapter is supported in the PCIe x16 slots supplied by the riser cards 1 and 2.
^ The 25 GbE connectivity requires the optional Mellanox QSA 100G to 25G Cable Adapter (4G17A10853) (one per port); the supported cables include 25 GbE passive DAC and active optical cables (25 GbE transceivers not supported) (see Transceivers and cables for 25 GbE SFP28 adapters for details).
‡ The ConnectX-6 HDR adapter is supported only in the configurations with two processors, and it requires the HDR/200GbE 2x PCIe Aux Kit.

Configuration notes:

The following table lists cables for the 10 GbE and 1 GbE RJ-45 adapters.

Table 34. Cables for 10 GbE and 1 GbE RJ-45 adapters
Description Part number Feature code
UTP Category 6 cables (Green) for 10 GbE and 1 GbE RJ-45 adapters
0.75m Cat6 Green Cable 00WE123 AVFW
1.0m Cat6 Green Cable 00WE127 AVFX
1.25m Cat6 Green Cable 00WE131 AVFY
1.5m Cat6 Green Cable 00WE135 AVFZ
3m Cat6 Green Cable 00WE139 AVG0
10m Cat6 Green Cable 90Y3718 A1MT
25m Cat6 Green Cable 90Y3727 A1MW
UTP Category 5e cables (Blue) for 1 GbE RJ-45 adapters
0.75m Blue Cat5e Cable 00WE111 AVFT
1.0m Blue Cat5e Cable 00WE115 AVFU
1.25m Blue Cat5e Cable 00WE119 AVFV
3m Blue Cat5e Cable 40K5581 3803
10m Blue Cat5e Cable 40K8927 3804
25m Blue Cat5e Cable 40K8930 3805
UTP Category 5e cables (Green) for 1 GbE RJ-45 adapters
0.75m Green Cat5e Cable 00WE099 AVFQ
1.0m Green Cat5e Cable 00WE103 AVFR
1.25m Green Cat5e Cable 00WE107 AVFS
1.5m Green Cat5e Cable 40K5643 3797
3m Green Cat5e Cable 40K5793 3798
10m Green Cat5e Cable 40K5794 3799
25m Green Cat5e Cable 40K8869 3800

The following table lists transceivers and cables for the 10 GbE SFP+ adapters.

Table 35. Transceivers and cables for 10 GbE SFP+ adapters
Description Part number Feature code
10 GbE SFP+ SR transceivers for 10 GbE SFP+ adapters
Lenovo 10GBASE-SR SFP+ Transceiver 46C3447 5053
Lenovo 10GBASE-LR SFP+ Transceiver 00FE331 B0RJ
Optical cables for 10 GbE SFP+ SR transceivers
Lenovo 0.5m LC-LC OM3 MMF Cable 00MN499 ASR5
Lenovo 1m LC-LC OM3 MMF Cable 00MN502 ASR6
Lenovo 3m LC-LC OM3 MMF Cable 00MN505 ASR7
Lenovo 5m LC-LC OM3 MMF Cable 00MN508 ASR8
Lenovo 10m LC-LC OM3 MMF Cable 00MN511 ASR9
Lenovo 15m LC-LC OM3 MMF Cable 00MN514 ASRA
Lenovo 25m LC-LC OM3 MMF Cable 00MN517 ASRB
Lenovo 30m LC-LC OM3 MMF Cable 00MN520 ASRC
Passive SFP+ DAC cables for 10 GbE SFP+ adapters
Lenovo 0.5m Passive SFP+ DAC Cable 00D6288 A3RG
Lenovo 1m Passive SFP+ DAC Cable 90Y9427 A1PH
Lenovo 1.5m Passive SFP+ DAC Cable 00AY764 A51N
Lenovo 2m Passive SFP+ DAC Cable 00AY765 A51P
Lenovo 3m Passive SFP+ DAC Cable 90Y9430 A1PJ
Lenovo 5m Passive SFP+ DAC Cable 90Y9433 A1PK
Lenovo 7m Passive SFP+ DAC Cable 00D6151 A3RH
Active SFP+ DAC cables for 10 GbE SFP+ adapters*
Lenovo 1m Active DAC SFP+ Cable 00VX111 AT2R
Lenovo 3m Active DAC SFP+ Cable 00VX114 AT2S
Lenovo 5m Active DAC SFP+ Cable 00VX117 AT2T
SFP+ active optical cables for 10 GbE SFP+ adapters
Lenovo 1m SFP+ to SFP+ Active Optical Cable 00YL634 ATYX
Lenovo 3m SFP+ to SFP+ Active Optical Cable 00YL637 ATYY
Lenovo 5m SFP+ to SFP+ Active Optical Cable 00YL640 ATYZ
Lenovo 7m SFP+ to SFP+ Active Optical Cable 00YL643 ATZ0
Lenovo 15m SFP+ to SFP+ Active Optical Cable 00YL646 ATZ1
Lenovo 20m SFP+ to SFP+ Active Optical Cable 00YL649 ATZ2

* The Emulex VFA5.2 ML2 (00AG560 and 01CV770) and PCIe (00AG570 and 00AG580) network adapters do not support active SFP+ DAC cables.

The following table lists transceivers and cables for the 25 GbE SFP28 adapters.

Table 36. Transceivers and cables for 25 GbE SFP28 adapters
Description Part number Feature code
25 GbE SFP28 SR transceivers for 25 GbE SFP28 adapters
Lenovo 25GBase-SR SFP28 Transceiver 7G17A03537 AV1B
Optical cables for 25 GbE SFP28 SR transceivers
Lenovo 0.5m LC-LC OM3 MMF Cable 00MN499 ASR5
Lenovo 1m LC-LC OM3 MMF Cable 00MN502 ASR6
Lenovo 3m LC-LC OM3 MMF Cable 00MN505 ASR7
Lenovo 5m LC-LC OM3 MMF Cable 00MN508 ASR8
Lenovo 10m LC-LC OM3 MMF Cable 00MN511 ASR9
Lenovo 15m LC-LC OM3 MMF Cable 00MN514 ASRA
Lenovo 25m LC-LC OM3 MMF Cable 00MN517 ASRB
Lenovo 30m LC-LC OM3 MMF Cable 00MN520* ASRC*
Passive copper cables for 25 GbE SFP28 network adapters
Lenovo 1m Passive 25G SFP28 DAC Cable 7Z57A03557* AV1W*
Lenovo 3m Passive 25G SFP28 DAC Cable 7Z57A03558 AV1X
Lenovo 5m Passive 25G SFP28 DAC Cable 7Z57A03559 AV1Y
Active optical cables for 25 GbE SFP28 network adapters*
Lenovo 3m 25G SFP28 Active Optical Cable 7Z57A03541 AV1F
Lenovo 5m 25G SFP28 Active Optical Cable 7Z57A03542 AV1G
Lenovo 10m 25G SFP28 Active Optical Cable 7Z57A03543 AV1H
Lenovo 15m 25G SFP28 Active Optical Cable 7Z57A03544 AV1J
Lenovo 20m 25G SFP28 Active Optical Cable 7Z57A03545 AV1K

* Not supported with the Intel XXV710-DA2 PCIe 25Gb 2-Port SFP28 Ethernet Adapter (7XC7A05523).

The following table lists transceivers and cables for the 40 GbE QSFP+ adapters.

Table 37. Transceivers and cables for 40 GbE QSFP+ adapters
Description Part number Feature code
40 GbE QSFP+ transceivers for 40 GbE network adapters
Lenovo 40GBASE-SR4 QSFP+ Transceiver 49Y7884 A1DR
Optical cables for 40 GbE QSFP+ SR4 transceivers
Lenovo 10m QSFP+ MPO-MPO OM3 MMF Cable 00VX003 AT2U
Lenovo 30m QSFP+ MPO-MPO OM3 MMF Cable 00VX005 AT2V
Passive DAC cables for 40 GbE QSFP+ network adapters
Lenovo 1m Passive QSFP+ DAC Cable 49Y7890 A1DP
Lenovo 3m Passive QSFP+ DAC Cable 49Y7891 A1DQ
Lenovo 5m Passive QSFP+ DAC Cable 00D5810 A2X8
Lenovo 7m Passive QSFP+ DAC Cable 00D5813 A2X9
Active optical cables for 40 GbE QSFP+ network adapters
Lenovo 1m QSFP+ to QSFP+ Active Optical Cable 7Z57A04256 AX42
Lenovo 3m QSFP+ to QSFP+ Active Optical Cable 00YL652 ATZ3
Lenovo 5m QSFP+ to QSFP+ Active Optical Cable 00YL655 ATZ4
Lenovo 7m QSFP+ to QSFP+ Active Optical Cable 00YL658 ATZ5
Lenovo 15m QSFP+ to QSFP+ Active Optical Cable 00YL661 ATZ6
Lenovo 20m QSFP+ to QSFP+ Active Optical Cable 00YL664 ATZ7
25 GbE SFP28 cable adapter for 40 GbE QSFP+ network adapters
Mellanox 100G QSFP28 to 25G SFP28 Cable Adapter 4G17A10853 B306

The following table lists cables for the Mellanox FDR InfiniBand QSFP adapters.

Table 38. Cables for Mellanox FDR InfiniBand QSFP adapters
Description Part number Feature code
Passive copper cables for Mellanox FDR InfiniBand QSFP adapters
0.75m Mellanox QSFP Passive DAC Cable 00KF002 ARZB
1m Mellanox QSFP Passive DAC Cable 00KF003 ARZC
1.25m Mellanox QSFP Passive DAC Cable 00KF004 ARZD
1.5m Mellanox QSFP Passive DAC Cable 00KF005 ARZE
3m Mellanox QSFP Passive DAC Cable 00KF006 ARZF
Active optical cables for Mellanox FDR InfiniBand QSFP adapters
3m Mellanox IB FDR Active Optical Fiber Cable 00KF007 ARYC
5m Mellanox IB FDR Active Optical Fiber Cable 00KF008 ARYD
10m Mellanox IB FDR Active Optical Fiber Cable 00KF009 ARYE
15m Mellanox IB FDR Active Optical Fiber Cable 00KF010 ARYF
20m Mellanox IB FDR Active Optical Fiber Cable 00KF011 ARYG
30m Mellanox IB FDR Active Optical Fiber Cable 00KF012 ARYH

The following table lists transceivers and cables for the 100 GbE QSFP28 network adapters.

Table 39. Transceivers and cables for 100 GbE QSFP28 network adapters
Description Part number Feature code
100 GbE QSFP28 transceivers for 100 GbE QSFP28 network adapters
Lenovo 100GBase-SR4 QSFP28 Transceiver 7G17A03539 AV1D
Optical cables for 100 GbE QSFP28 SR4 transceivers
Lenovo 5m MPO-MPO OM4 MMF Cable 7Z57A03567 AV25
Lenovo 10m MPO-MPO OM4 MMF Cable 7Z57A03569 AV27
Lenovo 20m MPO-MPO OM4 MMF Cable 7Z57A03571 AV29
Optical breakout cables for 100 GbE QSFP28 SR4 transceivers
Lenovo 1m MPO-MPO Breakout OM4 MMF Cable 7Z57A03573 AV2B
Lenovo 3m MPO-MPO Breakout OM4 MMF Cable 7Z57A03574 AV2C
Lenovo 5m MPO-MPO Breakout OM4 MMF Cable 7Z57A03575 AV2D
Passive copper cables for 100 GbE QSFP28 network adapters
Lenovo 1m Passive 100G QSFP28 DAC Cable 7Z57A03561 AV1Z
Lenovo 3m Passive 100G QSFP28 DAC Cable 7Z57A03562 AV20
Lenovo 5m Passive 100G QSFP28 DAC Cable 7Z57A03563 AV21
Passive copper breakout cables for 100 GbE QSFP28 network adapters
Lenovo 1m 100G QSFP28 to 4x25G SFP28 Breakout DAC Cable 7Z57A03564 AV22
Lenovo 3m 100G QSFP28 to 4x25G SFP28 Breakout DAC Cable 7Z57A03565 AV23
Lenovo 5m 100G QSFP28 to 4x25G SFP28 Breakout DAC Cable 7Z57A03566 AV24
Active optical cables for 100 GbE QSFP28 network adapters
Lenovo 3m 100G QSFP28 Active Optical Cable 7Z57A03546 AV1L
Lenovo 5m 100G QSFP28 Active Optical Cable 7Z57A03547 AV1M
Lenovo 10m 100G QSFP28 Active Optical Cable 7Z57A03548 AV1N
Lenovo 15m 100G QSFP28 Active Optical Cable 7Z57A03549 AV1P
Lenovo 20m 100G QSFP28 Active Optical Cable 7Z57A03550 AV1Q

The following table lists cables for the Mellanox EDR InfiniBand QSFP28 adapters.

Table 40. Cables for Mellanox EDR InfiniBand QSFP28 adapters
Description Part number Feature code
Passive copper cables for Mellanox EDR InfiniBand QSFP28 adapters*
0.5m Mellanox EDR IB Passive Copper QSFP28 Cable 00MP516 ASQT
0.75m Mellanox EDR IB Passive Copper QSFP28 Cable 00MP520 ASQU
1m Mellanox EDR IB Passive Copper QSFP28 Cable 00MP524 ASQV
1.25m Mellanox EDR IB Passive Copper QSFP28 Cable 00MP528 ASQW
1.5m Mellanox EDR IB Passive Copper QSFP28 Cable 00MP532 ASQX
2m Mellanox EDR IB Passive Copper QSFP28 Cable 00MP536 ASQY
3m Mellanox EDR IB Passive Copper QSFP28 Cable 00MP560 ASRM
Active optical cables for Mellanox EDR InfiniBand QSFP28 adapters*
3m Mellanox EDR IB Active Optical QSFP28 Cable 00MP563 ASRN
5m Mellanox EDR IB Active Optical QSFP28 Cable 00MP540 ASQZ
10m Mellanox EDR IB Active Optical QSFP28 Cable 00MP544 ASR0
15m Mellanox EDR IB Active Optical QSFP28 Cable 00MP548 ASR1
20m Mellanox EDR IB Active Optical QSFP28 Cable 00MP552 ASR2
30m Mellanox EDR IB Active Optical QSFP28 Cable 00MP556 ASR3
50m Mellanox EDR IB Active Optical QSFP28 Cable 00MP566 ASRP

* The Mellanox ConnectX-4 2x100GbE/EDR IB QSFP28 VPI Adapter (00MM960) supports only a subset of the EDR InfiniBand cables listed in the table: 00MP516, 00MP524, 00MP536, and 00MP544.

The following table lists cables for the Intel Omni-Path QSFP28 adapters.

Table 41. Cables for Intel Omni-Path QSFP28 adapters
Description Part number Feature code
Passive copper cables for Intel Omni-Path QSFP28 adapters
0.5m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE031 AU0E
0.75m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE035 AU0F
1m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE039 AU0G
1.25m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE043 AU0H
1.5m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE047 AU0J
2m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE051 AU0K
Active optical cables for Intel Omni-Path QSFP28 adapters
5m Intel OPA 100 Series Active Optical QSFP28 Cable 00WE059 AU0M
15m Intel OPA 100 Series Active Optical QSFP28 Cable 00WE067 AU0P
20m Intel OPA 100 Series Active Optical QSFP28 Cable 00WE071 AU0Q
Active optical low-power cables for Intel Omni-Path QSFP28 adapters
5m Intel OPA 100 Series Active Optical QSFP28 Low Power Cable 4X97A11034 B22J
10m Intel OPA 100 Series Active Optical QSFP28 Low Power Cable 4X97A11035 B22K
15m Intel OPA 100 Series Active Optical QSFP28 Low Power Cable 4X97A11036 B22L
20m Intel OPA 100 Series Active Optical QSFP28 Low Power Cable 4X97A11037 B22M

The following table lists cables for the Mellanox HDR InfiniBand QSFP56 adapters.

Table 42. Mellanox HDR InfiniBand QSFP56 adapters
Description Part number Feature code
Passive copper cables for Mellanox HDR InfiniBand QSFP56 adapters
0.5m Mellanox HDR IB Passive Copper QSFP56 Cable 4Z57A14182 B4QQ
1m Mellanox HDR IB Passive Copper QSFP56 Cable 4Z57A14183 B4QR
1.5m Mellanox HDR IB Passive Copper QSFP56 Cable 4Z57A14184 B4QS
2m Mellanox HDR IB Passive Copper QSFP56 Cable 4Z57A14185 B4QT
Active optical cables for Mellanox HDR InfiniBand QSFP56 adapters
3m Mellanox HDR IB Active Optical QSFP56 Cable 4Z57A14188 B4QW
5m Mellanox HDR IB Active Optical QSFP56 Cable 4Z57A14189 B4QX
10m Mellanox HDR IB Active Optical QSFP56 Cable 4Z57A14190 B4QY
15m Mellanox HDR IB Active Optical QSFP56 Cable 4Z57A14191 B4QZ
20m Mellanox HDR IB Active Optical QSFP56 Cable 4Z57A14192 B4R0
30m Mellanox HDR IB Active Optical QSFP56 Cable 4Z57A16016 B68P
50m Mellanox HDR IB Active Optical QSFP56 Cable 4Z57A16017 B68N
100m Mellanox HDR IB Active Optical QSFP56 Cable 4Z57A16018 B68M
Splitter passive copper cables for Mellanox HDR InfiniBand QSFP56 adapters
1m Mellanox HDR IB to 2x HDR100 Splitter Passive Copper QSFP56 Cable 4Z57A14193 B4R1
1.5m Mellanox HDR IB to 2x HDR100 Splitter Passive Copper QSFP56 Cable 4Z57A14194 B4R2
2m Mellanox HDR IB to 2x HDR100 Splitter Passive Copper QSFP56 Cable 4Z57A11477 B68L
Splitter active optical cables for Mellanox HDR InfiniBand QSFP56 adapters
3m Mellanox HDR IB to 2x HDR100 Splitter Active Optical QSFP56 Cable 4Z57A14196 B4R4
5m Mellanox HDR IB to 2x HDR100 Splitter Active Optical QSFP56 Cable 4Z57A14197 B4R5
10m Mellanox HDR IB to 2x HDR100 Splitter Active Optical QSFP56 Cable 4Z57A14198 B4R6
15m Mellanox HDR IB to 2x HDR100 Splitter Active Optical QSFP56 Cable 4Z57A14199 B4R7
20m Mellanox HDR IB to 2x HDR100 Splitter Active Optical QSFP56 Cable 4Z57A14214 B4R8
30m Mellanox HDR IB to 2x HDR100 Splitter Active Optical QSFP56 Cable 4Z57A11490 B68K

For more information, see the list of Product Guides in the following categories:

SAS adapters for external storage

The following table lists SAS RAID controllers and HBAs for external storage attachments that are supported by the SR650 server.

Table 43. SAS RAID adapters and HBAs for external storage
Description Part number Feature code Maximum quantity* I/O slots supported
12 Gbps SAS RAID adapters
ThinkSystem RAID 930-8e 4GB Flash PCIe 12Gb Adapter 7Y37A01087 AUNQ 4 / 4 4, 2, 3, 5, 1
12 Gbps SAS HBAs
ThinkSystem 430-8e SAS/SATA 12Gb HBA 7Y37A01090 AUNR 4 / 5 4, 2, 3, 5, 1
ThinkSystem 430-16e SAS/SATA 12Gb HBA 7Y37A01091 AUNN 4 / 5 4, 2, 3, 5, 1

* The maximum quantity shown is with one processor / two processors.

Configuration notes:

  • Low profile SAS RAID controllers and HBAs for external storage are supported in the low profile PCIe x8 slot 4 on the system board and full-high PCIe x8 and x16 slots supplied by the riser cards 1 and 2 (except slot 6).
  • In the configurations without GPU installed, the total quantity of the RAID 730-8i 2GB, RAID 930-8i, RAID 930-16i, RAID 930-24i, and RAID 930-8e controllers in a supported combination in the server must not exceed 4 (up to 4 supercapacitors can be mounted in the server).
  • In the configurations with GPU installed, the total quantity of the RAID 730-8i 2GB, RAID 930-8i, RAID 930-16i, RAID 930-24i, and RAID 930-8e controllers in a supported combination in the server must not exceed 3 (up to 3 supercapacitors can be mounted in the server).

The following table summarizes features of supported RAID controllers and HBAs for external storage.

Table 44. Features and specifications of the RAID controllers and HBAs for external storage
Feature RAID 930-8e 430-8e HBA 430-16e HBA
Form factor PCIe LP PCIe LP PCIe LP
SAS controller chip SAS3516 SAS3408 SAS3416
Host interface PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8
Port interface 12 Gb SAS 12 Gb SAS 12 Gb SAS
Number of ports 8 8 16
Connector type SFF-8644 x4 SFF-8644 x4 SFF-8644 x4
Number of connectors 2 2 4
Drive interface SAS, SATA SAS, SATA SAS, SATA
Drive type HDD, SSD, SED HDD, SSD, SED* HDD, SSD, SED*
Hot-swap drive support Yes Yes Yes
Number of devices 240 1024 1024
RAID levels 0/1/10/5/50/6/60 None None
JBOD mode Yes Yes Yes
Cache 4 GB None None
Cache protection Flash backup (Included) None None
SED key management (SafeStore) Yes No No
SSD I/O acceleration (FastPath) Yes No No
SSD Caching (CacheCade Pro 2.0) No** No No
Consistency check Yes No No
Patrol read Yes No No
Online capacity expansion Yes No No
Online RAID level migration Yes No No
Global Hot Spare Yes No No
Auto-rebuild Yes No No

* HBAs do not support key management for SEDs; third-party host software is responsible for managing the keys.
** The SSD caching feature has been phased out in the new generation of advanced RAID controllers.

For more information, see the list of Product Guides in the following categories:

Fibre Channel host bus adapters

The following table lists Fibre Channel HBAs supported by the SR650 server.

Table 45. Fibre Channel HBAs
Description Part number Feature code Maximum quantity* I/O slots supported
32 Gb Fibre Channel - PCIe
Emulex LPe35000 32Gb 1-port PCIe Fibre Channel Adapter 4XC7A08250 B5SX 4 / 6 4, 2, 6, 3, 5, 1
Emulex LPe35002 32Gb 2-port PCIe Fibre Channel Adapter 4XC7A08251 B5SY 4 / 6 4, 2, 6, 3, 5, 1
QLogic QLE2740 PCIe 32Gb 1-Port SFP+ FC HBA 7ZT7A00516 AUNS 4 / 6 4, 2, 6, 3, 5, 1
QLogic QLE2742 PCIe 32Gb 2-Port SFP+ FC HBA 7ZT7A00518 AUNU 4 / 6 4, 2, 6, 3, 5, 1
16 Gb Fibre Channel - PCIe
Emulex 16Gb Gen6 FC Single-port HBA 01CV830 ATZU 4 / 6 4, 2, 6, 3, 5, 1
Emulex 16Gb Gen6 FC Dual-port HBA 01CV840 ATZV 4 / 6 4, 2, 6, 3, 5, 1
QLogic 16Gb Enhanced Gen5 FC Single-port HBA 01CV750 ATZB 4 / 6 4, 2, 6, 3, 5, 1
QLogic 16Gb Enhanced Gen5 FC Dual-port HBA 01CV760 ATZC 4 / 6 4, 2, 6, 3, 5, 1
8 Gb Fibre Channel - PCIe (available only in PRC and AP)
Emulex LPe12000-M8-L PCIe 8Gb 1-Port SFP+ FC HBA 4XC7A08220 B0WZ 4 / 6 4, 2, 6, 3, 5, 1
Emulex LPe12002-M8-L PCIe 8Gb 2-Port SFP+ FC HBA 4XC7A08221 B0X0 4 / 6 4, 2, 6, 3, 5, 1

* The maximum quantity shown is with one processor / two processors.

Configuration note: FC HBAs are supported in the low profile PCIe x8 slot 4 on the system board and full-high PCIe x8 and x16 slots supplied by the riser cards 1 and 2.

For more information, see the list of Product Guides in the Host bus adapters category:
http://lenovopress.com/servers/options/hba#rt=product-guide

Flash storage adapters

The SR650 server supports the flash storage adapters listed in the following table.

Table 46. Flash storage adapters
Description Part number Feature code Maximum quantity* I/O slots supported
Mainstream Flash Adapters - P4600
Intel P4600 2.0TB Mainstream NVMe PCIe 3.0 x4 Flash Adapter 7SD7A05769 B11X 4 / 6 4, 2, 6, 3, 5, 1

* The maximum quantity shown is with one processor / two processors.

Configuration notes:

  • Flash storage adapters are supported in the low profile PCIe x8 slot on the system board and full-high PCIe x8 and x16 slots supplied by the riser cards 1 and 2.
  • The Flash storage adapters are supported only in the environments with the ambient temperature of up to 35 °C (95 °F).
  • The Flash storage adapters are supported only with the processors of up to 165 W TDP.

For more information, see the list of Product Guides in the Flash storage adapters category:
http://lenovopress.com/servers/options/ssdadapter#rt=product-guide

GPU adapters

The SR650 server supports graphics processing units (GPUs) listed in the following table.

Table 47. GPU adapters
Description Part number Feature code Maximum quantity* I/O slots supported
Low profile PCIe 3.0 x16 single-wide GPU adapters
ThinkSystem NVIDIA Quadro P620 2GB PCIe Active GPU 4X67A11584 B31D 1 / 3 1, 5, 6
ThinkSystem NVIDIA Tesla T4 16GB PCIe Passive GPU 4X67A14926 B4YB 3 / 5 1, 2, 3, 5, 6
Full-height, full-length PCIe 3.0 x16 double-wide GPU adapters
ThinkSystem AMD Radeon Instinct MI25 16GB PCIe Passive GPU 7C57A02897 B228 1 / 2 1, 5
ThinkSystem AMD Radeon Pro V340 32GB PCIe Passive GPU 4C57A09497 B32P 1 / 2 1, 5
ThinkSystem NVIDIA Quadro P6000 24GB GPU, PCIe (active) 7C57A02895 B2V5 1 / 2 1, 5
ThinkSystem NVIDIA Quadro RTX 5000 16GB PCIe Active GPU 4X67A17267 B6CH 1 / 2 1, 5
ThinkSystem NVIDIA Tesla M10 32GB PCIe Passive GPU 7C57A02891 B15V 1 / 2 1, 5
NVIDIA Tesla M60 GPU, PCIe (Passive) 00KG655 B13J 1 / 2 1, 5
ThinkSystem NVIDIA Tesla P40 24GB PCIe Passive GPU 7C57A02888 B15U 1 / 2 1, 5
ThinkSystem NVIDIA Tesla V100 16GB PCIe Passive GPU 4C57A09498 B1JY 1 / 2 1, 5
ThinkSystem NVIDIA Tesla V100 32GB PCIe Passive GPU 4X67A12088 B34S 1 / 2 1, 5
ThinkSystem NVIDIA Tesla V100S 32GB PCIe Passive GPU 4X67A13124 BB2E 1 / 2 1, 5
Full-height, half-length PCIe 3.0 x16 single-wide GPU adapters
ThinkSystem NVIDIA Tesla V100 FHHL 16GB PCIe GPU 4X67A11524 B32D 1 / 3 1, 5, 6
Full-height, full-length PCIe 3.0 x16 single-wide GPU adapters
ThinkSystem NVIDIA Quadro P4000 8GB PCIe Active GPU 4V17A10255 B225 1 / 3 1, 5, 6
ThinkSystem NVIDIA Quadro RTX 4000 8GB PCIe Active GPU 4X67A14934 B6CG 1 / 3 1, 5, 6

* The maximum quantity shown is with one processor / two processors.

Configuration notes:

  • All GPU adapters in the server must be of the same model; mixing different GPU adapter models is not supported.
  • The GPU adapters require the PCIe x16 riser cards (except T4 GPU adapters).
  • The T4 GPU adapters are supported only in the specific I/O slots, as follows:
    • 1x T4 GPU adapter (one or two processors):
      • PCIe 3.0 x16 Slot 1 on the x16/x8 Riser Card 1 (7XH7A02678); or
      • PCIe 3.0 x8 Slot 1 on the x8/x8/x8 Riser Card 1 (7XH7A02677).
    • 2x T4 GPU adapters:
      • One processor: PCIe 3.0 x8 Slots 1 and 2 on the x8/x8/x8 Riser Card 1 (7XH7A02677).
      • Two processors:
        • PCIe 3.0 x16 or x8 Slot 1 on one of the following riser cards:
          • PCIe 3.0 x16 Slot 1 on the x16/x8 Riser Card 1 (7XH7A02678); or
          • PCIe 3.0 x8 Slot 1 on the x8/x8/x8 Riser Card 1 (7XH7A02677).
        • PCIe 3.0 x16 Slot 5 on the x16/x16 Riser Card 2 (7XH7A02679).
      • Note: Slot 6 must remain unoccupied in the configurations with two T4 GPU adapters.
    • 3x T4 GPU adapters:
      • One processor: PCIe 3.0 x8 Slots 1, 2, and 3 on the x8/x8/x8 Riser Card 1 (7XH7A02677).
      • Two processors:
        • PCIe 3.0 x16 or x8 Slot 1 on one of the following riser cards:
          • PCIe 3.0 x16 Slot 1 on the x16/x8 Riser Card 1 (7XH7A02678); or
          • PCIe 3.0 x8 Slot 1 on the x8/x8/x8 Riser Card 1 (7XH7A02677).
        • PCIe 3.0 x16 Slots 5 and 6 on the x16/x16 Riser Card 2 (7XH7A02679).
    • 4x T4 GPU adapters (require two processors):
      • PCIe 3.0 x8 or x16 Slot 1 and PCIe 3.0 x8 Slot 2 on one of the following riser cards:
        • x8/x8/x8 Riser Card 1 (7XH7A02677); or
        • x16/x8/x16 Riser Card 1 (4XH7A09902).
      • PCIe 3.0 x16 Slots 5 and 6 on the x16/x16 Riser Card 2 (7XH7A02679).
    • 5x T4 GPU adapters (require two processors):
      • PCIe 3.0 x8 or x16 Slots 1 and 3, and PCIe 3.0 x8 Slot 2 on one of the following riser cards:
        • x8/x8/x8 Riser Card 1 (7XH7A02677); or
        • x16/x8/x16 Riser Card 1 (4XH7A09902).
      • PCIe 3.0 x16 Slots 5 and 6 on the x16/x16 Riser Card 2 (7XH7A02679).
  • The GPU adapters are supported with the following drive bay configurations:
    • Processors of up to 150 W TDP:
      • 8x or 16x 2.5-inch SAS/SATA & AnyBay drive bays (support for up to 4x or 8x NVMe SSDs).
      • 8x 3.5-inch SAS/SATA drive bays.
    • Processors of more than 150 W and up to 205 W TDP with up to four T4 GPU adapters, or processors of more than 150 W and up to 165 W TDP:
      • 8x 2.5-inch SAS/SATA drive bays (no support for NVMe SSDs) in the environments with the ambient temperature of up to 30 °C (86 °F).
    • Note: The P620, P4000, P6000, V100 FHHL, and V340 GPU adapters are supported only with the processors of up to 150 W TDP.
  • If a double-wide GPU adapter is installed in the PCIe slot 5, the PCIe slot 6 cannot be used.
  • The P620 GPU adapters do not require any thermal kits. The GPU adapters other than P620 may require one of the optional GPU Thermal Kits (see Cooling for details).
  • GPU adapters are supported only with the 1100 W or 1600 W power supplies.
  • GPU adapters (except V100 FHHL and T4 GPU adapters) are supported only in the ASHRAE A2 environments (up to 35 °C [95 °F]); the V100 FHHL and T4 GPU adapters are supported only in the environments with the ambient temperature of up to 30 °C (86 °F).
  • Configurations with two double-wide GPU adapters and a PCIe x16 adapter are supported only in the environments with the ambient temperature of up to 30 °C (86 °F), and with SAS/SATA drive bays only (no AnyBay or U.2 NVMe support).
  • If the GPU adapters are installed, the server performance might be impacted in case of a system fan failure.
  • The GPU adapters are not supported with the T-suffix processors.
  • The GPU adapters are not supported with the persistent memory modules.
  • The GPU adapters are not supported with the PCIe flash storage adapters.
  • The GPU adapters are not supported with the Rear HDD Kit.
  • The maximum server memory that can be installed with the NVIDIA Tesla M10 or M60 GPU is 1 TB.

Lenovo GPU adapter options come with the necessary power cables for internal cabling. Lenovo also offers an optional GPU power cable kit (see the following table) that can be used in certain customer-specific configurations with GPU adapters not supplied by Lenovo.

Table 48. GPU cable kit option
Description Part number Feature code
ThinkSystem SR650 GPU Cable Kit 4XH7A08794 B44X

Cooling

The SR650 server supports up to six hot-swap system fans that provide N+1 cooling redundancy: Models with one processor ship with five system fans, and models with two processors ship with six system fans.

Configuration note: The server performance might be impacted in case of a system fan failure in the following server configurations:

  • Processors with 200 W or 205 W TDP, or Gold 6230N, 6240Y, 6244, or 6250 processors are installed.
  • Persistent memory modules are installed.
  • GPU adapters are installed.
  • 16/20/24x 2.5" U.2 NVMe PCIe drive bays at the ambient temperature of more than 30 °C (86 °F).

The following table shows additional cooling options.

Table 49. Cooling options
Description Part number Feature code Maximum quantity
ThinkSystem SR650 FAN Option Kit 4F17A12349 AUSG 1
ThinkSystem M.2 SSD Thermal Kit 4XH7A08791 B31F 1
ThinkSystem SR650 GPU Thermal Kit 7XH7A05897 None 1
ThinkSystem SR650 2nd GPU Upgrade Kit 7XH7A05899 AURU 1
ThinkSystem SR650 GPU 1U Heatsink Option Kit 7XH7A05898 None 1
ThinkSystem SR650 V100 FHHL Air Duct Companion Kit 4XH7A08792 B37F 2

Configuration notes:

  • The SR650 FAN Option Kit (4F17A12349) includes one system fan that is required for field upgrades that add a second processor to the server. If two processors are selected in the initial server configurations, the fan for the second processor is derived by the configurator.
  • The M.2 SSD Thermal Kit (4XH7A08791) is required when at least one M.2 5100 or 5300 SSD is installed in the server; however, the SSD Thermal Kit is not required in the server configurations with the GPU Thermal Kit (7XH7A05897) (factory-installed or field upgrade). If required, the M.2 SSD Thermal Kit is derived by the configurator for initial server configurations, or it should be purchased for M.2 5100 or 5300 SSDs for field upgrades.
  • The P620 GPU adapters do not require any thermal kits.
  • The full-length PCIe adapters and GPU adapters other than P620 require one of the following thermal kits depending on the configuration:
    • The GPU Thermal Kit (7XH7A05897) is required when adding GPUs or full-length PCIe adapters to the SR650 server models without factory-installed GPUs or factory-enabled full-length support. The kit provides support for up to three GPUs or full-length adapters in the PCIe x16 slots 1, 5, and 6, and it contains an air duct, two low-profile heatsinks, and two full-length card holders.
    • The 2nd GPU Upgrade Kit (7XH7A05899) is required when adding more GPUs or full-length adapters to the SR650 server models with one riser card and the factory-enabled full-length support or factory-installed GPUs. The kit provides support for the additional GPUs or full-length adapters, and it contains a full-length card holder (the second riser card is not included in the kit).
    • The GPU 1U Heatsink Option Kit (7XH7A05898) is required when adding the second processor to the SR650 server models with one processor and the factory-enabled full-length support or factory-installed GPUs. The kit contains a low-profile heatsink for the second processor option.
  • The V100 FHHL GPU adapters require the following quantities of the V100 FHHL Air Duct Companion Kit (4XH7A08792) in addition to one of the thermal kits described above:
    • 1x V100 FHHL GPU adapter: 1x Air Duct Companion Kit.
    • 2x or 3x V100 FHHL GPU adapters: 2x Air Duct Companion Kits.

Power supplies and cables

The SR650 server supports up to two redundant power supplies and is capable of N+N redundancy depending on the configuration. A second power supply can be added to the models that come with one power supply.

The following table lists the power supply options.

Table 50. Power supplies
Description Part number Feature code Maximum quantity
ThinkSystem 550W (230V/115V) Platinum Hot-Swap Power Supply 7N67A00882 AVWC 2
ThinkSystem 750W (230/115V) Platinum Hot-Swap Power Supply 7N67A00883 AVWD 2
ThinkSystem 750W (230V) Titanium Hot-Swap Power Supply 7N67A00884 AVWE 2
ThinkSystem 1100W (230V/115V) Platinum Hot-Swap Power Supply 7N67A00885 AVWF 2
ThinkSystem 1600W (230V) Platinum Hot-Swap Power Supply 7N67A00886 AVWG 2

Configuration notes:

  • Minimum of 1 and maximum of 2 power supplies per system.
  • If 2 are installed, power supplies must be identical.
  • Power supplies support AC (Worldwide) and HVDC (PRC only) power sources.

Important: The Standalone Solution Configuration Tool (SSCT) and Lenovo Data Center Solution Configurator (DCSC) power supply selection rules allow a subset of possible configurations due to power restrictions. Configurations that cannot be built in SSCT or DCSC due to power restrictions may still be supported. To verify support and ensure that the right power supply is chosen for optimal performance, you should always validate your server configuration using the latest version of the Lenovo Capacity Planner:
http://datacentersupport.lenovo.com/us/en/solutions/lnvo-lcp

The SR650 server ship standard with or without a power cord (model dependent). A hot-swap power supply option ships without a power cord.

The following table lists the rack power cables and line cords that can be ordered for the SR650 server.

Table 51. Power cables
Description Part number Feature code
Rack power cables
1.0m, 10A/125-250V, C13 to IEC 320-C14 Rack Power Cable 00Y3043 A4VP
1.2m, 16A/100-250V, 2 Short C13s to Short C20 Rack Power Cable 47C2491 A3SW
1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 39Y7937 6201
2.0m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 4L67A08365 B0N4
2.0m, 13A/125V-10A/250V, C13 to IEC 320-C14 Rack Power Cable 4L67A08369 6570
2.5m, 16A/100-250V, 2 Long C13s to Short C20 Rack Power Cable 47C2492 A3SX
2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 4L67A08366 6311
2.8m, 13A/125V-10A/250V, C13 to IEC 320-C14 Rack Power Cable 4L67A08370 6400
2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable 39Y7938 6204
2.8m, 16A/100-250V, 2 Short C13s to Long C20 Rack Power Cable 47C2493 A3SY
4.1m, 16A/100-250V, 2 Long C13s to Long C20 Rack Power Cable 47C2494 A3SZ
4.3m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 39Y7932 6263
4.3m, 13A/125V-10A/250V, C13 to IEC 320-C14 Rack Power Cable 4L67A08371 6583
Line cords
Argentina 2.8m, 10A/250V, C13 to IRAM 2073 Line Cord 39Y7930 6222
Argentina 4.3m, 10A/250V, C13 to IRAM 2073 Line Cord 81Y2384 6492
Australia/New Zealand 2.8m, 10A/250V, C13 to AS/NZS 3112 Line Cord 39Y7924 6211
Australia/New Zealand 4.3m, 10A/250V, C13 to AS/NZS 3112 Line Cord 81Y2383 6574
Brazil 2.8m, 10A/250V, C13 to NBR 14136 Line Cord 69Y1988 6532
Brazil 4.3m, 10A/250V, C13 to NBR14136 Line Cord 81Y2387 6404
China 2.8m, 10A/250V, C13 to GB 2099.1 Line Cord 39Y7928 6210
China 4.3m, 10A/250V, C13 to GB 2099.1 Line Cord 81Y2378 6580
Denmark 2.8m, 10A/250V, C13 to DK2-5a Line Cord 39Y7918 6213
Denmark 4.3m, 10A/250V, C13 to DK2-5a Line Cord 81Y2382 6575
Europe 2.8m, 10A/250V, C13 to CEE7-VII Line Cord 39Y7917 6212
Europe 4.3m, 10A/250V, C13 to CEE7-VII Line Cord 81Y2376 6572
India 2.8m, 10A/250V, C13 to IS 6538 Line Cord 39Y7927 6269
India 4.3m, 10A/250V, C13 to IS 6538 Line Cord 81Y2386 6567
Israel 2.8m, 10A/250V, C13 to SI 32 Line Cord 39Y7920 6218
Israel 4.3m, 10A/250V, C13 to SI 32 Line Cord 81Y2381 6579
Italy 2.8m, 10A/250V, C13 to CEI 23-16 Line Cord 39Y7921 6217
Italy 4.3m, 10A/250V, C13 to CEI 23-16 Line Cord 81Y2380 6493
Japan 2.8m, 12A/125V, C13 to JIS C-8303 Line cord 46M2593 6314
Japan 2.8m, 12A/250V, C13 to JIS C-8303 Line Cord 4L67A08357 5472
Japan 4.3m, 12A/125V, C13 to JIS C-8303 Line Cord 39Y7926 6335
Japan 4.3m, 12A/250V, C13 to JIS C-8303 Line Cord 4L67A08362 6495
Korea 2.8m, 12A/250V, C13 to KS C8305 Line Cord 39Y7925 6219
Korea 4.3m, 12A/250V, C13 to KS C8305 Line Cord 81Y2385 6494
South Africa 2.8m, 10A/250V, C13 to SABS 164 Line Cord 39Y7922 6214
South Africa 4.3m, 10A/250V, C13 to SABS 164 Line Cord 81Y2379 6576
Switzerland 2.8m, 10A/250V, C13 to SEV 1011-S24507 Line Cord 39Y7919 6216
Switzerland 4.3m, 10A/250V, C13 to SEV 1011-S24507 Line Cord 81Y2390 6578
Taiwan 2.8m, 10A/125V, C13 to CNS 10917-3 Line Cord 23R7158 6386
Taiwan 2.8m, 10A/250V, C13 to CNS 10917-3 Line Cord 81Y2375 6317
Taiwan 2.8m, 15A/125V, C13 to CNS 10917-3 Line Cord 81Y2374 6402
Taiwan 4.3m, 10A/125V, C13 to CNS 10917-3 Line Cord 4L67A08363 AX8B
Taiwan 4.3m, 10A/250V, C13 to CNS 10917-3 Line Cord 81Y2389 6531
Taiwan 4.3m, 15A/125V, C13 to CNS 10917-3 Line Cord 81Y2388 6530
United Kingdom 2.8m, 10A/250V, C13 to BS 1363/A Line Cord 39Y7923 6215
United Kingdom 4.3m, 10A/250V, C13 to BS 1363/A Line Cord 81Y2377 6577
United States 2.8m, 10A/125V, C13 to NEMA 5-15P Line Cord 90Y3016 6313
United States 2.8m, 10A/250V, C13 to NEMA 6-15P Line Cord 46M2592 A1RF
United States 2.8m, 13A/125V, C13 to NEMA 5-15P Line Cord 00WH545 6401
United States 4.3m, 10A/125V, C13 to NEMA 5-15P Line Cord 4L67A08359 6370
United States 4.3m, 10A/250V, C13 to NEMA 6-15P Line Cord 4L67A08361 6373
United States 4.3m, 13A/125V, C13 to NEMA 5-15P Line Cord 4L67A08360 AX8A

Configuration note: If the 1100 W AC power supplies (7N67A00885) in the SR650 server are connected to a low-voltage power source (100 - 125 V), the only supported power cables are those that are rated above 10 A; cables that are rated at 10 A are not supported.

Systems management

The SR650 supports the following systems management tools:

  • Lenovo XClarity Controller
  • Light path diagnostics
  • Lenovo XClarity Provisioning Manager
  • Lenovo XClarity Essentials
  • Lenovo XClarity Administrator
  • Lenovo XClarity Integrators
  • Lenovo XClarity Energy Manager
  • Lenovo Capacity Planner

Lenovo XClarity Controller

The SR650 server contains Lenovo XClarity Controller (XCC), which provides advanced service-processor control, monitoring, and alerting functions. XClarity Controller offers three functional levels: Standard, Advanced, and Enterprise.

By default, the SR650 server includes XClarity Controller Standard features, and it can be upgraded to Advanced or Enterprise functionality by using the Features on Demand (FoD) upgrades.

XClarity Controller Standard offers the following capabilities:

  • Gathering and viewing system information and inventory
  • Monitoring system status and health
  • Alerting and notifications
  • Event logging
  • Configuring network connectivity
  • Configuring security
  • Updating system firmware
  • Configuring server settings and devices
  • Real-time power usage monitoring
  • Remotely controlling server power (Power on, Power off, Restart)
  • Managing FoD activation keys
  • Redirecting serial console via IPMI
  • Capturing the video display contents when an operating system hang condition is detected

XClarity Controller Advanced Upgrade adds the following functionality to the Standard features:

  • Remotely viewing video with the following graphics resolutions:
    • Up to 1600x1200 with up to 23 bits per pixel; or
    • Up to 1920x1200 with up to 15 bits per pixel
  • Remotely accessing the server using the keyboard and mouse from a remote client
  • Remotely deploying an operating system
  • Syslog alerting
  • Redirecting serial console via SSH
  • Displaying graphics for real-time and historical power usage data and temperature

XClarity Controller Enterprise Upgrade adds the following functionality to the Advanced features:

  • Capping power usage
  • Mapping the ISO and image files located on the local client as virtual drives for use by the server
  • Mounting the remote ISO and image files via HTTPS, SFTP, CIFS, and NFS
  • Collaborating across up to six users of the virtual console
  • Controlling quality and bandwidth usage

The XClarity Controller provides remote server management through industry-standard interfaces:

  • Intelligent Platform Management Interface (IPMI) Version 2.0
  • Simple Network Management Protocol (SNMP) Version 3
  • Common Information Model (CIM)
  • Data Center Manageability Interface (DCMI) Version 1.5
  • Redfish REpresentational State Transfer (REST) API
  • Web browser with HTML5 support
  • Command-line interface
  • Virtual Operator Panel with XClarity Mobile App via the front USB port with XClarity Controller access

Virtual Operator Panel provides quick access to system status, firmware, network, health, and alerts information. With proper authentication, it also allows to configure systems management and network settings and to control system power (Power on, Power off, Restart). The Virtual Operator Panel can be accessed from the XClarity Mobile App running on the Android or iOS mobile device that is connected to the front USB port with XClarity Controller access (See Components and connectors).

Note: Depending on the system settings, the front USB port can be assigned to XClarity Controller for management functions, or to the system as a regular USB 2.0 port, or switched between two functions by using the system ID button.

The following table lists the XClarity Controller FoD upgrades.

Table 52. XClarity Controller FoD upgrades
Description Part number Feature code Maximum quantity
ThinkSystem XClarity Controller Standard to Advanced Upgrade 4L47A09132 AVUT 1
ThinkSystem XClarity Controller Standard to Enterprise Upgrade None* AUPW 1
ThinkSystem XClarity Controller Advanced to Enterprise Upgrade 4L47A09133 None** 1

* Factory-installed only.
** Field upgrade only.

Configuration notes:

  • For factory-installed upgrades, either Standard to Advanced Upgrade (feature AVUT) or Standard to Enterprise Upgrade (feature AUPW) can be selected, but not both.
  • For field upgrades, the Advanced to Enterprise Upgrade (4L47A09133) requires the Standard to Advanced Upgrade to be activated on the server previously with either the factory-installed feature AVUT or field upgrade 4L47A09132.

Light path diagnostics

All SR650 server models include basic light path diagnostics, which provides the system LEDs on the front of the server (see Components and connectors) and the LEDs near the monitored components (for example, the DIMM error LEDs on the system board).

Lenovo XClarity Provisioning Manager

Lenovo XClarity Provisioning Manager is a UEFI-embedded GUI application that combines the functions of configuring system setup settings, configuring RAID, and updating applications and firmware. It also enables you to install the supported operating systems and associated device drivers, run diagnostics, and collect service data.

Lenovo XClarity Provisioning Manager has the following features:

  • Automatic hardware detection
  • Collecting and viewing system inventory information
  • Configuring UEFI system setup settings
  • Updating the system firmware
  • Configuring RAID by using the RAID Setup Wizard or Advanced mode
  • Installing an operating system and device drivers automatically or manually
  • Running diagnostics and collecting service data

Lenovo XClarity Essentials

Lenovo offers the following XClarity Essentials software tools that can help you set up, use, and maintain the server at no additional cost:

  • Lenovo XClarity Essentials OneCLI

    OneCLI is a collection of server management tools that utilize a command line interface program to manage firmware, hardware, and operating systems. It provides functions to collect full system health information (including health status), configure system setting, and update system firmware and drivers.

  • Lenovo XClarity Essentials UpdateXpress

    The UpdateXpress tool is a standalone GUI application for firmware and device driver updates that enables you to maintain your server firmware and device drivers up-to-date and help you avoid unnecessary server outages. The tool acquires and deploys individual updates and UpdateXpress System Packs (UXSPs) which are integration-tested bundles.

  • Lenovo XClarity Essentials Bootable Media Creator

    The Bootable Media Creator (BOMC) tool is used to create bootable media for offline firmware update.

For more information and downloads, visit the Lenovo XClarity Essentials web page:
http://support.lenovo.com/us/en/documents/LNVO-center

Lenovo XClarity Administrator

Lenovo XClarity is a centralized systems management solution that helps administrators deliver infrastructure faster. This solution integrates easily with Lenovo x86 servers, RackSwitch switches, and DS Series storage, providing automated agent-less discovery, monitoring, firmware updates, configuration management, and bare metal deployment of operating systems and hypervisors across multiple servers.

Lenovo XClarity Administrator is an optional software component for the SR650 server which can be downloaded and used at no charge to discover and monitor the SR650 and manage firmware upgrades for them.

If software support is required for Lenovo XClarity Administrator, or Lenovo XClarity Administrator premium features (such as configuration management and operating system deployment) are required, or both, Lenovo XClarity Pro software subscription should be ordered. Lenovo XClarity Pro is licensed on a per managed system basis, that is, each managed Lenovo system requires a license.

The following table lists the geo-specific Lenovo XClarity software license options.

Table 53. Lenovo XClarity software options
Description Part number
(NA, AP, Japan)*		 Part number
(EMEA, LA)**		 Quantity
Lenovo XClarity Pro, per Managed Endpoint w/1 Yr SW S&S 00MT201 00MT207 1
Lenovo XClarity Pro, per Managed Endpoint w/3 Yr SW S&S 00MT202 00MT208 1
Lenovo XClarity Pro, per Managed Endpoint w/5 Yr SW S&S 00MT203 00MT209 1

* NA = North America; AP = Asia Pacific
** EMEA = Europe, Middle East, Africa; LA = Latin America

Lenovo XClarity Administrator offers the following standard features that are available at no charge:

  • Auto-discovery and monitoring of Lenovo x86 servers, RackSwitch switches, Flex System chassis, and DS Series storage systems
  • Firmware updates and compliance enforcement
  • External alerts and notifications via SNMP traps, syslog remote logging, and e-mail
  • Secure connections to managed endpoints
  • NIST 800-131A or FIPS 140-2 compliant cryptographic standards between the management solution and managed endpoints
  • Integration into existing higher-level management systems such as cloud automation and orchestration tools through REST APIs, providing extensive external visibility and control over hardware resources
  • An intuitive, easy-to-use GUI
  • Scripting with Windows PowerShell, providing command-line visibility and control over hardware resources

Lenovo XClarity Administrator offers the following premium features that require an optional Pro license:

  • Pattern-based configuration management that allows to define configurations once and apply repeatedly without errors when deploying new servers or redeploying existing servers without disrupting the fabric
  • Bare-metal deployment of operating systems and hypervisors to streamline infrastructure provisioning

For more information, refer to the Lenovo XClarity Administrator Product Guide:
http://lenovopress.com/tips1200

Lenovo XClarity Integrators

Lenovo offers at no charge (if software support is required, a Lenovo XClarity Pro software subscription license should be ordered) two software plug-in modules, Lenovo XClarity Integrators, to manage physical infrastructure from leading external virtualization management software tools from Microsoft and VMware:

  • Lenovo XClarity Integrator for Microsoft System Center
  • Lenovo XClarity Integrator for VMware vCenter

Lenovo XClarity Integrators offer the following additional features:

  • Ability to discover, manage, and monitor Lenovo server hardware from VMware vCenter or Microsoft System Center
  • Deployment of firmware updates and configuration patterns to Lenovo x86 rack servers and Flex System from the virtualization management tool
  • Non-disruptive server maintenance in clustered environments that reduces workload downtime by dynamically migrating workloads from affected hosts during rolling server updates or reboots
  • Greater service level uptime and assurance in clustered environments during unplanned hardware events by dynamically triggering workload migration from impacted hosts when impending hardware failures are predicted

For more information, refer to the Lenovo XClarity Integrators web page:
http://www3.lenovo.com/us/en/data-center/software/systems-management/xclarity-integrators

Lenovo XClarity Energy Manager

Lenovo XClarity Energy Manager provides a stand-alone, web-based agent-less power management console that provides real time data and enables you to observe, plan and manage power and cooling for Lenovo servers. Using built-in intelligence, it identifies server power consumption trends and ideal power settings and performs cooling analysis so that you can define and optimize power-saving policies.

Lenovo XClarity Energy Manager offers the following capabilities:

  • Monitors room, row, rack, and device levels in the data center
  • Reports vital server information, such as power, temperature and resource utilization
  • Monitors inlet temperature to locate hot spots, reducing the risk of data or device damage
  • Provides finely-grained controls to limit platform power in compliance with IT policy
  • Generates alerts when a user-defined threshold is reached

Lenovo XClarity Energy Manager is an optional software component for the SR650 server that is licensed on a per managed node basis, that is, each managed server requires a license. The 1-node Energy Manager license is included in the XClarity Controller Enterprise upgrade.

To manage systems without XClarity Controller Enterprise licenses, a node license pack should be purchased. The following table lists the geo-specific Lenovo XClarity Energy Manager software license options.

Table 54. Lenovo XClarity Energy Manager software options
Description Part number
(NA, AP, Japan)*		 Part number
(EMEA, LA)**		 Quantity
Lenovo XClarity Energy Manager, 1 Node w/ 1 Yr S&S 01DA225 01DA228 1

* NA = North America; AP = Asia Pacific.
** EMEA = Europe, Middle East, Africa; LA = Latin America.

For more information, refer to the Lenovo XClarity Energy Manager web page:
http://datacentersupport.lenovo.com/us/en/solutions/lnvo-lxem

Lenovo Capacity Planner

Lenovo Capacity Planner is a power consumption evaluation tool that enhances data center planning by enabling IT administrators and pre-sales professionals to understand various power characteristics of racks, servers, and other devices. Capacity Planner can dynamically calculate the power consumption, current, British Thermal Unit (BTU), and volt-ampere (VA) rating at the rack level, improving the planning efficiency for large scale deployments.

For more information, refer to the Capacity Planner web page:
http://datacentersupport.lenovo.com/us/en/solutions/lnvo-lcp

Security

The ThinkSystem SR650 server offers the following security features:

  • Power-on password
  • Administrator's password
  • Secure firmware updates
  • Onboard Trusted Platform Module (TPM) version 1.2 or 2.0 (configurable UEFI system setting)
  • Trusted Cryptographic Module (TCM) (optional; PRC only)
  • Nationz Trusted Platform Module v2.0 (optional; PRC only)
  • Lockable front bezel (optional)
  • Security Key Lifecycle Manager (SKLM) encryption key management for SEDs - FoD upgrade (optional)
  • Lenovo Business Vantage security software (optional; PRC only)

The following table lists the security options that are available for the ThinkSystem SR650 server.

Table 55. Security options
Description Part number Feature code Maximum quantity
Lockable front bezel
ThinkSystem 2U Security Bezel 7Z17A02580 AURX 1
Trusted Cryptographic Module (PRC only)
ThinkSystem Trusted Cryptographic Module None* AVKE 1
Trusted Platform Module (PRC only)
ThinkSystem Nationz Trusted Platform Module v2.0 None* B22N 1
Security Key Lifecycle Manager - FoD (United States, Canada, Asia Pacific, and Japan)
SKLM for System x/ThinkSystem w/SEDs - FoD per Install w/1Yr S&S 00D9998 A5U1 1
SKLM for System x/ThinkSystem w/SEDs - FoD per Install w/3Yr S&S 00D9999 AS6C 1
Security Key Lifecycle Manager - FoD (Latin America, Europe, Middle East, and Africa)
SKLM for System x/ThinkSystem w/SEDs - FoD per Install w/1Yr S&S 00FP648 A5U1 1
SKLM for System x/ThinkSystem w/SEDs - FoD per Install w/3Yr S&S 00FP649 AS6C 1

* Factory-installed only; no field upgrade.

Lenovo Business Vantage is a security software tool suite (available only in PRC) designed to work with the TCM or Nationz TPM for enhanced security, to keep user data safe, and to erase confidential data completely from a drive.

Lenovo Business Vantage provides the following features:

  • Encrypts files to ensure data safety by using the TCM or Nationz TPM.
  • Erases confidential data from a drive.
  • Prohibits unauthorized access to the USB port of devices.
  • Encrypts files to ensure data security on a USB storage device.

For more information, refer to the Lenovo Business Vantage web page:
http://support.lenovo.com.cn/lenovo/wsi/es/es.html

Rack installation

The following table lists the rack installation options that are available for the ThinkSystem SR650 server.

Table 56. Rack installation options
Description Part number Feature code Maximum quantity
4-post rail kits
ThinkSystem Tool-less Slide Rail 7M27A05702 AXCA 1
ThinkSystem Tool-less Slide Rail Kit with 2U CMA 7M27A05700 AXCH 1
ThinkSystem Screw-in Slide Rail 4M17A07274 AXFN 1
ThinkSystem Screw-in Slide Rail Kit with 2U CMA 4M17A07280 B0TD 1
ThinkSystem Tool-less Friction Rail 4M17A07273 AXFM 1
Cable management arm (CMA) upgrade
ThinkSystem 2U CMA Upgrade Kit for Tool-less Slide Rail 7M27A05698 None^ 1*
ThinkSystem 2U CMA Upgrade Kit for Screw-in Slide Rail 4M17A07275 AXFU 1**
Front VGA port
ThinkSystem SR550/SR590/SR650 EIA Latch w/ VGA Upgrade Kit 7Z17A02578 AUS8 1

^ Field upgrade only.
* The CMA Upgrade Kit for Tool-less Slide Rail is supported with the Tool-less Slide Rail (7M27A05702) only.
** The CMA Upgrade Kit for Screw-in Slide Rail is supported with the Screw-in Slide Rail (4M17A07274) only.

The following table summarizes the rail kit features and specifications.

Table 57. Rail kit features and specifications summary
Feature Tool-less Slide Rail Screw-in Slide Rail Tool-less Friction Rail
Without CMA With CMA Without CMA With CMA
Part number 7M27A05702 7M27A05700 4M17A07274 4M17A07280 4M17A07273
CMA 7M27A05698 Included 4M17A07275 Included  No support
Rail length 730 mm
(28.74 in.)		 807 mm
(31.8 in.)		 836.8 mm
(32.9 in.)		 836.8 mm
(32.9 in.)		 728.1 mm
(28.7 in.)
Rail type Full-out slide (ball bearing) Full-out slide (ball bearing) Half-out slide (friction)
Tool-less installation Yes No Yes
In-rack server maintenance Yes Yes No
1U PDU support Yes Yes Yes
0U PDU support Limited* Limited* Limited**
Rack type IBM and Lenovo 4-post,
IEC standard-compliant		 IBM and Lenovo 4-post,
IEC standard-compliant		 IBM and Lenovo 4-post,
IEC standard-compliant
Mounting holes Square or round Square, round, or threaded Square or round
Mounting flange thickness 2 mm (0.08 in.) –
3.3 mm (0.13 in.)		 2 mm (0.08 in.) –
3.3 mm (0.13 in.)		 2 mm (0.08 in.) –
3.3 mm (0.13 in.)
Distance between front
and rear mounting flanges^		 609.6 mm (24 in.) –
863.6 mm (34 in.)		 609.6 mm (24 in.) –
812.8 mm (32 in.)		 609.6 mm (24 in.) –
863.6 mm (34 in.)

* If a 0U PDU is used, the rack cabinet must be at least 1100 mm (43.31 in.) deep if no CMA is used, or at least 1200 mm (47.24 in.) deep if a CMA is used.
** If a 0U PDU used, the rack must be at least 1000 mm (39.37 in.) deep.
^ Measured when mounted on the rack, from the front surface of the front mounting flange to the rear most point of the rail.

Operating systems

The ThinkSystem SR650 server supports the following operating systems:

  • Microsoft:
    • Microsoft Windows Server 2019
    • Microsoft Windows Server 2016
  • Red Hat:
    • Red Hat Enterprise Linux 8.1
    • Red Hat Enterprise Linux 8.0
    • Red Hat Enterprise Linux 7.7
    • Red Hat Enterprise Linux 7.6
  • SUSE:
    • SUSE Linux Enterprise Server 15 SP1
    • SUSE Linux Enterprise Server 15
    • SUSE Linux Enterprise Server 12 SP5
    • SUSE Linux Enterprise Server 12 SP4
  • VMware:
    • VMware vSphere 6.7 (ESXi) Update 3
    • VMware vSphere 6.7 (ESXi) Update 2
    • VMware vSphere 6.7 (ESXi) Update 1
    • VMware vSphere 6.5 (ESXi) Update 3
    • VMware vSphere 6.5 (ESXi) Update 2

For the latest information about the specific versions and service levels that are supported and any other prerequisites, see the Operating System Interoperability Guide: http://lenovopress.com/osig.

Physical specifications

The ThinkSystem SR650 server has the following dimensions and weight (approximate):

  • Height: 87 mm (3.4 in.)
  • Width: 445 mm (17.5 in.)
  • Depth: 720 mm (28.3 in.)
  • Weight:
    • Minimum configuration: 19 kg (41.9 lb)
    • Maximum configuration: 32 kg (70.5 lb)

Operating environment

The SR650 server complies with ASHRAE class A2 specifications. The server performance might be impacted when the operating temperature is outside the ASHRAE A2 specifications. Depending on the hardware configuration, some server models comply with ASHRAE class A3 and class A4 specifications.

To comply with ASHRAE class A3 and class A4 specifications, the server models must meet the following hardware configuration requirements at the same time:

  • Two power supplies installed
  • NVMe drives not installed
  • M.2 5100 or 5300 SSDs not installed
  • QLogic QL41134 PCIe 10Gb 4-Port Base-T Ethernet Adapter not installed
  • Mellanox ConnectX-6 and Innova-2 FPGA adapters not installed
  • PCIe flash adapters not installed
  • Persistent memory modules not installed
  • Graphic processing units (GPUs) not installed
  • Processors with TDP more than or equal to 150 W, or Gold 6230N processors not installed

The SR650 server is supported in the following environment:

  • Air temperature:
    • Operating:
      • ASHRAE Class A4: 5 °C - 45 °C (41 °F - 113 °F); for altitudes above 900 m (2,953 ft), decrease the maximum ambient temperature by 1 °C for every 125-m (410-ft) increase in altitude
      • ASHRAE Class A3: 5 °C - 40 °C (41 °F - 104 °F); for altitudes above 900 m (2,953 ft), decrease the maximum ambient temperature by 1 °C for every 175-m (574-ft) increase in altitude
      • ASHRAE Class A2: 10 °C - 35 °C (50 °F - 95 °F); for altitudes above 900 m (2,953 ft), decrease the maximum ambient temperature by 1 °C for every 300-m (984-ft) increase in altitude
    • Non-operating: 5 °C - 45 °C (41 °F - 113 °F)
    • Storage: -40 °C - +60 °C (-40 °F - 140 °F)
  • Maximum altitude: 3,050 m (10,000 ft)
  • Humidity:
    • Operating:
      • ASHRAE Class A4: 8% - 90% (non-condensing); maximum dew point: 24 °C (75 °F)
      • ASHRAE Class A3: 8% - 85% (non-condensing); maximum dew point: 24 °C (75 °F)
      • ASHRAE Class A2: 8% - 80% (non-condensing); maximum dew point: 21 °C (70 °F)
    • Storage: 8% - 90% (non-condensing)
  • Electrical:
    • 100 - 127 (nominal) V AC; 50 Hz / 60 Hz
    • 200 - 240 (nominal) V AC; 50 Hz / 60 Hz
    • 180 - 300 V DC (HVDC; supported in PRC only)
  • Acoustics:
    • Minimum configuration:
      • Operating: 5.1 bels
      • Idle: 4.9 bels
    • Maximum configuration:
      • Operating: 6.2 bels
      • Idle: 6.1 bels
  • Vibration:
    • Operating: 0.21 G rms at 5 Hz to 500 Hz for 15 minutes across 3 axes
    • Non-operating: 1.04 G rms at 2 Hz to 200 Hz for 15 minutes across 6 surfaces
  • Shock:
    • Operating: 15 G for 3 milliseconds in each direction (positive and negative X, Y, and Z axes)
    • Non-operating:
      • 12 kg - 22 kg: 50 G for 152 in./sec velocity change across 6 surfaces
      • 23 kg - 31 kg: 35 G for 152 in./sec velocity change across 6 surfaces

The following table lists the maximum system power load, rated inlet current, and system heat output based on the power supply and source voltage.

Table 58. Rated system power, inlet current, and system heat output
Power supply Source voltage Maximum power
load per system
(two power supplies)		 Rated current
per inlet		 System
heat output
550 W Platinum 100 - 127 V AC 722 W 6.2 A 2463 BTU/hour
200 - 240 V AC 704 W 3 A 2402 BTU/hour
180 - 300 V DC 702 W 2.5 A 2395 BTU/hour
750 W Platinum 100 - 127 V AC 984 W 8.4 A 3357 BTU/hour
200 - 240 V AC 958 W 4.1 A 3269 BTU/hour
180 - 300 V DC 958 W 3.5 A 3269 BTU/hour
750 W Titanium 200 - 240 V AC 949 W 4.1 A 3238 BTU/hour
180 - 300 V DC 948 W 3.5 A 3235 BTU/hour
1100 W Platinum 100 - 127 V AC 1382 W 12 A 4715 BTU/hour
200 - 240 V AC 1408 W 6 A 4804 BTU/hour
180 - 300 V DC 1408 W 5.1 A 4804 BTU/hour
1600 W Platinum 200 - 240 V AC 2068 W 8.7 A 7056 BTU/hour
180 - 300 V DC 2024 W 7.3 A 6906 BTU/hour

Warranty and support

The SR650 server has a one-year (7X05) or three-year (Machine Type 7X06) customer-replaceable unit (CRU) and onsite limited (for field-replaceable units [FRUs] only) warranty with standard call center support during normal business hours and 9x5 Next Business Day Parts Delivered.

Lenovo’s additional support services provide a sophisticated, unified support structure for a customer's data center, with an experience consistently ranked number one in customer satisfaction worldwide.

The following Lenovo support services are available:

  • Premier Support provides a Lenovo-owned customer experience and delivers direct access to technicians skilled in hardware, software, and advanced troubleshooting, in addition to the following capabilities:
    • Direct technician-to-technician access through a dedicated phone line.
    • 24x7x365 remote support.
    • Single point of contact service.
    • End to end case management.
    • 3rd Party collaborative software support.
    • Online case tools and live chat support.
    • On-demand remote system analysis.
  • Warranty Upgrades (Preconfigured Support) are available to meet the on-site response time targets that match the criticality of customer's systems:
    • 3, 4, or 5 years of service coverage.
    • 1-year or 2-year post-warranty extensions.
    • Foundation Service: 9x5 service coverage with next business day onsite response, with optional YourDrive YourData.
    • Essential Service: 24x7 service coverage with 4-hour onsite response or 24-hour committed repair (available only in select regions), bundled with YourDrive YourData.
    • Advanced Service: 24x7 service coverage with 2-hour onsite response or 6-hour committed repair (available only in select regions), bundled with YourDrive YourData.
  • Managed Services

    Lenovo Managed Services provide continuous 24x7 remote monitoring (plus 24x7 call center availability) and proactive management of a customer's data center using state of the art tools, systems, and practices by a team of highly skilled and experienced Lenovo services professionals.

    Quarterly reviews check error logs, verify firmware and operating system device driver levels, and software as needed. Lenovo will also maintain records of latest patches, critical updates, and firmware levels, to ensure customer's systems are providing business value through optimized performance.

  • Technical Account Management (TAM)

    A Lenovo Technical Account Manager helps customers optimize operations of their data centers based on a deep understanding of customer's business. Customers gain direct access to a Lenovo TAM, who serves as their single point of contact to expedite service requests, provide status updates, and furnish reports to track incidents over time. Also, a TAM helps proactively make service recommendations and manage service relationship with Lenovo to make certain that customer's needs are met.

  • Enterprise Software Support

    Lenovo Enterprise Software Support is an additional support service that provides customers with software support on Microsoft, Red Hat, SUSE, and VMWare applications and systems. Around the clock availability for critical problems plus unlimited calls and incidents helps customers address challenges fast, without incremental costs. Support staff can answer troubleshooting and diagnostic questions, address product compatibility and interoperability issues, isolate causes of problems, report defects to software vendors, and more.

  • YourDrive YourData

    Lenovo’s YourDrive YourData service is a multi-drive retention offering that ensures that customer's data is always under their control, regardless of the number of drives that are installed in their Lenovo server. In the unlikely event of a drive failure, customers retain possession of their drive while Lenovo replaces the failed drive part. Customer's data stays safely on customer premises, in their hands. The YourDrive YourData service can be purchased in convenient bundles with Foundation, Essential, or Advanced Service upgrades and extensions.

  • Health Check

    Having a trusted partner who can perform regular and detailed health checks is central to maintaining efficiency and ensuring that customer systems and business are always running at their best. Health Check supports Lenovo-branded server, storage, and networking devices, as well as select Lenovo-supported products from other vendors that are sold by Lenovo or a Lenovo-Authorized Reseller.

Some regions might have different warranty terms and conditions than the standard warranty. This is due to local business practices or laws in the specific region. Local service teams can assist in explaining region-specific terms when needed. Examples of region-specific warranty terms are second or longer business day parts delivery or parts-only base warranty.

If warranty terms and conditions include onsite labor for repair or replacement of parts, Lenovo will dispatch a service technician to the customer site to perform the replacement. Onsite labor under base warranty is limited to labor for replacement of parts that have been determined to be field-replaceable units (FRUs). Parts that are determined to be customer-replaceable units (CRUs) do not include onsite labor under base warranty.

If warranty terms include parts-only base warranty, Lenovo is responsible for delivering only replacement parts that are under base warranty (including FRUs) that will be sent to a requested location for self-service. Parts-only service does not include a service technician being dispatched onsite. Parts must be changed at customer’s own cost and labor and defective parts must be returned following the instructions supplied with the spare parts.

Lenovo support services are region-specific. Not all support services are available in every region. For information about Lenovo support services that are available in a specific region, refer to the following resources:

For service definitions, region-specific details, and service limitations, refer to the following documents:

Services

Lenovo Services is a dedicated partner to customer success. Lenovo's goal for customers is to reduce capital outlays, mitigate IT risks, and accelerate time to productivity.

Here is a more in-depth look at what Lenovo can do for their customers:

  • Asset Recovery Services

    Asset Recovery Services (ARS) helps customers recover the maximum value from their end-of-life equipment in a cost-effective and secure way. On top of simplifying the transition from old to new equipment, ARS mitigates environmental and data security risks associated with data center equipment disposal. Lenovo ARS is a cash-back solution for equipment based on its remaining market value, yielding maximum value from aging assets and lowering total cost of ownership for customers. For more information, see the ARS page, http://lenovopress.com/lp1266.

  • Assessment Services

    An assessment helps solve customer IT challenges through an onsite, multi-day session with a Lenovo technology expert. Lenovo performs a tools-based assessment which provides a comprehensive and thorough review of a company's environment and technology systems. In addition to the technology-based functional requirements, the consultant also discusses and records the non-functional business requirements, challenges, and constraints. Assessments help organizations, no matter how large or small, get a better return on their IT investment and overcome challenges in the ever-changing technology landscape.

  • Design Services

    Professional Services consultants perform infrastructure design and implementation planning to support customer's strategy. The high-level architectures provided by the assessment service are turned into low level designs and wiring diagrams, which are reviewed and approved prior to implementation. The implementation plan will demonstrate an outcome-based proposal to provide business capabilities through infrastructure with a risk-mitigated project plan.

  • Basic Hardware Installation

    Lenovo experts can seamlessly manage the physical installation of customer's server, storage, or networking hardware. Working at a time convenient for the customer (business hours or off shift), the technician will unpack and inspect the systems on customer site, install options, mount in a rack cabinet, connect to power and network, check and update firmware to the latest levels, verify operation, and dispose of the packaging, allowing customers to focus on other priorities.

  • Deployment Services

    When investing in new IT infrastructures, customers need to ensure that their business will see quick time to value with little to no disruption. Lenovo deployments are designed by development and engineering teams who know Lenovo products and solutions better than anyone else, and Lenovo technicians own the process from delivery to completion. Lenovo will conduct remote preparation and planning, configure and integrate systems, validate systems, verify and update appliance firmware, train on administrative tasks, and provide post-deployment documentation. Customer’s IT teams leverage Lenovo skills to enable IT staff to transform with higher level roles and tasks.

  • Integration, Migration, and Expansion Services

    Integration, Migration, and Expansion Services allow to move existing physical and virtual workloads easily, or to determine technical requirements to support increased workloads while maximizing performance. These services include tuning, validation, and documenting ongoing run processes, and they leverage migration assessment planning documents to perform necessary migrations.

Some service options may not be available in every region. For more information about Lenovo service offerings that are available in a specific region, contact a local Lenovo sales representative or business partner.

Regulatory compliance

The ThinkSystem SR650 server conforms to the following regulations:

  • United States: FCC Part 15, Class A; UL 60950-1
  • Canada: ICES-003/NMB-03, Class A; CAN/CSA-C22.2 60950-1
  • Mexico: NOM-19
  • Argentina: IEC60950-1
  • European Union: CE Mark (EN55022 Class A, IEC/EN60950-1, EN55024, EN61000-3-2, EN61000-3-3)
  • Germany: TUV-GS (IEC/EN 60950-1, EK1-ITB2000)
  • Russia, Kazakhstan, Belarus: EAC (TR CU 004/2011, TR CU 020/2011)
  • China: CCC GB4943.1, GB9254 Class A, GB17625.1
  • India: BIS
  • Japan: VCCI, Class A
  • Taiwan: BSMI CNS13438, Class A; CNS14336-1
  • Korea: KN22, Class A; KN24
  • Australia/New Zealand: AS/NZS CISPR 22 Class A
  • Reduction of Hazardous Substances (ROHS)
  • Energy Star 3.0 (excluding configurations with Bronze 3204, Gold 5222, or Platinum 8256 processors)

Note: For more information on the Energy Star 3.0 certification, refer to the Energy Star 3.0 Certifications for ThinkSystem Servers publication:
http://lenovopress.com/lp1230

External drive enclosures

The following table lists the 12 Gbps SAS external drive enclosures that are offered by Lenovo that can be used with the ThinkSystem SR650 server for storage expansion.

Note: Information provided in this section is for ordering reference purposes only. For the operating system and adapter support details, refer to the interoperability matrix for a particular storage enclosure that can be found on the Lenovo Data Center Support web site:
http://datacentersupport.lenovo.com

Table 59. External drive enclosures
Description Part number
Worldwide Japan PRC
Lenovo Storage D1212 LFF Disk Expansion with Dual SAS IO Modules 4587A11 4587A1J 4587A1C
Lenovo Storage D1224 SFF Disk Expansion with Dual SAS IO Modules 4587A31 4587A3J 4587A3C
Lenovo Storage D3284 4TB x 84 HD Expansion Enclosure 641311F
Lenovo Storage D3284 6TB x 84 HD Expansion Enclosure 641312F
Lenovo Storage D3284 8TB x 84 HD Expansion Enclosure 641313F
Lenovo Storage D3284 10TB x 84 HD Expansion Enclosure 641314F

For details about supported drives, adapters, and cables, see the following Lenovo Press Product Guides:

External storage systems

The following table lists the external storage systems that are currently offered by Lenovo that can be used with the ThinkSystem SR650 server for external NAS, SAS, iSCSI, or FC storage connectivity.

Note: Information provided in this section is for ordering reference purposes only. End-to-end storage configuration support must be verified through the interoperability matrix for a particular storage system that can be found on the Lenovo Data Center Support web site:
http://datacentersupport.lenovo.com

Table 60. External storage systems: DE Series
Description Part number
Worldwide Japan
Lenovo ThinkSystem DE Series Storage (SAS connectivity)
Lenovo ThinkSystem DE2000H SAS Hybrid Flash Array LFF (16 GB cache) 7Y70A000WW 7Y701003JP
Lenovo ThinkSystem DE2000H SAS Hybrid Flash Array SFF (16 GB cache) 7Y71A000WW 7Y711003JP
Lenovo ThinkSystem DE4000H SAS Hybrid Flash Array 4U60 (16 GB cache) 7Y77A002WW 7Y771000JP
Lenovo ThinkSystem DE4000H SAS Hybrid Flash Array LFF (16 GB cache) 7Y74A000WW 7Y74A000JP
Lenovo ThinkSystem DE4000H SAS Hybrid Flash Array SFF (16 GB cache) 7Y75A000WW 7Y75A000JP
Lenovo ThinkSystem DE4000F SAS All Flash Array SFF (16 GB cache) 7Y76A000WW 7Y76A000JP
Lenovo ThinkSystem DE4000F SAS All Flash Array SFF (64 GB cache) 7Y76A005WW 7Y76A008JP
Lenovo ThinkSystem DE6000H SAS Hybrid Flash Array 4U60 (32 GB cache) 7Y80A000WW 7Y801002JP
Lenovo ThinkSystem DE6000H SAS Hybrid Flash Array SFF (32 GB cache) 7Y78A000WW 7Y781002JP
Lenovo ThinkSystem DE6000F SAS All Flash Array SFF (128 GB cache) 7Y79A000WW 7Y79A000JP
Lenovo ThinkSystem DE Series Storage (iSCSI connectivity)
Lenovo ThinkSystem DE2000H 10GBASE-T Hybrid Flash Array LFF (16 GB cache) 7Y70A003WW 7Y701001JP
Lenovo ThinkSystem DE2000H 10GBASE-T Hybrid Flash Array SFF (16 GB cache) 7Y71A002WW 7Y711005JP
Lenovo ThinkSystem DE2000H iSCSI Hybrid Flash Array LFF (16 GB cache) 7Y70A004WW 7Y701000JP
Lenovo ThinkSystem DE2000H iSCSI Hybrid Flash Array SFF (16 GB cache) 7Y71A003WW 7Y711006JP
Lenovo ThinkSystem DE4000H iSCSI Hybrid Flash Array 4U60 (16 GB cache) 7Y77A000WW 7Y771002JP
Lenovo ThinkSystem DE4000H iSCSI Hybrid Flash Array LFF (16 GB cache) 7Y74A002WW 7Y74A002JP
Lenovo ThinkSystem DE4000H iSCSI Hybrid Flash Array SFF (16 GB cache) 7Y75A001WW 7Y75A001JP
Lenovo ThinkSystem DE4000F iSCSI All Flash Array SFF (16 GB cache) 7Y76A002WW 7Y76A002JP
Lenovo ThinkSystem DE4000F iSCSI All Flash Array SFF (64 GB cache) 7Y76A007WW 7Y76A00AJP
Lenovo ThinkSystem DE6000H iSCSI Hybrid Flash Array 4U60 (32 GB cache) 7Y80A002WW 7Y801000JP
Lenovo ThinkSystem DE6000H iSCSI Hybrid Flash Array SFF (32 GB cache) 7Y78A002WW 7Y781000JP
Lenovo ThinkSystem DE6000F iSCSI All Flash Array SFF (128 GB cache) 7Y79A002WW 7Y79A002JP
Lenovo ThinkSystem DE Series Storage (FC connectivity)
Lenovo ThinkSystem DE2000H FC Hybrid Flash Array LFF (16 GB cache) 7Y70A002WW 7Y701002JP
Lenovo ThinkSystem DE2000H FC Hybrid Flash Array SFF (16 GB cache) 7Y71A001WW 7Y711004JP
Lenovo ThinkSystem DE4000H FC Hybrid Flash Array 4U60 (16 GB cache) 7Y77A001WW 7Y771001JP
Lenovo ThinkSystem DE4000H FC Hybrid Flash Array LFF (16 GB cache) 7Y74A001WW 7Y74A001JP
Lenovo ThinkSystem DE4000H FC Hybrid Flash Array SFF (16 GB cache) 7Y75A002WW 7Y75A002JP
Lenovo ThinkSystem DE4000F FC All Flash Array SFF (16 GB cache) 7Y76A001WW 7Y76A001JP
Lenovo ThinkSystem DE4000F FC All Flash Array SFF (64 GB cache) 7Y76A006WW 7Y76A009JP
Lenovo ThinkSystem DE6000H FC Hybrid Flash Array 4U60 (32 GB cache) 7Y80A001WW 7Y801001JP
Lenovo ThinkSystem DE6000H FC Hybrid Flash Array SFF (32 GB cache) 7Y78A001WW 7Y781001JP
Lenovo ThinkSystem DE6000F FC All Flash Array SFF (128 GB cache) 7Y79A001WW 7Y79A001JP
Table 61. External storage systems: DM Series
Description Part number
Lenovo ThinkSystem DM Series Storage (NAS or iSCSI connectivity)
ThinkSystem DM3000H, 48TB (12x 4TB HDDs), 10GBASE-T, ONTAP 9.5 Fundamentals 7Y421003EA*
ThinkSystem DM3000H, 48TB (12x 4TB HDDs), 10GBASE-T, ONTAP 9.5 7Y421007EA*
ThinkSystem DM3000H, 96TB (12x 8TB HDDs), 10GBASE-T, ONTAP 9.5 Fundamentals 7Y421005EA*
ThinkSystem DM3000H, 96TB (12x 8TB HDDs), 10GBASE-T, ONTAP 9.5 7Y421001EA*
ThinkSystem DM5000H, 11.5TB (12x 960GB SSDs), 10GBASE-T, ONTAP 9.5 Fundamentals 7Y571004EA*
ThinkSystem DM5000H, 11.5TB (12x 960GB SSDs), 10GBASE-T, ONTAP 9.5 7Y57100LEA*
ThinkSystem DM5000H, 14.4TB (12x 1.2TB HDDs), 10GBASE-T, ONTAP 9.5 Fundamentals 7Y57100CEA*
ThinkSystem DM5000H, 21.6TB (12x 1.8TB HDDs), 10GBASE-T, ONTAP 9.5 Fundamentals 7Y57100GEA*
ThinkSystem DM5000H, 23TB (24x 960GB SSDs), 10GBASE-T, ONTAP 9.5 Fundamentals 7Y571006EA*
ThinkSystem DM5000H, 23TB (24x 960GB SSDs), 10GBASE-T, ONTAP 9.5 7Y57100NEA*
ThinkSystem DM5000H, 28.8TB (24x 1.2TB HDDs), 10GBASE-T, ONTAP 9.5 Fundamentals 7Y57100EEA*
ThinkSystem DM5000H, 28.8TB (24x 1.2TB HDDs), 10GBASE-T, ONTAP 9.5 7Y57100VEA*
ThinkSystem DM5000H, 43.2TB (24x 1.8TB HDDs), 10GBASE-T, ONTAP 9.5 Fundamentals 7Y57100JEA*
ThinkSystem DM5000H, 43.2TB (24x 1.8TB HDDs), 10GBASE-T, ONTAP 9.5 7Y571002EA*
ThinkSystem DM5000H, 46TB (12x 3.84TB SSDs), 10GBASE-T, ONTAP 9.5 Fundamentals 7Y571008EA*
ThinkSystem DM5000H, 46TB (12x 3.84TB SSDs), 10GBASE-T, ONTAP 9.5 7Y57100QEA*
ThinkSystem DM5000H, 92TB (24x 3.84TB SSDs), 10GBASE-T, ONTAP 9.5 Fundamentals 7Y57100AEA*
ThinkSystem DM5000H, 92TB (24x 3.84TB SSDs), 10GBASE-T, ONTAP 9.5 7Y57100REA*
ThinkSystem DM5000F, 11.5TB (12x 960GB SSDs), 10GBASE-T, ONTAP 9.5 7Y411002EA*
ThinkSystem DM5000F, 23TB (24x 960GB SSDs), 10GBASE-T, ONTAP 9.5 7Y411004EA*
ThinkSystem DM5000F, 46TB (12x 3.84TB SSDs), 10GBASE-T, ONTAP 9.5 7Y411006EA*
ThinkSystem DM5000F, 92TB (24x 3.84TB SSDs), 10GBASE-T, ONTAP 9.5 7Y411007EA*
Lenovo ThinkSystem DM Series Storage (NAS, iSCSI, or FC connectivity)
ThinkSystem DM3000H Hybrid Storage Array (2U12 LFF, CTO only) 7Y42CTO1WW
ThinkSystem DM3000H, 48TB (12x 4TB HDDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 Fundamentals 7Y421009NA*
ThinkSystem DM3000H, 48TB (12x 4TB HDDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 Fundamentals 7Y421002EA*
ThinkSystem DM3000H, 48TB (12x 4TB HDDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 7Y421006EA*
ThinkSystem DM3000H, 96TB (12x 8TB HDDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 Fundamentals 7Y421004EA*
ThinkSystem DM3000H, 96TB (12x 8TB HDDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 7Y421008EA*
ThinkSystem DM5000H Hybrid Storage Array (2U24 SFF, CTO only) 7Y57CTO1WW
ThinkSystem DM5000H, 11.5TB (12x 960GB SSDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 Fundamentals 7Y571011NA*
ThinkSystem DM5000H, 11.5TB (12x 960GB SSDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 Fundamentals 7Y571003EA*
ThinkSystem DM5000H, 11.5TB (12x 960GB SSDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 7Y57100KEA*
ThinkSystem DM5000H, 14.4TB (12x 1.2TB HDDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 Fundamentals 7Y57100BEA*
ThinkSystem DM5000H, 21.6TB (12x 1.8TB HDDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 Fundamentals 7Y57100FEA*
ThinkSystem DM5000H, 23TB (24x 960GB SSDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 Fundamentals 7Y571005EA*
ThinkSystem DM5000H, 23TB (24x 960GB SSDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 7Y57100MEA*
ThinkSystem DM5000H, 28.8TB (24x 1.2TB HDDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 Fundamentals 7Y57100DEA*
ThinkSystem DM5000H, 43.2TB (24x 1.8TB HDDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 Fundamentals 7Y571010NA*
ThinkSystem DM5000H, 43.2TB (24x 1.8TB HDDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 Fundamentals 7Y57100HEA*
ThinkSystem DM5000H, 43.2TB (24x 1.8TB HDDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 7Y57100ZEA*
ThinkSystem DM5000H, 46TB (12x 3.84TB SSDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 Fundamentals 7Y571007EA*
ThinkSystem DM5000H,  46TB (12x 3.84TB SSDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 7Y57100PEA*
ThinkSystem DM5000H, 92TB (24x 3.84TB SSDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 Fundamentals 7Y571009EA*
ThinkSystem DM5000H, 92TB (24x 3.84TB SSDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 7Y57100SEA*
ThinkSystem DM5000F Flash Storage Array (2U24 SFF, CTO only) 7Y41CTO1WW
ThinkSystem DM5000F, 11.5TB (12x 960GB SSDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 7Y411001EA*
ThinkSystem DM5000F, 23TB (24x 960GB SSDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 7Y411003EA*
ThinkSystem DM5000F, 46TB (12x 3.84TB SSDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 7Y411005EA*
ThinkSystem DM5000F, 92TB (24x 3.84TB SSDs), 16Gb FC / 10GbE SFP+, ONTAP 9.5 7Y411000EA*
ThinkSystem DM7000H Hybrid Storage Array (3U, CTO only) 7Y56CTO1WW
ThinkSystem DM7000F Flash Storage Array (3U, CTO only) 7Y40CTO1WW
ThinkSystem DM7100H Hybrid Storage Array (4U, CTO only) 7D26CTO1WW
ThinkSystem DM7100F Flash Storage Array (4U, CTO only) 7D25CTO1WW

* Preconfigured models that are available only in North America (part numbers that have NA at the end) or EMEA (part numbers that have EA at the end) and require Preconfigured support to be purchased with the storage system (See the respective product guide for details).

For more information, see the list of Product Guides in the Lenovo Storage category:
http://lenovopress.com/storage/san/lenovo#rt=product-guide

External backup units

The following table lists the external backup options that are offered by Lenovo that can be used with the ThinkSystem SR650 server for backup solutions.

Note: Information provided in this section is for ordering reference purposes only. End-to-end LTO Ultrium configuration support for a particular tape backup unit must be verified through the System Storage Interoperation Center (SSIC):
http://www.ibm.com/systems/support/storage/ssic

Table 62. External backup options
Description Part number
External RDX USB drives
ThinkSystem RDX External USB 3.0 Dock 4T27A10725
External SAS tape backup drives
IBM TS2260 Tape Drive Model H6S 6160S6E
IBM TS2270 Tape Drive Model H7S 6160S7E
IBM TS2280 Tape Drive Model H8S 6160S8E
External SAS tape backup autoloaders
IBM TS2900 Tape Autoloader w/LTO6 HH SAS 6171S6R
IBM TS2900 Tape Autoloader w/LTO7 HH SAS 6171S7R
IBM TS2900 Tape Autoloader w/LTO8 HH SAS 6171S8R
External tape backup libraries
IBM TS4300 3U Tape Library-Base Unit 6741A1F
SAS backup drives for TS4300 Tape Library
LTO 6 HH SAS Drive 01KP934
LTO 7 HH SAS Drive 01KP937
LTO 8 HH SAS Drive 01KP953
Fibre Channel backup drives for TS4300 Tape Library
LTO 6 FH Fibre Channel Drive 01KP935
LTO 6 HH Fibre Channel Drive 01KP933
LTO 7 FH Fibre Channel Drive 01KP938
LTO 7 HH Fibre Channel Drive 01KP936
LTO 8 FH Fibre Channel Drive 01KP954
LTO 8 HH Fibre Channel Drive 01KP952

For more information, see the list of Product Guides in the Backup units category:
http://lenovopress.com/servers/options/backup#rt=product-guide

Ethernet LAN switches

The following table lists the Ethernet LAN switches that are offered by Lenovo that can be used with the ThinkSystem SR650 server for network connectivity.

Table 63. Ethernet LAN switches
Description Part number
1 Gb Ethernet switches
Lenovo ThinkSystem NE0152T RackSwitch (Rear to Front) 7Y810011WW
Lenovo ThinkSystem NE0152TO RackSwitch (Rear to Front, ONIE) 7Z320O11WW
Lenovo RackSwitch G7028 (Rear to Front) 7159BAX
Lenovo RackSwitch G7052 (Rear to Front) 7159CAX
Lenovo CE0128TB Switch (3-Year Warranty) 7Z340011WW
Lenovo CE0128TB Switch (Limited Lifetime Warranty) 7Z360011WW
Lenovo CE0128PB Switch (3-Year Warranty) 7Z340012WW
Lenovo CE0128PB Switch (Limited Lifetime Warranty) 7Z360012WW
Lenovo CE0152TB Switch (3-Year Warranty) 7Z350021WW
Lenovo CE0152TB Switch (Limited Lifetime Warranty) 7Z370021WW
Lenovo CE0152PB Switch (3-Year Warranty) 7Z350022WW
Lenovo CE0152PB Switch (Limited Lifetime Warranty) 7Z370022WW
10 Gb Ethernet switches
Lenovo ThinkSystem NE1032 RackSwitch (Rear to Front) 7159A1X
Lenovo ThinkSystem NE1032T RackSwitch (Rear to Front) 7159B1X
Lenovo ThinkSystem NE1064TO RackSwitch (Rear to Front, ONIE) 7Z330O11WW
Lenovo ThinkSystem NE1072T RackSwitch (Rear to Front) 7159C1X
Lenovo RackSwitch G8272 (Rear to Front) 7159CRW
25 Gb Ethernet switches
Lenovo ThinkSystem NE2572 RackSwitch (Rear to Front) 7159E1X
Lenovo ThinkSystem NE2572O RackSwitch (Rear to Front, ONIE) 7Z210O21WW
Lenovo ThinkSystem NE2580O RackSwitch (Rear to Front, ONIE) 7Z330O21WW
100 Gb Ethernet switches
Lenovo ThinkSystem NE10032 RackSwitch (Rear to Front) 7159D1X
Lenovo ThinkSystem NE10032O RackSwitch (Rear to Front, ONIE) 7Z210O11WW

For more information, see the list of Product Guides in the Top-of-rack Switches category:
http://lenovopress.com/servers/options/switches#rt=product-guide

Fibre Channel SAN switches

The following table lists currently available Fibre Channel SAN switches that are offered by Lenovo that can be used with the ThinkSystem SR650 server for external FC SAN storage connectivity.

Table 64. Fibre Channel SAN switches
Description Part number
8 Gb FC
Lenovo B300, E_Port License, 8 ports licensed, 8x 8Gb SWL SFPs, 1 PS, Rail Kit, 1Yr FW 3873AR6
16 Gb FC
Lenovo ThinkSystem DB610S, 8 ports licensed, 8x 16Gb SWL SFPs, 1 PS, Rail Kit, 1Yr FW 6559F2A
Lenovo ThinkSystem DB610S, ENT., 24 ports licensed, 24x 16Gb SWL SFPs, 1 PS, Rail Kit, 1Yr FW 6559F1A
Lenovo ThinkSystem DB620S, 24 ports licensed, 24x 16Gb SWL SFPs, 2 PS, Rail Kit, 1Yr FW 6415J1A
Lenovo B6505, 12 ports licensed, 12x 16Gb SWL SFPs, 1 PS, Rail Kit, 1Yr FW 3873ER1
Lenovo B6510, 24 ports licensed, 24x 16Gb SWL SFPs, 2 PS, Rail Kit, 1Yr FW 3873IR1
Lenovo B6510, 24 ports licensed, 24x 16Gb SWL SFPs, 2 PS, Rail Kit, 3Yr FW 3873BR3
32 Gb FC
Lenovo ThinkSystem DB610S, 8 ports licensed, No SFPs, 1 PS, Rail Kit, 1Yr FW 6559F3A
Lenovo ThinkSystem DB620S, 24 ports licensed, No SFPs, 2 PS, Rail Kit, 1Yr FW 6415G3A
Lenovo ThinkSystem DB620S, 24 ports licensed, 24x 32Gb SWL SFPs, 2 PS, Rail Kit, 1Yr FW 6415H11
Lenovo ThinkSystem DB620S, ENT., 48 ports licensed, 48x 32Gb SWL SFPs, 2 PS, Rail Kit, 1Yr FW 6415H2A
Lenovo ThinkSystem DB630S, 48 ports licensed, No SFPs, 2 PS, Rail Kit, 1Yr FW 7D1SA001WW
Lenovo ThinkSystem DB630S, 48 ports licensed, 48x 32Gb SWL SFPs, 2 PS, Rail Kit, 1Yr FW 7D1SA002WW
Lenovo ThinkSystem DB630S, ENT., 96 ports licensed, 96x 32Gb SWL SFPs, 2 PS, Rail Kit, 1Yr FW 7D1SA003WW
Lenovo ThinkSystem DB400D 32Gb FC Director, ENT., 4 Blade slots, 8U, 1Yr FW 6684D2A
Lenovo ThinkSystem DB400D 32Gb FC Director, ENT., 4 Blade slots, 8U, 3Yr FW 6684B2A
Lenovo ThinkSystem DB800D 32Gb FC Director, ENT. Feature set, 8 Blade slots, 14U, 1Yr FW 6682D1A

For more information, see the list of Product Guides in the Rack SAN Switches category:
http://lenovopress.com/storage/switches/rack#rt=product-guide

Rack cabinets

The following table lists the rack cabinets that are currently offered by Lenovo that can be used for mounting the ThinkSystem SR650 servers and other IT infrastructure building blocks.

Table 65. Rack cabinets
Description Part number
12U 1200mm Deep Micro Datacenter Rack (no sidewall compartments), 1YR Warranty 7D2B0001WW
12U 1200mm Deep Micro Datacenter Rack (no sidewall compartments), 3YR Warranty 7D2N0001WW
18U 1200mm Deep Micro Datacenter Rack (no sidewall compartments), 1YR Warranty 7D2C0001WW
18U 1200mm Deep Micro Datacenter Rack (no sidewall compartments), 3YR Warranty 7D2P0001WW
25U S2 Standard Rack (1000 mm deep; 2 sidewall compartments) 93072RX
25U Static S2 Standard Rack (1000 mm deep; 2 sidewall compartments) 93072PX
42U S2 Standard Rack (1000 mm deep; 6 sidewall compartments) 93074RX
42U 1100mm Enterprise V2 Dynamic Rack (6 sidewall compartments) 93634PX
42U 1100mm Enterprise V2 Dynamic Expansion Rack (6 sidewall compartments) 93634EX
42U 1200mm Deep Dynamic Rack (6 sidewall compartments) 93604PX
42U 1200mm Deep Static Rack (6 sidewall compartments) 93614PX
42U Enterprise Rack (1105 mm deep; 4 sidewall compartments) 93084PX
42U Enterprise Expansion Rack (1105 mm deep; 4 sidewall compartments) 93084EX

For more information, see the list of Product Guides in the Rack cabinets category:
http://lenovopress.com/servers/options/racks#rt=product-guide

KVM switches and consoles

The following table lists the KVM switches and consoles that are offered by Lenovo that can be used for providing console access to the ThinkSystem SR650 servers.

Table 66. KVM switch and console options
Description Part number
Consoles
1U 18.5" Standard Console (without keyboard) 17238BX
Console keyboards
ThinkSystem Keyboard w/ Int. Pointing Device USB - Arabic 253 RoHS v2 7ZB7A05469
ThinkSystem Keyboard w/ Int. Pointing Device USB - Belg/UK 120 RoHS v2 7ZB7A05468
ThinkSystem Keyboard w/ Int. Pointing Device USB - Czech 489 RoHS v2 7ZB7A05206
ThinkSystem Keyboard w/ Int. Pointing Device USB - Danish 159 RoHS v2 7ZB7A05207
ThinkSystem Keyboard w/ Int. Pointing Device USB - Dutch 143 RoHS v2 7ZB7A05208
ThinkSystem Keyboard w/ Int. Pointing Device USB - Fr/Canada 445 RoHS v2 7ZB7A05210
ThinkSystem Keyboard w/ Int. Pointing Device USB - French 189 RoHS v2 7ZB7A05209
ThinkSystem Keyboard w/ Int. Pointing Device USB - German 129 RoHS v2 7ZB7A05211
ThinkSystem Keyboard w/ Int. Pointing Device USB - Greek 219 RoHS v2 7ZB7A05212
ThinkSystem Keyboard w/ Int. Pointing Device USB - Hebrew 212 RoHS v2 7ZB7A05213
ThinkSystem Keyboard w/ Int. Pointing Device USB - Hungarian 208 RoHS v2 7ZB7A05214
ThinkSystem Keyboard w/ Int. Pointing Device USB - Italian 141 RoHS v2 7ZB7A05215
ThinkSystem Keyboard w/ Int. Pointing Device USB - Japanese 194 RoHS v2 7ZB7A05216
ThinkSystem Keyboard w/ Int. Pointing Device USB - Korean 413 RoHS v2 7ZB7A05217
ThinkSystem Keyboard w/ Int. Pointing Device USB - LA Span 171 RoHS v2 7ZB7A05218
ThinkSystem Keyboard w/ Int. Pointing Device USB - Norwegian 155 RoHS v2 7ZB7A05219
ThinkSystem Keyboard w/ Int. Pointing Device USB - Polish 214 RoHS v2 7ZB7A05220
ThinkSystem Keyboard w/ Int. Pointing Device USB - Portugese 163 RoHS v2 7ZB7A05221
ThinkSystem Keyboard w/ Int. Pointing Device USB - Russian 441 RoHS v2 7ZB7A05222
ThinkSystem Keyboard w/ Int. Pointing Device USB - Slovak 245 RoHS v2 7ZB7A05223
ThinkSystem Keyboard w/ Int. Pointing Device USB - Slovenian 234 RoHS v2 7ZB7A05231
ThinkSystem Keyboard w/ Int. Pointing Device USB - Spanish 172 RoHS v2 7ZB7A05224
ThinkSystem Keyboard w/ Int. Pointing Device USB - Swed/Finn 153 RoHS v2 7ZB7A05225
ThinkSystem Keyboard w/ Int. Pointing Device USB - Swiss F/G 150 RoHS v2 7ZB7A05226
ThinkSystem Keyboard w/ Int. Pointing Device USB - Thai 191 RoHS v2 7ZB7A05227
ThinkSystem Keyboard w/ Int. Pointing Device USB - Trad Chinese/US 467 RoHS v2 7ZB7A05467
ThinkSystem Keyboard w/ Int. Pointing Device USB - Turkish 179 RoHS v2 7ZB7A05228
ThinkSystem Keyboard w/ Int. Pointing Device USB - UK Eng 166 RoHS v2 7ZB7A05229
ThinkSystem Keyboard w/ Int. Pointing Device USB - US Eng 103P RoHS v2 7ZB7A05470
ThinkSystem Keyboard w/ Int. Pointing Device USB - US Euro 103P RoHS v2 7ZB7A05230
Console switches and cables - ThinkSystem Digital KVM
ThinkSystem Digital 2x1x16 KVM Switch (DVI video output port) 1754D1T
ThinkSystem VGA to DVI Conversion Cable 4X97A11108
ThinkSystem Single-USB Conversion Cable for Digital KVM 4X97A11109
ThinkSystem Dual-USB Conversion Cable for Digital KVM 4X97A11107
Console switches and cables - ThinkSystem Analog KVM
ThinkSystem Analog 1x8 KVM Switch (DVI video output port) 1754A1T
ThinkSystem VGA to DVI Conversion Cable 4X97A11108
ThinkSystem USB Conversion Cable for Analog KVM 4X97A11106
Console switches and cables - Global Console Managers
Global 2x2x16 Console Manager (GCM16) (VGA video output port) 1754D1X
Global 4x2x32 Console Manager (GCM32) (VGA video output port) 1754D2X
Virtual Media Conversion Option Gen2 (VCO2) 46M5383
Serial Conversion Option (SCO) 46M5382
Console switches and cables - Local Console Managers
Local 1x8 Console Manager (LCM8) (VGA video output port) 1754A1X
Local 2x16 Console Manager (LCM16) (VGA video output port) 1754A2X
Virtual Media Conversion Option Gen2 (VCO2) 46M5383

For more information, see the list of Product Guides in the KVM Switches and Consoles category:
http://lenovopress.com/servers/options/kvm#rt=product-guide

Power distribution units

The following table lists the power distribution units (PDUs) that are currently offered by Lenovo that can be used for distributing electrical power to the ThinkSystem SR650 servers and other IT infrastructure building blocks mounted in a rack cabinet.

Table 67. Power distribution units
Description Part number
0U Basic PDUs
0U 36 C13/6 C19 24A/200-240V 1 Phase PDU with NEMA L6-30P line cord 00YJ776
0U 36 C13/6 C19 32A/200-240V 1 Phase PDU with IEC60309 332P6 line cord 00YJ777
0U 21 C13/12 C19 32A/200-240V/346-415V 3 Phase PDU with IEC60309 532P6 line cord 00YJ778
0U 21 C13/12 C19 48A/200-240V 3 Phase PDU with IEC60309 460P9 line cord 00YJ779
Switched and Monitored PDUs
0U 20 C13/4 C19 Switched and Monitored 24A/200-240V/1Ph PDU w/ NEMA L6-30P line cord 00YJ781
0U 20 C13/4 C19 Switched and Monitored 32A/200-240V/1Ph PDU w/ IEC60309 332P6 line cord 00YJ780
0U 18 C13/6 C19 Switched / Monitored 32A/200-240V/346-415V/3Ph PDU w/ IEC60309 532P6 cord 00YJ782
0U 12 C13/12 C19 Switched and Monitored 48A/200-240V/3Ph PDU w/ IEC60309 460P9 line cord 00YJ783
1U 9 C19/3 C13 Switched and Monitored DPI PDU (without line cord) 46M4002
1U 9 C19/3 C13 Switched and Monitored 60A 3Ph PDU with IEC 309 3P+Gnd cord 46M4003
1U 12 C13 Switched and Monitored DPI PDU (without line cord) 46M4004
1U 12 C13 Switched and Monitored 60A 3 Phase PDU with IEC 309 3P+Gnd line cord 46M4005
Ultra Density Enterprise PDUs (9x IEC 320 C13 + 3x IEC 320 C19 outlets)
Ultra Density Enterprise C19/C13 PDU Module (without line cord) 71762NX
Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph with IEC 309 3P+Gnd line cord 71763NU
C13 Enterprise PDUs (12x IEC 320 C13 outlets)
DPI C13 Enterprise PDU+ (without line cord) 39M2816
DPI Single Phase C13 Enterprise PDU (without line cord) 39Y8941
C19 Enterprise PDUs (6x IEC 320 C19 outlets)
DPI Single Phase C19 Enterprise PDU (without line cord) 39Y8948
DPI 60A 3 Phase C19 Enterprise PDU with IEC 309 3P+G (208 V) fixed line cord 39Y8923
Front-end PDUs (3x IEC 320 C19 outlets)
DPI 30amp/125V Front-end PDU with NEMA L5-30P line cord 39Y8938
DPI 30amp/250V Front-end PDU with NEMA L6-30P line cord 39Y8939
DPI 32amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8934
DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8940
DPI 63amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8935
Universal PDUs (7x IEC 320 C13 outlets)
DPI Universal 7 C13 PDU (with 2 m IEC 320-C19 to C20 rack power cord) 00YE443
NEMA PDUs (6x NEMA 5-15R outlets)
DPI 100-127V PDU with fixed NEMA L5-15P line cord 39Y8905
Line cords for PDUs that ship without a line cord
DPI 30a Line Cord (NEMA L6-30P) 40K9614
DPI 32a Line Cord (IEC 309 P+N+G) 40K9612
DPI 32a Line Cord (IEC 309 3P+N+G) 40K9611
DPI 60a Cord (IEC 309 2P+G) 40K9615
DPI 63a Cord (IEC 309 P+N+G) 40K9613
DPI Australian/NZ 3112 Line Cord (32A) 40K9617
DPI Korean 8305 Line Cord (30A) 40K9618

For more information, see the list of Product Guides in the PDU category:
http://lenovopress.com/servers/options/pdu#rt=product-guide

Uninterruptible power supply units

The following table lists the uninterruptible power supply (UPS) units that are currently offered by Lenovo that can be used for providing electrical power protection to the ThinkSystem SR650 servers and other IT infrastructure building blocks.

Table 68. Uninterruptible power supply units
Description Part number
Worldwide models
RT1.5kVA 2U Rack or Tower UPS (100-125VAC) (8x NEMA 5-15R 12A outlets) 55941AX
RT1.5kVA 2U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A outlets) 55941KX
RT2.2kVA 2U Rack or Tower UPS (100-125VAC) (8x NEMA 5-20R 16A outlets) 55942AX
RT2.2kVA 2U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 1x IEC 320 C19 16A outlets) 55942KX
RT3kVA 2U Rack or Tower UPS (100-125VAC) (6x NEMA 5-20R 16A, 1x NEMA L5-30R 24A outlets) 55943AX
RT3kVA 2U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 1x IEC 320 C19 16A outlets) 55943KX
RT5kVA 3U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 2x IEC 320 C19 16A outlets) 55945KX
RT6kVA 3U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 2x IEC 320 C19 16A outlets) 55946KX
RT8kVA 6U Rack or Tower UPS (200-240VAC) (4x IEC 320-C19 16A outlets) 55948KX
RT11kVA 6U Rack or Tower UPS (200-240VAC) (4x IEC 320-C19 16A outlets) 55949KX
RT8kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) (4x IEC 320-C19 16A outlets) 55948PX
RT11kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) (4x IEC 320-C19 16A outlets) 55949PX
ASEAN, HTK, INDIA, and PRC models
ThinkSystem RT3kVA 2U Standard UPS (200-230VAC) (2x C13 10A, 2x GB 10A, 1x C19 16A outlets) 55943KT
ThinkSystem RT3kVA 2U Long Backup UPS (200-230VAC) (2x C13 10A, 2x GB 10A, 1x C19 16A outlets) 55943LT
ThinkSystem RT6kVA 5U UPS (200-230VAC) (2x C13 10A outlets, 1x Terminal Block output) 55946KT
ThinkSystem RT10kVA 5U UPS (200-230VAC) (2x C13 10A outlets, 1x Terminal Block output) 5594XKT

For more information, see the list of Product Guides in the Uninterruptible Power Supply Units category:
http://lenovopress.com/servers/options/ups#rt=product-guide

Lenovo Financial Services

Lenovo Financial Services reinforces Lenovo’s commitment to deliver pioneering products and services that are recognized for their quality, excellence, and trustworthiness. Lenovo Financial Services offers financing solutions and services that complement your technology solution anywhere in the world.

We are dedicated to delivering a positive finance experience for customers like you who want to maximize your purchase power by obtaining the technology you need today, protect against technology obsolescence, and preserve your capital for other uses.

We work with businesses, non-profit organizations, governments and educational institutions to finance their entire technology solution. We focus on making it easy to do business with us. Our highly experienced team of finance professionals operates in a work culture that emphasizes the importance of providing outstanding customer service. Our systems, processes and flexible policies support our goal of providing customers with a positive experience.

We finance your entire solution. Unlike others, we allow you to bundle everything you need from hardware and software to service contracts, installation costs, training fees, and sales tax. If you decide weeks or months later to add to your solution, we can consolidate everything into a single invoice.

Our Premier Client services provide large accounts with special handling services to ensure these complex transactions are serviced properly. As a premier client, you have a dedicated finance specialist who manages your account through its life, from first invoice through asset return or purchase. This specialist develops an in-depth understanding of your invoice and payment requirements. For you, this dedication provides a high-quality, easy, and positive financing experience.

For your region-specific offers please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website:
http://www.lenovo.com/us/en/landingpage/lenovo-financial-services

Related product families

Product families related to this document are the following:

Thuộc tính sản phẩm
Hard Drive 3.5-inch
Processor Gold
Nhận xét của bạn
  • Only registered users can write reviews
*
*
  • Tệ
  • Xuất sắc
Thông tin
Dịch vụ khách hàng

CÔNG TY TNHH PHÂN PHỐI MÁY CHỦ

Trụ sở chính

  • Viettel Tower, 285 Cách Mạng Tháng Tám, Phường 12, Quận 10, TP. Hồ Chí Minh
  • Điện Thoại: (028) 7300 4493

Chi nhánh Hà Nội

  • Toà nhà CharmVit Tower, 117 Trần Duy Hưng, Cầu Giấy, Hà Nội
  • Điện Thoại: (024) 7300 4493
  • Email: sales@phanphoimaychu.vn
Copyright © 2024 Phân phối máy chủ. All rights reserved.
