Lenovo ThinkStation P520 Workstation W-2102

Processor	Up to Intel® Xeon® W-2295 with vPro™ (3.00 GHz, up to 4.60 GHz with Turbo Boost, 18 Cores, 36 Threads, 24.75 MB Cache)
Operating System	Windows 10 Pro for Workstations 64
Chipset	Intel® C422
Supported OS	Red Hat® Enterprise Linux® 7.3
Power Supply	690 W @ 92% efficient 900 W @ 92% efficient 1000 W @ 92% efficient
Security Features	Trusted Platform Module (TPM 2.0) Serial, Parallel, USB, Audio, Network, Enable/Disable Port Control Power-On Password Setup Password
Graphics	NVIDIA® Quadro GV100 32GB (4xDP) High Profile NVIDIA® Quadro RTX 8000 48GB 4 DP + VirtualLink NVIDIA® Quadro RTX 6000 24GB (Dual available with NVLink) NVIDIA® Quadro RTX™ 5000 16GB 4DP+VL NVIDIA® Quadro P5000 16GB (DVI+4DP) High Profile NVIDIA® Quadro RTX™ 4000 8GB 3DP+VL NVIDIA® Quadro P1000 4GB (4xMini DP) High Profile NVIDIA® Quadro P620 2GB (Mini DPx4)
Connectivity	Intel 8265 802.11AC with vPro (2 x 2) & Bluetooth® 4.2 Intel I210-T1 Single Port Gigabit Ethernet Adapter3 Intel I350-T2 Dual Port Gigabit Ethernet Adapter3 Intel I350-T4 Quad Port Gigabit Ethernet Adapter3  X540-T2 Dual Port Copper3
Memory	Up to 256 GB DDR4 2666MHz ECC RDIMM
Storage2	Up to 6TB Hard Drive, 7200RPM, 3.5" SATA3 Up to 2048GB Solid State Drive, 2.5", SATA3, Opal
RAID Support	RAID 0, 1, 5, 10  NVMe RAID 0,1 optional (Intel RSTe vROC) via activation key
Media Card Reader	9-in-1 media card reader
Flex Module	9 mm slim ODD 1394 IEEE FireWire eSATA
Ports	Front: 4 x USB 3.1 Gen 1** Type A Front: Mic/Headphone combo jack Front: 2 x USB-C/Thunderbolt 3 (optional) Front: Optional Media Card Reader4 Rear: 4 x USB 3.1 Gen 1** Type A Rear: 2 x USB 2.0 Type A Rear: 2 x PS/2 Rear: USB-C (optional) Rear: Thunderbolt 3 (optional) Rear: RJ‐45 Gigabit ethernet Rear: Audio line in Rear: Audio line out Rear: Microphone in Additional ports available with optional Flex module upgrade
Physical Security	Cable lock slot Chassis Intrusion switch Optional key lock
Green Certifications	ENERGY STAR® 8.0 Qualified EPEAT®5 GREENGUARD® Certified RoHS Compliant 80 PLUS® Platinum
ISV Certifications	Adobe® Autodesk® AVID® Altair® AVEVA™ Bentley® Dassault® Nemetschek® PTC® Siemens® Barco® Eizo® McKesson® Learn more about specific ISV certifications
PCIe Expansion	2 x PCIe x16 Gen 3 1 x PCIe x8 Gen 3 1 x PCIe x4 Gen 3 1 x PCI
Dimensions (W x D x H)	6.5" x 18.0" x 17.6" 165 x 455 x 440 mm (33 L)
More Information	Full spec list for part numbers starting with 30BF available here  *Not all specs available on lenovo.com

Specifications may vary depending upon region.

1. Select Versions Available Via Pre-load; Versions are Configuration Specific
2. Any combination of storage to equal maximum storage drives; Additional hardware required
3. Optional; Fully qualified and configurable
4. 9-in-1 Standard; 15-in-1 Optional
5. Certification Available on Select Models; EPEAT^® registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country

** The actual transfer speed of the USB 3.1 [Gen 1] will vary and, depending on many factors, such as the processing capability of host and peripheral devices, file attributes and other factors related to system configuration and your operating environments, will be slower than a speed of [5 Gbit/s].

Ports

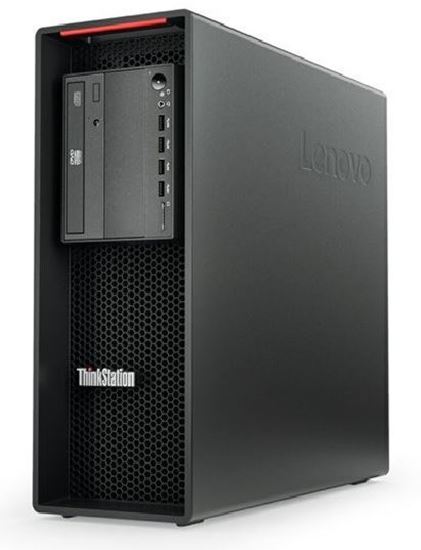

Front

• 1. Optional DVD-RW
• 2. Power Button
• 3. Mic/Headphone Combo Jack
• 4. 4 x USB 3.1 Gen 1 Type-A*

• 5. Media Card Reader

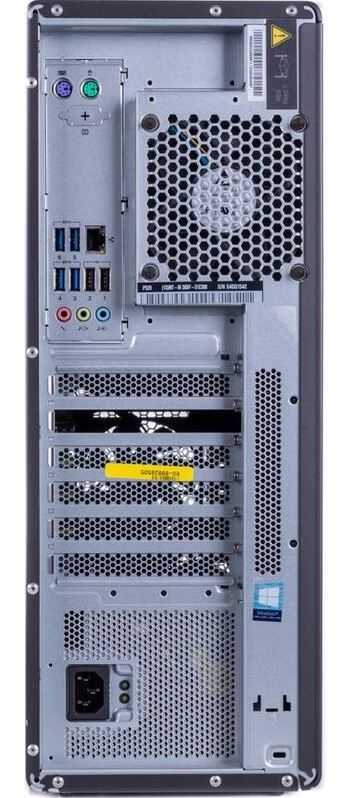

Rear

• 6. 2 x PS/2
• 7. Optional Serial Port
• 8. 1GbE RJ45
• 9. 4 x USB 3.1 Gen 1 Type-A*
• 10. 2 x USB 2.0 Type-A

• 11. Microphone-In
• 12. Audio Line-Out
• 13. Audio Line-In
