Processor
One Intel® Xeon® E-2300 series processors with up to 8 cores per processor
One Intel® Pentium® processor with up to 2 cores per processor
Operating System
(Dell Technologies recommends Windows 11 Pro for business)
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®i
Chipset
Intel® C256 series chipset
Memoryi
DIMM Speed
Up to 3200 MT/s
Note: For Pentium processor, maximum memory speed supported is 2666 MT/s
Memory Type
UDIMM
Memory Module Slots
4 DDR4 DIMM slot
Maximum RAM
UDIMM 128 GB
Storage

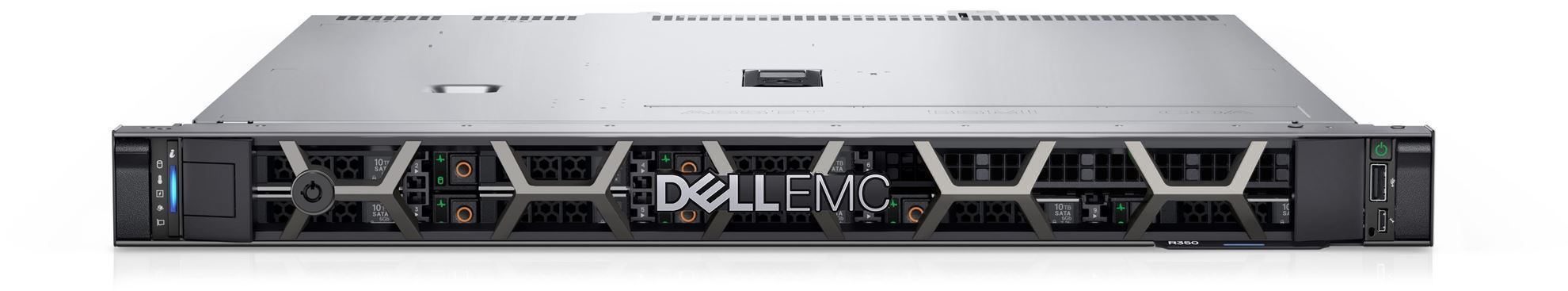

Front Bays
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 128 TB
Storage Controllers
Internal Controllers
PERC H345, PERC H755, HBA355i, PERC H345f, PERC H755f, HBA355f
External Controllers
HBA355e
Software RAID
S150
Internal Boot
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs
Internal Dual SD Module or USB
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager
OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI
Power Supplies
600 W Platinum AC/100 - 240 V
Ports
Network Options
2 x 1GbE LOM
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0

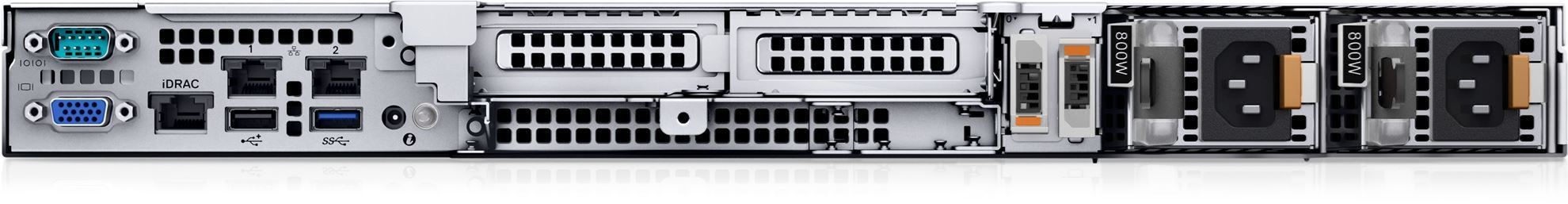

Rear Ports
1 x USB 2.0
1 x USB 3.0
2 x Ethernet
1 x VGA
Internal Ports
1 x USB 3.0 (optional)
Slots
PCIe
3 x PCIe Gen4 slots
Video Card
1 x VGA
Chassis
Fans
Up to 4 fans with full redundancy
Bezel
Optional LCD bezel or security bezel
Form Factor
1U rack server
Dimensions & Weight
Height: 1.7 in. (42.8 mm)
Width: 17.09 in. (434.0 mm)
Depth with Bezel: 22.44 in. (570.23 mm)
Depth without Bezel: 21.90 in. (556.59 mm)
Weight: Max 29.98 lbs. (13.6 kg)i
Rack Support
ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks.
ReadyRails™ static rails for 4-post and 2-post racks.
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
