Processor
Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 24 cores per processor
Operating System
(Dell Technologies recommends Windows 11 Pro for business)
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Chipset
Intel® C620A chipset
Memoryi
DIMM
Speed Up to 2933 MT/s
Memory Type
RDIMM
Memory Module Slots
16 DDR4 DIMM slots
Maximum RAM
RDIMM 1 TB
Storage

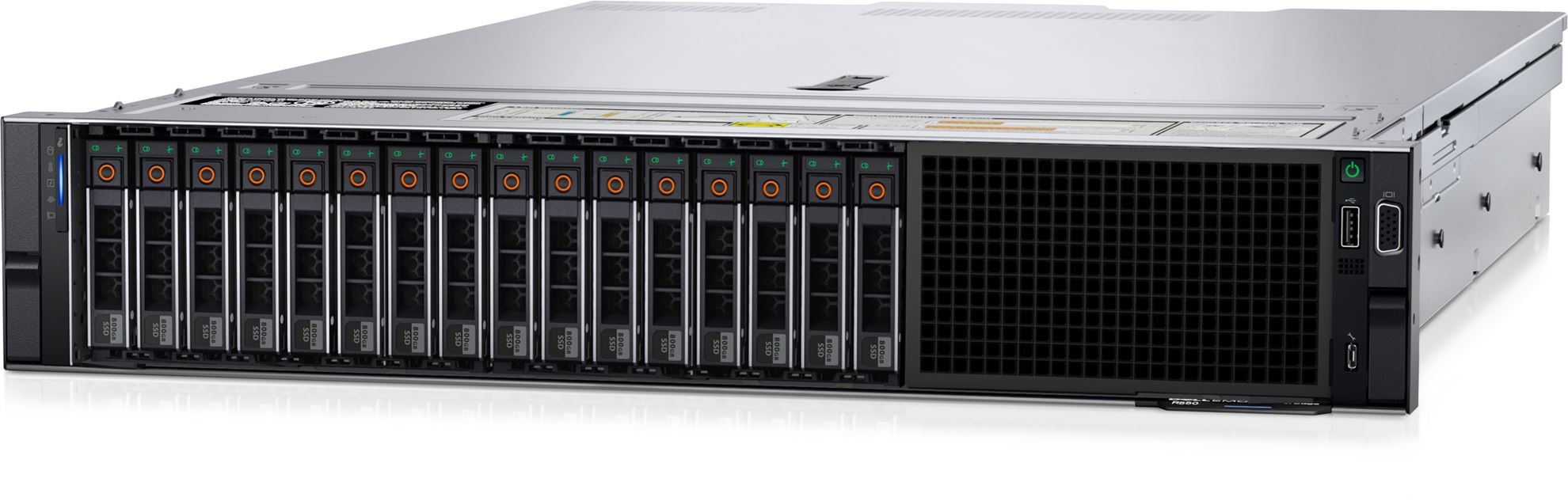

Front Bays
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB
Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB
Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB
Storage Controllers
Internal Controllers
PERC H345, PERC H745, PERC H755, HBA355i
External Controllers
PERC H840, HBA355e
Software RAID
S150
Internal Boot
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module
USB 3.0
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module
Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager
OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI
Power Supplies
1100 W DC/-48–(-60) V
800 W Platinum AC/240 HVDC
600 W Platinum AC/240 HVDC
Hot plug power supplies with full redundancy option
Up to 5 cold swap fans
Ports
Network Options
2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

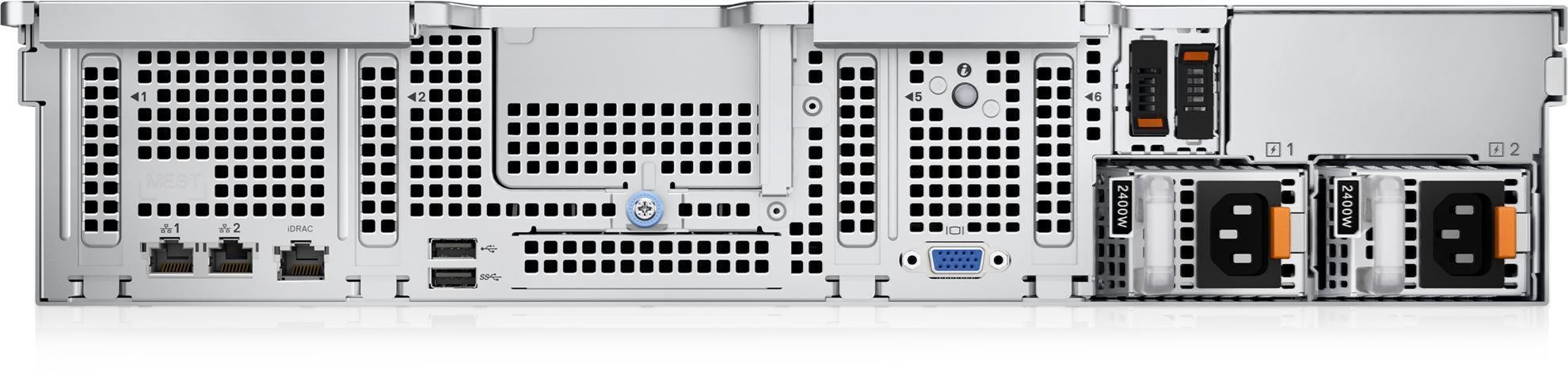

Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x Ethernet
1 x VGA
Internal Ports
1 x USB 3.0 (optional)
Slots
3 x Gen 4 PCIe slots, 1 x Gen3 PCIe slot
Video Card
1 x VGA
Bezel
Optional LCD bezel or security bezel
Form Factor
2U rack server
Dimensions & Weight
Height
86.8 mm (3.41 inches)
Width
434.0 mm (17.08 inches) — without bezel
482.0 mm (18.97 inches) — with bezel
Depth
721.69 mm (28.72 inches)
Weight
24.80 kg (54.67 lbs.)
Rack Support
ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks.
ReadyRails™ static rails for 4-post and 2-post racks.
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
