Processor
One Intel® Xeon® E-2300 series processor with up to 8 cores per processor
One Intel® Pentium® processor with up to 2 cores per processor
Operating System
(Dell Technologies recommends Windows 11 Pro for business)
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®i
For specifications and interoperability details, see
Chipset
Intel C256 series chipset
Memoryi
DIMM Speed
Up to 3200 MT/s
Note: For Pentium processor, maximum memory speed supported is 2666 MT/s
Memory Type
UDIMM
Memory Module Slots
4 DDR4 DIMM slots
Maximum RAM
UDIMM 128 GB
Storage
Front Bays
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
(Also supports 2.5-inch drive in 3.5-inch hybrid drive carrier)
Storage Controllers
Internal Controllers
PERC H755, PERC H345, HBA355i
External Controllers
HBA355e
Software RAID
S150
Internal Boot
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module or Internal USB 3.0
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
RACADM CLI
IPMI
System Update Utility
Update Catalogs
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager
OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI
Power Supplies
450 W Bronze (cable) AC/100 - 240 V
600 W Platinum AC/100 - 240 V
600 W DC/240 V
Ports
Network Options
2 x 1 GbE LOM
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 3.0

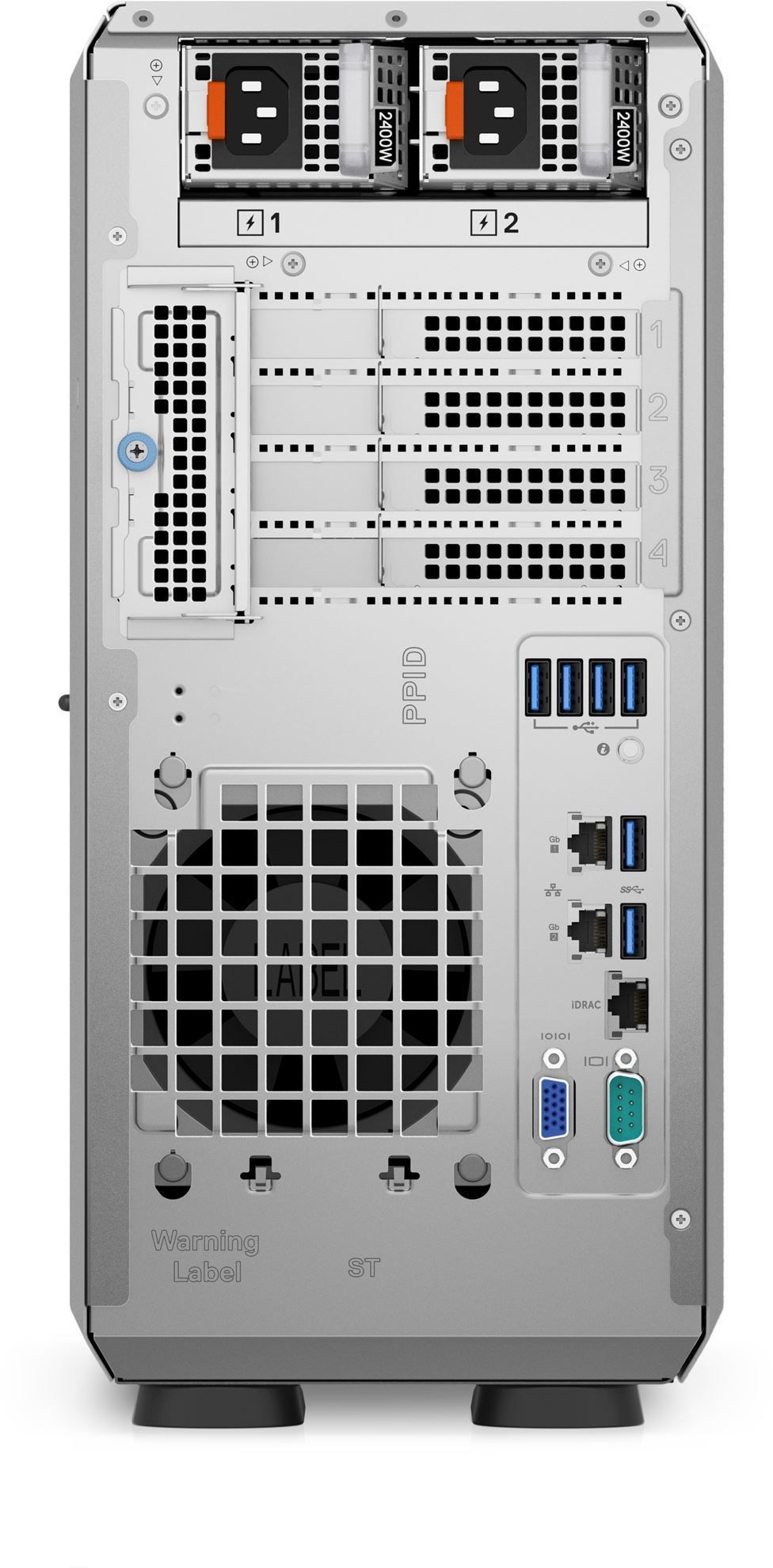

Rear Ports
5 x USB 2.0
1 x USB 3.0
1 x Serial
1 x iDRAC dedicated port
1 x VGA
Internal Ports
1 x USB 3.0 (optional)
Slots
PCIe
2 x Gen 4 PCIe slots, 2 x Gen3 PCIe slots
Video Card
1 x VGA
Bezel
Optional security bezel
Form Factor
4.5U Tower server
Dimensions & Weight
Height
369.5 mm (14.54 inches)
Width
175 mm (6.88 inches)
Depth
581.12 mm (22.87 inches) with bezel
Weight
25.34 kg (55.86 pound)i
Rack Support
System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
