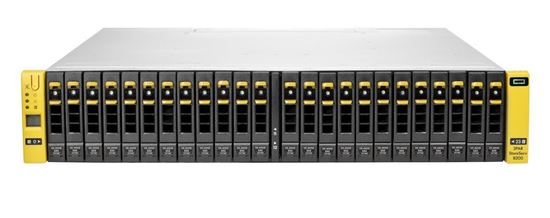

HPE 3PAR 8400 Upgrade Node Pair with All-inclusive Single-system Software (H6Z06B)

  • Capacity: 3000 TiB Maximum, depending on model
  • Drive description: SFF SAS or LFF SAS
  • Maximum drives per enclosure: 24
  • Host interface: 32 Gb/sec Fibre Channel (8) Ports
  • Cache: 384 GiB Maximum, depending on model
  • Storage controller:3PAR 8000 6-core 2.2GHz Controller Node, 3PAR 8000 10-core 2.4GHz Controller Node Maximum, depending on model
  • Availability features: Redundant power supplies and fans A minimum of dual redundant controllers, with up to two controllers for added redundancy RAID 1, RAID 5 and RAID 6 for data protection.
  • Compatible operating systems: Microsoft Windows Server , HP-UX, Red Hat Enterprise Linux (RHEL), VMware ESX and ESXi, Oracle , IBM AIX, HPE OpenVMS, Apple OS X, HPE OpenVMS is a registered release only
  • Warranty: 3-year parts, 3-year labor, 3-year onsite support
Manufacturer: HPE
Call for pricing

HPE 3PAR StoreServ 8000 Storage



The HPE 3PAR StoreServ 8000 Storage offers flexible enterprise Tier 1 storage at a midrange price. HPE 3PAR StoreServ 8000 Storage delivers the performance advantages of a purpose-built, flash-optimized architecture without compromising resiliency, efficiency, or data mobility. The new HPE 3PAR Gen5 Thin Express ASIC provides silicon-based hardware acceleration of thin technologies, including inline deduplication, to reduce acquisition and operational costs by up to 75% without compromising performance. With unmatched versatility, performance, and density, HPE 3PAR StoreServ 8000 Storage gives you a range of options that support true convergence of block and file protocols, all-flash array performance, and the use of spinning media to further optimize costs. HPE 3PAR StoreServ 8000 Storage offers rich, Tier-1 data services, quad-node resiliency, seamless data mobility between systems, high availability through a complete set of persistent technologies, and simple and efficient data protection with a flat backup to HPE StoreOnce Backup appliances. Four models are available: 8200, 8400, 8440, and 8450. You can start small and grow without painful upgrades down the road. Enjoy the timeless 3PAR experience.  Start small and seamlessly migrate to a new system or upgrade for greater scalability.



NOTE: For more information about the value of HPE 3PAR StoreServ 8000 Storage refer to the

HPE 3PAR StoreServ 8000 Datasheet.

HPE 3PAR StoreServ 8000 is storage made effortless.




HPE 3PAR StoreServ 8000 Storage

(2-Node Storage Base)

HPE 3PAR StoreServ 8000 Storage

(4-Node Storage Base)





What’s New



HPE 3PAR 8000 2p 32Gb FC Adapter

For high performance Fibre Channel host connectivity

HPE 3PAR 8000 Node Conversion Kits

3PAR 8000 Node Conversion Kits provides Data in Place Upgrade capability.  Protect existing investments and scale your 3PAR 8000 system to meet your on-going business requirements.



Host OS Support

Citrix® XenServer® | HP-UX® | IBM® AIX® | Microsoft® Windows® Server, including Microsoft® Hyper-V™ | Apple Mac OS

OpenVMS* | Oracle® Linux® (UEK and RHEL compatible kernels) | Oracle® Solaris | Ubuntu | VMware vSphere™

Red Hat® Enterprise Linux® | Red Hat® Enterprise Virtualization

SUSE® Linux Enterprise | SUSE® Linux Virtualization | IBM Virtualization | Oracle VM

For the latest information on supported operating systems refer to Single Point of Connectivity Knowledge for HPE Storage Products (SPOCK): http://www.hpe.com/storage/spock











Summary

8200

8400

8440

8450



Number of Controller Nodes

2

2 or 4

2 or 4

2 or 4



HPE 3PAR Gen5 ASICs

2

2 or 4

2 or 4

2 or 4



Processors

2 x 6-core 2.2 GHz

2-4 x 6-core 2.2 GHz

2-4 x 10-core 2.4 GHz

2-4 x 10-core 2.4 GHz



Total Cache

832 GiB

1664 GiB

8384 GiB

384 GiB



Flash Cache (optional)

768 GiB

1536 GiB

8000 GiB

Not Applicable



On-Node Cache

64 GiB

128 GiB

384 GiB

384 GiB



Total Cache per node pair

832 GiB

832 GiB

4192 GiB

192 GiB



Flash Cache per node pair

768 GiB

768 GiB

4000 GiB

Not Applicable



On-Node Cache per node pair

64 GiB

64 GiB

192 GiB

192 GiB



Maximum Host Ports

12 ports

24 ports

24 ports

24 ports



32Gb/s  Fibre Channel Host Ports1

0 - 4 ports

0 - 8 ports

0 - 8 ports

0 - 8 ports



 16Gb/sFibre Channel Host Ports

4 - 12 ports

4 - 24 ports

4 - 24 ports

4 - 24 ports



 10Gb/s iSCSI Host Ports

0 - 4 ports

0 - 8 ports

0 - 8 ports

0 - 8 ports



 10Gb/s FCoE Host Ports

0 - 4 ports

0 - 8 ports

0 - 8 ports

0 - 8 ports



 1Gb/s Ethernet Adapter

0 - 8 ports

0 - 16 ports

0 - 16 ports

0 - 16 ports



 10Gb/s Ethernet Adapter

0 - 4 ports

0 - 8 ports

0 - 8 ports

0 - 8 ports



Maximum Initiators Supported

2048

4096

4096

4096



Built-in 1GbE Ports2

2

2 - 4

2 - 4

2 - 4



2U Controller Node Drive Capacity

24

24

24

24



Number of Hard Disk Drives

6 – 240

6 – 576

6 – 960

Not Applicable



Number of Solid State Drives

6 – 120

6 – 240

6 – 480

6 – 480



Max Raw Capacity (approx.)3

1000 TiB4

2400 TiB

4000 TiB

3351 TiB



Max Raw Capacity (SSD only)

838 TiB

1676 TiB

3351 TiB

3351 TiB



Usable File Capacity5

2 – 256 TiB

2 – 512 TiB

2 – 512 TiB

2 – 512 TiB



Capacity Details

8200

8400

8440

8450



RAID Levels

RAID 0, 1, 5, 6



RAID 5 Data to Parity Ratios

2:1 - 8:1



RAID 6 Data to Parity Ratios

4:2, 6:2, 8:2, 10:2, 14:2



Drive Capacities (SSDs)6

920GB SSD, 1.92TB SSD,

3.84TB SSD, 7.68TB SSD, 15.36TB SSD



Drive Capacities (HDD)

300 15K SAS7, 600 15K SAS

600 10K SAS, 1200 10K SAS, 1800 10K SAS

2000 7.2K NL8, 4000 7.2K NL, 6000 7.2K NL, 8000 7.2K NL

Not Applicable



Number of Add-on Drive Enclosures9

0 - 9 enclosures

0 - 22 enclosures

0 - 38 enclosures

0 - 18 enclosures

NOTE: Specifications are subject to change without notice.

132Gb FC host support requires 3PAR OS 3.3.1 Technology Release (TR) 05.  Check HPE Spock for latest supported 3PAR software and connectivity.

2Two built-in 1GbE ports per node pair can be used for Remote Copy (RCIP).

3 Maximum raw capacity currently supported with any and all drive types. The minimum supported raw capacity is equal to 6 * Min drive size available.

4 For storage capacity, 1 GiB = 230 bytes and 1 TiB = 1,024 GiB

5 Usable file capacity supported for HPE 3PAR File Persona

6 SSDs are Solid State Drives

7 SAS drives are Serial Access SCSI Drives

NL drives are Nearline (7200 RPM) Enterprise SAS drives

Each Drive Enclosure holds up to 24 drives in 2U for small form factor (2.5”) drives and 4U for large form factor (3.5”) drives
