HPE ProLiant DL380 G10 SFF Gold 6240

HPE ProLiant DL380 Gen10 Server

Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform.

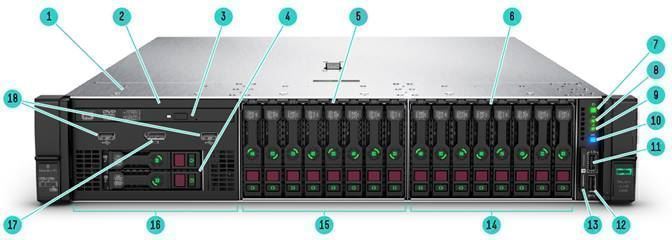

Front View – SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown

1.

Quick removal access panel

10.

UID button

2.

Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional)

11.

iLO Front Service Port

3.

Optional Optical drive. Requires Universal Media bay

12.

USB 3.0

4.

Optional 2 SFF HDD, requires optional Universal Media bay

13.

Serial label pull tag

5.

Drive Bay 2. NVMe shown

(8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional)

14.

Box 3

6.

8 SFF Drive Cage Bay

15.

Box 2

7.

Power On/Standby button and system power LED button

16.

Box 1

8.

Health LED

17.

Optional front display port (Via Universal Media Bay)

9.

NIC status

18.

Optional USB 2.0 (via Universal Media Bay)

Front View – 8LFF chassis with Universal media bay and optional 2SFF and optical drive shown

1.

UID button

6.

iLO Front Service Port

2.

Health LED

7.

Serial label pull tag

3.

NIC status

8.

Optional optical drive shown (blank as standard)

4.

Power On/Standby button and system power LED button

9.

Optional 2 SFF Drive bay, 2 NVMe shown

5.

Front display port

Internal View 8SFF chassis – with optional 2^nd CPU, FlexLOM, Smart array shown

1.

Fan cage shown with 6 standard Hot-plug fans (High Performance temperature fans optional)

9..

(Under) Hot Plug redundant HPE Flexible Slot Power supplies

2.

2 Processors, heatsink showing

10.

Connection for second (optional) riser (Requires second CPU)

3.

Optional HPE Smart Hybrid Capacitor or HPE Smart Storage Battery

11.

Embedded 4x1Gbe NIC (if equipped)¹

4.

DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)

12.

Primary PCIe riser, standard (Optional double wide GPU riser)

5.

MicroSD card slot (Optional Dual Micro-SD option)

13.

FlexibleLOM slot (Optional, depending on model selected)

6.

Internal USB 3.0 connector

14.

X4 SATA ports (1, 2 and 3)

7.

Chassis intrusion detection connector

15.

Clear air baffle

8.

Optional HPE Smart Array (P408i-a shown)Clear air baffle

NOTE: ¹ Networking Choice (NC) models do not include an embedded NIC and have a FlexibleLOM pre-selected for Build-to-Order (BTO) models; Configure-to-Order (CTO) models require a networking choice of FlexibleLOM. See FlexibleLOM Adapters for available options.

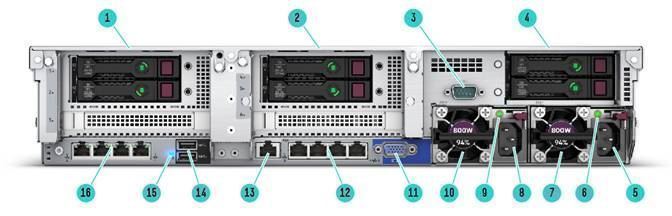

Rear View – With optional FlexLOM, Rear drives and Serial port shown.

1.

Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives

9.

Power supply Power LED

2.

Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear

10.

HPE Flexible Slot Power Supply bay 2 (800W shown)

3.

Optional serial port

11.

VGA connector

4.

Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end)

12.

Embedded 4 x 1GbE Network Adapter (if equipped) ¹

5.

Power supply Power connection

13.

Dedicated iLO management port

6.

Power supply Power LED

14.

USB connectors 3.0 (2)

7.

HPE Flexible Slot Power Supply bay 1 (800W shown)

15.

Unit ID LED

8.

Power supply Power connection

16.

FlexibleLOM ports (4 x 1GbE shown); optional, depending on model

NOTE: ¹ Networking Choice (NC) models do not include an embedded NIC and have a FlexibleLOM pre-selected for Build-to-Order (BTO) models; Configure-to-Order (CTO) models require a networking choice of FlexibleLOM. See FlexibleLOM Adapters for available options.

What’s New:

· HPE Ethernet 10Gb 2-port 537SFP+ Adapter

· HPE Ethernet 10Gb 2-port 537SFP+ FlexibleLOM

· 16TB SAS LFF 7.2K HDD and 16TB SATA LFF 7.2K HDD

Platform Information

Form Factor

· 2U rack

Chassis Types

· 8 SFF with optional Universal Media Bay, and optional SFF or NVMe drive bay options

· 24 SFF bay with additional 6SFF rear drive bay option to total 30 SFF drives

· 8 LFF with Universal Media Bay

· 12 LFF with optional 4 LFF mid-plane and optional 3LFF + 2 SFF rear drive bay to total 19 LFF drives + 2 SFF drives

NOTE: The 3 LFF rear drive box will consume space for the secondary and tertiary riser.

NOTE: The 8 and 12 LFF chassis also supports the 2 SFF rear drive box which allows for the user to attach a secondary or tertiary riser.

NOTE: The 8 NVMe drive option (826689-B21) can only be leveraged in the SFF chassis and replaces Box 1, 2 or 3, however there is a maximum of 20 NVMe drives supported with Partial population of Box 1.

NOTE: The Premium cage (826690-B21, 6 SAS/SATA+2 NVMe) can only be leveraged in the SFF chassis and replaces Box 1, 2 or 3.

NOTE: The Universal Media Bay (826708-B21) not available with the LFF chassis or the 24 SFF front end, and can only be populated in Box 1.

NOTE: The 8 SFF can be upgraded with additional 8SFF drive box to total 16 or 24 SFF drives. For optimal upgrade Box 2 should be populated second, with Box 1 the last to be populated for a field upgrade to 24 SFF. For CTO builds requiring 24 SFF please use the 24 SFF chassis (868704-B21). Note a field upgrade to 24 SFF will require a High Performance fan kit (867810-B21).

NOTE: The 8 LFF chassis cannot be upgraded to 12 LFF front in the field; however the 4-LFF Mid plane (826686-B21) is supported, but will also require a performance fan kit (867810-B21).

NOTE: The 8LFF chassis ships with 6-standard fans.

NOTE: All models come with the S100i Smart Array Controller with embedded software RAID support for 12 drives. The S100i uses 14 embedded SATA ports, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 options on the primary riser.

System Fans

Standard – fan types included

· 1P models typically ship with 4 standard fans. The second processor option kit contains 2 additional fans. 1P Models have (4) (N+1 redundancy standard).

· 2P models typically ship with 6 standard fans. 2P Models have (6) (N+1 redundancy standard).

· The 12 LFF and 24 SFF chassis ship with 6 High performance fans as standard.

· The 8LFF chassis ships with 6 standard fans as standard.

· High performance fan kit is available to meet ambient temperature environments.

· High performance fan kits are required for rear drives, Graphics (GPU) card or NVMe configurations.

Processors – Up to 2 of the following depending on model.

The 2nd digit of the processor model number "x1xx" and "x2xx" is used to denote the processor generation (i.e. 1=1st generation and 2=2nd generation)

NOTE: Field upgrades from 1^st generation processors (x1xx) to 2^nd generation processors (x2xx) not supported.

"U" processors (i.e. 6212U) only supported in single socket configurations

For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

This table covers the public Intel offering only.

NOTE: More than 1.5 TB memory per socket requires memory higher than 128 GB capacity

NOTE: Platinum – 8200 Series – 2 Socket supports supports 6-Channel DDR4 @ 2933 MT/s providing up to 1TB memory capacity per socket (up to 2TB/socket on M series and up to 4.5TB/socket on L series); HPE Persistent Memory featuring Intel® Optane™ DC persistent memory (select skus), Vector Neural Network Instructions (VNNI) for inference acceleration, Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA). 48 lanes PCIe 3.0, advanced RAS

NOTE: Processors with 130W TDP or higher and the 8256, 8156, 6128, 5222, and 5122 will ship with the High Performance heatsink. All other will processors will ship with the Standard heatsink.

NOTE: Platinum – 8100 Series –2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2666 MT/s providing up to 768GB memory capacity (1.5 TB on select processor skus).  Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported.  Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.

NOTE: Processors with 130W TDP or higher and the 8256, 8156, 6128, 5222, and 5122 will ship with the High Performance heatsink. All other will processors will ship with the Standard heatsink.

NOTE: ¹ Gold Processor 5222 supports 2933 DDR4 and 2 512-bit FMA units

NOTE: ² Gold Processor 5218B has consistent features with the 5218 processor but is from a different die. Mixing both 5218B & 5218 in a system is not supported

NOTE: ³ Gold Processor 5218N processor available at launch, Intel® Speed Select Technology-Base Frequency enablement via System ROM upgrade targeting June 2019

NOTE: Processors with 130W TDP or higher and the 8256, 8156, 6128, 5222, and 5122 will ship with the High Performance heatsink. All other processors will ship with the Standard heatsink.

NOTE: Gold - 6200 & 5200 Series - 6-Channel DDR4 @ 2933 MT/s (6200 & 5222 skus only)  or 2666 MT/s (all Gold 5200 skus except 5222 @ 2933 MT/s); providing up to 1TB memory capacity per socket (up to 2TB/socket on M series and up to 4.5TB/socket on L series); Support for HPE Persistent Memory featuring Intel® Optane™ DC persistent memory (select skus), Vector Neural Network Instructions (VNNI) for inference acceleration,

NOTE: Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA for 6200 series and 5222; 1 x 512-bit FMA for 5200 series, except for 5222) 48 lanes PCIe 3.0, advanced RAS

NOTE: Gold – 5100, 6100 Series - 2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2400 MHz (SKU 5122=supports 2666) providing up to 768GB memory capacity (1.5 TB on select skus).  Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)  (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS supported.

NOTE: Processors with 130W TDP or higher and the 8256, 8156, 6128, 5222, and 5122 will ship with the High Performance heatsink. All other will processors will ship with the Standard heatsink.

NOTE: ⁴  Silver Processor 4215 supports HPE Persistent Memory featuring Intel® Optane™ DC persistent memory

NOTE: Silver – 4200 Series - 6-Channel DDR4 @ 2400 MT/s, providing up to 1TB memory capacity per socket; Support for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration; Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (1x 512-bit FMA).48 lanes PCIe 3.0, standard RAS

NOTE: Silver – 4100 Series - 2 Socket supports 2UPI  @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MHz providing up to 768 GB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

NOTE: Bronze – 3200 Series - 6-Channel DDR4 @ 2133 MT/s, providing up to 1TB memory capacity per socket; Support for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration; Intel AVX-512 (1x 512-bit FMA); 48 lanes PCIe 3.0, standard RAS

NOTE: Bronze – 3100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, supports 6-Channel DDR4 @ 2133 MHz providing up to 768GB memory capacity. Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

Chipset

Intel C621 Chipset

For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

On System Management Chipset

HPE iLO 5 ASIC

Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on model

NOTE: HPE Persistent Memory featuring Intel® Optane™ DC persistent memory only supported with select 2nd generation Intel Xeon Scalable Series Processors ONLY ((82xx/62xx/52xx/4215)  and can only be mixed with either RDIMMs or LRDIMMs.

NOTE: NVDIMMs are only supported on 1st generation Intel Xeon Scalable Series Processors and can only be mixed with RDIMMs.

NOTE: Maximum memory per socket is dependent on processor selection. 2^nd generation processors supporting 2 TB or 4.5 TB per CPU are indicated by the "M" and "L" in the processor model names (i.e. 8276M and 8276L). 1^st generation processors supporting 1.5 TB per CPU are indicated by the "M" in the processor model names (ie 8160M)

NOTE: Maximum memory per socket is dependent on processor selection. Processors supporting 1.5 TB per CPU is indicated by the "M" in the processor model names (i.e. 8160M).

NOTE: Mixing of RDIMM and LRDIMM memory is not supported.

NOTE: For General Server Memory and NVDIMM Population Rules and Guidelines for Gen10 see details here:

http://www.hpe.com/docs/memory-population-rules

NOTE: For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

NOTE: To realize the performance memory capabilities listed in this document, HPE DDR4 SmartMemory is required.

For additional information, please see the HPE DDR4 SmartMemory QuickSpecs.

Memory Protection

For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature.

Expansion Slots

Primary Riser

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

NOTE: The specifications above correspond with the default primary riser which also supports dual m.2 cards. Additional Primary Riser options and specifications noted in the "Riser Information" table within this document.

Secondary Riser

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

NOTE: The Secondary Riser requires Processor 2 to be populated 870548-B21

NOTE: The specifications above correspond with the x8/x16/x8 Secondary Riser Kit (870548-B21). Additional Secondary Riser options and specifications noted in the "Riser Information" table within this document.

Tertiary Riser

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

NOTE: The Tertiary Riser requires Processor 2 to be populated

NOTE: The specifications above correspond with the 2x8 Tertiary Riser Kit (875780-B21). Additional Tertiary Riser options and specifications noted in the "Riser Information" table within this document

Storage Controllers

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

One of the following depending on model

Software RAID

HPE Smart Array S100i SR Gen10 SW RAID

NOTE: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

NOTE: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.

NOTE: The S100i uses 14 embedded SATA ports, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 options on the primary riser.

NOTE: The S100i supports windows only

NOTE: For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/

Essential RAID Controller

· HPE Smart Array E208i-a SR Gen10 Controller

· HPE Smart Array E208i-p SR Gen10 Controller

· HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller

· HPE Smart Array P408i-a SR Gen10 Controller

· HPE Smart Array P408i-p SR Gen10 Controller

· HPE Smart Array P408e-p SR Gen10 Controller

· HPE Smart Array P816i-a SR Gen10 Controller

NOTE: Performance RAID Controllers require the HPE Smart Hybrid Capacitor (P02377-B21) or the HPE Smart Storage Battery (P01366-B21) which are sold separately.

NOTE: For additional details, please see HPE Smart Array Gen10 Controllers Data Sheet.

Internal Storage Devices

One of the following depending on model

· Optical Drive

Ships standard in Performance Models

Optional: DVD-ROM, DVD-RW

· Hard Drives

None ship standard

Maximum Internal Storage

NOTE: 2x m.2 drives are supported on the Primary Riser.

NOTE: uFF drives are also supported.

Graphics

Integrated Video Standard

· Video modes up to 1920 x 1200@60Hz (32 bpp)

· 16MB Video Memory

HPE iLO 5 on system management memory

· 32 MB Flash

· 4 Gbit DDR 3 with ECC protection

Power Supply

· HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

· HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% and 96% efficiency.

NOTE: Also available in -48VDC and 227VAC/380VDC power inputs.

· HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: 1 papailable in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page. o review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Interfaces

Operating Systems and Virtualization Software Support for ProLiant Servers

2^nd Generation Intel® Xeon® Scalable Processor Family

· Windows Server 2019: Essentials, Standard, Datacenter

· Windows Server 2016: Essentials, Standard, Datacenter

· Windows Server 2012 R2: Essentials, Standard, Datacenter

· Microsoft Hyper-V Server: 2012 R2, 2016 & 2019

· VMware vSphere 6.0 U3, 6.5 U2 & 6.7 U1

· ClearVM: 7.6 & 8.0

· Red Hat Enterprise Linux (RHEL) 7.6 w/ Kbase **

· SUSE Linux Enterprise Server (SLES) 12 SP4 and 15 SP1 (includes Xen) **

1st Generation Intel® Xeon® Scalable Processor Family

· Windows Server 2019: Essentials, Standard & Datacenter

· Windows Server 2016 : Essentials, Standard & Datacenter

· Windows Server 2012 R2: Essentials, Standard & Datacenter

· Micrsoft Hyper-V Server: 2012 R2, 2016 & 2019

· VMware vSphere 6.0 U3, 6.5 & 6.7

· ClearVM: 2.0

· Red Hat Enterprise Linux (RHEL) 6.9 & 7.3 **

· SUSE Linux Enterprise Server (SLES) 11 SP4, 12 SP2 & 15 (includes Xen) **

NOTE:** 64-bit only;includes KVM

· ClearOS

Hewlett Packard Enterprise and ClearCenter will help you lower the cost of building on-premise solutions without sacrificing security and ease of use. HPE ProLiant servers with ClearOS give you a simple, secure, and affordable operating system with an intuitive web based graphical user interface that provides a cloud-like experience on- premise, and an Application Marketplace with over 100 apps and growing. Whether you’re starting out or scaling, you decide what applications you need and pay as you grow.

ClearOS allows you to build a fully functional server that is just right for you at no upfront cost. For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.

For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server http://www.hpe.com/info/ossupport

Industry Standard Compliance

· ACPI 6.1 Compliant

· PCIe 3.0 Compliant

· WOL Support

· Microsoft® Logo certifications

· PXE Support

· VGA/Display Port

NOTE: This support is on the optional Universal Media Bay.

· USB 3.0 Compliant (internal)

· USB 2.0 Compliant (external ports via SUV)

NOTE: This support is on the optional Universal Media Bay.

· Energy Star

· SMBIOS 3.1

· Redfish API

· IPMI 2.0

· Secure Digital 4.0

· TPM 1.20 and 2.0 Support

· Advanced Encryption Standard (AES)

· Triple Data Encrytion Standard (3DES)

· SNMP v3

· TLS 1.2

· DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

· Active Directory v1.0

· ASHRAE A3/A4

NOTE: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit http://www.hpe.com/servers/ashrae European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. Please visit:

 https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance.

· UEFI (Unified Extensible Firmware Interface Forum) 2.6

NOTE: UEFI is the default for the DL380 Gen10. Legacy mode can be selected in the field or as a CTO option (758959-B22).

UEFI Boot Mode only:

· TPM 2.0 Support

· iSCSI Software Initiator Support.

· NVMe Boot Support

· HTTP/HTTPs Boot support as a PXE alternative.

· Platform Trust Technology (PTT) can be enabled.

· Boot support for option cards that only support a UEFI option ROM

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Server.

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

NOTE:The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

· Secure Boot and Secure Start enable for enhanced security

· Embedded UEFI Shell

· Operating system specific functionality

· Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

· Support for > 2.2 TB (using GPT) boot drives

· PXE boot support for IPv6 networks

· USB 3.0 Stack

· Workload Profiles for simple performance optimization

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers  simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale.  Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates.  Learn more at http://www.hpe.com/info/hpesim.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

Security

· UEFI Secure Boot and Secure Start support

· Tamper-free updates – components digitally signed and verified

· Immutable Silicon Root of Trust

· Ability to rollback firmware

· FIPS 140-2 validation

· Secure erase of NAND/User data

· Common Criteria certification

· TPM (Trusted Platform Module) 1.2 option

· Configurable for PCI DSS compliance

· TPM (Trusted Platform Module) 2.0 option

· Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

· Bezel Locking Kit option

· Support for Commercial National Security Algorithms (CNSA)

· Chassis Intrusion detection option

· Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality..

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers. To learn more visit http://www.hpe.com/info/oneview.

HPE InfoSight for Servers

HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The end result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities.

Learn more at https://www.hpe.com/servers/infosight

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu.

Accelerator and GPGPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE Proliant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you’re critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

HPE Pointnext - Service and Support

Protect your business beyond warranty with HPE Pointnext Operational Service

HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution.  Finally, operational services provides innovative new approaches like Flexible Capacity and Datacenter Care, to keep your business at peak performance. Hewlett Packard Enterprise is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple.

Connect your devices:

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%¹ reduction in down time, near 100%² diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

NOTE:

¹ IDC

² HP CSC reports 2014 – 2015

Learn more about getting connected at http://www.hpe.com/services/getconnected.

Recommended Services

HPE Proactive Care* with 6 hour call-to-repair commitment, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This Service combines three years’ proactive reporting and advice with our highest level of hardware support – the HPE 24x7, six hour hardware call-to-repair. Hewlett Packard Enterprise is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

HPE Proactive Care* with 24x7 coverage, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice This Service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

HPE Proactive Care* - Next Business Day service, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years of Hardware Support where a Hewlett Packard Enterprise authorized representative will arrive at the Customer's site during the onsite coverage window to begin hardware maintenance service the next coverage day after the service request has been logged. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

NOTE:*HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of these services and receive all the deliverables.

Other related Services

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

https://h20195.www2.hpe.com/v2/Getdocument.aspx?docname=5981-9356enw

HPE Installation and Startup Service

Provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux).

HPE Datacenter Care service

HPE Datacenter Care helps improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a structured framework of repeatable, tested, and globally available services "building blocks." You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with HPE via a single point of accountability for HPE and others’ products. For more information, visit:

http://www.hpe.com/services/datacentercare

HPE GreenLake Flex Capacity

With HPE GreenLake Flex Capacity, you get the speed, scalability, and economics of the public cloud in the privacy of your data center. Gain the advantages of the public cloud—consumption-based payment, rapid scalability without worrying about capacity constraints. Reduce the "heavy lifting" needed to operate a data center. And retain the advantages that IT provides the business (i.e., control, security). Deliver the right user experience, choose the right technology for the business, manage privacy and compliance, and manage the cost of IT. And, you have the option to use the public cloud when needed.

DC for Hyperscale

Datacenter Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture can take advantage of this environment support tailored to their operating model.

HPE Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.

HPE Service Credits

HPE Service Credits offers flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers.Learn more http://www.hpe.com/support/hpesc.

The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.

NOTE: *HPE Support Center Mobile App is subject to local availability.

NOTE: For more information: http://www.hpe.com/services.

NOTE: HPE ProLiant DL380 Gen10 Server is covered under the HPE Service Contract applied to the HPE ProLiant Server. No separate HPE support services need to be purchased.

Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS batteries over 12KVA. See the specific high value options that require additional support here.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Powered by 2nd Generation Intel Processors

Worldwide & Japan BTO Networking Choice (NC) Models

SKU Number

P20182-xx1

P20172-xx1

P20174-xx1

Model Name

HPE ProLiant DL380 Gen10 3204 1.9GHz 6-core 1P 16GB-R S100i

NC 8LFF 500W PS Server

HPE ProLiant DL380 Gen10 4208 2.1GHz 8-core 1P 16GB-R P816i-a NC 12LFF 800W RPS Server

HPE ProLiant DL380 Gen10 4210 2.2GHz 10-core 1P 32GB-R P408i-a NC 8SFF 500W PS Server

Chassis

8LFF

12LFF

8SFF

Processor

3204 (6 core, 1.9GHz, 85W)

4208 (8 core, 2.1GHz, 85W)

4210 (10 core, 2.2GHz, 85W)

Number of Processors

One with standard heatsink

One with standard heatsink

One with standard heatsink

Memory

16 GB RDIMM 2R 2933 MT/s

(1x 16 GB)

NOTE: Runs at  2133MT/s due to processor limitation

32 GB RDIMM 2R 2933MT/s

(1x 32 GB)

NOTE: Runs at  2400MT/s due to processor limitation

32 GB RDIMM 2R 2933 MT/s

(1x 32GB)

NOTE: Runs at  2400MT/s due to processor limitation

Network Controller

HPE Ethernet 1Gb 4-port 366FLR FlexibleLOM Adapter

(665240-B21) plus optional

stand-up card

NOTE: No embedded networking

HPE Ethernet 1Gb 4-port 366FLR FlexibleLOM Adapter

(665240-B21) plus optional

stand-up card

NOTE: No embedded networking

HPE Ethernet 1Gb 4-port 366FLR FlexibleLOM Adapter

(665240-B21) plus optional

stand-up card

NOTE: No embedded networking

Storage Controller

S100i embedded SW RAID with 14 SATA ports (12-ports accessible)

P816i-a/4GB with Smart Storage Battery

P408i-a/2GB with Smart Storage Battery

Hard Drive

None Included

None Included

None Included

Internal Storage

8 LFF chassis, with 2 SFF bays optional  (upgradeable to 15LFF with 4LFF mid and 3LFF rear + 2SFF rear)

12 LFF chassis, with 2 SFF bays optional  (upgradeable to 19LFF with 4LFF mid and 3LFF rear + 2SFF rear)

8 SFF Chassis (upgradeable to 24 SFF front + 6SFF rear)

PCIe Slots

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

Power Supply

1x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

2x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

1x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Fans

6 - Standard

6 - Performance

4 - Standard

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Rail Kit

LFF Easy Install Rail Kit

LFF Easy Install Rail Kit with Cable Management Arm

SFF Easy Install Rail Kit with Cable Management Arm

Energy Star

Energy Star 3.0

Form Factor

2U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

NOTE: Network Choice (NC) models do not include an embedded NIC. A pre-selected FlexibleLOM is included in the configuration with additional options available via stand-up card NIC adapters.

NOTE: UEFI is the standard default for all SMB models.

Country Code Key

xx1 = B21  Worldwide

xx1 = 291 Japan

NOTE: The -B21 WW SMB SKU is to be ordered in all countries other than Japan or PRC.

Powered by 2nd Generation Intel Xeon Processors

SMB Networking Choice (NC) Models

SKU Number

P20245-xx1

P20248-xx1

P20249-xx1

Model Name

HPE ProLiant DL380 Gen10 6242 2.8GHz 16-core 1P 32GB-R P408i-a NC 8SFF 800W PS Server

HPE ProLiant DL380 Gen10 5220 2.2GHz 18-core 1P 32GB-R P408i-a NC 8SFF 800W PS Server

HPE ProLiant DL380 Gen10 5218 2.3GHz 16-core 1P 32GB-R P408i-a NC 8SFF 800W PS Server

Chassis

8SFF

Processor

6242 (16C, 2.8GHz, 150W)

5220 (18C, 2.2GHz, 125W)

5218 (16 core, 2.3 GHz, 125W)

Number of Processors

1

1

1

Memory

32 GB RDIMM 2R 2933 MT/s

(1x 32 GB)

32 GB RDIMM 2R 2933 MT/s

(1x 32 GB)

NOTE: Runs at 2666 MT/s due to processor limitation.

32 GB RDIMM 2R 2933 MT/s

(1x 32 GB)

NOTE: Runs at 2666 MT/s due to processor limitation.

Network Controller

HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 FlexibleLOM Adapter (817749-B21) plus optional stand-up card

NOTE: No embedded networking

HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 FlexibleLOM Adapter (817749-B21) plus optional stand-up card

NOTE: No embedded networking

HPE Ethernet 1Gb 4-port 366FLR FlexibleLOM Adapter

(665240-B21) plus optional

stand-up card

NOTE: No embedded networking

Storage Controller

P408i-a w/2GB cache

NOTE: 8-Port modular Smart Array.

NOTE: Smart Storage battery included.

Hard Drive

None ship as standard

Internal Storage

8 SFF Chassis (upgradeable to 24 SFF front + 6SFF rear)

PCIe Slots

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

Power Supply

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Fans

4-standard fans

4-standard fans

6-standard fans

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Rail Kit

SFF Easy install rails with Cable Management Arm

Energy Star

3.0 Certified

Form Factor

2U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

NOTE: UEFI is the standard default for all SMB models.

Powered by 2nd Generation Intel Xeon Processors

SMB Models

SKU Number

P02463-xx1

Model Name

HPE ProLiant DL380 Gen10 4208 2.1GHz 8-core 1P 16GB-R S100i 12LFF 500W PS Server

Chassis

12LFF

Processor

4208 (8 core, 2.1 GHz, 85W)

Number of Processors

One with standard heatsink

Memory

16 GB RDIMM 2R 2933 MT/s (1x 16 GB)

NOTE: Runs at 2400 MT/s due to processor limitation

Network Controller

HPE 1Gb Ethernet 4-Port 331i Adapter plus optional HPE FlexibleLOM or stand up card

Storage Controller

S100i embedded SW RAID with 14 SATA ports (12-ports accessible)

Hard Drive

None ship as standard

Internal Storage

12 LFF chassis, with 2 SFF bays optional  (upgradeable to 19LFF with 4LFF mid and 3LFF rear + 2SFF rear)

Optical Drive

None included

PCIe Slots

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2-processor configuration

Power Supply

1x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Fans

6-performance fans

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Rail Kit

LFF Easy Install rails without Cable Management Arm

Energy Star

3.0 Certified

Form Factor

2U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

NOTE: UEFI is the standard default for all pre-configured models.

Country Code Key

xx1 = B21  Worldwide

xx1 = 291 Japan

NOTE: The -B21 WW SMB SKU is to be ordered in all countries other than Japan or PRC.

Powered by 2nd Generation Intel Xeon Processors

SMB Models

SKU Number

P02462-xx1

P02464-xx1

P02465-xx1

Model Name

HPE ProLiant DL380 Gen10 4208 2.1GHz 8-core 1P 16GB-R P408i-a 8SFF 500W PS Server

HPE ProLiant DL380 Gen10 4210 2.2GHz 10-core 1P 32GB-R P408i-a 8SFF 800W PS Server

HPE ProLiant DL380 Gen10 5218 2.3GHz 16-core 2P 64GB-R P408i-a 8SFF 800W PS Server

Chassis

8SFF

Processor

4208 (8 core, 2.1GHz, 85W)

4210 (10 core, 2.2 GHz,  85W)

5218 (16 core, 2.3 GHz, 125W)

Number of Processors

1

1

2

Memory

16 GB RDIMM 2R 2933 MT/s

(1x 16 GB)

NOTE: Runs at 2400 MT/s due to processor limitation.

32 GB RDIMM 2R 2933 MT/s

(1x 32 GB)

NOTE: Runs at 2400 MT/s due to processor limitation.

64 GB RDIMM 2R 2933 MT/s

(2x 32 GB)

NOTE: Runs at 2666 MT/s due to processor limitation.

Network Controller

HPE 1Gb Ethernet 4-Port 331i Adapter plus optional HPE FlexibleLOM or stand up card

Storage Controller

P408i-a w/2GB cache

NOTE: 8-Port modular Smart Array.

NOTE: Smart Storage battery included.

Hard Drive

None ship as standard

Internal Storage

8 SFF Chassis (upgradeable to 24 SFF front + 6SFF rear)

PCIe Slots

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots

Power Supply

1x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Fans

4-standard fans

4-standard fans

6-standard fans

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Rail Kit

SFF Easy install rails with Cable Management Arm

Energy Star

3.0 Certified

Form Factor

2U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

NOTE: UEFI is the standard default for all SMB models.

Powered by 2nd Generation Intel Xeon Processors

SMB Models

SKU Number

P02466-xx1

P02467-xx1

P02468-xx1

Model Name

HPE ProLiant DL380 Gen10 6230 2.1GHz 20-core 1P 64GB-R P816i-a 8SFF 800W RPS Server

HPE ProLiant DL380 Gen10 4208 2.1GHz 8-core 1P 32GB-R P408i-a 24SFF 800W PS Server

HPE ProLiant DL380 Gen10 4214 2.2GHz 12-core 1P 16GB-R P816i-a 12LFF 800W PS Server

Chassis

8SFF

24SFF

12LFF

Processor

6230 (20-core 2.1GHz, 125W)

4208 (8 core, 2.1GHz, 85W)

4214 (12 core, 2.2GHz, 85W)

Number of Processors

1

1

1

Memory

64 GB RDIMM 2R 2933MT/s

(2x 32 GB)

32 GB RDIMM 2R 2933 MT/s

(2x 16GB)

NOTE: Runs at  2400MT/s due to processor limitation.

16 GB RDIMM 2R 2933 MT/s

(1x 16 GB)

NOTE: Runs at  2400MT/s.

Network Controller
