HPE ProLiant DL580 G10 Platinum 8260

    • 2 x Intel Xeon-Platinum 8260 (2.4GHz/24-core/165W)
    • HPE 256GB (8x 32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
    • 8 x HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
    • HPE Smart Array P824i-p MR Gen10 (24 Internal Lanes/4GB Cache/CacheCade) 12G SAS PCIe Controller
    • HPE Ethernet 1Gb 4-port FLR-T I350-T4V2 Adapter
    • HPE iLO Standard with Intelligent Provisioning (embedded)
    • PCI-Express Slots: 16 PCIe 3.0 slots available
    • Optical Drive: Optional via Universal Media Bay
    • System Fans:12 Hot Plug Fans (with N+1 redundancy)
    • 8 x SFF SAS/SATA/SSD hot plug, Support NVMe U.3 SSDs (8/48)
    • HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (2/2)
    • Form Factor: 4U Rack Form Factor, HP Easy Install Rails
    • Warranty: HPE 3Y Foundation Care NBD SVC
Manufacturer: HPE
Call for pricing

HPE ProLiant DL580 Gen10 Server



The HPE ProLiant DL580 Gen10 Server is a high-density, four-socket server with high performance, scalability and reliability, all in a 4U chassis. Supporting the latest 2nd generation of Intel® Xeon® Scalable processors, the HPE ProLiant DL580 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to sixteen PCIe 3.0 slots, up to 12 TB of HPE Persistent Memory plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5.



The HPE ProLiant DL580 Gen10 Server is the ideal server for business critical workloads, virtualization, server consolidation, database, business processing, graphics intensive and general 4P data-intensive applications where the right performance is paramount.

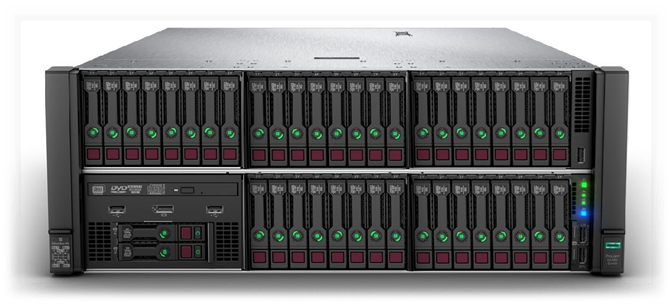

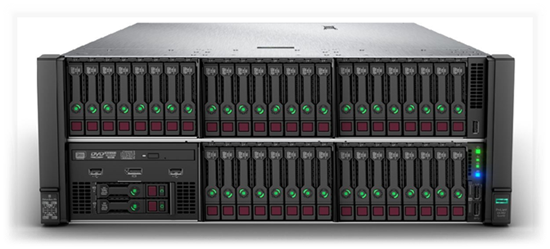

HPE ProLiant DL580 Gen10 Server Front View

1.

Quick removal access panel

11.

Serial label pull tag

2.

Box 2 (8 SFF or 6 SFF+2 NVMe or 8 NVMe SSD optional)

12.

Box 6 (8 SFF)

3.

Box 3 (8 SFF or 6 SFF+2 NVMe or 8 NVMe PCIe SSD optional)

13.

Box 5 (8 SFF)

4.

Front USB 3.0 port

14.

Box 4 (8 SFF or Universal Media bay)

5.

Power On/Standby button and system power LED button

15.

Optional front display port (via Universal Media Bay)

6.

Health LED

16.

Optional 2 SFF HDD, requires optional Universal Media bay

7.

NIC status

17.

Optional USB 2.0 (via Universal Media Bay)

8.

UID button

18.

Optical Drive (Optional)

9.

iLO Front Service Port (not available with SID)

19.

Box 1 (8 SFF or 6 SFF+2 NVMe or 8 NVMe (supports only 4 NVMe drives) SSD optional)

10.

Front USB 3.0 port

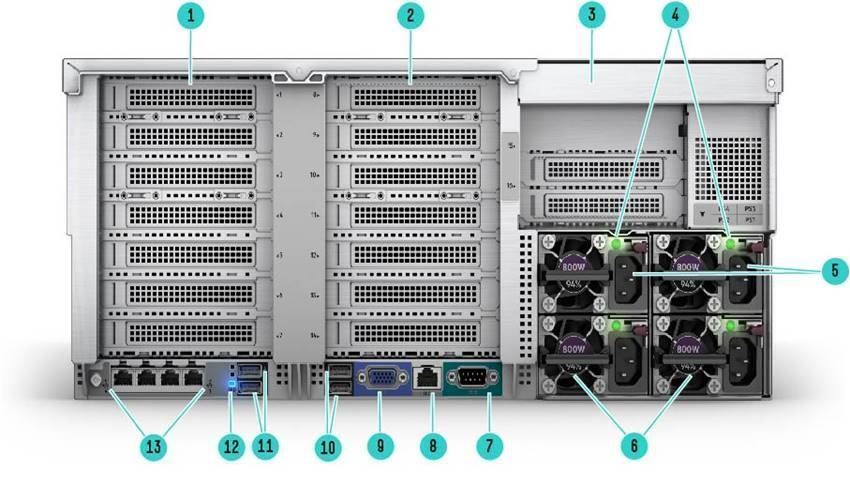

HPE ProLiant DL580 Gen10 Server Rear View



1.

PCIe Slots (Slots 1-7 top to bottom), requires primary riser

8.

Dedicated iLO network connector

2.

PCIe Slots (Slots 8-14 top to bottom), requires secondary riser (includes tertiary riser)

9.

VGA (video) connector

3.

PCIe Slots (Slots 15-16 top to bottom), requires tertiary riser (included with secondary riser)

10.

USB connectors 2.0 (2)

4.

Power supply Power LED (max. 4)

11.

USB connectors 3.0 (2)

5.

Power supply Power connection (max. 4)

12.

Unit ID LED

6.

HPE Flexible Slot Power Supply, 800W PS shown (max. 4)

13.

FlexibleLOM ports (Port 1 on right side)

7.

Serial connector

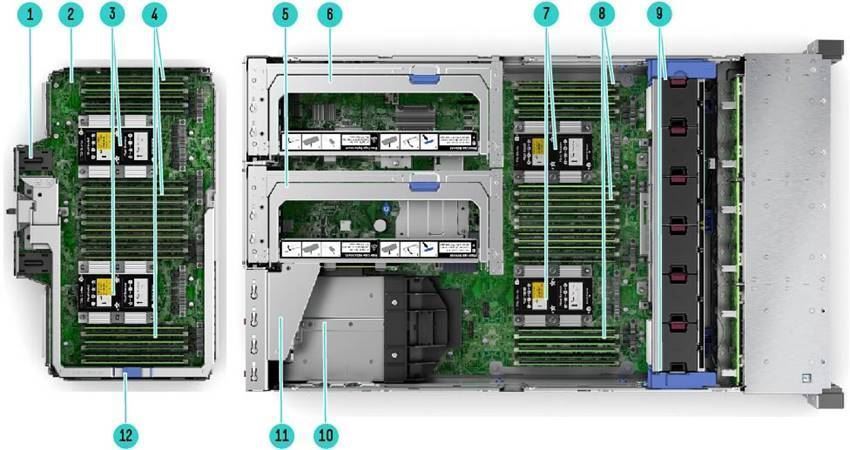

HPE ProLiant DL580 Gen10 Server Internal View with upper CPU mezzanine tray

1.

Left connector used for DL580 4-port NVMe Mezzanine card (Daughter card)

7.

2 Processors

2.

Upper CPU Mezzanine Board Kit

8.

DDR4 DIMM slots on CPU board kit. Shown fully populated in 24 slots (12 per processor) under the air baffle

3.

2 Processors, heatsink showing on upper CPU mezzanine board kit

9.

Fan cage shown with 12 standard Hot-plug fans

4.

DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)

10.

(Under) Max. 4 Hot Plug redundant HPE Flexible Slot Power supplies

5.

Optional secondary PCIe riser (includes tertiary riser)

11.

Optional Tertiary riser (included with secondary riser)

6.

Primary PCIe riser

12.

Handle for removing upper CPU Mezzanine Board Kit



What’s New

· Support NVMe U.3 SSDs







Platform Information



Form Factor

· 4U Rack Form Factor

Entry, Base and Performance pre-configured models and Configure-to-order server ship with Gen10 Rail Kits and Cabl Management Assembly



Chassis Types

· 48 SFF with optional Universal Media Bay

Notes:

- The Universal Media Bay (872267-B21) is not available with the 48 SFF front end, and can only be populated in Box 4.

- All pre-configured models come with embedded software RAID support for 10 SATA drives. Optional HPE Smart Array Controllers can be added.



System Fans

· 12 Hot Plug Fans (with N+1 redundancy)

Notes: 12 hot plug fans are shipped as standard.



Standard Features



Processors

One, two, three or four of the following depending on model.

Notes:

- The 2nd digit of the processor model number "x1xx" and "x2xx" is used to denote the processor generation (i.e. 1=1st generation and 2=2nd generation)

- This table covers the public Intel offering only.

- For more information regarding Intel Xeon processors, please see thefollowing http://www.intel.com/xeon.



Processor Suffix

Description

Offering

L

Large memory tier

Up to 4.5 TB addressable memory per socket

M

Medium memory tier

Up to 2.0 TB addressable memory per socket

N

NFV Optimized

Targeted at Network Function Virtualization (NFV) workloads. Intel® Speed Select Technology-Base Frequency improves performance by directing base frequency to high priority/bottleneck cores.

S

Search Optimized

Optimized base frequency to address ‘search’ workloads.

V

VM Density Optimized

Fosters enhanced VM density, allowing to support more/larger virtual machines per host.

Y

Speed Select

Intel® Speed Select Technology –Performance Profile increases base frequency when less cores are enabled. Allows greater flexibility, deployment options and platform longevity.





Platinum Processors - 2nd Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache (MB)

Power

UPI

DDR4

Memory per socket

Platinum 8280L Processor

2.7GHz

28

38.5

205W

3 @ 10.4  GT/s

2933 MT/s

4.5TB

Platinum 8280M Processor

2.7GHz

28

38.5

205W

3 @ 10.4  GT/s

2933 MT/s

2TB

Platinum 8280 Processor

2.7GHz

28

38.5

205W

3 @ 10.4  GT/s

2933 MT/s

1TB

Platinum 8276M Processor

2.2GHz

28

38.5

165W

3 @ 10.4  GT/s

2933 MT/s

2TB

Platinum 8276L Processor

2.2GHz

28

38.5

165W

3 @ 10.4  GT/s

2933 MT/s

4.5TB

Platinum 8276 Processor

2.2GHz

28

38.5

165W

3 @ 10.4  GT/s

2933 MT/s

1TB

Platinum 8270 Processor

2.7GHz

26

35.75

205W

3 @ 10.4  GT/s

2933 MT/s

1TB

Platinum 8268 Processor

2.9GHz

24

35.75

205W

3 @ 10.4 GT/s

2933 MT/s

1TB

Platinum 8260M Processor

2.4GHz

24

35.75

165W

3 @ 10.4 GT/s

2933 MT/s

2TB

Platinum 8260L Processor

2.4GHz

24

35.75

165W

3 @ 10.4  GT/s

2933 MT/s

4.5TB

Platinum 8260Y Processor

2.4GHz

24/20/16

35.75

165W

3 @ 10.4  GT/s

2933 MT/s

1TB

Platinum 8260 Processor

2.4GHz

24

35.75

165W

3 @ 10.4  GT/s

2933 MT/s

1TB

Platinum 8256 Processor

3.8GHz

4

16.5

105W

3 @ 10.4  GT/s

2933 MT/s

1TB

Platinum 8253 Processor

2.2GHz

16

22

125W

3 @ 10.4  GT/s

2933 MT/s

1TB







Gold Processors - 2nd Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache (MB)

Power

UPI

DDR4

Memory per socket

Gold  6256 Processor

3.6GHz

12

24.75

205W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold  6254 Processor

3.1GHz

18

24.75

200W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold  6252 Processor

2.1GHz

24

35.75

150W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold  6252N Processor

2.3GHz

24/20/16

35.75

150W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold  6248 Processor

2.5GHz

20

27.5

150W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold 6246 Processor

3.3GHz

12

24.75

165W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold  6244 Processor

3.6GHz

8

24.75

150W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold 6242 Processor

2.8GHz

16

22

150W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold 6240L Processor

2.6GHz

18

24.75

150W

3 @ 10.4 GT/s

2933MT/s

4.5TB

Gold 6240M Processor

2.6GHz

18

24.75

150W

3 @ 10.4 GT/s

2933MT/s

2TB

Gold  6240 Processor

2.6GHz

18

24.75

150W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold  6240Y Processor

2.6GHz

18/14/8

24.75

150W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold 6238L Processor

2.1GHz

22

30.25

140W

3 @ 10.4 GT/s

2933MT/s

4.5TB

Gold 6238M Processor

2.1GHz

22

30.25

140W

3 @ 10.4 GT/s

2933MT/s

2TB

Gold 6238 Processor

2.1GHz

22

30.25

140W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold 6234 Processor

3.3GHz

8

24.75

130W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold  6230 Processor

2.1GHz

20

27.5

125W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold  6230N Processor

2.3GHz

20

27.5

125W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold  6226 Processor

2.7GHz

12

19.25

125W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold 6262V Processor

1.9GHz

24

33

135W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold 6222V Processor

1.8GHz

20

27.5

115W

3 @ 10.4 GT/s

2933MT/s

1TB

Gold  5222Processor

3.8GHz

4

16.5

105W

2 @ 10.4 GT/s

2933MT/s

1TB

Gold  5220 Processor

2.2GHz

18

24.75

125W

2 @ 10.4 GT/s

2666MT/s

1TB

Gold  5220S Processor

2.7GHz

18

24.75

125W

2 @ 10.4 GT/s

2666MT/s

1TB

Gold  5218B Processor

2.3GHz

16

22

125W

2 @ 10.4 GT/s

2666MT/s

1TB

Gold  5218N Processor

2.3GHz

16

22

110W

2 @ 10.4 GT/s

2666MT/s

1TB

Gold  5218 Processor

2.3GHz

16

22

125W

2 @ 10.4 GT/s

2666MT/s

1TB

Gold  5217 Processor

3.0GHz

8

11

115W

2 @ 10.4 GT/s

2666MT/s

1TB

Gold  5215L Processor

2.5GHz

10

13.75

85W

2 @ 10.4 GT/s

2666MT/s

4.5TB

Gold 5215M Processor

2.5GHz

10

13.75

85W

2 @ 10.4 GT/s

2666MT/s

2TB

Gold 5215 Processor

2.5GHz

10

13.75

85W

2 @ 10.4 GT/s

2666MT/s

1TB



Notes:

- Platinum – 82xx series - 2 and 4 socket capable, 3UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2933 MT/s 1DPC1 TB memory capacity (up to 2 TB on ‘M’ SKUs and up to 4.5 TB on ‘L’ SKUs), Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.

- Gold – 62xx and 52xx series - 2 and 4 socket capable, 3UPI @ 10.4 GT/s on 62xx processors, 2UPI @ 10.4 GT/s on 52xx processors, 6 Channel DDR4 @ 2933 MT/s 1DPC on 62xx and 5222 processors , 6-Channel DDR4 @ 2666 MT/s on 52xx processors, 1 TB memory capacity (up to 2 TB on ‘M’ SKUs and up to 4.5 TB on ‘L’ SKUs), Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)  (SKU 5222 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS.

- With the current HPE DDR4 SmartMemory maximum offering (128GB LRDIMMs), the ‘L’ SKUs and ‘M’ SKUs can support up to 1.5TB per socket.

- More than 1.5TB per socket requires the use of HPE Persistent Memory kits : available in 512GB, 256GB and 128GB

- Platinum 8260Y and Gold 6240Y processors support Intel®  Speed Select Technology –Performance Profile

- Gold 5218B processor and Gold 5218 processor have the same specifications and cannot be mixed within a server.

- Gold 6252N, 6230N and 5218N processor are optimized for NFV (Network Function Virtualization) workloads and support Intel®  Speed Select Technology –Base Frequency

- Gold 6262V and 6222V are VM density optimized, Gold 5220S is search-optimized

- 82xx, 62xx and 52xx processors offer VNNI (vector neural network instruction) instruction set.





Platinum Processors – 1st Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache (MB)

Power

UPI

DDR4

Memory per socket

Platinum 8180M Processor

2.5 GHz

28

38.50

205W

3 @ 10.4 GT/s

2666 MT/s

1.5TB

Platinum 8168 Processor

2.7 GHz

24

33.00

205W

3 @ 10.4 GT/s

2666 MT/s

768GB

Platinum 8164 Processor

2.0 GHz

26

35.75

150W

3 @ 10.4 GT/s

2666 MT/s

768GB

Platinum 8160 Processor

2.1 GHz

24

33.00

150W

3 @ 10.4 GT/s

2666 MT/s

768GB

Platinum 8158 Processor

3.0 GHz

12

24.75

150W

3 @ 10.4 GT/s

2666 MT/s

768GB



Gold Processors - 1st Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache (MB)

Power

UPI

DDR4

Memory per socket

Gold 6154 Processor

3.0 GHz

18

24.75

200W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6152 Processor

2.1 GHz

22

30.25

140W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6150 Processor

2.7 GHz

18

24.75

165W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6148 Processor

2.4 GHz

20

27.50

150W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6144 Processor

3.5 GHz

8

24.75

150W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6140 Processor

2.3 GHz

18

24.75

140W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6137 Processor

3.9 GHz

8

24.75

205W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6136 Processor

3.0 GHz

12

24.75

150W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6134M Processor

3.2 GHz

8

24.75

130W

3 @ 10.4 GT/s

2666 MT/s

1.5TB

Gold 6134 Processor

3.2 GHz

8

24.75

130W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6132 Processor

2.6 GHz

14

19.25

140W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6130 Processor

2.1 GHz

16

22.00

125W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6126 Processor

2.6 GHz

12

19.25

125W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 5120 Processor

2.2 GHz

14

19.25

105W

2 @ 10.4 GT/s

2400 MT/s

768GB

Gold 5118 Processor

2.3 GHz

12

16.50

105W

2 @ 10.4 GT/s

2400 MT/s

768GB

Gold 5117 processor

2.0 GHz

14

19.25

105W

2 @ 10.4 GT/s

2400 MT/s

768GB

Gold 5115 Processor

2.4 GHz

10

13.75

85W

2 @ 10.4 GT/s

2400 MT/s

768GB



Notes:

- Platinum 81xx series - 2 and 4 socket capable, 3UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2666 MT/s, 768 GB memory capacity (1.5 TB on select skus), Intel Turbo Boost Technology, Intel Hyper-Threading TechnologyIntel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.

- Gold 61xx and 51xx series - 2 and 4 socket capable, 3UPI @ 10.4 GT/s on 61xx processors, 2UPI @ 10.4 GT/s on 51xx processors, 6-Channel DDR4 @ 2400 MHz (SKU 5122=supports 2666), 768 GB memory capacity (1.5 TB on select skus), Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)  (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS.

- All processors ship with a normal or a high performance heatsink.

- 82xx, 81xx, 62xx and 61xx processors support 3 UPI links and all processors are connected in a cross bar configuration with each processor connected to another directly in a four processor system. 52xx and 51xx processors support 2 UPI links only and all processors are connected in a ring configuration with processors 1, 3 and 2, 4 not connected directly in a four processor system.



Chipset

Intel C621 Chipset

Notes: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/



On System Management Chipset

HPE iLO 5 ASIC

Notes: Read and learn more in the iLO QuickSpecs.





Memory

One of the following depending on model

Type

SmartMemory

Registered (RDIMM), Load Reduced (LRDIMM)

DIMM Slots Available

48

12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel



With 2nd generation processors

Maximum capacity (LRDIMM)

6 TB

48 x 128 LRDIMM @ 2933 MT/s 2 DPC

Maximum capacity (RDIMM)

1.5 TB

3 TB

24 x 64 GB RDIMM @ 2933 MT/s 1 DPC

48 x 64 GB RDIMM @ 2666 MT/s 2 DPC

Maximum capacity

(HPE Persistent Memory)

12 TB

24 x 512 GB Memory Kit @ 2666 MT/s



With 1st generation processors

Maximum capacity (LRDIMM)

6 TB

48 x 128 GB LRDIMM @ 2666 MT/s

Maximum capacity (RDIMM)

1.5 TB

48 x 32 GB RDIMM @ 2666 MT/s

Maximum capacity (NVDIMM)

384 GB

24 x 16 GB NVDIMM @ 2666 MT/s



Notes:

- Only 2666 MT/s memory SKUs are supported with 1st generation processors (81xx,61xx and 51xx )

- Only 2933 MT/s memory SKUs are supported with 2nd generation processors (82xx,62xx and 52xx)

- HPE Persistent Memory is only supported on the 2nd generation processors

- Mixing of RDIMM and LRDIMM memory is not supported.

- The maximum memory speed is a function of the memory type, memory configuration, and processor model.

- Intel memory processors (with suffix M) are needed for supporting 1.5TB memory per socket on 1st generation processors

- Intel memory processors (with suffix M or suffix L) are needed for supporting more than 1 TB memory per socket on 2nd generation processors

- Maximum of 6 NVDIMMs are supported per processor on the 1st generation processors

- NVDIMM is not supported on the 2nd generation processors



Memory Protection

For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature.



Expansion Slots



Primary 6-slot Riser (Optional) 872336-B21

Expansion Slots #

Technology

Bus/Connector Width

Form Factor/Connector

Notes

2

PCIe 3.0

x16

Full length/full height

Proc 3

3

PCIe 3.0

x8

Full length/full height

Proc 3

4

PCIe 3.0

x16

Full length/full height

Proc 3

5

PCIe 3.0

x8

¾ length/full height

Proc 1

6

PCIe 3.0

x8

¾ length/full height

Proc 1

7

PCIe 3.0

x8

¾ length/full height

Proc 1

None (J4)

NVMe

x8

Slimline

Proc 1

None (J3)

NVMe

x8

Slimline

Proc 3



Primary 7-slot Riser (Optional) 878214-B21

Expansion Slots

(Primary/ Secondary) #

Technology

Bus/Connector Width

Form Factor/Connector

Notes

1

PCIe 3.0

x8

Full length/full height

Proc 3

2

PCIe 3.0

x16

Full length/full height

Proc 3

3

PCIe 3.0

x8

Full length/full height

Proc 3

4

PCIe 3.0

x16

Full length/full height

Proc 3

5

PCIe 3.0

x8

¾ length/full height

Proc 1

6

PCIe 3.0

x16

¾ length/full height

Proc 1

7

PCIe 3.0

x8

¾ length/full height

Proc 1



Secondary and Tertiary 8-slot Riser (Optional) 872338-B21

Expansion Slots #

Technology

Bus/Connector Width

Form Factor/Connector

Notes

9

PCIe 3.0

x16

Full length/full height

Proc 4

10

PCIe 3.0

x8

Full length/full height

Proc 4

11

PCIe 3.0

x16

Full length/full height

Proc 4

12

PCIe 3.0

x8

 Half length/  full height

Proc 2

13

PCIe 3.0

x8

Half length/ full height

Proc 2

14

PCIe 3.0

x8

Half length/ full height

Proc 2

15

PCIe 3.0

x8

Half length/ full height

Proc 2

16

PCIe 3.0

x8

Half length/ full height

Proc 2

None (J4)

NVMe

x8

Slimline

Proc 2

None (J3)

NVMe

x8

Slimline

Proc 4



Secondary and Tertiary 9-slot Riser (Optional) 872340-B21

Expansion Slots (Primary/ Secondary) #

Technology

Bus/Connector Width

Form Factor/Connector

Notes

8

PCIe 3.0

x8

Full length/full height

Proc 4

9

PCIe 3.0

x16

Full length/full height

Proc 4

10

PCIe 3.0

x8

Full length/full height

Proc 4

11

PCIe 3.0

x16

Full length/full height

Proc 4

12

PCIe 3.0

x8

Half length/ full height

Proc 2

13

PCIe 3.0

x16

Halflength/ full height

Proc 2

14

PCIe 3.0

x8

Half length/ full height

Proc 2

15

PCIe 3.0

x8

Half length/ full height

Proc 2

16

PCIe 3.0

x8

Half length/ full height

Proc 2



Primary NVMe Slimline Riser  (Optional) 878360-B21 (includes the 4-port NVMe Mezzanine card)

Expansion Slots (Primary) #

Technology

Bus/Connector Width

Form Factor/Connector

Notes

None (J4)

NVMe

x8

Slimline

Proc 1

None (J5)

NVMe

x8

Slimline

Proc 1

None (J6)

NVMe

x8

Slimline

Proc 1

None (J8)

NVMe

x8

Slimline

Proc 1



4-port NVMe Mezzanine card (included with 878360-B21)

Expansion Slots #

Technology

Bus/Connector Width

Form Factor/Connector

Notes

None

NVMe

x8

Slimline

Proc 3

None

NVMe

x8

Slimline

Proc 3

None

NVMe

x8

Slimline

Proc 3

None

NVMe

x8

Slimline

Proc 3








Notes:

- A minimum of 1 primary riser needs to be ordered.

- The secondary riser is shipped with the tertiary riser and can be installed only after the primary riser has been installed. The tertiary riser cannot be ordered separately.

- Slot availability is dependent on the processor installed. Please refer the above table carefully to make decisions on adding PCIe cards.

- The expansion slots at the back are numbered in ascending order from top to bottom and from left to right.

- The optional Slimline NVMe riser (878360-B21) supports a maximum of 16 NVMe drives and includes a primary 4-port riser  and a 4-port NVMe mezzanine card. The 4-port NVMe mezzanine card installs on top of the HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) or HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21) and requires three or four processor configuration.

- Each NVMe port (slot) supports 2 NVMe drives.

- A maximum of 1 primary, 1 secondary  (includes tertiary) riser can be installed in one server.

- Internal storage controllers and SAS expanders are supported only in the primary and tertiary risers. Not supported in the secondary riser.

- Primary Riser

· Slot #1-#4: full length

· Slot #5-#7: ¾ length

- Secondary Riser

· Slot #8-#11: full length

· Slot #12-#14: half length

- Tertiary Riser

· Slot #15-#16: half length



Network Controller

The HPE ProLiant DL580 Gen10 servers offer a flexible network technology - FlexibleLOMs, which offers customers a choice of 1 Gb, 10 Gb, 25 Gb or 10 Gb and 100Gb base-T Ethernet or converged networking in their embedded adapter. A range of NIC cards are also available to enhance networking capabilities.

Notes: For additional details see the Networking Section of this document.



Model

Adapter

Entry Model

HPE Ethernet 1Gb 4-port 331FLR/366FLR Adapter

Base Model

HPE FlexFabric 10Gb 2-port 535FLR-T Adapter

Performance Model

HPE FlexFabric 10/25 Gb 2-port 640FLR-SFP28 Adapter



Storage Controllers

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

· Software RAID

· HPE Smart Array S100i SR Gen10 SW RAID

Notes:

- HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

- HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling, please select HPE FIO Enable Smart Array SW RAID (784308-B21).









Essential RAID

· HPE Smart Array E208i-p SR Gen10 Controller

· HPE Smart Array E208e-p SR Gen10 Controller



Performance RAID

· HPE Smart Array P408i-p SR Gen10 Controller

· HPE Smart Array P408e-p SR Gen10 Controller

· HPE Smart Array P824i-p MR Gen10 Controller



Internal Storage Devices

One of the following depending on model



Optical Drive

· Optional: DVD-ROM, DVD-RW

Hard Drives

· None ship standard

Hard Drive Bays

· 8 hot plug SFF SAS/SATA HDD Bay in Entry, Base and Performance Models. Optional 8 NVMe SSD Express Bay Enablement Kit

· Optional Premium 6SFF and 2 NVMe or 8SFF Bay Kit





Maximum Internal Storage

Drive

Capacity

Configuration

Hot Plug SFF SATA HDD

96 TB

48 x 2 TB

Hot Plug SFF SAS HDD

115.2TB

48 x 2.4 TB

Hot Plug SFF SATA SSD

368.6 TB

48 x 7.68 TB

Hot Plug SFF SAS SSD

734 TB

48 x 15.3 TB

SFF NVMe SSD

307.2 TB

20 x 15.36 TB





Interfaces



Serial

1 rear

Video

1 front display port (optional with Universal Media Bay), 1 rear VGA

HPE iLO Remote Management Network Port

1

HPE iLO Front Service Port

1 (Not available if SID is installed)

Micro SD Slot

1 (Internal), 2 (optional, internal)

Notes: Requires the optional HPE Dual Micro SD 8GB USB kit.

USB 2.0 Ports

4 total: 2 front (optional); 2 rear

USB 3.0 Ports

5 total: 2 front; 2 rear, 1 internal

Notes: 2 front (optional) USB 2.0 ports need the HPE DL560 Gen10 Universal Media Bay Kit (872267-B21).











Recommended NVMe drive configurations

The HPE Proliant DL580Gen10 offers a high degree of flexibility when configuring server solutions utilizing NVMe high performance SSD drives.This flexibility can make configuring the server a challenge and could result in non-optimal and partially connected NVMe configurations where not all NVMe drive bays are functional.



HPE strongly encourages customers to choose an NVMe configuration based on processor quantity and desired maximum NVMe drive needs. Configuring the server based on the recommendations presented in the table below will help guide customers to solutions optimized for NVMe drives and PCIe slot counts.









Maximum NVMe Drives supported

Proc

Qty

Riser Configuration

Drive Kit NVMe 8 SSD Express Bay

(878362-B21)

Drive Kit

Premium 6SFF and 2 NVMe (878364-B21)

Drive Kit

UMB 2SFF Premium HDD (880121-B21)

2

1

Primary 6-slot Riser (872336-B21)

0

0

1

2

1

Primary 6-slot Riser (872336-B21)

0

1

0

2

2

Primary 6-slot Riser (872336-B21)

0

1

0

2

2

Primary 6-slot Riser (872336-B21)

0

0

1

2

2

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 9-slot Riser (872340-B21)

0

0

1

2

2

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 9-slot Riser (872340-B21)

0

1

0

2

2

Primary 7-slot Riser (878214-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

0

0

1

2

2

Primary 7-slot Riser (878214-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

0

1

0

4

2

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

0

1

1

4

2

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

0

2

0

2

3

Primary 6-slot Riser (872336-B21)

0

0

1

2

3

Primary 7-slot Riser (878214-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

0

0

1

2

3

Primary 7-slot Riser (878214-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

0

1

0

4

3

Primary 6-slot Riser (872336-B21)

0

2

0

4

3

Primary 6-slot Riser (872336-B21)

0

1

1

4

3

Primary 6-slot Riser (872336-B21)

1

0

0

Notes: Partial configuration. Drive bays 5-8 are not functional. Add 4th processor and Secondary / Tertiary 8-slot Riser (872338-B21) to enable all 8 drive bays or change primary riser to NVMe Slimline Riser (878360-B21; includes the 4-port NVMe Mezzanine card) + Secondary and Tertiary 9-slot Riser (872340-B21) to enable 16 drive configuration.

4

3

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 9-slot Riser (872340-B21)

0

2

0

4

3

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 9-slot Riser (872340-B21)

0

1

1

6

3

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

1

0

0

Notes: Partial configuration. Drive bays 7-8 are not functional. Add Processor 4 to enable all 8 drive bays.







Maximum NVMe Drives supported

Proc

Qty

Riser Configuration

Drive Kit NVMe 8 SSD Express Bay

(878362-B21)

Drive Kit
Premium 6SFF and 2 NVMe (878364-B21)

Drive Kit
UMB 2SFF Premium HDD (880121-B21)

6

3

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

0

3

0

6

3

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

0

2

1

16

3

Primary NVMe Slimline Riser (878360-B21; includes the 4-port NVMe Mezzanine card)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

2

0

0

16

3

Primary NVMe Slimline Riser (878360-B21; includes the 4-port NVMe Mezzanine card)

+ Secondary and Tertiary 9-slot Riser (872340-B21)

2

0

0

18

3

Primary NVMe Slimline Riser (878360-B21; includes the 4-port NVMe Mezzanine card)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

2

0

1

2

4

Primary 6-slot Riser (872336-B21)

0

0

1

2

4

Primary 7-slot Riser (878214-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

0

1

0

2

4

Primary 7-slot Riser (878214-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

0

0

1

4

4

Primary 6-slot Riser (872336-B21)

0

2



4

4

Primary 6-slot Riser (872336-B21)

0

1

1

4

4

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 9-slot Riser (872340-B21)

0

2



4

4

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 9-slot Riser (872340-B21)

0

1

1

4

4

Primary 7-slot Riser (878214-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)

0

2

0

4

4

Primary 7-slot Riser (878214-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

0

1

1

6

4

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

0

3

0

8

4

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

1

0

0

8

4

Primary 6-slot Riser (872336-B21)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

0

3

1

16

4

Primary NVMe Slimline Riser (878360-B21; includes the 4-port NVMeMezzanine card) + Secondary and Tertiary 9-slot Riser (872340-B21)

2

0

0

18

4

Primary NVMe Slimline Riser (878360-B21; includes the 4-port NVMe Mezzanine card)

+ Secondary and Tertiary 8-slot Riser (872338-B21)

2

0

1

20

4

Primary NVMe Slimline Riser (878360-B21; includes the 4-port NVMe Mezzanine card) + Secondary and Tertiary 8-slot Riser (872338-B21)

3

0

0



Notes:

- Partial configuration. Maximum number of NVME drives supported. 8 Drive SFF NVME in Box 1 will only support drives 1-4. Drive bays 5-8 are not functional.

- Maximum number of NVMe drives supported depends on a combination of processor, box, drive bay and riser. Please refer the above table carefully before creating configurations.

- The table is a list of recommended configurations.

- The maximum drive count listed for each configuration cannot be exceeded.

- Box 1 is populated by 8 SFF SAS/SATA bay (878366-B21) and shipped as default without any drives.

- The 8 NVMe drive option (878362-B21) can only placed in Box 1, 2 and 3. When the 8 NVMe drive option is placed in Box 1, only the first 4 NVMe (left to right) drives can be populated.

- The 6 SFF plus 2 NVMe drive option (878364-B21) can only placed in Box 1, 2 and 3.

- The Universal Media Bay (872267-B21) is not available with the 48 SFF front end, and can only be populated in Box 4. The media bay can support 2 NVMe via the optional 2 SFF premium kit (880121-B21).

- Not all configurations supporting the UMB 2SFF are shown. Primary 6-slot Riser (872336-B21) and/or Secondary and Tertiary 8-slot Riser (872338-B21) must be selected to support this option.

- The 8 SFF can be upgraded with a multiple drive bay options with field upgrades. Please refer front diagram detail for available options. For optimal upgrade please upgrade Box 1, Box 2, Box 3, Box 4, Box 5 and Box 6 when using the 8 SFF HDD bay for a 48 SFF configuration.

- A maximum of 20 NVMe drives can be supported with 4 NVMe drives in Box 1, 8 NVMe drives in Box 2 and 8 NVMe drives in Box 3 or with 2 NVMe drives in Box 1, 8 NVMe drives in Box 2, 8 NVMe drives in Box 3 and 2 NVMe drives in Box 4 using the Universal Media Bay (872267-B21).

- All pre-configured models come with embedded software RAID support for 10 SATA drives and also include P408i-p Smart Array controller. Optional HPE Smart Array Controllers can be added.

- The 2x 4-port NVMe Slimline riser (878360-B21) comes with 2 separate 4-port NVMe risers, one which installs on the upper processor mezzanine tray. NVMe Slimline Riser option (878360-B21) cannot be used in a 2 processor configuration.













Power Supply

One of the following depending on model

· HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 94% efficiency.

- Also available in -48VDC

- Must order 4x 800W Flex Slot PSU.

· HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 94% efficiency.

- 1600W Power supplies only support high line voltage (200VAC to 240VAC).

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.



All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (416151-B21). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.



To review the power requirements for your selected system, please use the HPE Power Advisor Tool.



For information on power specifications and technical content visit HPE Server power supplies



Operating Systems and Virtualization Software Support for ProLiant Servers



With 1st generation processors Intel® Xeon® Scalable Processor Family

· Windows Server 2012 R2

· Windows Server 2016

· VMware ESXi

· Red Hat Enterprise Linux (RHEL)

· SUSE Linux Enterprise Server (SLES)

Notes: Not directly supported / Community Supported (Based on RHEL so RHEL testing and enablement applicable to Cent OS) CentOS 6.9 / CentOS 7.3.



With 2nd generation processors Intel® Xeon® Scalable Processor Family

· Windows Server 2012 R2

· Windows Server 2016

· Windows Server 2019

· VMware ESXi

· Red Hat Enterprise Linux (RHEL) 7.6 and 8.0

· SUSE Linux Enterprise Server (SLES) 12 SP4 ,12 SP3 and 15 SP1

Notes:

- Not directly supported / Community Supported (Based on RHEL so RHEL testing and enablement applicable to Cent OS) CentOS 6.9 / CentOS 7.3.

- For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server http://www.hpe.com/info/ossupport.









Industry Standard Compliance

· ACPI 6.1 Compliant

· PCIe 3.0 Compliant

· WOL Support

· Microsoft® Logo certifications

· PXE Support

· USB 3.0 Compliant (internal); USB 2.0 Compliant

· SMBIOS 3.1

· UEFI 2.6

· Redfish API

· European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html

Notes: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae.



Graphics

· Integrated Video Standard

· Video modes up to 1920 x 1200@60Hz (32 bpp)

· 16MB Video Memory

· HPE iLO 5 on system management memory

· 32 MB Flash

· 4 Gbit DDR 3 with ECC protection



HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.



UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

· Secure Boot and Secure Start enable for enhanced security

· Operating system specific functionality

· Support for > 2.2 TB (using GPT) boot drives

· USB 3.0 Stack

· Embedded UEFI Shell

· Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

· PXE boot support for IPv6 networks

· Workload profiles for simple performance optimization



UEFI Boot Mode only:

· TPM 2.0 support

· NVMe Boot Support

· Platform Trust Technology (PTT) can be enabled

· iSCSI Software Initiator Support

· HTTP/HTTPs Boot support as a PXE alternative

· Boot support for option cards that only support a UEFI option ROM







Notes:

- For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

- UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Server.



Embedded Management



HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.



UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.



Intelligent Provisioning

Hassle free server and OS provisioning for one or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning.



iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.



Server Utilities



Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.



Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.



Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at

https://www.hpe.com/us/en/servers/smart-update.html.



iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.



HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.



RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.









Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.



HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.



HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/info/hpesim.



Security

· UEFI Secure Boot and Secure Start support

· Immutable Silicon Root of Trust

· FIPS 140-2 validation (iLO 5 certification in progress)

· Common Criteria certification (iLO 5 certification in progress)

· Configurable for PCI DSS compliance

· Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

· Support for Commercial National Security Algorithms (CNSA)

· Granular control over iLO interfaces

· Smart card (PIV/CAC) and Kerberos based 2-factor Authentication

· Tamper-free updates – components digitally signed and verified

· Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

· Ability to rollback firmware

· Secure erase of NAND/User data

· TPM (Trusted Platform Module) 1.2 option

· TPM (Trusted Platform Module) 2.0 option

· Bezel Locking Kit

· Chassis Intrusion detection option

Notes:

- HPE Trusted Platform Module 2.0 Option (864279-B21) works with Gen10 servers with UEFI Mode and not Legacy Mode. The Trusted Platform Module 2.0 Option can be configured to the 1.2 version through the UEFI BIOS to support TPM 1.2 functionality.

- HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module.



About Trusted Platform Module

Trusted Platform Module (TPM) is a separate processor that monitors the system state. TPM is a passive component needing to be updated and not able to lock down any component in the system except access to its own memory. It also provides some cryptographic operations - among them: creating RSA key pairs, and working with them.



The first verification of signatures happens by code on the CPU, which can be intercepted and replaced. Emulating a "properly" booted system is possible by sending the right values to the TPM.



HPE supports two version of TPM, the 1.2 device and the 2.0 device. The TPM 2.0 device works with Gen10 servers that are using a Linux operating system or Microsoft Windows Server 2016. Both TPM 1.2 and 2.0 are compatible with HPE ProLiant Gen9 and Gen10 servers. These TPM modules are not compatible with server generations prior to Gen9. Once the TPM module is installed, it locks into place and cannot be removed, nor can it be replaced with a different TPM device.





Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.



Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.



HPE Silicon Root of Trust

The HPE Silicon Root of Trust provides protection because as soon as the server is powered on and the iLO firmware comes alive, it looks into the silicon for the immutable fingerprint that verifies all the firmware code is valid and uncompromised. Over a million lines of firmware code run, before the operating system starts, making it essential to confirm that all server essential firmware is free from malware or compromised code.



Silicon Root of Trust is included with iLO5 Standard with all platforms that contain the iLO5 chip. That includes ML, DL, Apollo, C-Class Blades, and Synergy Compute Modules. HPE Cloudline and the HPE Microserver do not have silicon root of trust, since they do not contain an iLO5 silicon chip. This technology is NOT available on any previous version of HPE ProLiant like the Gen9, Gen8, or Gen 7 servers, nor can those previous generations be retrofitted to accommodate the silicon root of trust.



The silicon validates the iLO 5 firmware code before it is fetched and executed. If any malware or compromised code has been inserted in the iLO 5 firmware, the silicon will detect that, because any infected firmware code will not match-up with the hash burned into the silicon. From there, the iLO 5 firmware validates the rest of the server firmware, namely the UEFI, CPLD, IE, and ME. The UEFI then validates the connection to the operating system, thus completing a complete root, or chain, that is anchored into the silicon.



During operation of the server, Hewlett Packard Enterprise has a new technology that conducts run-time firmware validation that checks the firmware stored in the server. At any point, if compromised code or malware is inserted in any of the critical firmware, an iLO audit log alert is created to notify the customer that a compromised has occurred.



In the unlikely event of a breach into the HPE server firmware, after detection has been completed, the customer may then securely recover the firmware automatically to a previous known good state. Hewlett Packard Enterprise provides this function through HPE iLO Advanced license.



Optional Features

Server Management



HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.



HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers. To learn more visit http://www.hpe.com/info/oneview.



HPE InfoSight for Servers

HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The end result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities.

Learn more at https://www.hpe.com/servers/infosight



HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu.



GPGPU Information

· HPE NVIDIA Tesla P40 24GB Computational Accelerator

· HPE NVIDIA Tesla V100 PCIe 32GB Computational Accelerator



Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.



HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you’re critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.



One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance

https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#



Service and Support

HPE Pointnext - Service and Support



Protect your business beyond warranty with HPE Pointnext Operational Service

HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Datacenter Care, to keep your business at peak performance. Hewlett Packard Enterprise is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple.



Connect your devices:

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

Notes:

- 1 IDC

- 2 HPE CSC reports 2014 – 2015

Learn more about getting connected at http://www.hpe.com/services/getconnected.



Recommended Services



HPE Proactive Care* with 6 hour call-to-repair commitment, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This Service combines three years’ proactive reporting and advice with our highest level of hardware support –the  HPE 24x7, six hour hardware call-to-repair. Hewlett Packard Enterprise is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf



HPE Proactive Care* with 24x7 coverage, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice This Service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf



HPE Proactive Care* - Next Business Day service, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years of Hardware Support where a Hewlett Packard Enterprise authorized representative will arrive at the Customer's site during the onsite coverage window to begin hardware maintenance service the next coverage day after the service request has been logged. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Notes: *HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of these services and receive all the deliverables.









Other related Services



HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

https://h20195.www2.hpe.com/v2/Getdocument.aspx?docname=5981-9356enw



HPE Installation and Startup Service

Provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux).



HPE Datacenter Care service

HPE Datacenter Care helps improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a structured framework of repeatable, tested, and globally available services "building blocks." You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with HPE via a single point of accountability for HPE and others’ products. For more information, visit

http://www.hpe.com/services/datacentercare



HPE GreenLake Flex Capacity

With HPE GreenLake Flex Capacity, you get the speed, scalability, and economics of the public cloud in the privacy of your data center. Gain the advantages of the public cloud—consumption-based payment, rapid scalability without worrying about capacity constraints. Reduce the "heavy lifting" needed to operate a data center. And retain the advantages that IT provides the business (i.e., control, security). Deliver the right user experience, choose the right technology for the business, manage privacy and compliance, and manage the cost of IT. And, you have the option to use the public cloud when needed.



DC for Hyperscale

Datacenter Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture can take advantage of this environment support tailored to their operating model.



HPE Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.



HPE Service Credits

HPE Service Credits offers flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.



HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn









HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers.Learn more http://www.hpe.com/support/hpesc.



The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.



HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.

Notes:

- *HPE Support Center Mobile App is subject to local availability. For more information: http://www.hpe.com/services.

- HPE ProLiant DL580 Gen10 Server is covered under the HPE Service Contract applied to the HPE ProLiant Server. No separate HPE support services need to be purchased.



Warranty

Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS batteries over 12KVA. See the specific high value options that require additional support here.



Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.



Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.



The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.



Pre-configured Models



Entry Models

SKU Number

P21273-xxx

Model Name

HPE ProLiant DL580 Gen10 5220 2.2GHz 18-core 2P 64GB-R P408i-p 8SFF 4x800W RPS Server

Processor

Intel® Xeon® 5220

(18-Core, 2.2GHz, 125W )

Number of Processors

2

Memory

64 GB (2x 32GB Registered DIMMs, 2933 MT/s)

Notes: 24 DIMM slots available with Entry Model; 2 more processor slots and 24 more DIMMs available via optional HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21).

Network Controller

1 Gb 4-port 366FLR Adapter

Storage Controller

HPE Smart Array P408i-p controller

Notes: Additional Storage controllers are available as options, to enable both SAS capability as well as provide data retention with flash-backed write cache (FBWC).

Power Supply

4x 800W

PCI-Express Slots

3 PCIe 3.0 slots available

Notes: 16 PCIe 3.0 slots available with the secondary riser and 4 processors installed.

Hard Drive

None ship standard

Internal Storage

8 SFF Drive Bays

Notes:

- Can be expanded up to a max. of 48 SFF drives, with optional HPE DL580 Gen10 8SFF HDD Bay Kit (878366-B21).

- Optionally NVMe SSD drives can be added with HPE DL580 Gen10 Premium 6SFF and 2 NVMe or 8SFF Bay Kit (878364-B21) which can be added to Box1, 2 or 3 or HPE DL580 NVMe 8 SSD Express Bay Enablement Kit (878362-B21) which can be added to Box 1 (only 4 NVMe drives), Box 2 and Box 3.

- Alternatively, optional HPE DL560 Gen10 Universal Media Bay Kit (872267-B21) can be added in Box 4.

Optical Drive

Optional via Universal Media Bay

Fans

12 hot plug fans, n+1 redundant

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (requires license)

Form Factor

Rack (4U), HPE DL580 Gen10 4U Rail Kit with CMA

Warranty

3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response







Entry Models

SKU Number

P05673-xxx

869848-xxx

Model Name

HPE ProLiant DL580 Gen10 5220 2.2GHz 18-core 2P 128GB-R P408i-p 8SFF 4x800W RPS Server

HPE ProLiant DL580 Gen10 5120 2.2GHz 14-core 2P 64GB-R P408i-p 8SFF 4x800W PS Entry Server

Processor

Intel® Xeon® 5220

(18-Core, 2.2GHz, 125W )

Intel® Xeon® 5120

(14-Core, 2.2GHz, 105W )

Number of Processors

2

2

Memory

128 GB (4x 32GB Registered DIMMs, 2933 MT/s)

Notes: 24 DIMM slots available with Entry Model; 2 more processor slots and 24 more DIMMs available via optional HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21).

64 GB (4x 16GB Registered DIMMs, 2666 MT/s)

Notes: 24 DIMM slots available with Entry Model; 2 more processor slots and 24 more DIMMs available via optional HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21).

Network Controller

1 Gb 4-port 331FLR Adapter

1 Gb 4-port 331FLR Adapter

Storage Controller

HPE Smart Array P408i-p controller

Notes: Additional Storage controllers are available as options, to enable both SAS capability as well as provide data retention with flash-backed write cache (FBWC).

Power Supply

4x 800W

4x 800W

PCI-Express Slots

3 PCIe 3.0 slots available

Notes: 16 PCIe 3.0 slots available with the secondary riser and 4 processors installed.

Hard Drive

None ship standard

Internal Storage

8 SFF Drive Bays

Notes:

- Can be expanded up to a max. of 48 SFF drives, with optional HPE DL580 Gen10 8SFF HDD Bay Kit (878366-B21).

- Optionally NVMe SSD drives can be added with HPE DL580 Gen10 Premium 6SFF and 2 NVMe or 8SFF Bay Kit (878364-B21) which can be added to Box1, 2 or 3 or HPE DL580 NVMe 8 SSD Express Bay Enablement Kit (878362-B21) which can be added to Box 1 (only 4 NVMe drives), Box 2 and Box 3.

- Alternatively, optional HPE DL560 Gen10 Universal Media Bay Kit (872267-B21) can be added in Box 4.

Optical Drive

Optional via Universal Media Bay

Fans

12 hot plug fans, n+1 redundant

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (requires license)

Form Factor

Rack (4U), HPE DL580 Gen10 4U Rail Kit with CMA

Warranty

3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response







Base Models

SKU Number

P22709-xxx

Model Name

HPE ProLiant DL580 Gen10 6230 2.1GHz 20-core 4P 256GB-R P408i-p 8SFF 4x1600W RPS Server

Processor

Intel® Xeon® 6230

(20-Core, 2.1GHz, 125W)

Number of Processors

4

Memory

256 GB (8x 32GB Registered DIMMs, 2933 MT/s)

Network Controller

10GbE

FlexFabric 2-port 533FLR-T Adapter

Storage Controller

HPE Smart Array P408i-p controller

Notes: Additional Storage controllers are available as options, to enable both SAS capability as well as provide data retention with flash-backed write cache (FBWC).

Power Supply

4x 1600W

Notes: 1600W Power supplies only support high line voltage (200VAC to 240VAC).

PCI-Express Slots

16 PCIe 3.0 slots available

Hard Drive

None ship standard

Internal Storage

8 SFF Drive Bays

Notes:

- Can be expanded up to a max. of 48 SFF drives, with optional HPE DL580 Gen10 8SFF HDD Bay Kit (878366-B21).

- Optionally NVMe SSD drives can be added with HPE DL580 Gen10 Premium 6SFF and 2 NVMe or 8SFF Bay Kit (878364-B21) which can be added to Box1, 2 or 3 or HPE DL580 NVMe 8 SSD Express Bay Enablement Kit (878362-B21) which can be added to Box 1 (only 4 NVMe drives), Box 2 and Box 3.

- Alternatively, optional HPE DL560 Gen10 Universal Media Bay Kit (872267-B21) can be added in Box 4.

Optical Drive

Optional via Universal Media Bay

Fans

12 hot plug fans, n+1 redundant

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download);

Form Factor

Rack (4U), HPE DL580 Gen10 4U Rail Kit with CMA

Warranty

3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response







Base Models

SKU Number

P05672-xxx

869847-xxx

Model Name

HPE ProLiant DL580 Gen10 6230 2.1GHz 20-core 4P 256GB-R P408i-p 8SFF 4x1600W RPS Server

HPE ProLiant DL580 Gen10 6148 2.4GHz 20-core 4P 128GB-R P408i-p 8SFF 4x1600W PS Base Server

Processor

Intel® Xeon® 6230

(20-Core, 2.1GHz, 125W)

Intel® Xeon® 6148

(20-Core, 2.4GHz, 150W)

Number of Processors

4

4

Memory

256 GB (8x 32GB Registered DIMMs, 2933 MT/s)

128 GB (8x 16GB Registered DIMMs, 2666 MT/s)

Network Controller

10GbE

FlexFabric 2-port 535FLR-T Adapter

10GbE

FlexFabric 2-port 535FLR-T Adapter

Storage Controller

HPE Smart Array P408i-p controller

Notes: Additional Storage controllers are available as options, to enable both SAS capability as well as provide data retention with flash-backed write cache (FBWC).

Power Supply

4x 1600W

4x 1600W

Notes: 1600W Power supplies only support high line voltage (200VAC to 240VAC).

PCI-Express Slots

16 PCIe 3.0 slots available

16 PCIe 3.0 slots available

Hard Drive

None ship standard

Internal Storage

8 SFF Drive Bays

Notes:

- Can be expanded up to a max. of 48 SFF drives, with optional HPE DL580 Gen10 8SFF HDD Bay Kit (878366-B21).

- Optionally NVMe SSD drives can be added with HPE DL580 Gen10 Premium 6SFF and 2 NVMe or 8SFF Bay Kit (878364-B21) which can be added to Box1, 2 or 3 or HPE DL580 NVMe 8 SSD Express Bay Enablement Kit (878362-B21) which can be added to Box 1 (only 4 NVMe drives), Box 2 and Box 3.

- Alternatively, optional HPE DL560 Gen10 Universal Media Bay Kit (872267-B21) can be added in Box 4.

Optical Drive

Optional via Universal Media Bay

Fans

12 hot plug fans, n+1 redundant

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced

Form Factor

Rack (4U), HPE DL580 Gen10 4U Rail Kit with CMA

Warranty

3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response







Performance Models

SKU Number

P05671-B21

869845-xxx

Model Name

HPE ProLiant DL580 Gen10 8260 2.4GHz 24-core 4P 512GB-R P408i-p 8SFF 4x1600W RPS Server

HPE ProLiant DL580 Gen10 8164 2.0GHz 26-core 4P 256GB-R P408i-p 8SFF 4x1600W PS Perf Server

Processor

Intel® Xeon® 8260

(24-Core, 2.4GHz, 165W)

Intel® Xeon® 8164

(26-Core, 2.0GHz, 150W)

Number of Processors

4

4

Memory

512 GB (16x 32GB Registered DIMMs, 2933 MT/s)

256 GB (8x 32GB Registered DIMMs, 2666 MT/s)

Network Controller

10/25GbE

FlexFabric 2-port 640FLR-SFP28  Adapter

10/25GbE

FlexFabric 2-port 640FLR-SFP28  Adapter

Storage Controller

HPE Smart Array P408i-p controller

Notes: Additional Storage controllers are available as options, to enable both SAS capability as well as provide data retention with flash-backed write cache (FBWC).

Power Supply

4x 1600W

4x 1600W

Notes: 1600W Power supplies only support high line voltage (200VAC to 240VAC).

PCI-Express Slots

16 PCIe 3.0 slots available

16 PCIe 3.0 slots available

Hard Drive

None ship standard

Internal Storage

8 SFF Drive Bays

Notes:

- Can be expanded up to a max. of 48 SFF drives, with optional HPE DL580 Gen10 8SFF HDD Bay Kit (878366-B21).

- Optionally NVMe SSD drives can be added with HPE DL580 Gen10 Premium 6SFF and 2 NVMe or 8SFF Bay Kit (878364-B21) which can be added to Box1, 2 or 3 or HPE DL580 NVMe 8 SSD Express Bay Enablement Kit (878362-B21) which can be added to Box 1 (only 4 NVMe drives), Box 2 and Box 3.

- Alternatively, optional HPE DL560 Gen10 Universal Media Bay Kit (872267-B21) can be added in Box 4.

Optical Drive

Optional via Universal Media Bay

Fans

12 hot plug fans, n+1 redundant

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced

Form Factor

Rack (4U), HPE DL580 Gen10 4U Rail Kit with CMA

Warranty

3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response



Notes: European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html

Country Code Key

xx1 = B21

Worldwide

Notes: The -B21 WW SKU is to be ordered in all countries other than Japan or PRC.

xx1 = 291

Japan

xx1 = AA1

PRC







Configuration Information



This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

· Factory Integrated Models must start with a CTO Server.

· FIO indicates that this option is only available as a factory installable option.

· All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

· Some options may not be integrated at the factory. Contact your local sales representative for additional information.

· European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html

Step 1: Base Configuration (choose one of the following configurable models)



Server description

HPE ProLiant DL580 Gen10 8SFF Configure-to-order Server

SKU Number

869854-B21

TAA SKU

878213-B21

Chipset

Intel® C621 Chipset

Processor

4U Server Chassis with 2 processor slots available; 3 or 4 processors configuration would require optional oLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21)

HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21)

DIMM Slots

24 DIMM slots for RDIMM, LRDIMM DDR4 Memory; (6 DIMM slots per processor can be used for NVDIMMs or can be used for HPE Persistent Memory)

48 DIMM configuration would require optional HPE ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) and 4 processors

Notes: If 2nd generation Intel® Xeon® Scalable processors are being used (82xx, 62xx or 52xx series) the 48 DIMM configuration would require optional HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21)

Network Controller

None. FlexibleLOM slot (various options can be chosen for networking; NIC cards also available via expansion slots)

Storage Controller

HPE Smart Array S100i

Notes: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling, please select HPE FIO Enable Smart Array SW RAID (784308-B21).

PCIe

None. Must order a primary riser (16 PCIe 3.0 slots are available if all processors are chosen and the primary, secondary and tertiary Riser Kits have been installed)

Drive Cage - included

8 SFF in Box 1, no drives

Fans

12 hot plug fans, (n+1) redundant

Management

HPE iLO Standard with Intelligent Provisioning and (Standard); HPE OneView Standard (requires download) and HPE iLO Advanced (require additional licenses), HPE OneView Advanced (require additional licenses)

microSD Slots

1 microSD card slot (internal)

TPM Connector

1 Trusted Platform Module (TPM) connector

UEFI

BIOS Legacy mode (field configurable) or Unified Extensible Firmware Interface (UEFI) mode (default)

USB

7 USB ports (2 USB 2.0 and 5 USB 3.0), Optional 2 front available via universal media kit upgrade

Video Ports

2 video ports (1 front optional via the Universal Media Kit upgrade option, 1 rear)

Rails

HPE DL580 Gen10 4U Rail Kit with CMA





Notes:

- Trade Agreement Act (TAA) and means that these SKUs are manufactured in countries that are part of the global trade act. This provides greater security assurance that these servers come from countries that signed the agreement act. This is particularly important to HPE customers in our federal sector and other verticals that have concerns about the country of origin for our solutions.

- TAA chassis are only orderable in North America and Canada.

- PCIe slot availability is dependent on the number of processors and riser kits installed. Please refer to the "Expansion slots" section for more details.

- For four processors, the HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21) is required if 2nd generation Intel® Xeon® Scalable processors are being used.

- This applies to CTO configurations, field upgrades may differ depending on field configuration.

- For more information about riser configuration, please visit:

https://h20195.www2.hpe.com/v2/Getdocument.aspx?docname=a00043229enw

- DL500 family is identified as Resilent Server category under LOT 9 regulation, system minimum configuration with 2 Memory DIMMs and 2 PSUs for CE Market.



Step 2: Choose Required Options

Please select one –L21 processor required below.



Step 2a: Choose Processor Options

Processor Option Kits



Description

SKU

Intel Xeon-Platinum 8280L (2.7GHz/28-core/205W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05713-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8280 (2.7GHz/28-core/205W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05716-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8276L (2.2GHz/28-core/165W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05722-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8276 (2.2GHz/28-core/165W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05714-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8270 (2.7GHz/26-core/205W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05712-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8268 (2.9GHz/24-core/205W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05711-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8260L (2.4GHz/24-core/165W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05707-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8260 (2.4GHz/24-core/165W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05708-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8260Y (2.4GHz/24-core/165W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05691-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8256 (3.8GHz/4-core/105W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05706-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8253 (2.2GHz/16-core/125W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05705-L21

Intel Xeon-Platinum 8180M (2.5GHz/28-core/205W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878159-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8168 (2.7GHz/24-core/205W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878153-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8165 (2.3GHz/24-core/205W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P00881-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8164 (2.0GHz/26-core/150W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878152-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8160 (2.1GHz/24-core/145W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878150-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Platinum 8158 (3.0GHz/12-core/105W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878149-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6256 (3.6GHz/12-core/205W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P24436-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6254 (3.1GHz/18-core/200W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05704-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6252 (2.1GHz/24-core/150W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05703-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6252N (2.3GHz/24-core/150W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05720-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6248 (2.5GHz/20-core/150W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05701-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6246 (3.3GHz/12-core/165W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P15748-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6244 (3.6GHz/8-core/150W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05699-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6242 (2.8GHz/16-core/150W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05696-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6240L (2.6GHz/18-core/150W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05697-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05694-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6240Y (2.6GHz/18-14-8-core/150W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05690-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6238L (2.1GHz/22-core/140W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P11964-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6238 (2.1GHz/22-core/140W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05702-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6234 (3.3GHz/8-core/130W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05700-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05688-L21

Intel Xeon-Gold 6230N (2.3GHz/20-core/125W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05710-L21

Intel Xeon-Gold 6262V (1.9GHz/24-core/135W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05686-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6222V (1.8GHz/20-core/115W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05689-L21

Intel Xeon-Gold 6226 (2.7GHz/12-core/125W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05693-L21

Intel Xeon-Gold 6154 (3.0GHz/18-core/200W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878146-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6152 (2.1GHz/22-core/135W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878145-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6150 (2.7GHz/18-core/165W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878144-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6148 (2.4GHz/20-core/145W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878143-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6144 (3.5GHz/8-core/150W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878141-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6143 (2.8GHz/16-core/205W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P00880-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6140 (2.3GHz/18-core/140W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878137-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6136 (3.0GHz/12-core/150W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878135-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6134M (3.2GHz/8-core/130W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878134-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6134 (3.2GHz/8-core/130W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878133-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6132 (2.6GHz/14-core/140W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878132-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 6130 (2.1GHz/16-core/125W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878131-L21

Intel Xeon-Gold 6126 (2.6GHz/12-core/125W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878129-L21

Intel Xeon-Gold 5222 (3.8GHz/4-core/105W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05692-L21

Notes: Ships with Performance Heatsink.



Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05684-L21

Intel Xeon-Gold 5220S (2.7GHz/18-core/125W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P11856-L21

Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05683-L21

Intel Xeon-Gold 5218B (2.3GHz/16-core/125W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P12534-L21

Intel Xeon-Gold 5218N (2.3GHz/16-core/110W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05698-L21

Intel Xeon-Gold 5217 (3.0GHz/8-core/115W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05719-L21

Intel Xeon-Gold 5215L (2.5GHz/10-core/85W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05687-L21

Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) FIO Processor Kit for HPE ProLiant DL580 Gen10

P05682-L21

Intel Xeon-Gold 5120 (2.2GHz/14-core/105W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878127-L21

Intel Xeon-Gold 5118 (2.3GHz/12-core/105W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878126-L21

Intel Xeon-Gold 5115 (2.4GHz/10-core/85W) FIO Processor Kit for HPE ProLiant DL580 Gen10

878125-L21

Notes:

- If more than one processor is desired select one xxxxxx-L21 and one, two or three corresponding xxxxxx-B21 processors. Mixing different processor models is not supported.

- Mixing of 1st and 2nd generation Intel® Xeon® Scalable processors – (8/6/5)1xx and (8/6/5)2xx models - is not supported.





Step 2b: Choose Memory Options (at least one Memory Kit is required)

Only one of the following from each list unless otherwise noted



Memory Options



Registered DIMMs (RDIMMs)



HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00918-B21

HPE 8GB (1x8GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815097-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00920-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815098-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00922-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

835955-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00924-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815100-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00930-B21

Load Reduced DIMMs (LRDIMMs)



HPE 64GB (1x64GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart Memory Kit

P00926-B21

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Smart Memory Kit

815101-B21

HPE 128GB (1x128GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart Memory Kit

P11040-B21

HPE 128GB (1x128GB) Octal Rank x4 DDR4-2933 CAS-24-21-21 Load Reduced 3DS Smart Memory Kit

P00928-B21

HPE 128GB (1x128GB) Octal Rank x4 DDR4-2666 CAS-22-19-19 3DS Load Reduced Memory Kit

815102-B21

HPE Persistent Memory



HPE 128GB 2666 Persistent Memory Kit featuring Intel Optane DC Persistent Memory

835804-B21

HPE 256GB 2666 Persistent Memory Kit featuring Intel Optane DC Persistent Memory

835807-B21

HPE 512GB 2666 Persistent Memory Kit featuring Intel Optane DC Persistent Memory

835810-B21

Notes:

- LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

- The 2933 MT/s memory DIMMs are supported with the  2nd
