| Processor |
- Up to Intel® Xeon® W-1290P with vPro™ (3.70GHz, up to 5.30GHz with Turbo Boost, 10 cores, 20MB Cache)
- Up to 10th Generation Intel® Core™ i9-10900K Processor with vPro™ (3.70GHz, up to 5.30GHz with Turbo Boost, 10 cores, 20MB Cache)
|
| Operating System |
- Windows 10 Pro for Workstations
- Windows 10 Pro
- Ubuntu® Linux®
- Redhat® Linux® (certified)
|
| Graphics |
- Integrated Intel® UHD Graphics 630
- NVIDIA® Quadro P400 2GB
- NVIDIA® Quadro P620 2GB
- NVIDIA® Quadro P1000 4GB
- NVIDIA® Quadro P2200 5GB
- NVIDIA® Quadro RTX4000 8GB
- NVIDIA® Quadro RTX5000 16GB
|
| Chipset |
Intel® W480 |
| Memory |
- 8 GB DDR4 2667MHz
- Up to 128GB DDR4 2933MHz
- UP to 128GB DDR4 2933MHz ECC
|
| Storage |
- Up to 4 x 2TB M.2 PCIe SSD, and
- Up to 2 x 4TB 3.5” HDD or up to 2 x 1TB 2.5” SSD
|
| RAID |
M.2: 0/1
SATA: 0/1/5/10 |
| Connectivity |
- Intel® WiFi 6™ AX201 802.11AX (2 x 2) & Bluetooth® 5.0 (Optional)
- Intel® WiFi 6™ AX201 802.11AX (2 x 2) & Bluetooth® 5.0 with vPro™ (Optional)
|
| Security |
- Trusted Platform Module (TPM 2.0)
- Self-healing BIOS
- Supervisor, SMP and power-on passwords
- Electronic lock support
- Chassis intrusion detection
- UEFI secure boot support
- HDD password protection for HDD Data
- Windows UEFI firmware update support
- Device Guard Support
- Optional: Access panel lock, Kensington lock slot, pad lock slot, BIOS guard, boot guard
|
| Ports & Slots |
Front:
- 2 x USB 3.2 Gen 2 Type-A
- 2 x USB 3.2 Gen 1 Type-A
- USB 3.2 Gen 1 Type-C
- Audio jack
- Mic jack

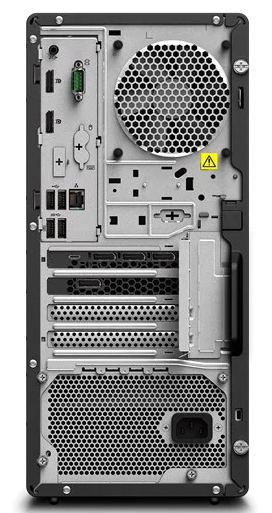

Rear:
- 2 x USB 2.0 Type-A
- 2 x USB 3.2 Gen 1 Type-A
- Audio (line out)
- 2 x Display Port (3rd DP optional)
- RJ45 (1GB Ethernet)
- Serial port (2nd serial optional)
- Thunderbolt (optional)
|
| Explansion Slots |
- PCIe 3.0 x16
- PCIe 3.0 x1
- PCIe 3.0 x4
|
| Dimensions (H x W x D) |
6.7" x 12.4" x 14.8" / 170mm x 315.35mm x 376mm |
| Weight |
Max configuration: 20.7lbs / 9.4kg |
| ISV Certifications |
- Altair® HyperWorks
- ANSYS® ANSYS
- Autodesk® Alias/VRED, AutoCAD, Inventor, Revit
- Avid® Media Composer
- Bentley® MicroStation
- Dassault® 3DEXPERIENCE, SOLIDWORKS
- Nemetschek® Vectorworks
- PTC Creo®
- Siemens® NX, Solid Edge, Teamcenter, Tecnomatix
- Barco Medical Displays
- McKesson Medical Imaging
|
| Green Certifications |
- ENERGY STAR® 8.0
- EPEAT™
- GREENGUARD
- RoHS Compliant
- 80 PLUS Platinum (500W)
- 80 PLUS Gold (300W)
|
| Power Supply Unit |
- 300W (90% efficient)
- 500W (92% efficient)
|
| More Information |
*Not all specs available on lenovo.com
|
