Lenovo ThinkSystem SR530 SFF Silver 4108

  • (1) Intel Xeon Silver 4108 8C 85W 1.8GHz Processor
  • ThinkSystem 16GB TruDDR4 2666 MHz (1Rx4 1.2V) RDIMM
  • Hard Drive : None (2.5")
  • ThinkSystem RAID 530-8i PCIe 12Gb Adapter (RAID 0, 1, 10, 5, and 50)
  • Optical drive: Support for an external USB DVD RW Optical Disk Drive
  • 2x Integrated 1 GbE RJ-45 ports, 1x RJ-45 10/100/1000 Mb Ethernet systems management
  • XClarity Controller (XCC) Standard
  • 8 x SFF SAS/SATA hot-swap drive bays
  • Redundant hot-swap 550 W Power Supply (1/2)
  • 1U rack-mount, Toolless Slide Rail
  • Warranty: 3 Year Onsite Repair 24x7 4 Hour Response
Nhà sản xuất: Lenovo
42.500.000 ₫

Abstract

Lenovo ThinkSystem SR530 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.

This product guide provides essential technical and pre-sales information on the SR530 server, its key features and specifications, components and options, and configuration guidelines.

This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR530 server and consider its use in IT solutions.

Note: This product guide describes ThinkSystem SR530 server models with the first generation of the Intel Xeon Processor Scalable Family (Xeon SP Gen 1). For ThinkSystem SR530 server models with the second generation of the Intel Xeon Processor Scalable Family (Xeon SP Gen 2), refer to the following Lenovo Press product guide:

Change History

Changes in the September 10 update:

  • Added ThinkSystem 2.5" 5210 1.92TB, 3.84TB, and 7.68TB Entry SATA 6Gb Hot Swap QLC SSDs
  • Updated Operating systems
  • Updated External storage systems
  • Updated Ethernet LAN switches

Walkthrough Video with David Watts and Russ Resnick

Introduction



Lenovo ThinkSystem SR530 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.

Featuring the Intel Xeon Processor Scalable Family, the SR530 server offers a balance of performance, capacity and value. The SR530 server supports up to two processors, up to 768 GB of 2666 MHz TruDDR4 memory, 8x 2.5-inch or 4x 3.5-inch drive bays with an extensive choice of SAS/SATA SSDs and SAS/SATA HDDs, and flexible I/O expansion options with the LOM slot and up to 3x PCIe slots.

The SR530 server offers basic software RAID or advanced hardware RAID protection and a wide range of networking options, including embedded LOM, selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo XClarity Controller, which is built into the SR530 server, provides advanced service processor control, monitoring, and alerting functions.

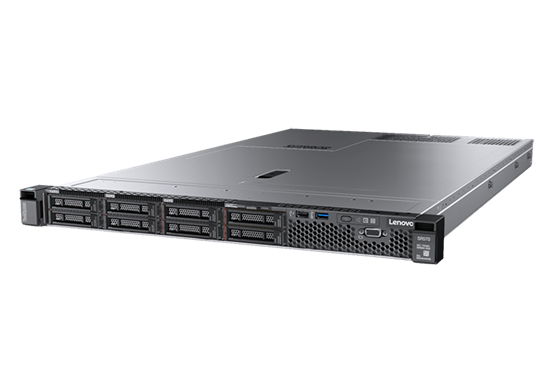

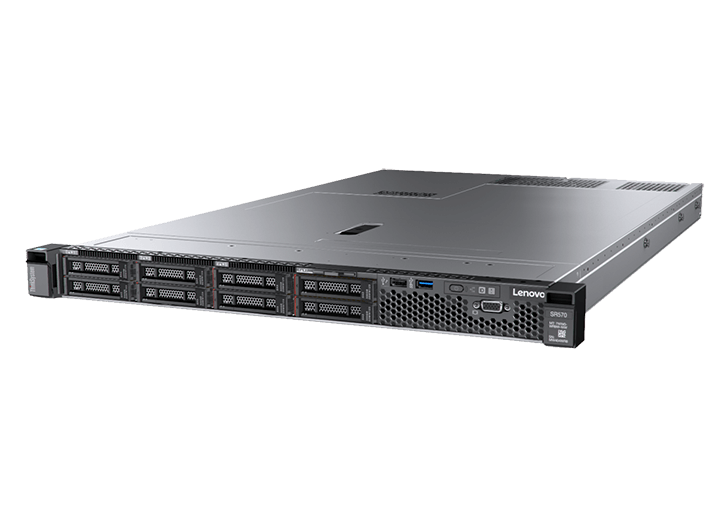

The following figure shows the Lenovo ThinkSystem SR530.

Lenovo ThinkSystem SR530
Figure 1. Lenovo ThinkSystem SR530

Did you know?

The SR530 server delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies that can deliver 96% (Titanium) or 94% (Platinum) efficiency at 50% load when connected to a 200 - 240 V AC power source.

The SR530 server is designed to meet ASHRAE A4 standards (up to 45 °C [113 °F]) in select configurations, which enable customers to lower energy costs, while still maintaining world-class reliability.

Key features

The SR530 server offers a balance of processing power, expandability, and cost for small and medium businesses up to the large enterprise. Ease of use and comprehensive systems management tools help make deployment easier and efficient design improves your business environment and helps save operational costs.

Scalability and performance

The SR530 server offers numerous features to boost performance, improve scalability, and reduce costs:

  • Improves productivity by offering superior system performance with the Intel Xeon Processor Scalable Family with up to 20-core processors, up to 27.5 MB of last level cache (LLC), up to 2666 MHz memory speeds, and up to 10.4 GT/s Ultra Path Interconnect (UPI) links.
    • Support for up to two processors, 40 cores, and 80 threads allows to maximize the concurrent execution of multithreaded applications.
    • Intelligent and adaptive system performance with energy efficient Intel Turbo Boost 2.0 Technology allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
    • Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core.
    • Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better utilize the hardware for virtualization workloads.
    • Intel Advanced Vector Extensions 512 (AVX-512) enable acceleration of enterprise-class and high performance computing (HPC) workloads.
  • Helps maximize system performance for data intensive applications with up to 2666 MHz memory speeds and up to 768 GB of memory capacity.
  • Offers flexible and scalable internal storage in a 1U rack form factor with up to 8x 2.5-inch drives for performance-optimized configurations or up to 4x 3.5-inch drives for capacity-optimized configurations, providing a wide selection of SAS/SATA HDDs/SSDs.
  • Provides I/O scalability with the LOM slot and up to three PCI Express (PCIe) 3.0 I/O expansion slots in a 1U rack form factor.
  • Reduces I/O latency and increases overall system performance with Intel Integrated I/O Technology that embeds the PCI Express 3.0 controller into the Intel Xeon Processor Scalable Family.

Availability and serviceability

The SR530 server provides many features to simplify serviceability and increase system uptime:

  • Offers protection in the event of a non-correctable memory failure with Single Device Data Correction (SDDC, also known as Chipkill, requires x4-based DIMMs), Adaptive Double Device Data Correction (ADDDC, also known as Redundant Bit Steering [RBS], requires x4-based DIMMs and Intel Xeon Gold or Platinum processors), memory mirroring, and memory rank sparing.
  • Provides easy access to upgrades and serviceable parts (such as processors, memory DIMMs, and adapter cards) with tool-less cover removal.
  • Offers affordable data protection with software RAID and Simple Swap drives and advanced hardware RAID data redundancy with hot-swap drives.
  • Provides availability for applications with redundant hot-swap power supplies and redundant non-hot-swap fans.
  • Allows preventive actions in advance of possible failure, thereby increasing server uptime and application availability with Proactive Platform Alerts (including PFA and SMART alerts) for processors, voltage regulators, memory, internal storage (SAS/SATA HDDs and SSDs, M.2 storage), fans, power supplies, RAID controllers, and server ambient and sub-component temperatures.
  • Continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failure to minimize downtime with Built-in XClarity Controller (XCC).
  • Provides quick access to system status, firmware, network, health, and alerts information via Virtual Operator Panel from the XClarity Mobile App running on the Android or iOS mobile device that is connected to the front USB port with XClarity Controller access.
  • Speeds up troubleshooting tasks to reduce service time with diagnostics built into the XClarity Provisioning Manager.

Manageability and security

Powerful systems management features simplify local and remote management of the SR530 server and deliver enterprise-class data protection:

  • Provides advanced service processor control, monitoring, and alerting functions with XClarity Controller, a next generation service processor.
  • Improves Unified Extensible Firmware Interface (UEFI) system setup, configuration, updates, simplified error handling, and operating system deployment with the embedded XClarity Provisioning Manager.
  • Offers XClarity Essentials software tools that can help you set up, use, and maintain the server.
  • Increases uptime, reduces costs, and improves productivity through advanced server management capabilities with Lenovo XClarity Administrator that provides comprehensive hardware management.
  • Provides on-the-go monitoring and management of devices in XClarity Administrator from anywhere with the Lenovo XClarity mobile app, which can help improve efficiency and reduce downtime risks.
  • Centralizes infrastructure resource management with Lenovo XClarity Integrators for VMware vCenter and Microsoft System Center, extending XClarity Administrator features to virtualization management software tools and enabling users to deploy and manage infrastructure end-to-end.
  • Offers advanced cryptographic functionality (such as digital signatures and remote attestation) with an integrated Trusted Platform Module (TPM) or optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC).
  • Keeps user data safe with Lenovo Business Vantage, a security software tool suite designed to work with the Trusted Cryptographic Module (available only in PRC).
  • Offers enterprise-class data protection with advanced RAID and optional self-encrypting drives.
  • Provides faster, stronger encryption with industry-standard AES NI support.
  • Helps prevent certain classes of malicious buffer overflow attacks with Intel Execute Disable Bit functionality, when combined with a supporting operating system.
  • Enhances security through hardware-based resistance to malicious software attacks with Intel Trusted Execution Technology, allowing an application to run in its own isolated space, protected from all other software running on a system.

Energy efficiency

The SR530 server offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to the green environment:

  • Delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies.
  • Enables customers to lower energy costs with design to meet ASHRAE A4 standards in select configurations.
  • Reduces power drawn with Intel Intelligent Power Capability that powers individual processor elements on and off as needed.
  • Helps reduce power consumption with variable speed fans.
  • Helps achieve lower heat output and reduced cooling needs with Lenovo XClarity Energy Manager that provides advanced data center power notification, analysis, and policy-based management.

Components and connectors

The following figure shows the front of the SR530 server with four 3.5-inch drive bays.

Front view of the SR530: 4x 3.5-inch drive bays
Figure 2. Front view of the SR530: 4x 3.5-inch drive bays

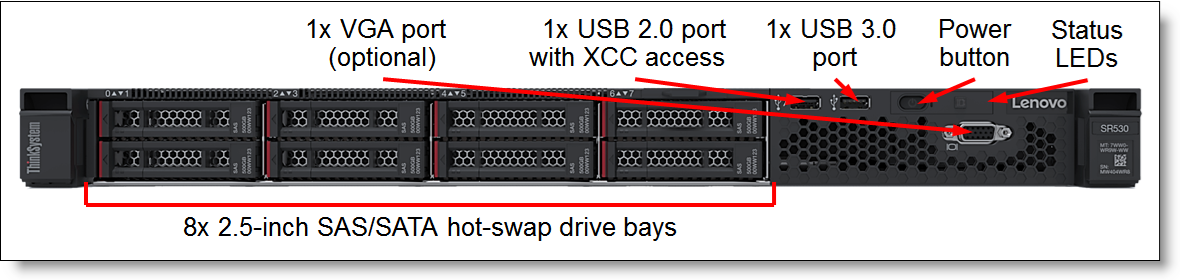

The following figure shows the front of the SR530 server with eight 2.5-inch drive bays.

Front view of the SR530: 8x 2.5-inch drive bays
Figure 3. Front view of the SR530: 8x 2.5-inch drive bays

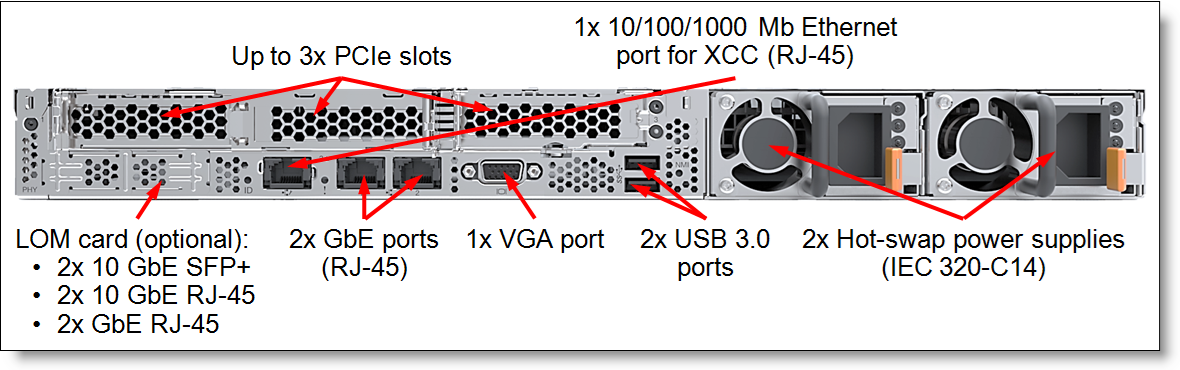

The following figure shows the rear of the SR530 server with three PCIe low profile slots.

Rear view of the SR530
Figure 4. Rear view of the SR530

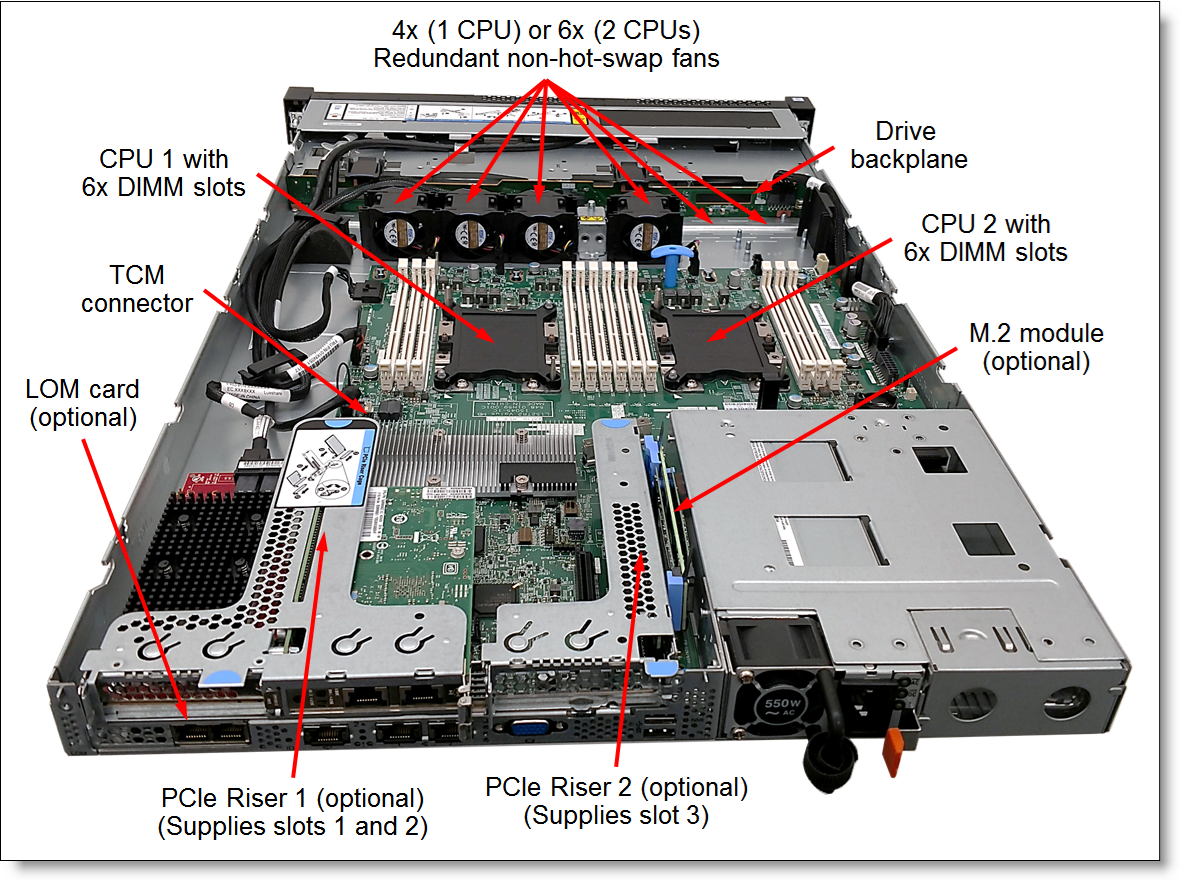

The following figure shows the locations of key components inside the SR530 server.

Internal view of the SR530
Figure 5. Internal view of the SR530

System specifications

The following table lists the system specifications for the SR530 server.

Table 1. SR530 system specifications
Attribute Specification
Form factor 1U rack-mount.
Processor Up to two Intel Xeon Bronze, Silver, Gold, or Platinum processors:
  • Up to 20 cores (2.0 GHz core speeds)
  • Up to 3.6 GHz core speeds (4 cores)
  • Two UPI links up to 10.4 GT/s each
  • Up to 27.5 MB cache
  • Up to 2666 MHz memory speed
Chipset Intel C622.
Memory Up to 12 DIMM sockets (6 DIMMs per processor; six memory channels per processor with one DIMM per channel). Support for RDIMMs and LRDIMMs. Memory types cannot be intermixed. Memory speed up to 2666 MHz.
Memory capacity
  • With RDIMMs: Up to 384 GB with 12x 32 GB RDIMMs and two processors.
  • With LRDIMMs: Up to 768 GB with 12x 64 GB LRDIMMs and two processors.
Memory protection Error correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing.
Drive bays
  • 4 LFF SATA Simple Swap drive bays
  • 4 LFF SAS/SATA hot-swap drive bays
  • 8 SFF SAS/SATA hot-swap drive bays
Drive types 3.5-inch non-hot-swap drives:
  • 6 Gbps NL SATA HDDs up to 10 TB
  • 6 Gbps SATA SSDs up to 480 GB (2.5" SSD in a 3.5" tray)
3.5-inch hot-swap drives:
  • 12 Gbps SAS HDDs up to 900 GB (2.5" HDD in a 3.5" tray)
  • 12 Gbps NL SAS HDDs up to 14 TB
  • 12 Gbps NL SAS HDD SEDs up to 4 TB
  • 12 Gbps SAS SSDs up to 7.68 TB
  • 6 Gbps NL SATA HDDs up to 14 TB
  • 6 Gbps SATA SSDs up to 7.68 TB (2.5" SSD in a 3.5" tray)
2.5-inch hot-swap drives:
  • 12 Gbps SAS HDDs up to 2.4 TB
  • 12 Gbps Nearline (NL) SAS HDDs up to 2 TB
  • 12 Gbps SAS HDD SEDs up to 600 GB
  • 12 Gbps SAS SSDs up to 7.68 TB
  • 6 Gbps NL SATA HDDs up to 2 TB
  • 6 Gbps SATA SSDs up to 7.68 TB
Internal M.2 SSDs:
  • 6 Gbps SATA up to 480 GB
Intermix of SAS/SATA HDDs/SSDs is supported within a system, but not within a RAID array.
Internal storage capacity
  • 3.5-inch models: Up to 56 TB with 4x 14 TB 3.5" SAS/SATA HDDs
  • 2.5-inch models: Up to 61.4 TB with 8x 7.68 TB 2.5" SAS/SATA SSDs
Storage controller 6 Gbps SATA
  • Non-RAID: Onboard SATA AHCI
  • RAID 0/1/10/5: Onboard SATA RAID (Intel RSTe)
12 Gbps SAS/6 Gbps SATA RAID
  • RAID 0/1/10/5/50:
    • RAID 530-8i
    • RAID 730-8i 1GB Cache
  • RAID 0/1/10/5/50/6/60:
    • RAID 730-8i 2GB Flash
    • RAID 930-8i 2GB Flash
    • RAID 930-16i 4GB or 8GB Flash
12 Gbps SAS/6 Gbps SATA non-RAID: 430-8i HBA
Optical drive bays None. Support for an external USB DVD RW Optical Disk Drive (See Optical drives).
Network interfaces
  • 2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support)
  • Onboard LOM slot for up to two additional 1/10 Gb Ethernet ports:
    • 2x 1 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x 10 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x 10 GbE SFP+ ports (no 10/100 Mb support)
  • Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors.
  • 1x RJ-45 10/100/1000 Mb Ethernet systems management port.
I/O expansion slots Up to three slots depending on the riser cards installed. The slots are as follows:
  • Slot 1: PCIe 3.0 x8; low profile
  • Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length
  • Slot 3: PCIe 3.0 x8 or x16; low profile
PCIe x16 slot 3 requires the second processor to be installed.
Ports
  • Front:
    • 1x USB 2.0 port with XClarity Controller access.
    • 1x USB 3.0 port.
    • 1x VGA port (optional).
  • Rear: 2x USB 3.0 ports and 1x VGA port. Optional 1x DB-9 serial port.
Cooling Four (one processor) or six (two processors) non-hot-swap system fans with N+1 redundancy.
Power supply Up to two redundant hot-swap 550 W or 750 W (100 - 240 V) High Efficiency Platinum or 750 W (200 - 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only).
Video Matrox G200 with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920x1200 at 60 Hz with 32 bits per pixel.
Hot-swap parts Drives (select models) and power supplies.
Systems management XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner.
Security features Power-on password, administrator's password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC). Optional Lenovo Business Vantage security software (available only in PRC).
Operating systems Microsoft Windows Server 2012 R2, 2016, and 2019; Red Hat Enterprise Linux 6 (x64), 7, and 8; SUSE Linux Enterprise Server 11 (x64), 12, and 15; VMware vSphere (ESXi) 6.0, 6.5, and 6.7.
Warranty One-year (7X07) or three-year (7X08) customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered.
Service and support Optional service upgrades are available through Lenovo Services: 2-hour or 4-hour response time, 6-hour or 24-hour committed service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive Your Data, Enterprise Software Support, and Basic Hardware Installation Services.
Dimensions Height: 43 mm (1.7 in), width: 434 mm (17.1 in), depth: 715 mm (28.1 in)
Weight Minimum configuration: 10.2 kg (22.5 lb), maximum: 16 kg (35.3 lb)

Models

ThinkSystem SR530 server models can be configured by using the Lenovo Data Center Solution Configurator (DCSC):
http://dcsc.lenovo.com

ThinkSystem SR530 server models are region-specific; that is, each region may define their own server models, and not all server models are available in every region. For a complete list of the SR530 models, contact a Lenovo or Lenovo Business Partner representative in your region. Information on the SR530 models is also available on the PSREF website:
http://psref.lenovo.com/Product/ThinkSystem/ThinkSystem_SR530

Configure-to-order (CTO) models can also be created for factory-integrated server customization. The following table lists the base CTO models of the ThinkSystem SR530 server.

Table 2. Base CTO models
Description Machine Type/Model
ThinkSystem SR530 - 3yr Warranty 7X08CTO1WW
ThinkSystem SR530 - 1yr Warranty 7X07CTO1WW

The following table lists the base chassis for CTO models of the SR530 server.

Table 3. Base chassis for CTO models
Description Feature code
ThinkSystem SR530 3.5" Chassis with 4 Bays AV0T
ThinkSystem SR530 2.5" Chassis with 8 Bays AV0S

All models of the SR530 server are shipped with the following items:

  • Rack Installation Guide
  • Electronic Publications Flyer

Models table conventions: The model tables shown in this section use the following conventions:

  • XClarity Controller: "S" = Standard, "A" = Advanced, "E" = Enterprise.
  • Front VGA port: "Y" = Included; "N" = Not included, optional.
  • Tool-less Rail Kit: "Y" = Included; "N" = Not included, optional.
  • Cable Management Arm (CMA): "Y" = Included; "N" = Not included, optional.
  • Power cord:
    • "L2" = 2.8 m line cord.
    • "R1" = 1.5 m C13-C14 rack power cable.
    • "R2" = 2.8 m C13-C14 rack power cable.
    • "R4" = 4.3 m C13-C14 rack power cable.
    • "N" = Not included; see Power supplies and cables for the ordering information.

The following tables list the models of the SR530 server for the following regions:

Table 4. SR530 server models: North America
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
DIMM
(12 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(3 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - North America
7X08A056NA 1x 3104 6C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E N Y N R2
7X08A05WNA 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E N Y N R2
7X08A05TNA 1x 4108 8C
85W 1.8GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E N Y N R2
7X08A05XNA 1x 4108 8C
85W 1.8GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E N Y N R2
7X08A057NA 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E N Y N R2
7X08A055NA 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E N Y N R2
7X08A05MNA 1x 4114 10C
85W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E N Y N R2
7X08A05KNA 1x 4116 12C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E N Y N R2
7X08A05ENA 1x 5115 10C
85W 2.4GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E N Y N R2
7X08A05SNA 1x 5118 12C
105W 2.3GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E Y Y N R2
7X08A058NA 1x 5118 12C
105W 2.3GHz		 1x 32GB
(2Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E Y Y N R2
7X08A05RNA 1x 5120 14C
105W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E Y Y N R2
7X08A05PNA 1x 6126 12C
125W 2.6GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E Y Y N R2
7X08A052NA 1x 6138 20C
125W 2.0GHz		 1x 32GB
(2Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E Y Y N R2
TopSeller models - North America
7X08A04FNA 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E Y Y N R2
7X08A03SNA 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E Y Y N R2
7X08A045NA 1x 4116 12C
85W 2.1GHz		 1x 32GB
(2Rx4)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 5. SR530 server models: Brazil
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
DIMM
(12 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(3 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Brazil
7X08A043BR 1x 5118 12C
105W 2.3GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A04LBR 1x 5118 12C
105W 2.3GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 1x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A04JBR 1x 5118 12C
105W 2.3GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A042BR 1x 5118 12C
105W 2.3GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 1x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A04QBR 1x 5118 12C
105W 2.3GHz		 1x 32GB
(2Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A044BR 1x 5118 12C
105W 2.3GHz		 1x 32GB
(2Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 1x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A040BR 1x 5118 12C
105W 2.3GHz		 1x 64GB
(4Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A04HBR 1x 5118 12C
105W 2.3GHz		 1x 64GB
(4Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 1x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A048BR 1x 5120 14C
105W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A04RBR 1x 5120 14C
105W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 1x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A03WBR 1x 5120 14C
105W 2.2GHz		 1x 32GB
(2Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A03YBR 1x 5120 14C
105W 2.2GHz		 1x 32GB
(2Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 1x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A049BR 1x 5120 14C
105W 2.2GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A04PBR 1x 5120 14C
105W 2.2GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 1x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A04ABR 1x 5120 14C
105W 2.2GHz		 1x 64GB
(4Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A047BR 1x 5120 14C
105W 2.2GHz		 1x 64GB
(4Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 1x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A046BR 1x 6130 16C
125W 2.1GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A04DBR 1x 6130 16C
125W 2.1GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 1x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A03XBR 1x 6130 16C
125W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A04NBR 1x 6130 16C
125W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 1x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A04BBR 1x 6130 16C
125W 2.1GHz		 1x 32GB
(2Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A04CBR 1x 6130 16C
125W 2.1GHz		 1x 32GB
(2Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 1x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A04KBR 1x 6130 16C
125W 2.1GHz		 1x 64GB
(4Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A04EBR 1x 6130 16C
125W 2.1GHz		 1x 64GB
(4Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 1x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
TopSeller models - Brazil
7X08100HBR 1x 3106 8C
85W 1.7GHz		 1x 16GB
(2Rx8)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 550W E Y Y N L2
7X08100PBR 1x 3106 8C
85W 1.7GHz		 1x 32GB
(2Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 E Y Y N L2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 6. SR530 server models: Latin America (except Brazil)
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
DIMM
(12 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(3 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models (NAS workload-optimized with Windows Storage Server 2016 Std preloaded) - Latin America (except Brazil)
7X08A06BLA 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x M.2 RAID
1x RAID
930-8i		 4 / 4
HS LFF		 2x 128GB
M.2 SSD
4x 2TB
SAS HDD		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 E Y Y N R2
7X08A06ALA 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x M.2 RAID
1x RAID
930-8i		 4 / 4
HS LFF		 2x 128GB
M.2 SSD
4x 4TB
SAS HDD		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 E Y Y N R2
Relationship models (NAS workload-optimized with Windows Storage Server 2016 Std not preloaded) - Latin America (exc. Brazil)
7X08A06CLA 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 4x 2TB
SAS HDD		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 E Y Y N R2
7X08A069LA 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 4x 4TB
SAS HDD		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 E Y Y N R2
Relationship models (NAS workload-optimized without software stack) - Latin America (except Brazil)
7X08100CLA 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 4x 2TB
HDD		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 E Y Y N R1
7X08100DLA 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 4x 4TB
HDD		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 E Y Y N R1
Relationship models - Latin America (except Brazil)
7X08A09PLA 1x 4116 12C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i 2GB
M.2 (no RAID)		 8 / 8
HS SFF
1x M.2		 Open
bay		 2x 1Gb
RJ-45		 2x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 E Y Y N R2†
7X08A05DLA 1x 5115 10C
85W 2.4GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R4
7X08A05NLA 1x 5115 10C
85W 2.4GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R4
7X08A017LA 1x 5118 12C
105W 2.3GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A00MLA 1x 5118 12C
105W 2.3GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A019LA 1x 5120 14C
105W 2.2GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A00KLA 1x 5120 14C
105W 2.2GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A01CLA 1x 6130 16C
125W 2.1GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
7X08A00HLA 1x 6130 16C
125W 2.1GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R4
TopSeller models - Latin America (Chile only)
7X081000LA 1x 3104 6C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 2x PCIe x8
1x PCIe x16 LP		 2x 550W E Y Y N R2
7X081001LA 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 2x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 E Y Y N R2
7X081002LA 1x 4114 10C
85W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 2x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 E Y Y N R2
TopSeller models - Latin America (except Brazil and Chile)
7X081009LA 1x 3106 8C
85W 1.7GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 2x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R2
7X08100ALA 1x 3106 8C
85W 1.7GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 2x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R2
7X08100BLA 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 2x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 S Y Y N R2
TopSeller models - Latin America (Colombia only)
7X08A066LA 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W E Y Y N R2
TopSeller models - Latin America (except Brazil)
7X08A051LA 1x 3104 6C
85W 1.7GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R4
7X08A054LA 1x 3104 6C
85W 1.7GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R4
7X08A05YLA 1x 3106 8C
85W 1.7GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R4
7X08A05FLA 1x 3106 8C
85W 1.7GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R4
7X08A05GLA 1x 4108 8C
85W 1.8GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R4
7X08A05HLA 1x 4108 8C
85W 1.8GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R4
7X08A053LA 1x 4108 8C
85W 1.8GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 4 / 4
HS LFF		 2x 600GB
15K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 A Y Y N R1
7X08A05ALA 1x 4108 8C
85W 1.8GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 4 / 4
HS LFF		 2x 2TB
SAS HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 A Y Y N R4
7X08A059LA 1x 4108 8C
85W 1.8GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 4 / 4
HS LFF		 2x 2TB
SAS HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 A Y Y N R1
7X08A05VLA 1x 4110 8C
85W 2.1GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R4
7X08A05CLA 1x 4110 8C
85W 2.1GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R4
7X08A05QLA 1x 4110 8C
85W 2.1GHz		 2x 16GB
(1Rx4)		 1x RAID
530-8i		 4 / 4
HS LFF		 2x 2TB
SAS HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 A Y Y N R1
7X08A05JLA 1x 4114 10C
85W 2.2GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R4
7X08A05ULA 1x 4114 10C
85W 2.2GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R4
7X08A05LLA 1x 4114 10C
85W 2.2GHz		 2x 16GB
(1Rx4)		 1x RAID
530-8i		 4 / 4
HS LFF		 3x 600GB
15K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 A Y Y N R1

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.
† The model ships with the 2.0 m power cords.

Table 7. SR530 server models: EMEA
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
DIMM
(12 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(3 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - EMEA
7X08A01TEA 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N R2
7X08A01WEA 1x 4108 8C
85W 1.8GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N R2
7X08A02AEA 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N R2
7X08A00JEA 1x 5120 14C
105W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N R2
TopSeller models - EMEA
7X08A022EA 1x 3104 6C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x SATA
RAID		 4 / 4
SS LFF		 Open
bay		 Open
slot		 None 1x 550W S Y Y N R2
7X08A028EA 1x 3104 6C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R2
7X08A025EA 1x 3104 6C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 A Y Y N R2
7X08A01VEA 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 A Y Y N R2
7X08A029EA 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 A Y Y N R2
7X08A04GEA 1x 4110 8C
85W 2.1GHz		 4x 32GB
(2Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 3x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 E Y Y N R2
7X08A024EA 1x 4114 10C
85W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 A Y Y N R2
7X08A01XEA 1x 4116 12C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 A Y Y N R2
7X08A009EA 1x 5118 12C
105W 2.3GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 8. SR530 server models: India
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
DIMM
(12 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(3 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - India
7X08A007SG 1x 5118 12C
105W 2.3GHz		 1x 8GB
(1Rx8)		 1x SATA
RAID		 4 / 4
SS LFF		 Open
bay		 2x 1Gb
RJ-45		 None 1x 550W S Y Y N L2
7X08A004SG 1x 5118 12C
105W 2.3GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x ML2 x8		 1x 550W S Y Y N L2
7X08A00ASG 1x 5118 12C
105W 2.3GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x ML2 x8		 1x 550W S Y Y N L2
7X08A008SG 1x 5118 12C
105W 2.3GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x ML2 x8		 1x 550W S Y Y N L2
7X08A00CSG 1x 5118 12C
105W 2.3GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x ML2 x8		 1x 550W S Y Y N L2
7X08A00FSG 1x 5120 14C
105W 2.2GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x ML2 x8		 1x 550W S Y Y N L2
7X08A00BSG 1x 5120 14C
105W 2.2GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x ML2 x8		 1x 550W S Y Y N L2
7X08A00GSG 1x 5120 14C
105W 2.2GHz		 1x 8GB
(1Rx8)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x ML2 x8		 1x 550W S Y Y N L2
7X08A013SG 1x 6126 12C
125W 2.6GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x ML2 x8		 1x 750W
Platinum		 S Y Y N L2
7X08A011SG 1x 6126 12C
125W 2.6GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x ML2 x8		 1x 750W
Platinum		 S Y Y N L2
7X08A015SG 1x 6130 16C
125W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x ML2 x8		 1x 750W
Platinum		 S Y Y N L2
7X08A01BSG 1x 6138 20C
125W 2.0GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x ML2 x8		 1x 750W
Platinum		 S Y Y N L2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 9. SR530 server models: Hong Kong, Taiwan, Korea
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
DIMM
(12 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(3 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Hong Kong, Taiwan, Korea
7X08A02ZCN 1x 3104 6C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A03BCN 1x 3104 6C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A031CN 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A02TCN 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A03KCN 1x 4108 8C
85W 1.8GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A039CN 1x 4108 8C
85W 1.8GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A03GCN 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ- 45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A03PCN 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A03CCN 1x 4112 4C
85W 2.6GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A03DCN 1x 4112 4C
85W 2.6GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A036CN 1x 4114 10C
85W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A02UCN 1x 4114 10C
85W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A02WCN 1x 4116 12C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A02YCN 1x 4116 12C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A02VCN 1x 5115 10C
85W 2.4GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A03ECN 1x 5115 10C
85W 2.4GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A00ZCN 1x 5118 12C
105W 2.3GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A01LCN 1x 5118 12C
105W 2.3GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A00WCN 1x 5120 14C
105W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A01GCN 1x 5120 14C
105W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A00UCN 1x 5122 4C
105W 3.6GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A014CN 1x 5122 4C
105W 3.6GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A00TCN 1x 6126 12C
125W 2.6GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A016CN 1x 6126 12C
125W 2.6GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A00SCN 1x 6130 16C
125W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N
7X08A01DCN 1x 6130 16C
125W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 10. SR530 server models: Japan
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
DIMM
(12 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(3 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Japan
7X08A064JP 1x 4108 8C
85W 1.8GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W A N Y N N
7X08A063JP 1x 5118 12C
105W 2.3GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W A N Y N N
7X08A04XJP 1x 5122 4C
105W 3.6GHz		 1x 8GB
(1Rx8)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W A N Y N N
7X08A065JP 1x 6130 16C
125W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 A N Y N N
7X08A04WJP 1x 6138 20C
125W 2.0GHz		 1x 8GB
(1Rx8)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W A N Y N N
TopSeller models - Japan
7X08A04ZJP 1x 3104 6C
85W 1.7GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W A N Y N N
7X08A04VJP 1x 3104 6C
85W 1.7GHz		 1x 8GB
(1Rx8)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W A N Y N N
7X08A050JP 1x 3106 8C
85W 1.7GHz		 1x 8GB
(1Rx8)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W A N Y N N
7X08A04UJP 1x 4110 8C
85W 2.1GHz		 1x 8GB
(1Rx8)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W A N Y N N
7X08A04YJP 1x 4112 4C
85W 2.6GHz		 1x 8GB
(1Rx8)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W A N Y N N
7X08A061JP 1x 4114 10C
85W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W A N Y N N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 11. SR530 server models: ASEAN
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
DIMM
(12 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(3 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - ASEAN
7X08A02LSG 1x 3104 6C
85W 1.7GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S N Y N R2
7X08A02MSG 1x 3106 8C
85W 1.7GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S N Y N R2
7X08A02JSG 1x 4110 8C
85W 2.1GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S N Y N R2
7X08A02QSG 1x 4112 4C
85W 2.6GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S N Y N R2
7X08A02KSG 1x 4112 4C
85W 2.6GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S N Y N R2
7X08A02NSG 1x 4114 10C
85W 2.2GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S N Y N R2
7X08A02PSG 1x 4116 12C
85W 2.1GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S N Y N R2
7X08A02CSG 1x 5118 12C
105W 2.3GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R2
7X08A02DSG 1x 5120 14C
105W 2.2GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R2
7X08A02HSG 1x 5122 4C
105W 3.6GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R2
7X08A02ESG 1x 5122 4C
105W 3.6GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R2
7X08A02FSG 1x 6130 16C
125W 2.1GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R2
7X08A02GSG 1x 6138 20C
125W 2.0GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 2x 1Gb
RJ-45		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Table 12. SR530 server models: Australia and New Zealand
Model
number		 Intel Xeon
processor*
(2 max)		 Memory
DIMM
(12 max)		 Storage
controller		 Drive
bays
(std /
max)		 Drives Eth.
LOM		 I/O slots
(3 max)^		 Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Australia and New Zealand
7X081006AU 1x 3104 6C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x SATA
RAID		 4 / 4
SS LFF		 Open
bay		 Open
slot		 None 1x 750W
Platinum		 E Y Y Y R2
7X08A03NAU 1x 3104 6C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N R2
7X081003AU 1x 3104 6C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E Y Y Y R2
7X081007AU 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x SATA
RAID		 4 / 4
SS LFF		 Open
bay		 Open
slot		 None 1x 750W
Platinum		 E Y Y Y R2
7X08A037AU 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N R2
7X081004AU 1x 3106 8C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E Y Y Y R2
7X08A03HAU 1x 4108 8C
85W 1.8GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N R2
7X08A03FAU 1x 4108 8C
85W 1.8GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N R2
7X081008AU 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x SATA
AHCI		 4 / 4
SS LFF		 Open
bay		 Open
slot		 None 1x 750W
Platinum		 E Y Y Y R2
7X08A02SAU 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N R2
7X081005AU 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E Y Y Y R2
7X08A02XAU 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N R2
7X08A033AU 1x 4114 10C
85W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N R2
7X08A03LAU 1x 4116 12C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S N Y N R2
7X08A01NAU 1x 5118 12C
105W 2.3GHz		 1x 8GB
(1Rx8)		 1x SATA
RAID		 4 / 4
SS LFF		 Open
bay		 Open
slot		 None 1x 550W S Y Y N R2
7X08A01JAU 1x 5118 12C
105W 2.3GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x ML2 x8		 1x 550W S Y Y N R2
7X08A01PAU 1x 5118 12C
105W 2.3GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x ML2 x8		 1x 550W S Y Y N R2
7X08A01KAU 1x 5118 12C
105W 2.3GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x ML2 x8		 1x 550W S Y Y N R2
7X08A01EAU 1x 5118 12C
105W 2.3GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x ML2 x8		 1x 550W S Y Y N R2
7X08A04MAU 1x 5118 12C
105W 2.3GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R2
7X08A03VAU 1x 5118 12C
105W 2.3GHz		 1x 32GB
(2Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R2
7X08A00DAU 1x 5120 14C
105W 2.2GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x ML2 x8		 1x 550W S Y Y N R2
7X08A006AU 1x 5120 14C
105W 2.2GHz		 1x 8GB
(1Rx8)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x ML2 x8		 1x 550W S Y Y N R2
7X08A00YAU 1x 5120 14C
105W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R2
7X08A041AU 1x 5120 14C
105W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R2
7X08A01RAU 1x 6126 12C
125W 2.6GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x ML2 x8		 1x 750W
Platinum		 S Y Y N R2
7X08A010AU 1x 6126 12C
125W 2.6GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R2
7X08A01SAU 1x 6130 16C
125W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R2
7X08A01QAU 1x 6138 20C
125W 2.0GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R2
7X08A03UAU 1x 6138 20C
125W 2.0GHz		 1x 32GB
(2Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R2
TopSeller models - Australia and New Zealand
7X08A030AU 1x 3104 6C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x SATA
RAID		 4 / 4
SS LFF		 Open
bay		 Open
slot		 None 1x 550W S Y Y N R2
7X08A03MAU 1x 3104 6C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 550W S Y Y N R2
7X08A03QAU 1x 3104 6C
85W 1.7GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 A Y Y N R2
7X08A03AAU 1x 4108 8C
85W 1.8GHz		 1x 16GB
(1Rx4)		 1x RAID
530-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 A Y Y N R2
7X08A038AU 1x 4108 8C
85W 1.8GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 A Y Y N R2
7X08A032AU 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 4 / 4
HS LFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 A Y Y N R2
7X08A02RAU 1x 4110 8C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 A Y Y N R2
7X08A034AU 1x 4110 8C
85W 2.1GHz		 2x 32GB
(2Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 2x 600GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 A Y Y N R2
7X08A03RAU 1x 4114 10C
85W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 A Y Y N R2
7X08A035AU 1x 4114 10C
85W 2.2GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 2x 300GB
10K HDD		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 2x 750W
Platinum		 A Y Y N R2
7X08A03JAU 1x 4116 12C
85W 2.1GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 A Y Y N R2
7X08A03TAU 1x 5118 12C
105W 2.3GHz		 1x 16GB
(1Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 E Y Y N R2
7X08A03ZAU 1x 6130 16C
125W 2.1GHz		 1x 32GB
(2Rx4)		 1x RAID
930-8i		 8 / 8
HS SFF		 Open
bay		 Open
slot		 1x PCIe x8
1x PCIe x16 LP		 1x 750W
Platinum		 S Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports up to three I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 1. The onboard SATA RAID controller does not consume a PCIe slot.

Processors

The SR530 server supports one or two Intel Xeon Bronze, Silver, Gold, or Platinum processors of up to 125 W TDP.

The following table lists the specifications of the processors for the SR530 server.

Table 13. Processor specifications (HT = Hyper-Threading, TB = Turbo Boost, VT = Virtualization Technology)
CPU
model		 Core frequency
(Base / TB Max)		 Number
of cores /
threads		 Cache Max DDR4
frequency		 Max
memory
per socket		 UPI
speed		 TDP HT TB VT-x VT-d
Intel Xeon Bronze processors
3104 1.7 / 1.7 GHz 6 / 6 8.25 MB 2133 MHz 768 GB 9.6 GT/s 85 W No No Yes Yes
3106 1.7 / 1.7 GHz 8 / 8 11 MB 2133 MHz 768 GB 9.6 GT/s 85 W No No Yes Yes
Intel Xeon Silver processors
4108 1.8 / 3.0 GHz 8 / 16 11 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4109T 2.0 / 3.0 GHz 8 / 16 11 MB 2400 MHz 768 GB 9.6 GT/s 70 W Yes Yes Yes Yes
4110 2.1 / 3.0 GHz 8 / 16 11 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4112 2.6 / 3.0 GHz 4 / 8 8.25 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4114 2.2 / 3.0 GHz 10 / 20 13.75 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4114T 2.2 / 3.0 GHz 10 / 20 13.75 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4116 2.1 / 3.0 GHz 12 / 24 16.5 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
4116T 2.1 / 3.0 GHz 12 / 24 16.5 MB 2400 MHz 768 GB 9.6 GT/s 85 W Yes Yes Yes Yes
Intel Xeon Gold processors
5115 2.4 / 3.2 GHz 10 / 20 13.75 MB 2400 MHz 768 GB 10.4 GT/s 85 W Yes Yes Yes Yes
5117 2.0 / 2.8 GHz 14 / 28 19.25 MB 2400 MHz 768 GB 10.4 GT/s 105W Yes Yes Yes Yes
5118 2.3 / 3.2 GHz 12 / 24 16.5 MB 2400 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes
5119T 1.9 / 3.2 GHz 14 / 28 19.25 MB 2400 MHz 768 GB 10.4 GT/s 85 W Yes Yes Yes Yes
5120 2.2 / 3.2 GHz 14 / 28 19.25 MB 2400 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes
5120T 2.2 / 3.2 GHz 14 / 28 19.25 MB 2400 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes
5122 3.6 / 3.7 GHz 4 / 8 16.5 MB 2666 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes
6126 2.6 / 3.7 GHz 12 / 24 19.25 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6126T 2.6 / 3.7 GHz 12 / 24 19.25 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6128 3.4 / 3.7 GHz 6 / 12 19.25 MB 2666 MHz 768 GB 10.4 GT/s 115 W Yes Yes Yes Yes
6130 2.1 / 3.7 GHz 16 / 32 22 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6130T 2.1 / 3.7 GHz 16 / 32 22 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6138 2.0 / 3.7 GHz 20 / 40 27.5 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
6138T 2.0 / 3.7 GHz 20 / 40 27.5 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
Intel Xeon Platinum processors
8153 2.0 / 2.8 GHz 16 / 32 22 MB 2666 MHz 768 GB 10.4 GT/s 125 W Yes Yes Yes Yes
8156 3.6 / 3.7 GHz 4 / 8 16.5 MB 2666 MHz 768 GB 10.4 GT/s 105 W Yes Yes Yes Yes

For the SR530 server models that come with one processor, the second processor can be ordered, if required (see the following table for ordering information). The second processor must be of the same model as the first processor. The second processor option includes a processor, a heatsink, and two additional system fans.

Table 14. Processor options
Description Part number Feature code*
Intel Xeon Bronze processors
ThinkSystem SR530 Intel Xeon Bronze 3104 6C 85W 1.7GHz Processor Option Kit 4XG7A07207 AWEJ
ThinkSystem SR530 Intel Xeon Bronze 3106 8C 85W 1.7GHz Processor Option Kit 4XG7A07206 AWEH
Intel Xeon Silver processors
ThinkSystem SR530 Intel Xeon Silver 4108 8C 85W 1.8GHz Processor Option Kit 4XG7A07205 AWEG
ThinkSystem SR530 Intel Xeon Silver 4109T 8C 70W 2.0GHz Processor Option Kit 4XG7A07204 AWET
ThinkSystem SR530 Intel Xeon Silver 4110 8C 85W 2.1GHz Processor Option Kit 4XG7A07203 AWEE
ThinkSystem SR530 Intel Xeon Silver 4112 4C 85W 2.6GHz Processor Option Kit 4XG7A07202 AWEF
ThinkSystem SR530 Intel Xeon Silver 4114 10C 85W 2.2GHz Processor Option Kit 4XG7A07201 AWEC
ThinkSystem SR530 Intel Xeon Silver 4114T 10C 85W 2.2GHz Processor Option Kit 4XG7A09059 AWES
ThinkSystem SR530 Intel Xeon Silver 4116 12C 85W 2.1GHz Processor Option Kit 4XG7A07200 AWER
ThinkSystem SR530 Intel Xeon Silver 4116T 12C 85W 2.1GHz Processor Option Kit 4XG7A09058 AWEA
Intel Xeon Gold processors
ThinkSystem SR530 Intel Xeon Gold 5115 10C 85W 2.4GHz Processor Option Kit 4XG7A07189 AWDU
ThinkSystem SR530 Intel Xeon Gold 5117 14C 105W 2.0GHz Processor Option Kit 4XG7A09085 B137
ThinkSystem SR530 Intel Xeon Gold 5118 12C 105W 2.3GHz Processor Option Kit 4XG7A07188 AWEP
ThinkSystem SR530 Intel Xeon Gold 5119T 14C 85W 1.9GHz Processor Option Kit 4XG7A09057 AWEQ
ThinkSystem SR530 Intel Xeon Gold 5120 14C 105W 2.2GHz Processor Option Kit 4XG7A07187 AWE6
ThinkSystem SR530 Intel Xeon Gold 5120T 14C 105W 2.2GHz Processor Option Kit 4XG7A07186 AWE8
ThinkSystem SR530 Intel Xeon Gold 5122 4C 105W 3.6GHz Processor Option Kit 4XG7A07179 AWED
ThinkSystem SR530 Intel Xeon Gold 6126 12C 125W 2.6GHz Processor Option Kit 4XG7A07180 AWEL
ThinkSystem SR530 Intel Xeon Gold 6126T 12C 125W 2.6GHz Processor Option Kit 4XG7A07185 AWE5
ThinkSystem SR530 Intel Xeon Gold 6128 6C 115W 3.4GHz Processor Option Kit 4XG7A09055 AWEB
ThinkSystem SR530 Intel Xeon Gold 6130 16C 125W 2.1GHz Processor Option Kit 4XG7A07184 AWEN
ThinkSystem SR530 Intel Xeon Gold 6130T 16C 125W 2.1GHz Processor Option Kit 4XG7A07183 AWE4
ThinkSystem SR530 Intel Xeon Gold 6138 20C 125W 2.0GHz Processor Option Kit 4XG7A07182 AWDZ
ThinkSystem SR530 Intel Xeon Gold 6138T 20C 125W 2.0GHz Processor Option Kit 4XG7A09056 AWEM
Intel Xeon Platinum processors
ThinkSystem SR530 Intel Xeon Platinum 8153 16C 125W 2.0GHz Processor Option Kit 4XG7A07181 AWDR
ThinkSystem SR530 Intel Xeon Platinum 8156 4C 105W 3.6GHz Processor Option Kit 4XG7A07178 AWDL

* For CTO configurations, the feature code represents a processor, and fans and heatsinks are derived by the configurator.

Memory

The SR530 server supports up to 6 TruDDR4 memory DIMMs with one processor and up to 12 DIMMs when two processors are installed. Each processor has six memory channels, and there is a one DIMM per channel.

Lenovo TruDDR4 memory uses the highest-quality components sourced from Tier 1 DRAM suppliers and only memory that meets strict requirements is selected. It is compatibility tested and tuned on every ThinkSystem server to maximize performance and reliability.

TruDDR4 memory has a unique signature programmed into the DIMM, which enables Lenovo servers to verify whether the memory installed is qualified and supported. Lenovo qualified and supported TruDDR4 memory is covered by Lenovo warranty, and service and support provided worldwide.

The following rules apply when selecting the memory configuration:

  • The server supports RDIMMs and LRDIMMs.
  • Mixing different types of memory (RDIMMs and LRDIMMs) is not supported.
  • Mixing x4 and x8 RDIMMs and RDIMMs of different capacity is supported.
  • All DIMMs in the server operate at the same speed up to 2666 MHz, which is determined by the maximum memory speed supported by the specific processor.
    Note: Maximum memory speed can be achieved when Max performance mode is enabled in UEFI.
  • The following maximum memory capacities supported by the server:
    • RDIMMs: 384 GB (192 GB per processor).
    • LRDIMMs: 768 GB (384 GB per processor).

The following memory protection technologies are supported:

  • ECC
  • SDDC (for x4-based memory DIMMs)
  • ADDDC (for x4-based memory DIMMs; Gold and Platinum processors only)
  • Memory mirroring
  • Memory rank sparing
  • Patrol scrubbing
  • Demand scrubbing

Single Device Data Correction (SDDC) works only in the independent channel mode (the default operational mode) and supports only x4-based memory DIMMs.

Adaptive Double Device Data Correction (ADDDC) works with x4-based memory DIMMs and requires two DIMM ranks per channel, Intel Xeon Gold or Platinum processors, and the Closed Page memory access mode.

If memory mirroring is used, then DIMMs must be installed in pairs (a minimum of one pair per each processor), and both DIMMs in a pair must be identical in type and size.

If memory rank sparing is used, then a minimum of one quad-rank DIMM or two single-rank or dual-rank DIMMs must be installed per populated channel (the DIMMs do not need being identical). In rank sparing mode, one rank of a DIMM in each populated channel is reserved as spare memory. The size of a rank varies depending on the DIMMs installed.

SDDC, memory mirroring, and memory rank sparing modes are mutually exclusive. Only one operational memory mode can be enabled on the server, and it is a system-wide setting.

The following table lists memory options available for the SR530 server.

Table 15. Memory options
Description Part number Feature code Maximum quantity*
RDIMMs - 2666 MHz
ThinkSystem 8GB TruDDR4 2666 MHz (1Rx8 1.2V) RDIMM 7X77A01301 AUU1 6 / 12
ThinkSystem 16GB TruDDR4 2666 MHz (1Rx4 1.2V) RDIMM 7X77A01302 AUNB 6 / 12
ThinkSystem 16GB TruDDR4 2666 MHz (2Rx8 1.2V) RDIMM 7X77A01303 AUNC 6 / 12
ThinkSystem 32GB TruDDR4 2666 MHz (2Rx4 1.2V) RDIMM 7X77A01304 AUND 6 / 12
LRDIMMs - 2666 MHz
ThinkSystem 64GB TruDDR4 2666 MHz (4Rx4 1.2V) LRDIMM 7X77A01305 AUNE 6 / 12

* The maximum quantity shown is with one processor / two processors

Internal storage

The SR530 server supports the following internal drive bay configurations:

  1. 4 LFF SATA Simple Swap drive bays
  2. 4 LFF SAS/SATA hot-swap drive bays
  3. 8 SFF SAS/SATA hot-swap drive bays

In addition, the SR530 server models can be configured with one or two internal M.2 SATA SSDs. The server also supports configurations without drive bays.

The following figure shows the internal drive bay configurations.

Internal drive configurations
Figure 6. Internal drive bay configurations

The following table lists the internal storage options for the SR530 server.

Table 16. Internal storage options
Description Part number Feature code Maximum quantity
Factory-installed backplane kits
ThinkSystem SR530/SR630 4x3.5" SATA/SAS Backplane None* AUW8 1
ThinkSystem SR530/SR630 8x2.5" SATA/SAS Backplane None* AUWB 1
Backplane kit field upgrade options
ThinkSystem SR530/SR630 2.5" SATA/SAS 8-Bay Backplane Kit 7XH7A05896 None** 1
M.2 enablement kits
ThinkSystem M.2 Enablement Kit 7Y37A01092 AUMU 1
ThinkSystem M.2 with Mirroring Enablement Kit 7Y37A01093 AUMV 1

* These backplane kits can be factory-installed in standard or custom (CTO or Special Bid) models, and they might not have an option part number assigned.
** Field upgrade only; used for upgrading models without any drive bays to 8x 2.5" SAS/SATA hot-swap drive bays.

M.2 Enablement Kit configuration notes:

  • The M.2 Enablement Kit (7Y37A01092) supports one M.2 SATA SSD which is connected to the SATA port on the Intel Platform Controller Hub (PCH).
  • The M.2 with Mirroring Enablement Kit (7Y37A01093) is connected to the Intel PCH via the PCIe link, and the kit supports two M.2 SATA SSDs that can be configured in a RAID-1 or RAID-0 drive group, or they can operate as two separate drives.

The following tables list supported internal storage configurations with the SAS/SATA backplanes.

Table 17. Internal storage configurations
Drive bay configuration Backplane kit type and quantity Storage controller type and quantity*
4x 3.5" SATA/SAS
8x 2.5" SATA/SAS
4x 3.5" chassis (Feature code AV0T)
4x 3.5-in. SATA Simple Swap 0 0 Onboard AHCI (non-RAID) / Intel RSTe (RAID) (4)
4x 3.5-in. SAS/SATA hot-swap 1 0 1x RAID 530-8i/730-8i 1GB (4)
1x RAID 730-8i 2GB/930-8i (4)
1x 430-8i HBA (4)
8x 2.5" chassis (Feature code AV0S)
8x 2.5-in. SAS/SATA hot-swap 0 1 1x RAID 530-8i/730-8i 1GB (8)
1x RAID 730-8i 2GB/930-8i/930-16i (8)
1x 430-8i HBA (8)

* The number in brackets (x) specifies the quantity of drive bays connected to each of the controllers.

Configuration note: Models without any drive bays are based on the 8x 2.5" chassis (feature code AV0S), and they support adding drive bays by using the 2.5" 8-drive backplane kit (7XH7A05896).

Controllers for internal storage

The following table lists the storage controllers and options for internal storage of the SR530 server.

Table 18. RAID controllers and HBAs for internal storage
Description Part number Feature code Maximum quantity I/O slots supported
6 Gbps SATA controllers
Onboard AHCI (non-RAID) / Intel RSTe (RAID) Onboard* Onboard* 1 -
12 Gb SAS/SATA RAID controllers
ThinkSystem RAID 530-8i PCIe 12Gb Adapter 7Y37A01082 AUNG 1 1
ThinkSystem RAID 730-8i 1GB Cache PCIe 12Gb Adapter 7Y37A01083 AUNH 1 1
ThinkSystem RAID 730-8i 2GB Flash PCIe 12Gb Adapter 4Y37A09722 B4RQ 1 1
ThinkSystem RAID 930-8i 2GB Flash PCIe 12Gb Adapter 7Y37A01084 AUNJ 1 1
ThinkSystem RAID 930-16i 4GB Flash PCIe 12Gb Adapter 7Y37A01085 AUNK 1 1
ThinkSystem RAID 930-16i 8GB Flash PCIe 12Gb Adapter 4Y37A09721 B31E 1 1
12 Gb SAS/SATA non-RAID HBAs
ThinkSystem 430-8i SAS/SATA 12Gb HBA 7Y37A01088 AUNL 1 1

* The onboard SATA controller integrated into the Intel C622 Platform Controller Hub (PCH) supports non-RAID (JBOD) AHCI mode or a hardware-assist, software RAID feature (Intel Rapid Storage Technology Enterprise [RSTe]).

Configuration note: Low profile SAS RAID controllers and HBAs for internal storage are supported in the PCIe x8 slot 1 supplied by the riser card 1.

The following table summarizes features of supported SAS/SATA storage controllers.

Table 19. Storage controller features and specifications (LP = Low profile, FHHL = Full-height half-length)
Feature Intel
RSTe		 RAID
530-8i		 RAID
730-8i 1GB		 RAID
730-8i 2GB		 RAID
930-8i		 RAID
930-16i		 430-8i
HBA
Form factor Onboard PCIe LP PCIe LP PCIe LP PCIe LP PCIe LP PCIe LP
SAS controller None SAS3408 SAS3108 SAS3108 SAS3508 SAS3516 SAS3408
Host interface PCH PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8
Port interface 6 Gb SATA 12 Gb SAS 12 Gb SAS 12 Gb SAS 12 Gb SAS 12 Gb SAS 12 Gb SAS
Number of ports 8 8 8 8 8 16 8
Connector type SATA x4 SFF-8643 x4 SFF-8643 x4 SFF-8643 x4 SFF-8643 x4 SFF-8643 x4 SFF-8643 x4
Number of connectors 2 2 2 2 2 4 2
Drive interface SATA SAS, SATA SAS, SATA SAS, SATA SAS, SATA SAS, SATA SAS, SATA
Drive type HDD HDD, SSD, SED HDD, SSD HDD, SSD, SED HDD, SSD, SED HDD, SSD, SED HDD, SSD, SED*
Hot-swap
drive support		 No Yes Yes Yes Yes Yes Yes
Number of drives 8 8 8 8 8 16^ 8
RAID levels 0/1/10/5 0/1/10/5/50 0/1/10/5/50 0/1/10/5/
50/6/60		 0/1/10/5/
50/6/60		 0/1/10/5/
50/6/60		 None
JBOD mode Yes Yes Yes Yes Yes Yes Yes
Cache None None 1 GB 2 GB 2 GB 4 GB; 8 GB None
Cache protection None None None Flash backup
(Included)		 Flash backup
(Included)		 Flash backup
(Included)		 None
SED key management
(SafeStore)		 No Yes No Yes Yes Yes No
SSD I/O acceleration
(FastPath)		 No Yes No Yes Yes Yes No
SSD Caching
(CacheCade Pro 2.0)		 No No No No No** No** No
Consistency check Yes Yes Yes Yes Yes Yes No
Patrol read Yes Yes Yes Yes Yes Yes No
Online capacity expansion Yes Yes Yes Yes Yes Yes No
Online RAID
level migration		 Yes Yes Yes Yes Yes Yes No
Global Hot Spare Yes Yes Yes Yes Yes Yes No
Auto-rebuild Yes Yes Yes Yes Yes Yes No

* HBAs do not support key management for SEDs; third-party host software is responsible for managing the keys.
^ Up to 8 drives is supported by the RAID 930-16i in the SR530 server.
** The SSD caching feature has been phased out in the new generation of advanced RAID controllers.

Important: The onboard Intel RSTe is not supported by virtualization hypervisors, including VMware vSphere (ESXi), Linux KVM, Xen, and Microsoft Hyper-V.

For more information, see the list of Product Guides in the following categories:

Drives for internal storage

The following tables list drive options for the SR530 server.

Table 20. Drive options for internal storage: 3.5-inch non-hot-swap drives
Description Part number Feature code Maximum quantity
3.5-inch non-hot-swap HDDs - 6 Gbps SATA
ThinkSystem 1TB 7.2K 6Gbps SATA 3.5" Simple Swap 512n HDD 7XB7A00055 AUZS 4
ThinkSystem 2TB 7.2K 6Gbps SATA 3.5" Simple Swap 512n HDD 7XB7A00056 AUZT 4
ThinkSystem 4TB 7.2K 6Gbps SATA 3.5" Simple Swap 512n HDD 7XB7A00057 AUZU 4
ThinkSystem 6TB 7.2K 6Gbps SATA 3.5" Simple Swap 512e HDD 7XB7A00058 AXC7 4
ThinkSystem 8TB 7.2K 6Gbps SATA 3.5" Simple Swap 512e HDD 7XB7A00059 AXC6 4
ThinkSystem 10TB 7.2K 6Gbps SATA 3.5" Simple Swap 512e HDD 7XB7A00060 AXC8 4
3.5-inch non-hot-swap SSDs - S4500 Entry 6 Gbps SATA
ThinkSystem 3.5" Intel S4500 240GB Entry SATA 6Gb Simple Swap SSD 4XB7A08491 B2XM 4
Table 21. Drive options for internal storage: 3.5-inch hot-swap drives
Description Part number Feature code Maximum quantity
3.5-inch hot-swap HDDs - 12 Gbps SAS
ThinkSystem 3.5" 300GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00063 B1JJ 4
ThinkSystem 3.5" 300GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00038 AUU2 4
ThinkSystem 3.5" 600GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00039 AUU3 4
ThinkSystem 3.5" 900GB 15K SAS 12Gb Hot Swap 512e HDD 7XB7A00040 AUUC 4
3.5-inch hot-swap HDDs - 12 Gbps NL SAS
ThinkSystem 3.5" 1TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00041 AUU4 4
ThinkSystem 3.5" 2TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00042 AUU5 4
ThinkSystem 3.5" 4TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00043 AUU6 4
ThinkSystem 3.5" 6TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00044 AUU7 4
ThinkSystem 3.5" 8TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00045 B0YR 4
ThinkSystem 3.5" 10TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00046 AUUG 4
ThinkSystem 3.5" 12TB 7.2K SAS 12Gb Hot Swap 512e HDD 7XB7A00067 B117 4
ThinkSystem 3.5" 14TB 7.2K SAS 12Gb Hot Swap 512e HDD 4XB7A13906 B496 4
3.5-inch hot-swap HDDs - 6 Gbps NL SATA
ThinkSystem 3.5" 1TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00049 AUUF 4
ThinkSystem 3.5" 2TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00050 AUUD 4
ThinkSystem 3.5" 4TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00051 AUU8 4
ThinkSystem 3.5" 6TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00052 AUUA 4
ThinkSystem 3.5" 8TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00053 AUU9 4
ThinkSystem 3.5" 10TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00054 AUUB 4
ThinkSystem 3.5" 12TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00068 B118 4
ThinkSystem 3.5" 14TB 7.2K SATA 6Gb Hot Swap 512e HDD 4XB7A13907 B497 4
3.5-inch hot-swap HDD SEDs - 12 Gbps NL SAS
ThinkSystem 3.5" 4TB 7.2K SAS 12Gb Hot Swap 512n HDD FIPS 7XB7A00047 AUUH 4
3.5-inch hot-swap SSDs - PM1635a Mainstream 12 Gbps SAS
ThinkSystem 3.5" PM1635a 1.6TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A10187 B2XE 4
3.5-inch hot-swap SSDs - PM1645 Mainstream 12 Gbps SAS
ThinkSystem 3.5" PM1645 800GB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13657 B4A3 4
ThinkSystem 3.5" PM1645 1.6TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13658 B4A4 4
3.5-inch hot-swap SSDs - 5100 Mainstream 6 Gbps SATA
ThinkSystem 3.5" 5100 480GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05759 B112 4
ThinkSystem 3.5" 5100 3.84TB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05756 B115 4
3.5-inch hot-swap SSDs - 5200 Mainstream 6 Gbps SATA
ThinkSystem 3.5" 5200 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10242 B48D 4
ThinkSystem 3.5" 5200 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10243 B48E 4
ThinkSystem 3.5" 5200 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10244 B48F 4
ThinkSystem 3.5" 5200 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10245 B48G 4
ThinkSystem 3.5" 5200 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10246 B48H 4
3.5-inch hot-swap SSDs - S4610 Mainstream 6 Gbps SATA
ThinkSystem 3.5" Intel S4610 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13639 B49R 4
ThinkSystem 3.5" Intel S4610 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13640 B49S 4
ThinkSystem 3.5" Intel S4610 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13641 B49T 4
ThinkSystem 3.5" Intel S4610 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13642 B49U 4
ThinkSystem 3.5" Intel S4610 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13643 B49V 4
3.5-inch hot-swap SSDs - PM1643 Capacity 12 Gbps SAS
ThinkSystem 3.5" PM1643 3.84TB Capacity SAS 12Gb Hot Swap SSD 4XB7A13649 B4A8 4
3.5-inch hot-swap SSDs - 5100 Entry 6 Gbps SATA
ThinkSystem 3.5" 5100 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A08509 B10V 4
3.5-inch hot-swap SSDs - 5200 Entry 6 Gbps SATA
ThinkSystem 3.5" 5200 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A10158 B2X7 4
ThinkSystem 3.5" 5200 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A10159 B2X8 4
ThinkSystem 3.5" 5200 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A10160 B2X9 4
ThinkSystem 3.5" 5200 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A10161 B2XA 4
ThinkSystem 3.5" 5200 7.68TB Entry SATA 6Gb Hot Swap SSD 4XB7A10162 B2XB 4
3.5-inch hot-swap SSDs - PM863a Entry 6 Gbps SATA
ThinkSystem 3.5" PM863a 240GB Entry SATA 6Gb Hot Swap SSD 7N47A00115 AUUS 4
3.5-inch hot-swap SSDs - PM883 Entry 6 Gbps SATA
ThinkSystem 3.5" PM883 240GB Entry SATA 6Gb Hot Swap SSD 4XB7A17176 B6TM 4
ThinkSystem 3.5" PM883 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A17177 B6TN 4
ThinkSystem 3.5" PM883 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A17178 B6TP 4
ThinkSystem 3.5" PM883 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A17179 B6JY 4
ThinkSystem 3.5" PM883 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A17180 B6JZ 4
3.5-inch hot-swap SSDs - S4500 Entry 6 Gbps SATA
ThinkSystem 3.5" Intel S4500 240GB Entry SATA 6Gb Hot Swap SSD 7SD7A05737 B0Z3 4
ThinkSystem 3.5" Intel S4500 960GB Entry SATA 6Gb Hot Swap SSD 7SD7A05735 B0Z5 4
ThinkSystem 3.5" Intel S4500 1.92TB Entry SATA 6Gb Hot Swap SSD 7SD7A05734 B0Z6 4
3.5-inch hot-swap SSDs - S4510 Entry 6 Gbps SATA
ThinkSystem 3.5" Intel S4510 240GB Entry SATA 6Gb Hot Swap SSD 4XB7A13625 B49D 4
ThinkSystem 3.5" Intel S4510 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A13626 B49E 4
ThinkSystem 3.5" Intel S4510 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A13627 B49F 4
ThinkSystem 3.5" Intel S4510 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A13628 B49G 4
ThinkSystem 3.5" Intel S4510 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A13629 B49H 4
Table 22. Drive options for internal storage: 2.5-inch hot-swap drives
Description Part number Feature code Maximum quantity
2.5-inch hot-swap HDDs - 12 Gbps SAS
ThinkSystem 2.5" 300GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00024 AULY 8
ThinkSystem 2.5" 300GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00021 AULV 8
ThinkSystem 2.5" 600GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00025 AULZ 8
ThinkSystem 2.5" 600GB 15K SAS 12Gb Hot Swap 512n HDD 7XB7A00022 AULW 8
ThinkSystem 2.5" 900GB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00026 AUM0 8
ThinkSystem 2.5" 900GB 15K SAS 12Gb Hot Swap 512e HDD 7XB7A00023 AULX 8
ThinkSystem 2.5" 1.2TB 10K SAS 12Gb Hot Swap 512n HDD 7XB7A00027 AUM1 8
ThinkSystem 2.5" 1.8TB 10K SAS 12Gb Hot Swap 512e HDD 7XB7A00028 AUM2 8
ThinkSystem 2.5" 2.4TB 10K SAS 12Gb Hot Swap 512e HDD 7XB7A00069 B0YS 8
2.5-inch hot-swap HDDs - 12 Gbps NL SAS
ThinkSystem 2.5" 1TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00034 AUM6 8
ThinkSystem 2.5" 2TB 7.2K SAS 12Gb Hot Swap 512n HDD 7XB7A00035 AUM7 8
2.5-inch hot-swap HDDs - 6 Gbps NL SATA
ThinkSystem 2.5" 1TB 7.2K SATA 6Gb Hot Swap 512n HDD 7XB7A00036 AUUE 8
ThinkSystem 2.5" 2TB 7.2K SATA 6Gb Hot Swap 512e HDD 7XB7A00037 AUUJ 8
2.5-inch hot-swap HDD SEDs - 12 Gbps SAS
ThinkSystem 2.5" 300GB 10K SAS 12Gb Hot Swap 512n HDD SED 7XB7A00030 AUM4 8
ThinkSystem 2.5" 600GB 10K SAS 12Gb Hot Swap 512n HDD SED 7XB7A00031 AUM5 8
2.5-inch hot-swap SSDs - PM1635a Mainstream 12 Gbps SAS
ThinkSystem 2.5" PM1635a 1.6TB Mainstream SAS 12Gb Hot Swap SSD 7N47A00119 AVRG 8
2.5-inch hot-swap SSDs - PM1645 Mainstream 12 Gbps SAS
ThinkSystem 2.5" PM1645 800GB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13653 B4A0 8
ThinkSystem 2.5" PM1645 1.6TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13654 B4A1 8
ThinkSystem 2.5" PM1645 3.2TB Mainstream SAS 12Gb Hot Swap SSD 4XB7A13655 B4A2 8
2.5-inch hot-swap SSDs - 5100 Mainstream 6 Gbps SATA
ThinkSystem 2.5" 5100 480GB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05764 B10X 8
ThinkSystem 2.5" 5100 3.84TB Mainstream SATA 6Gb Hot Swap SSD 7SD7A05761 B110 8
2.5-inch hot-swap SSDs - 5200 Mainstream 6 Gbps SATA
ThinkSystem 2.5" 5200 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10237 B488 8
ThinkSystem 2.5" 5200 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10238 B489 8
ThinkSystem 2.5" 5200 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10239 B48A 8
ThinkSystem 2.5" 5200 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10240 B48B 8
ThinkSystem 2.5" 5200 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A10241 B48C 8
2.5-inch hot-swap SSDs - S4610 Mainstream 6 Gbps SATA
ThinkSystem 2.5" Intel S4610 240GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13633 B49L 8
ThinkSystem 2.5" Intel S4610 480GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13634 B49M 8
ThinkSystem 2.5" Intel S4610 960GB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13635 B49N 8
ThinkSystem 2.5" Intel S4610 1.92TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13636 B49P 8
ThinkSystem 2.5" Intel S4610 3.84TB Mainstream SATA 6Gb Hot Swap SSD 4XB7A13637 B49Q 8
2.5-inch hot-swap SSDs - PM1643 Capacity 12 Gbps SAS
ThinkSystem 2.5" PM1643 3.84TB Capacity SAS 12Gb Hot Swap SSD 4XB7A13645 B4A7 8
ThinkSystem 2.5" PM1643 7.68TB Capacity SAS 12Gb Hot Swap SSD 4XB7A13646 B4A6 8
2.5-inch hot-swap SSDs - 5100 Entry 6 Gbps SATA
ThinkSystem 2.5" 5100 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A08505 B10R 8
2.5-inch hot-swap SSDs - 5200 Entry 6 Gbps SATA
ThinkSystem 2.5" 5200 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A10153 B2X2 8
ThinkSystem 2.5" 5200 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A10154 B2X3 8
ThinkSystem 2.5" 5200 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A10155 B2X4 8
ThinkSystem 2.5" 5200 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A10156 B2X5 8
ThinkSystem 2.5" 5200 7.68TB Entry SATA 6Gb Hot Swap SSD 4XB7A10157 B2X6 8
2.5-inch hot-swap SSDs - 5210 Entry 6 Gbps SATA
ThinkSystem 2.5" 5210 1.92TB Entry SATA 6Gb Hot Swap QLC SSD 4XB7A38144 B7EW 8
ThinkSystem 2.5" 5210 3.84TB Entry SATA 6Gb Hot Swap QLC SSD 4XB7A38145 B7EX 8
ThinkSystem 2.5" 5210 7.68TB Entry SATA 6Gb Hot Swap QLC SSD 4XB7A38146 B7EY 8
2.5-inch hot-swap SSDs - PM863a Entry 6 Gbps SATA
ThinkSystem 2.5" PM863a 240GB Entry SATA 6Gb Hot Swap SSD 7N47A00111 AUUQ 8
ThinkSystem 2.5" PM863a 1.92TB Entry SATA 6Gb Hot Swap SSD 7N47A00114 AVRC 8
2.5-inch hot-swap SSDs - PM883 Entry 6 Gbps SATA
ThinkSystem 2.5" PM883 240GB Entry SATA 6Gb Hot Swap SSD 4XB7A10195 B34H 8
ThinkSystem 2.5" PM883 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A10196 B34J 8
ThinkSystem 2.5" PM883 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A10197 B34K 8
ThinkSystem 2.5" PM883 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A10198 B34L 8
ThinkSystem 2.5" PM883 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A10199 B34M 8
ThinkSystem 2.5" PM883 7.68TB Entry SATA 6Gb Hot Swap SSD 4XB7A10200 B4D2 8
2.5-inch hot-swap SSDs - S4500 Entry 6 Gbps SATA
ThinkSystem 2.5" Intel S4500 240GB Entry SATA 6Gb Hot Swap SSD 7SD7A05742 B0YY 8
ThinkSystem 2.5" Intel S4500 960GB Entry SATA 6Gb Hot Swap SSD 7SD7A05740 B0Z0 8
ThinkSystem 2.5" Intel S4500 1.92TB Entry SATA 6Gb Hot Swap SSD 7SD7A05739 B0Z1 8
2.5-inch hot-swap SSDs - S4510 Entry 6 Gbps SATA
ThinkSystem 2.5" Intel S4510 240GB Entry SATA 6Gb Hot Swap SSD 4XB7A10247 B498 8
ThinkSystem 2.5" Intel S4510 480GB Entry SATA 6Gb Hot Swap SSD 4XB7A10248 B499 8
ThinkSystem 2.5" Intel S4510 960GB Entry SATA 6Gb Hot Swap SSD 4XB7A10249 B49A 8
ThinkSystem 2.5" Intel S4510 1.92TB Entry SATA 6Gb Hot Swap SSD 4XB7A13622 B49B 8
ThinkSystem 2.5" Intel S4510 3.84TB Entry SATA 6Gb Hot Swap SSD 4XB7A13623 B49C 8
Table 23. Drive options for internal storage: M.2 non-hot-swap drives
Description Part number Feature code Maximum quantity
ThinkSystem M.2 32GB SATA 6Gbps Non-Hot-Swap SSD 7N47A00129 AUUL 2
ThinkSystem M.2 128GB SATA 6Gbps Non-Hot-Swap SSD 7N47A00130 AUUV 2
ThinkSystem M.2 5100 240GB SATA 6Gbps Non-Hot Swap SSD 4XB7A14049 B5S4 2
ThinkSystem M.2 5100 480GB SATA 6Gbps Non-Hot Swap SSD 7SD7A05703 B11V 2

Optical drives

The SR530 server supports the external USB optical drive option listed in the following table.

Table 24. Optical drive
Description Part number Feature code Maximum quantity
ThinkSystem External USB DVD RW Optical Disk Drive 7XA7A05926 AVV8 1

The External USB DVD RW Optical Disk Drive supports the following types of media: CD-ROM, CD-R, CD-RW, DVD-R, DVD+R, DVD-ROM, DVD-RW, and DVD+RW.

I/O expansion

The SR530 server supports one LOM card slot and up to three PCIe slots with different riser cards installed into two riser sockets on the system planar (one riser socket supports installation of one riser card).

The slot form factors are as follows:

  • LOM card slot
  • Slot 1: PCIe 3.0 x8; low profile
  • Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length
  • Slot 3: PCIe 3.0 x8 or x16; low profile

Configuration notes:

  • PCIe x16 slot 3 requires the second processor to be installed.
  • The COM Port Upgrade Kit is installed in place of one of the PCIe slots 1, 2, or 3.

The locations of the PCIe slots are shown in the following figure.

Slot locations
Figure 7. Slot locations

Riser 1 supplies slots 1 and 2, and Riser 2 supplies slot 3. The slots that are available for use depend on the number of riser cards that are installed and whether the second processor is installed, as shown in the following table.

Table 25. Slots available for use
Riser Card 1 Riser Card 2 Slots available for use
Processor 1 Processor 2
None None LOM -
None PCIe x8 LOM, 3 -
None PCIe x16 LOM 3
PCIe x8/x16 or PCIe x8/x8ML2 None LOM, 1, 2 -
PCIe x8/x16 or PCIe x8/x8ML2 PCIe x8 LOM, 1, 2, 3 -
PCIe x8/x16 or PCIe x8/x8ML2 PCIe x16 LOM, 1, 2 3

The following table lists available PCIe riser card options.

Table 26. PCIe riser cards and miscellaneous options
Description Part number Feature code Maximum quantity
x8 Riser Card 1 options (Riser card 1 supplies slots 1 and 2)
ThinkSystem SR530/SR570/SR630 x8/x16 PCIe LP+LP Riser 1 Kit 7XH7A02682 AUWC 1
ThinkSystem SR530/SR570/SR630 x8/x16 PCIe LP+FH Riser 1 Kit 7XH7A05893 None* 1
ThinkSystem SR530/SR570 x8/x8ML2 PCIe LP+LP Riser 1 Kit 7XH7A05892 AV0X 1
Riser Card 2 option (Riser card 2 supplies slot 3)
ThinkSystem SR530/SR570/SR630 x16 PCIe LP Riser 2 Kit 7XH7A02685 AUWA 1
ThinkSystem SR530/SR570 x8 PCIe LP Riser 2 Kit 7XH7A05891 AV0W 1
Serial port upgrade kit
ThinkSystem COM Port Upgrade Kit 7Z17A02577 AUSL 1

* The LP+FH Riser 1 can be factory-installed by selecting the feature codes AUWC (LP+LP Riser 1) and AUWS (LP+FH Bracket).

The COM Port Upgrade Kit, part number 7Z17A02577, is used for mounting the external serial port on the rear of the SR530. This option includes the bracket and the cable. The COM Port option is mounted in place of one of the PCIe slots 1, 2, or 3.

Network adapters

The SR530 server has two onboard 1 GbE ports (no 10/100 Mb support) and up to two additional onboard 1/10 GbE network ports (no 10/100 Mb support) with optional LOM cards. Onboard ports and LOM cards use the Intel Ethernet Connection X722 1/10 GbE technology integrated into the Intel C622 Platform Controller Hub (PCH). The server also supports ML2 adapters that are installed in the custom ML2 slot provided by an ML2 riser card. The LOM cards support direct connectivity to the XClarity Controller via the Network Controller Sideband Interface (NSCI) for out-of-band systems management.

Note: ML2 network adapters do not support NSCI when used in the SR530 server.

The integrated Intel Ethernet Connection X722 has the following features:

  • Two 1 Gb Ethernet ports (no 10/100 Mb Ethernet support)
  • Two 1/10 Gb Ethernet capable ports (no 10/100 Mb Ethernet support)
  • NIC Teaming (load balancing and failover)
  • Data Center Bridging
  • iWARP (RDMA over IP)
  • VMDq and SR-IOV virtualization (10 Gb speeds only, 4 PFs, 128 VFs per device)
  • IEEE 802.1q Virtual Local Area Networks (VLANs)
  • NVGRE, VXLAN, IPinGRE, and MACinUDP network virtualization
  • IEEE 802.1Qbg Edge Virtual Bridging
  • TCP, IP, and UDP checksum offload
  • Large Send Offload (LSO) and Generic Send Offload (GSO)
  • Receive Side Scaling (RSS) for TCP and UDP traffic
  • Jumbo frames up to 9.5 Kbytes

The following table lists the network adapters that are supported with the SR530 server.

Table 27. Network adapters
Description Part number Feature code Max
qty		 I/O slots supported
LOM cards - 1 Gb Ethernet
ThinkSystem 1Gb 2-port RJ45 LOM 7ZT7A00544 AUKG 1 LOM slot
LOM cards - 10 Gb Ethernet
ThinkSystem 10Gb 2-port Base-T LOM 7ZT7A00548 AUKL 1 LOM slot
ThinkSystem 10Gb 2-port SFP+ LOM 7ZT7A00546 AUKJ 1* LOM slot
ML2 adapters - 10 Gb Ethernet
Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter 7ZT7A00497 AUKQ 1 2 (ML2)
Emulex VFA5.2 ML2 Dual Port 10GbE SFP+ Adapter 00AG560 AT7U 1* 2 (ML2)
Emulex VFA5.2 ML2 2x10 GbE SFP+ Adapter and FCoE/iSCSI SW 01CV770 AU7Z 1* 2 (ML2)
Intel X710-DA2 ML2 2x10GbE SFP+ Adapter 00JY940 ATRH 1* 2 (ML2)
PCIe Low Profile adapters - 1 Gb Ethernet
Broadcom 5720 1GbE RJ45 2-Port PCIe Ethernet Adapter 7ZT7A00482 AUZX 3 1, 2, 3
Broadcom 5719 1GbE RJ45 4-Port PCIe Ethernet Adapter 7ZT7A00484 AUZV 3 1, 2, 3
ThinkSystem I350-F1 PCIe 1Gb 1-Port SFP Ethernet Adapter 7ZT7A00533 AUZZ 3 1, 2, 3
ThinkSystem I350-T2 PCIe 1Gb 2-Port RJ45 Ethernet Adapter 7ZT7A00534 AUZY 3 1, 2, 3
ThinkSystem I350-T4 PCIe 1Gb 4-Port RJ45 Ethernet Adapter 7ZT7A00535 AUZW 3 1, 2, 3
PCIe Low Profile adapters - 10 Gb Ethernet
Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter 7ZT7A00496 AUKP 3 1, 2, 3
Emulex VFA5.2 2x10 GbE SFP+ PCIe Adapter 00AG570 AT7S 3* 1, 2, 3
Emulex VFA5.2 2x10 GbE SFP+ Adapter and FCoE/iSCSI SW 00AG580 AT7T 3* 1, 2, 3
Intel X550-T2 Dual Port 10GBase-T Adapter 00MM860 ATPX 3 1, 2, 3
Intel X710-DA2 PCIe 10Gb 2-Port SFP+ Ethernet Adapter 7ZT7A00537 AUKX 3* 1, 2, 3
QLogic QL41134 PCIe 10Gb 4-Port Base-T Ethernet Adapter 4XC7A08225 B31G 3 1, 2, 3
PCIe Full Height adapters - 10 Gb Ethernet
Emulex OCe14104B-NX PCIe 10Gb 4-Port SFP+ Ethernet Adapter 7ZT7A00493 AUKN 1* 2
PCIe Low Profile adapters - 25 Gb Ethernet
Broadcom 57412 10/25GbE SFP28 1-Port PCIe Ethernet Adapter 7ZT7A00505 AUKS 3* 1, 2, 3
Broadcom 57414 10/25GbE SFP28 2-port PCIe Ethernet Adapter 4XC7A08238 B5T0 3* 1, 2, 3
PCIe Low Profile adapters - Omni-Path
Intel OPA 100 Series Single-port PCIe 3.0 x16 HFA 00WE027 AU0B 1 / 2#* 2, 3

# The maximum quantity shown is with one processor / two processors.
* The adapter comes without transceivers or cables; for ordering transceivers or cables, see the configuration notes below the table.

Configuration notes:

  • ML2 network adapters are supported in the ML2 x8 slot 2 supplied by the x8/x8ML2 Riser Card 1 (7XH7A05892).
  • PCIe full-height network adapters are supported in the full-height PCIe x16 slot 2 supplied by the PCIe x8/x16 LP+FH Riser Card 1 (7XH7A05893).
  • Omni-Path adapters are supported in the low profile or full-height PCIe x16 slots supplied by the riser cards 1 and 2.
  • PCIe Low Profile network adapters (except Omni-Path adapters) are supported in the low profile and full-height PCIe x8 and x16 slots supplied by the riser cards 1 and 2. The PCIe x16 slot 3 requires the second processor to be installed.
  • Some adapters require supported transceivers or DAC cables to be purchased for the adapter. The maximum number of transceivers or cables that are supported per adapter equals the quantity of the adapter ports, and all adapter ports must have the same type of the transceiver or cable selected.

    The following transceiver and cables can be purchased:

The following table lists cables for the 10 GbE and 1 GbE RJ-45 adapters.

Table 28. Cables for 10 GbE and 1 GbE RJ-45 adapters
Description Part number Feature code
UTP Category 6 cables (Green) for 10 GbE and 1 GbE RJ-45 adapters
0.75m Cat6 Green Cable 00WE123 AVFW
1.0m Cat6 Green Cable 00WE127 AVFX
1.25m Cat6 Green Cable 00WE131 AVFY
1.5m Cat6 Green Cable 00WE135 AVFZ
3m Cat6 Green Cable 00WE139 AVG0
10m Cat6 Green Cable 90Y3718 A1MT
25m Cat6 Green Cable 90Y3727 A1MW
UTP Category 5e cables (Blue) for 1 GbE RJ-45 adapters
0.75m Blue Cat5e Cable 00WE111 AVFT
1.0m Blue Cat5e Cable 00WE115 AVFU
1.25m Blue Cat5e Cable 00WE119 AVFV
3m Blue Cat5e Cable 40K5581 3803
10m Blue Cat5e Cable 40K8927 3804
25m Blue Cat5e Cable 40K8930 3805
UTP Category 5e cables (Green) for 1 GbE RJ-45 adapters
0.75m Green Cat5e Cable 00WE099 AVFQ
1.0m Green Cat5e Cable 00WE103 AVFR
1.25m Green Cat5e Cable 00WE107 AVFS
1.5m Green Cat5e Cable 40K5643 3797
3m Green Cat5e Cable 40K5793 3798
10m Green Cat5e Cable 40K5794 3799
25m Green Cat5e Cable 40K8869 3800

The following table lists transceivers and cables for the 10 GbE SFP+ adapters.

Table 29. Transceivers and cables for 10 GbE SFP+ adapters
Description Part number Feature code
10 GbE SFP+ SR transceivers for 10 GbE SFP+ adapters
Lenovo 10GBASE-SR SFP+ Transceiver 46C3447 5053
Lenovo 10GBASE-LR SFP+ Transceiver 00FE331 B0RJ
Optical cables for 10 GbE SFP+ SR transceivers
Lenovo 0.5m LC-LC OM3 MMF Cable 00MN499 ASR5
Lenovo 1m LC-LC OM3 MMF Cable 00MN502 ASR6
Lenovo 3m LC-LC OM3 MMF Cable 00MN505 ASR7
Lenovo 5m LC-LC OM3 MMF Cable 00MN508 ASR8
Lenovo 10m LC-LC OM3 MMF Cable 00MN511 ASR9
Lenovo 15m LC-LC OM3 MMF Cable 00MN514 ASRA
Lenovo 25m LC-LC OM3 MMF Cable 00MN517 ASRB
Lenovo 30m LC-LC OM3 MMF Cable 00MN520 ASRC
Passive SFP+ DAC cables for 10 GbE SFP+ adapters
Lenovo 0.5m Passive SFP+ DAC Cable 00D6288 A3RG
Lenovo 1m Passive SFP+ DAC Cable 90Y9427 A1PH
Lenovo 1.5m Passive SFP+ DAC Cable 00AY764 A51N
Lenovo 2m Passive SFP+ DAC Cable 00AY765 A51P
Lenovo 3m Passive SFP+ DAC Cable 90Y9430 A1PJ
Lenovo 5m Passive SFP+ DAC Cable 90Y9433 A1PK
Lenovo 7m Passive SFP+ DAC Cable 00D6151 A3RH
Active SFP+ DAC cables for 10 GbE SFP+ adapters*
Lenovo 1m Active DAC SFP+ Cable 00VX111 AT2R
Lenovo 3m Active DAC SFP+ Cable 00VX114 AT2S
Lenovo 5m Active DAC SFP+ Cable 00VX117 AT2T
SFP+ active optical cables for 10 GbE SFP+ adapters
Lenovo 1m SFP+ to SFP+ Active Optical Cable 00YL634 ATYX
Lenovo 3m SFP+ to SFP+ Active Optical Cable 00YL637 ATYY
Lenovo 5m SFP+ to SFP+ Active Optical Cable 00YL640 ATYZ
Lenovo 7m SFP+ to SFP+ Active Optical Cable 00YL643 ATZ0
Lenovo 15m SFP+ to SFP+ Active Optical Cable 00YL646 ATZ1
Lenovo 20m SFP+ to SFP+ Active Optical Cable 00YL649 ATZ2

* The Emulex VFA5.2 ML2 (00AG560 and 01CV770) and PCIe (00AG570 and 00AG580) network adapters do not support active SFP+ DAC cables.

The following table lists transceivers and cables for the 25 GbE SFP28 adapters.

Table 30. Transceivers and cables for 25 GbE SFP28 adapters
Description Part number Feature code
25 GbE SFP28 SR transceivers for 25 GbE SFP28 adapters
Lenovo 25GBase-SR SFP28 Transceiver 7G17A03537 AV1B
Optical cables for 25 GbE SFP28 SR transceivers
Lenovo 0.5m LC-LC OM3 MMF Cable 00MN499 ASR5
Lenovo 1m LC-LC OM3 MMF Cable 00MN502 ASR6
Lenovo 3m LC-LC OM3 MMF Cable 00MN505 ASR7
Lenovo 5m LC-LC OM3 MMF Cable 00MN508 ASR8
Lenovo 10m LC-LC OM3 MMF Cable 00MN511 ASR9
Lenovo 15m LC-LC OM3 MMF Cable 00MN514 ASRA
Lenovo 25m LC-LC OM3 MMF Cable 00MN517 ASRB
Lenovo 30m LC-LC OM3 MMF Cable 00MN520 ASRC
Passive copper cables for 25 GbE SFP28 network adapters
Lenovo 1m Passive 25G SFP28 DAC Cable 7Z57A03557 AV1W
Lenovo 3m Passive 25G SFP28 DAC Cable 7Z57A03558 AV1X
Lenovo 5m Passive 25G SFP28 DAC Cable 7Z57A03559 AV1Y
Active optical cables for 25 GbE SFP28 network adapters
Lenovo 3m 25G SFP28 Active Optical Cable 7Z57A03541 AV1F
Lenovo 5m 25G SFP28 Active Optical Cable 7Z57A03542 AV1G
Lenovo 10m 25G SFP28 Active Optical Cable 7Z57A03543 AV1H
Lenovo 15m 25G SFP28 Active Optical Cable 7Z57A03544 AV1J
Lenovo 20m 25G SFP28 Active Optical Cable 7Z57A03545 AV1K

The following table lists cables for the Intel Omni-Path QSFP28 adapters.

Table 31. Cables for Intel Omni-Path QSFP28 adapters
Description Part number Feature code
Passive copper cables for Intel Omni-Path QSFP28 adapters
0.5m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE031 AU0E
0.75m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE035 AU0F
1m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE039 AU0G
1.25m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE043 AU0H
1.5m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE047 AU0J
2m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE051 AU0K
3m Intel OPA 100 Series Passive Copper QSFP28 Cable 00WE055 AU0L
Active optical cables for Intel Omni-Path QSFP28 adapters
5m Intel OPA 100 Series Active Optical QSFP28 Cable 00WE059 AU0M
15m Intel OPA 100 Series Active Optical QSFP28 Cable 00WE067 AU0P
20m Intel OPA 100 Series Active Optical QSFP28 Cable 00WE071 AU0Q

For more information, see the list of Product Guides in the following categories:

SAS adapters for external storage

The following table lists SAS RAID controllers and HBAs for external storage attachments that are supported by the SR530 server.

Table 32. SAS RAID adapters and HBAs for external storage
Description Part number Feature code Maximum quantity I/O slots supported
12 Gbps SAS RAID adapters
ThinkSystem RAID 930-8e 4GB Flash PCIe 12Gb Adapter 7Y37A01087 AUNQ 2 1, 2, 3
12 Gbps SAS HBAs
ThinkSystem 430-8e SAS/SATA 12Gb HBA 7Y37A01090 AUNR 2 1, 2, 3
ThinkSystem 430-16e SAS/SATA 12Gb HBA 7Y37A01091 AUNN 2 1, 2, 3

Configuration notes:

  • Low profile SAS RAID controllers and HBAs for external storage are supported in the low profile and full-high PCIe x8 and x16 slots supplied by the riser cards 1 and 2. The PCIe x16 slot 3 requires the second processor to be installed.
  • The total quantity of the RAID 730-8i 2GB, RAID 930-8i, RAID 930-16i, and RAID 930-8e controllers in a supported combination in the server must not exceed 2 (up to 2 supercapacitors can be mounted in the server).

The following table summarizes features of supported RAID controllers and HBAs for external storage.

Table 33. Features and specifications of the RAID controllers and HBAs for external storage
Feature RAID 930-8e 430-8e HBA 430-16e HBA
Form factor PCIe LP PCIe LP PCIe LP
SAS controller chip SAS3516 SAS3408 SAS3416
Host interface PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8
Port interface 12 Gb SAS 12 Gb SAS 12 Gb SAS
Number of ports 8 8 16
Connector type SFF-8644 x4 SFF-8644 x4 SFF-8644 x4
Number of connectors 2 2 4
Drive interface SAS, SATA SAS, SATA SAS, SATA
Drive type HDD, SSD, SED HDD, SSD, SED* HDD, SSD, SED*
Hot-swap drive support Yes Yes Yes
Number of devices 240 1024 1024
RAID levels 0/1/10/5/50/6/60 None None
JBOD mode Yes Yes Yes
Cache 4 GB None None
Cache protection Flash backup (Included) None None
SED key management (SafeStore) Yes No No
SSD I/O acceleration (FastPath) Yes No No
SSD Caching (CacheCade Pro 2.0) No** No No
Consistency check Yes No No
Patrol read Yes No No
Online capacity expansion Yes No No
Online RAID level migration Yes No No
Global Hot Spare Yes No No
Auto-rebuild Yes No No

* HBAs do not support key management for SEDs; third-party host software is responsible for managing the keys.
** The SSD caching feature has been phased out in the new generation of advanced RAID controllers.

For more information, see the list of Product Guides in the following categories:

Fibre Channel host bus adapters

The following table lists Fibre Channel HBAs supported by the SR530 server.

Table 34. Fibre Channel HBAs
Description Part number Feature code Maximum quantity I/O slots supported
16 Gb Fibre Channel - PCIe
Emulex 16Gb Gen6 FC Single-port HBA 01CV830 ATZU 3 1, 2, 3
Emulex 16Gb Gen6 FC Dual-port HBA 01CV840 ATZV 3 1, 2, 3
QLogic 16Gb Enhanced Gen5 FC Single-port HBA 01CV750 ATZB 3 1, 2, 3
QLogic 16Gb Enhanced Gen5 FC Dual-port HBA 01CV760 ATZC 3 1, 2, 3
8 Gb Fibre Channel - PCIe (available only in PRC and Asia Pacific)
Emulex LPe12002-M8-L PCIe 8Gb 2-Port SFP+ FC HBA 4XC7A08221 B0X0 3 1, 2, 3
Emulex LPe12000-M8-L PCIe 8Gb 1-Port SFP+ FC HBA 4XC7A08220 B0WZ 3 1, 2, 3

Configuration note: FC HBAs are supported in the low profile and full-high PCIe x8 and x16 slots supplied by the riser cards 1 and 2. The PCIe x16 slot 3 requires the second processor to be installed.

For more information, see the list of Product Guides in the Host bus adapters category:
http://lenovopress.com/servers/options/hba#rt=product-guide

Cooling

The SR530 server supports up to six non-hot-swap system fans that provide N+1 cooling redundancy. SR530 server models with one processor include four system fans, and server models with two processors include six system fans.

Power supplies and cables

The SR530 server supports up to two redundant power supplies and is capable of N+N redundancy depending on the configuration. A second power supply can be added to the models that come with one power supply. The following table lists the power supply options.

Table 35. Power supplies
Description Part number Feature code Maximum quantity
ThinkSystem 550W (230V/115V) Platinum Hot-Swap Power Supply 7N67A00882 AVV6 2
ThinkSystem 750W (230/115V) Platinum Hot-Swap Power Supply 7N67A00883 AVV7 2
ThinkSystem 750W (230V) Titanium Hot-Swap Power Supply 7N67A00884 AVV5 2

Configuration notes:

  • Minimum of 1 and maximum of 2 power supplies per system.
  • If 2 are installed, power supplies must be identical.
  • Power supplies support AC (Worldwide) and HVDC (PRC only) power sources.

Important: The Standalone Solution Configuration Tool (SSCT) and Lenovo Data Center Solution Configurator (DCSC) power supply selection rules allow a subset of possible configurations due to power restrictions. Configurations that cannot be built in SSCT or DCSC due to power restrictions may still be supported. To verify support and ensure that the right power supply is chosen for optimal performance, you should always validate your server configuration using the latest version of the Lenovo Capacity Planner:
http://datacentersupport.lenovo.com/us/en/solutions/lnvo-lcp

The SR530 server ship standard with or without a power cord (model dependent). A hot-swap power supply option ships without a power cord. The following table lists the rack power cables and line cords that can be ordered for the SR530 server.

Table 36. Power cables
Description Part number Feature code
Rack power cables
1.0m, 10A/125-250V, C13 to IEC 320-C14 Rack Power Cable 00Y3043 A4VP
1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 39Y7937 6201
2.0m, 13A/125V-10A/250V, C13 to IEC 320-C14 Rack Power Cable 4L67A08369 6570
2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 4L67A08366 6311
2.8m, 13A/125V-10A/250V, C13 to IEC 320-C14 Rack Power Cable 4L67A08370 6400
2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable 39Y7938 6204
4.3m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 39Y7932 6263
4.3m, 13A/125V-10A/250V, C13 to IEC 320-C14 Rack Power Cable 4L67A08371 6583
Line cords
Argentina 2.8m, 10A/250V, C13 to IRAM 2073 Line Cord 39Y7930 6222
Argentina 4.3m, 10A/250V, C13 to IRAM 2073 Line Cord 81Y2384 6492
Australia/New Zealand 2.8m, 10A/250V, C13 to AS/NZS 3112 Line Cord 39Y7924 6211
Australia/New Zealand 4.3m, 10A/250V, C13 to AS/NZS 3112 Line Cord 81Y2383 6574
Brazil 2.8m, 10A/250V, C13 to NBR 14136 Line Cord 69Y1988 6532
Brazil 4.3m, 10A/250V, C13 to NBR14136 Line Cord 81Y2387 6404
China 2.8m, 10A/250V, C13 to GB 2099.1 Line Cord 39Y7928 6210
China 4.3m, 10A/250V, C13 to GB 2099.1 Line Cord 81Y2378 6580
Denmark 2.8m, 10A/250V, C13 to DK2-5a Line Cord 39Y7918 6213
Denmark 4.3m, 10A/250V, C13 to DK2-5a Line Cord 81Y2382 6575
Europe 2.8m, 10A/250V, C13 to CEE7-VII Line Cord 39Y7917 6212
Europe 4.3m, 10A/250V, C13 to CEE7-VII Line Cord 81Y2376 6572
India 2.8m, 10A/250V, C13 to IS 6538 Line Cord 39Y7927 6269
India 4.3m, 10A/250V, C13 to IS 6538 Line Cord 81Y2386 6567
Israel 2.8m, 10A/250V, C13 to SI 32 Line Cord 39Y7920 6218
Israel 4.3m, 10A/250V, C13 to SI 32 Line Cord 81Y2381 6579
Italy 2.8m, 10A/250V, C13 to CEI 23-16 Line Cord 39Y7921 6217
Italy 4.3m, 10A/250V, C13 to CEI 23-16 Line Cord 81Y2380 6493
Japan 2.8m, 12A/125V, C13 to JIS C-8303 Line cord 46M2593 6314
Japan 2.8m, 12A/250V, C13 to JIS C-8303 Line Cord 4L67A08357 5472
Japan 4.3m, 12A/125V, C13 to JIS C-8303 Line Cord 39Y7926 6335
Japan 4.3m, 12A/250V, C13 to JIS C-8303 Line Cord 4L67A08362 6495
Korea 2.8m, 12A/250V, C13 to KS C8305 Line Cord 39Y7925 6219
Korea 4.3m, 12A/250V, C13 to KS C8305 Line Cord 81Y2385 6494
South Africa 2.8m, 10A/250V, C13 to SABS 164 Line Cord 39Y7922 6214
South Africa 4.3m, 10A/250V, C13 to SABS 164 Line Cord 81Y2379 6576
Switzerland 2.8m, 10A/250V, C13 to SEV 1011-S24507 Line Cord 39Y7919 6216
Switzerland 4.3m, 10A/250V, C13 to SEV 1011-S24507 Line Cord 81Y2390 6578
Taiwan 2.8m, 10A/125V, C13 to CNS 10917-3 Line Cord 23R7158 6386
Taiwan 2.8m, 10A/250V, C13 to CNS 10917-3 Line Cord 81Y2375 6317
Taiwan 2.8m, 15A/125V, C13 to CNS 10917-3 Line Cord 81Y2374 6402
Taiwan 4.3m, 10A/125V, C13 to CNS 10917-3 Line Cord 4L67A08363 AX8B
Taiwan 4.3m, 10A/250V, C13 to CNS 10917-3 Line Cord 81Y2389 6531
Taiwan 4.3m, 15A/125V, C13 to CNS 10917-3 Line Cord 81Y2388 6530
United Kingdom 2.8m, 10A/250V, C13 to BS 1363/A Line Cord 39Y7923 6215
United Kingdom 4.3m, 10A/250V, C13 to BS 1363/A Line Cord 81Y2377 6577
United States 2.8m, 10A/125V, C13 to NEMA 5-15P Line Cord 90Y3016 6313
United States 2.8m, 10A/250V, C13 to NEMA 6-15P Line Cord 46M2592 A1RF
United States 2.8m, 13A/125V, C13 to NEMA 5-15P Line Cord 00WH545 6401
United States 4.3m, 10A/125V, C13 to NEMA 5-15P Line Cord 4L67A08359 6370
United States 4.3m, 10A/250V, C13 to NEMA 6-15P Line Cord 4L67A08361 6373
United States 4.3m, 13A/125V, C13 to NEMA 5-15P Line Cord 4L67A08360 AX8A

Systems management

The SR530 supports the following systems management tools:

  • Lenovo XClarity Controller
  • Lenovo XClarity Provisioning Manager
  • Lenovo XClarity Essentials
  • Lenovo XClarity Administrator
  • Lenovo XClarity Integrators
  • Lenovo XClarity Energy Manager
  • Lenovo Capacity Planner

Lenovo XClarity Controller

The SR530 server contains Lenovo XClarity Controller (XCC), which provides advanced service-processor control, monitoring, and alerting functions. XClarity Controller offers three functional levels: Standard, Advanced, and Enterprise.

By default, the SR530 server includes XClarity Controller Standard features, and it can be upgraded to Advanced or Enterprise functionality by using the Features on Demand (FoD) upgrades.

XClarity Controller Standard offers the following capabilities:

  • Gathering and viewing system information and inventory
  • Monitoring system status and health
  • Alerting and notifications
  • Event logging
  • Configuring network connectivity
  • Configuring security
  • Updating system firmware
  • Configuring server settings and devices
  • Real-time power usage monitoring
  • Remotely controlling server power (Power on, Power off, Restart)
  • Managing FoD activation keys
  • Redirecting serial console via IPMI
  • Capturing the video display contents when an operating system hang condition is detected

XClarity Controller Advanced Upgrade adds the following functionality to the Standard features:

  • Remotely viewing video with the following graphics resolutions:
    • Up to 1600x1200 with up to 23 bits per pixel; or
    • Up to 1920x1200 with up to 15 bits per pixel
  • Remotely accessing the server using the keyboard and mouse from a remote client
  • Remotely deploying an operating system
  • Syslog alerting
  • Redirecting serial console via SSH
  • Displaying graphics for real-time and historical power usage data and temperature

XClarity Controller Enterprise Upgrade adds the following functionality to the Advanced features:

  • Capping power usage
  • Mapping the ISO and image files located on the local client as virtual drives for use by the server
  • Mounting the remote ISO and image files via HTTPS, SFTP, CIFS, and NFS
  • Collaborating across up to six users of the virtual console
  • Controlling quality and bandwidth usage

The XClarity Controller provides remote server management through industry-standard interfaces:

  • Intelligent Platform Management Interface (IPMI) Version 2.0
  • Simple Network Management Protocol (SNMP) Version 3
  • Common Information Model (CIM)
  • Data Center Manageability Interface (DCMI) Version 1.5
  • Redfish REpresentational State Transfer (REST) API
  • Web browser with HTML5 support
  • Command-line interface
  • Virtual Operator Panel with XClarity Mobile App via the front USB port with XClarity Controller access

Virtual Operator Panel provides quick access to system status, firmware, network, health, and alerts information. With proper authentication, it also allows to configure systems management and network settings and to control system power (Power on, Power off, Restart). The Virtual Operator Panel can be accessed from the XClarity Mobile App running on the Android or iOS mobile device that is connected to the front USB port with XClarity Controller access (See Components and connectors).

Note: Depending on the system settings, the front USB port can be assigned to XClarity Controller for management functions, or to the system as a regular USB 2.0 port, or switched between two functions by using the system ID button.

The following table lists the XClarity Controller FoD upgrades.

Table 37. XClarity Controller FoD upgrades
Description Part number Feature code Maximum quantity
ThinkSystem XClarity Controller Standard to Advanced Upgrade 4L47A09132 AVUT 1
ThinkSystem XClarity Controller Standard to Enterprise Upgrade None* AUPW 1
ThinkSystem XClarity Controller Advanced to Enterprise Upgrade 4L47A09133 None** 1

* Factory-installed only.
** Field upgrade only.

Configuration notes:

  • For factory-installed upgrades, either Standard to Advanced Upgrade (feature AVUT) or Standard to Enterprise Upgrade (feature AUPW) can be selected, but not both.
  • For field upgrades, the Advanced to Enterprise Upgrade (4L47A09133) requires the Standard to Advanced Upgrade to be activated on the server previously with either the factory-installed feature AVUT or field upgrade 4L47A09132.

Lenovo XClarity Provisioning Manager

Lenovo XClarity Provisioning Manager is a UEFI-embedded GUI application that combines the functions of configuring system setup settings, configuring RAID, and updating applications and firmware. It also enables you to install the supported operating systems and associated device drivers, run diagnostics, and collect service data.

Lenovo XClarity Provisioning Manager has the following features:

  • Automatic hardware detection
  • Collecting and viewing system inventory information
  • Configuring UEFI system setup settings
  • Updating the system firmware
  • Configuring RAID by using the RAID Setup Wizard or Advanced mode
  • Installing an operating system and device drivers automatically or manually
  • Running diagnostics and collecting service data

Lenovo XClarity Essentials

Lenovo offers the following XClarity Essentials software tools that can help you set up, use, and maintain the server at no additional cost:

  • Lenovo XClarity Essentials OneCLI

    OneCLI is a collection of server management tools that utilize a command line interface program to manage firmware, hardware, and operating systems. It provides functions to collect full system health information (including health status), configure system setting, and update system firmware and drivers.

  • Lenovo XClarity Essentials UpdateXpress

    The UpdateXpress tool is a standalone GUI application for firmware and device driver updates that enables you to maintain your server firmware and device drivers up-to-date and help you avoid unnecessary server outages. The tool acquires and deploys individual updates and UpdateXpress System Packs (UXSPs) which are integration-tested bundles.

  • Lenovo XClarity Essentials Bootable Media Creator

    The Bootable Media Creator (BOMC) tool is used to create bootable media for offline firmware update.

For more information and downloads, visit the Lenovo XClarity Essentials web page:
http://support.lenovo.com/us/en/documents/LNVO-center

Lenovo XClarity Administrator

Lenovo XClarity is a centralized systems management solution that helps administrators deliver infrastructure faster. This solution integrates easily with Lenovo x86 servers, RackSwitch switches, and DS Series storage, providing automated agent-less discovery, monitoring, firmware updates, configuration management, and bare metal deployment of operating systems and hypervisors across multiple servers.

Lenovo XClarity Administrator is an optional software component for the SR530 server which can be downloaded and used at no charge to discover and monitor the SR530 and manage firmware upgrades for them.

If software support is required for Lenovo XClarity Administrator, or Lenovo XClarity Administrator premium features (such as configuration management and operating system deployment) are required, or both, Lenovo XClarity Pro software subscription should be ordered. Lenovo XClarity Pro is licensed on a per managed system basis, that is, each managed Lenovo system requires a license.

The following table lists the geo-specific Lenovo XClarity software license options.

Table 38. Lenovo XClarity software options
Description Part number
(NA, AP, Japan)*		 Part number
(EMEA, LA)**		 Quantity
Lenovo XClarity Pro, per Managed Endpoint w/1 Yr SW S&S 00MT201 00MT207 1
Lenovo XClarity Pro, per Managed Endpoint w/3 Yr SW S&S 00MT202 00MT208 1
Lenovo XClarity Pro, per Managed Endpoint w/5 Yr SW S&S 00MT203 00MT209 1

* NA = North America; AP = Asia Pacific
** EMEA = Europe, Middle East, Africa; LA = Latin America

Lenovo XClarity Administrator offers the following standard features that are available at no charge:

  • Auto-discovery and monitoring of Lenovo x86 servers, RackSwitch switches, Flex System chassis, and DS Series storage systems
  • Firmware updates and compliance enforcement
  • External alerts and notifications via SNMP traps, syslog remote logging, and e-mail
  • Secure connections to managed endpoints
  • NIST 800-131A or FIPS 140-2 compliant cryptographic standards between the management solution and managed endpoints
  • Integration into existing higher level management systems such as cloud automation and orchestration tools through REST APIs, providing extensive external visibility and control over hardware resources
  • An intuitive, easy-to-use GUI
  • Scripting with Windows PowerShell, providing command-line visibility and control over hardware resources

Lenovo XClarity Administrator offers the following premium features that require an optional Pro license:

  • Pattern-based configuration management that allows to define configurations once and apply repeatedly without errors when deploying new servers or redeploying existing servers without disrupting the fabric
  • Bare-metal deployment of operating systems and hypervisors to streamline infrastructure provisioning

For more information, refer to the Lenovo XClarity Administrator Product Guide:
http://lenovopress.com/tips1200

Lenovo XClarity Integrators

Lenovo offers at no charge (if software support is required, a Lenovo XClarity Pro software subscription license should be ordered) two software plug-in modules, Lenovo XClarity Integrators, to manage physical infrastructure from leading external virtualization management software tools from Microsoft and VMware:

  • Lenovo XClarity Integrator for Microsoft System Center
  • Lenovo XClarity Integrator for VMware vCenter

Lenovo XClarity Integrators offer the following additional features:

  • Ability to discover, manage, and monitor Lenovo server hardware from VMware vCenter or Microsoft System Center
  • Deployment of firmware updates and configuration patterns to Lenovo x86 rack servers and Flex System from the virtualization management tool
  • Non-disruptive server maintenance in clustered environments that reduces workload downtime by dynamically migrating workloads from affected hosts during rolling server updates or reboots
  • Greater service level uptime and assurance in clustered environments during unplanned hardware events by dynamically triggering workload migration from impacted hosts when impending hardware failures are predicted

For more information, refer to the Lenovo XClarity Integrators web page:
http://www3.lenovo.com/us/en/data-center/software/systems-management/xclarity-integrators

Lenovo XClarity Energy Manager

Lenovo XClarity Energy Manager provides a stand-alone, web-based agent-less power management console that provides real time data and enables you to observe, plan and manage power and cooling for Lenovo servers. Using built-in intelligence, it identifies server power consumption trends and ideal power settings and performs cooling analysis so that you can define and optimize power-saving policies.

Lenovo XClarity Energy Manager offers the following capabilities:

  • Monitors room, row, rack, and device levels in the data center
  • Reports vital server information, such as power, temperature and resource utilization
  • Monitors inlet temperature to locate hot spots, reducing the risk of data or device damage
  • Provides finely-grained controls to limit platform power in compliance with IT policy
  • Generates alerts when a user-defined threshold is reached

Lenovo XClarity Energy Manager is an optional software component for the SR530 server that is licensed on a per managed node basis, that is, each managed server requires a license. The 1-node Energy Manager license is included in the XClarity Controller Enterprise upgrade.

To manage systems without XClarity Controller Enterprise licenses, a node license pack should be purchased. The following table lists the geo-specific Lenovo XClarity Energy Manager software license options.

Table 39. Lenovo XClarity Energy Manager software options
Description Part number
(NA, AP, Japan)*		 Part number
(EMEA, LA)**		 Quantity
Lenovo XClarity Energy Manager, 1 Node w/ 1 Yr S&S 01DA225 01DA228 1

* NA = North America; AP = Asia Pacific.
** EMEA = Europe, Middle East, Africa; LA = Latin America.

For more information, refer to the Lenovo XClarity Energy Manager web page:
http://datacentersupport.lenovo.com/us/en/solutions/lnvo-lxem

Lenovo Capacity Planner

Lenovo Capacity Planner is a power consumption evaluation tool that enhances data center planning by enabling IT administrators and pre-sales professionals to understand various power characteristics of racks, servers, and other devices. Capacity Planner can dynamically calculate the power consumption, current, British Thermal Unit (BTU), and volt-ampere (VA) rating at the rack level, improving the planning efficiency for large-scale deployments.

For more information, refer to the Capacity Planner web page:
http://datacentersupport.lenovo.com/us/en/solutions/lnvo-lcp

Security

The SR530 server offers the following security features:

  • Power-on password
  • Administrator's password
  • Secure firmware updates
  • Onboard Trusted Platform Module (TPM) version 1.2 or 2.0 (configurable UEFI system setting)
  • Trusted Cryptographic Module (TCM) (optional; available in PRC only)
  • Nationz Trusted Platform Module v2.0 (optional; available in PRC only)
  • Lockable front bezel (optional)
  • Security Key Lifecycle Manager (SKLM) encryption key management for SEDs - FoD upgrade (optional)
  • Lenovo Business Vantage security software (optional; available in PRC only)

The following table lists the security options that are available for the SR530 server.

Table 40. Security options
Description Part number Feature code Maximum quantity
Lockable front bezel
ThinkSystem 1U Security Bezel 7Z17A02581 AUWR 1
Trusted Cryptographic Module (PRC only)
ThinkSystem Trusted Cryptographic Module None* AVKE 1
Trusted Platform Module (PRC only)
ThinkSystem Nationz Trusted Platform Module v2.0 None* B22N 1
Security Key Lifecycle Manager - FoD (United States, Canada, Asia Pacific, and Japan)
SKLM for System x/ThinkSystem w/SEDs - FoD per Install w/1Yr S&S 00D9998 A5U1 1
SKLM for System x/ThinkSystem w/SEDs - FoD per Install w/3Yr S&S 00D9999 AS6C 1
Security Key Lifecycle Manager - FoD (Latin America, Europe, Middle East, and Africa)
SKLM for System x/ThinkSystem w/SEDs - FoD per Install w/1Yr S&S 00FP648 A5U1 1
SKLM for System x/ThinkSystem w/SEDs - FoD per Install w/3Yr S&S 00FP649 AS6C 1

* Factory-installed only; no field upgrade.

Lenovo Business Vantage is a security software tool suite (available only in PRC) designed to work with the Trusted Cryptographic Module (TCM) adapter for enhanced security, to keep user data safe, and to erase confidential data completely from a hard disk drive.

Lenovo Business Vantage provides the following features:

  • Encrypts files to ensure data safety by using the TCM.
  • Erases confidential data from a hard disk.
  • Prohibits unauthorized access to the USB port of devices.
  • Encrypts files to ensure data security on a USB storage device.

For more information, refer to the Lenovo Business Vantage web page:
http://support.lenovo.com.cn/lenovo/wsi/es/es.html

Rack installation

The following table lists the rack installation options that are available for the SR530 server.

Table 41. Rack installation options
Description Part number Feature code Maximum quantity
4-post rail kits
ThinkSystem Tool-less Slide Rail 7M27A05702 AXCA 1
ThinkSystem Tool-less Slide Rail Kit with 1U CMA 7M27A05701 AXCB 1
ThinkSystem Screw-in Slide Rail 4M17A07274 AXFN 1
ThinkSystem Screw-in Slide Rail Kit with 1U CMA 4M17A07281 B0TE 1
ThinkSystem Tool-less Friction Rail 4M17A07273 AXFM 1
Cable management arm (CMA) upgrade
ThinkSystem 1U CMA Upgrade Kit for Tool-less Slide Rail 7M27A05699 None^ 1*
ThinkSystem 1U CMA Upgrade Kit for Screw-in Slide Rail 4M17A07276 AXFP 1**
Front VGA port
ThinkSystem SR530/SR630 Front VGA Connector (for 3.5" models) None*** AUWU 1
ThinkSystem SR530/SR570/SR630 Front VGA Connector Upgrade Kit (for 2.5" models) 7Z17A02579 AUWW 1

^ Field upgrade only.
* The CMA Upgrade Kit for Tool-less Slide Rail is supported with the Tool-less Slide Rail (7M27A05702) only.
** The CMA Upgrade Kit for Screw-in Slide Rail is supported with the Screw-in Slide Rail (4M17A07274) only.
*** Factory-installed only; no field upgrade.

The following table summarizes the rail kit features and specifications.

Table 42. Rail kit features and specifications summary
Feature Tool-less Slide Rail Screw-in Slide Rail Tool-less Friction Rail
Without CMA With CMA Without CMA With CMA
Part number 7M27A05702 7M27A05701 4M17A07274 4M17A07281 4M17A07273
CMA 7M27A05699 Included 4M17A07276 Included  No support
Rail length 730 mm
(28.74 in.)		 807 mm
(31.8 in.)		 836.8 mm
(32.9 in.)		 836.8 mm
(32.9 in.)		 728.1 mm
(28.7 in.)
Rail type Full-out slide (ball bearing) Full-out slide (ball bearing) Half-out slide (friction)
Tool-less installation Yes No Yes
In-rack server maintenance Yes Yes No
1U PDU support Yes Yes Yes
0U PDU support Limited* Limited* Limited**
Rack type IBM and Lenovo 4-post,
IEC standard-compliant		 IBM and Lenovo 4-post,
IEC standard-compliant		 IBM and Lenovo 4-post,
IEC standard-compliant
Mounting holes Square or round Square, round, or threaded Square or round
Mounting flange thickness 2 mm (0.08 in.) –
3.3 mm (0.13 in.)		 2 mm (0.08 in.) –
3.3 mm (0.13 in.)		 2 mm (0.08 in.) –
3.3 mm (0.13 in.)
Distance between front
and rear mounting flanges^		 609.6 mm (24 in.) –
863.6 mm (34 in.)		 609.6 mm (24 in.) –
812.8 mm (32 in.)		 609.6 mm (24 in.) –
863.6 mm (34 in.)

* If a 0U PDU is used, the rack cabinet must be at least 1100 mm (43.31 in.) deep if no CMA is used, or at least 1200 mm (47.24 in.) deep if a CMA is used.
** If a 0U PDU used, the rack must be at least 1000 mm (39.37 in.) deep.
^ Measured when mounted on the rack, from the front surface of the front mounting flange to the rear most point of the rail.

Operating systems

The SR530 server supports the following operating systems:

  • Microsoft:
    • Microsoft Windows Server, version 1803
    • Microsoft Windows Server, version 1709
    • Microsoft Windows Server 2019
    • Microsoft Windows Server 2016
    • Microsoft Windows Server 2012 R2
  • Red Hat:
    • Red Hat Enterprise Linux 8.0
    • Red Hat Enterprise Linux 7.7
    • Red Hat Enterprise Linux 7.6
    • Red Hat Enterprise Linux 7.5
    • Red Hat Enterprise Linux 7.4
    • Red Hat Enterprise Linux 7.3
    • Red Hat Enterprise Linux 6.10
    • Red Hat Enterprise Linux 6.9
  • SUSE:
    • SUSE Linux Enterprise Server 15 SP1
    • SUSE Linux Enterprise Server 15
    • SUSE Linux Enterprise Server 12 SP4
    • SUSE Linux Enterprise Server 12 SP3
    • SUSE Linux Enterprise Server 12 SP2
    • SUSE Linux Enterprise Server 11 for AMD64/EM64T SP4
  • VMware:
    • VMware vSphere 6.7 (ESXi) Update 2
    • VMware vSphere 6.7 (ESXi) Update 1
    • VMware vSphere 6.7 (ESXi)
    • VMware vSphere 6.5 (ESXi) Update 3
    • VMware vSphere 6.5 (ESXi) Update 2
    • VMware vSphere 6.5 (ESXi) Update 1
    • VMware vSphere 6.5 (ESXi)
    • VMware vSphere 6.0 (ESXi) Update 3

Important: The onboard Intel RSTe is not supported by virtualization hypervisors, including VMware vSphere (ESXi), Linux KVM, Xen, and Microsoft Hyper-V.

For the latest information about the specific versions and service levels that are supported and any other prerequisites, see the Operating System Interoperability Guide: http://lenovopress.com/osig.

Physical specifications

The SR530 server has the following dimensions and weight (approximate):

  • Height: 43 mm (1.7 in)
  • Width: 434 mm (17.1 in)
  • Depth: 715 mm (28.1 in)
  • Weight:
    • Minimum configuration: 10.2 kg (22.5 lb)
    • Maximum configuration: 16.0 kg (35.3 lb)

Operating environment

The SR530 server complies with ASHRAE class A2 specifications. The server performance might be impacted when the operating temperature is outside the ASHRAE A2 specifications. Depending on the hardware configuration, some server models comply with ASHRAE class A3 and class A4 specifications. To comply with ASHRAE class A3 and class A4 specifications, the server models must meet the following hardware configuration requirements at the same time:

  • Two power supplies must be installed
  • No system fan fails

The SR530 server is supported in the following environment:

  • Air temperature:
    • Operating:
      • ASHRAE Class A4: 5 °C - 45 °C (41 °F - 113 °F); for altitudes above 900 m (2,953 ft), decrease the maximum ambient temperature by 1 °C for every 125-m (410-ft) increase in altitude
      • ASHRAE Class A3: 5 °C - 40 °C (41 °F - 104 °F); for altitudes above 900 m (2,953 ft), decrease the maximum ambient temperature by 1 °C for every 175-m (574-ft) increase in altitude
      • ASHRAE Class A2: 10 °C - 35 °C (50 °F - 95 °F); for altitudes above 900 m (2,953 ft), decrease the maximum ambient temperature by 1 °C for every 300-m (984-ft) increase in altitude
    • Non-operating: 5 °C - 45 °C (41 °F - 113 °F)
    • Storage: -40 °C - +60 °C (-40 °F - 140 °F)
  • Maximum altitude: 3,050 m (10,000 ft)
  • Humidity:
    • Operating:
      • ASHRAE Class A4: 8% - 90% (non-condensing); maximum dew point: 24 °C (75 °F)
      • ASHRAE Class A3: 8% - 85% (non-condensing); maximum dew point: 24 °C (75 °F)
      • ASHRAE Class A2: 8% - 80% (non-condensing); maximum dew point: 21 °C (70 °F)
    • Storage: 8% - 90% (non-condensing)
  • Electrical:
    • 100 - 127 (nominal) V AC; 50 Hz / 60 Hz
    • 200 - 240 (nominal) V AC; 50 Hz / 60 Hz
    • 180 - 300 V DC (HVDC; supported in PRC only)
  • Acoustics:
    • Minimum configuration:
      • Operating: 5.0 bels
      • Idle: 4.5 bels
    • Maximum configuration:
      • Operating: 5.5 bels
      • Idle: 5.2 bels
  • Vibration:
    • Operating: 0.21 G rms at 5 Hz to 500 Hz for 15 minutes across 3 axes
    • Non-operating: 1.04 G rms at 2 Hz to 200 Hz for 15 minutes across 6 surfaces
  • Shock:
    • Operating: 15 G for 3 milliseconds in each direction (positive and negative X, Y, and Z axes)
    • Non-operating:
      • 12 kg - 22 kg: 50 G for 152 in./sec velocity change across 6 surfaces
      • 23 kg - 31 kg: 35 G for 152 in./sec velocity change across 6 surfaces

The following table lists the maximum system power load, rated inlet current, and system heat output based on the power supply and source voltage.

Table 43. Rated system power, inlet current, and system heat output
Power supply Source voltage Maximum power
load per system
(two power supplies)		 Rated current
per inlet		 System
heat output
550 W Platinum 100 - 127 V AC 722 W 6.2 A 2463 BTU/hour
200 - 240 V AC 704 W 3 A 2402 BTU/hour
180 - 300 V DC 702 W 2.5 A 2395 BTU/hour
750 W Platinum 100 - 127 V AC 984 W 8.4 A 3357 BTU/hour
200 - 240 V AC 958 W 4.1 A 3269 BTU/hour
180 - 300 V DC 958 W 3.5 A 3269 BTU/hour
750 W Titanium 200 - 240 V AC 949 W 4.1 A 3238 BTU/hour
180 - 300 V DC 948 W 3.5 A 3235 BTU/hour

Warranty and support

The SR530 server has a one-year (7X07) or three-year (Machine Type 7X08) customer-replaceable unit (CRU) and onsite limited (for field-replaceable units [FRUs] only) warranty with standard call center support during normal business hours and 9x5 Next Business Day Parts Delivered.

Lenovo’s additional support services provide a sophisticated, unified support structure for a customer's data center, with an experience consistently ranked number one in customer satisfaction worldwide.

The following Lenovo support services are available:

  • Premier Support provides a Lenovo-owned customer experience and delivers direct access to technicians skilled in hardware, software, and advanced troubleshooting, in addition to the following capabilities:
    • Direct technician-to-technician access through a dedicated phone line.
    • 24x7x365 remote support.
    • Single point of contact service.
    • End to end case management.
    • 3rd Party collaborative software support.
    • Online case tools and live chat support.
    • On-demand remote system analysis.
  • Warranty Upgrades (Preconfigured Support) are available to meet the on-site response time targets that match the criticality of customer's systems:
    • 3, 4, or 5 years of service coverage.
    • 1-year or 2-year post-warranty extensions.
    • Foundation Service: 9x5 service coverage with next business day onsite response, with optional YourDrive YourData.
    • Essential Service: 24x7 service coverage with 4-hour onsite response or 24-hour committed repair (available only in select regions), bundled with YourDrive YourData.
    • Advanced Service: 24x7 service coverage with 2-hour onsite response or 6-hour committed repair (available only in select regions), bundled with YourDrive YourData.
  • Managed Services

    Lenovo Managed Services provide continuous 24x7 remote monitoring (plus 24x7 call center availability) and proactive management of a customer's data center using state of the art tools, systems, and practices by a team of highly skilled and experienced Lenovo services professionals.

    Quarterly reviews check error logs, verify firmware and operating system device driver levels, and software as needed. Lenovo will also maintain records of latest patches, critical updates, and firmware levels, to ensure customer's systems are providing business value through optimized performance.

  • Technical Account Management (TAM)

    A Lenovo Technical Account Manager helps customers optimize operations of their data centers based on a deep understanding of customer's business. Customers gain direct access to a Lenovo TAM, who serves as their single point of contact to expedite service requests, provide status updates, and furnish reports to track incidents over time. Also, a TAM helps proactively make service recommendations and manage service relationship with Lenovo to make certain that customer's needs are met.

  • Enterprise Software Support

    Lenovo Enterprise Software Support is an additional support service that provides customers with software support on Microsoft, Red Hat, SUSE, and VMWare applications and systems. Around the clock availability for critical problems plus unlimited calls and incidents helps customers address challenges fast, without incremental costs. Support staff can answer troubleshooting and diagnostic questions, address product compatibility and interoperability issues, isolate causes of problems, report defects to software vendors, and more.

  • YourDrive YourData

    Lenovo’s YourDrive YourData service is a multi-drive retention offering that ensures that customer's data is always under their control, regardless of the number of drives that are installed in their Lenovo server. In the unlikely event of a drive failure, customers retain possession of their drive while Lenovo replaces the failed drive part. Customer's data stays safely on customer premises, in their hands. The YourDrive YourData service can be purchased in convenient bundles with Foundation, Essential, or Advanced Service upgrades and extensions.

  • Health Check

    Having a trusted partner who can perform regular and detailed health checks is central to maintaining efficiency and ensuring that customer systems and business are always running at their best. Health Check supports Lenovo-branded server, storage, and networking devices, as well as select Lenovo-supported products from other vendors that are sold by Lenovo or a Lenovo-Authorized Reseller.

Some regions might have different warranty terms and conditions than the standard warranty. This is due to local business practices or laws in the specific region. Local service teams can assist in explaining region-specific terms when needed. Examples of region-specific warranty terms are second or longer business day parts delivery or parts-only base warranty.

If warranty terms and conditions include onsite labor for repair or replacement of parts, Lenovo will dispatch a service technician to the customer site to perform the replacement. Onsite labor under base warranty is limited to labor for replacement of parts that have been determined to be field-replaceable units (FRUs). Parts that are determined to be customer-replaceable units (CRUs) do not include onsite labor under base warranty.

If warranty terms include parts-only base warranty, Lenovo is responsible for delivering only replacement parts that are under base warranty (including FRUs) that will be sent to a requested location for self-service. Parts-only service does not include a service technician being dispatched onsite. Parts must be changed at customer’s own cost and labor and defective parts must be returned following the instructions supplied with the spare parts.

Lenovo support services are region-specific. Not all support services are available in every region. For information about Lenovo support services that are available in a specific region, refer to the following resources:

For service definitions, region-specific details, and service limitations, refer to the following documents:

Services

Lenovo Services is a dedicated partner to customer success. Lenovo's goal for customers is to reduce capital outlays, mitigate IT risks, and accelerate time to productivity.

Here is a more in-depth look at what Lenovo can do for their customers:

  • Asset Recovery Services

    Asset Recovery Services (ARS) helps customers recover the maximum value from their end-of-life equipment in a cost-effective and secure way. On top of simplifying the transition from old to new equipment, ARS mitigates environmental and data security risks associated with data center equipment disposal. Lenovo ARS is a cash-back solution for equipment based on its remaining market value, yielding maximum value from aging assets and lowering total cost of ownership for customers.

  • Assessment Services

    An assessment helps solve customer IT challenges through an onsite, multi-day session with a Lenovo technology expert. Lenovo performs a tools-based assessment which provides a comprehensive and thorough review of a company's environment and technology systems. In addition to the technology-based functional requirements, the consultant also discusses and records the non-functional business requirements, challenges, and constraints. Assessments help organizations, no matter how large or small, get a better return on their IT investment and overcome challenges in the ever-changing technology landscape.

  • Design Services

    Professional Services consultants perform infrastructure design and implementation planning to support customer's strategy. The high-level architectures provided by the assessment service are turned into low level designs and wiring diagrams, which are reviewed and approved prior to implementation. The implementation plan will demonstrate an outcome-based proposal to provide business capabilities through infrastructure with a risk-mitigated project plan.

  • Basic Hardware Installation

    Lenovo experts can seamlessly manage the physical installation of customer's server, storage, or networking hardware. Working at a time convenient for the customer (business hours or off shift), the technician will unpack and inspect the systems on customer site, install options, mount in a rack cabinet, connect to power and network, check and update firmware to the latest levels, verify operation, and dispose of the packaging, allowing customers to focus on other priorities.

  • Deployment Services

    When investing in new IT infrastructures, customers need to ensure that their business will see quick time to value with little to no disruption. Lenovo deployments are designed by development and engineering teams who know Lenovo products and solutions better than anyone else, and Lenovo technicians own the process from delivery to completion. Lenovo will conduct remote preparation and planning, configure and integrate systems, validate systems, verify and update appliance firmware, train on administrative tasks, and provide post-deployment documentation. Customer’s IT teams leverage Lenovo skills to enable IT staff to transform with higher level roles and tasks.

  • Integration, Migration, and Expansion Services

    Integration, Migration, and Expansion Services allow to move existing physical and virtual workloads easily, or to determine technical requirements to support increased workloads while maximizing performance. These services include tuning, validation, and documenting ongoing run processes, and they leverage migration assessment planning documents to perform necessary migrations.

Some service options may not be available in every region. For more information about Lenovo service offerings that are available in a specific region, contact a local Lenovo sales representative or business partner.

Regulatory compliance

The SR530 server conforms to the following regulations:

  • United States FCC Part 15, Class A
  • Canada ICES-003/NMB-03, Class A
  • UL/CSA 60950-1
  • Mexico NOM-019
  • Argentina IEC60950-1
  • Japan VCCI, Class A
  • Australia/New Zealand AS/NZS CISPR 22, Class A
  • China CCC GB4943.1, GB9254 Class A, GB17625.1
  • Taiwan BSMI CNS13438, Class A; CNS14336-1
  • Korea KN22, Class A; KN24
  • Russia/GOST ME01; IEC-60950-1; GOST R 51318.22, 51318.24, 51317.3.2, and 51317.3.3
  • IEC 60950-1 (CB Certificate and CB Test Report)
  • Europe CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, EN61000-3-3)
  • CISPR 22, Class A
  • Germany TUV-GS (EN60950-1/IEC60950-1, EK1-ITB2000)
  • Reduction of Hazardous Substances (ROHS)
  • Energy Star 2.1

External drive enclosures

The following table lists the 12 Gbps SAS external drive enclosures that are offered by Lenovo that can be used with the SR530 for storage expansion.

Note: Information provided in this section is for ordering reference purposes only. For the operating system and adapter support details, refer to the interoperability matrix for a particular storage enclosure that can be found on the Lenovo Data Center Support web site:
http://datacentersupport.lenovo.com

Table 44. External drive enclosures
Description Part number
Worldwide Japan PRC
Lenovo Storage D1212 LFF Disk Expansion with Dual SAS IO Modules 4587A11 4587A1J 4587A1C
Lenovo Storage D1224 SFF Disk Expansion with Dual SAS IO Modules 4587A31 4587A3J 4587A3C
Lenovo Storage D3284 4TB x 84 HD Expansion Enclosure 641311F
Lenovo Storage D3284 6TB x 84 HD Expansion Enclosure 641312F
Lenovo Storage D3284 8TB x 84 HD Expansion Enclosure 641313F
Lenovo Storage D3284 10TB x 84 HD Expansion Enclosure 641314F

For details about supported drives, adapters, and cables, see the following Lenovo Press Product Guides:

External storage systems

The following table lists the external storage systems that are currently offered by Lenovo that can be used with the SR530 in IT solutions.

Note: Information provided in this section is for ordering reference purposes only. End-to-end storage configuration support must be verified through the interoperability matrix for a particular storage system that can be found on the Lenovo Data Center Support web site:
http://datacentersupport.lenovo.com

Table 45. External storage systems: DE Series
Description Part number
Worldwide Japan
Lenovo ThinkSystem DE Series Storage (SAS connectivity)
Lenovo ThinkSystem DE2000H SAS Hybrid Flash Array LFF 7Y70A000WW 7Y701003JP
Lenovo ThinkSystem DE2000H SAS Hybrid Flash Array SFF 7Y71A000WW 7Y711003JP
Lenovo ThinkSystem DE4000H SAS Hybrid Flash Array 4U60 7Y77A002WW 7Y771000JP
Lenovo ThinkSystem DE4000H SAS Hybrid Flash Array LFF 7Y74A000WW 7Y74A000JP
Lenovo ThinkSystem DE4000H SAS Hybrid Flash Array SFF 7Y75A000WW 7Y75A000JP
Lenovo ThinkSystem DE4000F SAS All Flash Array SFF 7Y76A000WW 7Y76A000JP
Lenovo ThinkSystem DE6000H SAS Hybrid Flash Array 4U60 7Y80A000WW 7Y801002JP
Lenovo ThinkSystem DE6000H SAS Hybrid Flash Array SFF 7Y78A000WW 7Y781002JP
Lenovo ThinkSystem DE6000F SAS All Flash Array SFF 7Y79A000WW 7Y79A000JP
Lenovo ThinkSystem DE Series Storage (iSCSI connectivity)
Lenovo ThinkSystem DE2000H 10GBASE-T Hybrid Flash Array LFF 7Y70A003WW 7Y701001JP
Lenovo ThinkSystem DE2000H 10GBASE-T Hybrid Flash Array SFF 7Y71A002WW 7Y711005JP
Lenovo ThinkSystem DE2000H iSCSI Hybrid Flash Array LFF 7Y70A004WW 7Y701000JP
Lenovo ThinkSystem DE2000H iSCSI Hybrid Flash Array SFF 7Y71A003WW 7Y711006JP
Lenovo ThinkSystem DE4000H iSCSI Hybrid Flash Array 4U60 7Y77A000WW 7Y771002JP
Lenovo ThinkSystem DE4000H iSCSI Hybrid Flash Array LFF 7Y74A002WW 7Y74A002JP
Lenovo ThinkSystem DE4000H iSCSI Hybrid Flash Array SFF 7Y75A001WW 7Y75A001JP
Lenovo ThinkSystem DE4000F iSCSI All Flash Array SFF 7Y76A002WW 7Y76A002JP
Lenovo ThinkSystem DE6000H iSCSI Hybrid Flash Array 4U60 7Y80A002WW 7Y801000JP
Lenovo ThinkSystem DE6000H iSCSI Hybrid Flash Array SFF 7Y78A002WW 7Y781000JP
Lenovo ThinkSystem DE6000F iSCSI All Flash Array SFF 7Y79A002WW 7Y79A002JP
Lenovo ThinkSystem DE Series Storage (FC connectivity)
Lenovo ThinkSystem DE2000H FC Hybrid Flash Array LFF 7Y70A002WW 7Y701002JP
Lenovo ThinkSystem DE2000H FC Hybrid Flash Array SFF 7Y71A001WW 7Y711004JP
Lenovo ThinkSystem DE4000H FC Hybrid Flash Array 4U60 7Y77A001WW 7Y771001JP
Lenovo ThinkSystem DE4000H FC Hybrid Flash Array LFF 7Y74A001WW 7Y74A001JP
Lenovo ThinkSystem DE4000H FC Hybrid Flash Array SFF 7Y75A002WW 7Y75A002JP
Lenovo ThinkSystem DE4000F FC All Flash Array SFF 7Y76A001WW 7Y76A001JP
Lenovo ThinkSystem DE6000H FC Hybrid Flash Array 4U60 7Y80A001WW 7Y801001JP
Lenovo ThinkSystem DE6000H FC Hybrid Flash Array SFF 7Y78A001WW 7Y781001JP
Lenovo ThinkSystem DE6000F FC All Flash Array SFF 7Y79A001WW 7Y79A001JP
Table 46. External storage systems: DM Series
Description Part number
Lenovo ThinkSystem DM Series Storage (iSCSI or FC connectivity)
Lenovo ThinkSystem DM3000H Hybrid Storage Array (2U12 LFF, CTO only) 7Y42CTO1WW
Lenovo ThinkSystem DM3000H 48TB (12x 4TB HDDs) (Universal SFP+) 7Y420001EA*
Lenovo ThinkSystem DM3000H 48TB (12x 4TB HDDs) (10GBASE-T) 7Y420002EA*
Lenovo ThinkSystem DM5000H Hybrid Storage Array (2U24 SFF, CTO only) 7Y57CTO1WW
Lenovo ThinkSystem DM5000H 11.5TB (12x 960GB SSDs) (Universal SFP+) 7Y570001EA*
Lenovo ThinkSystem DM5000H 11.5TB (12x 960GB SSDs) (10GBASE-T) 7Y570002EA*
Lenovo ThinkSystem DM5000H 29TB (24x 1.2TB 10K HDDs) (Universal SFP+) 7Y570003EA*
Lenovo ThinkSystem DM5000H 29TB (24x 1.2TB 10K HDDs) (10GBASE-T) 7Y570004EA*
Lenovo ThinkSystem DM5000F Flash Storage Array (2U24 SFF, CTO only) 7Y41CTO1WW
Lenovo ThinkSystem DM7000H Hybrid Storage Array (3U, CTO only) 7Y56CTO1WW
Lenovo ThinkSystem DM7000F Flash Storage Array (3U, CTO only) 7Y40CTO1WW

* Available only in EMEA.

For more information, see the list of Product Guides in the Lenovo Storage category:
http://lenovopress.com/storage/san/lenovo#rt=product-guide

External backup units

The following table lists the external backup options that are offered by Lenovo that can be used with the ThinkSystem SR530 for backup solutions.

Note: Information provided in this section is for ordering reference purposes only. End-to-end LTO Ultrium configuration support for a particular tape backup unit must be verified through the System Storage Interoperation Center (SSIC):
http://www.ibm.com/systems/support/storage/ssic

Table 47. External backup options
Description Part number
External RDX USB drives
ThinkSystem RDX External USB 3.0 Dock 4T27A10725
External SAS tape backup drives
IBM TS2260 Tape Drive Model H6S 6160S6E
IBM TS2270 Tape Drive Model H7S 6160S7E
IBM TS2280 Tape Drive Model H8S 6160S8E
External SAS tape backup autoloaders
IBM TS2900 Tape Autoloader w/LTO6 HH SAS 6171S6R
IBM TS2900 Tape Autoloader w/LTO7 HH SAS 6171S7R
IBM TS2900 Tape Autoloader w/LTO8 HH SAS 6171S8R
External tape backup libraries
IBM TS4300 3U Tape Library-Base Unit 6741A1F
SAS backup drives for TS4300 Tape Library
LTO 6 HH SAS Drive 01KP934
LTO 7 HH SAS Drive 01KP937
LTO 8 HH SAS Drive 01KP953
Fibre Channel backup drives for TS4300 Tape Library
LTO 6 FH Fibre Channel Drive 01KP935
LTO 6 HH Fibre Channel Drive 01KP933
LTO 7 FH Fibre Channel Drive 01KP938
LTO 7 HH Fibre Channel Drive 01KP936
LTO 8 FH Fibre Channel Drive 01KP954
LTO 8 HH Fibre Channel Drive 01KP952

For more information, see the list of Product Guides in the Backup units category:
http://lenovopress.com/servers/options/backup#rt=product-guide

Ethernet LAN switches

The following table lists the Ethernet LAN switches that are offered by Lenovo that can be used with the ThinkSystem SR530 for network connectivity.

Table 48. Ethernet LAN switches
Description Part number
1 Gb Ethernet switches
Lenovo ThinkSystem NE0152T RackSwitch (Rear to Front) 7Y810011WW
Lenovo ThinkSystem NE0152TO RackSwitch (Rear to Front, ONIE) 7Z320O11WW
Lenovo RackSwitch G7028 (Rear to Front) 7159BAX
Lenovo RackSwitch G7052 (Rear to Front) 7159CAX
Lenovo CE0128TB Switch (3-Year Warranty) 7Z340011WW
Lenovo CE0128TB Switch (Limited Lifetime Warranty) 7Z360011WW
Lenovo CE0128PB Switch (3-Year Warranty) 7Z340012WW
Lenovo CE0128PB Switch (Limited Lifetime Warranty) 7Z360012WW
Lenovo CE0152TB Switch (3-Year Warranty) 7Z350021WW
Lenovo CE0152TB Switch (Limited Lifetime Warranty) 7Z370021WW
Lenovo CE0152PB Switch (3-Year Warranty) 7Z350022WW
Lenovo CE0152PB Switch (Limited Lifetime Warranty) 7Z370022WW
10 Gb Ethernet switches
Lenovo ThinkSystem NE1032 RackSwitch (Rear to Front) 7159A1X
Lenovo ThinkSystem NE1032T RackSwitch (Rear to Front) 7159B1X
Lenovo ThinkSystem NE1072T RackSwitch (Rear to Front) 7159C1X
Lenovo RackSwitch G8272 (Rear to Front) 7159CRW
25 Gb Ethernet switches
Lenovo ThinkSystem NE2572 RackSwitch (Rear to Front) 7159E1X
Lenovo ThinkSystem NE2572O RackSwitch (Rear to Front, ONIE) 7Z210O21WW
100 Gb Ethernet switches
Lenovo ThinkSystem NE10032 RackSwitch (Rear to Front) 7159D1X
Lenovo ThinkSystem NE10032O RackSwitch (Rear to Front, ONIE) 7Z210O11WW

For more information, see the list of Product Guides in the Top-of-rack Switches category:
http://lenovopress.com/servers/options/switches#rt=product-guide

Fibre Channel SAN switches

The following table lists currently available Fibre Channel SAN switches that are offered by Lenovo that can be used with the ThinkSystem SR530 for external FC SAN storage connectivity.

Table 49. Fibre Channel SAN switches
Description Part number
8 Gb FC
Lenovo B300, 8 ports licensed, 8x 8Gb SWL SFPs, 1 PS, Rail Kit, 3Yr FW 3873AR3
Lenovo B300, E_Port License, 8 ports licensed, 8x 8Gb SWL SFPs, 1 PS, Rail Kit, 1Yr FW 3873AR6
16 Gb FC
Lenovo ThinkSystem DB610S, 8 ports licensed, 8x 16Gb SWL SFPs, 1 PS, Rail Kit, 1Yr FW 6559F2A
Lenovo ThinkSystem DB610S, ENT., 24 ports licensed, 24x 16Gb SWL SFPs, 1 PS, Rail Kit, 1Yr FW 6559F1A
Lenovo ThinkSystem DB620S, 24 ports licensed, 24x 16Gb SWL SFPs, 2 PS, Rail Kit, 1Yr FW 6415J1A
Lenovo B6505, 12 ports licensed, 12x 16Gb SWL SFPs, 1 PS, Rail Kit, 1Yr FW 3873ER1
Lenovo B6510, 24 ports licensed, 24x 16Gb SWL SFPs, 2 PS, Rail Kit, 1Yr FW 3873IR1
Lenovo B6510, 24 ports licensed, 24x 16Gb SWL SFPs, 2 PS, Rail Kit, 3Yr FW 3873BR3
32 Gb FC
Lenovo ThinkSystem DB610S, 8 ports licensed, No SFPs, 1 PS, Rail Kit, 1Yr FW 6559F3A
Lenovo ThinkSystem DB610S, 8 ports licensed, No SFPs, 1 PS, Rail Kit, 3Yr FW 6559D3Y
Lenovo ThinkSystem DB620S, 24 ports licensed, No SFPs, 2 PS, Rail Kit, 1Yr FW 6415G3A
Lenovo ThinkSystem DB620S, 24 ports licensed, 24x 32Gb SWL SFPs, 2 PS, Rail Kit, 1Yr FW 6415H11
Lenovo ThinkSystem DB620S, ENT., 48 ports licensed, 48x 32Gb SWL SFPs, 2 PS, Rail Kit, 1Yr FW 6415H2A
Lenovo ThinkSystem DB630S, 48 ports licensed, No SFPs, 2 PS, Rail Kit, 1Yr FW 7D1SA001WW
Lenovo ThinkSystem DB630S, 48 ports licensed, 48x 32Gb SWL SFPs, 2 PS, Rail Kit, 1Yr FW 7D1SA002WW
Lenovo ThinkSystem DB630S, ENT., 96 ports licensed, 96x 32Gb SWL SFPs, 2 PS, Rail Kit, 1Yr FW 7D1SA003WW
Lenovo ThinkSystem DB400D 32Gb FC Director, ENT., 4 Blade slots, 8U, 1Yr FW 6684D2A
Lenovo ThinkSystem DB400D 32Gb FC Director, ENT., 4 Blade slots, 8U, 3Yr FW 6684B2A
Lenovo ThinkSystem DB800D 32Gb FC Director, ENT., 8 Blade slots, 14U, 1Yr FW 6682D1A

For more information, see the list of Product Guides in the Rack SAN Switches category:
http://lenovopress.com/storage/switches/rack#rt=product-guide

Rack cabinets

The following table lists the rack cabinets that are currently offered by Lenovo that can be used for mounting the ThinkSystem SR530 and other IT infrastructure building blocks.

Table 50. Rack cabinets
Description Part number
25U S2 Standard Rack (1000 mm deep; 2 sidewall compartments) 93072RX
25U Static S2 Standard Rack (1000 mm deep; 2 sidewall compartments) 93072PX
42U S2 Standard Rack (1000 mm deep; 6 sidewall compartments) 93074RX
42U 1100mm Enterprise V2 Dynamic Rack (6 sidewall compartments) 93634PX
42U 1100mm Enterprise V2 Dynamic Expansion Rack (6 sidewall compartments) 93634EX
42U 1200mm Deep Dynamic Rack (6 sidewall compartments) 93604PX
42U 1200mm Deep Static Rack (6 sidewall compartments) 93614PX
42U Enterprise Rack (1105 mm deep; 4 sidewall compartments) 93084PX
42U Enterprise Expansion Rack (1105 mm deep; 4 sidewall compartments) 93084EX

For more information, see the list of Product Guides in the Rack cabinets category:
http://lenovopress.com/servers/options/racks#rt=product-guide

KVM switches and consoles

The following table lists the KVM switches and consoles that are offered by Lenovo that can be used for providing console access to the ThinkSystem SR530.

Table 51. KVM switch and console options
Description Part number
Consoles
1U 18.5" Standard Console (without keyboard) 17238BX
Console keyboards
ThinkSystem Keyboard w/ Int. Pointing Device USB - Arabic 253 RoHS v2 7ZB7A05469
ThinkSystem Keyboard w/ Int. Pointing Device USB - Belg/UK 120 RoHS v2 7ZB7A05468
ThinkSystem Keyboard w/ Int. Pointing Device USB - Czech 489 RoHS v2 7ZB7A05206
ThinkSystem Keyboard w/ Int. Pointing Device USB - Danish 159 RoHS v2 7ZB7A05207
ThinkSystem Keyboard w/ Int. Pointing Device USB - Dutch 143 RoHS v2 7ZB7A05208
ThinkSystem Keyboard w/ Int. Pointing Device USB - Fr/Canada 445 RoHS v2 7ZB7A05210
ThinkSystem Keyboard w/ Int. Pointing Device USB - French 189 RoHS v2 7ZB7A05209
ThinkSystem Keyboard w/ Int. Pointing Device USB - German 129 RoHS v2 7ZB7A05211
ThinkSystem Keyboard w/ Int. Pointing Device USB - Greek 219 RoHS v2 7ZB7A05212
ThinkSystem Keyboard w/ Int. Pointing Device USB - Hebrew 212 RoHS v2 7ZB7A05213
ThinkSystem Keyboard w/ Int. Pointing Device USB - Hungarian 208 RoHS v2 7ZB7A05214
ThinkSystem Keyboard w/ Int. Pointing Device USB - Italian 141 RoHS v2 7ZB7A05215
ThinkSystem Keyboard w/ Int. Pointing Device USB - Japanese 194 RoHS v2 7ZB7A05216
ThinkSystem Keyboard w/ Int. Pointing Device USB - Korean 413 RoHS v2 7ZB7A05217
ThinkSystem Keyboard w/ Int. Pointing Device USB - LA Span 171 RoHS v2 7ZB7A05218
ThinkSystem Keyboard w/ Int. Pointing Device USB - Norwegian 155 RoHS v2 7ZB7A05219
ThinkSystem Keyboard w/ Int. Pointing Device USB - Polish 214 RoHS v2 7ZB7A05220
ThinkSystem Keyboard w/ Int. Pointing Device USB - Portugese 163 RoHS v2 7ZB7A05221
ThinkSystem Keyboard w/ Int. Pointing Device USB - Russian 441 RoHS v2 7ZB7A05222
ThinkSystem Keyboard w/ Int. Pointing Device USB - Slovak 245 RoHS v2 7ZB7A05223
ThinkSystem Keyboard w/ Int. Pointing Device USB - Slovenian 234 RoHS v2 7ZB7A05231
ThinkSystem Keyboard w/ Int. Pointing Device USB - Spanish 172 RoHS v2 7ZB7A05224
ThinkSystem Keyboard w/ Int. Pointing Device USB - Swed/Finn 153 RoHS v2 7ZB7A05225
ThinkSystem Keyboard w/ Int. Pointing Device USB - Swiss F/G 150 RoHS v2 7ZB7A05226
ThinkSystem Keyboard w/ Int. Pointing Device USB - Thai 191 RoHS v2 7ZB7A05227
ThinkSystem Keyboard w/ Int. Pointing Device USB - Trad Chinese/US 467 RoHS v2 7ZB7A05467
ThinkSystem Keyboard w/ Int. Pointing Device USB - Turkish 179 RoHS v2 7ZB7A05228
ThinkSystem Keyboard w/ Int. Pointing Device USB - UK Eng 166 RoHS v2 7ZB7A05229
ThinkSystem Keyboard w/ Int. Pointing Device USB - US Eng 103P RoHS v2 7ZB7A05470
ThinkSystem Keyboard w/ Int. Pointing Device USB - US Euro 103P RoHS v2 7ZB7A05230
Console switches and cables - ThinkSystem Digital KVM
ThinkSystem Digital 2x1x16 KVM Switch (DVI video output port) 1754D1T
ThinkSystem VGA to DVI Conversion Cable 4X97A11108
ThinkSystem Single-USB Conversion Cable for Digital KVM 4X97A11109
ThinkSystem Dual-USB Conversion Cable for Digital KVM 4X97A11107
Console switches and cables - ThinkSystem Analog KVM
ThinkSystem Analog 1x8 KVM Switch (DVI video output port) 1754A1T
ThinkSystem VGA to DVI Conversion Cable 4X97A11108
ThinkSystem USB Conversion Cable for Analog KVM 4X97A11106
Console switches and cables - Global Console Managers
Global 2x2x16 Console Manager (GCM16) (VGA video output port) 1754D1X
Global 4x2x32 Console Manager (GCM32) (VGA video output port) 1754D2X
Virtual Media Conversion Option Gen2 (VCO2) 46M5383
Serial Conversion Option (SCO) 46M5382
Console switches and cables - Local Console Managers
Local 1x8 Console Manager (LCM8) (VGA video output port) 1754A1X
Local 2x16 Console Manager (LCM16) (VGA video output port) 1754A2X
Virtual Media Conversion Option Gen2 (VCO2) 46M5383

For more information, see the list of Product Guides in the KVM Switches and Consoles category:
http://lenovopress.com/servers/options/kvm#rt=product-guide

Power distribution units

The following table lists the power distribution units (PDUs) that are currently offered by Lenovo that can be used for distributing electrical power to the ThinkSystem SR530 and other IT infrastructure building blocks mounted in a rack cabinet.

Table 52. Power distribution units
Description Part number
0U Basic PDUs
0U 36 C13/6 C19 24A/200-240V 1 Phase PDU with NEMA L6-30P line cord 00YJ776
0U 36 C13/6 C19 32A/200-240V 1 Phase PDU with IEC60309 332P6 line cord 00YJ777
0U 21 C13/12 C19 32A/200-240V/346-415V 3 Phase PDU with IEC60309 532P6 line cord 00YJ778
0U 21 C13/12 C19 48A/200-240V 3 Phase PDU with IEC60309 460P9 line cord 00YJ779
Switched and Monitored PDUs
0U 20 C13/4 C19 Switched and Monitored 24A/200-240V/1Ph PDU w/ NEMA L6-30P line cord 00YJ781
0U 20 C13/4 C19 Switched and Monitored 32A/200-240V/1Ph PDU w/ IEC60309 332P6 line cord 00YJ780
0U 18 C13/6 C19 Switched / Monitored 32A/200-240V/346-415V/3Ph PDU w/ IEC60309 532P6 cord 00YJ782
0U 12 C13/12 C19 Switched and Monitored 48A/200-240V/3Ph PDU w/ IEC60309 460P9 line cord 00YJ783
1U 9 C19/3 C13 Switched and Monitored DPI PDU (without line cord) 46M4002
1U 9 C19/3 C13 Switched and Monitored 60A 3Ph PDU with IEC 309 3P+Gnd cord 46M4003
1U 12 C13 Switched and Monitored DPI PDU (without line cord) 46M4004
1U 12 C13 Switched and Monitored 60A 3 Phase PDU with IEC 309 3P+Gnd line cord 46M4005
Ultra Density Enterprise PDUs (9x IEC 320 C13 + 3x IEC 320 C19 outlets)
Ultra Density Enterprise C19/C13 PDU Module (without line cord) 71762NX
Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph with IEC 309 3P+Gnd line cord 71763NU
C13 Enterprise PDUs (12x IEC 320 C13 outlets)
DPI C13 Enterprise PDU+ (without line cord) 39M2816
DPI Single Phase C13 Enterprise PDU (without line cord) 39Y8941
C19 Enterprise PDUs (6x IEC 320 C19 outlets)
DPI Single Phase C19 Enterprise PDU (without line cord) 39Y8948
DPI 60A 3 Phase C19 Enterprise PDU with IEC 309 3P+G (208 V) fixed line cord 39Y8923
Front-end PDUs (3x IEC 320 C19 outlets)
DPI 30amp/125V Front-end PDU with NEMA L5-30P line cord 39Y8938
DPI 30amp/250V Front-end PDU with NEMA L6-30P line cord 39Y8939
DPI 32amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8934
DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8940
DPI 63amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8935
Universal PDUs (7x IEC 320 C13 outlets)
DPI Universal 7 C13 PDU (with 2 m IEC 320-C19 to C20 rack power cord) 00YE443
NEMA PDUs (6x NEMA 5-15R outlets)
DPI 100-127V PDU with fixed NEMA L5-15P line cord 39Y8905
Line cords for PDUs that ship without a line cord
DPI 30a Line Cord (NEMA L6-30P) 40K9614
DPI 32a Line Cord (IEC 309 P+N+G) 40K9612
DPI 32a Line Cord (IEC 309 3P+N+G) 40K9611
DPI 60a Cord (IEC 309 2P+G) 40K9615
DPI 63a Cord (IEC 309 P+N+G) 40K9613
DPI Australian/NZ 3112 Line Cord (32A) 40K9617
DPI Korean 8305 Line Cord (30A) 40K9618

For more information, see the list of Product Guides in the Power infrastructure category:
http://lenovopress.com/servers/options/pdu#rt=product-guide

Uninterruptible power supply units

The following table lists the uninterruptible power supply (UPS) units that are currently offered by Lenovo that can be used for providing electrical power protection to the ThinkSystem SR530 and other IT infrastructure building blocks.

Table 53. Uninterruptible power supply units
Description Part number
Worldwide models
RT1.5kVA 2U Rack or Tower UPS (100-125VAC) (8x NEMA 5-15R 12A outlets) 55941AX
RT1.5kVA 2U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A outlets) 55941KX
RT2.2kVA 2U Rack or Tower UPS (100-125VAC) (8x NEMA 5-20R 16A outlets) 55942AX
RT2.2kVA 2U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 1x IEC 320 C19 16A outlets) 55942KX
RT3kVA 2U Rack or Tower UPS (100-125VAC) (6x NEMA 5-20R 16A, 1x NEMA L5-30R 24A outlets) 55943AX
RT3kVA 2U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 1x IEC 320 C19 16A outlets) 55943KX
RT5kVA 3U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 2x IEC 320 C19 16A outlets) 55945KX
RT6kVA 3U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 2x IEC 320 C19 16A outlets) 55946KX
RT8kVA 6U Rack or Tower UPS (200-240VAC) (4x IEC 320-C19 16A outlets) 55948KX
RT11kVA 6U Rack or Tower UPS (200-240VAC) (4x IEC 320-C19 16A outlets) 55949KX
RT8kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) (4x IEC 320-C19 16A outlets) 55948PX
RT11kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) (4x IEC 320-C19 16A outlets) 55949PX
ASEAN, HTK, INDIA, and PRC models
ThinkSystem RT3kVA 2U Standard UPS (200-230VAC) (2x C13 10A, 2x GB 10A, 1x C19 16A outlets) 55943KT
ThinkSystem RT3kVA 2U Long Backup UPS (200-230VAC) (2x C13 10A, 2x GB 10A, 1x C19 16A outlets) 55943LT
ThinkSystem RT6kVA 5U UPS (200-230VAC) (2x C13 10A outlets, 1x Terminal Block output) 55946KT
ThinkSystem RT10kVA 5U UPS (200-230VAC) (2x C13 10A outlets, 1x Terminal Block output) 5594XKT

For more information, see the list of Product Guides in the Uninterruptible Power Supply Units category:
http://lenovopress.com/servers/options/ups#rt=product-guide

Lenovo Financial Services

Lenovo Financial Services reinforces Lenovo’s commitment to deliver pioneering products and services that are recognized for their quality, excellence, and trustworthiness. Lenovo Financial Services offers financing solutions and services that complement your technology solution anywhere in the world.

We are dedicated to delivering a positive finance experience for customers like you who want to maximize your purchase power by obtaining the technology you need today, protect against technology obsolescence, and preserve your capital for other uses.

We work with businesses, non-profit organizations, governments and educational institutions to finance their entire technology solution. We focus on making it easy to do business with us. Our highly experienced team of finance professionals operates in a work culture that emphasizes the importance of providing outstanding customer service. Our systems, processes and flexible policies support our goal of providing customers with a positive experience.

We finance your entire solution. Unlike others, we allow you to bundle everything you need from hardware and software to service contracts, installation costs, training fees, and sales tax. If you decide weeks or months later to add to your solution, we can consolidate everything into a single invoice.

Our Premier Client services provide large accounts with special handling services to ensure these complex transactions are serviced properly. As a premier client, you have a dedicated finance specialist who manages your account through its life, from first invoice through asset return or purchase. This specialist develops an in-depth understanding of your invoice and payment requirements. For you, this dedication provides a high-quality, easy, and positive financing experience.

For your region specific offers please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website:
http://www.lenovo.com/us/en/landingpage/lenovo-financial-services

Related product families

Product families related to this document are the following:

Thuộc tính sản phẩm
Processor Silver
Nhận xét của bạn
  • Only registered users can write reviews
*
*
  • Tệ
  • Xuất sắc
Thông tin
Dịch vụ khách hàng

CÔNG TY TNHH PHÂN PHỐI MÁY CHỦ

Trụ sở chính

  • Viettel Tower, 285 Cách Mạng Tháng Tám, Phường 12, Quận 10, TP. Hồ Chí Minh
  • Điện Thoại: (028) 7300 4493

Chi nhánh Hà Nội

  • Toà nhà CharmVit Tower, 117 Trần Duy Hưng, Cầu Giấy, Hà Nội
  • Điện Thoại: (024) 7300 4493
  • Email: sales@phanphoimaychu.vn
Copyright © 2025 Phân phối máy chủ. All rights reserved.
