Lenovo ThinkSystem SR650 LFF Gold 6230

  • 1 x Intel Xeon Gold 6230 20C 125W 2.1GHz Processor
  • ThinkSystem 128GB (4 x 32GB) TruDDR4 2933MHz (2Rx4 1.2V) RDIMM
  • Hard Drive : None (3.5")
  • ThinkSystem RAID 930-8i 2GB Flash PCIe 12Gb Adapter
  • ThinkSystem 1Gb 4-port RJ45 LOM
  • 1x RJ-45 10/100/1000 Mb Ethernet systems management port
  • I/O slots: Up to 7 slots. Slots 4 and 7 are the fixed slots on the system planar
  • Management: XClarity Controller (XCC) Standard, Advanced
  • 8x 8.5" SAS/SATA hot-swap drive (8/8)
  • ThinkSystem 750W Platinum Hot-Swap Power Supply (2/2)
  • Form factor: 2U rack-mount, Toolless Slide Rail
  • Warranty: 3 Year Onsite Repair 24x7 4 Hour Response
Nhà sản xuất: Lenovo
Gọi để biết giá

Abstract

Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.

This product guide provides essential technical and pre-sales information on the SR650 server, its key features and specifications, components and options, and configuration guidelines.

This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 server and consider its use in IT solutions.

Note: This product guide describes SR650 server models with the second generation of the Intel Xeon Processor Scalable Family (Xeon SP Gen 2). For SR650 server models with the first generation of the Intel Xeon Processor Scalable Family (Xeon SP Gen 1), refer to the following Lenovo Press product guide:

Change History

Changes in the March 10 update:

  • Updated Drives for internal storage:
    • Added ThinkSystem 2.5" PM1643a 15.36TB Entry SAS 12Gb Hot Swap SSD
    • Added ThinkSystem U.2 CM5-R 3.84TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD SED
    • Marked withdrawn drives
  • Updated Rack cabinets: Added 12U and 18U 1200mm Deep Micro Datacenter Racks

Introduction



Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.

Featuring the second generation of Intel Xeon Processor Scalable Family (Xeon SP Gen 2), the SR650 server offers scalable performance, storage capacity, and I/O expansion. The SR650 server supports up to two processors, up to 2933 MHz memory speed, up to 3 TB of memory capacity with TruDDR4 DIMMs or up to 7.5 TB of memory capacity with a combination of TruDDR4 DIMMs and Intel DC persistent memory modules (DCPMMs), up to 24x 2.5-inch or 14x 3.5-inch drive bays with an extensive choice of NVMe PCIe SSDs, SAS/SATA SSDs, and SAS/SATA HDDs, and flexible I/O expansion options with a LOM slot, a dedicated storage controller slot, and up to 6x PCIe expansion slots.

The SR650 server offers basic or advanced hardware RAID protection and a wide range of networking options, including selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo XClarity Controller, which is built into the SR650 server, provides advanced service processor control, monitoring, and alerting functions.

The following figure shows the ThinkSystem SR650.

Lenovo ThinkSystem SR650
Figure 1. Lenovo ThinkSystem SR650

Did you know?

The SR650 server features an AnyBay design that allows a choice of drive interface types in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives.

The SR650 server offers onboard NVMe PCIe ports that allow direct connections to the U.2 NVMe PCIe SSDs, which frees up I/O slots and helps lower NVMe solution acquisition costs.

The SR650 server delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies that can deliver 96% (Titanium) or 94% (Platinum) efficiency at 50% load when connected to a 200 - 240 V AC power source.

The SR650 server is designed to meet ASHRAE A4 standards (up to 45 °C [113 °F]) in select configurations, which enable customers to lower energy costs, while still maintaining world-class reliability.

The SR650 server delivers outstanding memory performance with Performance+ 2933 MHz DIMMs, which is achieved by supporting two-DIMMs-per-channel configurations at speeds up to 10% faster than the Intel specification defines, while still maintaining world-class reliability.

Key features

Combining performance and flexibility, the SR650 server is a great choice for small and medium businesses up to the large enterprise. It can provide outstanding uptime to keep business-critical applications and cloud deployments running safely. Ease of use and comprehensive systems management tools help make deployment easier. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design improve your business environment and help save operational costs.

Scalability and performance

The SR650 server offers numerous features to boost performance, improve scalability, and reduce costs:

  • Improves productivity by offering superior system performance with the second generation of the Intel Xeon Processor Scalable Family with up to 28-core processors, up to 38.5 MB of last level cache (LLC), up to 2933 MHz memory speeds, and up to 10.4 GT/s Ultra Path Interconnect (UPI) links.
    • Support for up to two processors, 56 cores, and 112 threads allows to maximize the concurrent execution of multithreaded applications.
    • Intelligent and adaptive system performance with energy efficient Intel Turbo Boost 2.0 Technology allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
    • Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core.
    • Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better utilize the hardware for virtualization workloads.
    • Intel Speed Select Technology provides improvements in server utilization and guaranteed per-core performance service levels with more granular control over processor performance.
    • Intel Deep Learning Boost (Vector Neural Network Instruction set [VNNI]) is designed to deliver significant, more efficient Deep Learning (Inference) acceleration for high-performance Artificial Intelligence (AI) workloads.
    • Intel Advanced Vector Extensions 512 (AVX-512) enable acceleration of enterprise-class and high performance computing (HPC) workloads.
  • Helps maximize system performance for data intensive applications with up to 2933 MHz memory speeds and up to 3 TB of memory capacity with 3DS RDIMMs.
  • Boosts the performance of data-intensive applications and delivers consistent service levels at scale for virtualized and cloud environments by using the innovative persistent memory technology that provides a unique combination of affordable large memory capacity and non-volatility for up to 7.5 TB of total server memory capacity, including 3DS RDIMMs and DCPMMs (DC persistent memory modules).
  • Offers flexible and scalable internal storage in a 2U rack form factor with up to 24x 2.5-inch and 2x 3.5-inch drives for performance-optimized configurations or up to 14x 3.5-inch drives for capacity-optimized configurations, providing a wide selection of SAS/SATA HDD/SSD and PCIe NVMe SSD types and capacities.
  • Provides flexibility to use SAS, SATA, or NVMe PCIe drives in the same drive bays with an AnyBay design.
  • Provides I/O scalability with a LOM slot, PCIe 3.0 slot for an internal storage controller, and up to six PCI Express (PCIe) 3.0 I/O expansion slots in a 2U rack form factor.
  • Reduces I/O latency and increases overall system performance with Intel Integrated I/O Technology that embeds the PCI Express 3.0 controller into the Intel Xeon Processor Scalable Family.

Availability and serviceability

The SR650 server provides many features to simplify serviceability and increase system uptime:

  • Offers protection in the event of a non-correctable memory failure with Single Device Data Correction (SDDC, also known as Chipkill, requires x4-based DIMMs), Adaptive Double Device Data Correction (ADDDC, also known as Redundant Bit Steering [RBS], requires x4-based DIMMs and Intel Xeon Gold or Platinum processors), memory mirroring, and memory rank sparing.
  • Provides easy access to upgrades and serviceable parts (such as processors, memory DIMMs, and adapter cards) with tool-less cover removal.
  • Offers data protection and greater system uptime with hot-swap drives supporting basic or advanced RAID redundancy.
  • Provides availability for business-critical applications with redundant hot-swap power supplies and redundant hot-swap system fans.
  • Simplifies servicing, speeds up problem resolution, and helps improve system availability with light path diagnostics.
  • Allows preventive actions in advance of possible failure, thereby increasing server uptime and application availability with Proactive Platform Alerts (including PFA and SMART alerts) for processors, voltage regulators, memory, internal storage (SAS/SATA HDDs and SSDs, NVMe SSDs, M.2 storage, flash storage adapters), fans, power supplies, RAID controllers, and server ambient and sub-component temperatures.
  • Continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failure to minimize downtime with Built-in XClarity Controller (XCC).
  • Provides quick access to system status, firmware, network, health, and alerts information via Virtual Operator Panel from the XClarity Mobile App running on the Android or iOS mobile device that is connected to the front USB port with XClarity Controller access.
  • Speeds up troubleshooting tasks to reduce service time with diagnostics built into the XClarity Provisioning Manager.

Manageability and security

Powerful systems management features simplify local and remote management of the SR650 server and deliver enterprise-class data protection:

  • Provides advanced service processor control, monitoring, and alerting functions with XClarity Controller, a next generation service processor.
  • Improves Unified Extensible Firmware Interface (UEFI) system setup, configuration, updates, simplified error handling, and operating system deployment with the embedded XClarity Provisioning Manager.
  • Offers XClarity Essentials software tools that can help you set up, use, and maintain the server.
  • Increases uptime, reduces costs, and improves productivity through advanced server management capabilities with Lenovo XClarity Administrator that provides comprehensive hardware management.
  • Provides on-the-go monitoring and management of devices in XClarity Administrator from anywhere with the Lenovo XClarity mobile app, which can help improve efficiency and reduce downtime risks.
  • Centralizes infrastructure resource management with Lenovo XClarity Integrators for VMware vCenter and Microsoft System Center, extending XClarity Administrator features to virtualization management software tools and enabling users to deploy and manage infrastructure end-to-end.
  • Offers advanced cryptographic functionality (such as digital signatures and remote attestation) with an integrated Trusted Platform Module (TPM) or optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC).
  • Keeps user data safe with Lenovo Business Vantage, a security software tool suite designed to work with the Trusted Cryptographic Module or Nationz TPM (available only in PRC).
  • Offers enterprise-class data protection with advanced RAID and optional self-encrypting drives.
  • Provides faster, stronger encryption with industry-standard AES NI support.
  • Helps prevent certain classes of malicious buffer overflow attacks with Intel Execute Disable Bit functionality, when combined with a supporting operating system.
  • Enhances security through hardware-based resistance to malicious software attacks with Intel Trusted Execution Technology, allowing an application to run in its own isolated space, protected from all other software running on a system.

Energy efficiency

The SR650 server offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to the green environment:

  • Delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies.
  • Enables customers to lower energy costs with design to meet ASHRAE A4 standards in select configurations.
  • Reduces power drawn with Intel Intelligent Power Capability that powers individual processor elements on and off as needed.
  • Helps reduce power consumption with variable speed fans.
  • Helps achieve lower heat output and reduced cooling needs with Lenovo XClarity Energy Manager that provides advanced data center power notification, analysis, and policy-based management.

Components and connectors

The following figure shows the front of the SR650 server with up to 16x 2.5-inch drive bays.

Front view of the SR650: Up to 16x 2.5-inch drive bays
Figure 2. Front view of the SR650: Up to 16x 2.5-inch drive bays

The following figure shows the front of the SR650 server with up to 24x 2.5-inch drive bays.

Front view of the SR650: Up to 24x 2.5-inch drive bays
Figure 3. Front view of the SR650: Up to 24x 2.5-inch drive bays

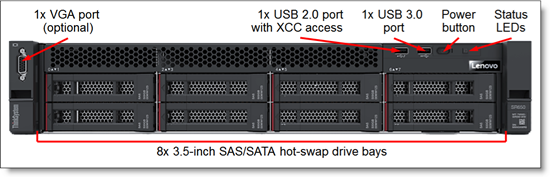

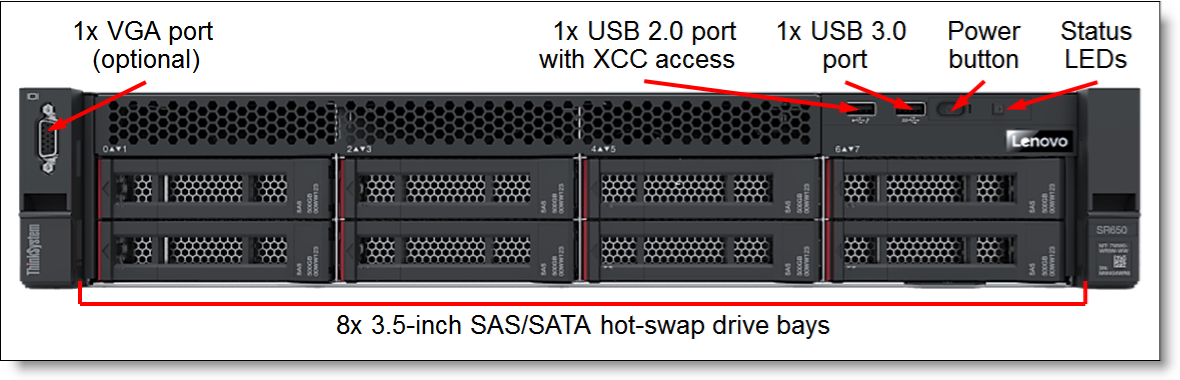

The following figure shows the front of the SR650 server with 8x 3.5-inch drive bays.

Front view of the SR650: 8x 3.5-inch drive bays
Figure 4. Front view of the SR650: 8x 3.5-inch drive bays

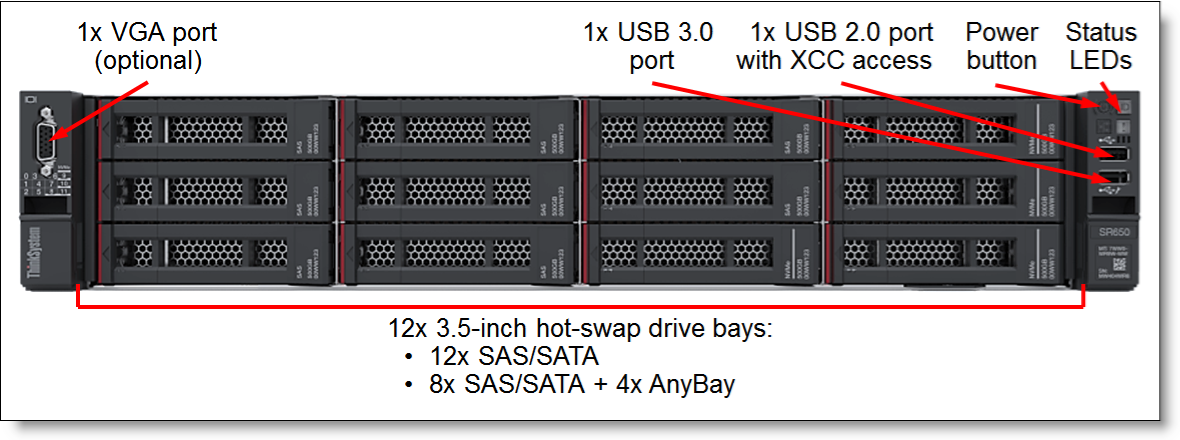

The following figure shows the front of the SR650 server with 12x 3.5-inch drive bays.

Front view of the SR650: 12x 3.5-inch drive bays
Figure 5. Front view of the SR650: 12x 3.5-inch drive bays

The front of the SR650 server includes the following components:

  • Up to 16x 2.5-inch, or 24x 2.5-inch, or 8x 3.5-inch, or 12x 3.5-inch hot-swap drive bays.
  • One VGA port (optional).
  • One USB 3.0 port.
  • One USB 2.0 port with XClarity Controller access.
  • Power button.
  • Status LEDs.

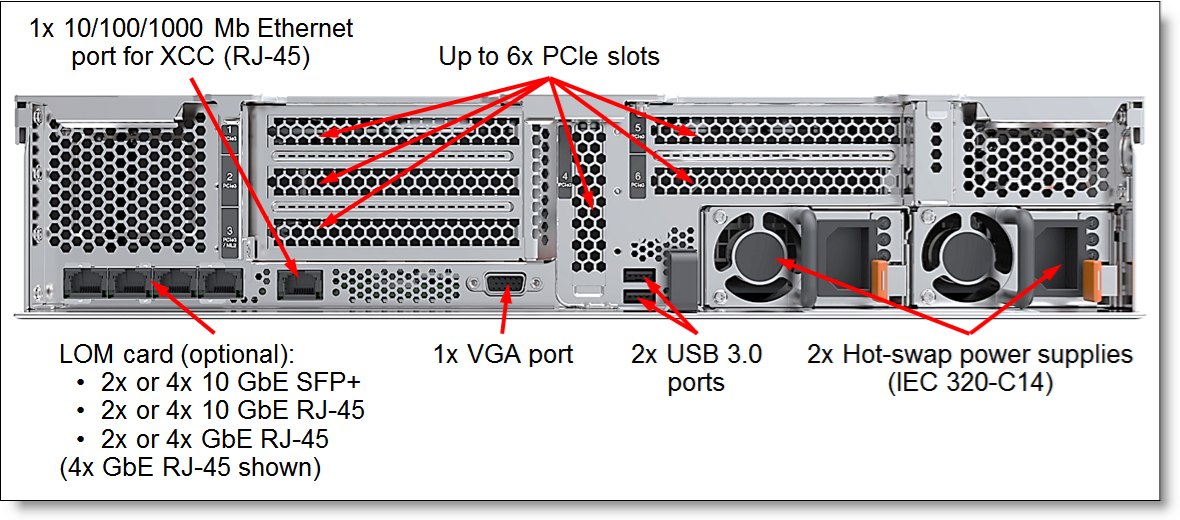

The following figure shows the rear of the SR650 server.

Rear view of the SR650
Figure 6. Rear view of the SR650

The rear of the SR650 server includes the following components:

  • Up to six PCIe expansion slots (depending on the riser cards selected).
  • One LOM card slot.
  • One 1 GbE port for XClarity Controller.
  • One VGA port.
  • Two USB 3.0 ports.
  • Up to two hot-swap power supplies.

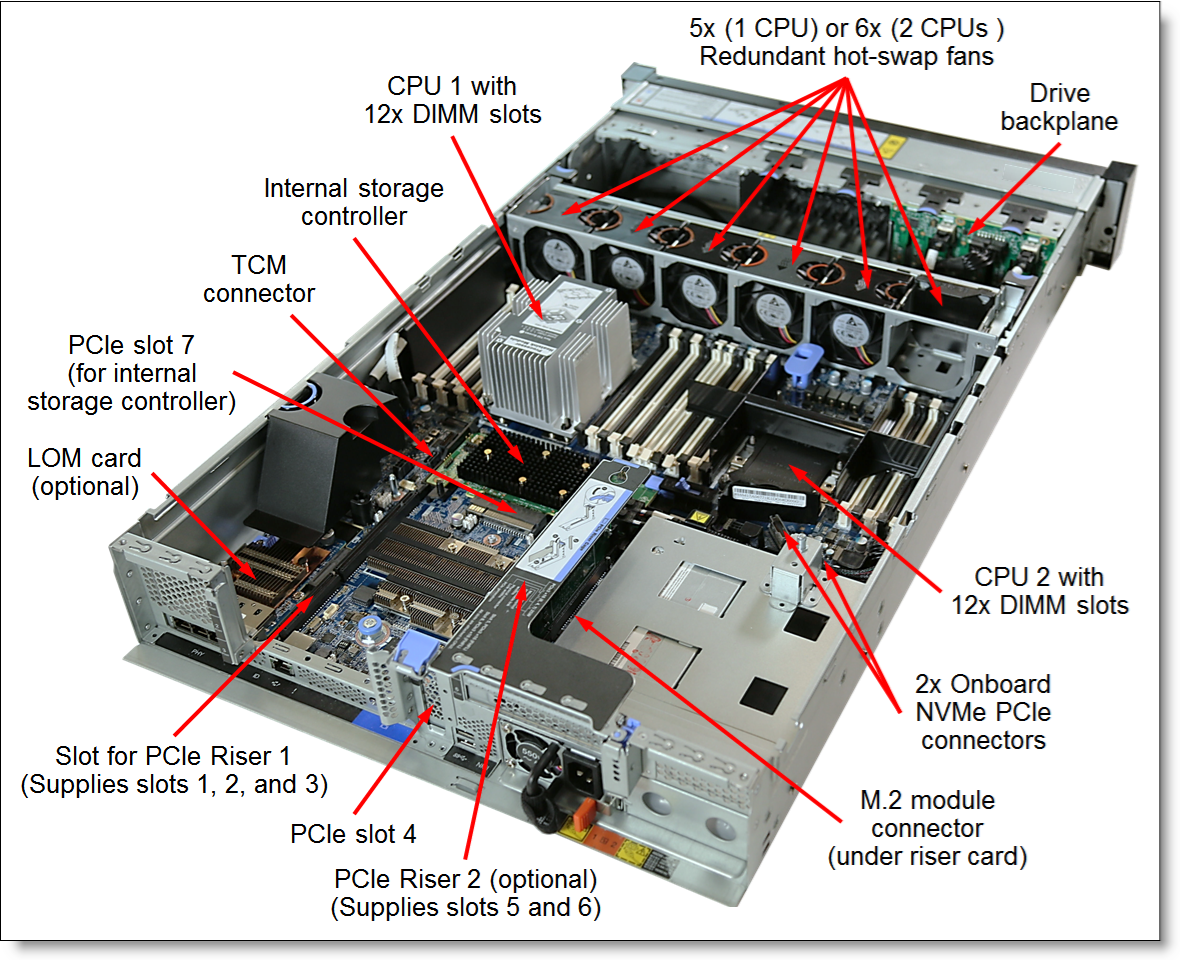

The following figure shows the locations of key components inside the SR650 server.

Internal view of the SR650
Figure 7. Internal view of the SR650

The following key components are located inside the SR650 server:

  • Up to two processors.
  • 24 DIMM slots (12 DIMM slots per processor).
  • Drive backplanes.
  • Two onboard NVMe PCIe connectors.
  • One M.2 module connector.
  • One LOM card connector.
  • Two onboard PCIe slots 4 and 7.
  • Two slots for PCIe riser cards.
  • One TCM connector.
  • Five (one processor) or six (two processors) hot-swap system fans.

System specifications

The following table lists the system specifications for the SR650 server.

Table 1. SR650 system specifications
Attribute Specification
Form factor 2U rack-mount.
Processor Up to two Intel Xeon Gen 2 Bronze, Silver, Gold, or Platinum processors:
  • Up to 28 cores (2.7 GHz core speeds).
  • Up to 3.9 GHz core speeds (8 cores).
  • UPI links up to 10.4 GT/s (2 UPI links used).
  • Up to 38.5 MB cache.
  • Up to 2933 MHz memory speed.
Chipset Intel C624.
Memory 24 DIMM slots (12 DIMMs per processor; six memory channels per processor with two DIMMs per channel) with support for the following DIMM types and capacities:
  • TruDDR4 RDIMMs:
    • 16 GB, 32 GB, and 64 GB Performance+ 2933 MHz.
    • 8 GB, 16 GB, 32 GB, and 64 GB 2933 MHz.
    • 16 GB and 32 GB 2666 MHz.
  • TruDDR4 3DS RDIMMs:
    • 128 GB Performance+ 2933 MHz.
    • 128 GB 2933 MHz.
    • 64 GB 2666 MHz.
Note: DIMM types (RDIMMs and 3DS RDIMMs) cannot be intermixed.
Persistent memory Up to 12x 128 GB, 256 GB, or 512 GB TruDDR4 2666 MHz DCPMMs in the DIMM slots.
Memory protection
  • Processor's integrated memory controllers: Error correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing.
  • DCPMM's onboard memory controllers: ECC, SDDC, DDDC, patrol scrubbing, and demand scrubbing.
Note: In the configurations with DCPMMs, memory mirroring is supported only in the App Direct mode (other DCPMM modes do not support memory mirroring) and applies only to the RDIMMs or 3DS RDIMMs (DCPMMs are not mirrored). Memory sparing is not supported in the configurations with DCPMMs.
Memory capacity
  • Memory DIMMs only: Up to 3 TB with up to 24x 128 GB 3DS RDIMMs (Up to 1.5 TB per processor).
  • Memory DIMMs and persistent memory modules:
    • App Direct Mode: Up to 7.5 TB with up to 12x 128 GB 3DS RDIMMs and up to 12x 512 GB DCPMMs (Up to 3.75 TB per processor).
    • Memory Mode: Up to 6 TB with up to 12x 512 GB DCPMMs (Up to 3 TB per processor).
Note: Server configurations with more than 1 TB of memory capacity per socket (including DCPMMs and RDIMMs or 3DS RDIMMs) require processors that support up to 2 TB (M-suffix) or 4.5 TB (L-suffix) per socket. Server configurations with more than 2 TB of memory capacity per socket (including DCPMMs and RDIMMs or 3DS RDIMMs) require processors that support up to 4.5 TB per socket (L-suffix).
Drive bays
  • Up to 16 SFF (front) and 2 LFF (rear) hot-swap drive bays:
    • 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    • 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    • 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 2x 3.5" SAS/SATA
  • Up to 24 SFF (front) and 2 LFF (rear) hot-swap drive bays:
    • 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    • 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    • 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 8x 2.5" SAS/SATA + 2x 3.5" SAS/SATA
    • 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 4x 2.5" SAS/SATA & 4x 2.5" AnyBay
    • 16x 2.5" U.2 NVMe PCIe + 8x 2.5" SAS/SATA (factory-installed only)
    • 20x 2.5" U.2 NVMe PCIe
    • 24x 2.5" U.2 NVMe PCIe
  • Up to 10 LFF SAS/SATA hot-swap drive bays: 8x 3.5" (front) + 2x 3.5" (rear)
  • Up to 14 LFF hot-swap drive bays:
    • 12x 3.5" SAS/SATA (front) + 2x 3.5" SAS/SATA (rear)
    • 8x 3.5" SAS/SATA & 4x 3.5" AnyBay (front) + 2x 3.5" SAS/SATA (rear)
Drive types 2.5-inch hot-swap drives:
  • 12 Gbps SAS HDDs up to 2.4 TB
  • 12 Gbps Nearline (NL) SAS HDDs up to 2 TB
  • 12 Gbps SAS HDD SEDs up to 2.4 TB
  • 12 Gbps NL SAS HDD SEDs up to 2 TB
  • 12 Gbps SAS SSDs up to 15.36 TB
  • 12 Gbps SAS SSD SEDs up to 1.6 TB
  • 6 Gbps NL SATA HDDs up to 2 TB
  • 6 Gbps SATA SSDs up to 7.68 TB
  • 6 Gbps SATA SSD SEDs up to 7.68 TB
  • U.2 NVMe PCIe 3.0 x4 SSDs up to 8 TB
  • U.2 NVMe PCIe 3.0 x4 SSD SEDs up to 3.84 TB
3.5-inch hot-swap drives:
  • 12 Gbps SAS HDDs up to 900 GB (2.5" HDD in a 3.5" tray)
  • 12 Gbps NL SAS HDDs up to 16 TB
  • 12 Gbps NL SAS HDD SEDs up to 8 TB
  • 12 Gbps SAS SSDs up to 7.68 TB (2.5" SSD in a 3.5" tray)
  • 12 Gbps SAS SSD SEDs up to 1.6 TB (2.5" SSD in a 3.5" tray)
  • 6 Gbps NL SATA HDDs up to 16 TB
  • 6 Gbps SATA SSDs up to 7.68 TB (2.5" SSD in a 3.5" tray)
  • NVMe PCIe 3.0 x4 SSDs up to 7.68 TB
Internal M.2 SSDs:
  • 6 Gbps SATA up to 480 GB
Notes:
  • Intermix of SAS, SATA, and NVMe PCIe drives is supported within a system, but not within a RAID array.
  • NVMe PCIe SSDs do not support hardware RAID controllers.
  • NVMe PCIe SSDs are supported in the AnyBay drive bays.
Internal storage capacity
  • 2.5-inch models: Up to 400 TB with 24x 15.36 TB 2.5" SSDs and 2x 16 TB 3.5" HDDs.
  • 3.5-inch models: Up to 224 TB with 14x 16 TB 3.5" HDDs.
Storage controller 12 Gbps SAS/6 Gbps SATA RAID
  • RAID 0/1/10: RAID 530-16i
  • RAID 0/1/10/5/50:
    • RAID 530-8i
    • RAID 730-8i 1GB Cache
  • RAID 0/1/10/5/50/6/60:
    • RAID 730-8i 2GB Flash
    • RAID 930-8i 2GB Flash
    • RAID 930-16i 4GB or 8GB Flash
    • RAID 930-24i 4 GB Flash

12 Gbps SAS/6 Gbps SATA non-RAID: 430-8i or 16i HBA

NVMe PCIe non-RAID
  • Onboard NVMe
  • 810-4P NVMe Switch Adapter
  • 1610-4P NVMe Switch Adapter
  • 1610-8P NVMe Switch Adapter
Optical drive bays None. Support for an external USB DVD RW Optical Disk Drive (See Optical drives).
Network interfaces
  • Onboard LOM slot for up to 4x 1/10 Gb Ethernet ports:
    • 2x or 4x 1 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x or 4x 10 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x or 4x 10 GbE SFP+ ports (no 10/100 Mb support)
  • Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors or single- or dual-port 25 GbE cards with SFP28 connectors.
  • 1x RJ-45 10/100/1000 Mb Ethernet systems management port.
I/O expansion slots Up to seven slots. Slots 4 and 7 are the fixed slots on the system planar, and the remaining slots depend on the riser cards installed. The slots are as follows:
  • Slot 1: PCIe 3.0 x16 or PCIe 3.0 x8; full-height, half-length (PCIe x16 slot can be single- or double-wide)
  • Slot 2: PCIe 3.0 x8; full-height, half-length (not present if Slot 1 is PCIe x16 double-wide or Slot 3 is ML2 x16)
  • Slot 3: PCIe 3.0 x8, or PCIe 3.0 x16, or ML2 x8, or ML2 x16; full-height, half-length
  • Slot 4: PCIe 3.0 x8; low profile (vertical slot on system planar)
  • Slot 5: PCIe 3.0 x16; full-height, half-length
  • Slot 6: PCIe 3.0 x16; full-height, half-length
  • Slot 7: PCIe 3.0 x8 (for an internal storage controller)
Slots 5 and 6 require the second processor to be installed. Single-wide PCIe x16 Slot 1 requires the second processor to be installed.
Ports
  • Front: 1x USB 2.0 port with XClarity Controller access and 1x USB 3.0 port; optional 1x VGA port.
  • Rear: 2x USB 3.0 ports and 1x VGA port; optional 1x DB-9 serial port.
Cooling Five (one processor) or six (two processors) hot-swap system fans with N+1 redundancy.
Power supply Up to two redundant hot-swap 550 W, 750 W, or 1100 W (100 - 240 V), or 1600 W (200 - 240 V) High Efficiency Platinum AC power supplies, or 750 W (200 - 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only).
Video Matrox G200e with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920x1200 at 60 Hz with 32 bits per pixel.
Hot-swap parts Drives, power supplies, and fans.
Systems management XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, light path diagnostics, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner.
Security features Power-on password, administrator's password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC). Optional Lenovo Business Vantage security software (available only in PRC).
Operating systems Microsoft Windows Server 2016 and 2019; Red Hat Enterprise Linux (RHEL) 7 and 8; SUSE Linux Enterprise Server (SLES) 12 and 15; VMware vSphere (ESXi) 6.5 and 6.7.
Warranty One-year (Machine Type 7X05) or three-year (Machine Type 7X06) customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered.
Service and support Optional Lenovo Services upgrades: 2-hour or 4-hour response time, 6-hour or 24-hour committed service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive YourData, Enterprise Software Support, and Basic Hardware Installation Services.
Dimensions Height: 87 mm (3.4 in), width: 445 mm (17.5 in), depth: 720 mm (28.3 in)
Weight Minimum configuration: 19 kg (41.9 lb), maximum: 32 kg (70.5 lb)

Models

ThinkSystem SR650 server models can be configured by using the Lenovo Data Center Solution Configurator (DCSC):
http://dcsc.lenovo.com

ThinkSystem SR650 server models are region-specific; that is, each region may define their own server models, and not all server models are available in every region. For a complete list of the SR650 models, contact a Lenovo or Lenovo Business Partner representative in your region. Information on the SR650 models is also available on the PSREF website:
http://psref.lenovo.com/Product/ThinkSystem/ThinkSystem_SR650

Configure-to-order (CTO) models can also be created for factory-integrated server customization. The following table lists the base CTO models of the ThinkSystem SR650 server.

Table 2. Base CTO models
Description Machine Type/Model
ThinkSystem SR650 - 3yr Warranty 7X06CTO1WW
ThinkSystem SR650 - 1yr Warranty 7X05CTO1WW

The following table lists the base chassis for CTO models of the SR650 server.

Table 3. Base chassis for CTO models
Description Feature code
ThinkSystem SR650 2.5" Chassis with 8, 16 or 24 bays AUVV
ThinkSystem SR650 3.5" Chassis with 8 or 12 bays AUVW
ThinkSystem SR650 2.5" Chassis with 8 or 16 bays AUVX

All models of the SR650 server are shipped with the following items:

  • Rack Installation Guide
  • Electronic Publications Flyer

Models table conventions: The model tables shown in this section use the following conventions:

  • Drive bays:
    • If the number is shown as "x", it represents the quantity of the SAS/SATA drive bays.
    • If the number is shown as "x+y", it represents the quantity of the SAS/SATA + AnyBay drive bays.
    • SFF and LFF drive bays are hot-swap.
    • M.2 drive bays are non-hot-swap.
  • XClarity Controller: "S" = Standard, "A" = Advanced, "E" = Enterprise.
  • Front VGA port: "Y" = Included; "N" = Not included, optional.
  • Tool-less Rail Kit: "Y" = Included; "N" = Not included, optional.
  • Cable Management Arm (CMA): "Y" = Included; "N" = Not included, optional.
  • Power cord:
    • "L2" = 2.8 m line cord.
    • "R2" = 2.8 m C13-C14 rack power cable.
    • "N" = Not included; see Power supplies and cables for the ordering information.
Table 4. SR650 server models: North America
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
​(24 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(7 max)^
Power
supply
(2 max)
GPU
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - North America
7X06A0FJNA 1x 5217 8C
115W 3.0GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E Y Y N R2
7X06A0FDNA 1x 5218 16C
125W 2.3GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E Y Y N R2
7X06A0FFNA 1x 5220 18C
125W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E Y Y N R2
7X06A0FBNA 1x 6242 16C
150W 2.8GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E Y Y N R2
7X06A0FANA 1x 6248 20C
150W 2.5GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E Y Y N R2
7X06A0F9NA 1x 6252 24C
150W 2.1GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E Y Y N R2
7X06A0FCNA 1x 8260 24C
165W 2.4GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E Y Y N R2
7X06A0FGNA 1x 8268 24C
205W 2.9GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 16
SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E Y Y N R2
TopSeller models - North America
7X06A0FHNA 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E Y Y N R2
7X06A0FENA 1x 4214 12C
85W 2.2GHz
1x 16GB (x8)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E Y Y N R2
7X06A0FKNA 1x 4216 16C
100W 2.1GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E Y Y N R2
7X06A0FLNA 1x 5218 16C
125W 2.3GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.
† Includes NVIDIA GRID vPC Subscription Licenses 3Yr, 1 CCU for 64 concurrent users.

Table 5. SR650 server models: Brazil
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
​(24 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(7 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
SAP Business One workload-optimized models with SLES Standard Subscription w/Lenovo Support 1Yr - Brazil
7X06A0J4BR 2x 8276M 28C
165W 2.2GHz
24x 128GB
(x4) 2933MHz
1x RAID
930-24i 4GB
20 + 4 /
24 SFF
16x 960GB
S4610
4x 1Gb
RJ-45
2x PCIe x8
2x PCIe x16
2x 1100W Y N Y Y R2
TopSeller models - Brazil
7X06100RBR 1x 3204 6C
85W 1.9GHz
1x 16GB (x8)
2666MHz
1x RAID
530-8i
8 / 8
LFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 550W S N Y N R2
7X06A0HKBR 1x 4210 10C
85W 2.2GHz
1x 32GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 16
SFF
Open
bay
4x 1Gb
RJ-45
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S Y Y N R2
7X06A0HJBR 1x 4214 12C
85W 2.2GHz
1x 32GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 16
SFF
Open
bay
4x 1Gb
RJ-45
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S Y Y N R2
7X06A0HUBR 1x 5218 16C
125W 2.3GHz
1x 32GB (x4)
2933MHz
1x RAID
730-8i 2GB
8 / 16
SFF
Open
bay
4x 1Gb
RJ-45
2x PCIe x8 1x 750W
Platinum
S Y Y N L2
7X06A0HVBR 2x 5218 16C
125W 2.3GHz
2x 32GB (x4)
2933MHz
1x RAID
730-8i 2GB
8 / 16
SFF
Open
bay
4x 1Gb
RJ-45
2x PCIe x8 2x 750W
Platinum
S Y Y N L2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.

Table 6. SR650 server models: Latin America (except Brazil)
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
​(24 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(7 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
SAP Business One workload-optimized models with SLES Standard Subscription w/Lenovo Support 1Yr - Latin America (except Brazil)
7X06A0J3LA 2x 8276M 28C
165W 2.2GHz
24x 128GB
(x4) 2933MHz
1x RAID
930-24i 4GB
20 + 4 /
24 SFF
16x 960GB
S4610
4x 1Gb
RJ-45
2x PCIe x8
2x PCIe x16
2x 1100W Y N Y Y R2
Relationship models - Latin America (except Brazil)
7X06A0H8LA 1x 4210 10C
85W 2.2GHz
1x 32GB (x4)
2933MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
S Y Y N R2
7X06A0HBLA 1x 5220 18C
125W 2.2GHz
1x 32GB (x4)
2933MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 1100W
Platinum
S Y Y N R2
TopSeller models - Latin America (except Brazil)
7X06A0H9LA 1x 4214 12C
85W 2.2GHz
1x 32GB (x4)
2933MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
S Y Y N R2
7X06A0HALA 1x 4216 16C
100W 2.1GHz
1x 32GB (x4)
2933MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
S Y Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.

Table 7. SR650 server models: EMEA
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
​(24 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(7 max)^
Power
supply
(2 max)
GPU
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - EMEA
7X06A0AWEA 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2666MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0ATEA 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2666MHz
1x RAID
930-16i 4GB
12 / 14
LFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0HSEA 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0H5EA 1x 4208 8C
85W 2.1GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
2x480GB
PM883
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0B3EA 1x 4210 10C
85W 2.2GHz
1x 16GB (x8)
2666MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0B7EA 1x 4210 10C
85W 2.2GHz
1x 16GB (x8)
2666MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0B4EA 1x 4210 10C
85W 2.2GHz
1x 16GB (x8)
2666MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0HTEA 1x 4210 10C
85W 2.2GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0B0EA 1x 4210 10C
85W 2.2GHz
1x 32GB (x4)
2666MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 2x 750W
Platinum
N E N Y N R2
7X06A0H7EA 1x 4210 10C
85W 2.2GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
2x480GB
PM883
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0JXEA 1x 4210R 10C
100W 2.4GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0JSEA 1x 4210R 10C
100W 2.4GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0JZEA 1x 4210R 10C
100W 2.4GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0JYEA 1x 4210R 10C
100W 2.4GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 2x 750W
Platinum
N E N Y N R2
7X06A0B9EA 1x 4214 12C
85W 2.2GHz
1x 16GB (x8)
2666MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0AZEA 1x 4214 12C
85W 2.2GHz
1x 32GB (x4)
2666MHz
1x RAID
930-16i 4GB
12 / 14
LFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0AVEA 1x 4214 12C
85W 2.2GHz
1x 32GB (x4)
2666MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 2x 750W
Platinum
N E N Y N R2
7X06A0B2EA 1x 4214 12C
85W 2.2GHz
1x 32GB (x4)
2666MHz
1x RAID
930-16i 4GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0K1EA 1x 4214R 12C
100W 2.4GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0JREA 1x 4214R 12C
100W 2.4GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 2x 750W
Platinum
N E N Y N R2
7X06A0AREA 1x 4215 8C
85W 2.5GHz
1x 16GB (x8)
2666MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0K4EA 1x 4215R 8C
130W 3.2GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0JNEA 1x 4215R 8C
130W 3.2GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0JLEA 1x 4215R 8C
130W 3.2GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0AXEA 1x 4216 16C
100W 2.1GHz
1x 16GB (x8)
2666MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0B5EA 1x 5217 8C
115W 3.0GHz
1x 16GB (x8)
2666MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0H6EA 1x 5217 8C
115W 3.0GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0BCEA 1x 5218 16C
125W 2.3GHz
1x 16GB (x8)
2666MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0ASEA 1x 5218 16C
125W 2.3GHz
1x 32GB (x4)
2666MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0K5EA 1x 5218R 20C
125W 2.1GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0JHEA 1x 5218R 20C
125W 2.1GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0K6EA 1x 5220R 24C
150W 2.2GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0J9EA 1x 6226 12C
125W 2.7GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0K7EA 1x 6226R 16C
150W 2.9GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0JJEA 1x 6226R 16C
150W 2.9GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0BBEA 1x 6230 20C
125W 2.1GHz
1x 16GB (x8)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0BAEA 1x 6230 20C
125W 2.1GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0K2EA 1x 6230R 26C
150W 2.1GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0JKEA 1x 6230R 26C
150W 2.1GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0JCEA 1x 6234 8C
130W 3.3GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0JUEA 1x 6238R 28C
165W 2.2GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0AQEA 1x 6240 18C
150W 2.6GHz
1x 16GB (x8)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0JMEA 1x 6240R 24C
165W 2.4GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 750W
Platinum
N E N Y N R2
7X06A0B1EA 1x 6242 16C
150W 2.8GHz
1x 16GB (x8)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0JQEA 1x 6242R 20C
205W 3.1GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0B6EA 1x 6244 8C
150W 3.6GHz
1x 16GB (x8)
2933MHz
None No bays /
16 SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0J7EA 1x 6246 12C
165W 3.3GHz
1x 32GB (x4)
2933MHz
None No bays /
8 SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0JTEA 1x 6246R 16C
205W 3.4GHz
1x 32GB (x4)
2933MHz
None No bays /
8 SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0AUEA 1x 6248 20C
150W 2.5GHz
1x 16GB (x8)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0J6EA 2x 6248 20C
150W 2.5GHz
12x 32GB (x4)
2933MHz
1x M.2
RAID
No bays /
16 SFF
2x M.2
1x128GB
M.2 SSD
4x10Gb
RJ-45
3x PCIe x8
3x PCIe x16
2x 1600W
Platinum
2x M10†
E N Y N R2
7X06A0J5EA 2x 6248 20C
150W 2.5GHz
12x 32GB (x4)
2933MHz
1x M.2
RAID
No bays /
16 SFF
2x M.2
1x128GB
M.2 SSD
4x10Gb
RJ-45
3x PCIe x8
3x PCIe x16
2x 1600W
Platinum
2x M10††
E N Y N R2
7X06A0GVEA 2x 6248 20C
150W 2.5GHz
12x 32GB (x4)
2933MHz
1x M.2
RAID
No bays /
16 SFF
2x M.2
2x128GB
M.2 SSD
4x10Gb
RJ-45
3x PCIe x8
3x PCIe x16
2x 1600W
Platinum
2x M10†
E N Y N R2
7X06A0GYEA 2x 6248 20C
150W 2.5GHz
12x 32GB (x4)
2933MHz
1x M.2
RAID
No bays /
16 SFF
2x M.2
2x128GB
M.2 SSD
4x10Gb
RJ-45
3x PCIe x8
3x PCIe x16
2x 1600W
Platinum
2x M10
E N Y N R2
7X06A0JBEA 2x 6248 20C
150W 2.5GHz
12x 32GB (x4)
2933MHz
1x M.2
RAID
No bays /
16 SFF
2x M.2
1x128GB
M.2 SSD
4x10Gb
RJ-45
5x PCIe x8
2x PCIe x16
2x 1600W
Platinum
4x T4†
E N Y N R2
7X06A0JEEA 2x 6248 20C
150W 2.5GHz
12x 32GB (x4)
2933MHz
1x M.2
RAID
No bays /
16 SFF
2x M.2
1x128GB
M.2 SSD
4x10Gb
RJ-45
5x PCIe x8
2x PCIe x16
2x 1600W
Platinum
4x T4††
E N Y N R2
7X06A0GWEA 2x 6248 20C
150W 2.5GHz
12x 32GB (x4)
2933MHz
1x M.2
RAID
No bays /
16 SFF
2x M.2
2x128GB
M.2 SSD
4x10Gb
RJ-45
5x PCIe x8
2x PCIe x16
2x 1600W
Platinum
4x T4†
E N Y N R2
7X06A0GUEA 2x 6248 20C
150W 2.5GHz
12x 32GB (x4)
2933MHz
1x M.2
RAID
No bays /
16 SFF
2x M.2
2x128GB
M.2 SSD
4x10Gb
RJ-45
5x PCIe x8
2x PCIe x16
2x 1600W
Platinum
4x T4
E N Y N R2
7X06A0JVEA 1x 6248R 24C
205W 3.0GHz
1x 32GB (x4)
2933MHz
None No bays /
8 SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0JWEA 1x 6250 8C
185W 3.9GHz
1x 32GB (x4)
2933MHz
None No bays /
24‡ SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0AYEA 1x 6254 18C
200W 3.1GHz
1x 32GB (x4)
2933MHz
None No bays /
16 SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0K0EA 1x 6256 12C
205W 3.6GHz
1x 32GB (x4)
2933MHz
None No bays /
16 SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2
7X06A0K3EA 1x 6258R 28C
205W 2.7GHz
1x 32GB (x4)
2933MHz
None No bays /
8 SFF
Open
bay
Open
slot
2x PCIe x8 1x 1100W
Platinum
N E N Y N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.
† Includes NVIDIA GRID vPC Subscription Licenses for 3 Years, 64 CCU.
†† Includes NVIDIA GRID vPC Subscription Licenses for 5 Years, 64 CCU.

Table 8. SR650 server models: India
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
​(24 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(7 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
TopSeller models - India
7X06A0CXSG 1x 3204 6C
85W 1.9GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0D4SG 1x 3204 6C
85W 1.9GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0BWSG 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0CYSG 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0BLSG 1x 4210 10C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0C6SG 1x 4210 10C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0C9SG 1x 4214 12C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0C5SG 1x 4214 12C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0BESG 1x 4215 8C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0CCSG 1x 4215 8C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0D8SG 1x 4216 16C
100W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0CJSG 1x 4216 16C
100W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0DKSG 1x 5215 10C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0DHSG 1x 5215 10C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0CQSG 1x 5217 8C
115W 3.0GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0BUSG 1x 5217 8C
115W 3.0GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0CZSG 1x 5218 16C
125W 2.3GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0DGSG 1x 5218 16C
125W 2.3GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0DLSG 1x 5220 18C
125W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0DBSG 1x 5220 18C
125W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0C3SG 1x 6230 20C
125W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0DDSG 1x 6230 20C
125W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0D1SG 1x 6240 18C
150W 2.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0CPSG 1x 6240 18C
150W 2.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0DQSG 1x 6242 16C
150W 2.8GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0CHSG 1x 6242 16C
150W 2.8GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0D2SG 1x 6244 8C
150W 3.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 16
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0D0SG 1x 6248 20C
150W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0CNSG 1x 6248 20C
150W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0CBSG 1x 6252 24C
150W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0CKSG 1x 6252 24C
150W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2
7X06A0CLSG 1x 6254 18C
200W 3.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 16
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N R2

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.

Table 9. SR650 server models: Hong Kong, Taiwan, Korea
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
​(24 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(7 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
TopSeller models - Hong Kong, Taiwan, Korea
7X06A0BSCN 1x 3204 6C
85W 1.9GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0D3CN 1x 3204 6C
85W 1.9GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0CECN 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0CDCN 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DCCN 1x 4210 10C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0CTCN 1x 4210 10C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0D5CN 1x 4214 12C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BRCN 1x 4214 12C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DJCN 1x 4215 8C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BVCN 1x 4215 8C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BNCN 1x 4216 16C
100W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0CRCN 1x 4216 16C
100W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0D7CN 1x 5215 10C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0C7CN 1x 5215 10C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0CUCN 1x 5217 8C
115W 3.0GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0D6CN 1x 5217 8C
115W 3.0GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0C8CN 1x 5218 16C
125W 2.3GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DFCN 1x 5218 16C
125W 2.3GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0C0CN 1x 5220 18C
125W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BYCN 1x 5220 18C
125W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DECN 1x 6230 20C
125W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DACN 1x 6230 20C
125W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BXCN 1x 6240 18C
150W 2.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DNCN 1x 6240 18C
150W 2.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0D9CN 1x 6242 16C
150W 2.8GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BHCN 1x 6242 16C
150W 2.8GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0C4CN 1x 6244 8C
150W 3.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 16
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0CMCN 1x 6248 20C
150W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BDCN 1x 6248 20C
150W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DMCN 1x 6252 24C
150W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BTCN 1x 6252 24C
150W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BMCN 1x 6254 18C
200W 3.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 16
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.

Table 10. SR650 server models: Japan
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
​(24 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(7 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Japan
7X06A0CGJP 1x 6230 20C
125W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N
7X06A0DVJP 1x 6240 18C
150W 2.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 1100W
Platinum
A N Y N N
7X06A0DRJP 1x 6242 16C
150W 2.8GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 1100W
Platinum
A N Y N N
7X06A0DWJP 1x 6244 8C
150W 3.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 16
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 1100W
Platinum
A N Y N N
7X06A0DPJP 1x 6244 8C
150W 3.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 16
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 1600W
Platinum
A N Y N N
7X06A0DTJP 1x 6248 20C
150W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 1100W
Platinum
A N Y N N
7X06A0DUJP 1x 6252 24C
150W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 1100W
Platinum
A N Y N N
7X06A0DSJP 1x 6254 18C
200W 3.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 16
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 1100W
Platinum
A N Y N N
7X06A0DXJP 1x 8280M 28C
205W 2.7GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 16
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 1100W
Platinum
A N Y N N
TopSeller models - Japan
7X06A0BKJP 1x 3204 6C
85W 1.9GHz
1x 16GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 8
LFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 550W
Platinum
A N Y N N
7X06A0BQJP 1x 3204 6C
85W 1.9GHz
1x 16GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N
7X06A0BPJP 1x 4208 8C
85W 2.1GHz
1x 16GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N
7X06A0BGJP 1x 4210 10C
85W 2.2GHz
1x 16GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N
7X06A0CAJP 1x 4210 10C
85W 2.2GHz
1x 16GB (x4)
2666MHz
1x RAID
930-16i 4GB
12 / 14
LFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N
7X06A0BFJP 1x 4214 12C
85W 2.2GHz
1x 16GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N
7X06A0BJJP 1x 4215 8C
85W 2.5GHz
1x 16GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N
7X06A0BZJP 1x 4216 16C
100W 2.1GHz
1x 16GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N
7X06A0C2JP 1x 4216 16C
100W 2.1GHz
1x 16GB (x4)
2666MHz
1x RAID
930-16i 4GB
12 / 14
LFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N
7X06A0C1JP 1x 5215 10C
85W 2.5GHz
1x 16GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N
7X06A0CVJP 1x 5217 8C
115W 3.0GHz
1x 16GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N
7X06A0CWJP 1x 5218 16C
125W 2.3GHz
1x 16GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N
7X06A0CSJP 1x 5220 18C
125W 2.2GHz
1x 16GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N
7X06A0CFJP 1x 5222 4C
105W 3.8GHz
1x 16GB (x4)
2666MHz
1x RAID
730-8i 2GB
8 / 24‡
SFF
Open
bay
4x 1Gb
RJ-45
5x PCIe x8 1x 750W
Platinum
A N Y N N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.

Table 11. SR650 server models: ASEAN
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
​(24 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(7 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
TopSeller models - ASEAN
7X06A0BSSG 1x 3204 6C
85W 1.9GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0D3SG 1x 3204 6C
85W 1.9GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0CESG 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0CDSG 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DCSG 1x 4210 10C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0CTSG 1x 4210 10C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0D5SG 1x 4214 12C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BRSG 1x 4214 12C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DJSG 1x 4215 8C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BVSG 1x 4215 8C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BNSG 1x 4216 16C
100W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0CRSG 1x 4216 16C
100W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0D7SG 1x 5215 10C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0C7SG 1x 5215 10C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0CUSG 1x 5217 8C
115W 3.0GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0D6SG 1x 5217 8C
115W 3.0GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0C8SG 1x 5218 16C
125W 2.3GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DFSG 1x 5218 16C
125W 2.3GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0C0SG 1x 5220 18C
125W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BYSG 1x 5220 18C
125W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DESG 1x 6230 20C
125W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DASG 1x 6230 20C
125W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BXSG 1x 6240 18C
150W 2.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DNSG 1x 6240 18C
150W 2.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0D9SG 1x 6242 16C
150W 2.8GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BHSG 1x 6242 16C
150W 2.8GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0C4SG 1x 6244 8C
150W 3.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 16
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0CMSG 1x 6248 20C
150W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BDSG 1x 6248 20C
150W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DMSG 1x 6252 24C
150W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BTSG 1x 6252 24C
150W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0BMSG 1x 6254 18C
200W 3.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 16
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.

Table 12. SR650 server models: Australia and New Zealand
Model
number
Intel Xeon
processor*
(2 max)
Memory
RDIMM
​(24 max)
Storage
controller
Drive
bays
(std /
max)
Drives Eth.
LOM
I/O slots
(7 max)^
Power
supply
(2 max)
XClarity Controller
Front VGA port
Tool-less Rail Kit
CMA
Power cord
Relationship models - Australia and New Zealand
7X06A0EHAU 1x 3204 6C
85W 1.9GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0EKAU 1x 3204 6C
85W 1.9GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0EJAU 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0ELAU 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0EUAU 1x 4210 10C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0EPAU 1x 4210 10C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0ECAU 1x 4214 12C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0ESAU 1x 4214 12C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0EFAU 1x 4215 8C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0ERAU 1x 4215 8C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DYAU 1x 4216 16C
100W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0F3AU 1x 4216 16C
100W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0EDAU 1x 5215 10C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0EGAU 1x 5215 10C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0F2AU 1x 5217 8C
115W 3.0GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0F8AU 1x 5217 8C
115W 3.0GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0EMAU 1x 5218 16C
125W 2.3GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0F7AU 1x 5218 16C
125W 2.3GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0EEAU 1x 5220 18C
125W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0DZAU 1x 5220 18C
125W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0F6AU 1x 6230 20C
125W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0F5AU 1x 6230 20C
125W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0F1AU 1x 6240 18C
150W 2.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0E1AU 1x 6240 18C
150W 2.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0EVAU 1x 6242 16C
150W 2.8GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0E7AU 1x 6242 16C
150W 2.8GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0EQAU 1x 6244 8C
150W 3.6GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 16
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0EAAU 1x 6248 20C
150W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0E9AU 1x 6248 20C
150W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0ENAU 1x 6252 24C
150W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 8
HS LFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0E8AU 1x 6252 24C
150W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
7X06A0EBAU 1x 6254 18C
200W 3.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 16
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
S N N N N
TopSeller models - Australia and New Zealand
7X06A0EWAU 1x 3204 6C
85W 1.9GHz
1x 16GB (x8)
2933MHz
1x RAID
530-8i
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
E N Y Y N
7X06A0ETAU 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
530-8i
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
E N Y Y N
7X06A0EZAU 1x 4208 8C
85W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
E N Y Y N
7X06A0EXAU 1x 4210 10C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
530-8i
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
E N Y Y N
7X06A0E0AU 1x 4210 10C
85W 2.2GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
E N Y Y N
7X06A0E2AU 1x 4210 10C
85W 2.2GHz
1x 32GB (x4)
2933MHz
1x RAID
530-8i
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
E N Y Y N
7X06A0E3AU 1x 4210 10C
85W 2.2GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
E N Y Y N
7X06A0E4AU 1x 4215 8C
85W 2.5GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
E N Y Y N
7X06A0E5AU 1x 4215 8C
85W 2.5GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
E N Y Y N
7X06A0E6AU 1x 4216 16C
100W 2.1GHz
1x 16GB (x8)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
E N Y Y N
7X06A0F0AU 1x 4216 16C
100W 2.1GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
E N Y Y N
7X06A0EYAU 1x 5217 8C
115W 3.0GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
E N Y Y N
7X06A0F4AU 1x 5218 16C
125W 2.3GHz
1x 32GB (x4)
2933MHz
1x RAID
930-8i 2GB
8 / 24‡
SFF
Open
bay
Open
slot
3x PCIe x8
1x PCIe x16
1x 750W
Platinum
E N Y Y N

* Processor details: Processor quantity and model, cores, thermal design power (TDP), and core speed.
^ The server supports two onboard PCIe slots 4 and 7 and up to five I/O slots on the riser cards. An internal storage controller occupies the PCIe slot 7.
‡ Models with 8, 16, or 24 SFF drive bays can be upgraded with 2 additional LFF rear drive bays (See Internal storage for details) that are not included in the maximum quantity shown.

Processors

The SR650 server supports one or two Intel Xeon Bronze, Silver, Gold, or Platinum processors. The following table lists the specifications of the processors for the SR650 server.

Processor specifications table abbreviations:

  • UPI: Ultra Path Interconnect
  • TDP: Thermal Design Power
  • HT: Hyper-Threading
  • TB: Turbo Boost 2.0
  • VT-x: Virtualization Technology
  • VT-d: Virtualization Technology for Directed I/O
  • SST-PP: Speed Select Technology - Performance Profile
  • FMA: Fused-Multiply Add (AVX-512)
  • DCPMM: DC Persistent Memory Module
  • RAS: Reliability, Availability, and Serviceability
    • Std: Standard RAS
    • Adv: Advanced RAS
Table 13. Processor specifications
CPU
model
Cores /
threads
Core speed
(Base / TB Max)
Cache Max DDR4
speed
Max memory
capacity
per socket
UPI
speed
TDP
HT
TB
VT-x
VT-d
SST-PP
FMA units
DCPMM
RAS
Intel Xeon Bronze processors
3204 6 / 6 1.9 / 1.9 GHz 8.25 MB 2133 MHz 1 TB 9.6 GT/s 85 W N N Y Y N 1 N Std
3206R 8 / 8 1.9 / 1.9 GHz 11 MB 2133 MHz 1 TB 9.6 GT/s 85 W N N Y Y N 1 N Std
Intel Xeon Silver processors
4208 8 / 16 2.1 / 3.2 GHz 11 MB 2400 MHz 1 TB 9.6 GT/s 85 W Y Y Y Y N 1 N Std
4209T 8 / 16 2.2 / 3.2 GHz 11 MB 2400 MHz 1 TB 9.6 GT/s 70 W Y Y Y Y N 1 N Std
4210 10 / 20 2.2 / 3.2 GHz 13.75 MB 2400 MHz 1 TB 9.6 GT/s 85 W Y Y Y Y N 1 N Std
4210R 10 / 20 2.4 / 3.2 GHz 13.75 MB 2400 MHz 1 TB 9.6 GT/s 100 W Y Y Y Y N 1 N Std
4210T 10 / 20 2.3 / 3.2 GHz 13.75 MB 2400 MHz 1 TB 9.6 GT/s 95 W Y Y Y Y N 1 N Std
4214 12 / 24 2.2 / 3.2 GHz 16.5 MB 2400 MHz 1 TB 9.6 GT/s 85 W Y Y Y Y N 1 N Std
4214R 12 / 24 2.4 / 3.5 GHz 16.5 MB 2400 MHz 1 TB 9.6 GT/s 100 W Y Y Y Y N 1 N Std
4214Y 12 / 24 2.2 / 3.2 GHz 16.5 MB 2400 MHz 1 TB 9.6 GT/s 85 W Y Y Y Y Y 1 N Std
10 / 20 2.3 / 3.2 GHz
8 / 16 2.4 / 3.2 GHz
4215 8 / 16 2.5 / 3.5 GHz 11 MB 2400 MHz 1 TB 9.6 GT/s 85 W Y Y Y Y N 1 Y Std
4215R 8 / 16 3.2 / 4.0 GHz 11 MB 2400 MHz 1 TB 9.6 GT/s 130 W Y Y Y Y N 1 Y Std
4216 16 / 32 2.1 / 3.2 GHz 22 MB 2400 MHz 1 TB 9.6 GT/s 100 W Y Y Y Y N 1 N Std
Intel Xeon Gold processors
5215 10 / 20 2.5 / 3.4 GHz 13.75 MB 2666 MHz 1 TB 10.4 GT/s 85 W Y Y Y Y N 1
