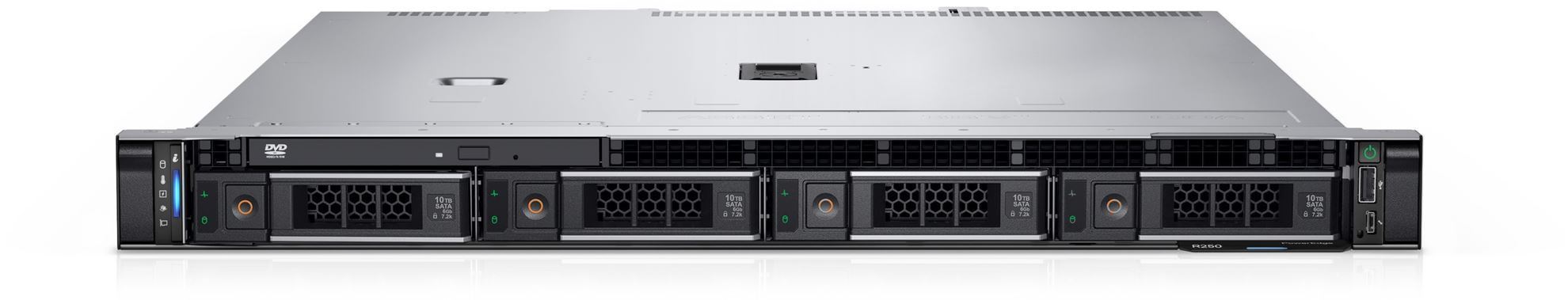

Dell PowerEdge R250 Hot Plug E-2334

  • Intel Xeon E-2334 3.4GHz, 8M Cache, 4C/8T, Turbo (65W), 3200 MT/s
  • 8GB UDIMM, 3200MT/s, ECC
  • Dell 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
  • PERC H755 Controller, 12Gb/s SAS/SATA, 8GB NV Cache
  • On-Board Broadcom 5720 Dual Port 1Gb LOM
  • iDRAC9, Basic 15G
  • Slots: 2 x PCIe Gen4 slots
  • Storage: 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD)
  • DVD +/-RW, SATA, Internal
  • Power Supply: Single, Cabled Power Supply, 450W Bronze
  • Power Cord - C13, 1.9M, 250V, 10A
  • Form factor: Rack (1U), ReadyRails Sliding Rails
  • Warranty : 4 Year ProSupport and NBD Onsite
Nhà sản xuất: Dell
47.900.000 ₫


Processor

One Intel Xeon E-2300 series processor with up to 8 cores
One Intel Pentium processor with up to 2 cores

Operating System

(Dell Technologies recommends Windows 11 Pro for business)
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

Chipset

Intel® C256 series

Memoryi

DIMM Speed
Up to 3200 MT/s
Note: For Pentium® processor, maximum memory speed supported is 2666 MT/s

Memory Type
UDIMM

Memory Module Slots

4 DDR4 DIMM slots

Maximum RAM

UDIMM 128 GB

Storage

Front Bays:
Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB
Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 15.36 TB

Storage Controllers

Internal Controllers:
PERC H345, PERC H755, HBA355i

External Controllers:
HBA355e, 12 Gbps SAS Ext. HBA

Software RAID:
S150

Internal Boot:
Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module or USB

Security

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

Embedded / At-the-Server:
iDRAC9
iDRAC Service Module
iDRAC Direct

Consoles:
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin

Mobility:
OpenManage Mobile

Tools:
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs

OpenManage Integrations:
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager

OpenManage connections:
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI

Power Supplies

450 W AC/100-240 V Bronze
450 W AC/100-240 V Platinum

Ports

Network Options
2 x 1 GbE LOM

Front Ports
1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0

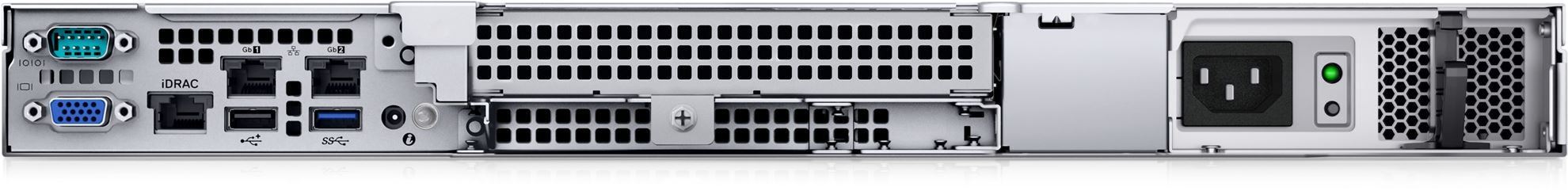

Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x VGA

Internal Ports
1 x USB 3.0 (optional)

Slots

PCIe
2 x PCIe Gen4 slots

Bezel

Optional security bezel

Form Factor

1U rack server

Dimensions & Weight

Height
1.68 inch (42.8 mm)

Width
18.97 inch (482 mm)

Depth

23.56 inch (598.64 mm) with bezel
23.02 inch (585 mm) without bezel

Weight
27.51 lbs. (12.48 kg)i

Rack Support

ReadyRails static rails for 4-post and 2-post racks.

Recommended Support

Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
