Processor
Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 32 cores per processor
Operating System
(Dell Technologies recommends Windows 11 Pro for business)
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Chipset
Intel C620 series chipset
Accelerators
Up to two double wide 300 W NVIDIA A40 or five single wide 70 W NVIDIA T4 accelerators
Memoryi
DIMM Speed
Up to 3200 MT/s
Memory Type
RDIMM
Memory Module Slots
16 DDR4 DIMM slots
Maximum RAM
RDIMM 1 TB
Storage
Front Bays
Up to 8 x 2.5-inch SAS/SATA (HDD) max 120 TB
Up to 16 x 2.5-inch SAS/SATA (HDD) max 240 TB
Up to 24 x 2.5-inch SAS/SATA (HDD) max 360 TB
Up to 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB
Up to 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch NVMe (SSD) max 240 TB
Storage Controllers
Internal Controllers
PERC H345, PERC H755, PERC H755N, HBA355i
External Controllers
PERC H840, HBA355e
Software RAID
S150
Internal Boot
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module or Internal USB
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module
Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager
OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI
Power Supplies
600W Platinum 100–240 VAC or 240 HVDC, hot swap redundant
800W Platinum 100–240 VAC or 240 HVDC, hot swap redundant
1100W Titanium 100–240 VAC or 240 HVDC or -48 V, hot swap redundant
1400W Platinum 100–240 VAC or 240 HVDC, hot swap redundant
2400W Platinum 100–240 VAC or 240 HVDC, hot swap redundant
Hot swap power supplies with full redundancy option
Up to 8 fans with full redundancy
Ports
Network Options
2 x 1GbE LOM and OCP x16 Mezz 3.0 (optional)
Front Ports
1 x Dedicated iDRAC Direct micro-USB (optional)
1 x USB 2.0
1 x USB 3.0

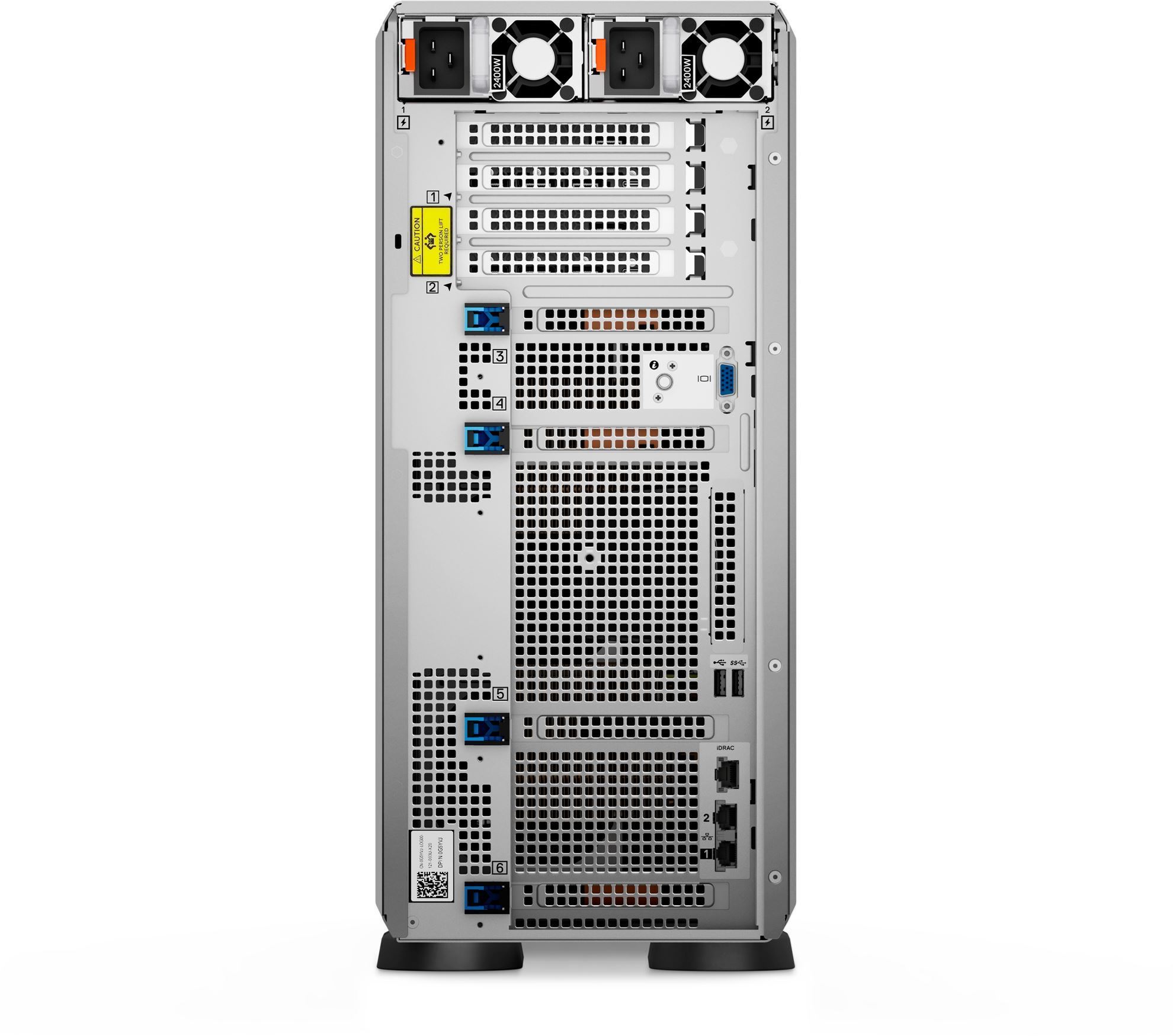

Rear Ports
1 x USB 2.0
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 3.0
1 x Serial (optional)
2 x Ethernet
1 x VGA
Internal Ports
1 x USB 3.0 (optional)
Slots
PCIe
5 x PCIe Gen4 slots + 1 x PCIe Gen3 slot
3 x 16 Gen4 (x16 connector) full height, half length
1 x 4 Gen3 (x8 connector) full height, half length
2 x 16 Gen4 (x16 connector) full height, full length (optional)
Video Card
1 x VGA
Chassis
Up to 8 fans with full redundancy
Bezel
Optional LCD bezel or security bezel

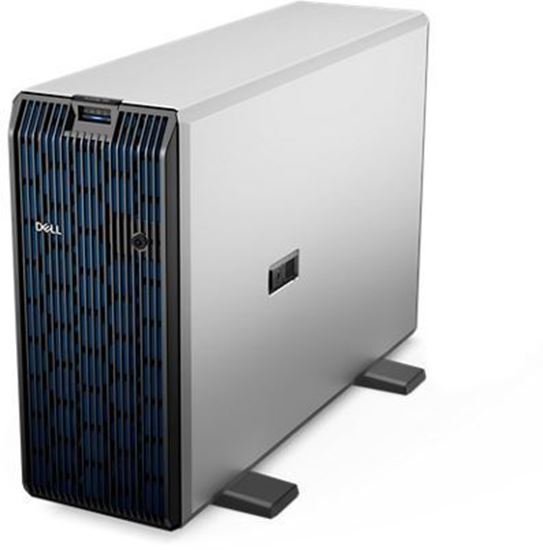

Form Factor
5U Tower server
Dimensions & Weight
Height
459.00 mm (18.07 in.)
Width
200.00 mm (7.87 in.)
Depth
680.50 mm (26.79 in.) with bezel
663.50 mm (26.12 in.) without bezel
Weight
Max 44.48 kg (98.06 lbs.)i
Rack Support
System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
